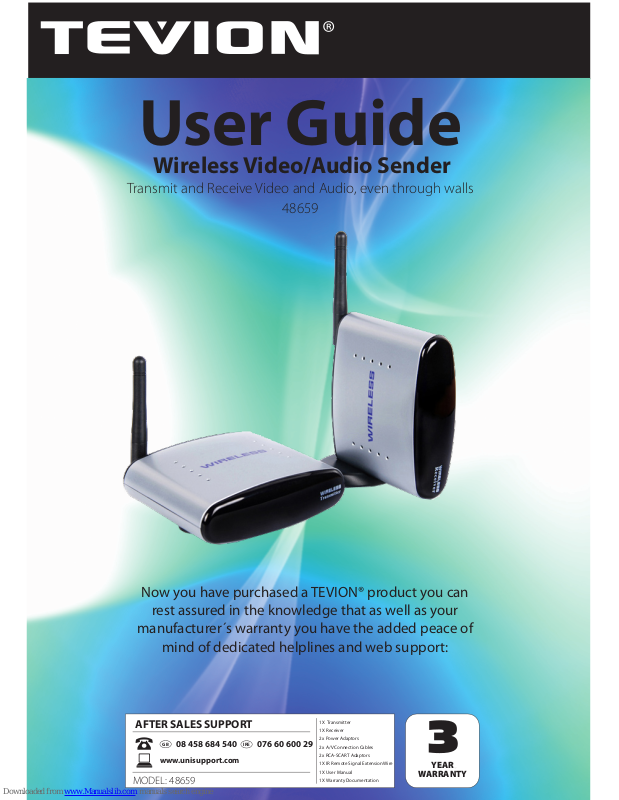

Tevion 48659 User Manual
User Guide
Wireless Video/Audio Sender
Transmit and Receive Video and Audio, even through walls
48659
YEARS
WARRANTY
AFTER SALES SUPPORT
www.unisupport.com
076 60 600 29
IRE
08 458 684 540
GB
1 X Transmitter
1 X Receiver
2 x Power Adaptors
2 x A/V Connection Cables
2 x RCA-SCART Adaptors
1 X IR Remote Signal Extension Wire
1 X User Manual
1 X Warranty Documentation
Now you have purchased a TEVION® product you can
rest assured in the knowledge that as well as your
manufacturer´s warranty you have the added peace of
mind of dedicated helplines and web support:
MODEL: 48659
YEARS
WARRANTY
AFTER SALES SUPPORT
www.unisupport.com
076 60 600 29
IRE
08 458 684 540
GB
1 X Transmitter
1 X Receiver
2 x Power Adaptors
2 x A/V Connection Cables
2 x RCA-SCART Adaptors
1 X IR Remote Signal Extension Wire
1 X User Manual
1 X Warranty Documentation
MODEL: 48659
Table of Contents
Welcome...................................................................................................................................................................1
A. Product Description........................................................................................................................................2
1. Functions and features..............................................................................................................................2
2. Applications...................................................................................................................................................2
3. Content...........................................................................................................................................................3
4. Specications................................................................................................................................................3
B. Hardware and Installation Instructions....................................................................................................4
1. Location..........................................................................................................................................................4

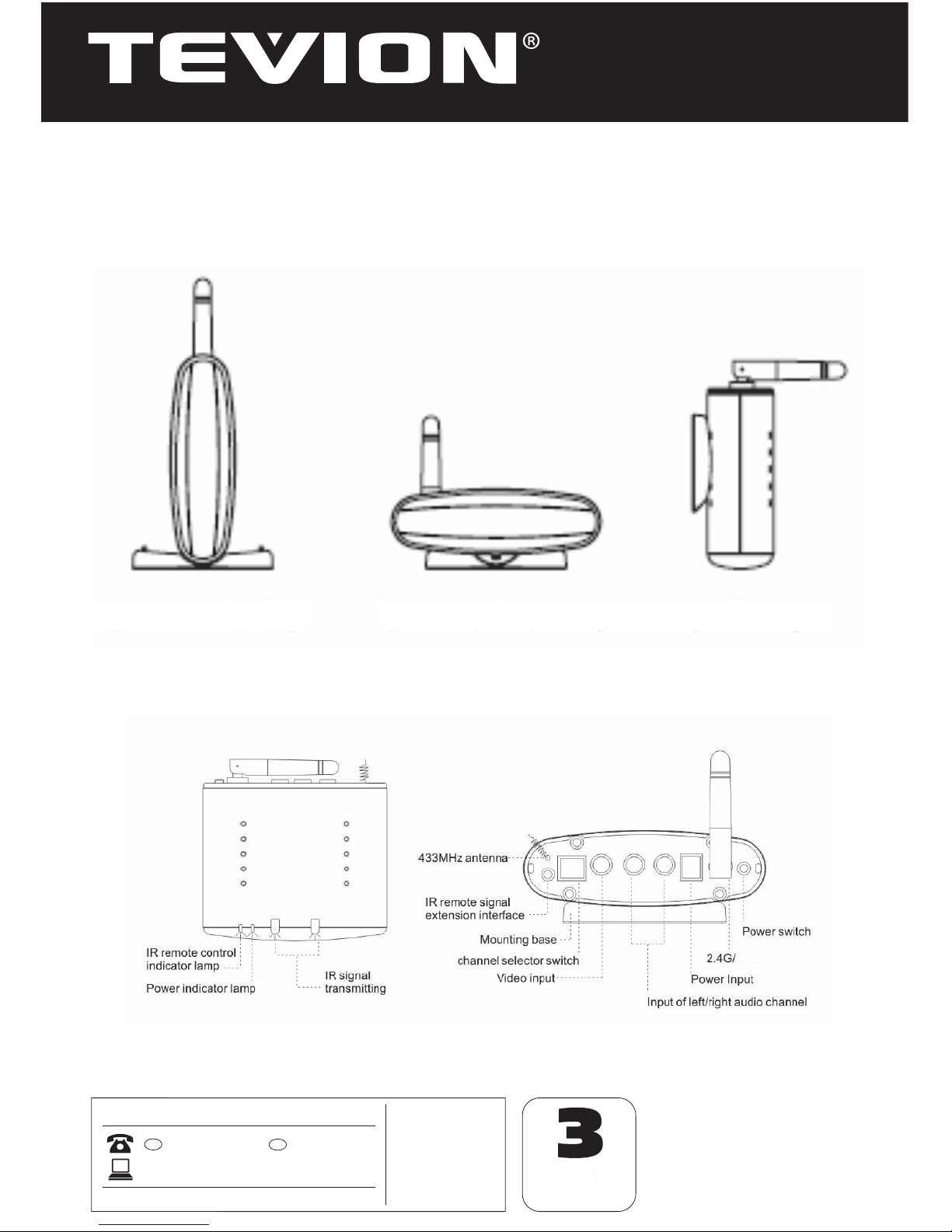

2. Transmitter panel description.................................................................................................................4
3. Receiver panel description.......................................................................................................................5

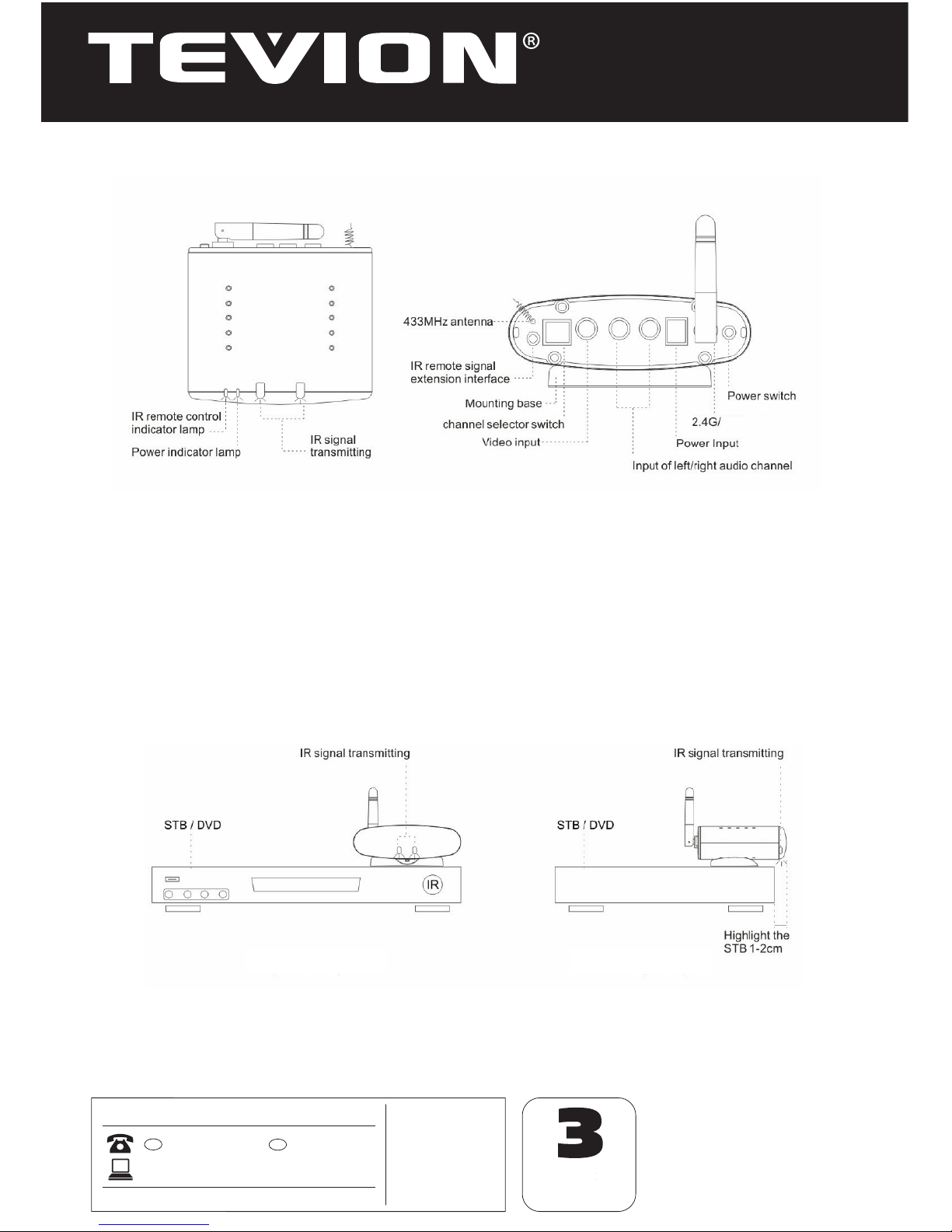

4. Transmitter installation..............................................................................................................................5

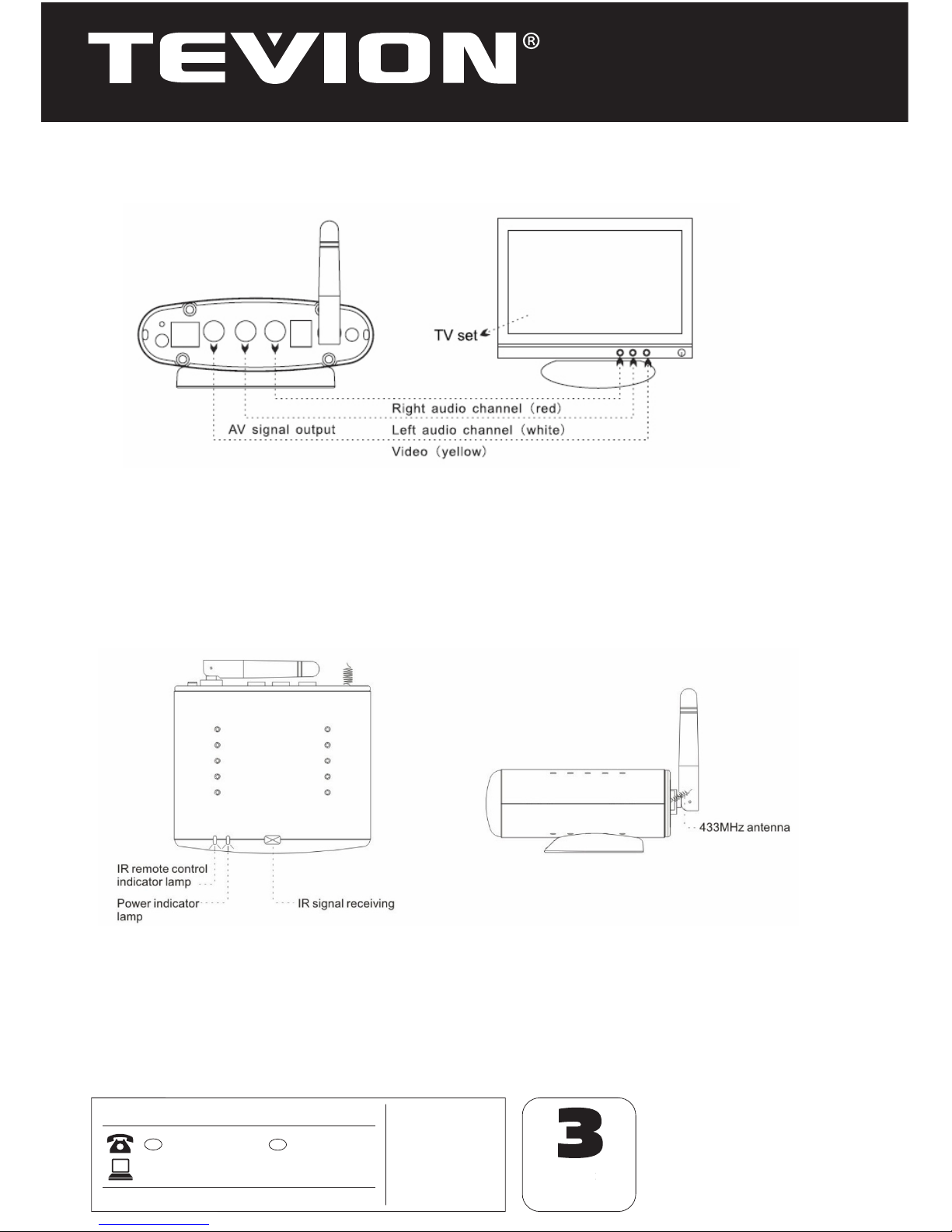

5. Receiver installation....................................................................................................................................6
6. Location of the antenna............................................................................................................................6
C. Operation............................................................................................................................................................7
1. Power switch.................................................................................................................................................7

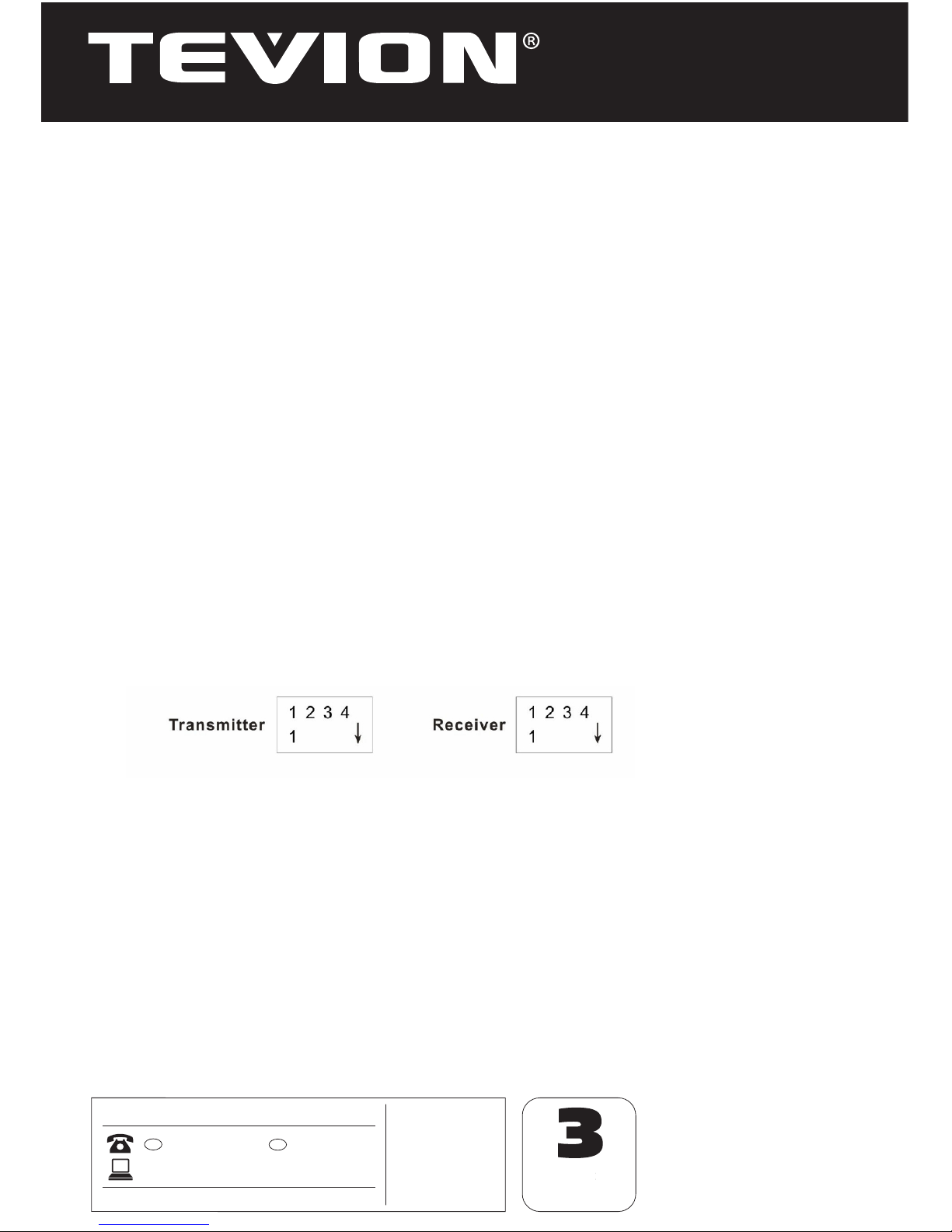

2. Channel selection........................................................................................................................................7
3. Wireless IR Remote Extender...................................................................................................................8
D. Common problems and troubleshooting...............................................................................................9
E. Warranty Details..............................................................................................................................................10

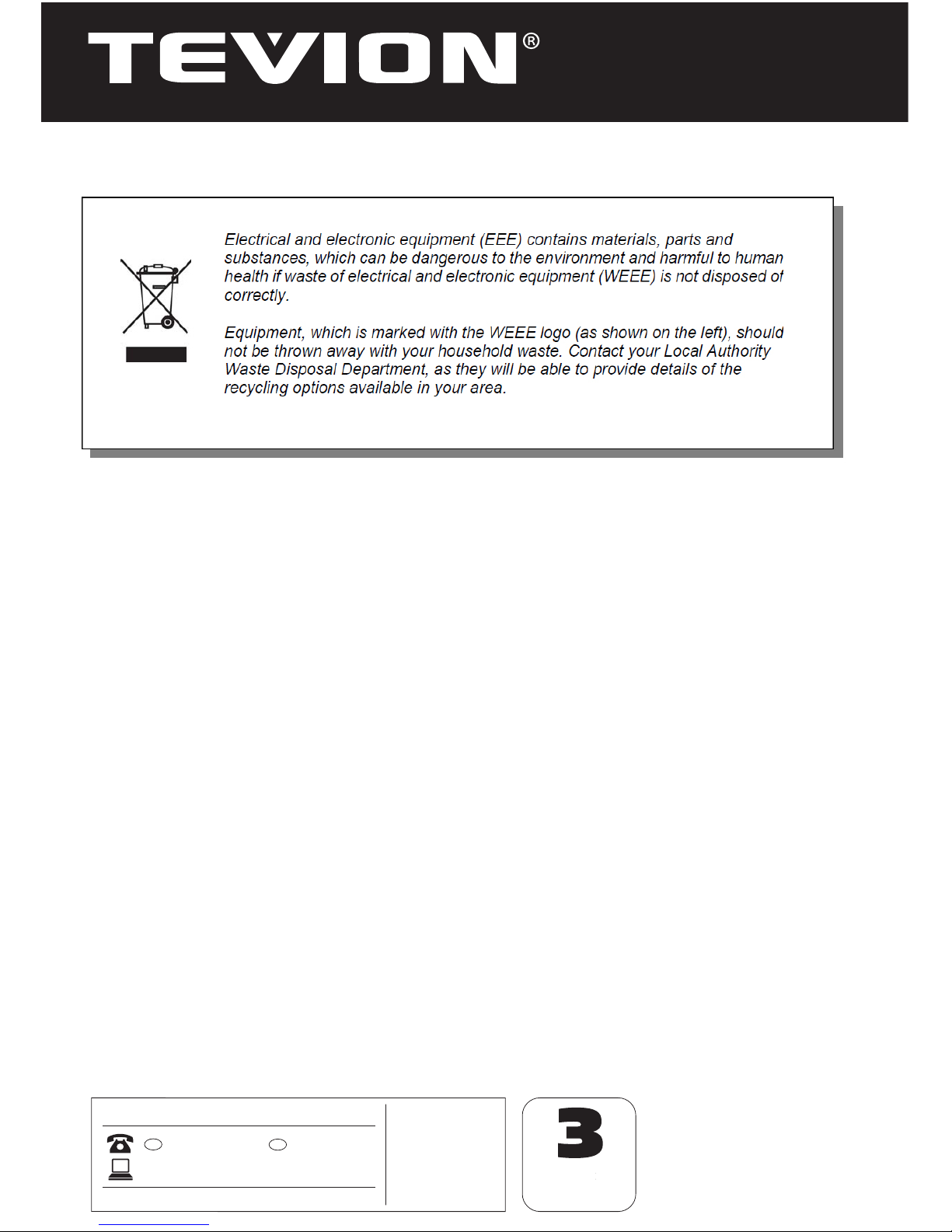

F. Disposal..............................................................................................................................................................11
Warranty.................................................................................................................................................................12
YEARS
WARRANTY
AFTER SALES SUPPORT
www.unisupport.com
076 60 600 29
IRE
08 458 684 540
GB
1 X Transmitter
1 X Receiver
2 x Power Adaptors
2 x A/V Connection Cables
2 x RCA-SCART Adaptors
1 X IR Remote Signal Extension Wire
1 X User Manual
1 X Warranty Documentation
MODEL: 48659
Welcome
You have made an excellent choice with the purchase of this quality Tevion® brand product.
By doing so you now have the assurance and peace of mind which comes from purchasing
a product that has been manufactured to the highest standards of performance and safety,
supported by the high quality standards of Aldi.
We want you to be completely satised with your purchase so this (brand) product is
backed by a comprehensive manufacturer’s 3 year warranty and an outstanding after sales
service through our dedicated Helpline.
We hope you will enjoy using your purchase for many years to come.
If you require technical support or in the unlikely event that made your purchase is faulty
please telephone our Helpline for immediate assistance. Faulty product claims made within
the 3 year warranty period will be repaired or replaced free of charge provided that you
have satisfactory proof of purchase (keep your till receipt safe!) This does not aect your
statutory rights. However, be aware that the warranty will become null and void if the product is found to have been deliberately damaged, misused or disassembled.
1
YEARS
WARRANTY
AFTER SALES SUPPORT
www.unisupport.com
076 60 600 29
IRE
08 458 684 540
GB
1 X Transmitter
1 X Receiver
2 x Power Adaptors
2 x A/V Connection Cables
2 x RCA-SCART Adaptors
1 X IR Remote Signal Extension Wire
1 X User Manual
1 X Warranty Documentation
MODEL: 48659
A. Product Description
Congratulations on purchasing this 2.4G series Wireless AV Transmitter & Receiver with Wireless IR Remote Extender. The advanced 2.4GHz wireless transmission has the advantages
of a long transmission range, strong anti-interference and high mobility. It can transmit AV
signals from DVD, DVR, CCD camera, IPTV, Satellite STB, Digital STB and other similar devices,
and wireless transmit the AV signal into your second TV set. Moreover, the IR remote control
extender can be used at the receiving end to control the device from the second TV set.
1. Functions and features
Uses 2.4GHz ISM frequency band, supporting 4 groups of channels. You can select •
these channels to avoid interference from signals from a wireless router, etc.
Wireless transmission range: 150 meters (depending on surrounding environment)•
The Transmitter and the Receiver use the same channel, pair then by setting then on •
the same channel.
Compatible with DVD, DVR, CCD camera, IPTV, Satellite STB, Digital STB, and any other •
AV devices.
433MHz Wireless IR Remote Extender is fully compatible with remote control signals of •
DVD, DVR, CCD camera, IPTV, satellite STB, digital TV STB and any other AV devices.
The product is equipped with a super strong IR signal transmitter.•
Images are received by using radio waves, the picture and sound is therefore very •
clear.
Supports video transmission of PAL/NTSC and stereo audio transmission.•
Plug and Play. There is no need to install software, easy and convenient.•
Dimensions: 10cm (L) ×8.5cm (W) ×3.0cm (H).•
2.4GHz module is FCC CLASS B certicated. Wireless application is safe and reliable. •
2. Applications
The AV Transmitter transmits the signal by using radio waves and can be used for wire-•
less sharing of AV signals from DVD, DVR, CCD camera, IPTV, Satellite STB, Digital STB
and any other AV devices.
Wireless AV transmission solutions are suitable for video conference or multimedia •
class rooms.
It can also be used in AV transmission applications where the AV cabling is dicult or •
expensive.
2
YEARS
WARRANTY
AFTER SALES SUPPORT
www.unisupport.com
076 60 600 29
IRE
08 458 684 540
GB
1 X Transmitter
1 X Receiver
2 x Power Adaptors
2 x A/V Connection Cables
2 x RCA-SCART Adaptors
1 X IR Remote Signal Extension Wire
1 X User Manual
1 X Warranty Documentation
MODEL: 48659
3. Content
1 x Transmitter
1 x Receiver
2 x Power adapter
2 x RCA cable
2 x Scart adapter
1 x IR extension
1 x User Manual
1 x Warranty Documentation
4. Specications
Power input: DC 5V = 1000mA
Video input: 1Vp-p(PAL/NTSC)
Audio input: 1.5Vp-p (Dual channel)
Video output: 1Vp-p(PAL/NTSC)
Audio output: 1.5Vp-p (Dual channel)
3
