Digital Set Top Box
Now you have purchased a Tevion® product you
can rest assured in the knowledge that as well
as your manufacturers warranty you have the
added peace of mind of dedicated helplines
and web support
with Scart cable and Remote control
User Guide
48405
02. Welcome Section
03. General Information and Safety Instructions
04. Battery Handling and Usage
05. Accessories
06. Features
07. Front and Rear Panel Information
08. Remote Control Operation
09. Connecting To Your TV
10. Operating Instructions
11. Troubleshooting / Technical Specication
12. Warranty Card
Contents 1
2
Congratulations!
You have made an excellent choice with the purchase of this quality Tevion®
product.
By doing so you now have the assurance and peace of mind which comes
from purchasing a product that has been manufactured to the highest
standards of performance and safety , supported by the high quality
standards of ALDI.
We want you to be completely satised with your purchase so this Tevion®
product is backed by a comprehensive manufacturer’s 3 year warranty and
an outstanding after sales service through our dedicated helpline.
We hope you enjoy using your product for many years to come.
If you require technical support or in the unlikely event that your purchase
is faulty please telephone our helpline for immediate assistance. Faulty
product claims made within the 3 year warranty period will be repaired or
replaced free of charge provided that you have a satisfactory proof of
purchase (keep your till receipt safe!). This does not affect your statutory
rights. However be aware that the warranty will become null and void if the
product is found to have been deliberately damaged, misused or
disassembled.
Welcome Section 2
3
General Information and Safety Instructions
Please read through the following safety information before use
3
• To avoid risk of electric shock do not attempt to open this appliance.
• Keep away from re.
• Do not expose the appliance to water, rain or dampness.
• Keep this appliance away from direct sunlight and other heat sources.
• Keep this appliance away from strong magnets.
• Never cover the ventilation slots on the underside or back of the
appliance.
• Avoid placing heavy objects on top of the appliance.
• Always disconnect the appliance from mains power before cleaning.
• Clean the exterior of the appliance with a soft cloth only.
The lightening ash and
arrowhead within the triangle is
a warning sign alerting you of
dangerous voltage inside the
product
The exclamation mark within
the triangle is a warning sign
alerting you of important safety
instructions concerning the
product
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
4
Battery Handling and Usage 4
5
Remote Control
The remote control uses 2 x AAA batteries.
When inserting batteries always ensure the correct +/- polarity.
Electric and electronic equipment (EEE) contains materials, parts and
substances which can be dangerous to the environment and harmful to
human health. Once this appliance has reached the end of its life span, the
unit in its entirety should be taken to a recycling centre. Please contact your
local authority for details of recycling schemes in your area.
Disposal of Your Old Product
Do not dispose of batteries in your household waste. Please
contact your local authority for details on safe disposal.
Do not dispose of this product in your household waste. Please
contact your local authority for details of recycling schemes in
your area.
Battery Safety
Never throw batteries into re or expose to excessive heat sources.
If batteries are swallowed, please seek immediate medical attention
Ensure correct polarity when installing batteries
Do not recharge non-rechargeable batteries
Accessories 5
The following accessories are included with your Digital Set Top Box. Should
any of these be missing, please contact the customer support team on the
number below.
6
1 x Remote control (including batteries)
1 x Scart Cable
Features 6
7
• Easy installation
• Auto setup
• USB input
• Single scart socket
• Interactive red button
• Automatic channel scan
• Now and next programme display
• 7 Day electronic programme guide
Front and Rear Panel Information 7
8
1. Standby Indicator: Used to show the power state of the set top box, the
green LED will show when turned on, when the set top box is turned
off the LED will show red.
2. Remote Control Sensor: Used to receive the signal from the remote
control.
3. USB Input: Used for music and photo playback and software upgrade.
Front Panel
Rear Panel
1. RF IN : This connects to your aerial.
2. RF Loop Through : This socket passes the RF signal to either your TV or
another video system.
3. COAXIAL : This socket connects to your surround sound system
4. TV Scart : This socket connects to your TV
5. Mains Cable : This is used to connect to your mains power supply.
!
!
9
Remote Control Operation 8
1. Power (ON/OFF, Standby)
2. Number keys 0-9 (Direct input)
3. Info (Channel information)
4. EPG (Channel schedule menu)
5. Menu (Open/Close menu screen)
6. Exit (Exit from menu)
7. Cursor keys (Navigation buttons)
8. Audio (Select left/right/stereo)
9. TTX (open interactive function)
10. Subtitle (Turn ON/OFF)
11. Mute (Sound ON/OFF)
12. Recall (Switch to previous channel)
13. Page + (Page up)
14. Page – (Page down)
15. Fav (Opens favourite list)
16. Red/Green/Yellow/Blue
17. Pause (Pause playback picture)
18. TV/Radio (Select TV/Radio)
Note : To use the remote control point it towards the front of the digital set
top box. The remote control has a range of up to 7 metres from the set top
box at an angle of up to 60 degrees.
The remote control will not operate if its path is blocked.
!
Connecting To your TV
10
9
1. Connect your existing external aerial to the set top box.
2. Insert one end of the scart cable into the scart socket on the set top
box, then connect the other end to a scart socket on the back of your
TV.
3. (Optional) Insert one end of a COAXIAL cable into the COAXIAL socket
on the back of the set top box, connect the other end to the COAXIAL
socket on our surround sound system.
4. (Optional) Insert one end of your RF loop through cable into the RF
LOOP THROUGH socket on the set top box, then connect the other end
into your VCR’s RF IN socket.
5. (Optional) Insert one end of your RF cable into the RF out socket on
your VCR, then connect the other end into the RF in socket on the back
of your TV.
!
!
Connecting a HiFi or Surround System
6. You will need to purchase a coaxial cable (sold separately).
Operating Instructions
11
Getting Started – Easy Install
When you switch on the set top box
for the rst time, the ‘Easy Install’ menu
appears. Use the LEFT or RIGHT arrow
buttons to select your region, then use
the DOWN arrow to select your
language. Press the DOWN arrow
again to highlight SEARCH and press
the OK button to begin the automatic
channel search.
10
!
Auto Scan - Please follow these
instructions should you wish to
perform another search at a later date.
1. Press MENU button to enter the
main menu.
2. Use LEFT/RIGHT arrow keys to
select installation and press OK.
3. With ‘Auto Scan’ highlighted press
OK and search will begin.
!
!
Channel Scan
1. Highlight channel scan from the
Installation menu and press OK to
enter the channel scan menu.
2. Use LEFT/RIGHT arrows keys to
select scan mode.
3. Use DOWN arrow to scan band
then LEFT/RIGHT arrow keys to
select band.
4. Use DOWN arrow key to highlight
SEARCH and press OK to begin
search.
!
12
Getting Started
Tuner Setting
1. Use UP/DOWN arrows to highlight
‘Tuner Power’ and press OK.
2. Press LEFT/RIGHT arrows to select
desired setting. When ON is
selected, the set top box will
provide 5V of power to the
antenna.
!
13
Operation – Changing Channels
There are four ways to select the channels.
1. Use UP/DOWN arrow keys to scroll UP/DOWN the channels.
2. Direct entry. Input the channel number using the number keys and
press OK to select the desired channel.
3. You can also select the required channel directly from the on-screen
channel list. This is accessed using the main menu.
4. The fourth option is to select the channel directly from the electronic
programme guide (EPG). This is also accessed using the main menu.
See accessing the EPG below.
Accessing the Electronic Programme Guide
1. Press EPG button
2. Press number button 2 to switch between channel list, events schedule
of selected channel and now/next events.
3. In the event schedule, press OK button to book the selected event.
Press number button 3 to open the information menu for the selected
event.
4. Press number button 1 to open the booking list menu.
!
14
Accessing the favourite channels
1. Press FAV button.
2. Press UP/DOWN arrow keys to select the desired
group.
3. Press OK to enter the favourite channels list,
then use UP/DOWN keys to select the favourite
channel.
!
Channel List Menu
1. Press MENU button, select Channel,
then OK.
2. Use UP/DOWN keys to highlight the
desired item and press OK.
3. Press EXIT to return to main menu.
!
TV Channel List
1. In the channel menu, select ‘TV
channel list’ and press OK.
2. Press LEFT/RIGHT arrow keys to
select channel group, and press UP/
DOWN arrow keys to preview the
desired channel. Press OK to view
the channel in full screen.
15
Audio
When you press the “AUDIO” key the following menu will be displayed.
Edit
Use this menu to FAVOR, LOCK, SKIP, DELETE and
rename channel list.
1. In channel list menu, press number 1
button on remote control to enter edit
menu.
2. Highlight a channel and press OK or press
number button ‘0’ to select all channels. The
selected channels will be marked with “ “.
3. Press EXIT to quit the edit menu.
Favor
1. In edit channel menu press number button
1, then use UP/DOWN keys to select a
desired group and press OK. A conrmation
window appears.
2. Select YES and press OK button. The
selected channel will be added to the
group.
16
Lock
In ‘Edit Channel’ menu press numeric
button 2, a conrmation window appears.
Select YES and press OK. The selected channel will be locked. Repeat the
steps above to unlock.
Skip
In ‘Edit Channel’ menu press numeric
button 3, a conrmation window appears.
Select YES and press OK. The selected channel will be skipped while you
change the channel in full screen. Repeat the steps above to cancel.
Delete
In ‘Edit Channel’ menu press numeric
button 4, a conrmation window appears.
Select YES and press OK to delete the selected channels.
Rename
In ‘Edit Channel’ menu press numeric
button 5 to open a virtual keypad. Input
letters and numbers one-by-one by using
the arrows keys and OK. When nished,
highlight OK on keypad and press OK on
remote control to conrm.
Find
1. In channel list menu, press numeric button 2 to enter the nd menu.
2. Use the arrow keys to highlight the desired letters or numbers and
press OK. After inputting each letter or number the channel list will
search for the channel.
3. Press EXIT to quit FIND menu.
17
Channel List Menu continued
Sort
1. In channel list menu, press
numeric button 3 to enter sort
menu.
2. Use UP/DOWN arrow keys to
highlight desired sort kind and
press OK to conrm.
Default: Sorts by scanning result.
Name (A-Z): Sorts alphabetically.
Name (Z-A): Sorts alphabetically.
FTA: Sorts by free to air channels.
Lock: Filters all locked channels and places
at the end of the channel list.
Move
1. In channel list menu, press
numeric button 4, the selected
channel will be marked with .
Use UP/DOWN arrow keys to
move the selected channel to
the desired position.
2. Press OK, a conrmation window
appears. Select YES and press OK
again to conrm the move.
!
Radio Channel List
1. In the channel menu select ‘Radio
Channel List’ and press OK.
2. Press LEFT/RIGHT arrow keys to
select channel group. Press UP/
DOWN arrow keys to highlight the
desired channel and press OK to
listen to the channel
18
Delete All Favourites
1. In channel menu select ‘Delete
All Favourites’, press OK and a
warning window appears.
2. Select YES and press OK to
delete all favourite channels.
Select NO to cancel.
Delete All
1. In channel menu select ‘Delete
All’ and press OK. You will be
asked to input a password. The
default is ‘0000’.
2. Input the correct password and
a warning window appears.
Select YES to delete all and NO
to cancel.
Group Rename
Use this menu to change group
name.
1. In channel menu select ‘Group
rename’ and press OK.
2. Select desired group, press OK
to open the virtual keyboard.
Input letter and number one by
one using the arrow keys and
press OK to conrm. When
nished highlight OK on the
virtual keyboard and OK on the
remote control to conrm.
3. Press EXIT button to quit the
group rename menu.
19

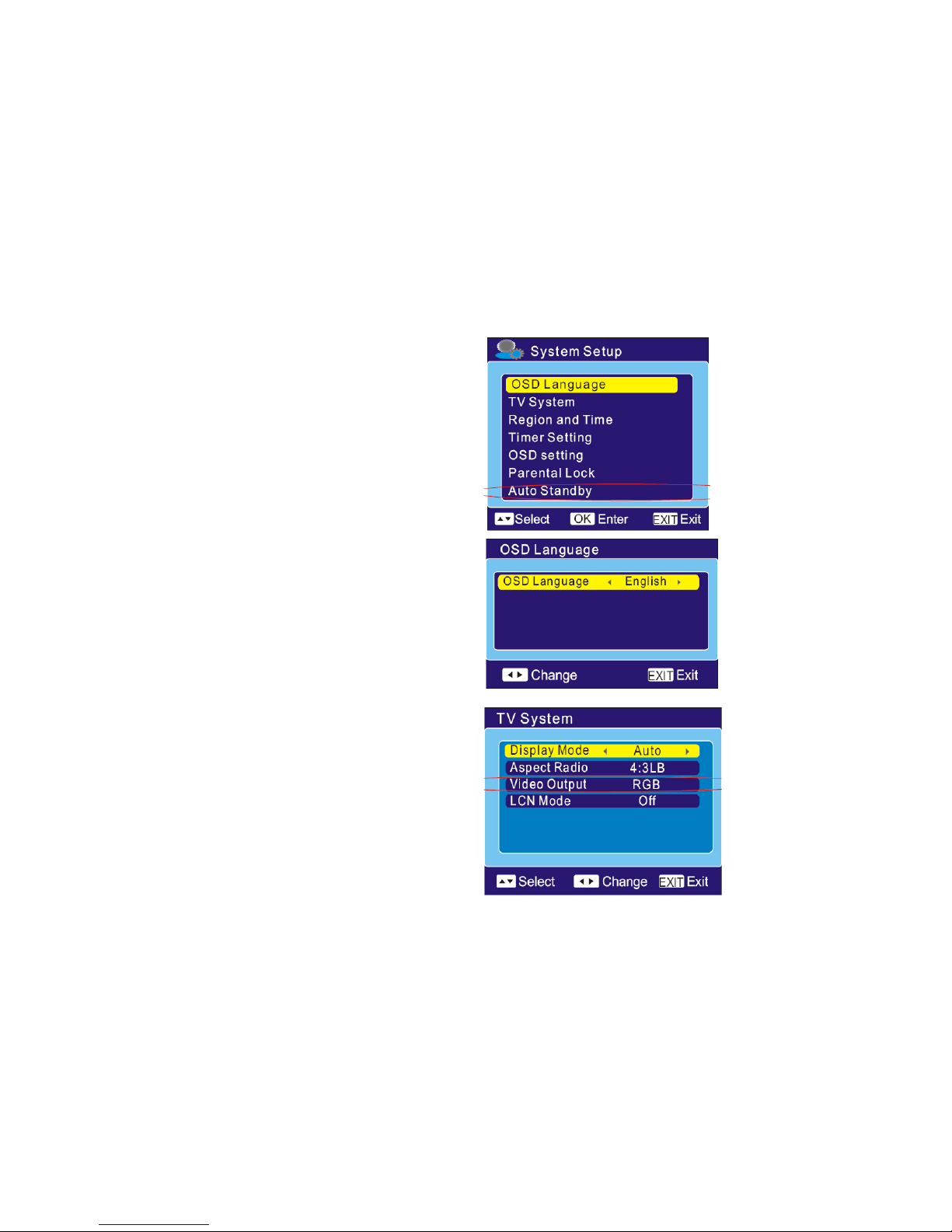

System Set Up
This menu allows you to set up OSD language, TV system, Region and Time,
Timer setting, Parental lock and Auto standby.
1. Press UP/DOWN arrow keys to
highlight desired option and press
OK.
2. Press LEFT/RIGHT arrow keys to
change the setting.
3. Press EXIT to return to main menu.
OSD Language
This allows you to change the On
Screen Display language.
TV System
This menu allows you to set the
Display mode, Aspect ratio, Video
output and LCN mode.
Display mode – NTSC / AUTO / PAL
Aspect ratio – 4:3PS / 4:3LB / 16:9 /
AUTO
Video output – video output
LCN mode – Logical Channel
Number. Set this to ON and the
channels will appear in numerical
order after channel scan.
20
Region and Time
Region – This option is used for
changing the country.
GMT Usage – This allows you to
adjust options (Off/User Dene/By
Region) for GMT
GMT Offset - This option is only
available when ‘user dene’ above is
selected. The range is 11:30 ~ +12:00
increasing half hour progressively.
Date – This is only available when
GMT ‘OFF’ is selected.
Time – Press OK then number
buttons to key in time and date.
Time Display – Select ON/OFF to
display the time on screen.

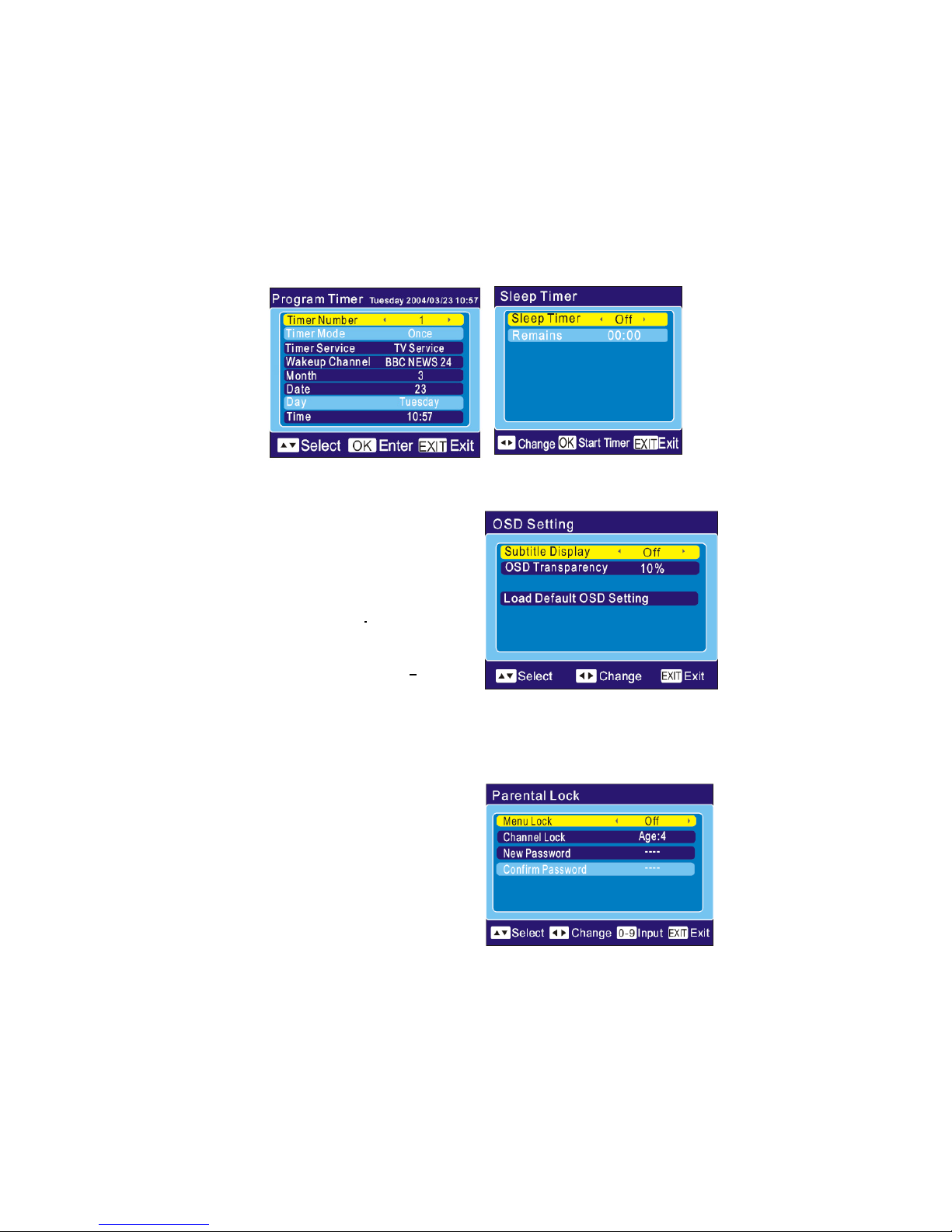

Timer Setting
This allows you to set the program
timer and sleep timer.
Timer number – You can set 8
program timers.
Timer mode – OFF/Once/Daily/
Weeky/Monthly.
Timer service – TV or Radio.
Wakeup Channel – Use LEFT/RIGHT
arrow keys to select desired month,
day and date.
Time – Press OK followed by number
buttons to enter the time.
Duration – Press OK then number
buttons to input time duration.
When you want to quit program timer, a saving window appears.
Sleep Timer – You can set the unit to power off in 10,30,60,90 or
120mins.
21
Region and Time
This menu allows you to set Subtitle
Display, OSD Transparency and load
default OSD setting.
Subtitle Display: Sets the subtitle to
Standard / Off/ Teletext.
OSD Transparency: Sets the OSD
transparency to Off/10%/20%/30%/
40%/50%.
Load Default OSD Setting: To clear
all OSD setting and reset parameters
as default value.
Parental Lock
This allows you to password protect the installation and channel menu.
1. Select Parental Lock from
System setup menu and press
OK. Input the password ‘0000’.
2. The parental lock menu
appears.
Menu Lock: To lock the installation
menu. When you want to enter
Auto scan / Channel scan, you must
input the password. You can set
menu lock to ON/OFF.
22

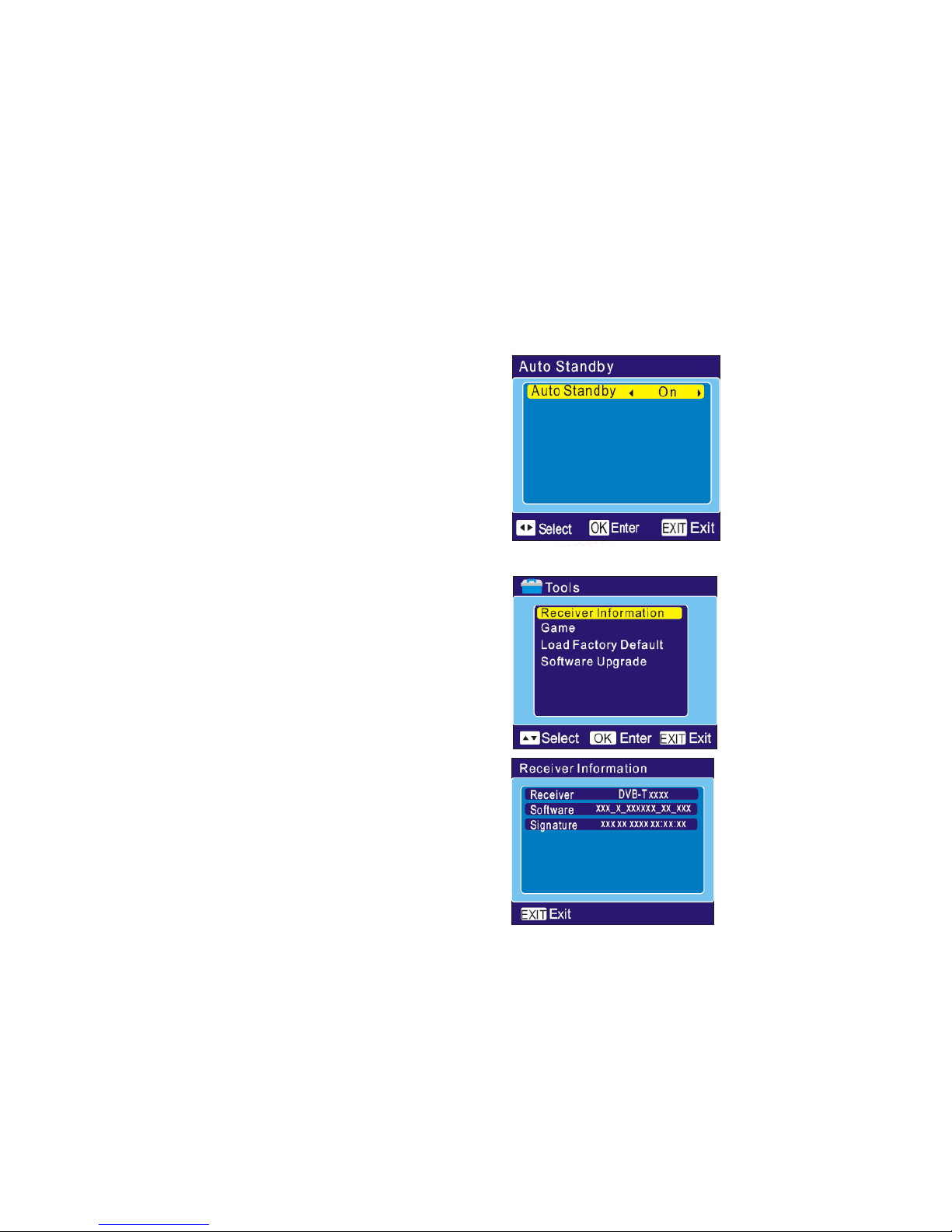

Auto Standby
ON – No command to STB on front panel
or Remote control in 3 hours and no
timer event, and the STB will enter
Standby mode automatically.
OFF – The STB cannot enter Standy mode
automatically.
Tools – main menu
1. Press MENU to enter main menu.
Select TOOLS and press OK
2. Use UP/DOWN arrow keys to
highlight desired menu and press OK
to enter.
3. Press EXIT to return to main menu.
Receiver Information
1. In Tools menu, select receiver
information and press OK.
2. Press EXIT to return to main menu.
23

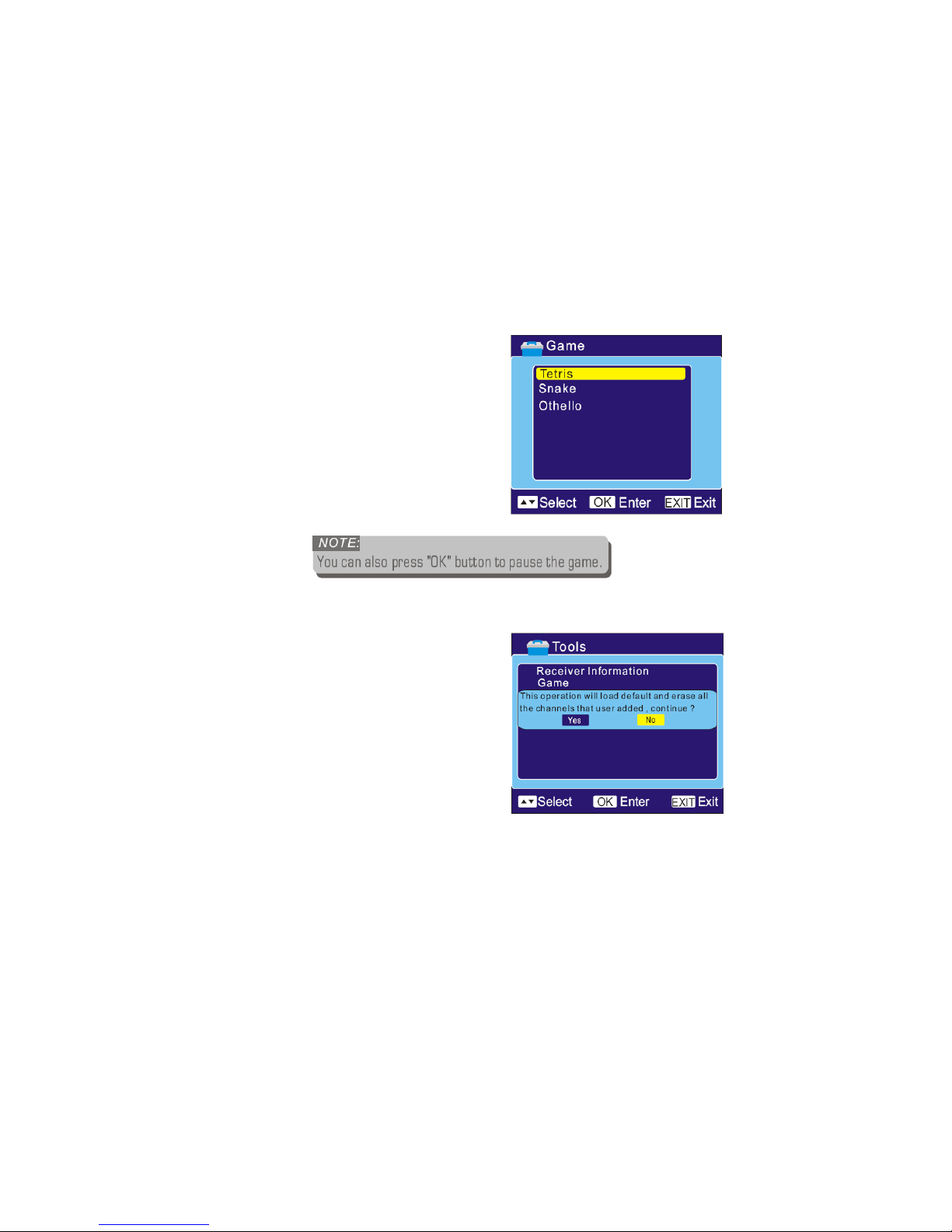

Game
This menu allows you to play games on
the Set Top Box.
1. In Tools menu, select Game and
press OK.
2. Use UP/DOWN arrow keys to select
desired game. Highlight Start and
press OK.
3. Press EXIT to quit the game.
Load Factory Default
Use this menu to reset the unit back to
the factory default settings.
1. Enter Tools menu and select ‘Load
Factory Default’.
2. Press OK and enter password 0000, a
conrmation window is displayed.
3. Select YES to return back to factory
settings and clear all channels. Select
NO to cancel.
4. Press EXIT to quit the menu.
24

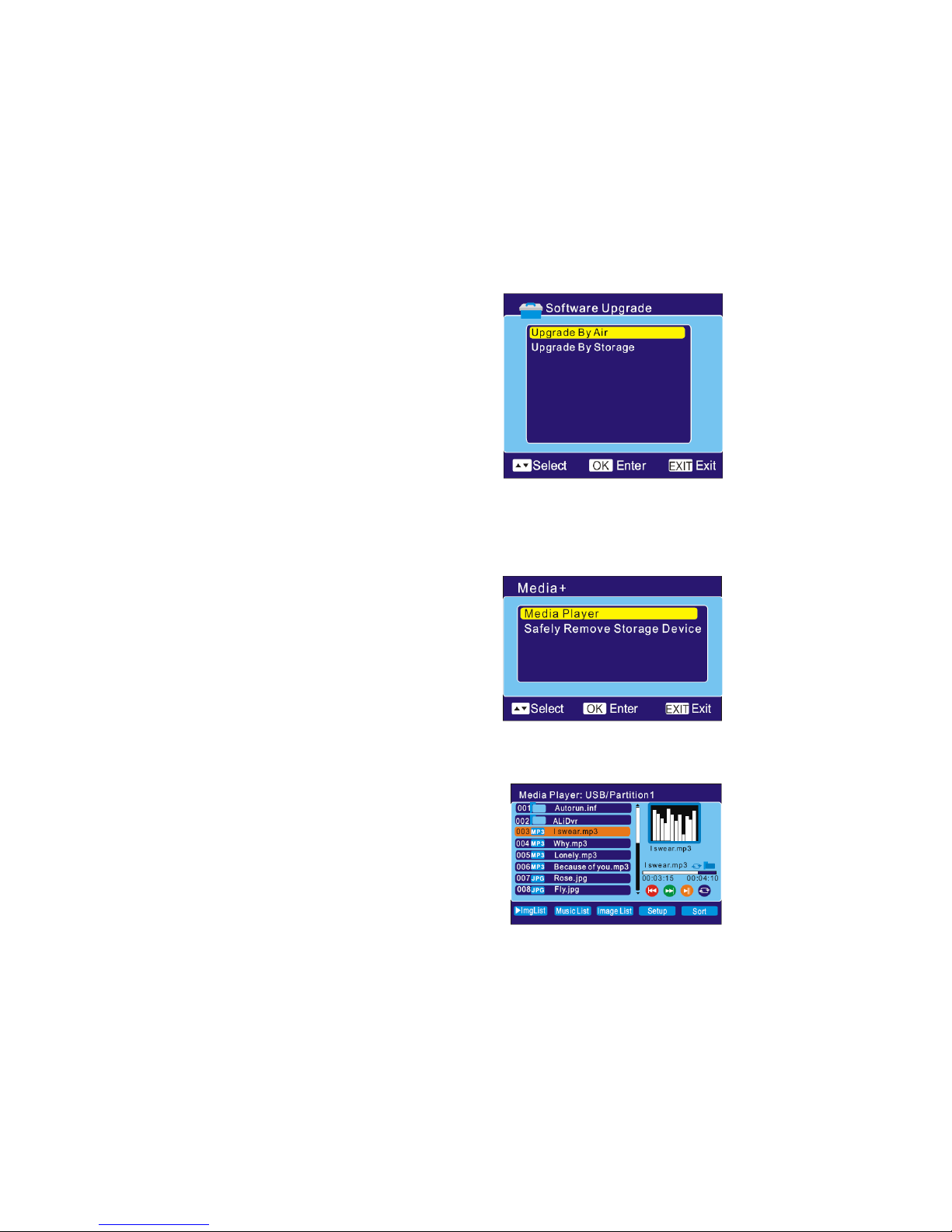

Software Upgrade
Here you can upgrade the software
(when available) either ‘over the air’ or
by using the USB input.
1. Enter Tools menu and select
‘Software upgrade’ and press OK.
The software upgrade menu is
shown.
2. Use UP/DOWN arrow keys to select
desired item and press OK.
3. Input password 0000 and software
upgrade menu is opened.
4. Press EXIT to quit the menu.
Media+ Main Menu
1. Press Menu button to enter the
main menu. Select Media+ and
press OK.
2. Press UP/DOWN arrows to highlight
desired menu and press OK.
3. Press EXIT to quit.
Media Player
This function allows you to play MP3
audio or JPEG photo from the USB port.
1. In media+ menu select ‘Media
player’ and press OK.
2. Use UP/DOWN arrow keys to
highlight desired item and press OK
to play les.
3. Press EXIT to quit.
25

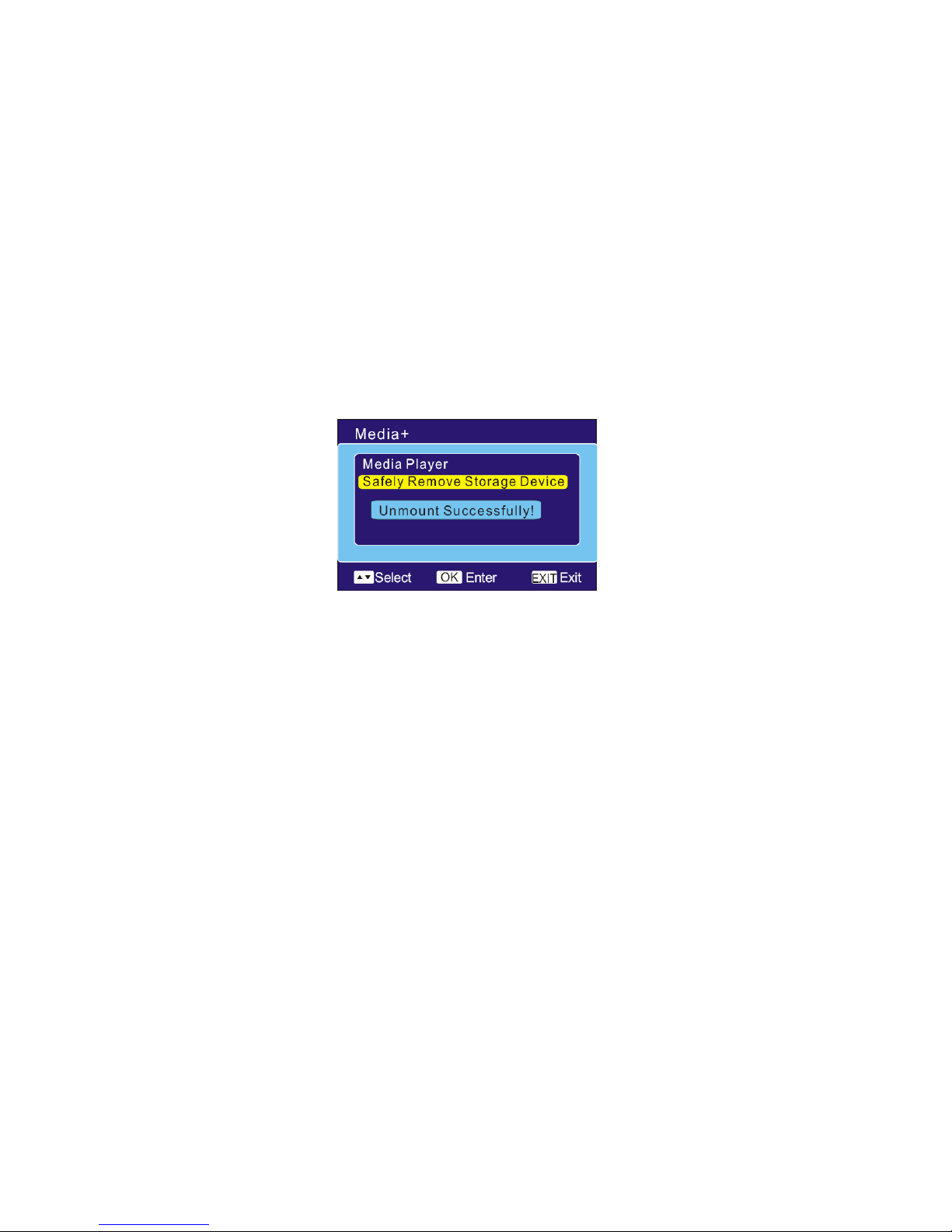

Safely Remove Storage Device
In order to eject USB device safely, in media+ menu, select ‘Safely Remove
Storage’ and press OK to conrm. The following window is displayed.
26
Troubleshooting
Please note, the digital signal may be weak in some regions. This can often
be resolved by using a signal booster. You should also check the freeview
reception in your area by logging onto www.freeview.co.uk
Problem
Possible cause
What to do
Standby light not on
Mains lead unplugged
Mains fuse blown
Check mains lead
Check fuse
No signal found
Aerial is disconnected
Aerial is damaged/misaligned or out
of digital signal area
Check aerial lead
Check aerial
Check coverage in your area
No picture or sound
Tuned to digital teletext channel
Retune to another channel
Scrambled channel
message
Channel is scrambled
Select alternative channel
No response to remote
control
Receiver off
Handset not aimed correctly
Front panel obstructed
Hand set batteries exhausted
Plug in and turn on plug
Aim handset at front panel
Check for obstructions
Replace handset batteries
Forgotten channel lock
code
Re-install channels to cancel
channel lock
Forgotten menu lock
code
Contact help line
After moving the STB to
another room you find
you are no longer able to
receive digital reception
The aerial feed at new point may
come from a distribution system
which may reduce the digital signal
now received by the box.
Try a direct feed from the antenna
TUNER & CHANNEL
·RF INPUT CONNECTOR x1
(IEC-TYPE, IEC169-2, FEMALE)
·RF OUTPUT CONNECTOR x1
(IEC-TYPE, IEC169-2, MALE (LOOPTHROUGH))
·FREQUENCY RANGE:
174MHz ~230MHz
470MHz~862MHz
·SIGNAL LEVEL:
-15 ~ -70 dbm
DECODER
·TRANSPORT STREAM
·PROFILE LEVEL
·INPUT RATE
·VIDEO FORMATS
·AUDIO FORMATS
·VIDEO OUTPUT
MPEG-2 ISO/IEC 13818
MPEG-2 MAIN PROFILE @MAIN LEVEL
MAX. 15Mbit/s
4:3PS,4:3LB,16:9 SWITCHABLE
MPEG Layer I & II, 32 / 44.1 / 48KHz
CVBS, RGB
CONNECTION
·MAIN POWER CABLE
·TUNER
·SCART
·DATA PORT
FIXED TYPE
RF INPUTx1, RF LOOP THROUGH x1
TO TV x1
USB x1
POWER SUPPLY
·INPUT VOLTAGE
·POWER CONSUMPTION
AC220-240V ~ 50/60Hz
MAX. 5W
11
Loading...
