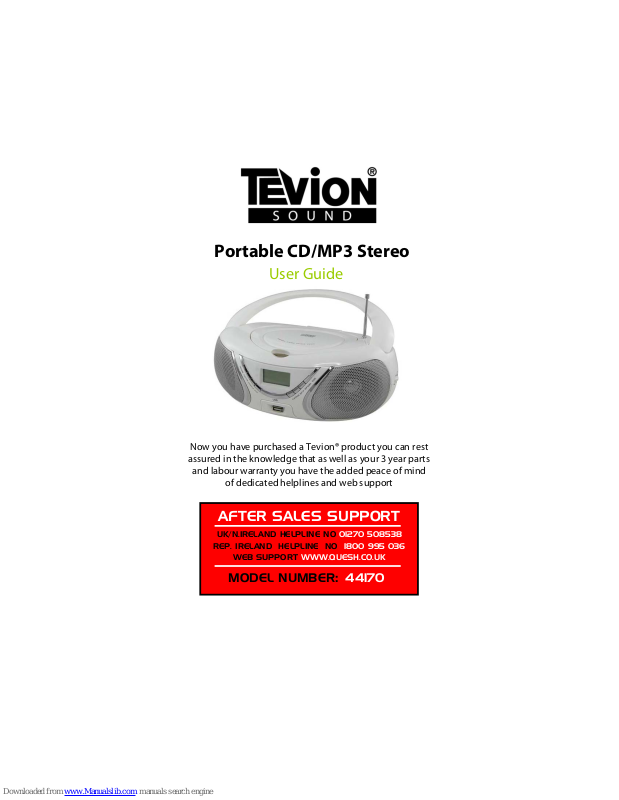

Portable CD/MP3 Stereo
User Guide
Now you have purchased a Tevion® product you can rest
assured in the knowledge that as well as your 3 year parts
and labour warranty you have the added peace of mind
of dedicated helplines and web support
AFTER SALES SUPPORT
UK/N.IRELAND HELPLINE NO 01270 508538
REP. IRELAND HELPLINE NO 1800 995 036
WEB SUPPORT WWW.QUESH.CO.UK
MODEL NUMBER: 44170
Contents
1. Contents
2. Welcome Section
3. Information and Safety Instructions
4. Getting Started
5. Radio Operation
6. CD/USB Operation
7. Playback Mode Selection
8. MP3/AUX/Headphone Connection
9. Specifications
10. Warranty Card
11. Fault Report Card
1
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number 44170 1
2
Welcome Section
Congratulations on choosing to buy a Tevion®
product. By doing so you now have the assurance
and peace of mind that comes with purchasing a
product made by one of Europe’s leading
manufacturers.
All products brought to you by Tevion® are
manufactured to the highest standards of
performance and safety, and, as part of our
philosophy of customer service and satisfaction,
are backed by our comprehensive 3 year warranty.
We hope you enjoy using your purchase for many
years to come.
2
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support
Web Support
Web Support www.quesh.co.uk
Model Number: XXXXX
Model Number: XXXXX
Model Number: 44170 2
3
Information and Safety Instructions
CAUTION
3
The lighting flash with arrowhead
symbol, with an equilateral
triangle is intended to alert the
user to the presence of uninsulated dangerous voltage
within the products enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock
to persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR
BACK). NO USER
SERVICEABLE PARTS INSIDE
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
LASER SAFETY
This unit uses a laser. Only a qualified service
person should remove the cover or attempt to
service this device to avoid possible eye injure.
Caution: USE OF CONTROLS OR
ADJUSTMENT OF PERFORMANCE OF
PROCEDURE OTHER THAN SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing)
instruction in the literature
accompanying the appliance.
DANGER:
INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCK FAILED OR DEFEATED.
AVOID DIRECT EXPOSURE TO LASER BEAM.
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number: 44170 3
4
Please read through the following safety guidelines before
use.
The ventilation slots should be kept clear at all times to avoid potential
overheating and to ensure reliable operation.
Do not use this product near water as there is a risk of electric shock.
To clean the unit, please first unplug it from the power source and use a
damp cloth.
DO NOT attempt to service this product yourself. Opening or removing
covers may expose you to dangerous voltage or other hazards. Please
seek the help of a qualified professional for servicing needs.
Battery Information
This product can be powered by 6 x C batteries.
Do not dispose of batteries in your household waste.
Please contact your local authority for details on safe disposal.
Never throw batteries into a fire or expose to excessive heat
sources.
If batteries are swallowed, please seek immediate medical
attention.
Always ensure correct +/- polarity when installing batteries.
Do not recharge non rechargeable batteries
.
Do not dispose of this product in your household waste. Electrical and
electronic equipment (EEE) contains materials, parts and substances,
which can be dangerous to the environment and harmful to human
health if waste of electrical and electronic equipment (WEEE) is not
disposed of correctly.
Equipment, which is marked with the WEEE logo (as shown on the left),
should not be thrown away with your household waste. Contact your
Local Authority Waste Disposal Department, as they will be able to
provide details of the recycling options available in your area.
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number: 44170 4
5
Getting Started
4
1. Speakers 11. Aerial
2. Play/Pause Button 12. LCD Display
3. Stop Button 13. Tuning Control
4. Skip Up Button 14. Volume Control
5. Skip Down Button 15. Band Switch
6. Mode Button 16. Function Switch
7. Program Button 17. Headphone in Jack
8. CD/USB Button 18. Aux-In Jack
9. Folder Up Button 19. Battery Compartment
10. CD Compartment 20. AC in Socket
21. USB Slot
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number: 44170 5
7
AC Power Operation
Connect the AC power cable to your mains output socket and
switch on the mains supply. Make sure that the voltage is
compatible.
Disconnect the power cord from the mains when not in use.
Battery Operation
Open the battery compartment at the back of the unit and
insert 6 x size C batteries. Please always ensure the correct
polarity when inserting batteries.
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number: 44170 6
8
Radio Operation 5
1. Set the function switch to the RADIO position.
2. Set the band switch to the AM or FM position to select the
band.
3. Tune to the desired radio station by turning the tuning
control clockwise and anti-clockwise.
4. Adjust the volume to the desired level using the volume
control.
5. To turn off the radio, set the function switch to the OFF
position.
Antenna
1. For FM reception there is a built in FM aerial at the rear of
the unit.
2. Extend the aerial and move it around to receive the best
reception available.
3. For AM reception the signals are picked up through a built
in ferrite antenna, you may need to relocate the unit to
receive the best reception available.
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number: 44170 7
9
CD/USB Operation
6
Playing Audio CDs
1. Set the Function Switch to the CD/USB position.
2. Press the CD/USB Button to select CD mode, a CD icon will
appear on the LCD display.
3. Insert a CD into the CD compartment and close the CD door, the
unit will start reading the disc, it will show the total number of
tracks on the disc.
4. Press the Play/Pause Button to start playing the disc.
5. During playback, press the Play/Pause Button to temporarily
pause playing. To resume, press the Play/Pause Button again.
Playing MP3 files with USB
1. Set the Function Switch to the CD/USB position.
2. Press the CD/USB Button to select the USB mode, USB will
appear on the LCD display.
3. Plug your USB device into the USB port on the unit, the unit will
start to read the files in the USB device, it will show the total
number of tracks on the device.
4. Press the Play/Pause Button to start playing the MP3 files.
5. Press the Folder Up Button to select the folder you want to
listen too.
6. During playback, press the Play/Pause Button to pause playing.
To resume, press the Play/Pause Button again. Press the skip up
or skip down to change the current track.
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number: 44170 8
10
Playback Mode Selection
7
Skip Mode
1. During play or pause mode, press the Skip Up Button to go to the
next track.
2. During play or pause mode, press the Skip Down Button to go back to
the beginning of the track. Press the Skip Down Button again to go
back to the previous track.
Different Play Mode
1. Press the Mode Button to select different kinds of play mode with the
following sequence.
For CD Disc : Repeat Repeat All Random Normal
For MP3 Disc : Repeat Repeat Album Repeat All Random
Normal
Playing Tracks In a Specified Order
The programming can only be done in the Stop mode
1. Press the Program Button, the LCD display will display 01 and flash.
2. Use the Skip Next or Skip Previous Button to select the desired track.
3. Press the Program Button again to store the selected track into the
memory, the LCD display will show 02 and flash.
4. Repeat steps 2 to 3 to store more tracks into the memory. You can
store up to 20 tracks in the memory at any one time.
5. Press the Play/Pause Button to start playing the disc in the
programmed order.
6. To stop playing, press the Stop Button.
7. To cancel the programming list, press the Stop Button and open the
CD compartment door or select a different function AUX/OFF or
RADIO.
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number: 44170 9
11
MP3/AUX/Headphone
8
MP3/AUX In
1. Insert one side of the audio cable (requires 3.5mm stereo plug,
not supplied) into the line-out jack or phones jack on your MP3
player and the other side to the aux-in jack on the unit.
2. Turn on the unit and slide the function selector to AUX/OFF
position.
3. Turn on your MP3 player and start playing your songs.
4. To stop this function, simply turn off your MP3 player.
Stereo Headphone Jack
For private listening, insert the plug of a stereo headphone into
the Stereo Headphone Jack and adjust the Volume Control
accordingly. During the use of headphone’s, the speakers are
automatically disconnected.
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number: 44170 10
12
Specifications
Frequency Range: AM 540 - 1600 KHz
FM 88 - 108 MHz
Power Supply: AC 230V ~ 50 Hz
DC 9V (UM-2 x 6)
9
Helpline No. UK/Northern Ireland 01270 508538 Rep. Ireland 1800 995 036
Web Support www.quesh.co.uk
Model Number: 44170 11
13
PORTABLE CD/MP3 STEREO
W A R R A N T Y C A R D
Congratulations! You have made an excellent choice with the purchase of
this quality product. Our commitment to quality also includes our service.
Should you, contrary to expectations, experience issues due to
manufacturing faults during private use within 36 months of the date of
purchase we shall be liable for warranty in accordance with statutory
warranty regulations provided that: -
- the device was not put to any use other than the intended
- was not overloaded
- was not used with the wrong accessories
- repairs were carried out only by the customer service centre
The warranty certificate is only valid in connection with the receipt. Please
keep both in a safe place. This does not affect your statutory rights.
The purchase is guaranteed for a period of three years beginning on the day
of purchase. Keep your purchase receipt safe as proof of date of purchase.
The guarantee can only be extended for the duration of any repair required.
Should your item become defective during the warranty period, in the first
instance, please call our customer service centre, they will then inform you
of what to do next. We will at our discretion, either repair or exchange the
device in accordance with warranty legislation.
Please enclose the following when sending your product in for repair: -
1.Receipt (proof of purchase)
2.This warranty certificate and fault report card complete with your contact
details and fault description.
If the original receipt is not enclosed the repair will be charged in all cases.
After the warranty has expired you can still send defective devices for
repairs to the address stated below. Quotes for repairs after the warranty
period are to be paid in all cases.
Ensure that the product is well packed as no
responsibility can be accepted for items lost or
damaged in transit. This warranty does not affect your
statutory rights.
3
YEAR
WARRANTY
PORTABLE CD/MP3 STEREO
F A U L T R E P O R T C A R D
Name ______________________________________________
Address ____________________________________________
___________________________________________________
Email ______________________________________________
Contact Tel No. ______________________________________
Model Number 44170
Fault Description ____________________________________
___________________________________________________
___________________________________________________
___________________________________________________
SERVICE HELPLINE
UK/N.Ireland 01270 508538
Rep.Ireland 1800 995 036
web: www.quesh.co.uk
Quesh Ltd
1 Solway Court
Crewe Business Park
Crewe, CW1 6LD
Loading...
