TeVii D720 HD60 User Manual

HD60 Video Recorder

Record Full HD Videos & Playback instantly

V2.0

1

Important Safety Instruction

Before using HD60 Video Recorder, please ensure that you read and understand the safety
precautions below:

1. Do not attempt to open the case of HD60 Video Recorder or modify it in any way as this

will void the warranty.

2. Keep HD60 Video Recorder away from water and other liquids as this may cause the unit

to malfunction.

3. HD60 Video Recorder may become warm during use. This does not indicate malfunction.

4. Do not place heavy objects on HD60 Video Recorder as this may cause the unit to

overheat and malfunction.

5. If the exterior of HD60 Video Recorder requires cleaning, wipe it with a soft dry cloth.

6. Do not dispose of the unit via conventional domestic waste.

Glossary

HDMI: High Definition Multimedia Interface.
AV: Audio and Video.
OSD: On Screen Display.
OBS: Open Broadcaster Software is a free and open source software for video recording and

live streaming.

XSplit: A simple yet powerful live streaming and recording software.

2

Table of Contents

Important Safety Instruction ................................................................ ………… 1

Table of Contents ................................................................................................ 2

What’s included .................................................................................................. 3

Remote Control ................................................................................................... 4

Product Components ........................................................................................... 5

Connection instruction and installations (Standalone Mode)

1. Installation .............................................................................................. 6

2. Set up Menu ........................................................................................... 6-7

3. Record/Capture to USB or SD card .......................................................... 7-8

4. Playback .................................................................................................... 9

5. Pause Recording ........................................................................................ 9

PC Mode

1. Installation/Capture and record to PC ..................................................... 10

2. Live Streaming via XSplit ..................................................................... 11-15

3. Live Streaming via OBS ....................................................................... 16-18

4. Schedule recording ................................................................................ 19

5. Firmware upgrade ................................................................................. 20

Product specification ....................................................................................... 20

Trouble shooting ........................................................................................ 21-22

3

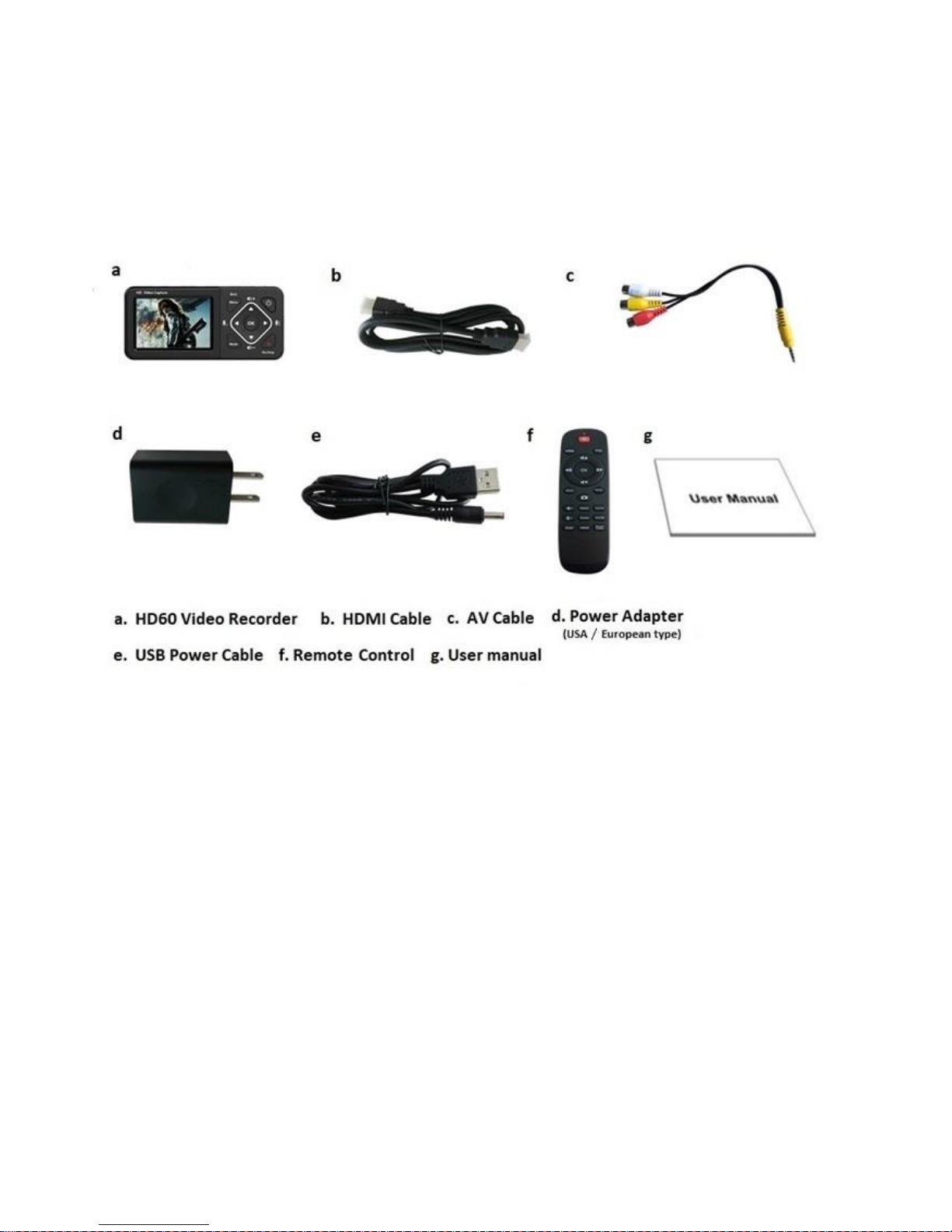

What's included

4

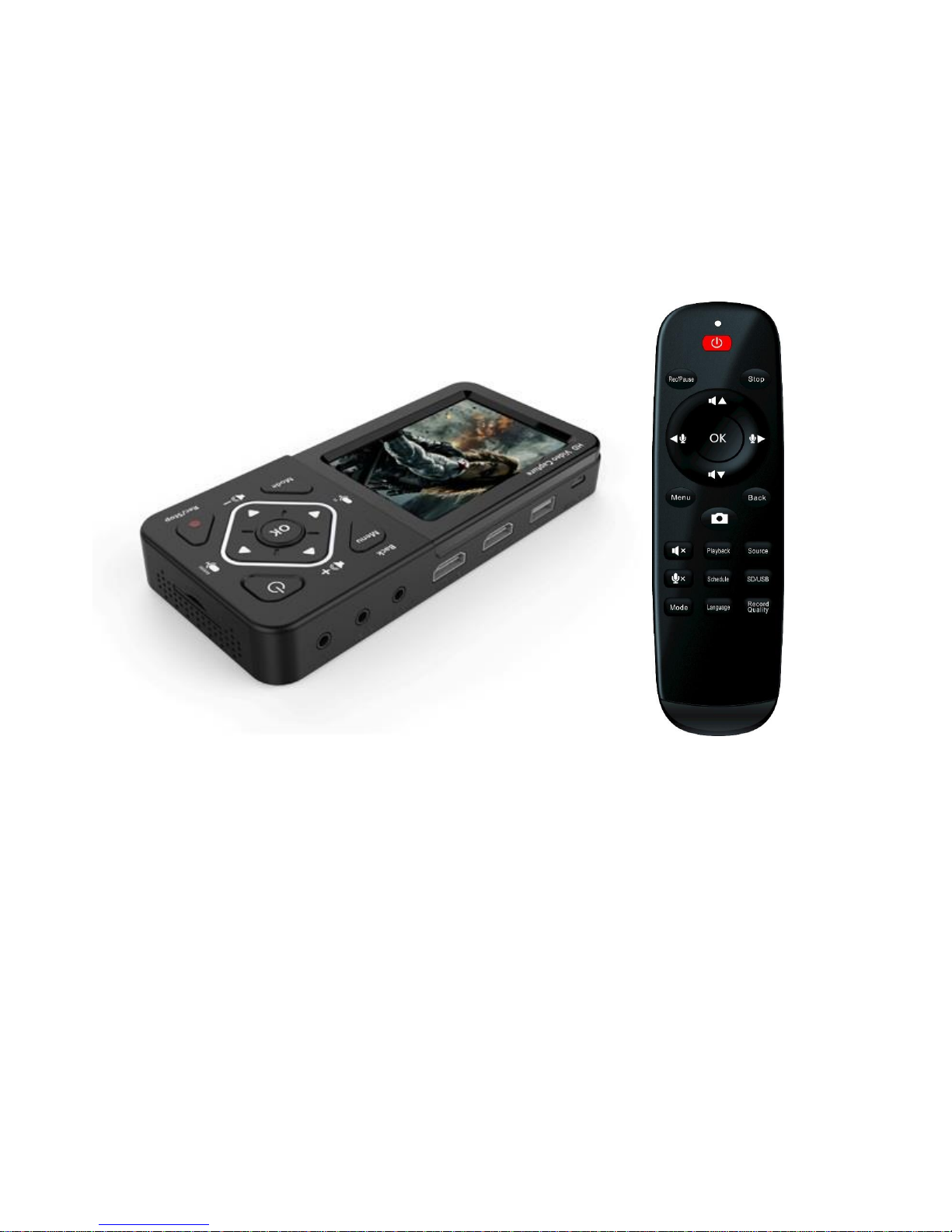

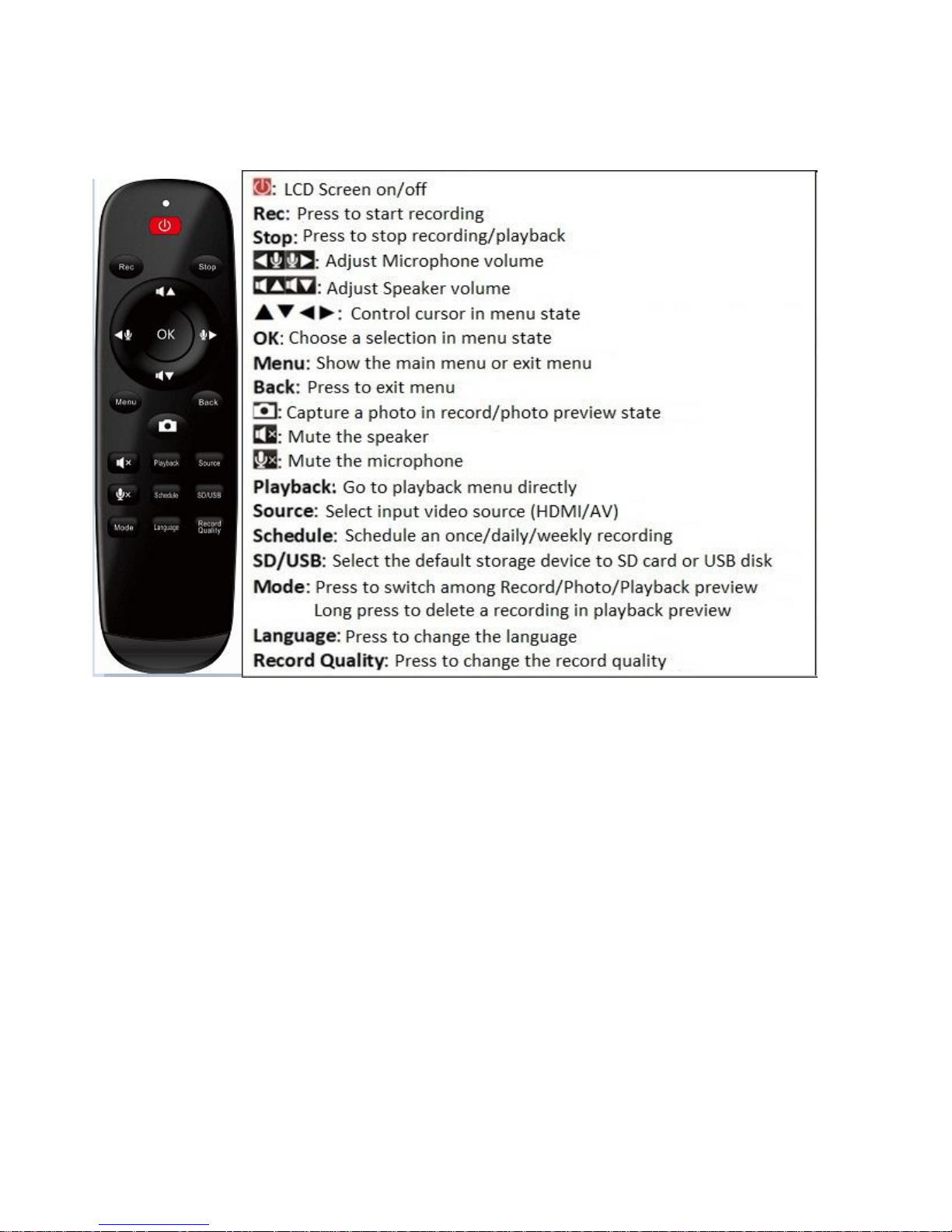

Remote Control

5

Product Components

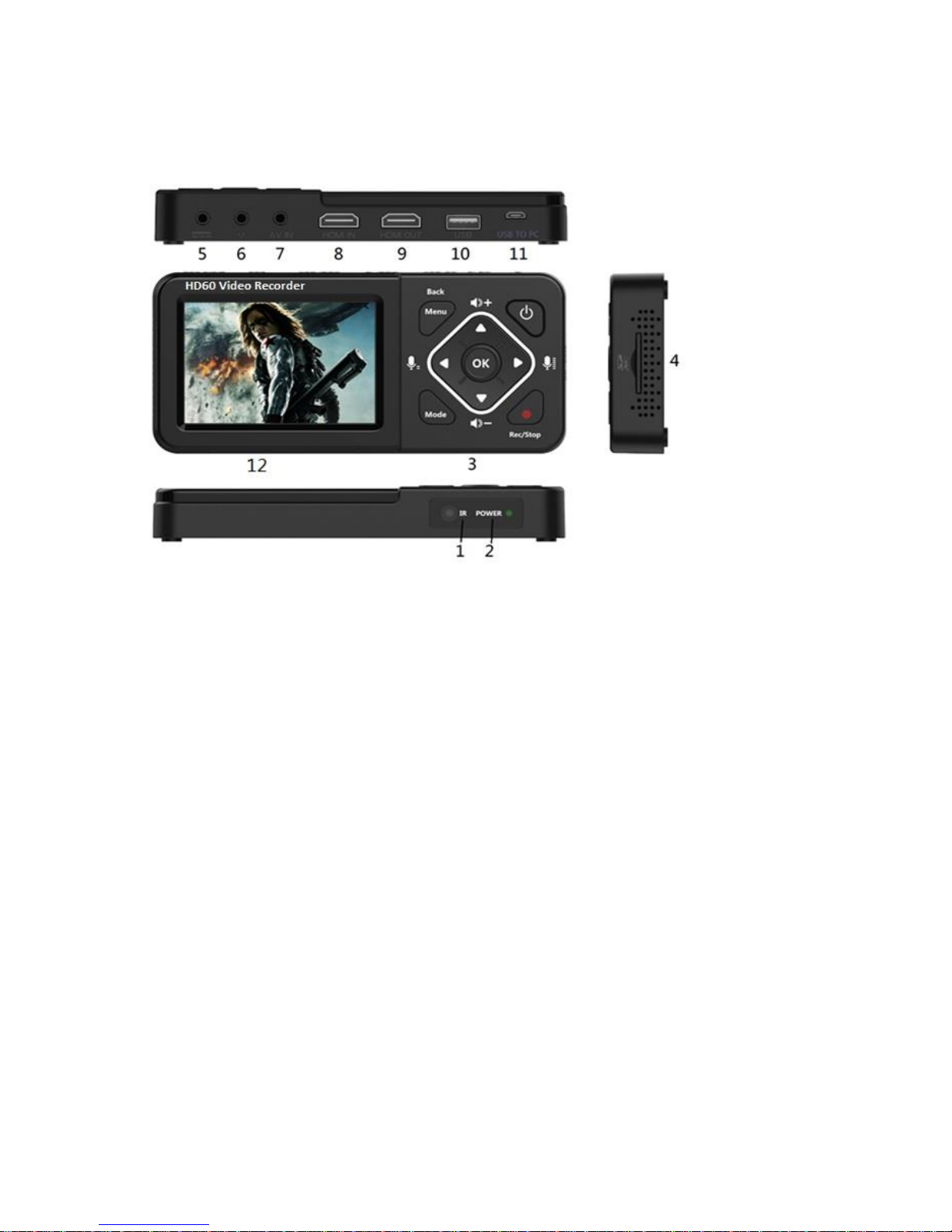

1. IR Receiver: Receives Infra-Red signals from Remote Control

2. LED indicators: The HD60 Video Recorder is power on when Blue light is on;

Blue blinking means running low of memory. Red blinking means running low of
battery& it needs charging immediately. The Red light is on when the Recorder is
power off & charging.

3. Panel Buttons:

Power: During power on state, press shorter than 2 seconds to turn on/off LCD

screen, press longer than 2 seconds but shorter than 10 seconds to show
shutdown dialog, press longer than 10 seconds to force shutdown. During power
off state, press longer than 2 seconds to turn on.

Menu/Back: Press this button to enter or exit menus.
Vol+/-,Mic+/-: Press these buttons to control Speaker/Microphone volumes.
Mode: Press this button to switch among Record/Photo/Playback preview. Long

press to delete a recording in playback preview.
Rec/Stop: Short press to start/stop recording in record preview state. Long press
to capture a photo in photo preview state.

4. SD card slot: Insert SD card for record or playback.

5. DC input 5V/2A: DC jack for USB power adaptor

6. Earphone: Earphone output with Microphone input interface.

7. AV IN: earphone jack for CVBS video + L/R Audio input.

8. HDMI IN: HDMI input

9. HDMI OUT: HDMI output.

10. USB: for plug into an external USB storage device.

11. USB TO PC: micro USB for connecting to PC. HD60 Video Recorder works as an USB

6

storage of PC or streams video to PC.

12. LCD Screen: LCD screen for preview/playback.

Connection Instruction and installation (Standalone Mode)

1. Installation

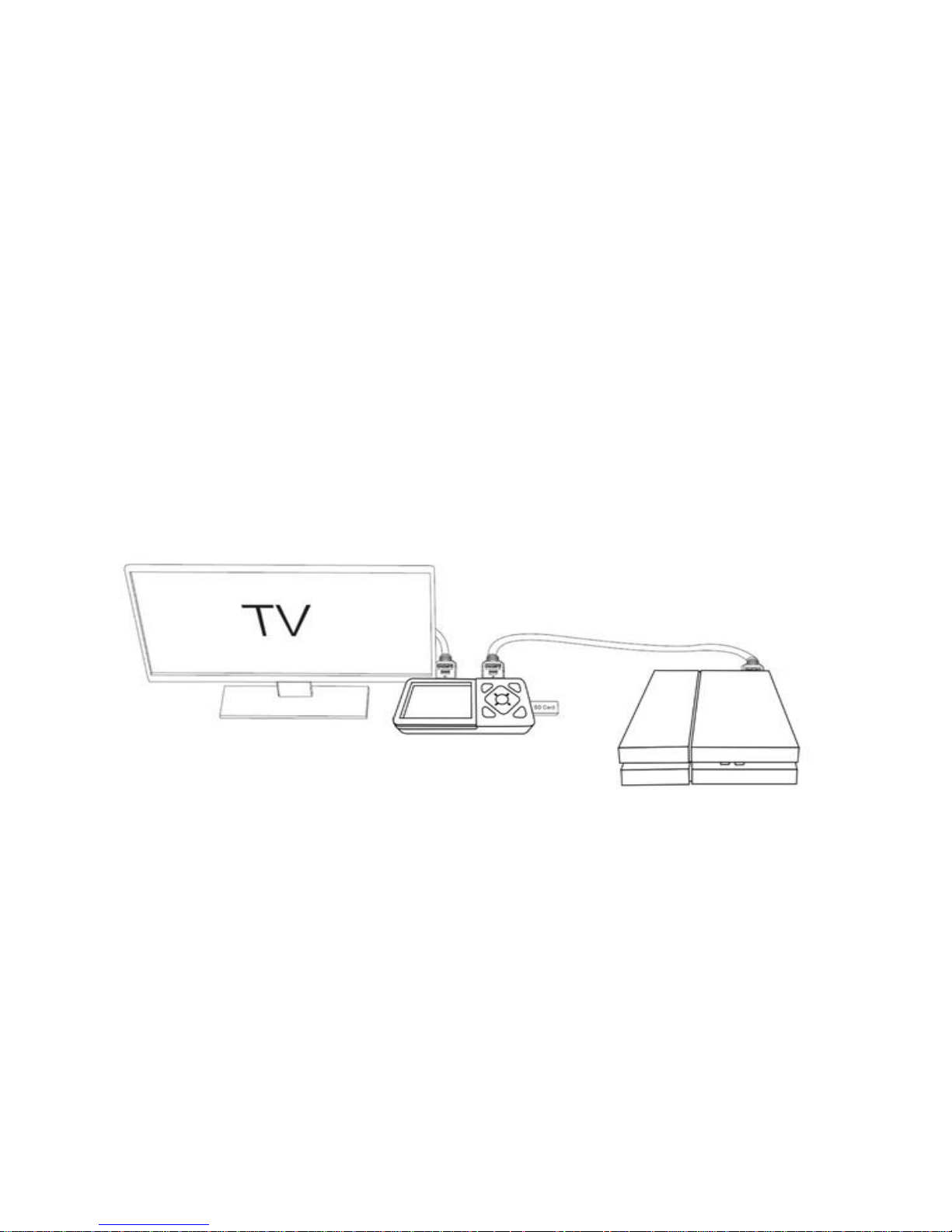

(1) Connect power adapter to DC jack ○5 of HD60 Video Recorder
(2) Connect video source (PS, XBox, Blu-ray player,etc ) to HD60 Video Recorder by

HDMI in ○8 or AV in ○7

(3) Connect HD60 Video Recorder from HDMI OUT ○9 to TV with HDMI cable.

(4) Plug the USB storage device into the USB ○10 or insert SD card to ○4

of HD60 Video Recorder

2. Set up Menu

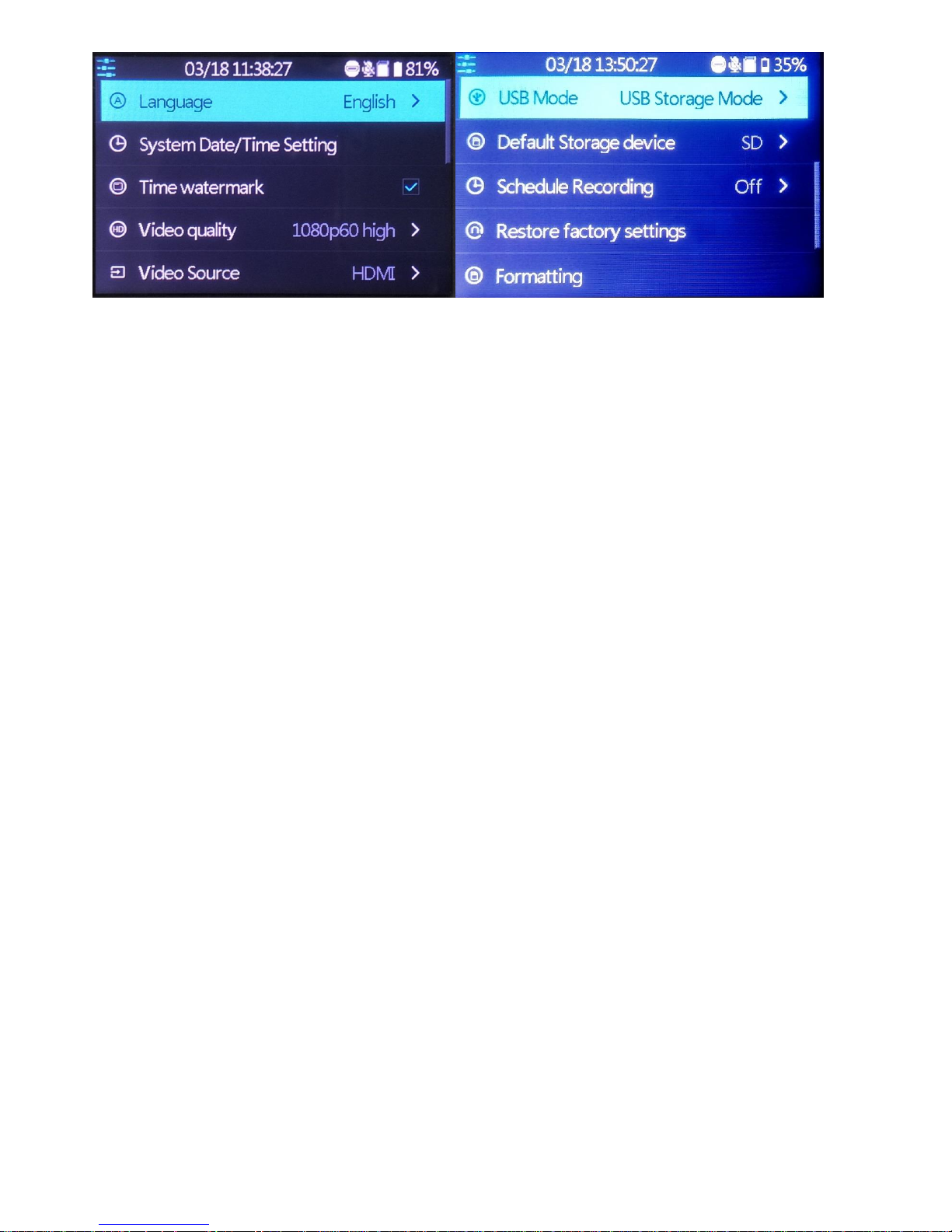

Press Menu button to browse the menu setting as below.

7

Language: Set the OSD language to be displayed on the menu. English, French,
Germany, Italy, Japanese, Russian, Poland, Simplified Chinese and Traditional
Chinese are available.

System Date/Time Setting: Set the time by year, month, day, hour and minute.
Time Watermark: Set the time watermark on screen and recording.
Video Quality: Set the video record quality: 1080p60 High/Middle/Low, 720p60,

480p60 are available. The corresponding video bitrate are 30/22/18/12/4Mbps.

Video Source: Select the source input to HDMI or AV.
USB Mode: Select the USB Host mode (USB Storage Mode, record/playback the

USB pen drive or USB HDD) or USB Device Mode (PC Storage Mode, PC Steaming
Mode, see PC Mode for details).
Default Storage device: Select the default storage device to SD card or USB disk. It
will set to the other one if this default storage is not available.

Schedule Recording: Available setup 3 different schedules: Daily, Once, Weekly
recording.

Restore factory settings: Restore the factory settings.
Formatting: Format the inserted SD card or USB pen drive.
Firmware Upgrade: Support to upgrade the recorder.
Firmware version: Shows the current version info.

3. Record/Capture to USB or SD card

(1) After finishing the setup, press the Menu button to return to the preview mode.

Connect the Recorder to video source via HDMI or AV cable.

(2) Insert the SD card or connect USB storage to the Recorder
(3) Press Rec/Stop button or press Rec button on the remote control to start

recording

(4) Press the Rec/Stop button again on HD60 Video Recorder or press he Stop button

on the remote control to stop recording.

(5) For schedule recording, please keep the Recorder power on & connected to DC

power always.

8

NOTE:

⚫ It will automatically generate the file name when recording starts, the name

rule is date + index.mp4.

⚫ The HD60 Video Recorder supports FAT32, NTFS & exFAT formats. The HD60

Video Recorder automatically generates a new recording file when previous
one reaches the maximum 4GB capacity.

⚫ When HDD or USB storage is full, HD60 Video Recorder will stop recording automatically.
⚫ HD60 Video Recorder saves files in MPEG4 format. The capture resolution can

be set at either 480p,720p or 1080p. Please note that not all games/video files

are produced at 1080p.

9

4. Playback

(1) After all devices are connected properly, press the Playback button on

the remote control to enter the playback preview menu.

(2) You will see the status bar showing the file list with current/total

index. Select your desired file and press OK to start playback.

(3) You will see the progress bar on the bottom, and you can press ▲▼ to

adjust the output volume, or ◄► to Fast forward/rewind.

5. Pause Recording

Press “OK” button during recording to PAUSE, recording time on the top
of left corner is flashing, press “OK” button again to continue recording.

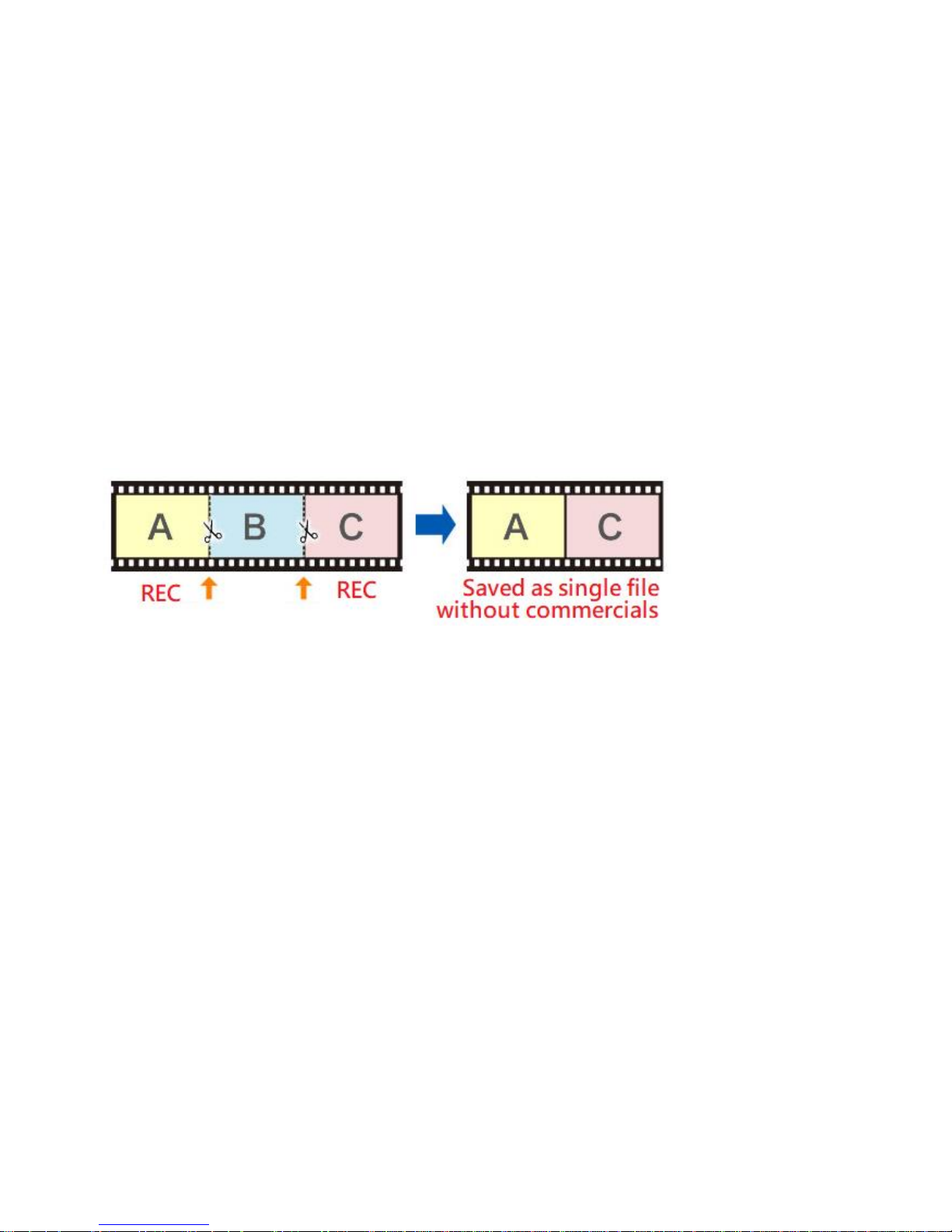

PAUSE recording can save you from recording unimportant sections &
save memory space.

10

PC Mode

1. Installation

Connect the micro USB cable between the USB TO PC port of HD60 Video
Recorder and the USB port of PC, the menu below will pop up. Or you can
manually open it after USB cable connected.

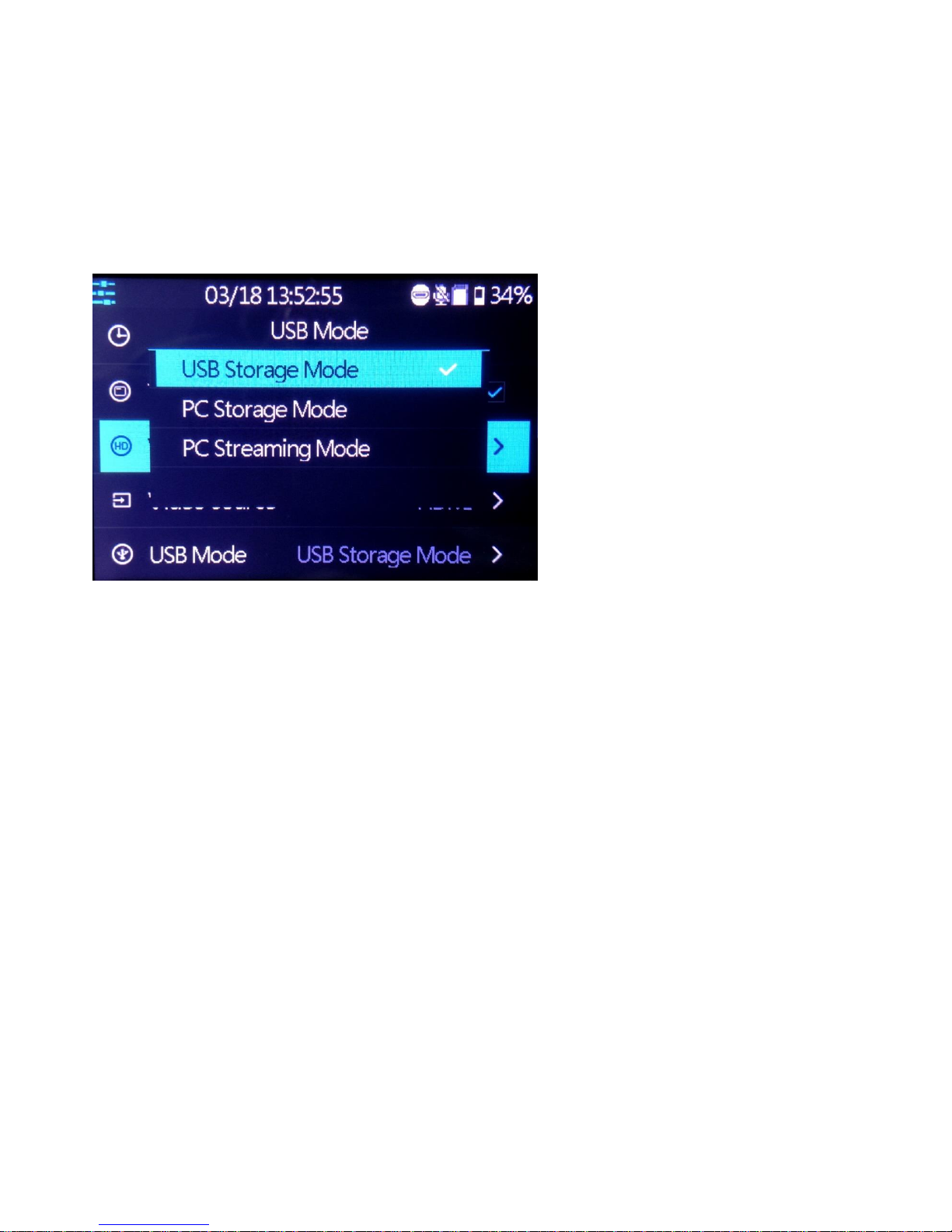

(1) USB Storage Mode: record/playback video on USB Flash Drive / USB HDD.
(2) PC Storage Mode: PC can detect SD card in HD60 Video Recorder & access

files on SD card.

(3) PC Steaming Mode: HD60 Video Recorder can stream video from input source

to PC instantly. With live-streaming software like OBS/XSplit, PC can live stream
to twitch/YouTube/facebook..etc.

Note:

The PC Mode requires high performance computer used in this case,
otherwise you may see“WARNING: High encoding CPU usage! Consider

turning down settings.”

11

2. Live Streaming via XSplit

(1) Download & install & run the XSplit on your PC.

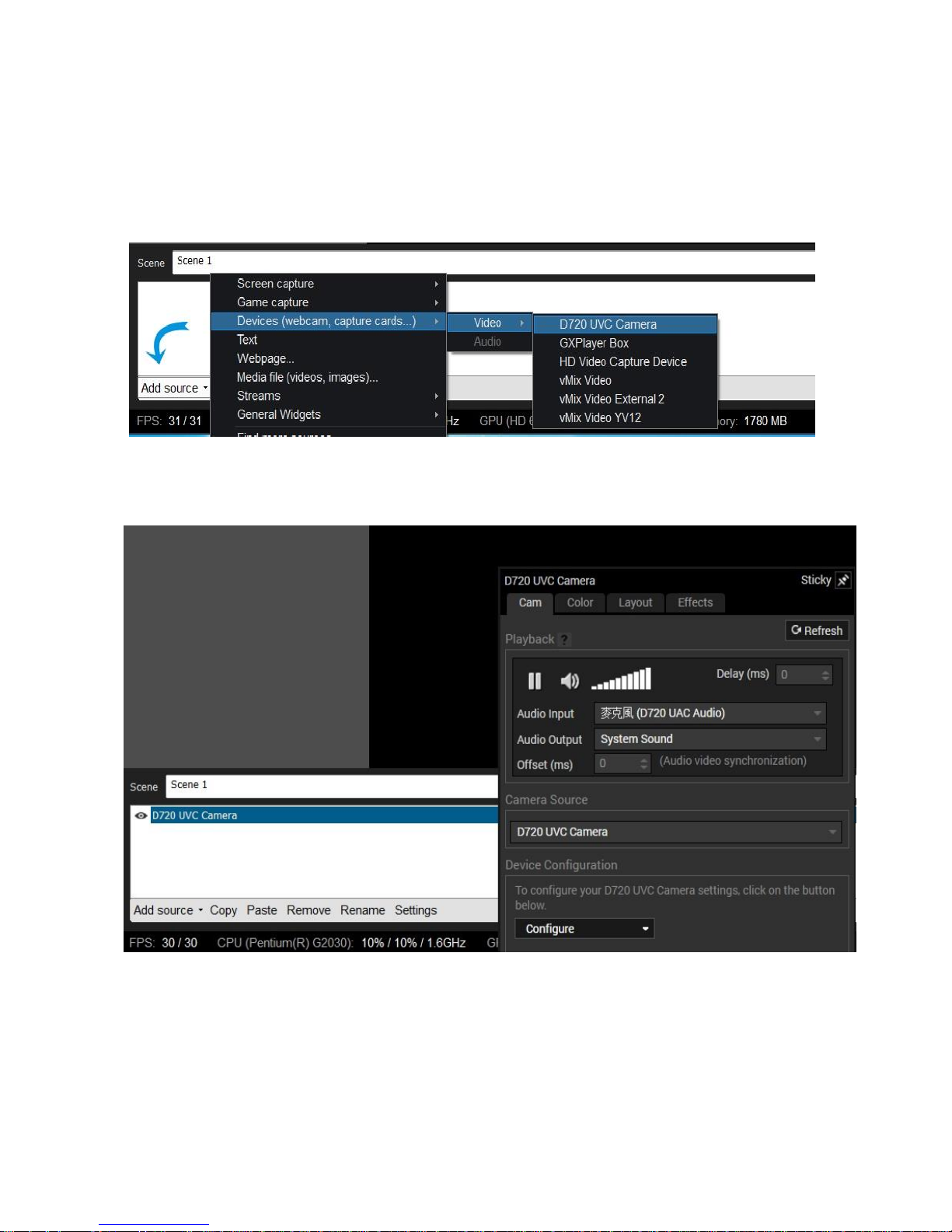

(2) Sources (or Add) → Webcam, capture card, video devices →D720 UVC

Camera.

(3) Select D720 UVC Camera → Settings→ Audio Input → D720 UAC Audio.

12

Setting up for Live Streaming

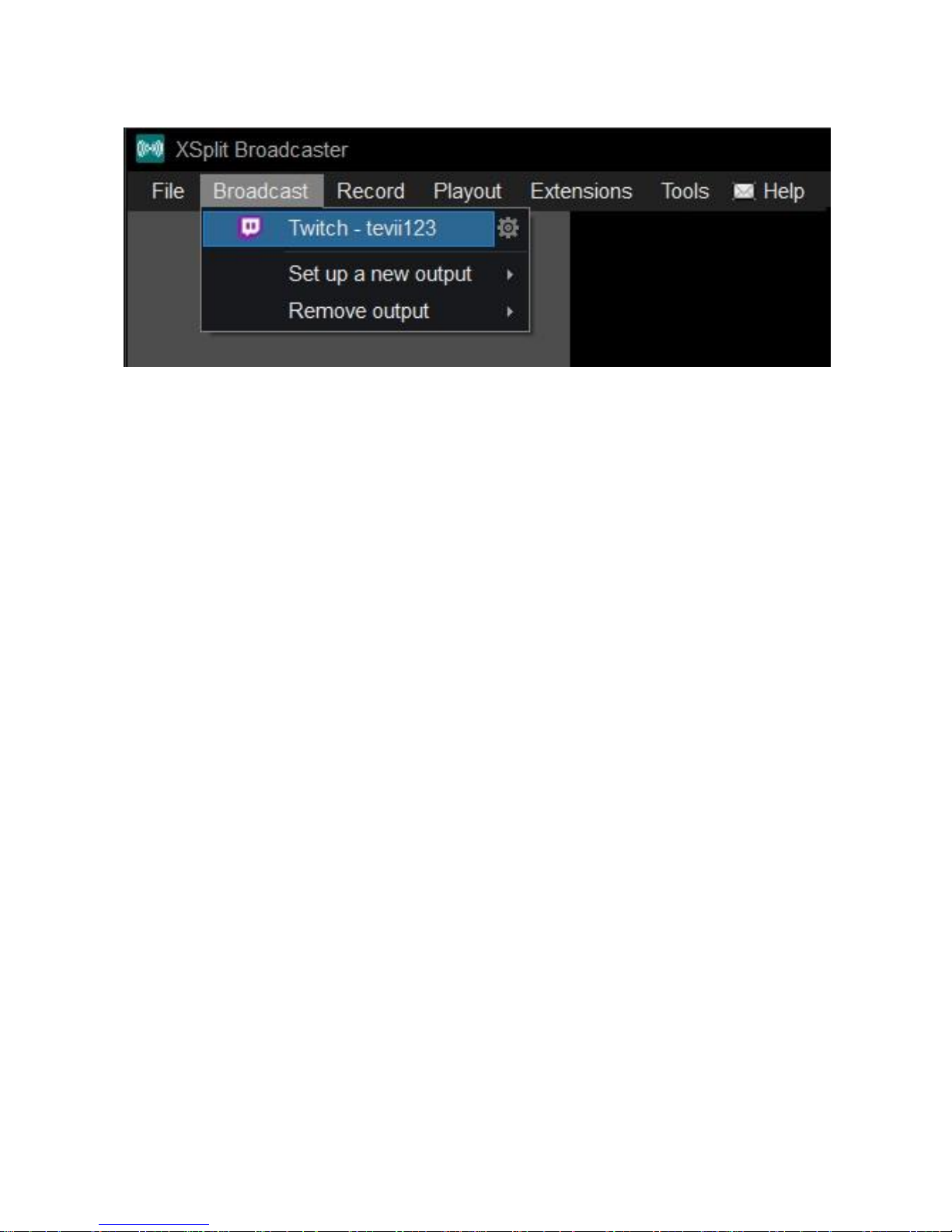

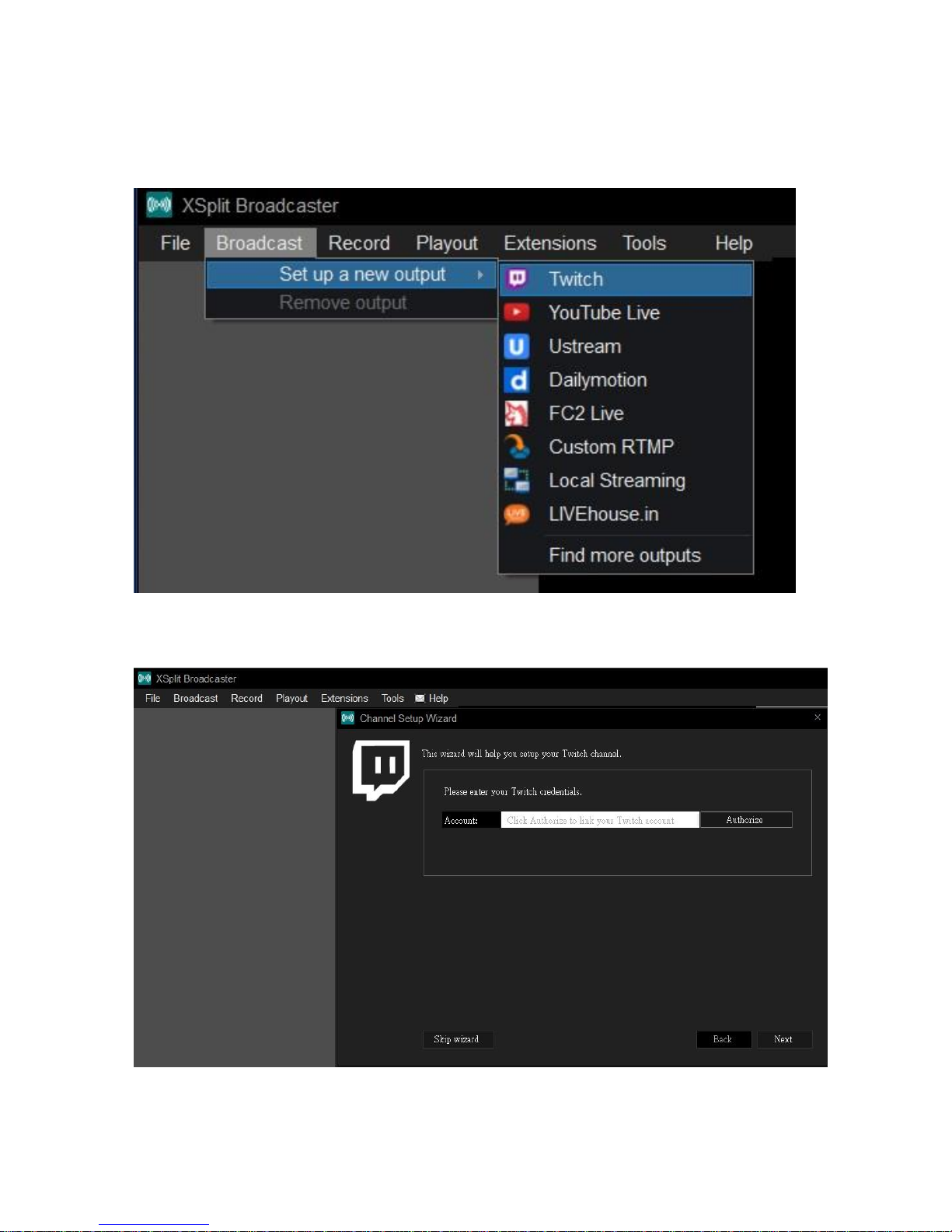

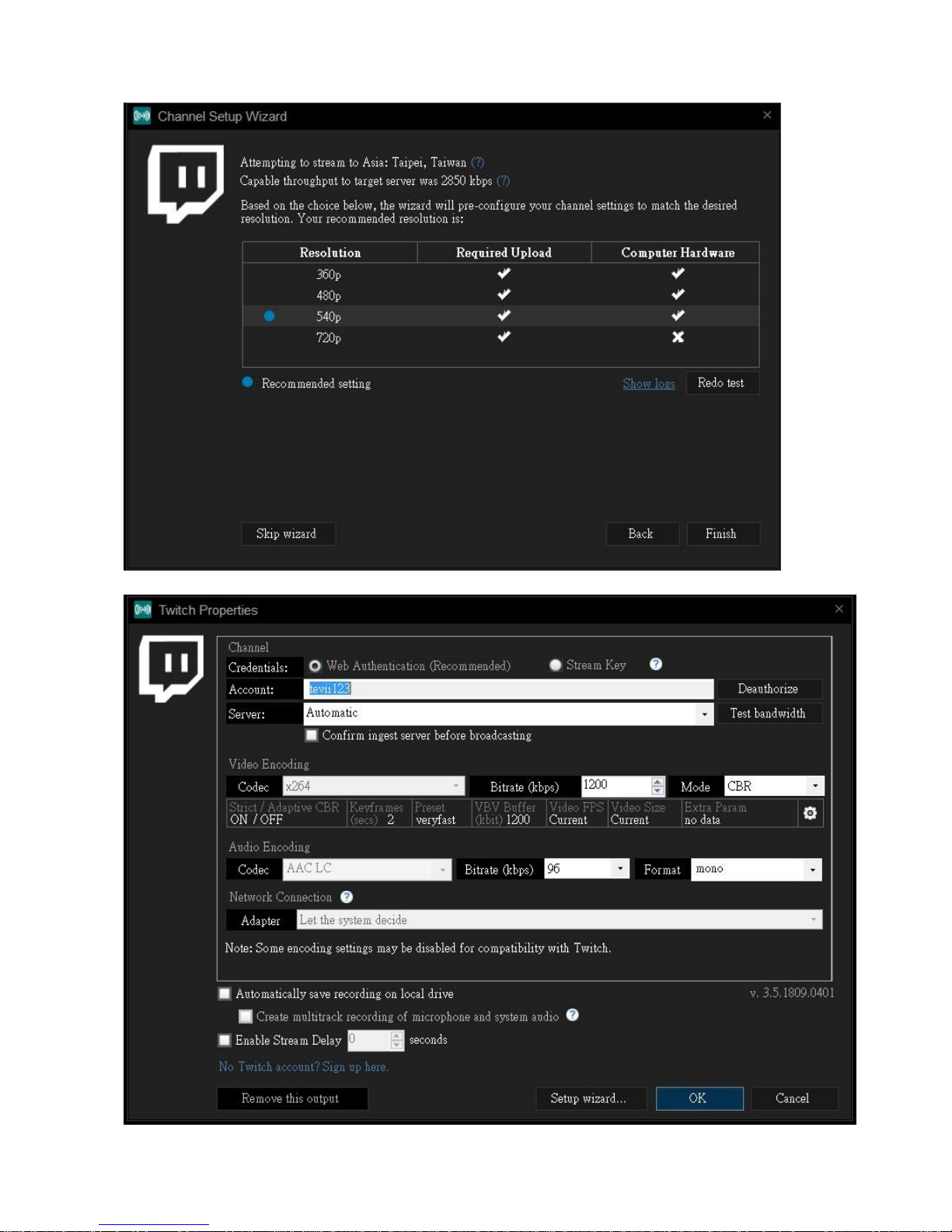

(1) Select Broadcast → Set up a new output → Select Streaming platform

(2) We select Twitch for an example and click Authorize to connect Twitch

13

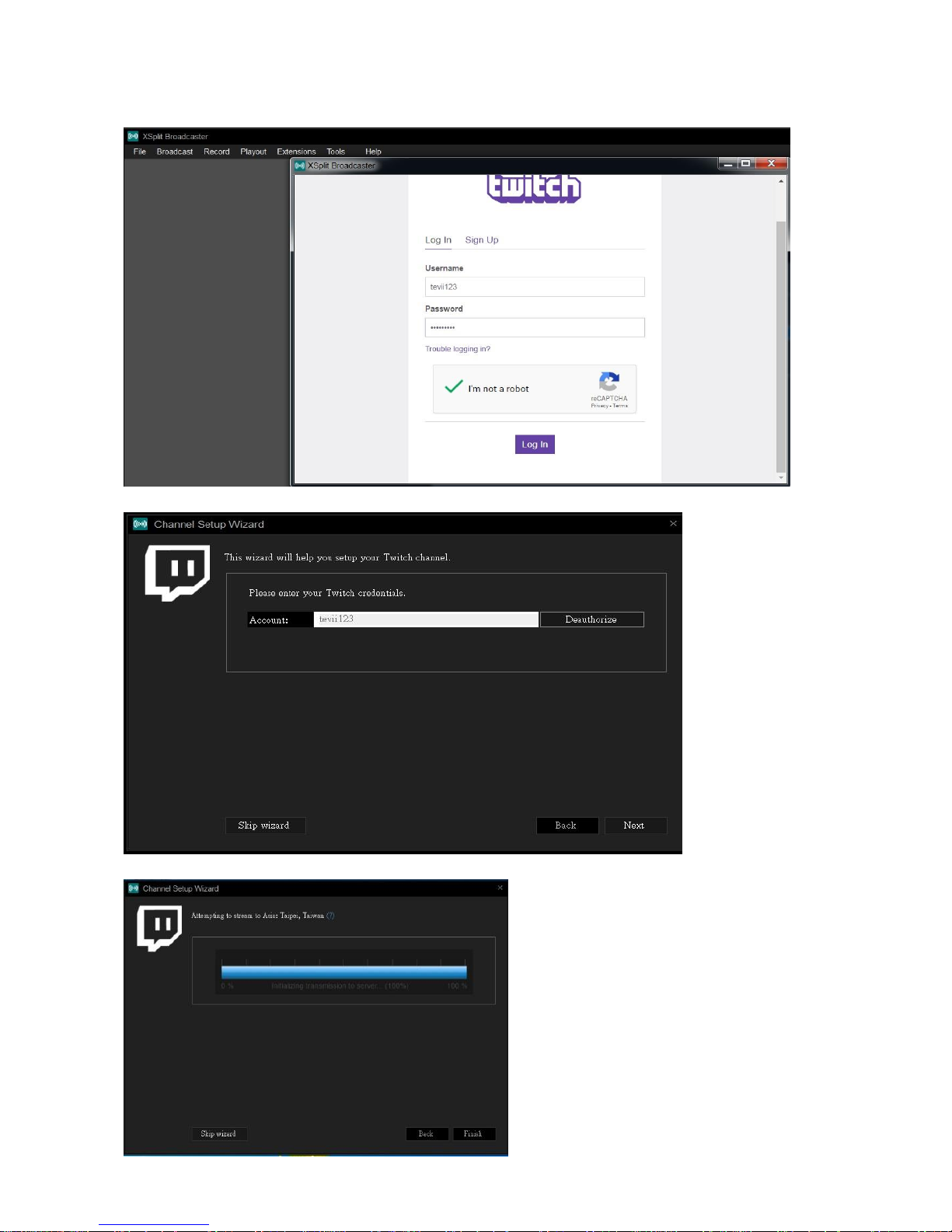

(3) Input Twitch’s Username and Password, the account will show up→

click next → searching neighbor server automatically.

14

(4) Select Resolution you need → click Finish→Press OK to complete setting.

15

(5) Broadcast → Select completed setting platform then start streaming

( Twitch for an example)

16

3. Live Streaming via OBS

(1) Download & install & run the OBS on your PC.

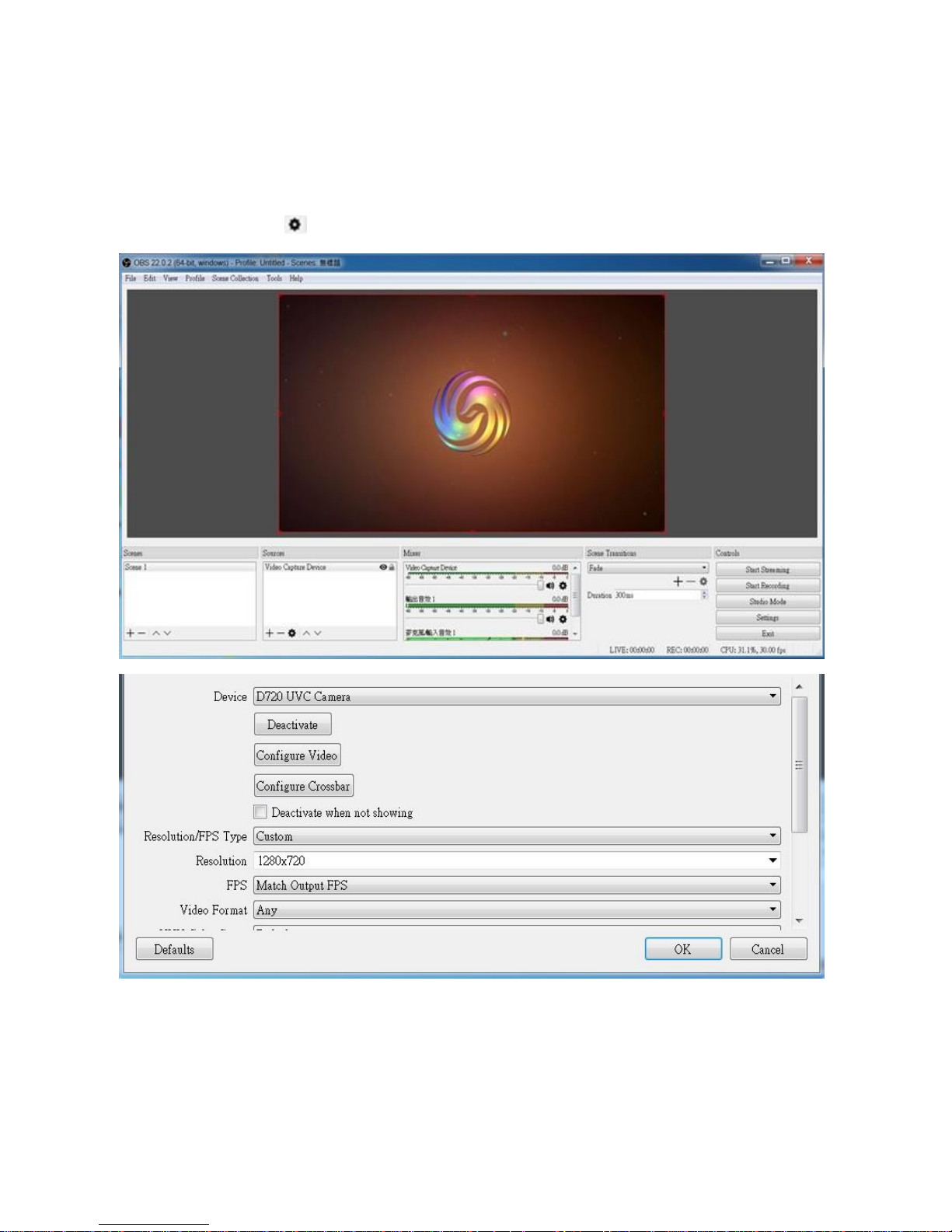

(2) Select Scenes 1→ Click Source (+) then select Video Capture Device→

click setting mark → Device→Select D720 UVC Camera

17

(3) Settings Audio output Mode→ Output desktop audio (DirectSound)

→ Select Use custom audio device→Audio Device Microphone (D720 UAC Audio)

Setting up for Live Streaming

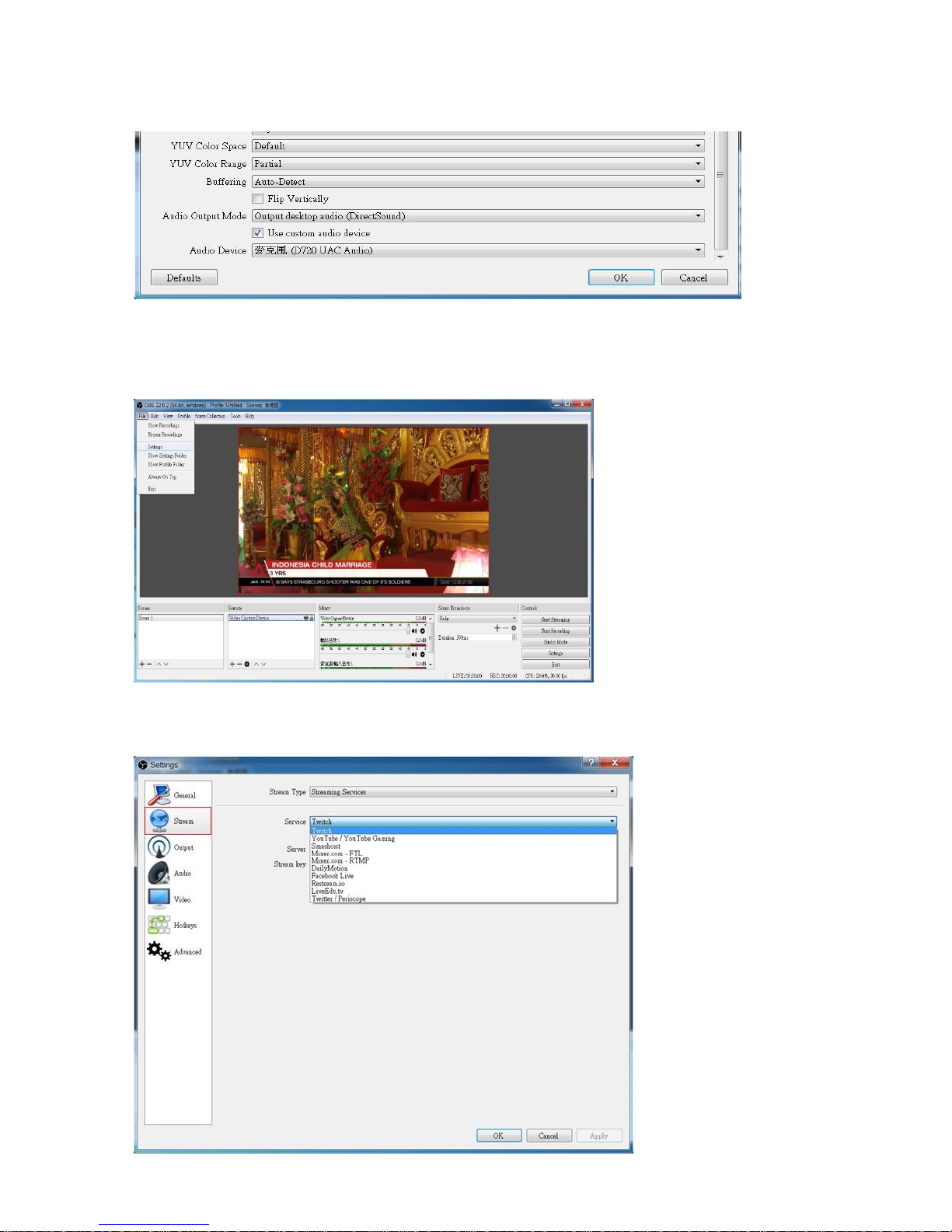

(1) Press File list’s Setting

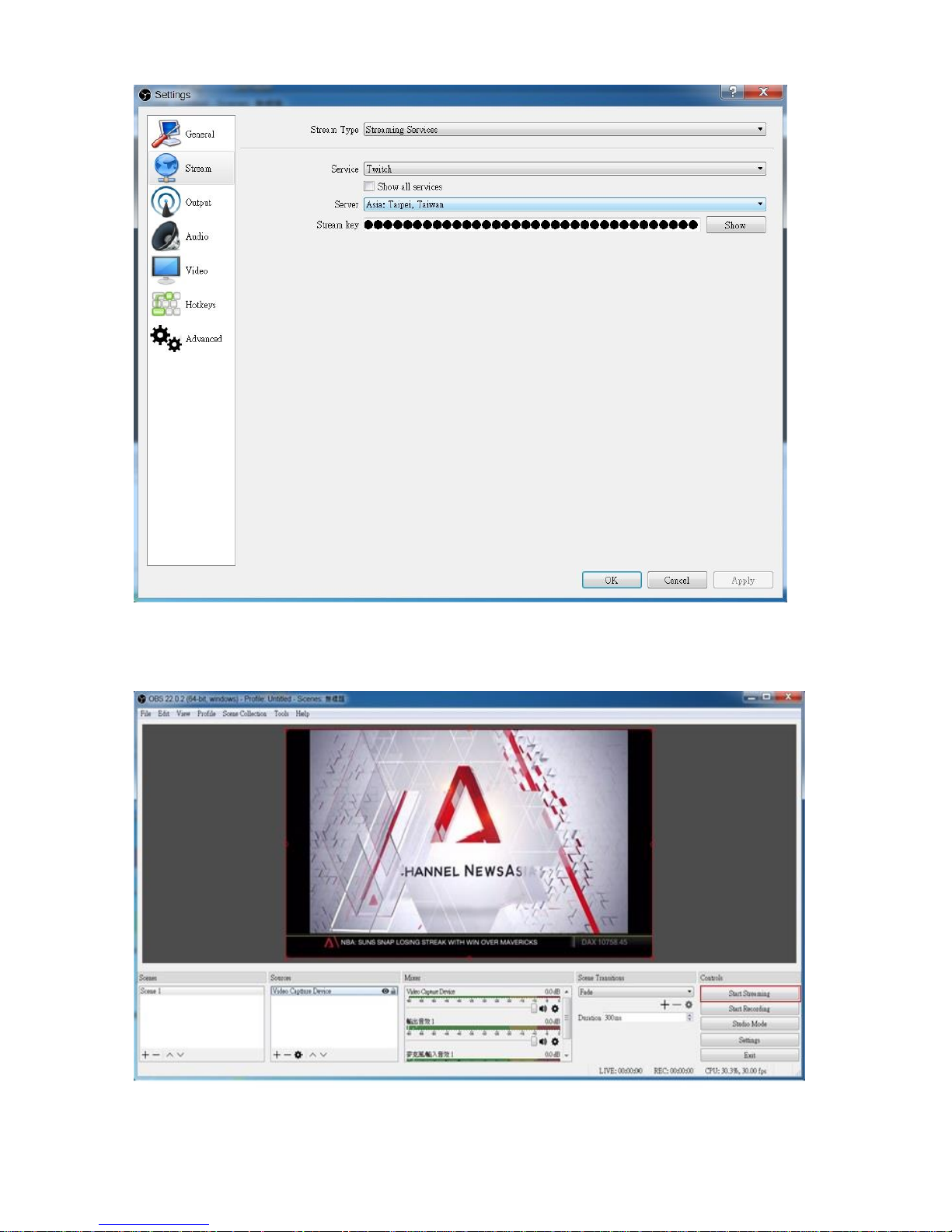

(2) Select Stream (refer to below photo)→ Service (select a stream platform for example

Twitch)→ Select a proper server→Stream key (input a stream code)→Press OK to
complete setting.

18

(3) Press Start Streaming

19

4. Schedule Recording

The user can schedule a recording by press Schedule on remote or choose
from menu Schedule Recording.

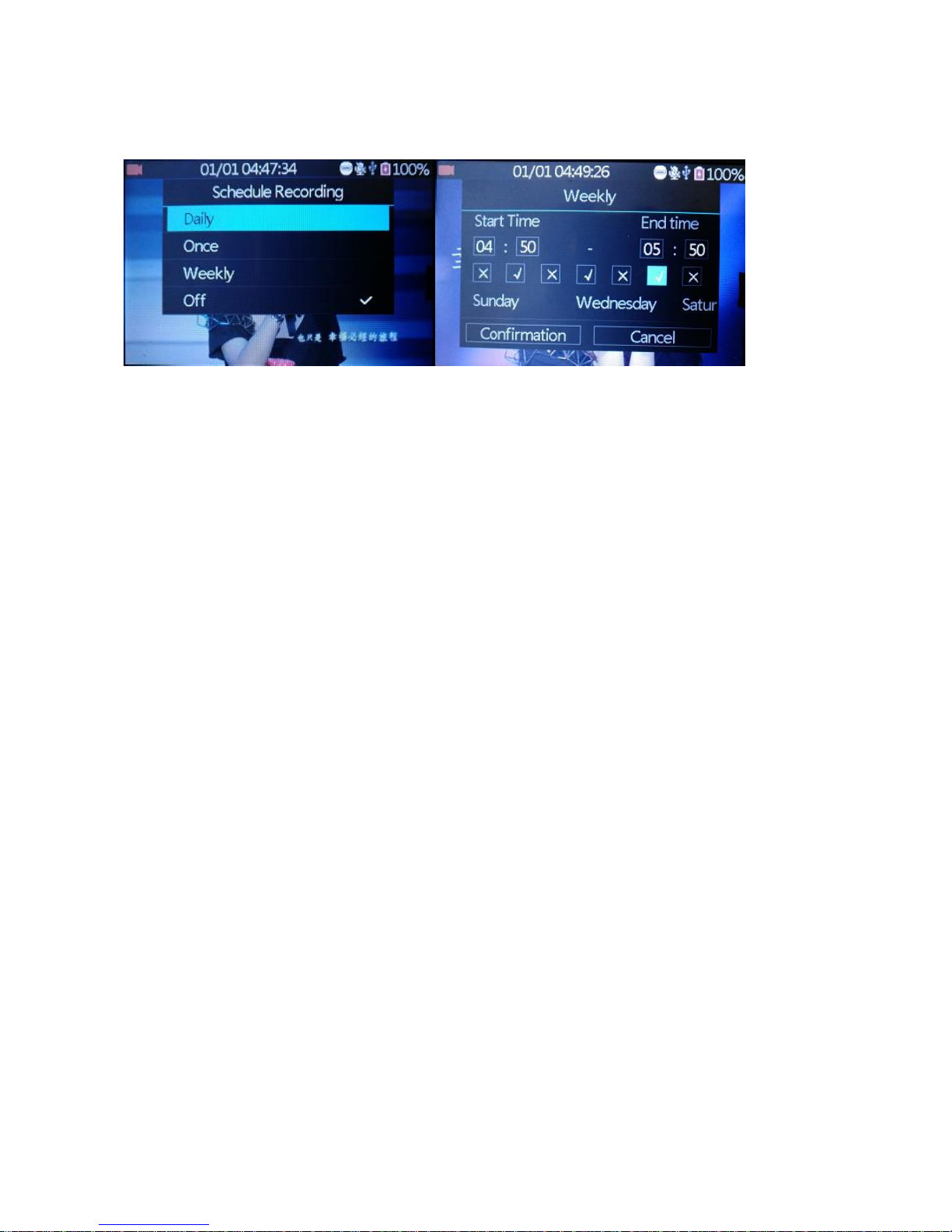

On above menus, HD60 Video Recorder allows you to setup 3 different types of
schedules:

Daily, Once, Weekly recording.
Start Time/End Time:set the desired time of start/stop recording.
Week checkmarks: set the desired week days of schedule.

Confirmation: Click to save the schedule settings.
Cancel: Click to exit without saving the schedule settings.

Note:

⚫ If the schedule saved successfully, a reminder icon will show on the

status bar.

⚫ The schedule recording works only on preview screen with power on.
⚫ When reached the scheduled time, HD60 Video Recorder will start to record

videos automatically.

⚫ The recording will be saved to current available storage device.

20

5. Firmware Upgrade

(1) Put new firmware files on the root path into a SD card or USB Flash Drive,

then insert into the Recorder

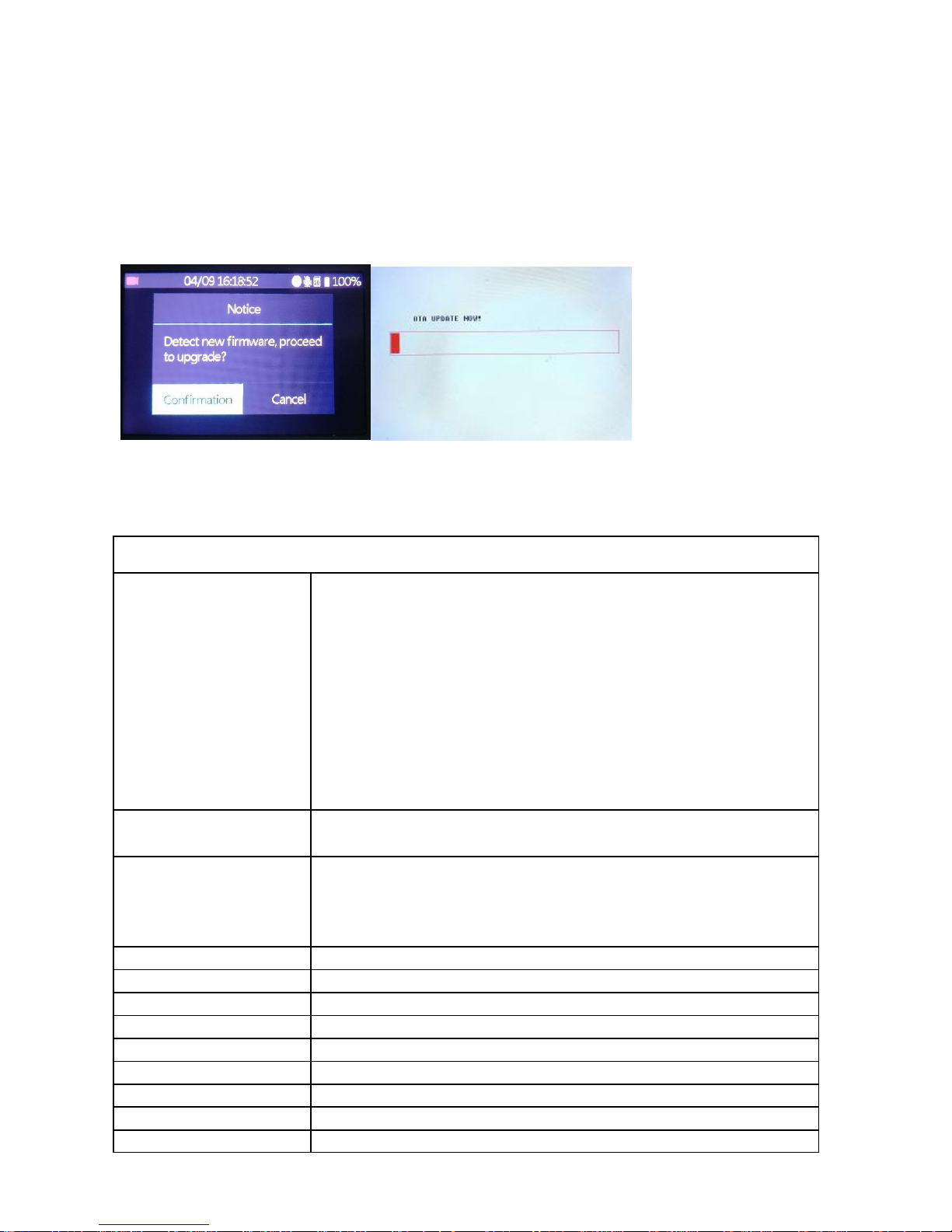

(2) Turn on the Recorder, the new firmware dialog pops up, select

Confirmation to start. (For USB Flash Drive, go to Firmware Upgrade in
setting & start upgrade manually)

(3) DO NOT unplug the SD card/USB Flash Drive till the upgrade process

finished.

(4) After the upgrade completed, it will delete the file to avoid upgrade

again and reboot automatically.

Product Specifications

Supported Video Resolutions

Input

1920x1080 (60p)
1920x1080 (50p)
1920x1080 (30p)
1920x1080 (25p)
1920x1080 (24p)
1920x1080 (60i)
1920x1080 (50i)
1280x720 (60p)
1280x720 (50p)
720x480 (60i/p)
720x576 (50i/p)

HDMI Output

1280x720 (60p) for playback / Loop-through up to 1920x1080 (60p)

Recording

Local Recording:
1920x1080 (60p). 1280x720 (60p). 720x480 (60p).
PC Recording:
1920x1080 (30p). 1280x720 (60p).

Output format

MP4 (H.264)

CVBS standards (input)

NTSC, PAL

Input signals

HDMI, AV, MIC, USB

Output signals

HDMI, Micro USB, Earphone, Speaker

Supported file system

FAT32, NTFS, exFAT

Recording capacity

Maximum 4GB per file

Recording Bitrate

30/22/18/12/4Mbps in different record quality

Maximum storage capacity

4TB (HDD), 128GB (USB Flash drive), 128GB (SD card)

Power supply

DC 5V, 2A

21

Trouble Shooting

(1) The HD60 Video Recorder doesn’t show video on LCD screen.

Please make sure the HDMI or AV source input is connected & selected
properly. For HDCP video source, video could not be seen LCD screen/HDMI
display unless switching off HDCP from video source.

(2) SD/TF card / USB HDD is not detected by the Recorder.

For TF (microSD) card, please make sure good SD adapter is used. It’s
highly possible the connector pin is oxidized with bad quality adapter used
over time. Some SD/TF card previously used/formatted by other device such as
digital camera may have hidden partition and need to be formatted by PC
tool like PhoenixCard before use. For big size USB HDD, we suggest to use
Guiformat to format in FAT32, it’s a free tool from http://www.ridgecrop.demon.co.uk/

(3) The HD60 Video Recorder screen freezes.

You can always long press Power button for 10 seconds to reboot the
Recorder

(4) The HD60 Video Recorder is not recording.

Please make sure the proper source input is selected.
Please make sure the storage device USB disk or SD card inserted.

(5) There is no sound in Speaker, Headset or recording.

Please make sure the volume is unmuted & speaker/headset volume is
properly adjusted.

(6) There is no file preview in Playback menu.

Please make sure there are recordings in the USB disk or SD card.
If you copy the external files to USB disk or SD card, videos should be
saved in video folder, pictures should be save in photo folder. Not all the
video files could be detected & playback.

(7) There is no PC Storage device on PC.

Please make sure you inserted a valid SD card into this device and connect

“USB TO PC”to PC with microUSB cable (not included) and select “PC

Storage Mode” under USB Mode on software setting.

(8) There is no Live stream on PC.

Please make sure you connect “USB TO PC” to PC with microUSB cable (not
included) and select “PC Streaming Mode” under USB Mode. Please make

sure you can see D720 UVC Camera, D720 UAC Audio device in your PC
Device Manager. Make sure D720 is selected as Video/Audio input in
streaming software OBS/XSplit.

22

(9) Insufficient power for USB HDD

USB HDD will consume more power, embedded battery of Recorder may
not provide enough current, please connect 5V/2A DC power before
connecting to USB HDD. For 3.5” HDD, please connect its own DC power.

(10) Video/Audio not synchronized in PC preview.

On PC Streaming mode, high data rate streaming to PC will cause heavy
workload. Please use gaming PC with faster CPU & GPU.

(11) Video/Audio not synchronized when playing back on Recorder screen

The resolution of 3.5” small screen is 480x320. It takes time for HD60 Video
Recorder to convert high data rate (1080P 60FPS) videos and causes
Video/Audio not synchronized sometimes. Such problem won’t happen on
playing back 720P video file or output 1080P60 through HDMI.

(12) Playback recorded files on PC doesn’t run smoothly

Playing high bit rate recordings requires high performance PC. Please use
gaming PC or powerful player such as Blu-ray DVD (with USB support) or
Android TV box.
