TeVii D200 iCapture User Manual

D200 iCapture

User Manual

1

Important Safety Instructions

Before using D200 iCapture, please ensure that you

read and understand the safety precautions below:

1. Do not attempt to open the case of D200 iCapture or
modify it in any way, as this will void the warranty.

2. Keep D6200 iCapture Box away from water and other liquids,
as this may cause the unit to malfunction.

3. D200 iCapture may become warm during use. This does
not indicate malfunction.

4. Do not place heavy objects on D200 iCapture, as this may
cause the unit to overheat and malfunction.

5. If the exterior of D200 iCapture requires cleaning, wipe it
with a soft dry cloth.

6. Do not dispose of the unit via conventional domestic waste.

2

Table of Contents

Important Safety Instruction ............................................…………… 1

Table of Contents ............................................................................ 2

What’s included ............................................................................... 3

Product Connectors ........................................................................ 4-5

Connection Instruction and installtion .................................................. 6

Connecting iPhone & iOS upgrade instruction........................................6-8

Standalone Mode

1. Installation ............................................................................. 8

2. Record / Capture to USB HDD or Pen Drive ............................... 9

3. Set Up by OSD ....................................................................... 9-11

PC Mode

1. Software Installation & Connection ..................................... 12-13

2. PC Software (GXPlayer) registration & key features ... …….. 14-15

Upload video to YouTube ............................................................ 16-18

Live Streaming via XSplit ............................................................ 19-21

Live Streaming via OBS .............................................................. 22-24

Record / Capture to PC ................................................................ 25-26

Schedule Recording & Set up ........................................................ 26-27

New Firmware Upgrade Instruction ................................................. 28

Supported Resolutions ..................................................................... 28

Product Specification ....................................................................... 29

Contact .................................................................................................29

3

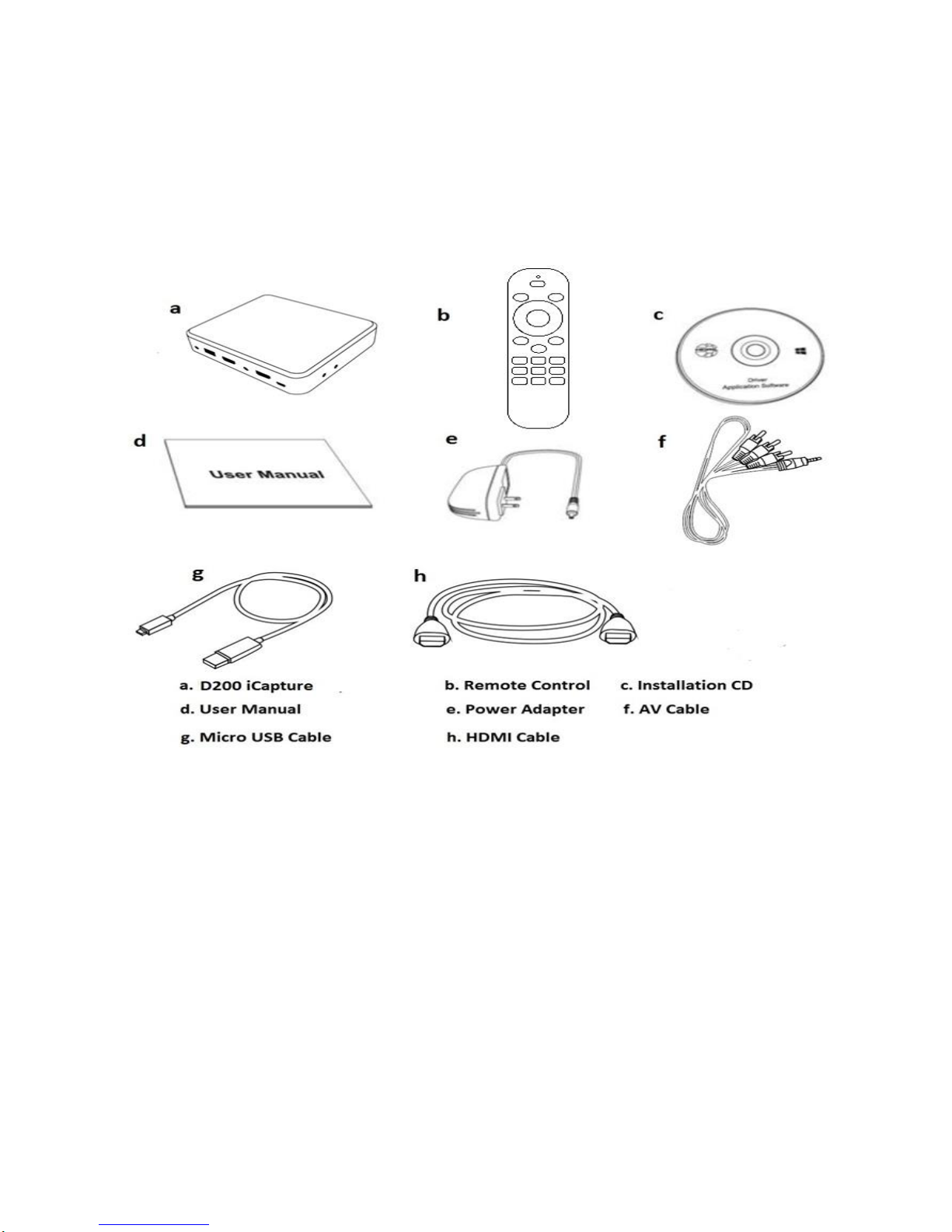

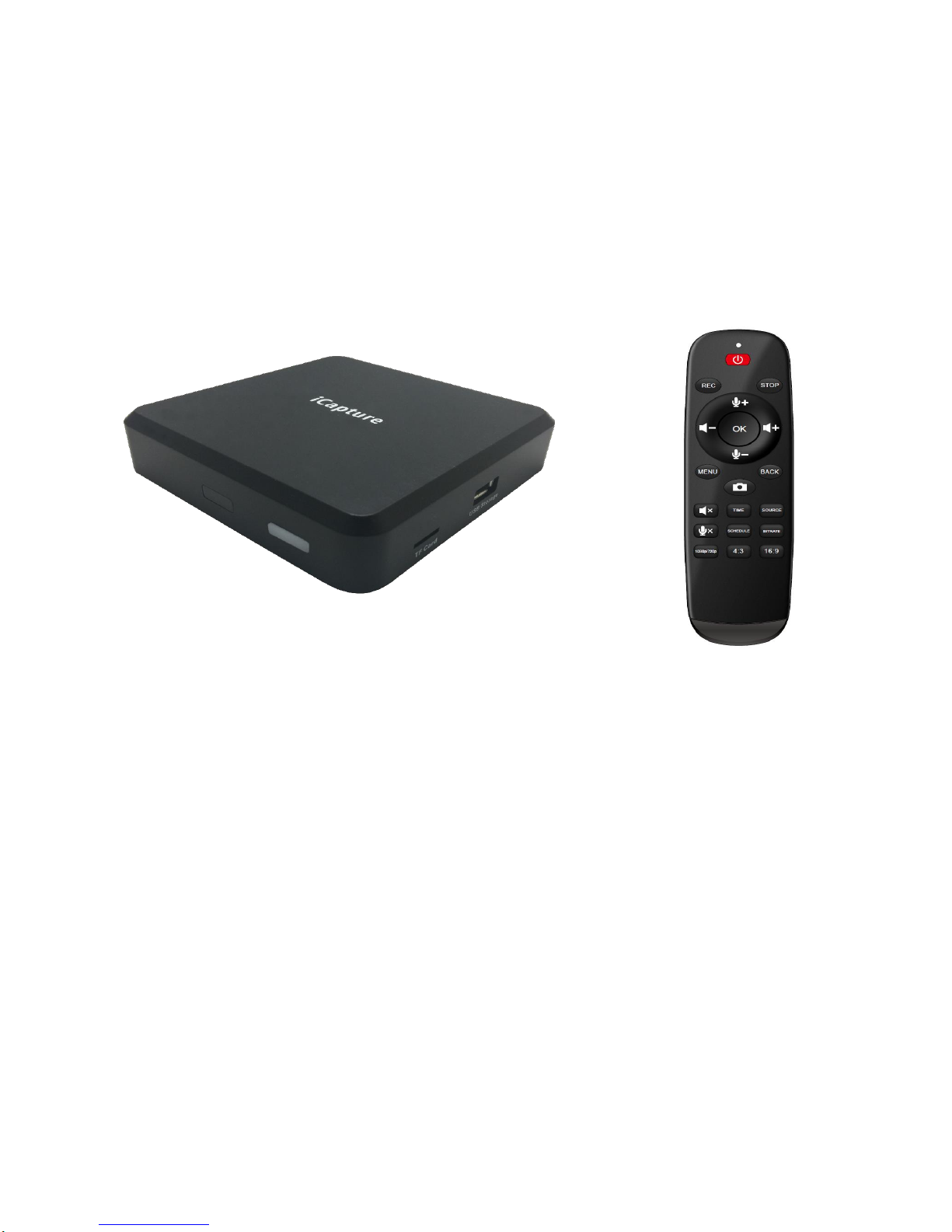

What's included

4

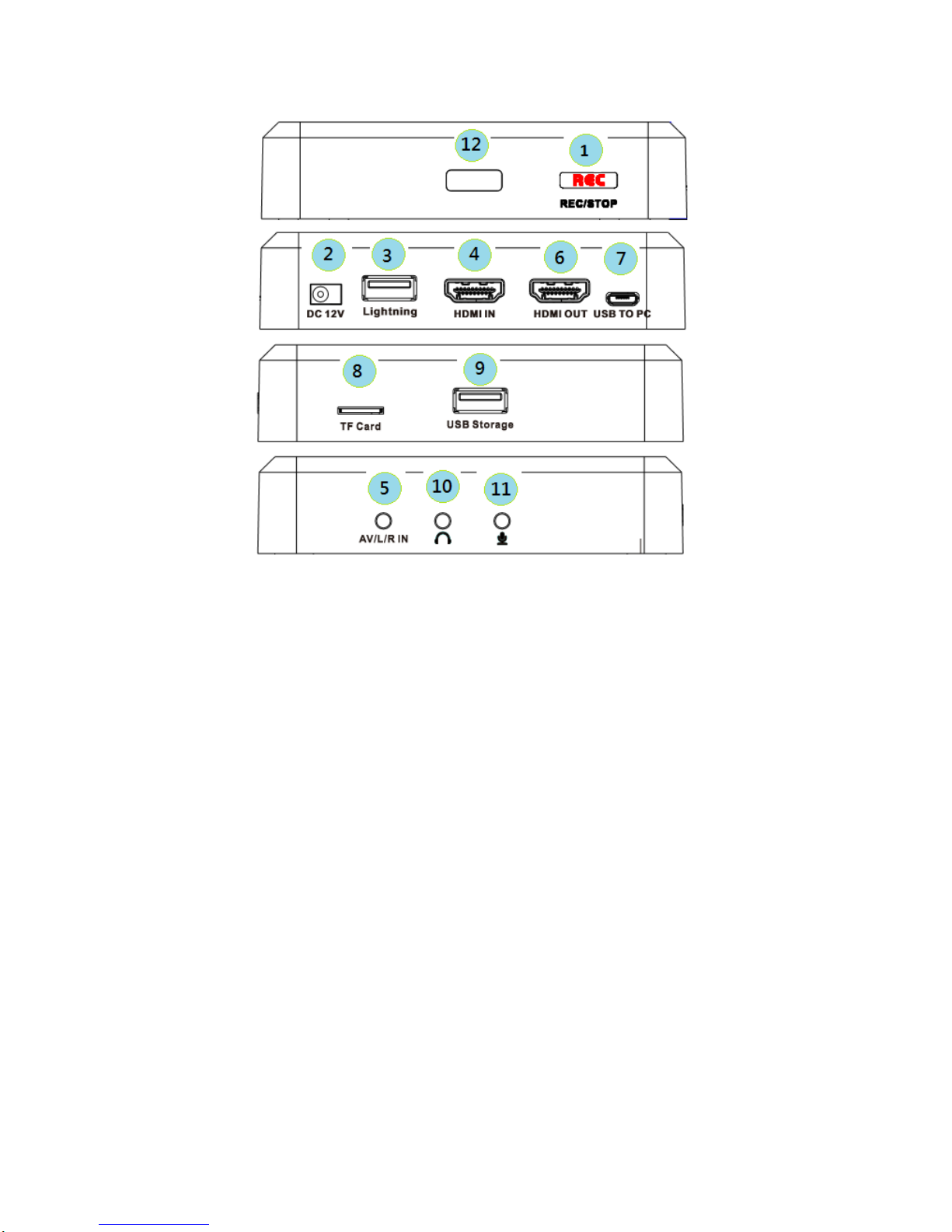

Product Connectors

Power on and REC/STOP button

1. LED indicator for recording:

- Blue: Recording videos in 1080p

- Green: Recording videos in 720p

2. DC input 12V/1A : DC jack for power adaptor

3. Lightning IN : USB input for lightning cable (iPhone / iPad)

4. HDMI IN : HDMI input

5. AV/L/R IN: AV/Audio L/R cable

6. HDMI OUT : HDMI output

7. USB TO PC : Micro USB for connecting to computer.

8. TF card (Micro SD) input : (Standalone mode only)

9. USB Storage : USB connector for USB HDD/USB Flash Drive

10. Line Out: Audio output

11. MIC: Microphone input

12. IR: Infrared Receiver for remote control

5

6

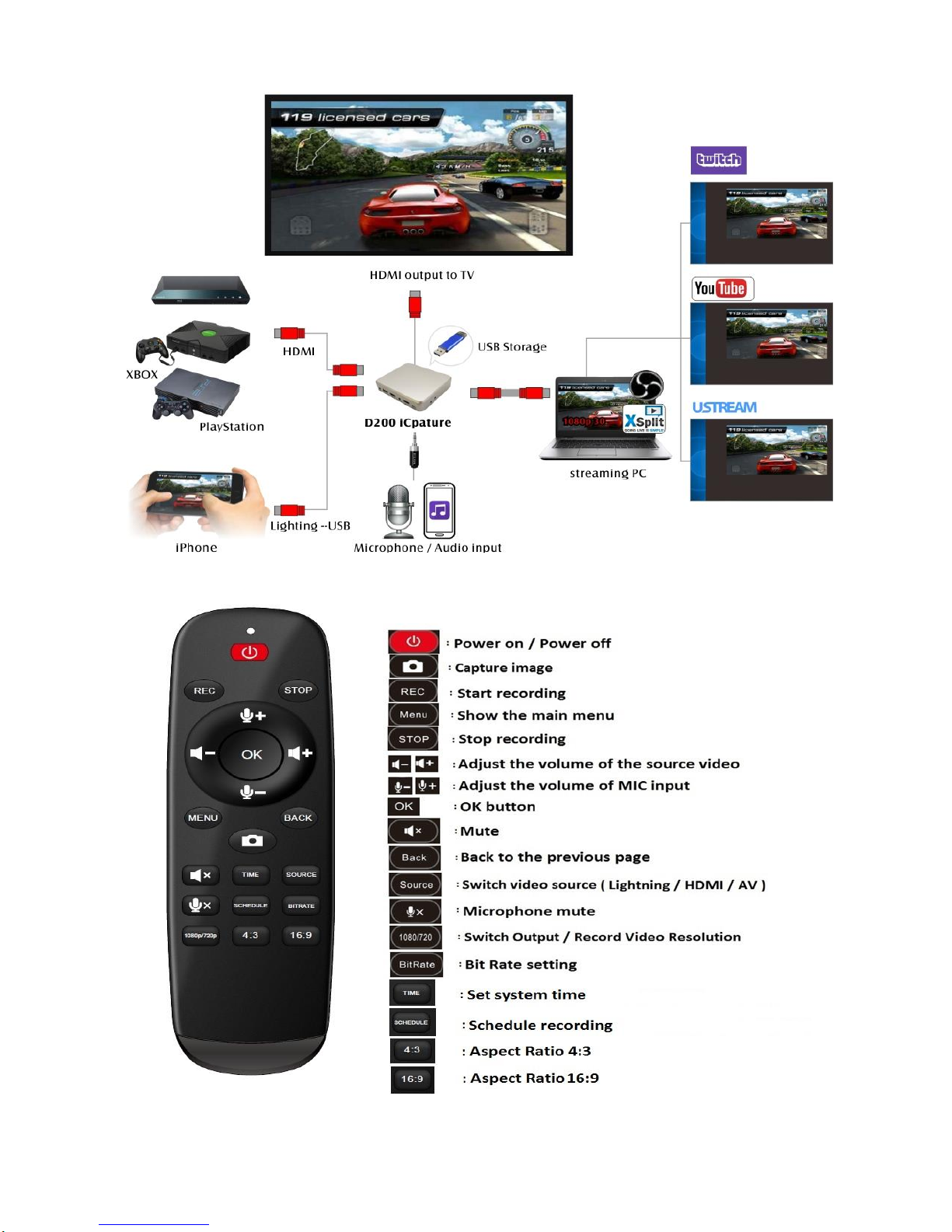

Connection instruction and installation (Standalone Mode)

How To Record Videos and iPhone content To USB Storage (Standalone Mode)

1. Installation

(1) Connect power adapter to DC jack of D200

(2) Connect video source (PS, XBox, Blu-ray DVD) to D200 by HDMI : HDMI in

Connect iPhone to D200 by Lightning :

AV: AV/L/R

(3) Connect D200 from HDMI OUT to TV via HDMI cable.

(4) Plug the USB storage device into the USB of D200 iCapture

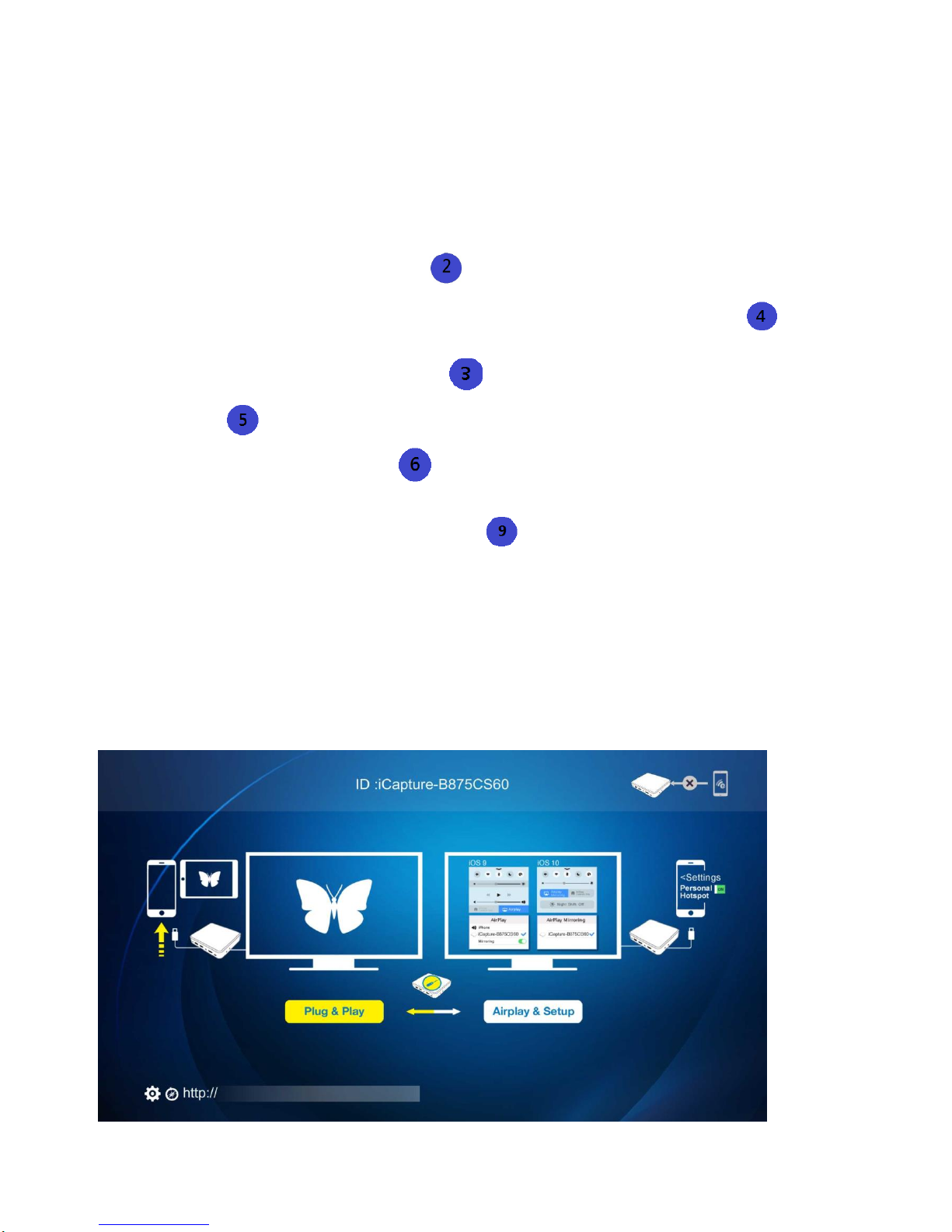

Connecting iPhone & iOS upgrade instruction

1. Connection to iPhone: Plug & Play
Connect D200 to iPhone by lightning cable and select “Trust” on screen,
wait for 10 seconds, then iPhone screen will be projected to TV screen

7

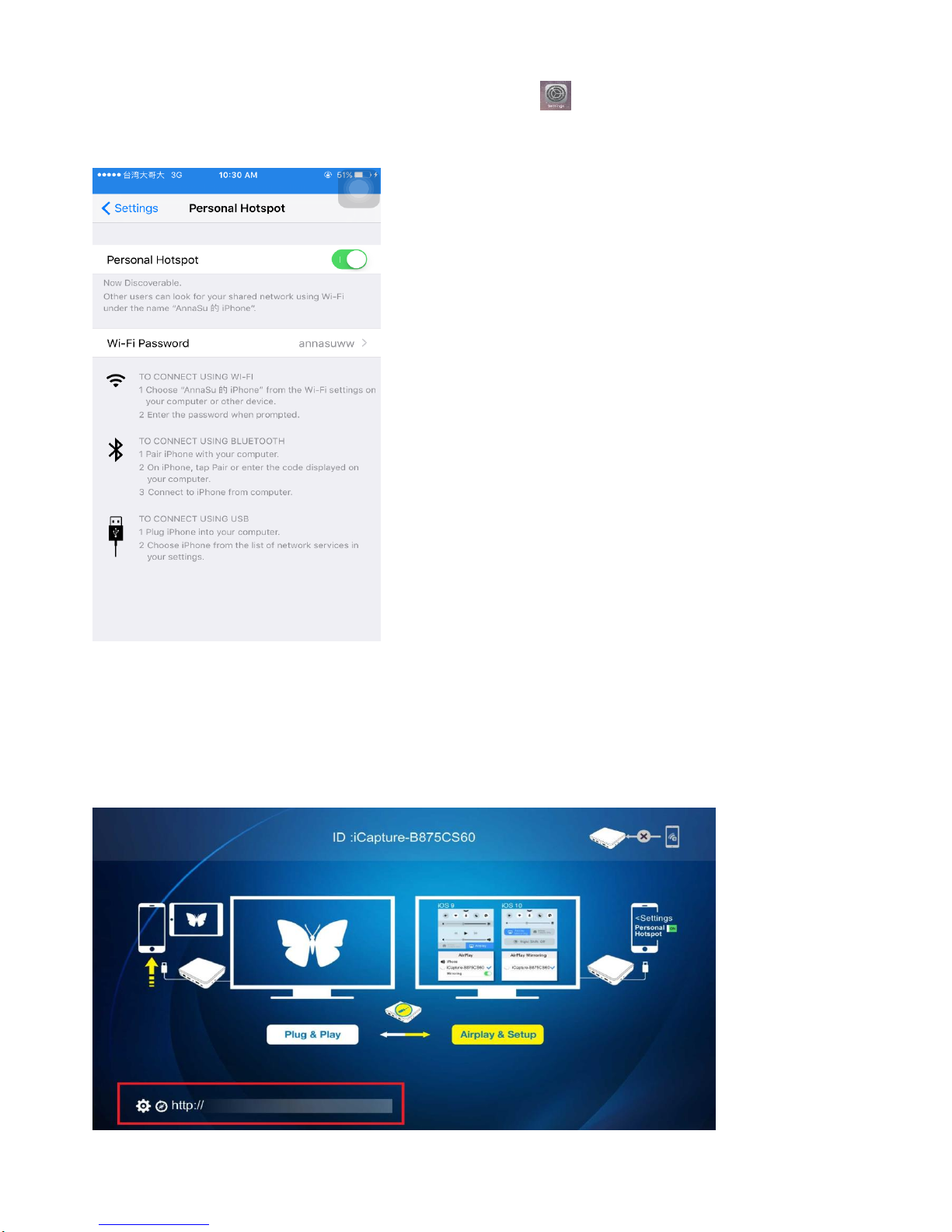

2. Set up mode: Upgrade firmware for new iOS

A. Open Personal Hotspot on iPhone，Setting Personal
Hotspotopen

B. Use a pin to press switch button (on the bottom of D200 case)
C. Connect D200 to iPhone

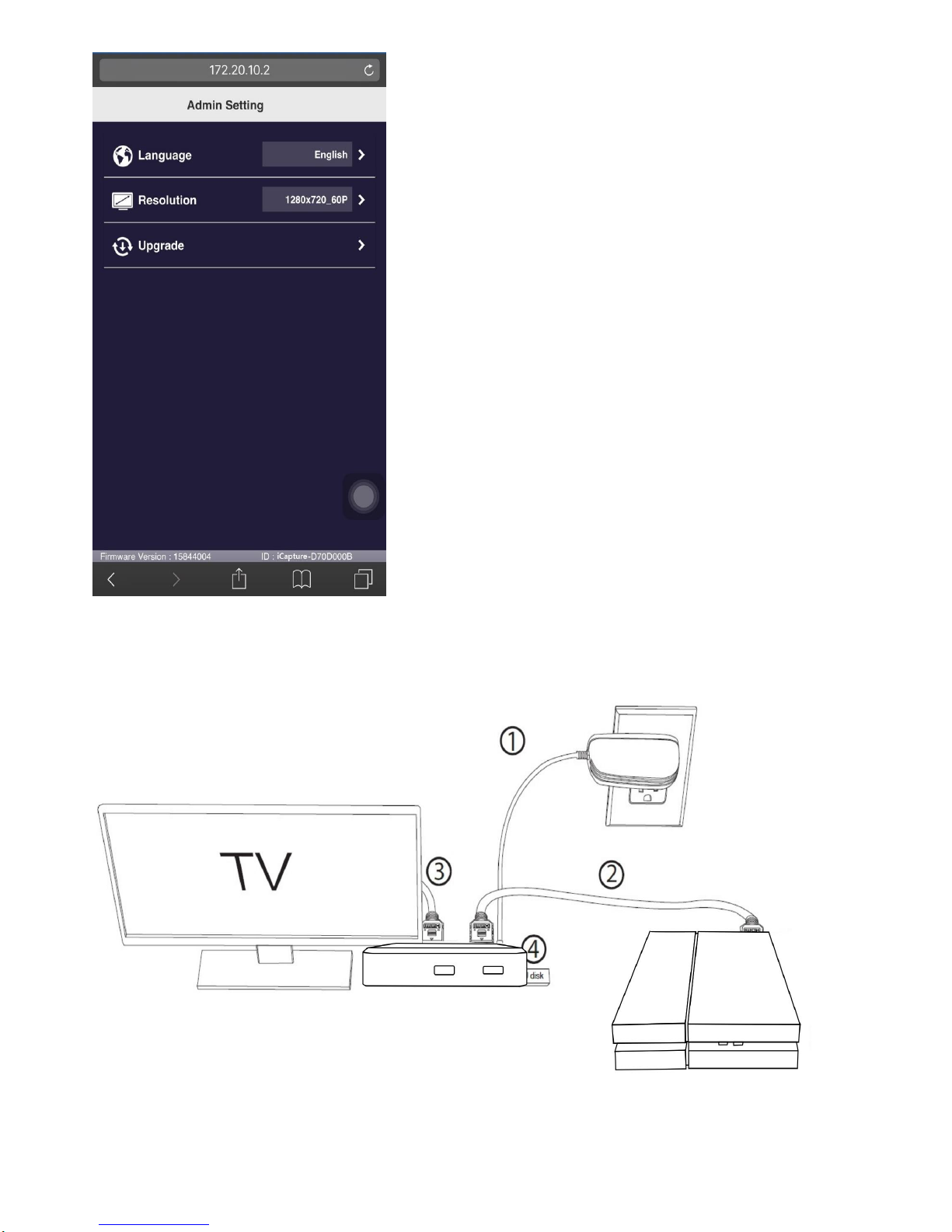

D. Open iPhone browser and input IP address shown on the TV screen
E. Click “Upgrade” on iPhone screen

8

9

2. Record/Capture to USB HDD or Pen Drive

(1) After all devices are connected properly, the power will switch on automatically.
(2) Press the REC/STOP button on the capture box or press the REC button on the remote

control to start recording.

(3) Press the REC/STOP button again on the capture box or press the STOP button on the

remote control to stop recording. The recorded files will be saved to USB storage or HDD.

NOTE: D200 supports FAT32 & NTFS formats only. In FAT32, it will record a new file when

the previous recording file reaches the maximum 2GB capacity, the maximun is 32GB for
FAT; in NTFS there is no 2GB per file limitation D200 will record as long as needed.

When HDD or USB storage is full, D200 stops recording and LED will go off.
D200 saves files in MPEG4 format. The resolution can be set at either 720p or 1080p for
capture. Please note that not all games/video files are produced at 1080p.
D200 will record approximately 1GB per 10mins at either 720p or l080p.

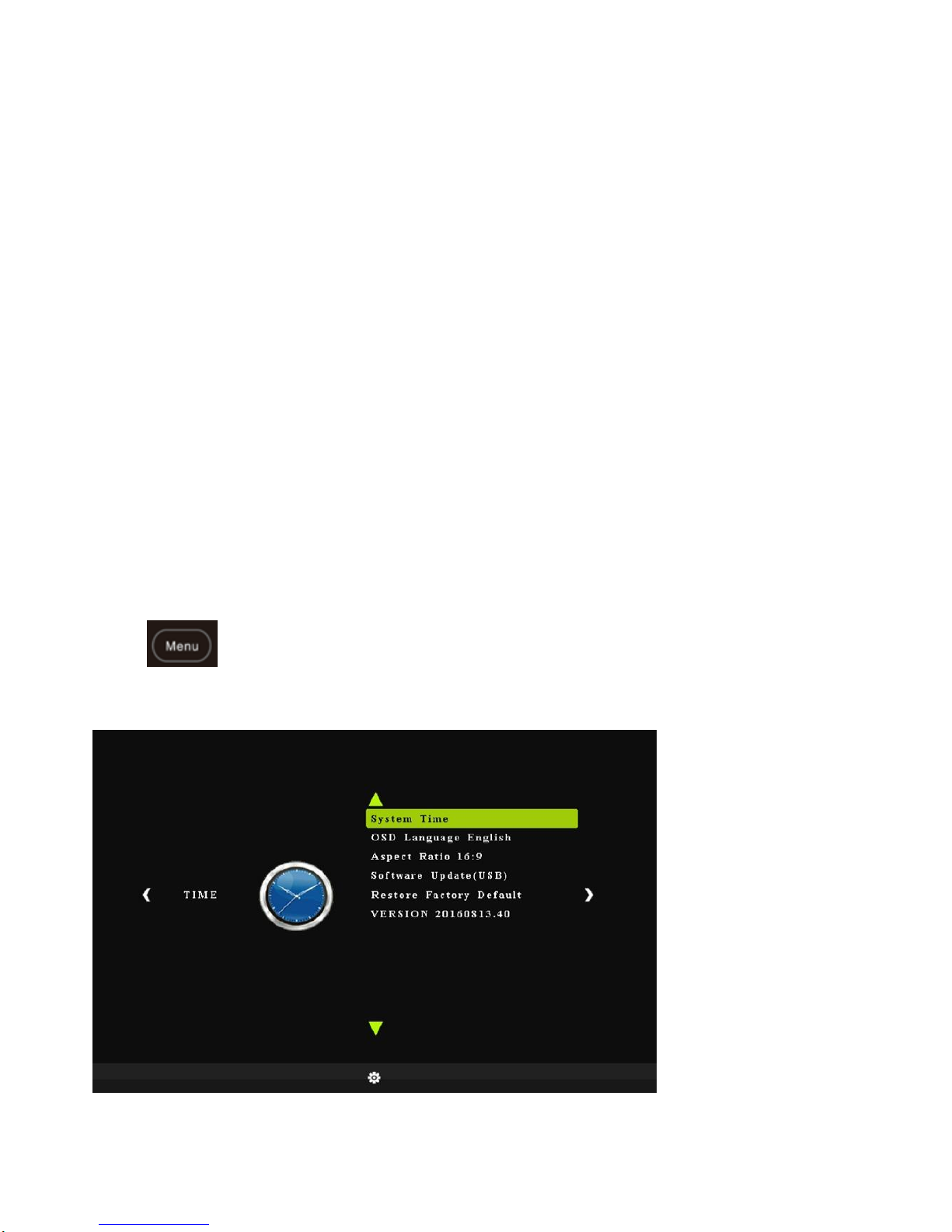

3. Setup by OSD (On Screen Display)

Press on the remote control to browse the menu settings

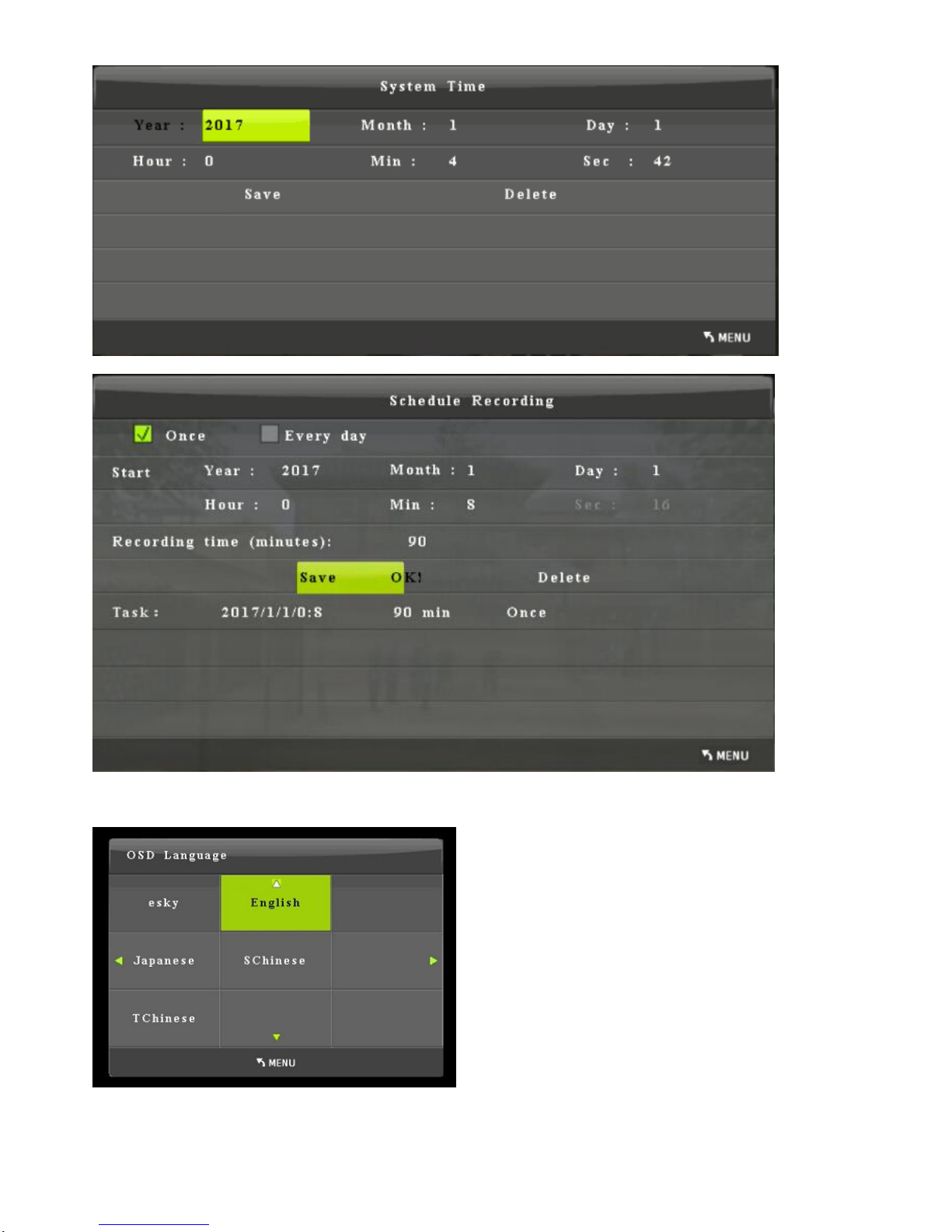

System Time: Set the time of D200 by year, month, day, hour and minute.

Schedule Recording: Allow you to preset up to 4 different recording schedules

10

OSD Language: Set the language to be displayed on the menu. English, Japanese, Simplified
Chinese & Traditional Chinese are available.

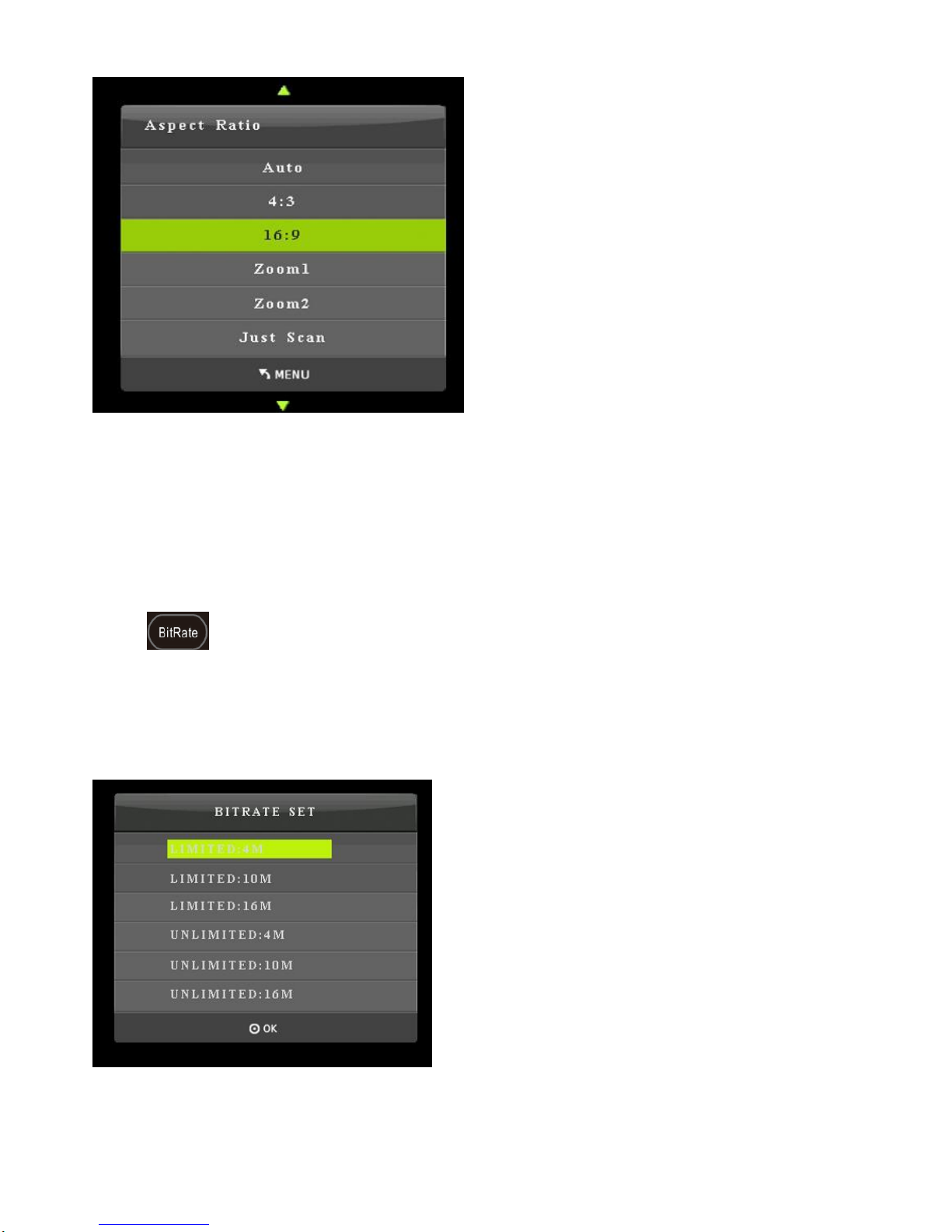

Aspect Ratio: Auto, 4:3, 16:9, Zoom 1, Zoom 2 and Just Scan are available. The default is set
as 16:9.

11

Software Update: Upgrade the firmware when there is a new version available. You need to
download new firmware & save in USB storage, then connect to D200 iCapture

Restore factory default: Restore the factory settings.

Version: Shows the current version info.

Press on the remote control to browse the Bit Rate settings of D200 iCapture
If you set it to a big value, you will get higher image quality, but with bigger file size.
If you set it to a small value, you will get lower image quality but with smaller file size.
For example: LIMITED: 10M means the recorded file is limited to 2GB per file, bit rate is
10Mbps. UNLIMITED means there is no 2GB per file limitation

12

PC Mode

1. Software Installation & Connection

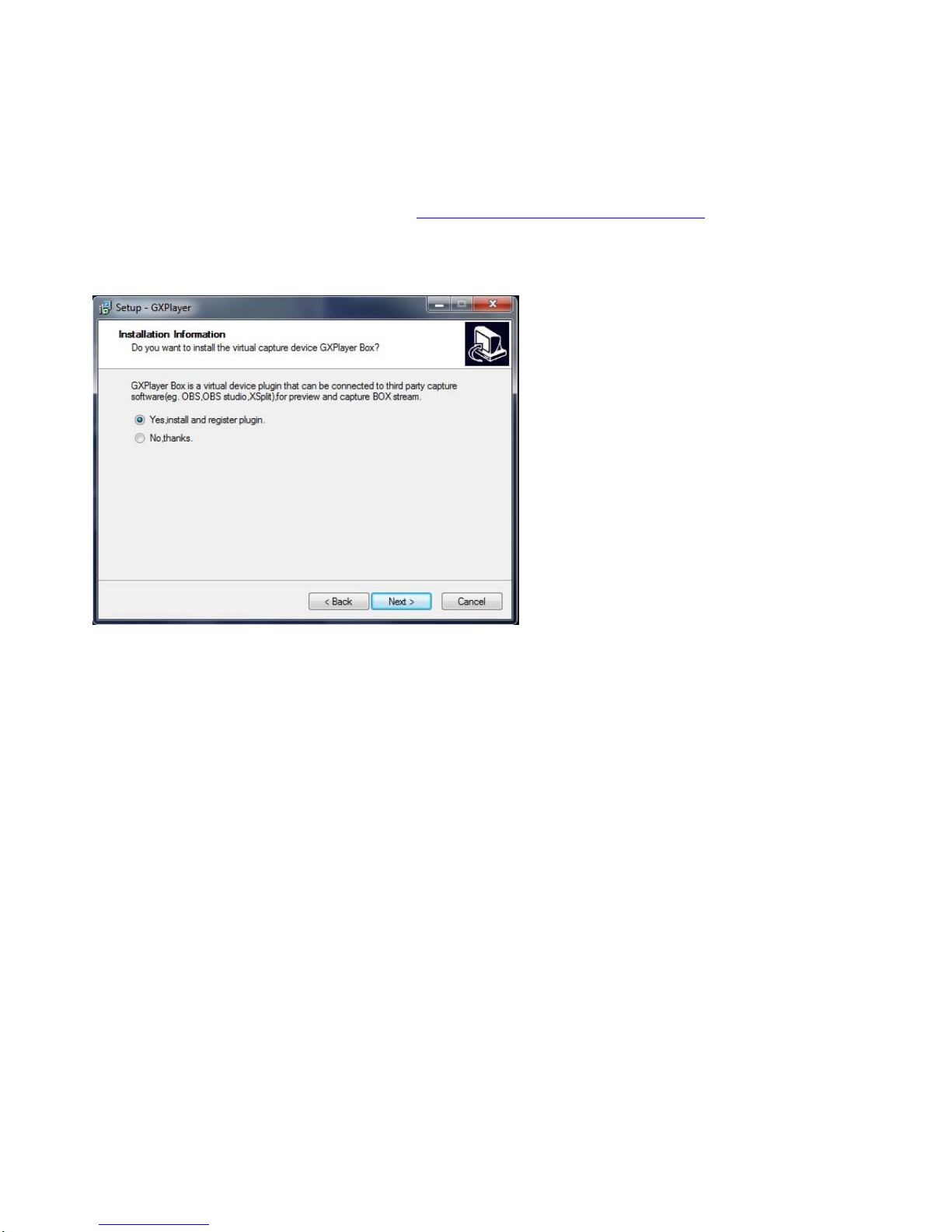

<1> Install GXPlayer on PC
Download the software GXPlayer from http://www.tevii.com/Support.asp or get it from the
installation CD. Make sure you install the plugin for 3rd party streaming software
(OBS, OBS studio, XSplit).

After the installation completed, please restart your computer first before using GXPlayer.

13

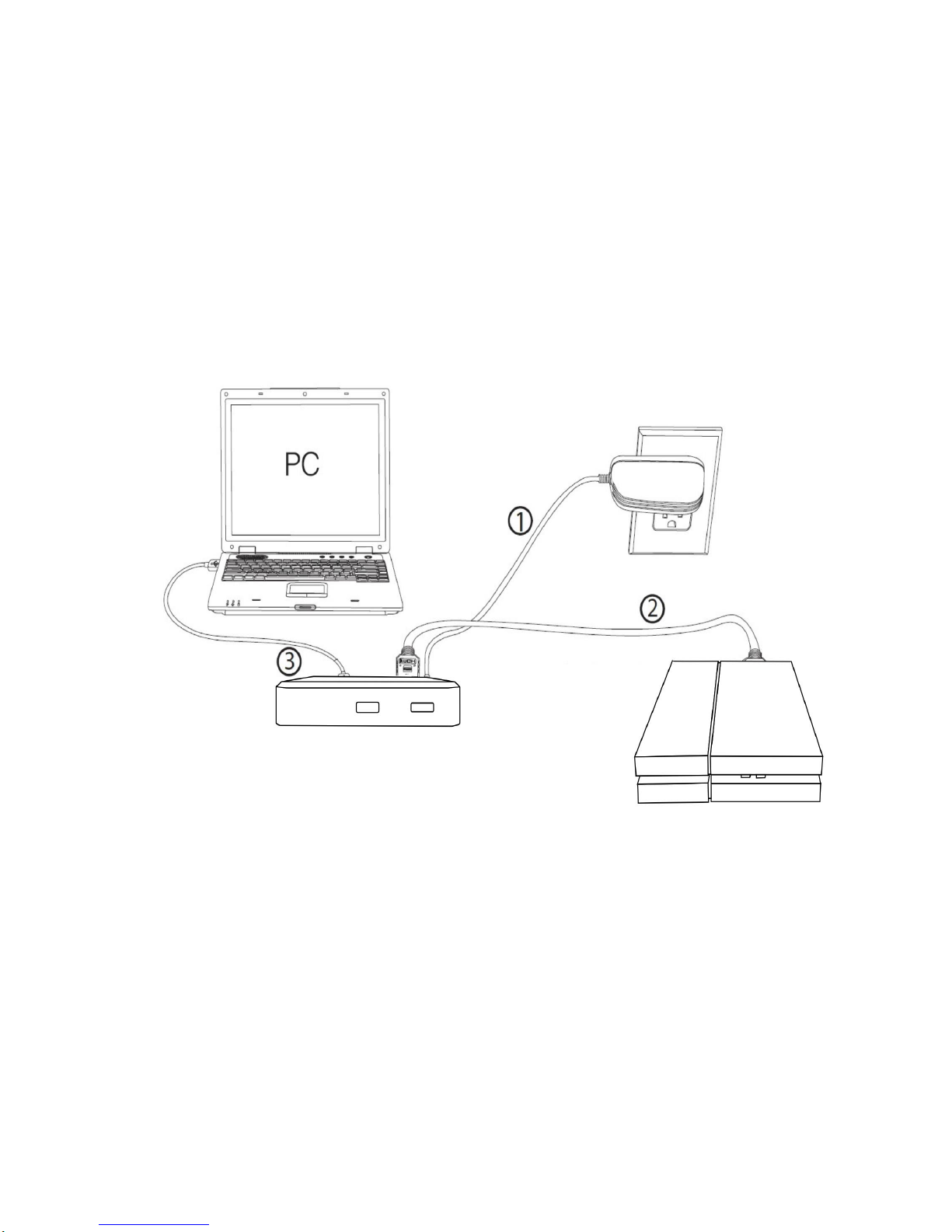

<2> Connect the devices

(1) Connect power adapter to DC jack of D200

(2) Connect video source (PS, Xbox, DVD player) to D200 by HDMI: HDMI in

Connect iPhone to D200 by Lightning cable:

AV: Connect to AV/L/R for if the video source is AV
Note: Only one video source could be deteced by D200

(3) Connect the Micro USB cable from D200 to USB port of PC.

14

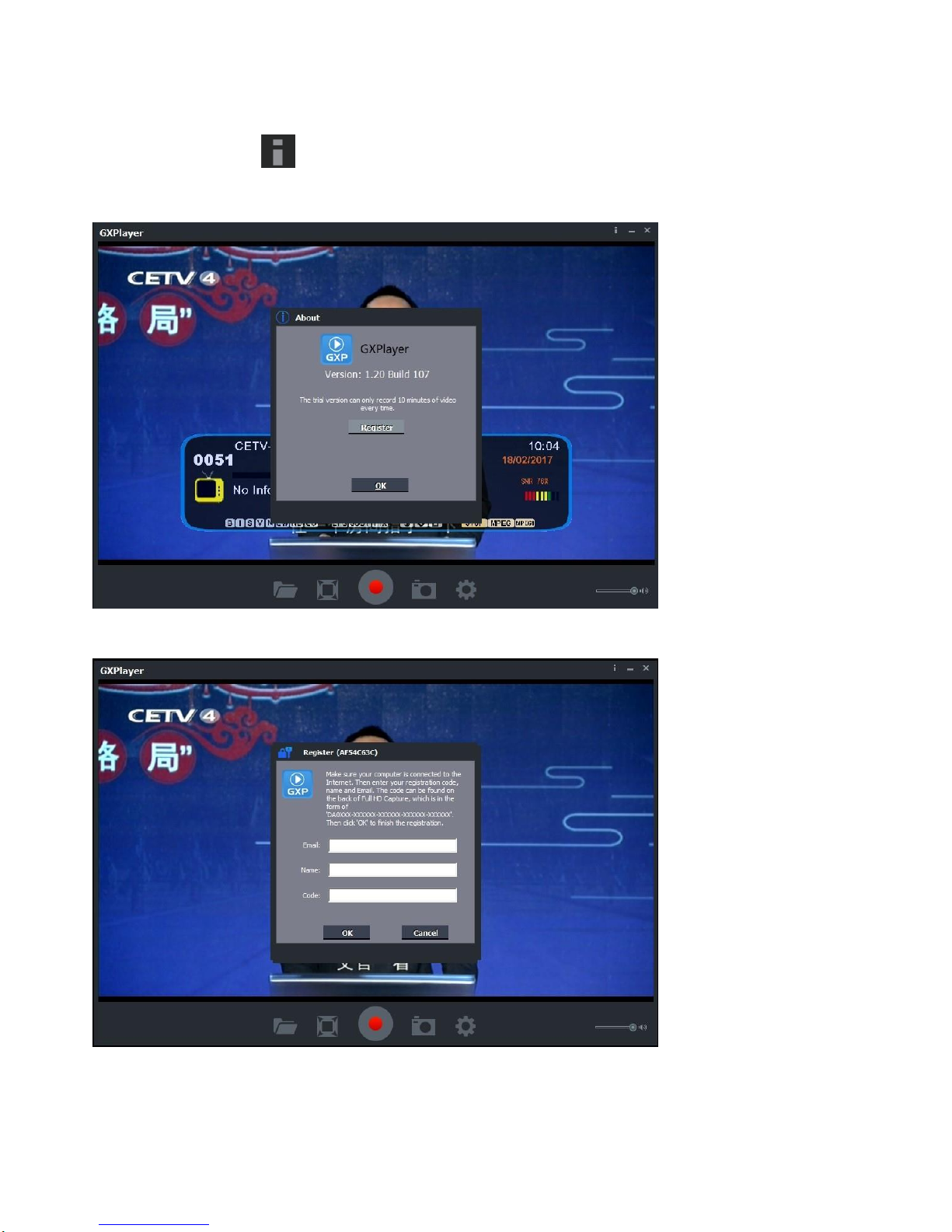

2. PC Software(GXPlayer) registration & Key features

Please register GXPlayer online before using it or you can only record up to 10 minutes.

Run GXPlayer. Click on screen up-right corner to open the "About" window. Then click
on the "Register" button to open the "Register" window.

Fill in your Email address, Name and Code (The Code-CD key can be found on the CD cover
as below) Then click on "OK" to finish the registration.

15

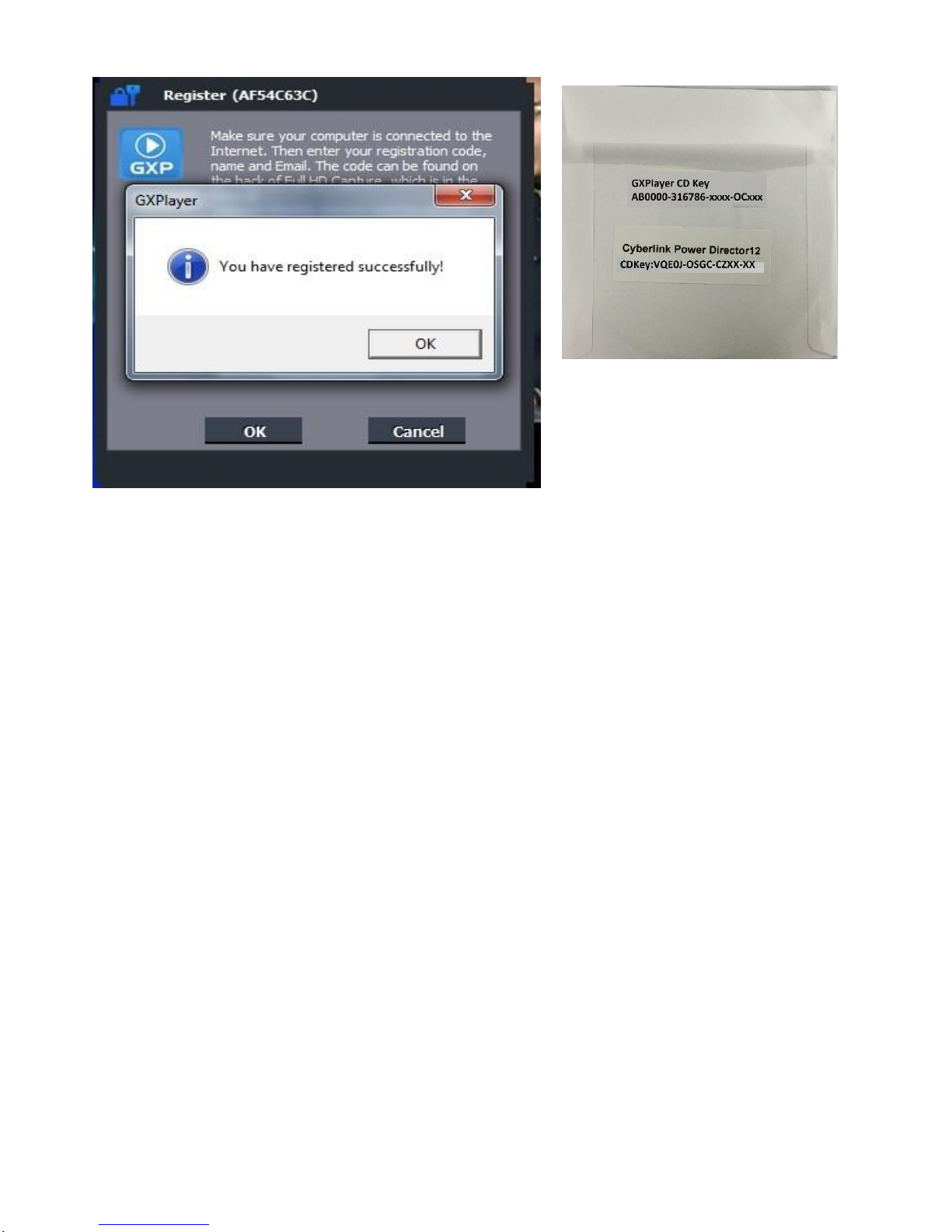

The software CD comes with famous video editing software Power Director licensed from
Cyberlink. You can find the CD key on the back of CD cover

16

Upload Video to YouTube

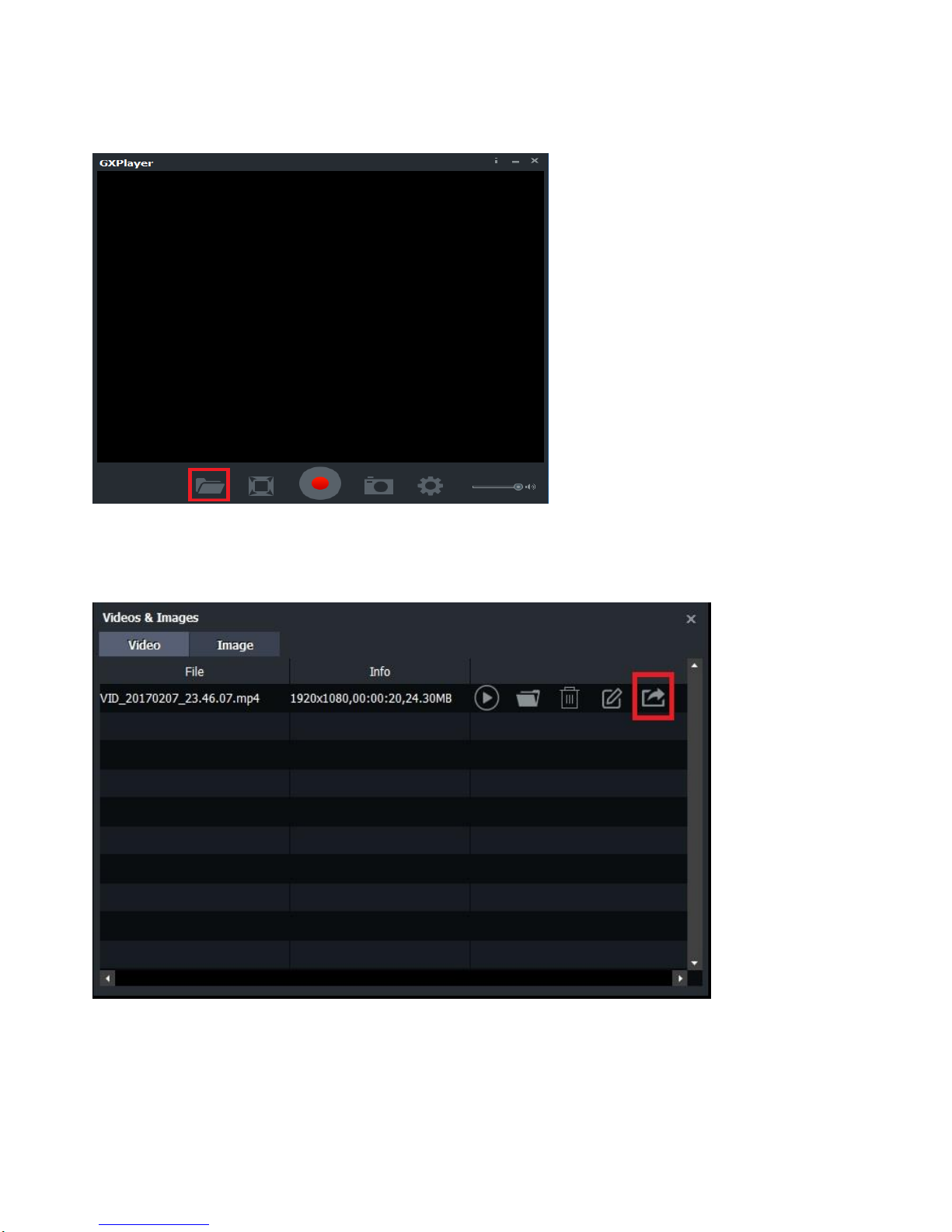

1. GXPlayer  Open below folder marked in red

2. Click below mark in red to stream recorded video to YouTube

17

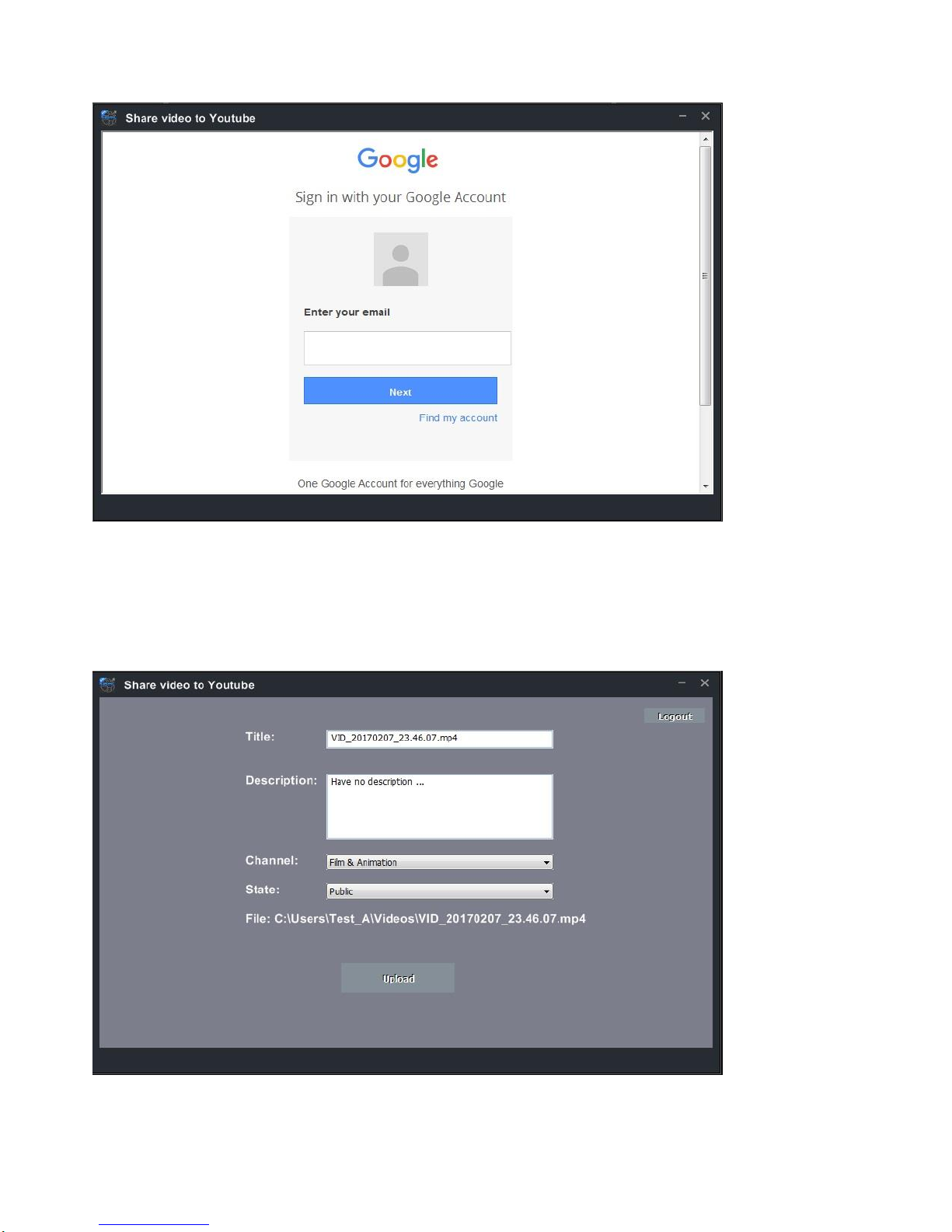

3. Input google ID & Password

4. Edit the name & description of video which you paln to stream  Upload

18

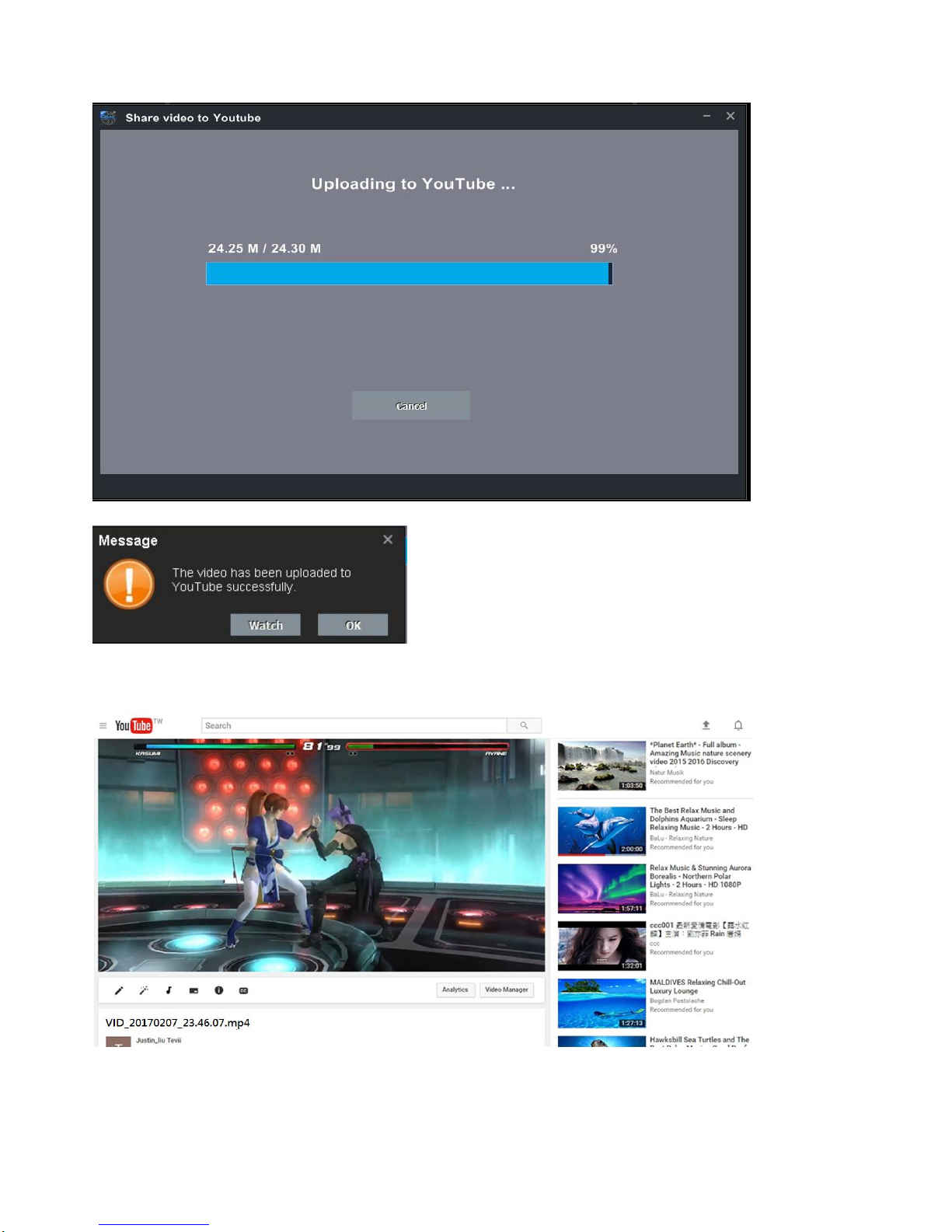

5. Uploading completed  OK

6. Open YouTube  My channelYou can find the video file you just uploaded

19

Live Streaming via XSplit

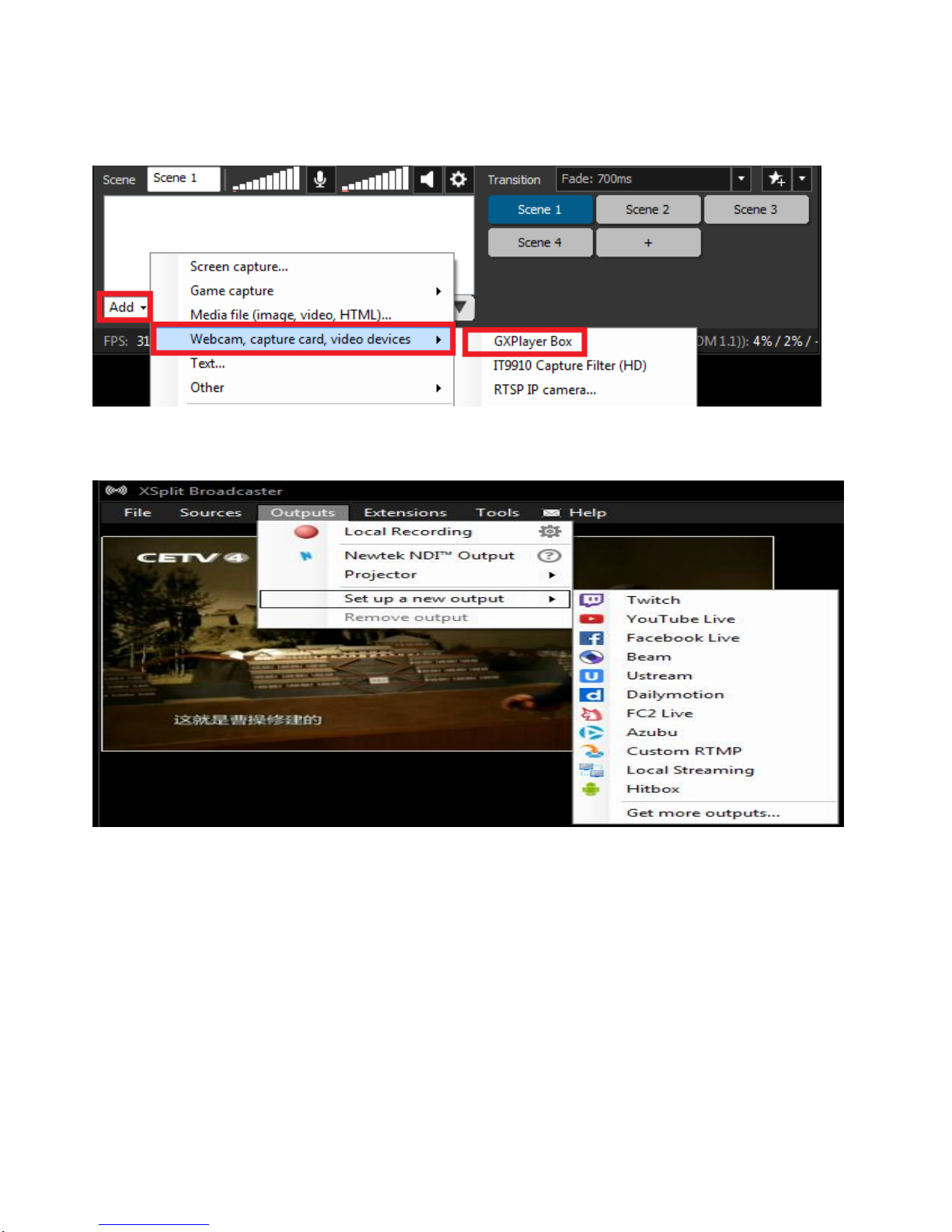

1. Download & open XSplit on your PC  add  webcam, capture card, video devices

GXPlayer Box

2. Outputs --> set up a new output --> (for example) Twitch

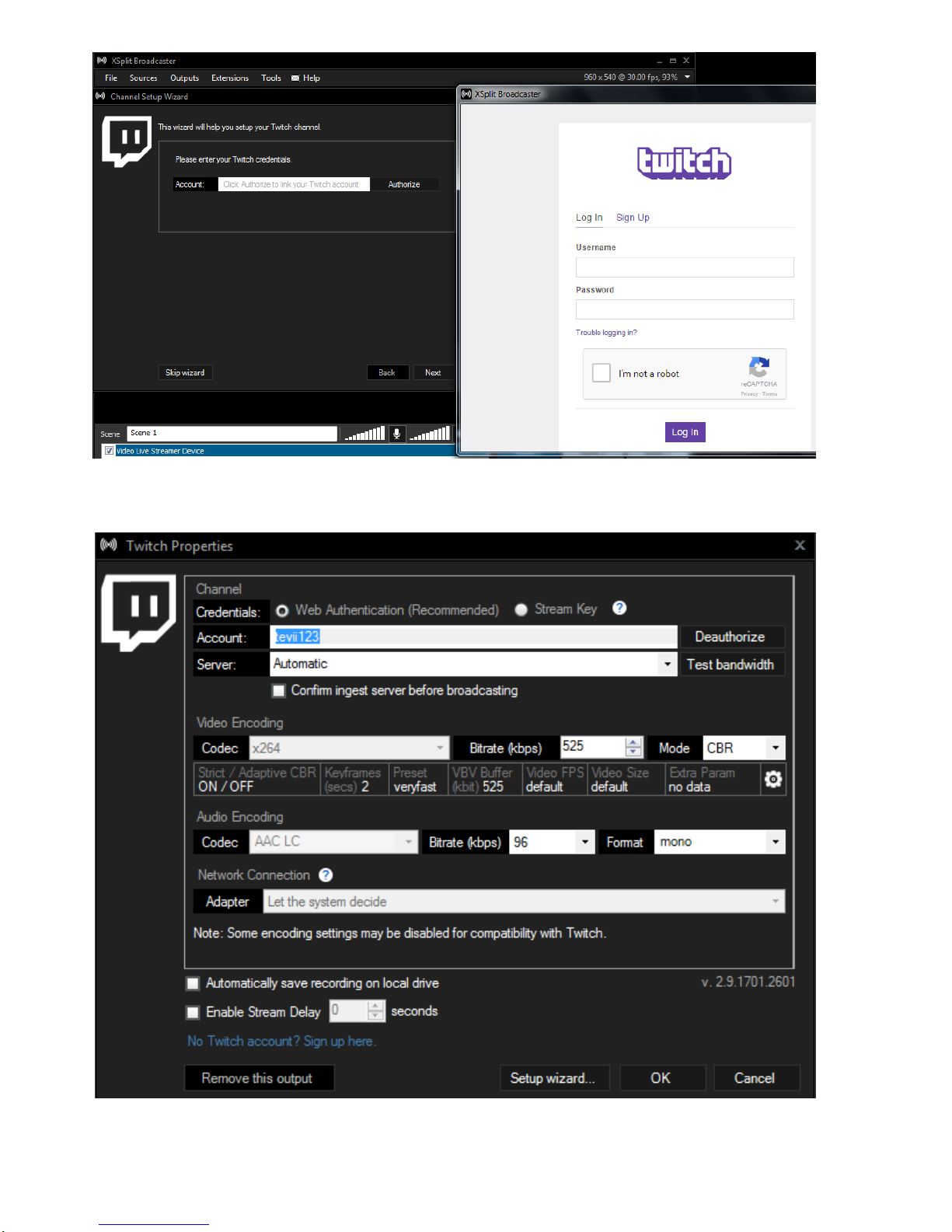

3. Enter ID, Password to Log In (please apply a new account for Twitch beforehand)

20

21

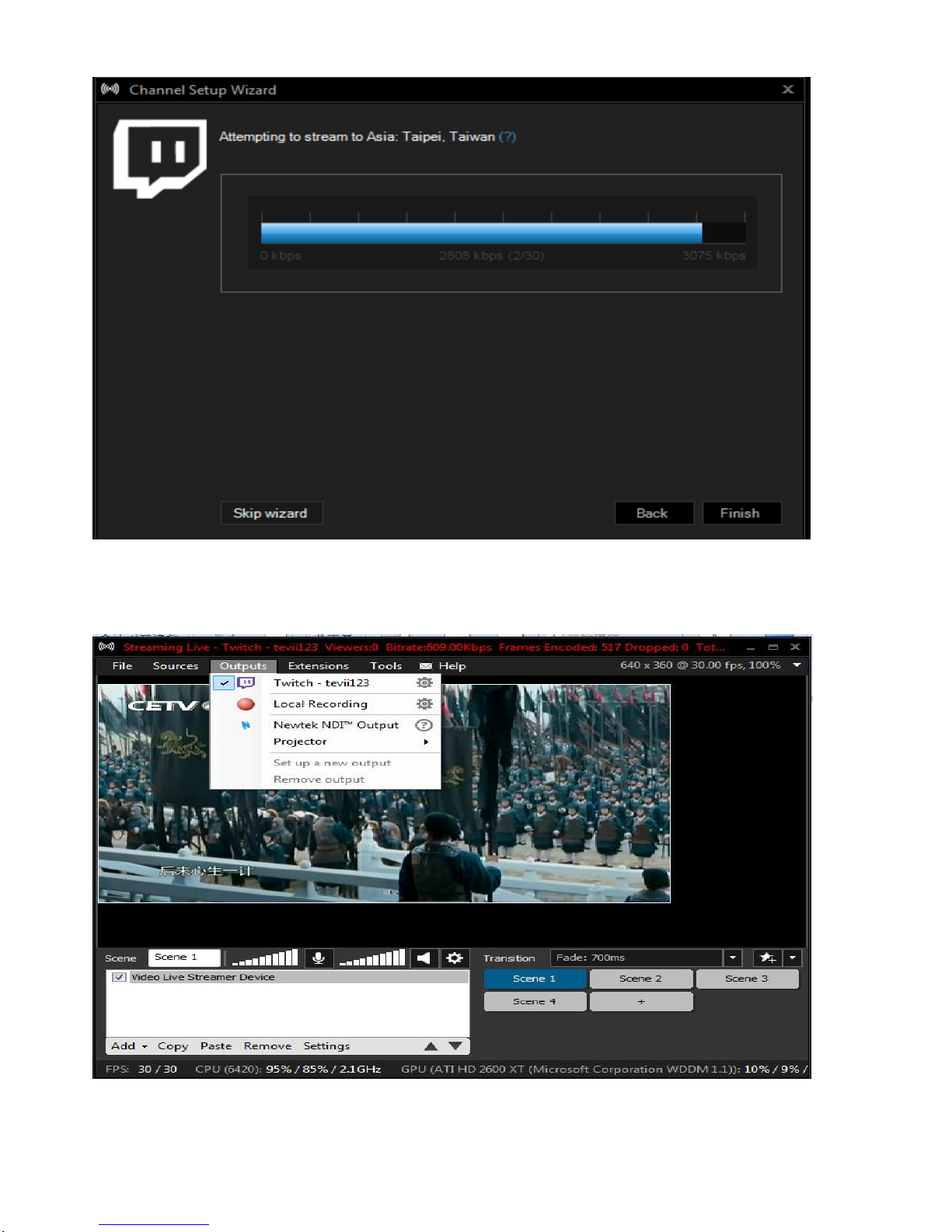

1. After set up completed，Click Outputs  Twitch- tevii123 to start streaming

22

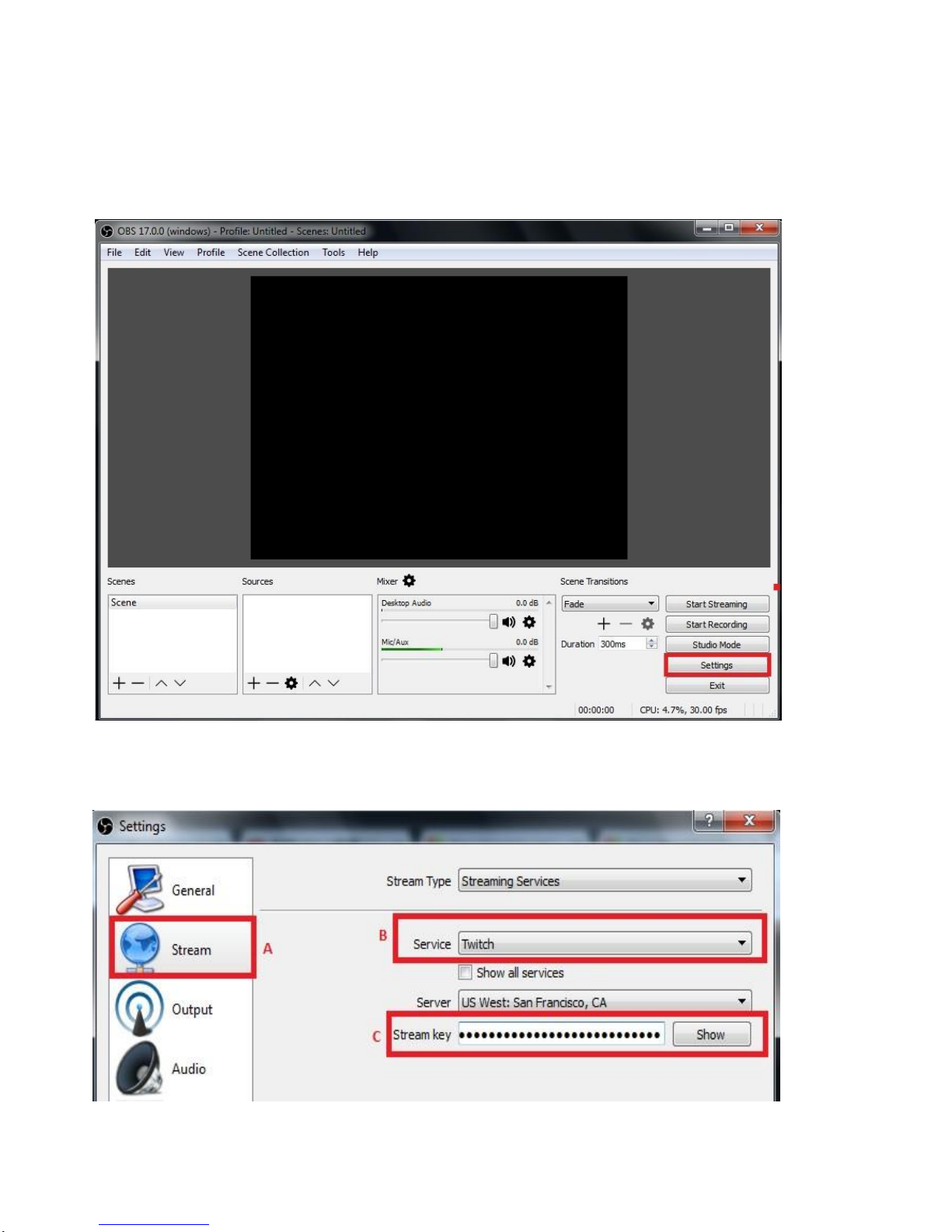

Live Streaming via OBS

Download & install the latest version of OBS and open it Select

“Settings”

1. Select “Stream ““Service” (website) Streamer Key OK

23

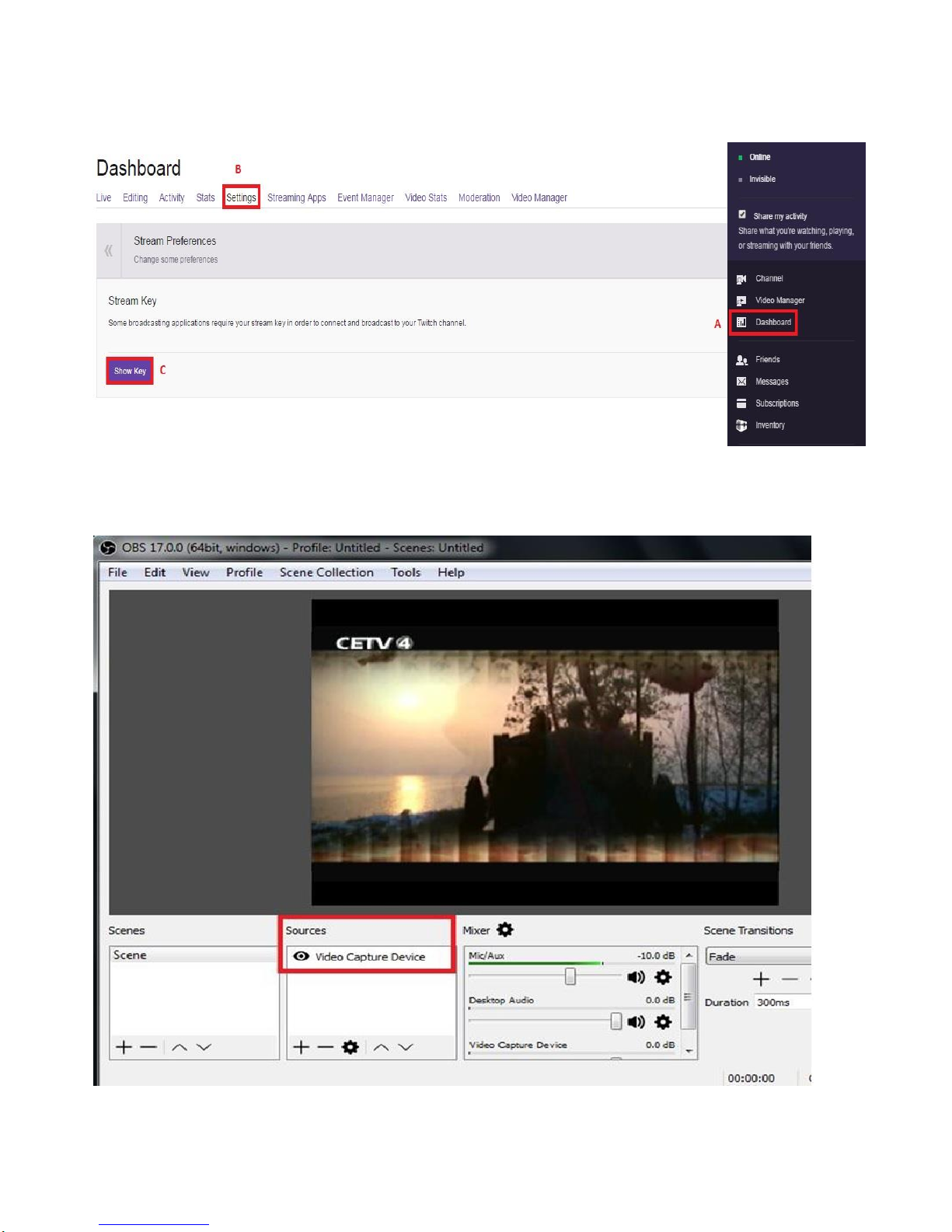

2. How to find your Stream Key (taking Twitch as example)

Open TwitchSelect Dashboard (A)Setings (B)Show Key (C)

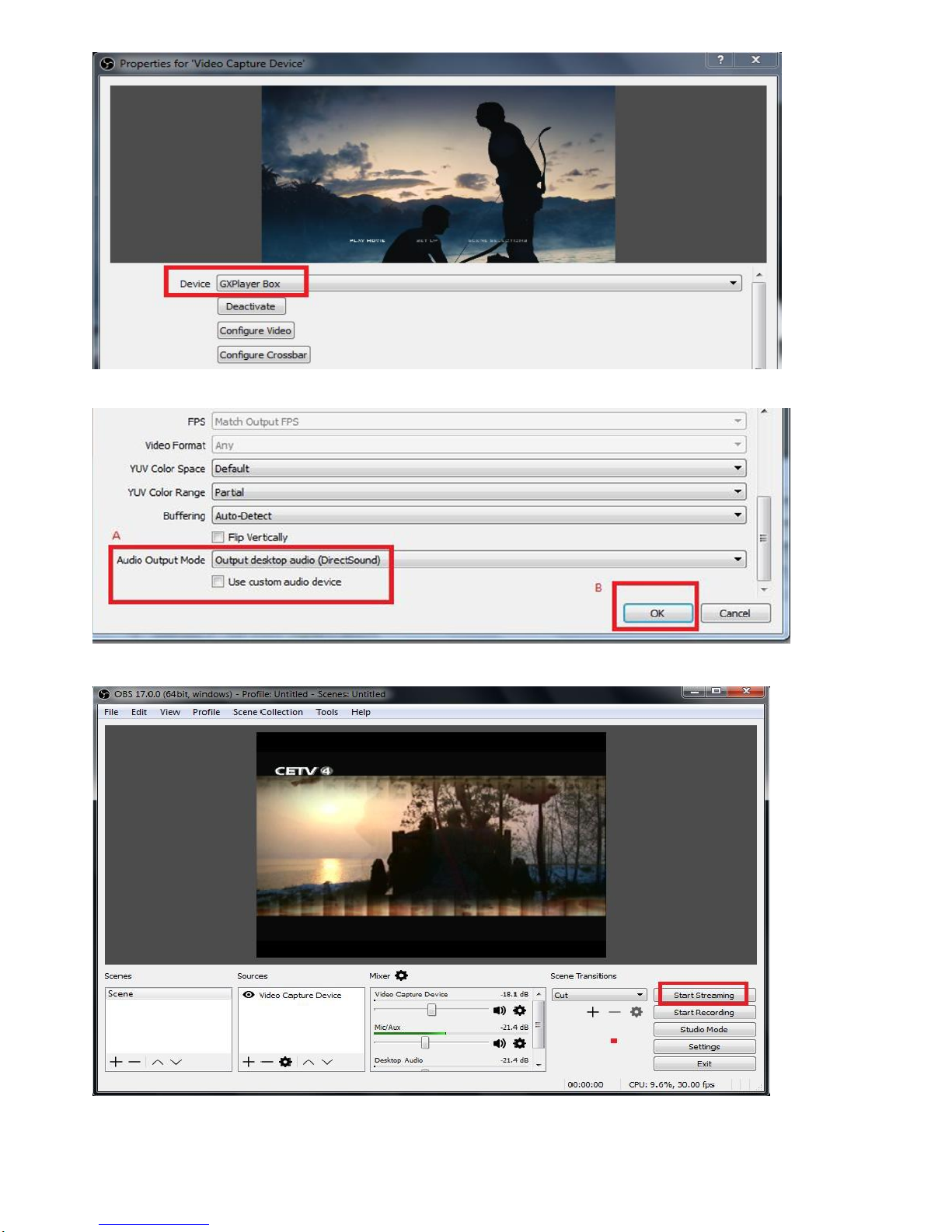

3. Sources Add video capture device  Device  select GXPlayer Box

24

4. Audio Output Mode Output desktop audio (DirectSound) OK

5. Press “Start Streaming”

25

Record/Capture to PC

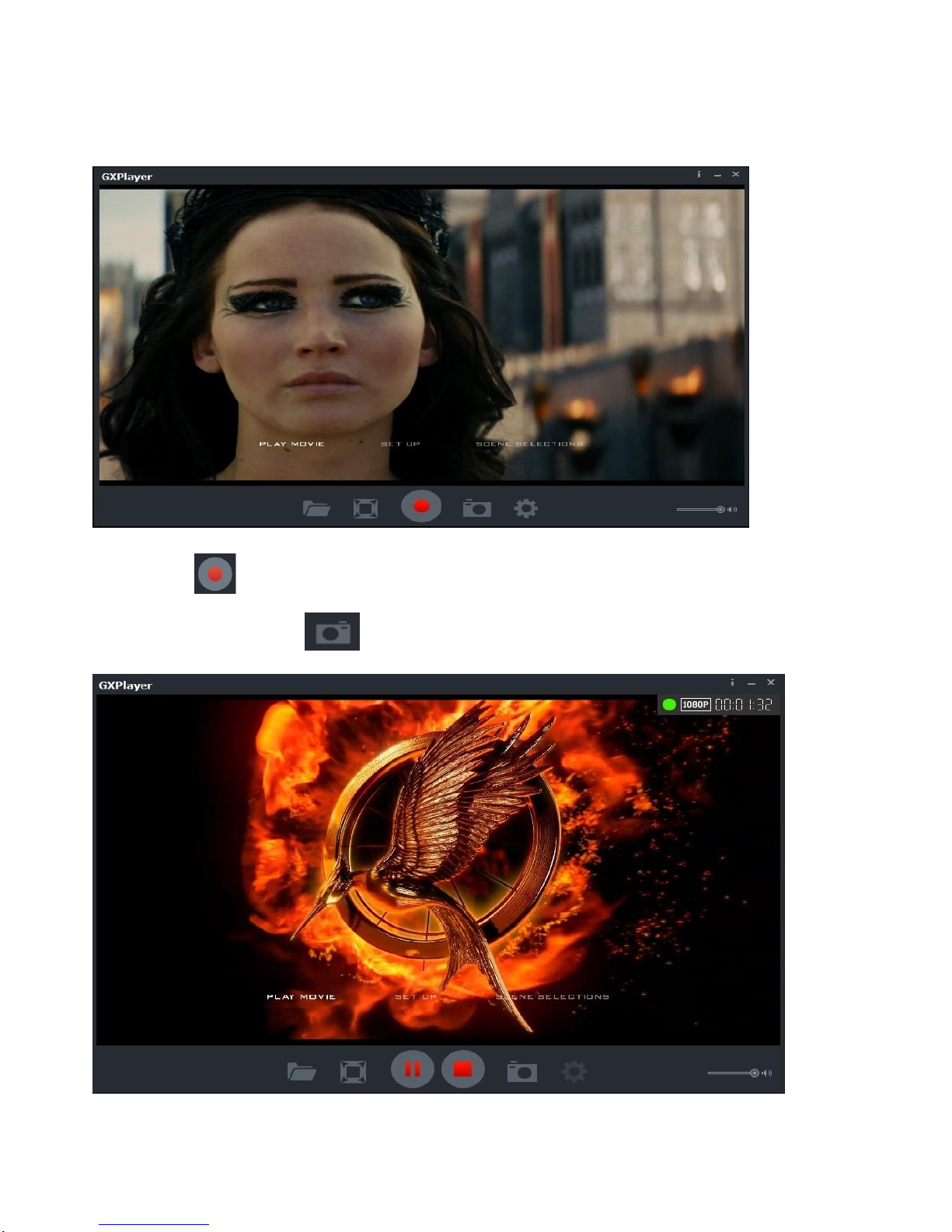

1. After all devices are connected properly, run GXPlayer on your PC.

2. Click on to start recording; click again to stop recording.

You can also click on to capture a screenshot

26

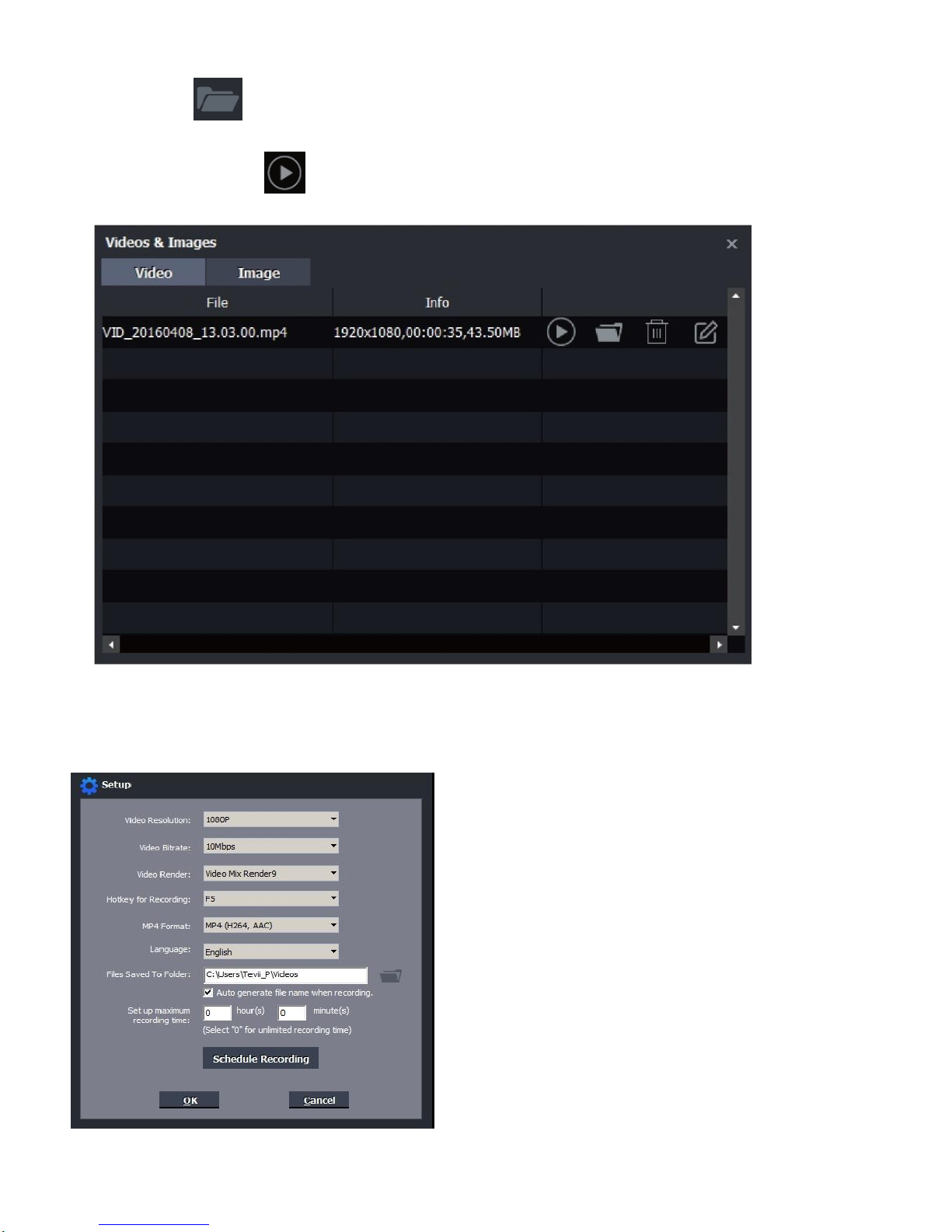

3. Click on to view the recorded video files.

You can click on to play back selected recorded video.

Schedule Recording & Set up

27

Video Resolution: Set the recording resolution. 1080p, 720p and 480p are available.
Video Bitrate: 6Mbps, 8Mbps, 10Mbps, 12Mbps, 15Mbps and 18Mbps are available.
Video Render: Define the video render. Video Mix Render9 and Internal YUV Render are
available.
Hotkey for Recording: Set the hotkey for starting and stopping recording videos.

MP4 Format: You are free to select MP4 Format as below:

MP4(H264, AAC), MP4(H264, AC3), MP4(H264, MP3), MPEGTS (H264, AAC)

Language: Set the language to be displayed on the screen. English, Japanese, Simplified
Chinese and Traditional Chinese are available.

Files Saved to Folder: Displays the saving path of recorded videos. You can change the saving
path by clicking on the folder button.
Automatically generate the file name when recording starts: If this option is selected, the
titles of recorded videos will be named automatically.
Set up maximum recording time: Set the maximum recording time. D616/640 will stop
recording when the time reaches the maximum recording time.

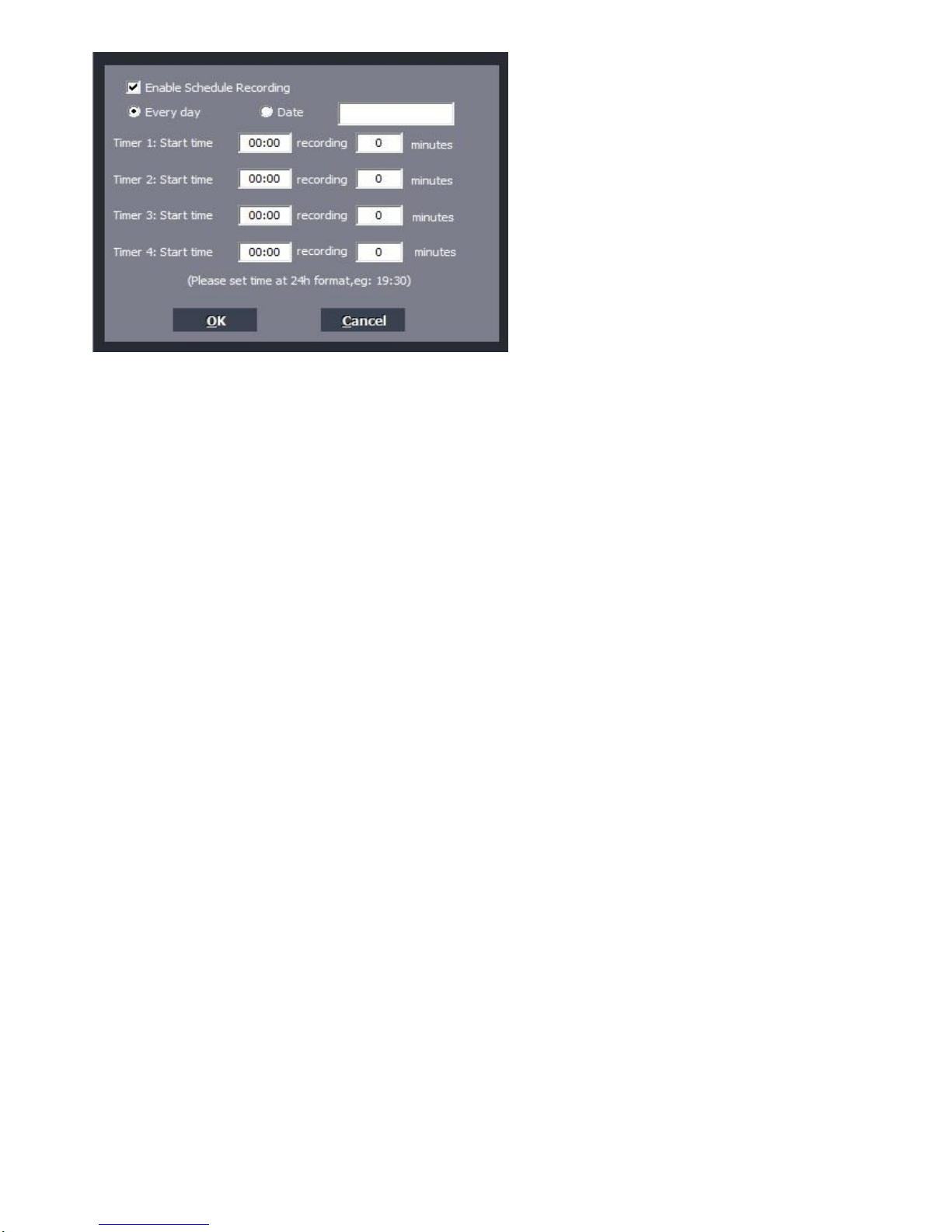

Schedule Recording: Allow you to preset recording up to 4 different schedules

OK: Click to save the settings.

Cancel: Click to exit the "Setup" window without saving the settings.

28

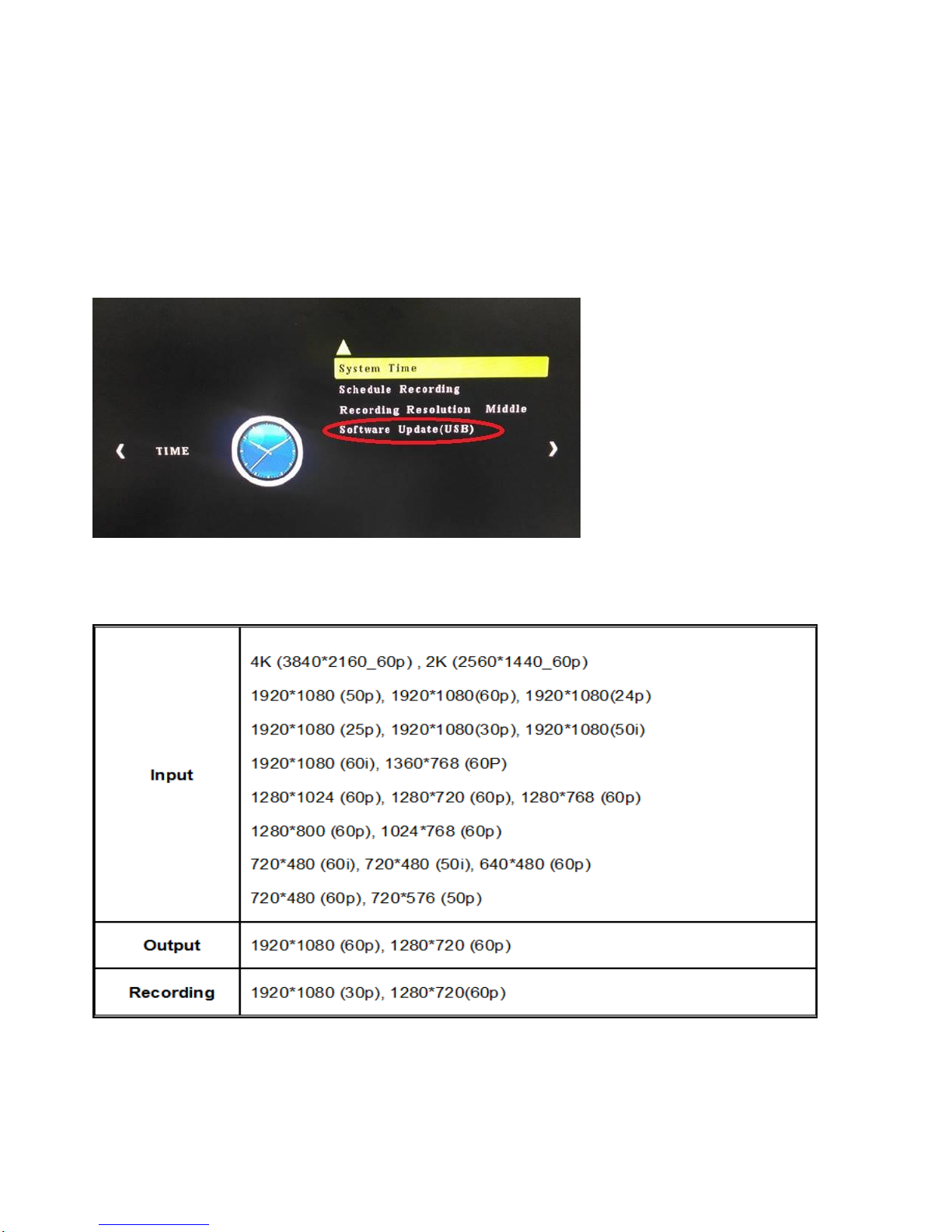

New Firmware Upgrade Instruction

Upgrade Tool: please use a FAT32 formatted USB flash drive

1. Download & unzip the compressed file and copy the "MERGE.bin" to USB Flash Drive

2. Connect USB Flash Drive to D200

3. Turn on power of D200. Under OSD, select “Software Update (USB)” & press Yes

4. OSD will show the process of upgrading by percentage, do NOT unplug USB Flash Drive

5. After upgrade completed, please select “factory reset” from OSD

Supported Resolutions

29

PRODUCT SPECIFICATIONS

Output format

MP4 (H.264)

Video standards (input)

NTSC, PAL,

Supported recording
formats

FAT32, NTFS
Input

HDMI, AV, Audio L/R, MIC / Lightning

Output

HDMI (pass-through), USB, Micro USB, Line
out

Bit Rate

Max: 16Mbps

Recording capacity

Maximum 2GB per file or unlimited

Maximum storage
capacity

2TB (HDD), 32GB (USB Flash drive & TF Card)
Power supply

DC 12V, 1A

Weight

120g

Dimensions

10.96 (L) x 10.96(W) x 2.5(H) CM

CONTACT

• If you encounter problems about using and upgrading hardware and software,
please contact our support team: [email protected]
Please download the software GXPlayer http://www.tevii.com/Support.asp
