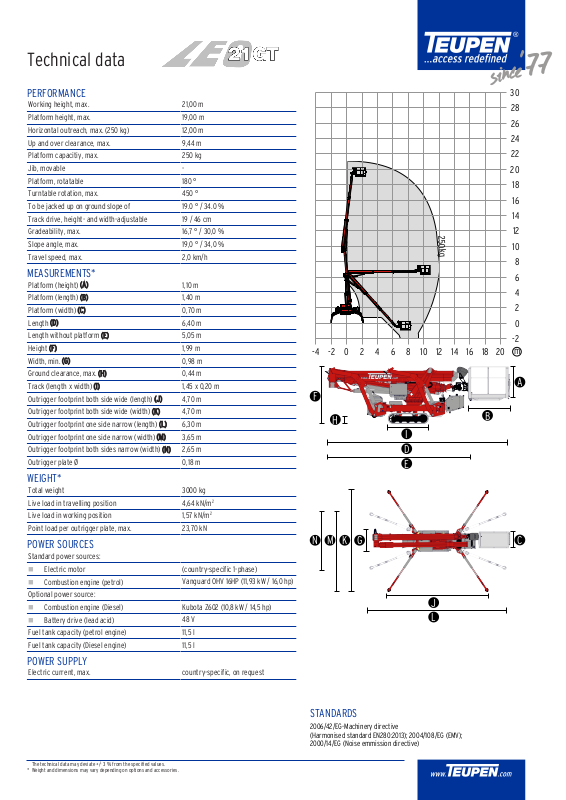

Teupen LEO21GT Technical data

Technical data

2006/42/EG-Machinery directive
(Harmonised standard EN280:2013); 2004/108/EG (EMV);
2000/14/EG (Noise emmission directive)

30
28

1614121086420-2 18-4

26
24
22
20

18
16
14
12
10

8
6
4
2
0

-2

20

m

250kg

A

B

C

D
E

F

G

H

I

KMN

J
L

PERFORMANCE

Working height, max. 21,00 m
Platform height, max. 19,00 m
Horizontal outreach, max. (250 kg) 12,00 m
Up and over clearance, max. 9,44 m
Platform capacitiy, max. 250 kg
Jib, movable ­Platform, rotatable 180 °
Turntable rotation, max. 450 °
To be jacked up on ground slope of 19.0 ° / 34.0 %
Track drive, height- and width-adjustable 19 / 46 cm
Gradeability, max. 16,7 ° / 30,0 %
Slope angle, max. 19,0 ° / 34,0 %
Travel speed, max. 2,0 km/h

MEASUREMENTS*

(G)

(C)

(A)
(B)

1,10 m
1,40 m
0,70 m
6,40 m

(E)

(H)

(I)

(K)

(J)

(L)

(M)

(N)

5,05 m
1,99 m
0,98 m
0,44 m
1,45 x 0,20 m
4,70 m
4,70 m
6,30 m
3,65 m
2,65 m

Platform (height)
Platform (length)
Platform (width)

(D)

Length
Length without platform

(F)

Height
Width, min.
Ground clearance, max.
Track (length x width)
Outrigger footprint both side wide (length)
Outrigger footprint both side wide (width)
Outrigger footprint one side narrow (length)
Outrigger footprint one side narrow (width)
Outrigger footprint both sides narrow (width)
Outrigger plate Ø 0,18 m

WEIGHT*

Total weight 3000 kg
Live load in travelling position 4,64 kN/m
Live load in working position 1,57 kN/m
Point load per outrigger plate, max. 23,70 kN

POWER SOURCES

Standard power sources:

n Electric motor
n Combustion engine (petrol)

Optional power source:

n Combustion engine (Diesel)
n Battery drive (lead acid)

Fuel tank capacity (petrol engine) 11,5 l
Fuel tank capacity (Diesel engine) 11,5 l

(country-specific 1-phase)
Vanguard OHV 16HP (11,93 kW / 16,0 hp)

Kubota Z602 (10,8 kW / 14,5 hp)
48 V

POWER SUPPLY

Electric current, max. country-specific, on request

The technical data may deviate +/- 3 % from the specified values.

* Weight and dimensions may vary depending on options and accessories.

2

2

STANDARDS

Equipment

Marie-Curie-Str.13
48599 Gronau
Germany

Phone
Fax
E-mail

[phone]
[phone]
[e-mail]

TEUPEN Maschinenbau GmbH

Product specifications are subject to change without notice or obligation. Photographs and drawings in this document are for illustrative purposes only. Refer to the appropriate Operator´s Manual for
instructions on the proper use of this equipment. Failure to follow the appropriate Operator´s Manual when using our equipment or to otherwise act irresponsibly may result in serious injury or death. The only
warranty applicable to our equipment is the standard written warranty applicable to the particular product and sale and we make no other warranty, expressed or implied. Products and services listed may be
trademarks, service marks or trade-names of TEUPEN Maschinenbau GmbH and/or its subsidiaries in the U.S.A. and many other countries. “TEUPEN”, “Access redefined” and “LEO Series” are registered
Trademarks of Teupen GmbH in the United States of America and many other countries. © 2020 TEUPEN Maschinenbau GmbH.

CHASSIS

n Powerful track drive with hydraulic braking system
n Precise manoeuvring via sensitive, electro hydraulic control panel
n Indoor non-marking rubber tracks, with less tread depth the profile enables

smooth travelling

n Machanically height- and width-adjustable track drive

STABILISATION

n Electrohydraulic stabilisation with automatic levelling and ground pressure

sensor system

n Variable outrigger system with one side or both sides narrow setup option
n Wear resistent, ant-friction outrigger pads

BOOM SYSTEM

n Telescopic lower and upper boom
n All functions available from the platform
n Stepless, electrical proportional control system with intuitive operation
n Removable cable remote control
n Robust, lockable control panel
n Parallel guided platform with electro hydraulic levelling
n Corner mounted, 180° rotable platform for extra flexibility
n Turntable rotation via high-performance slewing ring, worm gear and

hydraulic motor

POWER SOURCE

n Electric motor (country-specific 1-phase)
n Petrol engine Vanguard OHV 16HP (11,93 kW / 16,0 hp)
n Start-stop device for combustion engine in the platform

PRODUCTIVITY, SAFETY, QUALITY

n Hydraulic emergency lowering via hand pump
n Power socket in the platform (country-specific 1-phase)
n Detachable platform, attachment points for safety harnesses and tool tray
n Drive operation without platform possible
n Protected, internal power track for platform control
n Hydraulic system filled with biodegradable hydraulic oil
n High-quality paint in RAL 3020 (red)

- Hydraulic cylinders in RAL 9006 (grey)

n Unlockable check valves located directly on hydraulic cylinders
n Hydraulic system protected by pressure relief valves
n Hydraulic tank, emergency control, connecting cables and hoses are mounted

protected

n Cable remote control as complete control panel for bottom connection,

including storage box

n Display in the control panel
n Hour meter
n Fuzzy control technology

OPTIONS*

n Diesel engine Kubota Z602 (10,8 kW / 14,5 hp)
n Battery drive 48 V (lead acid) including charging device
n Custom paintwork, one colour, according to RAL scheme

- (except metallic coatings, signal- or special colours)

n Custom paintwork, two colours, according to RAL scheme

- (except metallic coatings, signal- or special colours)

n Hydraulically height- and width-adjustable crawler track drive
n Radio remote control
n White, non-marking rubber tracks with specially arranged profile for optimal

grip

n Water and air connection, platform

ACCESSORIES*

n Safety harness
n 4 sliding pads (700 x 220 x 60 mm)
n 2 protective track covers made of high-quality polypropylene fabric
n Track mat (2000 x 800 x 15 mm)
n Lifting device (300kg capacity)

- Only in combination with platform ladder monitoring system

n 4 covers, piston rod (outrigger)
n Tree package, including

- Cover (control box, turntable)

- 4 covers, piston rod (outrigger)

n 2 LED headlights (combustion engine)
n 2 LED headlights (battery drive)
n Platform (900 x 800 mm)
n Coming home function - automatic return of the boom into transport position
n Platform ladder monitoring system with boom function cut-off
n Emergency lowering via electric pump, including additional hydraulic drive (12

V) for boom recovery via platform control

n TOP level 1

TRAILER OR SUBFRAME

n Tandem low platform trailer (aluminium)

- Maximum permissible weight (3,5 t)

- Net weight (460 kg)

- Payload (3040 kg)

CONTACT

* Weight and dimensions may vary depending on options and accessories.
