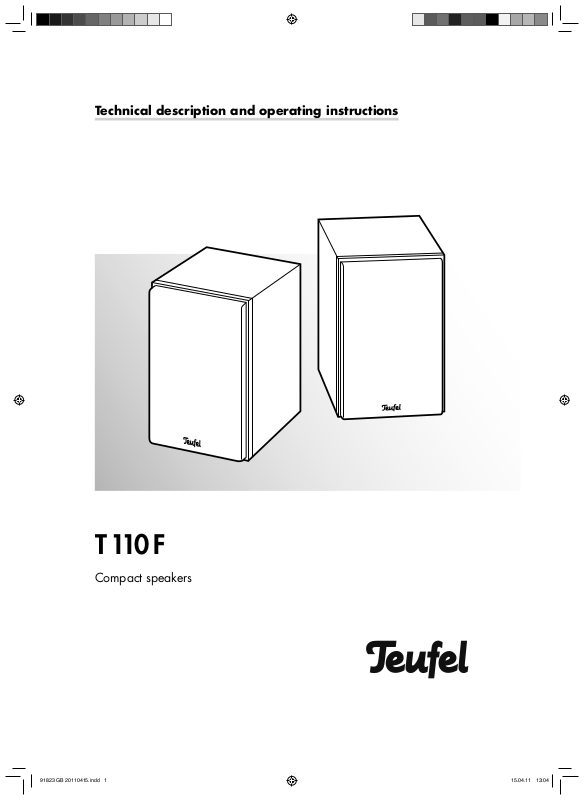

Technical description and operating instructions
T 110 F
Compact speakers
Page 2
Contents
General notes and information ......................................................................................................................................3
Safety notes ..................................................................................................................................................................4
Caution icons ................................................................................................................................................ 4
Safety notes .................................................................................................................................................. 4
Unpacking and setup .....................................................................................................................................................5
Check to be sure ............................................................................................................................................ 5
Removing the protective grids .......................................................................................................................... 5
Location tips .................................................................................................................................................. 5
Use as front speakers in a 5.1 home cinema system .......................................................................................... 5
Connecting ....................................................................................................................................................................6
Care and cleaning .........................................................................................................................................................7
Protecting the environment ............................................................................................................................................7
Dimensions and weight ..................................................................................................................................................7
2 • T 110 F
Page 3
General notes and information
Notice
The information in this document may change without
prior notice and in no way constitutes any liability on the
part of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any
form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
April 2011
Original packaging
If you wish to exercise your eight-week right of return, we
ask that you be absolutely sure to hold onto the packaging. We can only accept the return of a device WITH
THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following information to process your enquiry:
1. Invoice Number
Can be found on the sales slip (enclosed with the
product) or on the order confi rmation received as a PDF
document, e.g. 4322543.
Contact
For questions, suggestions or criticism please contact our
customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen
Buelowstrasse 66
10783 Berlin (Germany)
Phone: 00800 - 200 300 400 (free of charge)
Fax: +49 (0)30 - 300 930 930
E-mail: service@teufelaudio.com
www.teufelaudio.com
Proper use
The product is designed for playback of audio signals.
Use the product only as described in these operating
instructions. Any other use will be deemed as not in accordance with the instructions and may lead to damage
to property or even persons.
The manufacturer accepts no liability for damage caused
by use not in accordance with the instructions.
The unit is intended for private use.
Before operating the unit for the fi rst time please
read the safety notes and operating instructions
carefully. This is the only way to use all functions
safely and reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
2. Serial number and/or batch number
Located on the back of the unit,
e.g. serial number: UL 04007480121A
Many thanks for your support!
• T 110 F 3
Page 4
Safety notes
Caution icons
You will fi nd the following caution icons in these instructions :
Danger
Attention
High risk !
Failure to observe the warning may result in
severe personal injury or death.
Moderate risk !
Failure to observe the warning may result in
p roperty damage.
Minor risk!
Points which should be observed when handling the unit.
Safety notes
Danger
• Do not allow children to play with the unit or the pa-
• Ensure that children do not remove small parts from the
Danger
persons, children in particular are at risk. You can prevent
many accidents by taking the following precautions:
• Only use underframes or speaker stands recommended
• Only place the unit on furniture capable of carrying
• Make sure that the unit is completely on the piece of
• If you place the unit on a tall piece of furniture such as
• Do not place any decorative blankets or other materi-
• Warn your children of the risks associated with clim-
• When storing the unit, make sure that the aforementi-
Danger to children!
Children can become trapped in the packing
fi lm when playing and suffocate.
cking fi lm. Danger of suffocation.
unit or take them off of the unit (e.g. batteries from the
remote control, control knobs or plug adapters). They
could swallow the parts and
choke.
Risk of injury
An unstable base may result in the unit tipping
over and seriously injuring or even killing
by the manufacturer.
the load.
furniture and that it does not hang over the edge.
a book case or a kitchen cabinet, brace both the piece
of furniture and the TV set to the wall.
als on the piece of furniture before setting up the unit.
bing onto the piece of furniture in order to reach the
unit.
oned points are observed.
Danger to hearing!
Loud noise may lead to hearing loss.
Especially if a unit is activated and set to full
volume, very high noise pressure may be emitted unexpectedly. This may have psychological consequences and
also cause physical injury. Children and pets are particularly at risk.
• Set your signal source unit volume control to a low
setting.
• When the volume is set high, always keep a certain di-
stance from the unit and never place your ear directly
on the speaker.
• To avoid damage to health, avoid extended listening at
high volume.
Danger
• Do not use the device in vehicles without having it
• Arrange the device so that it cannot be knocked over
• Ensure that any wall mounting is performed in a profes-
• Only use suitable wall brackets for mounting. Verify the
• Do not place the unit near sources of heat (e.g. hea-
Attention
Danger of injury/damage!
Set up in an unsuitable location may result in
injury to persons and/or damage to property.
secured, in unstable locations, wobbly tripods or
furniture, on insuffi ciently dimensioned brackets etc.
The device could tip or fall down and cause injury to
persons or be damaged itself.
accidentally and make sure that the cables do not pose
a trip hazard.
sional manner.
carrying capacity of the walls.
ters, ovens, other heat generating equipment such as
amplifi ers etc.)
Fire hazard!
Improper use may lead to damage or fi re.
• Do not place open fl ames such as burning candles or
similar on the unit.
• Do not place the unit in direct sunlight.
• Ensure suffi cient ventilation.
• Do not cover the ventilation slots with curtains, cloths,
newspapers or similar. Heat build-up inside the unit
can shorten the lifetime of the unit.
4 • T 110 F
Page 5
Unpacking and setup
Carefully open the boxes, remove the speakers with the
EPE foam parts and remove the foam parts without touching the diaphragm.
Connector cables
The T 110 F series is delivered without a connec-
tor cable due to the variety of different customer needs.You can fi nd suitable cables in our webshop
www.teufelaudio.com ) in the “Accessories” area.
Check to be sure
• Check that all items have been delivered and that nothing is damaged.
• If the delivery is incomplete or you fi nd damage sustained in transit, do not operate the unit but contact our
service department (see page 3).
Removing the protective grids
You can remove the protective grids from the speakers by
carefully reaching behind the protective grid and slowly
pulling it off to the front.
When reattaching the grids, ensure that the installation
pins slide into the corresponding holes on the speaker.

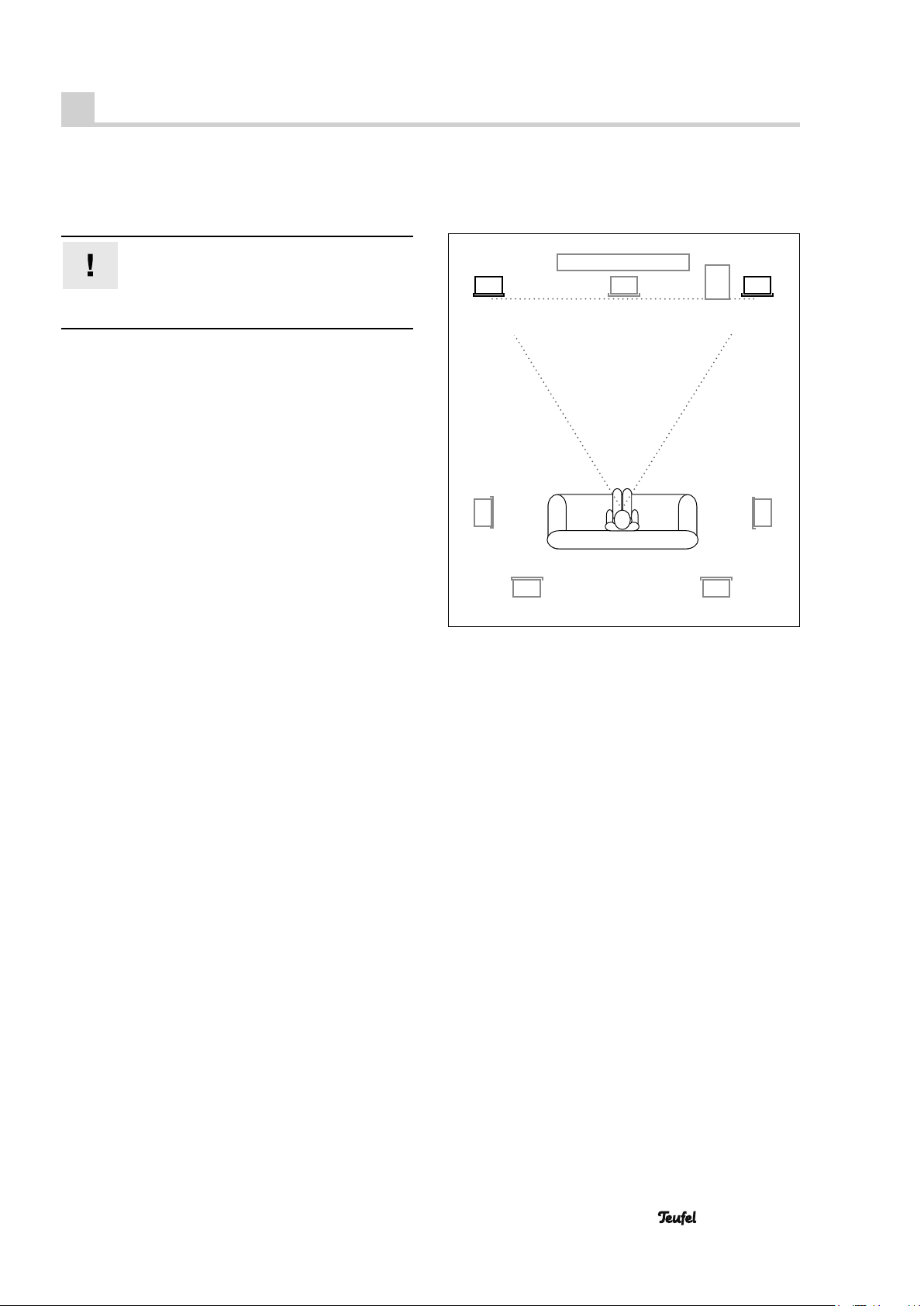

Use as front speakers in a 5.1 home
cinema system
Screen
Front
T 110 F
(a) (a)
Rear Rear
(b) (b)
Rear Rear
Center
Stereo triangle
Subwoofer
Front
T 110 F
Location tips
• Select a stable, level base.
• Make sure that the environment is clean and free from
dust.
• Avoid placing the unit close to sources of heat or in
direct sunlight.
• Arrange the connector cables so that they do not pose
a trip hazard.
• Do not place any heavy objects on the cables or the
speakers.
The following data concern an “ideal home cinema”,
in which the listener sits in a central position at a suffi cient distance in front of the speakers (see the adjacent
graphic) and no objects (tables or the like) are located
in between. Unfortunately, the room, furnishings or other
circumstances do not always allow for optimum arrangement.
Modern amplifi ers offer a variety of possibilities for
electronically compensating losses associated with the
arrangement. The following general rule applies: You can
always experiment on what works best in your listening
room in terms of sound and appearance based on our
recommendations. Let your ears (and eyes) be the judge!
Front speakers
• The front speakers T 110 F are set up to the right and
left of the screen at a height of approx. 80 to 160 cm.
• They should be in line with the center speaker and
form an equilateral triangle with the listener – the
so-called stereo triangle (distance from the listener =
distance between the speakers).
• The speakers should project sound directly into the
room or slightly towards the listener.
Center speaker
• Place the center speaker in a central position under or
next to the screen.
Rear speakers
• The rear speakers are set up or wall mounted to the
side (a) or behind (b) the listener at a height of 1.20 m
to 2.10 m.
• The distance to the listener should amount to at least
100 cm.
Subwoofer
• You can freely select the location for the subwoofer; it
does not affect the other speakers. A location between
the front speakers is often ideal.
• T 110 F 5
Page 6
Connecting
Danger
• Pull the mains plug of your AV receiver out of the
• Lay the speaker cables from your AV receiver to each
• A connector terminal with two terminal clips is located
• The terminals are each marked red (+) and black (-).
Danger of injury/damage!
Arrange the cables so that they do not pose a
trip hazard.
socket to prevent accidental activation.
speaker. These cables should be high-quality doublewire speaker cable with marked strands.
A small tip: Label the cables on the receiver side –
this will help when taking down and setting up the
receiver.
on the back side of each speaker. Here you can connect the speaker cables directly or with pin plugs. We
only describe the direct connection in these instructions.
Make sure the polarity is correct!
Connect the like-coloured terminals with one
another. Otherwise the sound quality will suffer.
The speaker connectors of your AV receiver should
have similar markings. The strands of the speaker
cables are marked with different colours, shapes or
labels.

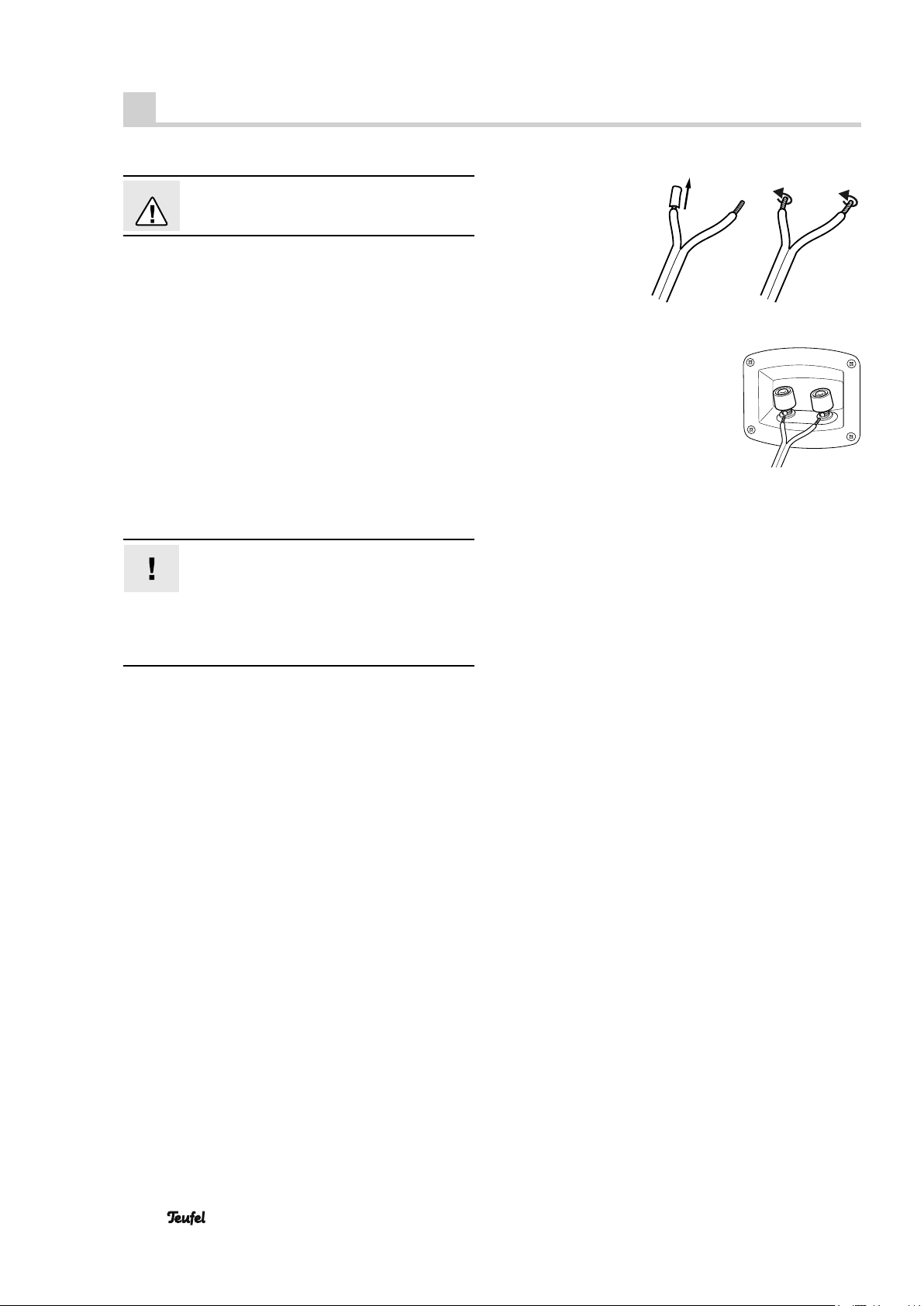

1. Split the single-wire
down to approx.
30 mm on both
ends and strip off
approx. 10 mm of
insulation. Twist
the core so that no
strands are protruding.
2. Turn the connector terminal
counterclockwise until loose.
Run the stripped cable into the
hole that is now visible. Turn
the terminal clockwise until
closed. The cable has now
been clamped into place.
3. Connect the other end of the speaker cable to the front
speaker outputs of your amplifi er. You can fi nd notes
on this in the corresponding operating instructions.
6 • T 110 F
Page 7
Care and cleaning
The veneered surfaces of our speakers have a protective
surface coat, which eliminates the need for wood polish.
• You can best remove dust or small amounts of dirt with
a dry, smooth leather cloth.
• Rub off stubborn dirt with a damp cloth. Make sure
that no liquids penetrate the speakers.
• Then immediately wipe the surfaces dry using a soft
cloth and without applying pressure.
Protection of the environment
Disposal of the unit
Used units must not be disposed of with household waste!
If the unit is no longer operational, every consumer is required by law to dispose of used
devices separate from household waste,
e. g. at a collection point run by the communal authority
Attention
• If possible only use lukewarm, plain water without any
• In no circumstances should caustic cleaning products,
borough. In this way, used devices can be recycled and
waste materials disposed of in an environmentally friendly manner.
For this reason, electrical equipment is labelled with the
displayed symbol.
Risk of damage!
Using the wrong cleaning materials may damage the delicate surface of the case.
cleaning products. In case of stubborn marks, a mild
soap solution may be used.
white spirit, thinners, petrol or similar be used for
cleaning.
Dimensions and weight
Dimensions (W x H x D): 163 x 260 x 188 mm
Net weight: 3.6 kg
This product conforms with Council of the
European Union guidelines 2004/108/EC and
2006/95/EC.
Technical changes reserved!
• T 110 F 7
Page 8
For questions, suggestions or other issues please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
10783 Berlin (Germany), Buelowstr. 66
Tel.:
00800 200 300 400 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No liability is accepted for the
accuracy of this information. Technical changes, typographical errors
and other errors reserved.
Instruction No. 91823 GB 20110415
Loading...
