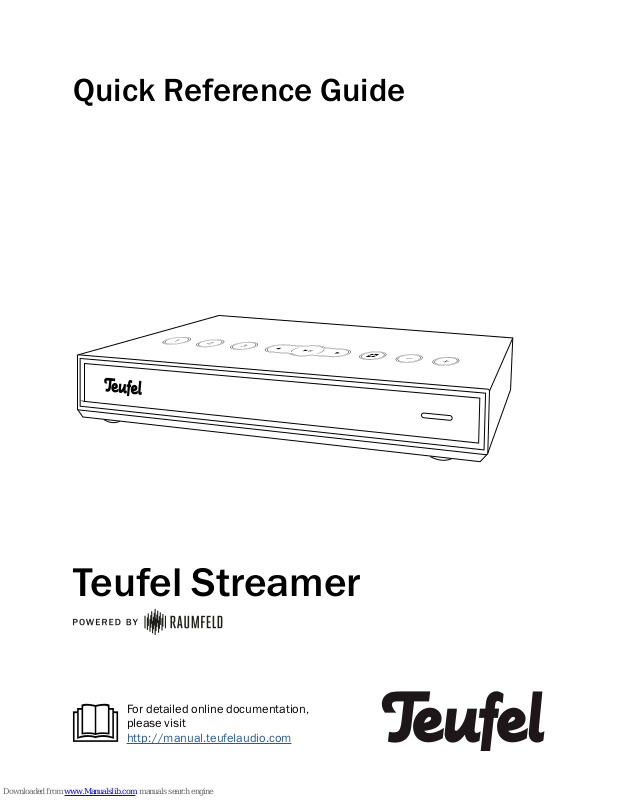

Teufel Streamer Quick Reference Manual

Teufel Streamer

Quick Reference Guide

For detailed online documentation,
please visit

http://manual.teufelaudio.com

2 • Teufel Streamer

Contents

General Notes and Information

Proper use

The Teufel Streamer serves to play
back audio data from a network or
from an external player directly via a
HiFi system, soundbar or similar.

Only use the Teufel Streamer as
described in this quick reference
guide and the online documentation.
Any other use will be deemed as not
in accordance with the instructions
and may lead to damage of property
or even persons.

The manufacturer accepts no liability
for damage caused by improper use.

The device is intended for private use
only.

Safety notes

The enclosed brochure “Impor­tant product information” contains
general safety notes which you
should always observe to protect
yourself and third parties. Also be
sure to observe any warning notes
contained in this quick reference
guide.

Before operating the device,
please first read the safety

notes, this quick reference
guide and the online documentation
carefully. This is the only way to use
all functions safely and reliably.
Keep the enclosed documents in a
safe place and also be sure to pass it
on to any subsequent owner.

General Notes And Information ........ 2

Unpacking .......................................... 3

Operational Controls and

Connections ....................................... 4

Preparations ...................................... 6

Setup .................................................. 6

Configuration ..................................... 7

Operation ........................................... 8

Troubleshooting ............................... 10

Declaration Of Conformity ...............11

3 • Teufel Streamer

Safety notes

Notas de seguridad

Sicherheitshinweise

Consignes de sécurité

Note relative alla sicurezza

Säkerhetsanvisningar

Sikkerhedshenvisninger

Sikkerhetsinstrukser

Turvallisuusohjeita

Important Product Information

Wichtige Produktinformationen

Información importante del producto

Informations produit importantes

Informazioni importanti sul prodotto

Viktig produktinformation

Vigtige produktinformationer

Viktige produktinformasjoner

Tärkeitä tuotetietoja

:DĬQHLQIRUPDFMHSURGXNWRZH

Belangrijke productinformatie

Unpacking

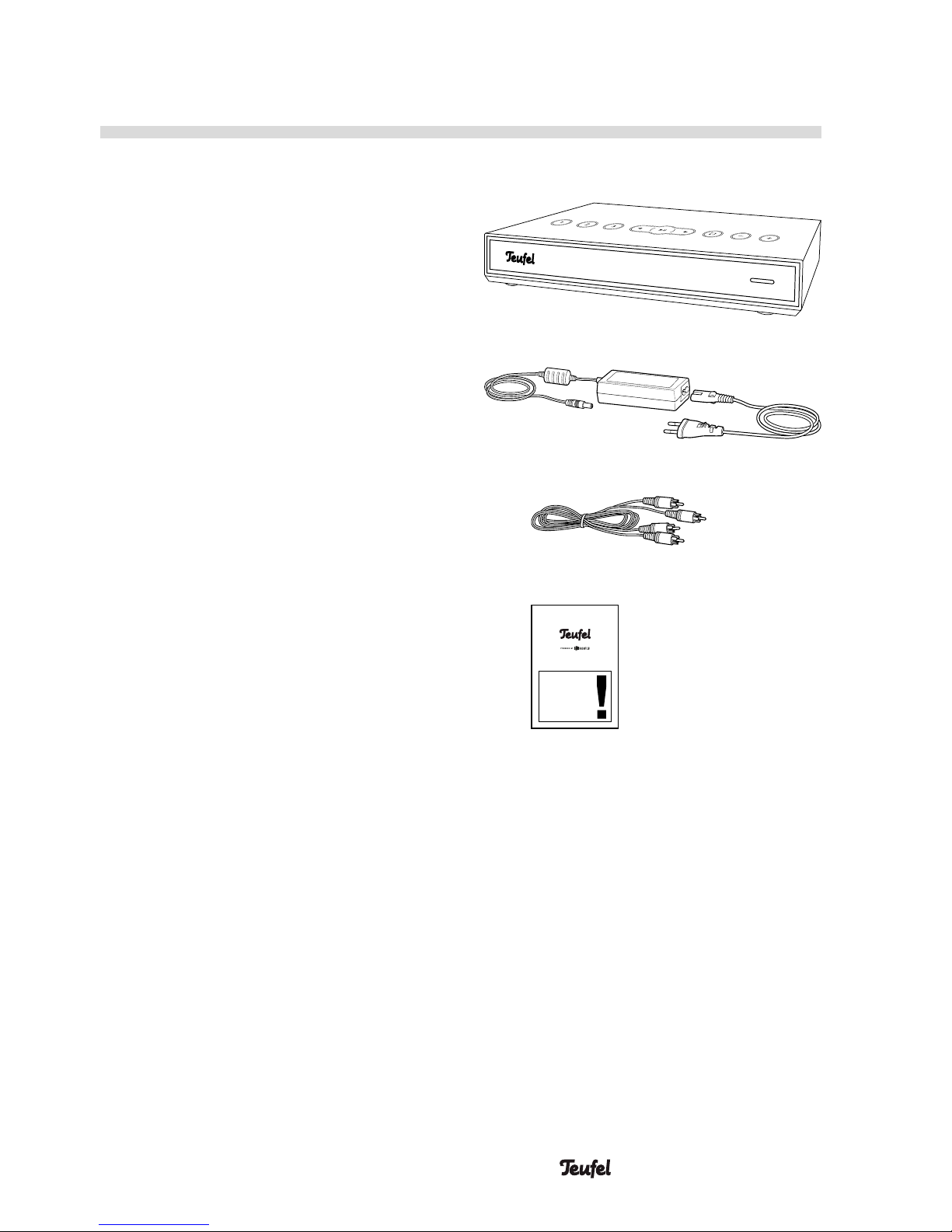

Package contents

(1) Teufel Streamer

(2) Mains adapter with mains cord

(3) RCA audio cable

(4) Brochure “Important product

information”

• Check that all items have been
delivered and that nothing is
damaged. If you find any damage,
do not operate the device; instead
contact our customer service
department (see back side).

• Please keep the packaging for the
duration of the warranty period.

(2)

(3)

(1)

(4)

4 • Teufel Streamer

(5) Preset buttons

Push and hold: save current
playback.
Tap: play saved music.

(6) Pause/play

Tap: Pause/play.
Push and hold: Standby

(7) Skip track back/forward

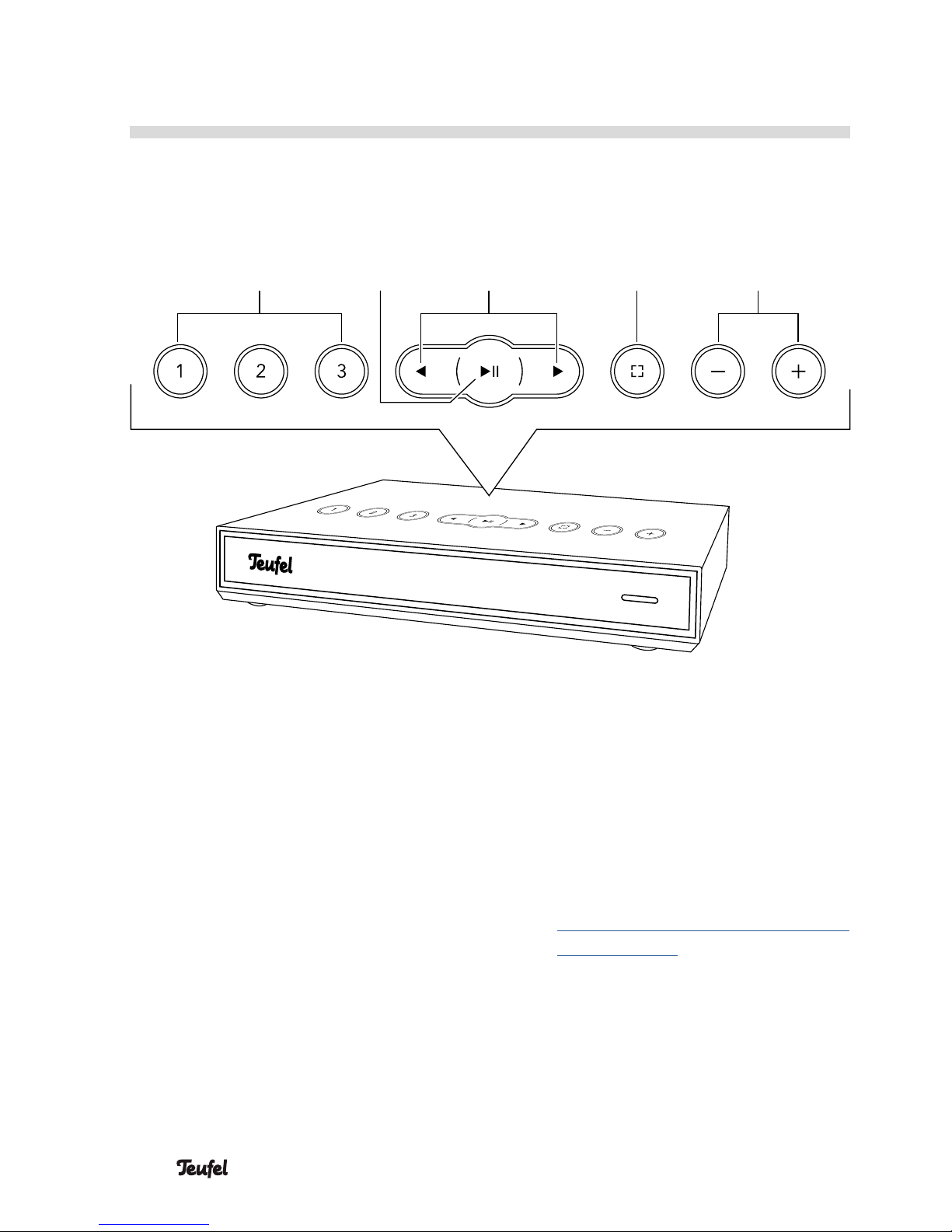

Operational Controls and Connections

(7) (8) (9)

(5) (6)

Top side

(8)

Control button

Tap to switch to the inputs OPT
IN and LINE IN. If there is a
signal at the two inputs, OPT IN
will have priority.

Refer to the online documen­tation for more possibilities to
assign the control button:

http://manual.teufelaudio.com/
controlbutton.

(9) Increase/decrease the volume

5 • Teufel Streamer

(10) (16)(14) (18)(12)

(15)(13) (17) (19)(11)

(10) Connector jack for mains

adapter

(11) USB 2.0 jack

For restoring the firmware and
for sharing music.

Music saved on a USB stick will
be made available under “My
music” if the stick is connected
to the USB port of the host
device. In the network settings,
you can see which device acts
as a host in your system.

(12) Network connection (LAN)

(13) Optical input (digital) for external

players via TOSLINK cable

(14) Optical output (digital) e.g. to the

amplifier via TOSLINK cable

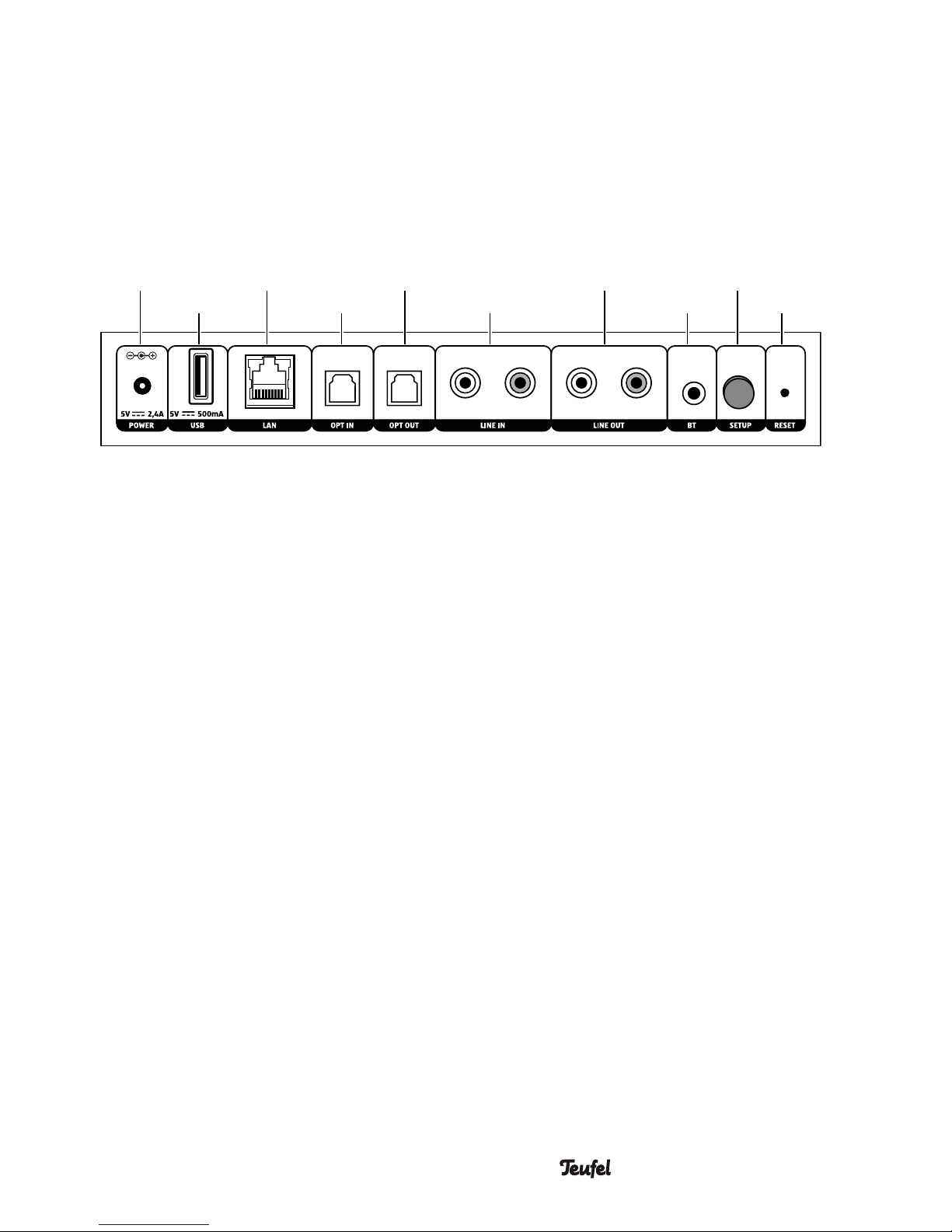

Back side

(15) (Analogue) audio input for

external players via RCA cable.

(16) (Analogue) audio output e.g. to

the amplifier via RCA cable.

(17) Bluetooth pairing button

Tap to set the Teufel Streamer to
pairing mode.

(18) Setup button

Push during the setup process
once asked to do so.

(19) Reset button

Hold for 8seconds while
the device is on to reset the
Teufel Streamer to the factory
default settings.

6 • Teufel Streamer

Preparations

Setup

To be able to integrate Teufel
Streaming products with Raumfeld
technology in your network and
to ensure smooth operation, we
recommend an up-to-date, high
performance router with a broadband
Internet connection.

Make sure that the Wi-Fi router is
active, has the latest firmware and is
able to access the Internet.

To the extent possible, the router
should be positioned in the middle
of your home in order to ensure an
adequate Wi-Fi signal throughout
your home.

• Set up the Teufel Streamer in the
desired location and connect it to
the mains supply with the mains
adapter.

• If desired, connect your peripheral
devices.

– Digital external player:

Via

TOSLINK cable to OPT IN (13).

– Analogue external player: Via

RCA cable to LINE IN (15).

– Digital amplifier: Via TOSLINK

cable to OPT OUT (14).

– Analogue amplifier:

Via RCA cable

to LINE OUT (16).

The device must be
switched on (LEDs light up)

so that the signal is played back.

To switch to LINE IN or OPT IN, tap
the control button (8).

If there is an optical and
analogue signal at the same
time, the optical signal will have
priority.

7 • Teufel Streamer

• Make sure that your smartphone
or tablet is registered in your home
Wi-Fi.

• Have the Wi-Fi password for your
router ready.

• Load the TEUFEL RAUMFELD APP
from the Play Store/App Store.

• Once you have started the app, the
setup wizard will guide you through
the setup process.

• You can find more information
about setting up your Teufel
streaming system at

http://
manual.teufelaudio.com/setup.

The tips in chapter „Trouble­shooting“ on page 10 should
also be helpful.

TEUFEL RAUMFELD APP

IN THE APPLE APP STORE

TEUFEL RAUMFELD APP

IN THE GOOGLE PLAY STORE

Integration of other devices
in an existing Teufel
streaming system:

‒ You do not have to set up the

entire system again. You can
use the app to add new devices
(under “Settings”).

Configuration

8 • Teufel Streamer

Operation

Standby

The Teufel Streamer switches to
standby mode after a few minutes of
inactivity have elapsed. The timespan
leading up to the beginning of the
standby mode can be configured in
the settings menu within the app.
To manually send the device into
standby mode, simply hold down the
play/pause button (6) for about 2
seconds.

Preset buttons

Your

Teufel Streamer

has 3 program-

mable

preset buttons(5). They allow
you to access your favourite radio
station, a playlist or any other music
with just the push of a button.

Programming preset buttons

1. Make sure that the Teufel Streamer

is operational.

2. Use the Teufel Raumfeld app

to play any music on your
Teufel Streamer (e.g. a radio
station, an album, a playlist or all
tracks of an artist).

3. As soon as the music is played

back, push a preset button and
hold it until you hear a signal tone.
The played back music will be
saved for this preset button.

Accessing saved content

• Tap the preset button to access
saved music with just the push of
a button and to play it back on the
Teufel Streamer.

Control button

The control button (8) is configured
by factory default so that the Teufel
Streamer switches to the OPT IN and
LINE IN inputs when you push the
button. OPT IN has priority over LINE
IN.
With the Teufel Raumfeld app, you
can also assign other functions to the
control button. For a detailed descrip­tion of the available functions as
well as instructions on how to assign
functions to buttons visit:

http://manual.teufelaudio.com/
controlbutton.

Spotify Connect

With Spotify Connect, you can play
music on your mobile, tablet or PC on
your Teufel Streamer via the Spotify
app. Please note that you will require
Spotify Premium to use Connect.

1. Connect yourTeufel Streamerto
your wifi network.

2. Open up the Spotify app on your
phone, tablet or laptopusing the
same wifi network.

9 • Teufel Streamer

3. Play a song and select “Devices
Available”.

4. Select yourTeufel Streamerand
start listening.

Connecting via Bluetooth

®

You can connect compatible devices
such as most smartphones and
tablets to your Teufel Streamer via
Bluetooth® (pairing). The sound of the
smart device is then played by the
Teufel Streamer.

1. Turn on the Bluetooth® function on
your smart device.

2. Tap the Bluetooth pairing button
(17) on the back side of the
device. The Bluetooth LED in the
button will now blink until pairing
is complete (no more than 60
seconds).

3. Let your smartphone search
for Bluetooth® devices (you
can find more information in
the user manual of your smart
device). After the search run, the
“Teufel Streamer”

should also
be present in the list of detected
devices.

4. Select “Teufel Streamer” from the
list of detected devices. If your
smart device requires the entry
of a PIN code, enter the PIN code
“0000” set by factory default.

5. Pairing is now complete and
the smart device is linked
to the Teufel Streamer. The
Teufel Streamer will now play back
all sounds that would otherwise be
played by your smart device.

• To terminate the Bluetooth®
connection, switch the Bluetooth®
function on your smart device off.

10 • Teufel Streamer

Troubleshooting

The following advice should help you to solve problems. If this does not work, our
online documentation will provide help:

http://manual.teufelaudio.com

Problem Possible cause/solution

The LEDs do not
illuminate.

Make sure that power is supplied. Check to make sure that
the mains adapter/cord is securely seated.

Setup fails. Restart your router and your smartphone or tablet.

Set up the device near your router and switch any repeaters
off for the duration of the setup process. If your router
provides guest access, do not use it to connect your Teufel
streaming devices.

Read the notes in our online documentation at:

http://manual.teufelaudio.com/setup.

Music playback
skips or is inter­rupted.

It is possible that one or more Teufel device(s) do not have a
Wi-Fi signal or it is too weak.

Place the devices closer to the router, try alternative setup
locations or connect devices, which are set up far away,
with an Ethernet cable. In the event of problems with multi­room systems with three or more devices, we recommend
connecting at least one of the devices with an Ethernet cable
and setting it as the host.

As a test, refrain from using repeaters. If applicable, use an
audio stream with low resolution.

Also visit the website of the router manufacturer for tips on
how to improve your Wi-Fi.

You can find more information in our online documentation:

http://manual.teufelaudio.com.

11 • Teufel Streamer

The app is not
connected or
fails to locate
the configured
streaming
devices.

Make sure that the Teufel streaming devices and the smart
device are operated with the Teufel Raumfeld App on the
same Wi-Fi. Restart your router. Briefly disconnect your Teufel
streaming devices from the power supply and then start them
again.

You can find more information in our online documentation:

http://manual.teufelaudio.com.

I would like
to reset the
device.

Notice: By resetting the device, all system configuration
settings will also be reset.

Resetting the device: When the device is switched on, use
a paper clip that has been bent straight to push the reset
button (19) and hold it down until the device restarts (for at
least 8 seconds).

Declaration Of Conformity

Lautsprecher Teufel GmbH hereby declares that this product complies
with the requirements of the directives 2014/30/EU, 2014/35/EU

and 2014/53/EU to the extent they are installed and used in accord­ance with the instructions of the manufacturer. The full text of the EU declaration
of conformity is available at the following Internet address:

www.teufelaudio.com/declaration-of-conformity.html

The following radio frequency bands and radio transmitting powers are used in
this product:

Radio network Frequency bands in MHz Max. transmission power

in mW/dBm
Bluetooth 2400–2483.5 2.5/4
Wi-Fi 2.4 GHz 2412–2472 40/16
Wi-Fi 5 GHz 5180–5320; 5500–

5700; 5745–5825

25/14

You can find further technical data about the product on our website.

Manual no. 195478_GB_20170907

Please contact our customer service department with any questions,
suggestions, or complaints:

Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)

Great Britain: [phone]

Other countries: 00800 200 300 40

Online support: http://manual.teufelaudio.com

Contact form: www.teufelaudio.com/contact

No responsibility is assumed for the correctness of this information.
Technical changes, typographical errors and other errors reserved.
