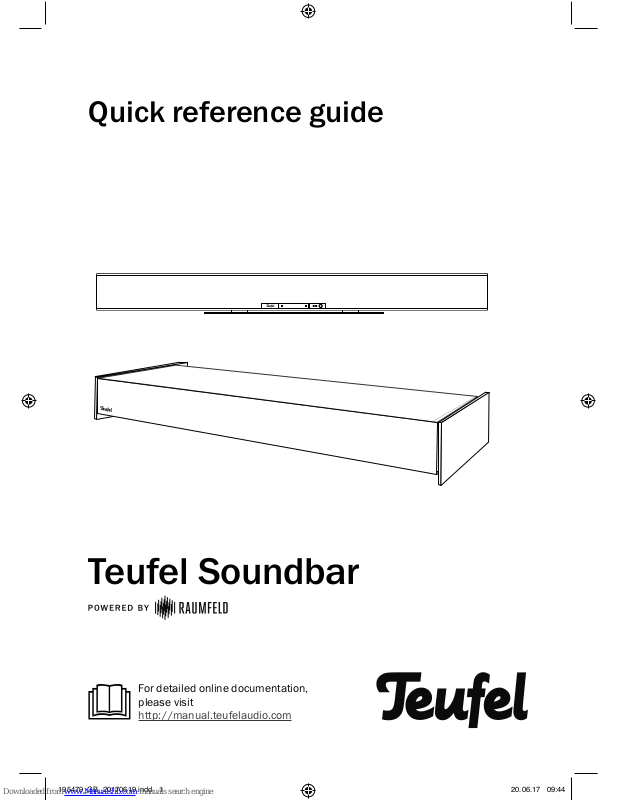

Teufel Soundbar Quick Reference Manual

Quick reference guide

For detailed online documentation,
please visit

http://manual.teufelaudio.com

Teufel Soundbar

195479_GB_20170619.indd 1 20.06.17 09:44

2 • Soundbar

Contents

General Notes and Information

Proper use

The speakers are designed for the
playback of music and speech
transmitted via cable from an
external player or via Wi-Fi.

Only use the speakers as described
in this quick reference guide and the
online documentation. Any other use
will be deemed as not in accordance
with the instructions and may lead to
damage of property or even persons.

The manufacturer accepts no liability
for damage caused by improper use.

The speakers are intended for
domestic use.

Safety notes

The enclosed brochure
“Important product information”
contains general safety notes which
you should always observe to protect
yourself and third parties. Also be
sure to observe any warning notes
contained in this quick reference
guide.

Before operating the product,
please first read the safety

notes, this quick reference
guide and the online documentation
carefully. Only in this way, can you
ensure that all functions are used in a
safe and reliable manner.
Keep the enclosed documents in a
safe place and also be sure to pass it
on to any subsequent owner.

General Notes and Information ........ 2

Unpacking .......................................... 3

Preparations ...................................... 8

Setup .................................................. 8

Connection Examples ....................... 9

Configuration ...................................10

Subwoofer ........................................11

Wireless Remote Control ................11

Operation .........................................12

Troubleshooting ...............................14

Declaration Of Conformity ...............16

195479_GB_20170619.indd 2 20.06.17 09:44

3 • Soundbar

Safety notes

Notas de seguridad

Sicherheitshinweise

Consignes de sécurité

Note relative alla sicurezza

Säkerhetsanvisningar

Sikkerhedshenvisninger

Sikkerhetsinstrukser

Turvallisuusohjeita

Safety notes

Notas de seguridad

Sicherheitshinweise

Consignes de sécurité

Note relative alla sicurezza

Säkerhetsanvisningar

Sikkerhedshenvisninger

Sikkerhetsinstrukser

Turvallisuusohjeita

Wskazówki dotyczące bezpieczeństwa

1

AUX OPTTV

2 3 4

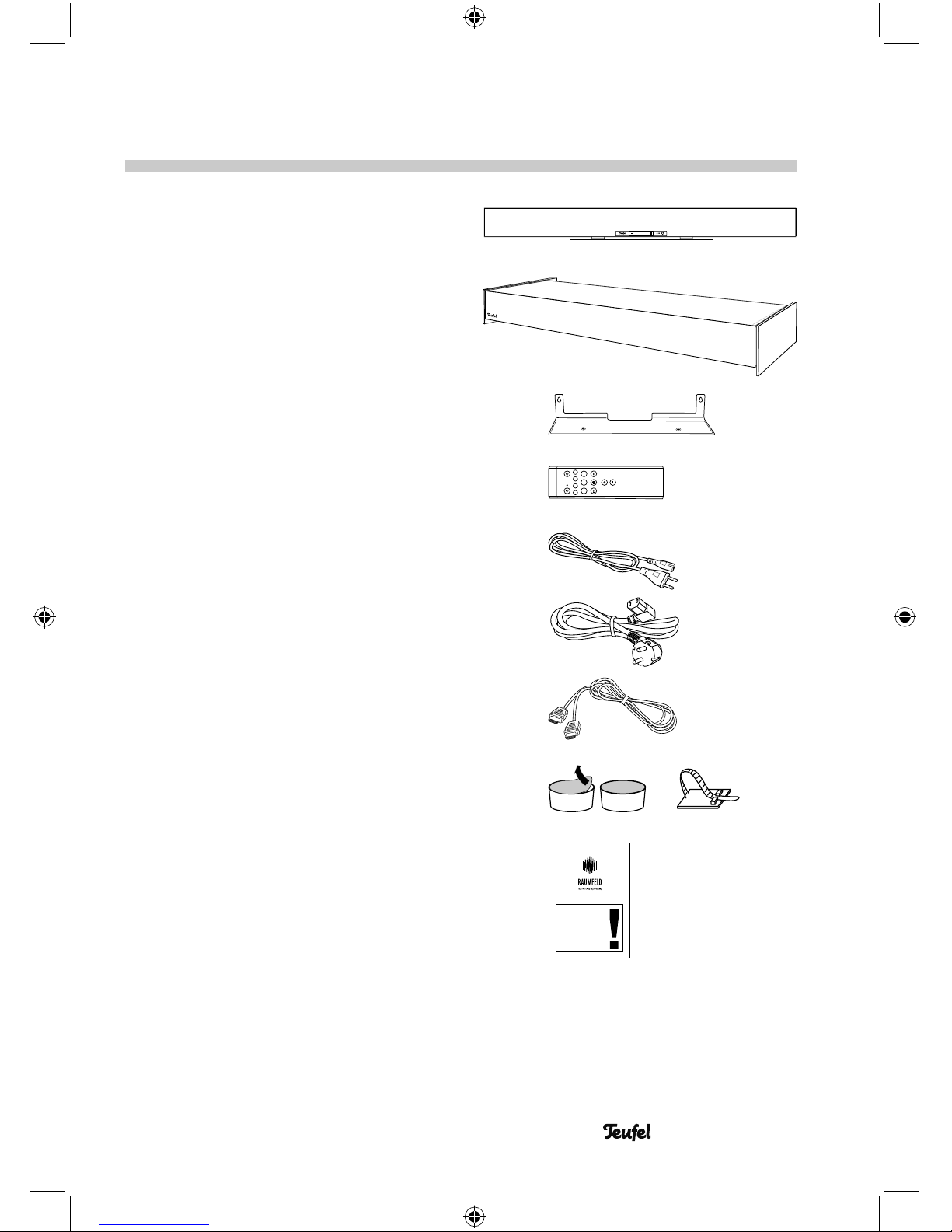

Unpacking

Package contents

(1) Soundbar

(2) Subwoofer

(3) Wall bracket for the soundbar

(4) Wireless remote control

(5) Mains cord for the soundbar

(6) Mains cord for the subwoofer

(7) HDMI cable

(8) Accessories:

2 rubber feet to provide central
support of the subwoofer if
e.g. a TV set is to be placed on
it. Self-adhering cable clamp
for securing the cables of
the soundbar in case of wall
mounting.

(9) Brochure “Important product

information”

• Check that all items have been
delivered and that nothing is
damaged. If you find any damage,
do not operate the device; instead
contact our customer service
department (see back side).

• Please keep the packaging for the
duration of the warranty period.

(2)

(5)

(6)

(7)

(8)

(3)

(4)

(1)

(9)

195479_GB_20170619.indd 3 20.06.17 09:44

4 • Soundbar

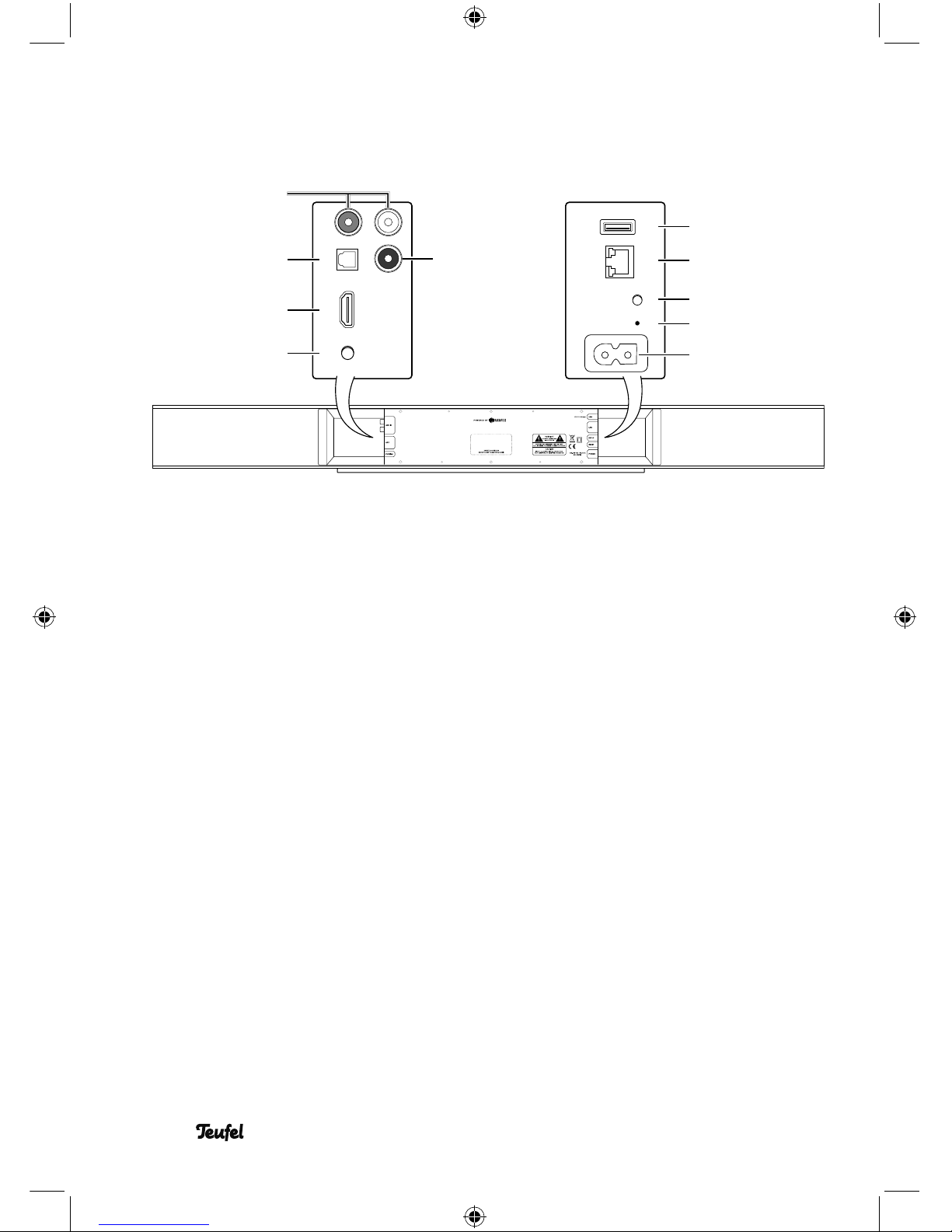

Soundbar

(10) RCA audio input (analogue) for

external players, e.g. a smart­phone via the headphone jack or
a TV set without an ARC function
*).

(11) Optical audio input (digital),

e.g. for a TV set without an ARC
function *

)

.

(12) Audio input for a TV set via

HDMI-ARC *

)

. Make sure to use
the HDMI ARC jack on your TV
set and to you enable the CEC
function. You will find more infor­mation about this in the user
manual for your TV set.

(13) Pairing button: for establishing

a wireless connection with
the subwoofer (see chapter
„Subwoofer“ on page 11).

(14) RCA output: for connecting the

soundbar and subwoofer via an
RCA cable (this is optional if no
wireless connection is desired).

(15) USB 2.0 jack: for restoring the

firmware and sharing music **

)

.

(16) Ethernet connection: for

connecting the soundbar with
your router via an ethernet cable
(alternatively to the Wi-Fi).

(17) Setup button: push during the

setup process once asked to do
so.

(18) Reset button: hold for 8 seconds

while the device is on to reset
the soundbar to the factory
default settings.

(19) Mains connector jack for the

mains cord (5).

SETUPUSB ETHERNET RESET

OPTICALARC

SUB

PAIRING

AUX IN

SUB

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)
(18)

(19)

195479_GB_20170619.indd 4 20.06.17 09:44

5 • Soundbar

*) The audio signal must be set to the

output format PCM or Stereo in the
sound settings for the TV set or the
set top box. You can find further
notes about this topic in our online
documentation:

http://manual.teufelaudio.com/
soundbar.

**) Music saved on a USB stick will

be made available under “My
music” if the stick is connected to
the USB port of the host device.
In the network settings, you can
see which device acts as a host in
your system.

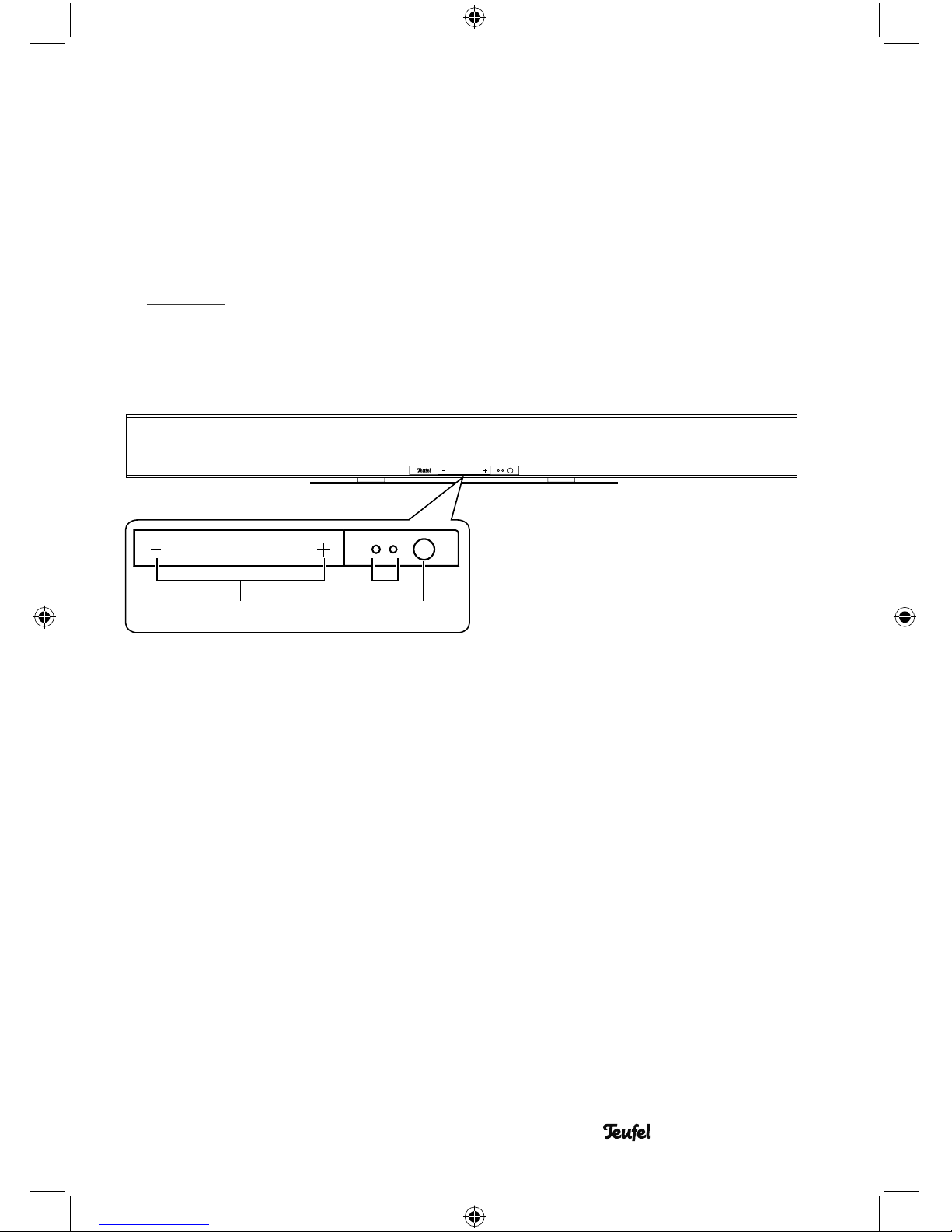

(20) (21) (22)

(20) Increase/decrease the volume

(21) Control LEDs

(22) On/Off button

195479_GB_20170619.indd 5 20.06.17 09:44

6 • Soundbar

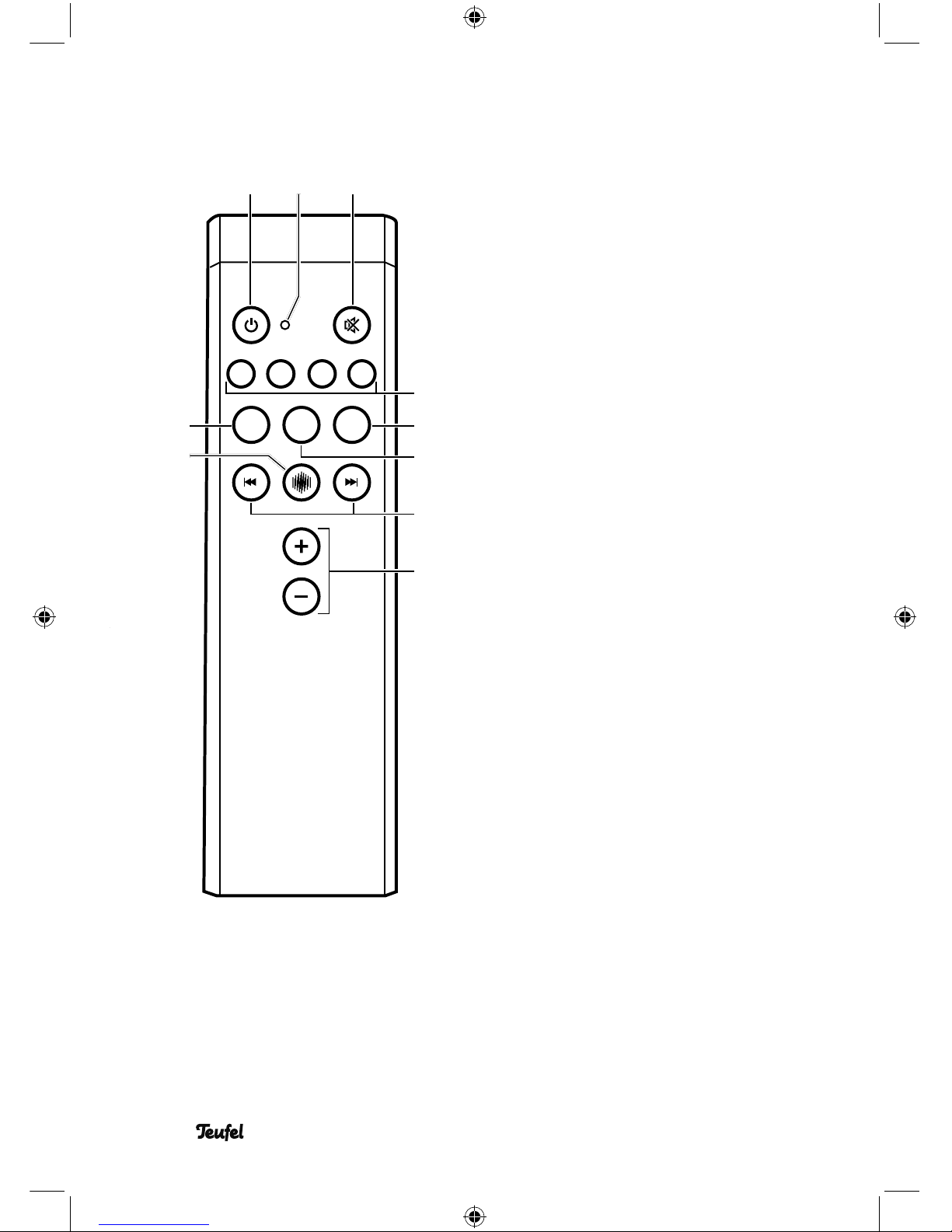

Wireless remote control

1

AUX OPTTV

2 3 4

(23) (24) (25)

(26)

(27)

(28)

(30)

(29)

(32)

(31)

(23) On/Off button

(24) Control LED

(25) Mute

(26)

In streaming mode: Preset
buttons (see page 12). Other­wise wave field

sound patterns:

a

Stereo mode: Pure stereo
sound.

b

Arena mode: panorama
sound with extra wide effect.

c

Theatre mode: stage with
extra wide effect and at the
same time clear speech
playback.

d

Voice mode: extremely clear
speech playback.

(27) Select an input: OPT (11)

(28) Select an input: HDMI ARC (12)

(29) Next/previous track (only in

streaming mode)

(30) Increase/decrease the volume

(31) Select an input: Streaming

(32) Select an input: AUX IN(10)

195479_GB_20170619.indd 6 20.06.17 09:44

7 • Soundbar

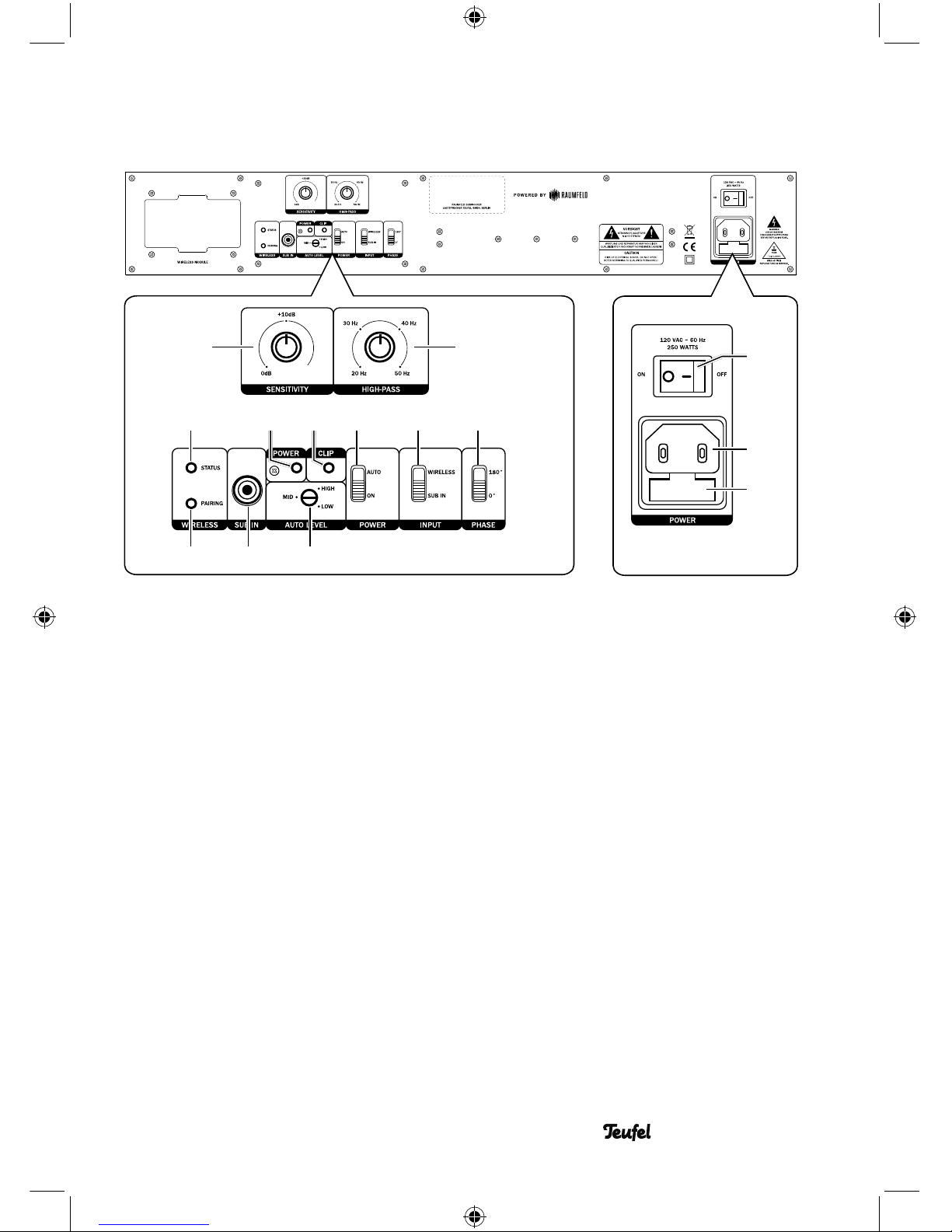

Subwoofer

(33) (34)

(44)

(46)

(45)

(35)(36)(37)(38)(39)(40)

(41) (42) (43)

(33) Sensitivity: Increase/decrease

subwoofer volume (only in case
of cable connection, otherwise
via the app).

(34)

High-Pass: Set the frequency at
which the subwoofer engages.

(35) Phase: Shifts the subwoofer

phase by 180°. Can lead to
improved sound.

(36)

Input: Select the input of the
subwoofer (wireless or via SUB
IN).

(37) Power: Automatic activation/

deactivation or permanent acti­vation.

(38) Clip: Overload indicator. If the

LED lights up, immediately
reduce the volume.

(39) Power: LED lights up when the

subwoofer is switched on.

(40) Status: LED illuminates continu-

ously with the wireless connec­tion. Blinks slowly if there is no
connection to the soundbar.
Blinks quickly in pairing mode.
Is not illuminated when the
soundbar is switched off.

(41) Pairing: Create a wireless

connection to the soundbar (see
chapter „Subwoofer“ on page

11).

(42) RCA input for connecting to the

soundbar with a cable.

(43) Auto Level: sensitivity control for

the automatic activation/deacti-

vation function.
(44) Main power switch
(45) Jack for mains cord (6)
(46) Fuse T 2.5 AL / 250 V

195479_GB_20170619.indd 7 20.06.17 09:44

8 • Soundbar

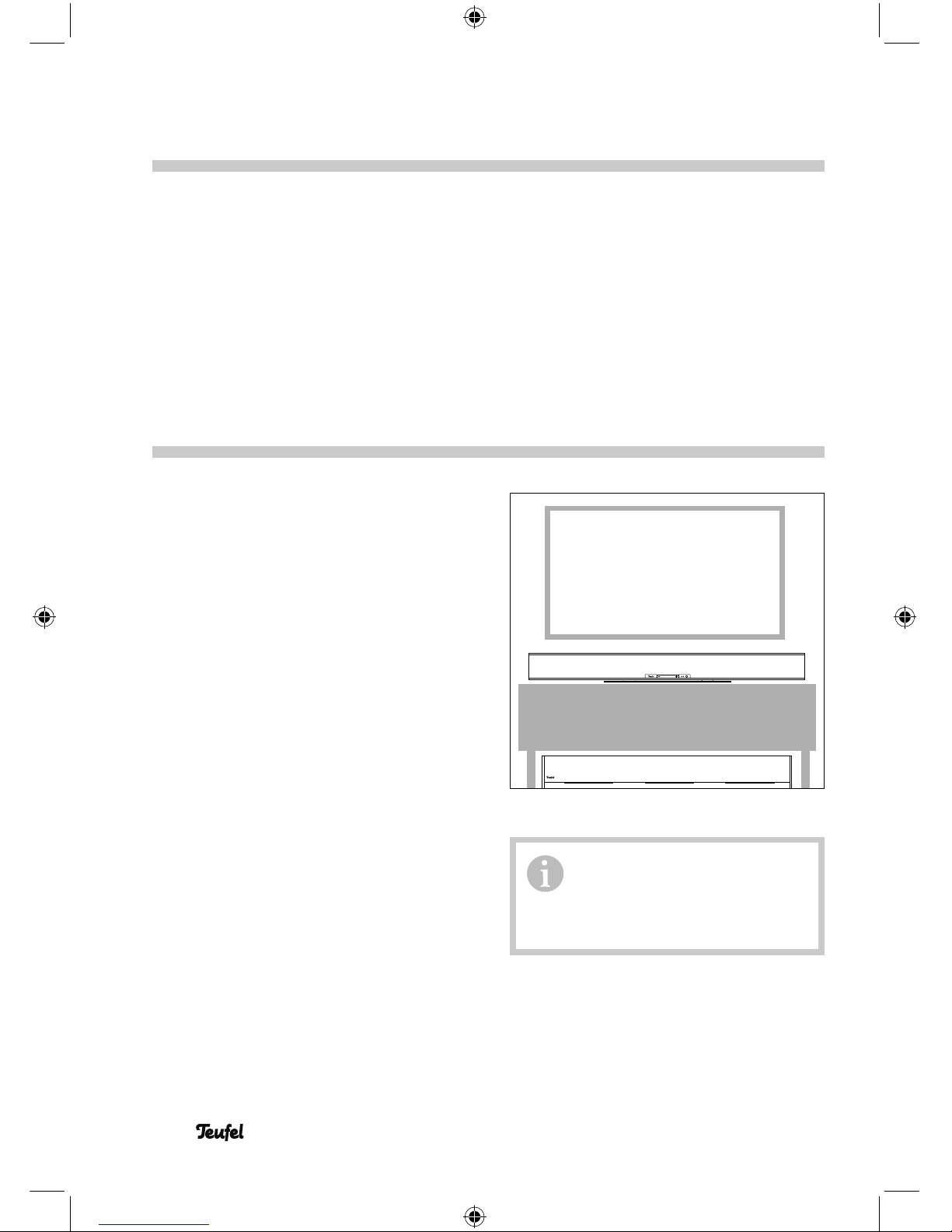

Preparations

Setup

To be able to integrate Teufel
Streaming products with Raumfeld
technology in your network and
to ensure smooth operation, we
recommend an up-to-date, high
performance router with a broadband
Internet connection.

Make sure that the Wi-Fi router is
active, has the latest firmware and is
able to access the Internet.

To the extent possible, the router
should be positioned in the middle
of your home in order to ensure an
adequate Wi-Fi signal throughout
your home.

• The perfect spot for the Soundbar
is in a central position under the
TV. Optionally, the Soundbar can be
mounted on the wall.

• Wall mounting:

1. Perform set up before wall

mounting (see page 10).

2. Remove the support foot of the

Soundbar.

3. Securely mount the wall bracket

(3) on the wall.

4. Securely screw the Soundbar

together with the wall bracket.

• To the extent possible, you should
set up the subwoofer

in front of your
sitting area close to the soundbar.
Generally, you can also set it up at
any other location in the room as
the human ear is unable to localise
low tones. Setup in the corner of
a room is not suitable as this may
result in uncontrollable frequency
rises.

Please note that obstacles
such as walls and ceilings
may affect signal transmis­sion.

195479_GB_20170619.indd 8 20.06.17 09:44

9 • Soundbar9 • Soundbar

OPTICALARC

SUB

PAIRING

AUX IN

SUB

HDMI

ARC

OPT

LINE OUT

TV set

HDMI ARC:
Recommended
connection if the
TV set supports
“ARC”. “CEC”
must be enabled
on the TV set.

SUB (RCA):
Alternative to
the wireless
connection.

Alternative connections if
the TV set does not support
“ARC”.

Soundbar

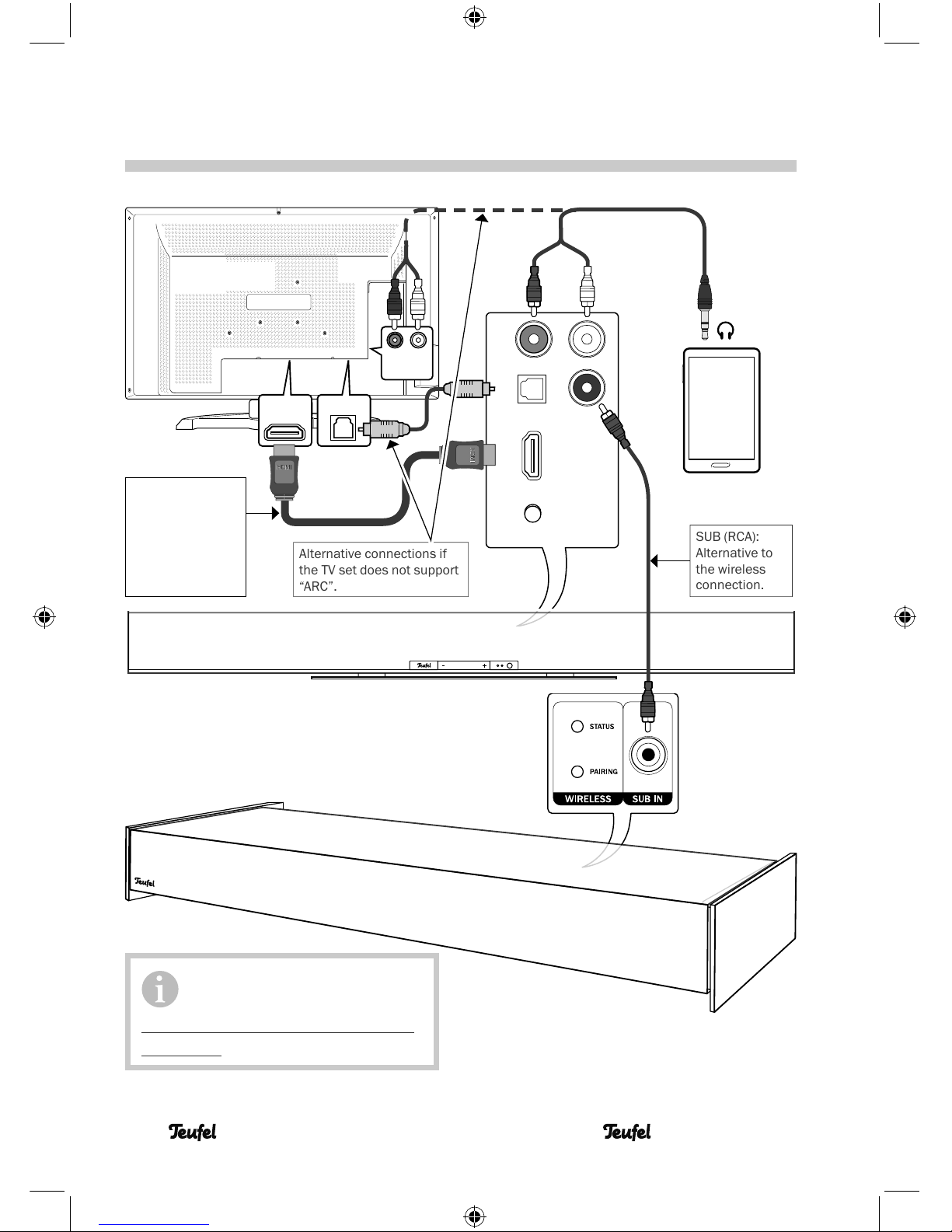

Connection Examples

You can find further tips

and infos here:

http://manual.teufelaudio.com/
soundbar

Subwoofer

195479_GB_20170619.indd 9 20.06.17 09:44

10 • Soundbar 10 • Soundbar

• Make sure that your smartphone or
tablet is registered on your home
Wi-Fi.

• Have the Wi-Fi password for your
router ready.

• Load the TEUFEL RAUMFELD APP
from the Play Store/App Store.

• Once you have started the app, the
setup wizard will guide you through
the setup process.

• You can find further notes about
setting up your Teufel streaming
system under

http://manual.teufelaudio.com/
setup. The tips in chapter „Trou-

bleshooting“ on page 14 should
also be helpful.

Configuration

Integration of other devices
in an existing Teufel
streaming system:

‒ You do not have to set up

the entire system again. You
can use the app to add new
devices (under “Settings”).

TEUFEL RAUMFELD APP

IN THE APPLE APP STORE

TEUFEL RAUMFELD APP

IN THE GOOGLE PLAY STORE

195479_GB_20170619.indd 10 20.06.17 09:44

11 • Soundbar

Subwoofer

Wireless Remote Control

Once you have connected your
subwoofer to the mains supply, set
the toggle switch on the back (37) to
“ON”.

The soundbar will now automatically
connect to the subwoofer.

If the connection is interrupted
at some point, please proceed as
follows:

1. Hold the pairing button (41)
(subwoofer back side) down until
the status LED (40) blinks quickly.

2. Now tap the Sub Pairing button
(13) on the back of the soundbar.
As soon as the subwoofer LED
lights up continuously, the connec­tion has been established.

Alternatively, the subwoofer can be
connected to the soundbar using
a mono RCA cable (see chapter

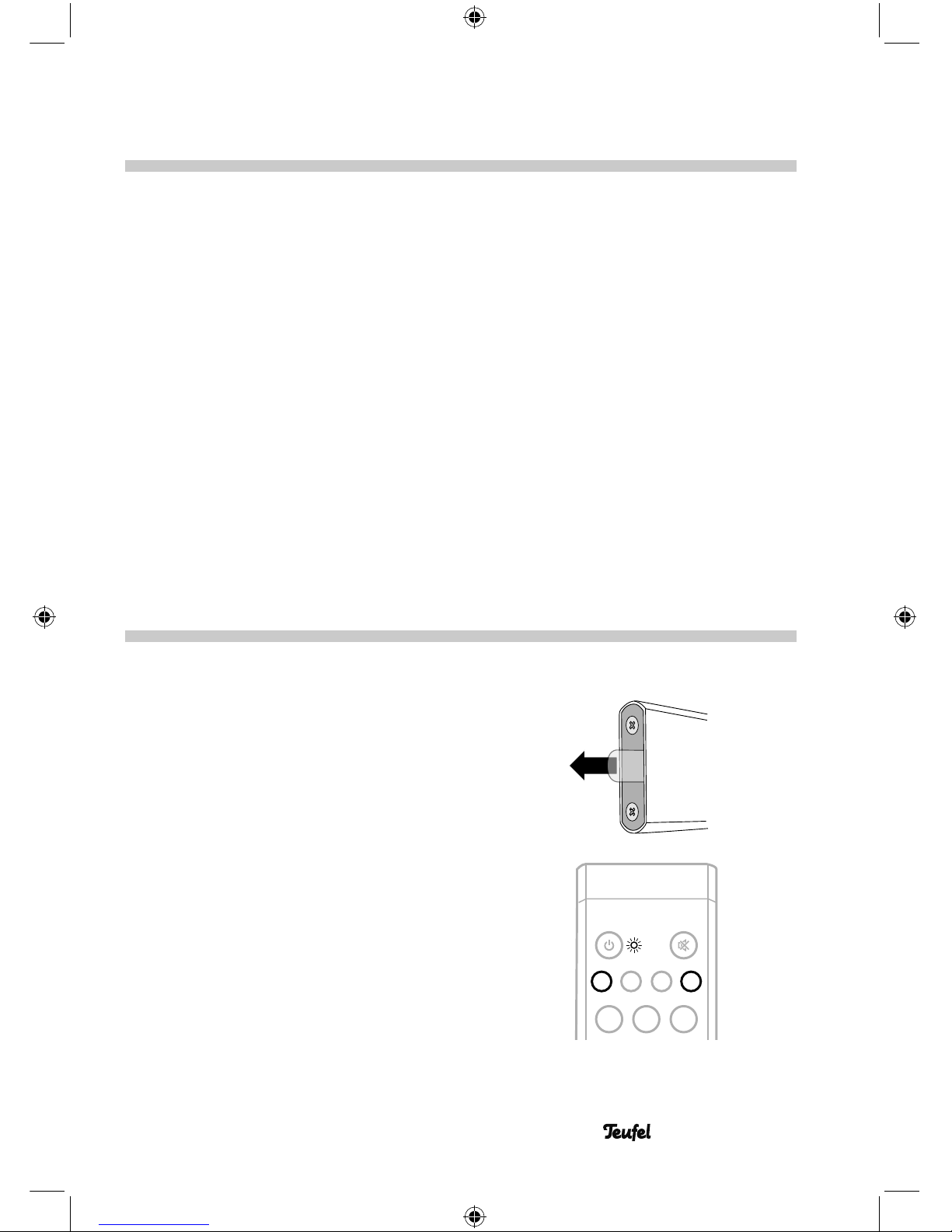

The remote control must be
connected to the Soundbar during
initial installation.

1. Pull out the plastic strip on the
bottom of the remote control.

2. Now hold the remote control in a
central position directly in front of
the Soundbar.

3. Hold the buttons a and d on the
remote control down at the same
time until the LED (24) blinks three
times. If instead the LED blinks ten
times in a row, repeat the process.

1

AUX OPTTV

2 3 4

„Connection Examples“ on page 9).

195479_GB_20170619.indd 11 20.06.17 09:44

12 • Soundbar

Operation

Sound settings

Your Soundbar has 4 different sound
settings, which have been tuned
by our acoustic technicians here in
Berlin using wave field technology.
Wave field technology makes it
possible to strategically control 6
drivers in the soundbar and the 3
drivers in the subwoofer creating very
broad spatial playback effects.

With audio playback (via ARC, OPT or
AUX), you can conveniently configure
the desired sound pattern with the
remote control buttons a to d:

Button a: Stereo mode

The acoustics resemble the sound
of a classic stereo system. Select
this mode to generate a pure stereo
experience.

Button b: Arena mode

Panorama sound with an extra wide
effect is achieved through lateral
signal output.

Button c: Theatre mode

The theatre mode creates a stage
with a wide effect and clear speech
playback at the same time.

Button d: Voice mode

The frequency ranges for speech
playback are increased in this mode.
The side drivers are only used to a
limited degree to expand the sound
stage.

Preset buttons

In streamining mode (streaming via
LAN/Wi-Fi), the buttons a to d act
as programmable preset buttons.
They allow you to access your
favourite radio station, a playlist or
any other music with just the push of
a button.

Programming preset buttons

1. Make sure that the Soundbar is
operational.

2. Use the Teufel Raumfeld app to
play any music on your Soundbar
(e.g. a radio station, an album, a
playlist or all tracks of an artist).

3. As soon as the music is played
back, push a preset button and
hold it until you hear a signal tone.
The music that is played back is
now saved for this preset button.

Accessing saved content

• Tap the preset button to access
saved music with just the push of
a button and to play it back on the
Soundbar.

195479_GB_20170619.indd 12 20.06.17 09:44

13 • Soundbar

Subwoofer settings

Setting the crossover frequency:

• The crossover frequency deter­mines up to which frequency
signals are to be passed on to the
subwoofer.

• In practice, the crossover
frequency functions as follows: If
a high crossover frequency is set
(120 Hz or 140 Hz) , powerful bass
will be played. If it is set to a low
value (100 Hz or 80 Hz), emphasis
will be placed on the sound pattern
of the soundbar.

Setting the subwoofer volume:

• In case of a wireless connection,
with the app.

• In the case of a cable connection,
with the “Sensitivity” control (33).

Phase:

• With the “Phase” switch (35), you
can shift the subwoofer phase by
180°. Depending on setup loca­tion, this can lead to improved
sound.

High-Pass:

The high pass filter only lets through
frequencies above the set value. If
e.g. the control is set to 50Hz, only
frequencies above 50 Hz are played
back. In order for the bass to be
played back with as little filtration as
possible, we recommend setting the
high pass control to 20 Hz.

You can find further tips

and infos here:

http://manual.teufelaudio.com/
soundbar

195479_GB_20170619.indd 13 20.06.17 09:44

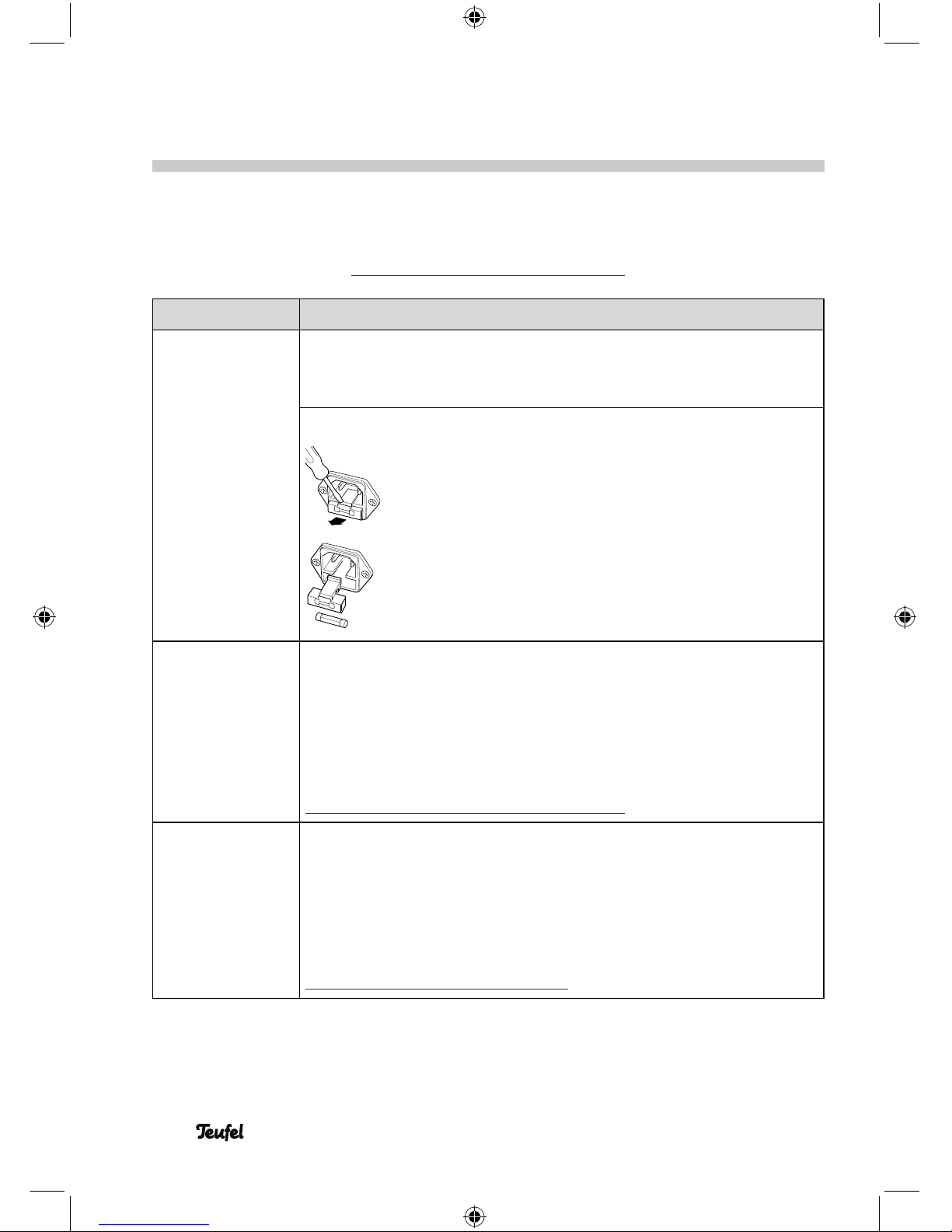

14 • Soundbar

The following advice should help you to solve problems. If this does not work, our
online documentation will provide help:

http://manual.teufelaudio.com

Problem Possible cause/solution

The power
LED (39) of the
subwoofer does
not illuminate.

Make sure that power is supplied. Check to make sure that
the mains cord is securely seated. Check whether the mains
switch (44) on the back side is switched on.

The subwoofer fuse is defective. To replace the fuse:

1. Remove the mains cord.

2. Carefully pull the fuse holder on the mains
connector jack out.

3. Push the old fuse down and out. Insert a new
fuse (T 2.5 AL / 250 V).

4. Push the holder back.

Setup fails.

Restart your router and your smartphone or tablet.

Set up the device near your router and switch any repeaters
off for the duration of the setup process. If your router
provides guest access, do not use it to connect your Teufel
streaming devices.

Read the notes in our online documentation at:

http://manual.teufelaudio.com/setup.

The app is not
connected or
fails to locate
the configured
streaming
devices.

Make sure that the Teufel streaming devices and the smart
device are operated with the Teufel Raumfeld App on the
same Wi-Fi. Restart your router. Briefly disconnect your Teufel
streaming devices from the power supply and then start them
again.

You can find more information in our online documentation:

http://manual.teufelaudio.com.

Troubleshooting

195479_GB_20170619.indd 14 20.06.17 09:44

15 • Soundbar

The soundbar
does not emit
any sound in TV
mode or play­back stutters.

If you are operating the soundbar with a TV via the digital
output (HDMI ARC or OPT), you have to set the output mode
to “PCM” in the TV settings for the selected TV output.

You can find more information in our online documentation:

http://manual.teufelaudio.com/soundbar.

Music playback
skips or is inter­rupted.

It is possible that one or more Teufel device(s) do not have a
Wi-Fi signal or it is too weak.

Place the devices closer to the router, try alternative setup
locations or connect devices, which are set up far away, with
an Ethernet cable.

As a test, refrain from using repeaters. If applicable, use an
audio stream with low resolution.

Also visit the website of the router manufacturer for tips on
how to improve your Wi-Fi.

You can find more information in our online documentation:

http://manual.teufelaudio.com.

I would like
to reset the
Soundbar.

Notice: By resetting the device, all system configuration
settings will also be reset.

Resetting the device: When the device is switched on, use
a paper clip that has been bent straight to push the reset
button (18) and hold it down until the device restarts (for at
least 8 seconds).

195479_GB_20170619.indd 15 20.06.17 09:44

Manual no. 195479_GB_20170619

Declaration Of Conformity

Lautsprecher Teufel GmbH hereby declares that this product complies
with the requirements of the directives 2014/30/EU, 2014/35/EU

and 2014/53/EU to the extent they are installed and used in accord­ance with the instructions of the manufacturer. The full text of the EU declaration
of conformity is available at the following Internet address:

www.teufelaudio.com/konformitaetserklaerungen.html

The following radio frequency bands and radio transmitting powers are used in
this product:

Radio network Frequency band in MHz Max. transmission power in

dBm
WLAN 2.4 GHz 2412–2472 20
WLAN 5 GHz 5180–5320; 5500–5700;

5745–5825

16

You can find further technical data about the product on our website.

Please contact our customer service department with any questions, sugges­tions, or complaints:

Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)

Telephone: [phone]

Fax: [phone]

Online support: http://manual.teufelaudio.com

Contact form: www.teufelaudio.com/contact

No responsibility is assumed for the correctness of this information. Technical
changes, typographical errors and other errors reserved.

195479_GB_20170619.indd 16 20.06.17 09:44
