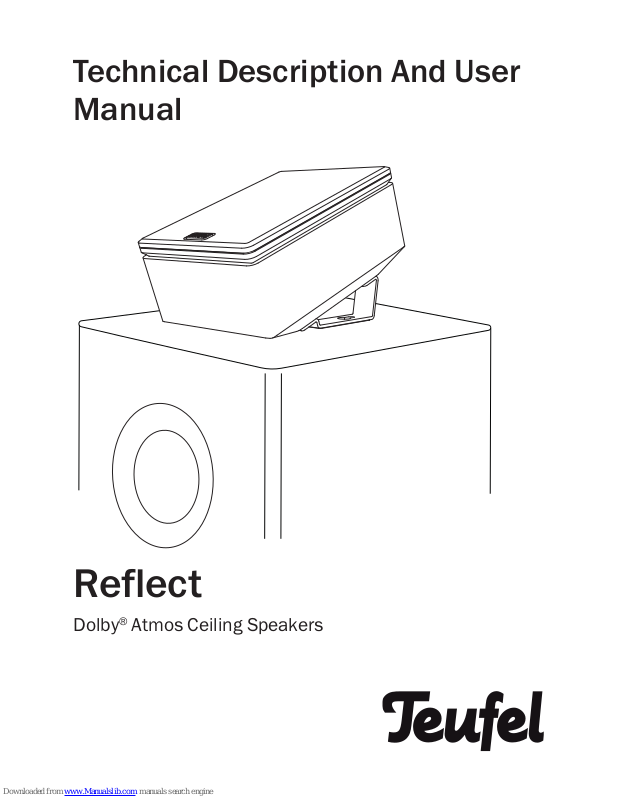

Teufel Reflect User Manual

Reflect

Dolby® Atmos Ceiling Speakers

Technical Description And User
Manual

2 • Reflect

Contents

General Notes And Information ....3

Notice ............................................ 3

Trademarks ................................... 3

Original packaging ........................ 3

Complaints .................................... 3

Contact .......................................... 3

For Your Safety ..............................5

Proper use ..................................... 5

Explanation of terms ..................... 5

Safety notes .................................. 5

Explanation of symbols ................. 7

Overview ........................................8

Unpacking...................................... 8

Package contents ......................... 8

Checking the package contents ... 8

Dolby Atmos .................................. 9

Satellite speakers ......................... 9

Preparation ..................................10

Mounting plate ............................10

Setup/Mounting ..........................11

Location tips ................................11

Setup ...........................................11

Wall mounting .............................11

Connecting ...................................13

Care And Cleaning .......................14

Technical Data .............................15

3 • Reflect

General Notes And Information

Notice

The information in this document
may change without prior notice and
in no way constitutes any liability
on the part of Lautsprecher Teufel
GmbH.

No part of this user manual may
be reproduced in any form or be
broadcasted in any way electroni­cally, mechanically, by photocopy or
recording without the written permis­sion of Lautsprecher Teufel GmbH.

© Lautsprecher Teufel GmbH

Version 1.0, October 2017

Trademarks

® All trademarks are the property of
their respective owners.

Manufactured under licence
from Dolby Laboratories.
DOLBY, DOLBY ATMOS and
the double D symbol are

trademarks of Dolby Laboratories.

Original packaging

If you wish to exercise your eight­week right of return, we ask that
you be absolutely sure to hold onto
the packaging. We can only accept
product returns with the ORIGINAL
PACKAGING.

Empty boxes are not available!

Complaints

In case of a complaint we will need
the following information to process
your enquiry:

1. Invoice number

Can be found on the sales slip
(enclosed with the product) or on the
order confirmation received as a PDF
document, e.g. 4322543.

2. Serial number or batch number

Located on the back side of
the device, e.g. serial no.:
KB20240129A-123.

Thank you for your support!

Contact

Please contact our customer service
department with any questions,
suggestions, or complaints:

Lautsprecher Teufel GmbH

BIKINI Berlin
Budapester Straße 44
10787 Berlin (Germany)

Phone: [phone] (toll-free)
Fax: +49 (0)30 / 300 930 930

Online support:

www.teufelaudio.com/service

Contact form:

www.teufelaudio.com/contact

4 • Reflect

Before operating the product
for the first time, please read

the safety notes and user
manual carefully. Only in this way,
can you ensure that all functions are
used in a safe and reliable manner.
Store the user manual in a safe place
and also be sure to pass it on to any
subsequent owner.

NOTICE

Check that all items have
been delivered and that
nothing is damaged. If you
find any damage, do not
operate the device; instead
contact our customer service
department.

5 • Reflect

For Your Safety

Proper use

The speakers are designed to supple­ment the playback of music and
speech from an external player with
Dolby Atmos support.

Only use the speakers as described
in this user manual. Any other use
will be deemed as not in accordance
with the instructions and may lead to
damage of property or even persons.

The manufacturer accepts no liability
for damage caused by improper use.

The speakers are intended for
domestic use only.

Explanation of terms

You can find the following signal
terms in this user manual:

CAUTION

This signal term indicates a
low risk, which, if not avoided,
may result in minor or
moderate injury.

NOTICE

This signal term warns you of
potential damage.

Safety notes

This chapter contains general safety
notes which you should always
observe to protect yourself and third
parties. Also observe the warning
notes in each chapter of this user
manual.

– Only use the accessory products

specified by the manufacturer.

– Never modify the device. Unauthor-

ised modifications may affect the
safety and functionality.

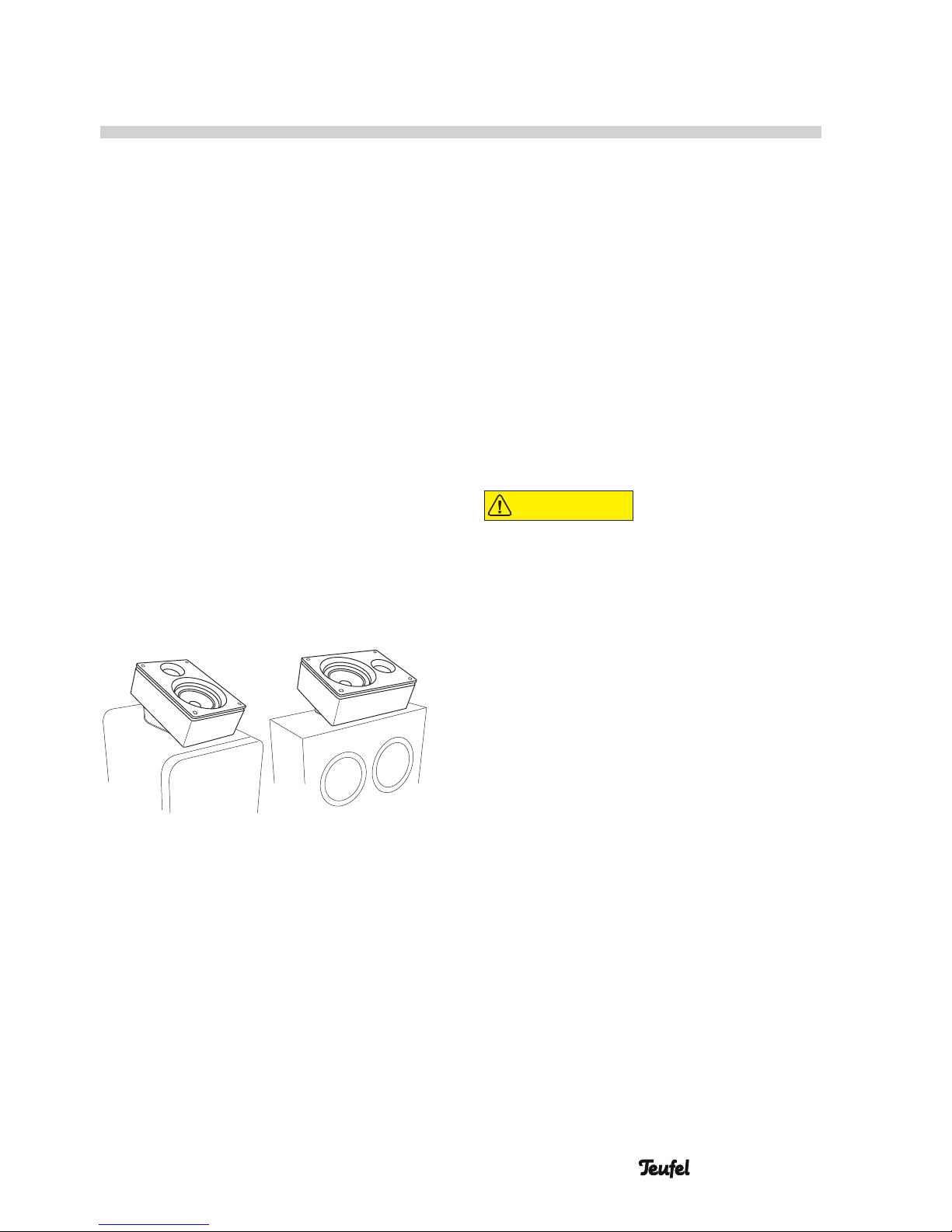

An unsuitable setup location may
result in injury and damage.

– If the speakers are not securely

mounted, do not use them in
vehicles, in unstable locations,
on wobbly tripods or furniture, on
underdimensioned brackets etc.
The speakers may tip or fall over
and cause injury to persons or be
damaged themselves.

– Place the speakers in such a way

that they cannot be knocked over
inadvertently and make sure that
the cables do not pose a tripping
hazard.

– Carefully follow the user manual.
– Make sure that the wall mounting

is done in a professional manner.

– In case of a wall mounting, verify

the carrying capacity of the walls
and make sure that there are no
cables or pipes in the drilling areas.

6 • Reflect

Before you drill, use a metal
detector to check the applicable
areas. Otherwise, there is a risk of
electric shock/short circuit!

– Do not place the speakers near

heat sources (e.g. heaters, ovens,
other heat generating equipment
such as amplifiers etc.).

An unstable base may cause the
unit to tip and injure or even kill
persons, children are particularly
at risk. You can prevent a large
number of accidents by taking the
following precautions:

– If you want to use underframes or

speaker stands, only use those
recommended by the manufac­turer.

– When storing the product, also

ensure that it stands safely and
that it cannot be knocked down or
over.

Children can become trapped in
the plastic wrapping when playing
and suffocate.

– Do not allow children to play with

the device or the plastic wrapping.
There is a danger of suffocation.

– Ensure that children do not remove

small parts from the device or take
them off of the device (e.g. control
knobs or plug adapters). They could
swallow the parts and choke.

– Never allow children to operate

electrical equipment unsupervised.

CAUTION

Extended listening
at high volumes may
lead to hearing loss.

– To avoid damage to health, avoid

extended listening at high volumes.

– When the volume is set high,

always keep a certain distance
from the device and never place
your ear directly on the speaker.

– If the AV receiver is set to full

volume, it may produce very high
sound pressure. This may have
psychic consequences and also
cause physical injury. Children and
pets are particularly at risk. Set
your signal source device volume
control to a low setting before
turning on the power.

CAUTION

This product contains
magnetic material.

– Keep magnetically sensi-
tive objects (e.g. credit cards etc.)
away from the speakers.

– If necessary, consult your physician

and ask for effects on implants
such as pacemakers or defibrilla­tors.

7 • Reflect

NOTICE

Improper use may lead to damage
or fire.

– Do not place open flames such as

burning candles or similar on the
device.

– Do not place the device in direct

sunlight.

– Only use the device indoors.
– Do not operate the device in wet

rooms and protect it from dripping
and splashing water. Make sure
that no vases or other liquid-filled
objects are located on or near the
device in order to prevent liquid
from penetrating the housing.

Explanation of symbols

Old devices must not be
disposed of with house­hold waste!

Electrical equipment
contains harmful substances and
valuable resources.

Every consumer is required by law
to bring all old electrical devices to
an authorised collection or return
point so that they can be disposed
of in a manner that is environmen­tally friendly and which preserves
resources.

You can hand old electrical devices
over to the local reusable materials/
recycling centre.

Please contact your vendor directly
for more information about this topic.

8 • Reflect

(1)

(2)

(3)

Overview

Unpacking

• Carefully open the box, take out the
EPE foam half-shell and carefully
lift the speakers out of the box.

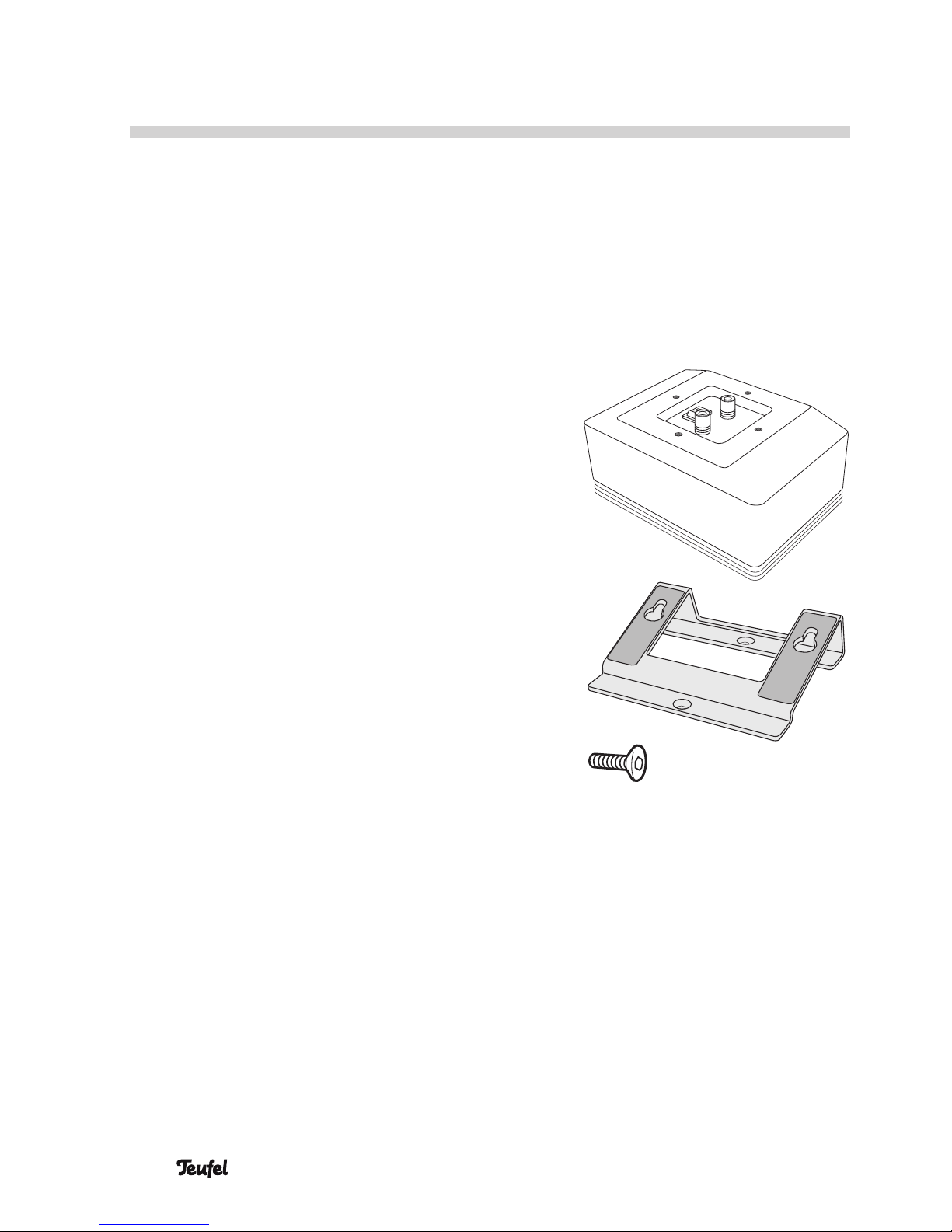

Package contents

(1) 2x Reflect ceiling speaker

(2) 2x mounting plate

(3) 4x screw

Checking the package
contents

• Check that all items have been
delivered and that nothing is
damaged.

• If the delivery is incomplete or the
device has been damaged, please
contact our service team (see

3).

• Do not in any case operate the
device if it is damaged.

9 • Reflect

Dolby Atmos

Conventional Surround Sound
systems generate surround sound
in a horizontal direction. With Dolby
Atmos systems, sound is also
projected from above now: Ceiling
speakers add even more surround
sound.

With the Reflect speakers, you can
upgrade a 5.1 installation to Dolby
Atmos. This would convert the system
into a 5.1.2 or 5.1.4 system where
the last number generally indicates
the number of ceiling speakers. The
middle number is the number of the
subwoofers.

This requires a corresponding AV
receiver, which has a decoder and
separate speaker outputs for Dolby
Atmos.

The Reflekt speakers are simply
placed on the existing front and/or
rear speaker so that they emit the
sound diagonally to the ceiling. The
sound waves are then reflected to the
listener. That’s why sound-reflecting
ceiling material is required – this can
be plasterboard or chipboard.

Satellite speakers

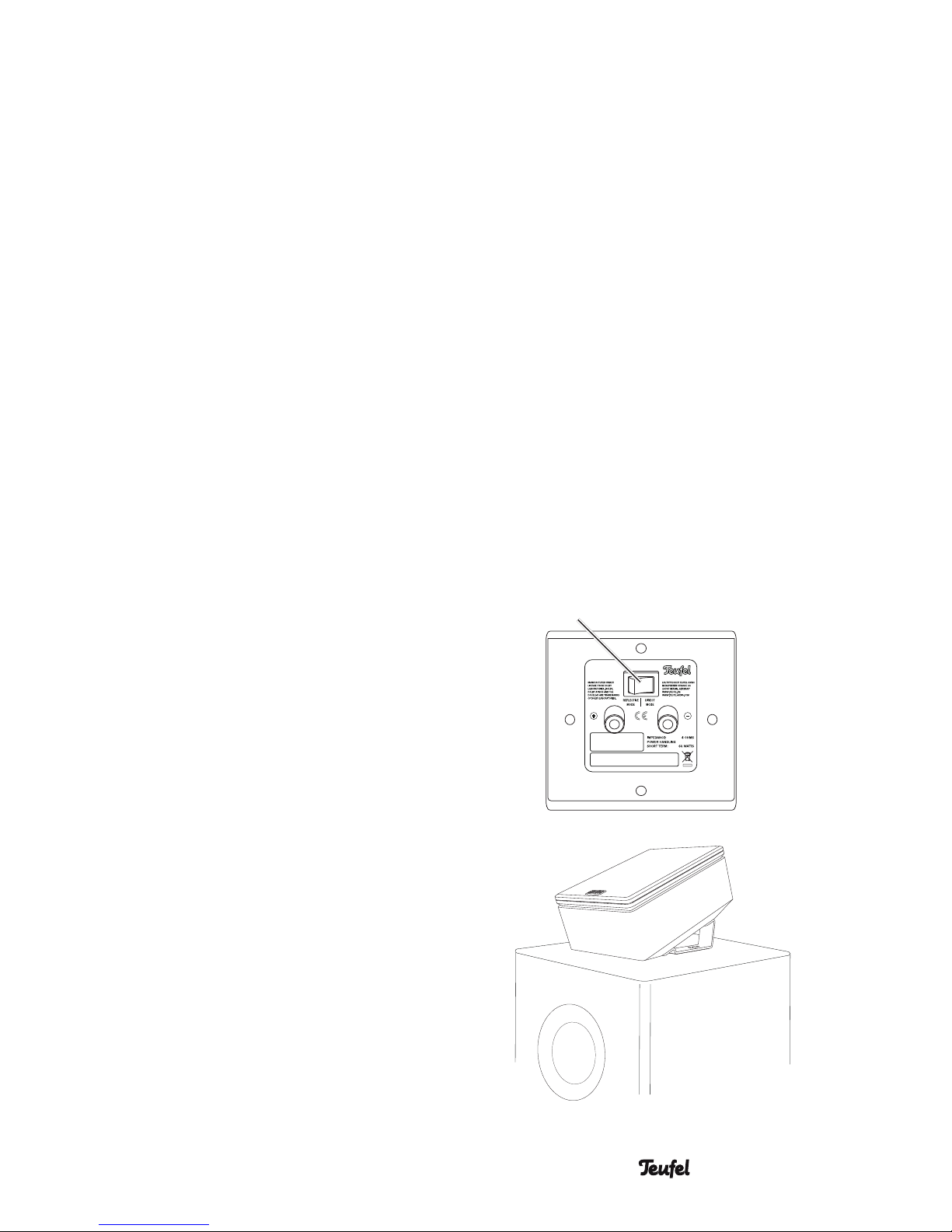

You can also use the Reflect speakers
as normal satellites (e.g. as a 2.1
or a 5.1 system). The toggle (4) on
the back of the speakers serves this
purpose:

• A special frequency response is
required for Dolby Atmos mode
(“REFLECT MODE”).

• For satellite mode, set the switch to
“DIRECT MODE” where the speaker
has a linear frequency response.

(4)

10 • Reflect

Preparation

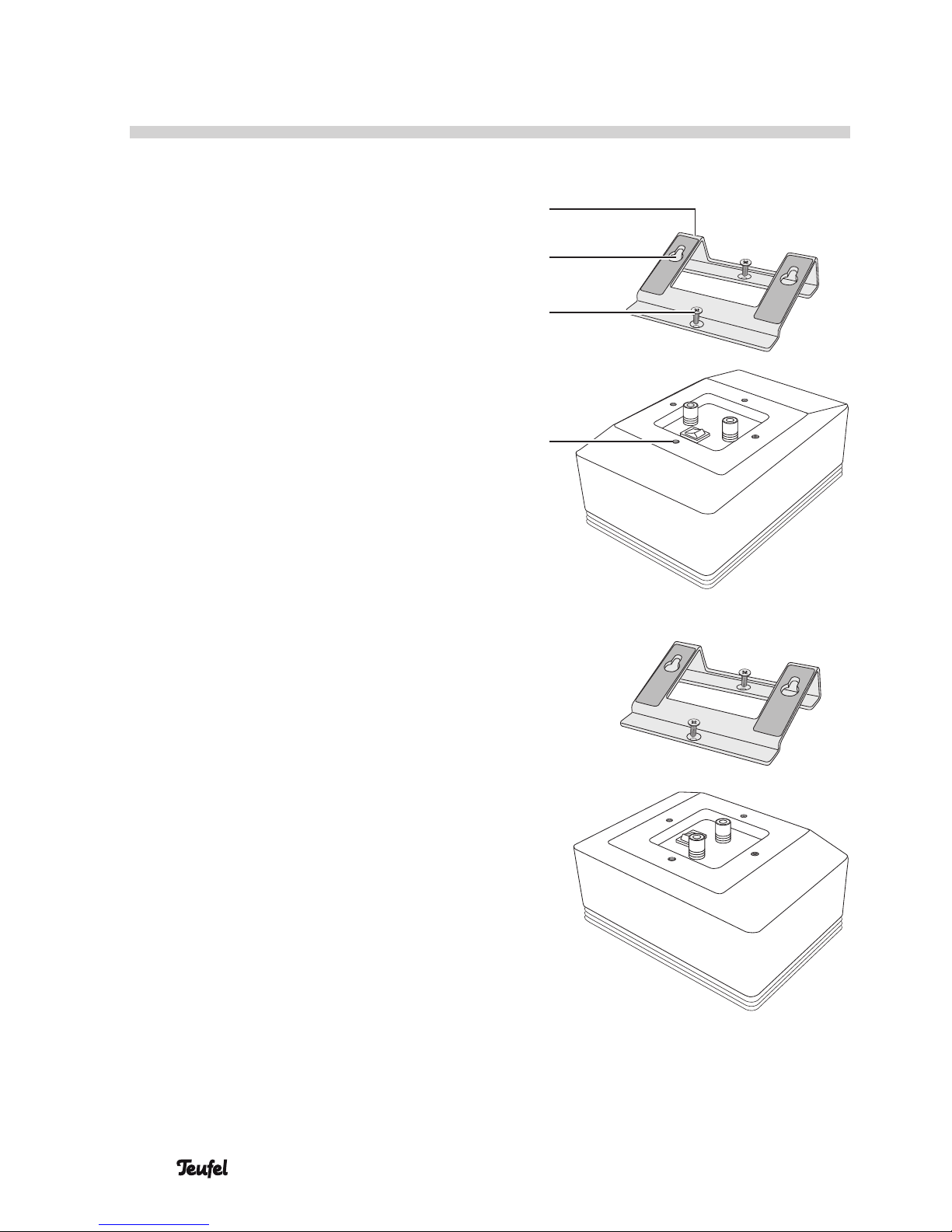

Mounting plate

You can install the mounting plate
(2) in two positions so that can set
up the Reflect speaker in an upright
position or on its side.

• To set up the speakers on existing
speakers, the bottom of the
mounting plates is fitted with a
non-slip rubber layer.

• The keyhole openings (5) in the
mounting plate are intended for
wall mounting.

1. Place the mounting plate in the
desired direction on the back of the
Reflect speaker.

2. Use two screws (3) to firmly
screw the mounting plate into the
threaded holes (6) on the speaker.

(2)

(3)

(5)

(6)

11 • Reflect

Setup/Mounting

Location tips

• Select a stable, level base. In
case of wall mounting, follow the
instructions in the next chapter.

• Make sure that the environment is
clean and free from dust.

• Select a location away from heat
sources and direct sunlight.

• Do not place any heavy objects on
the cables or the device.

Setup

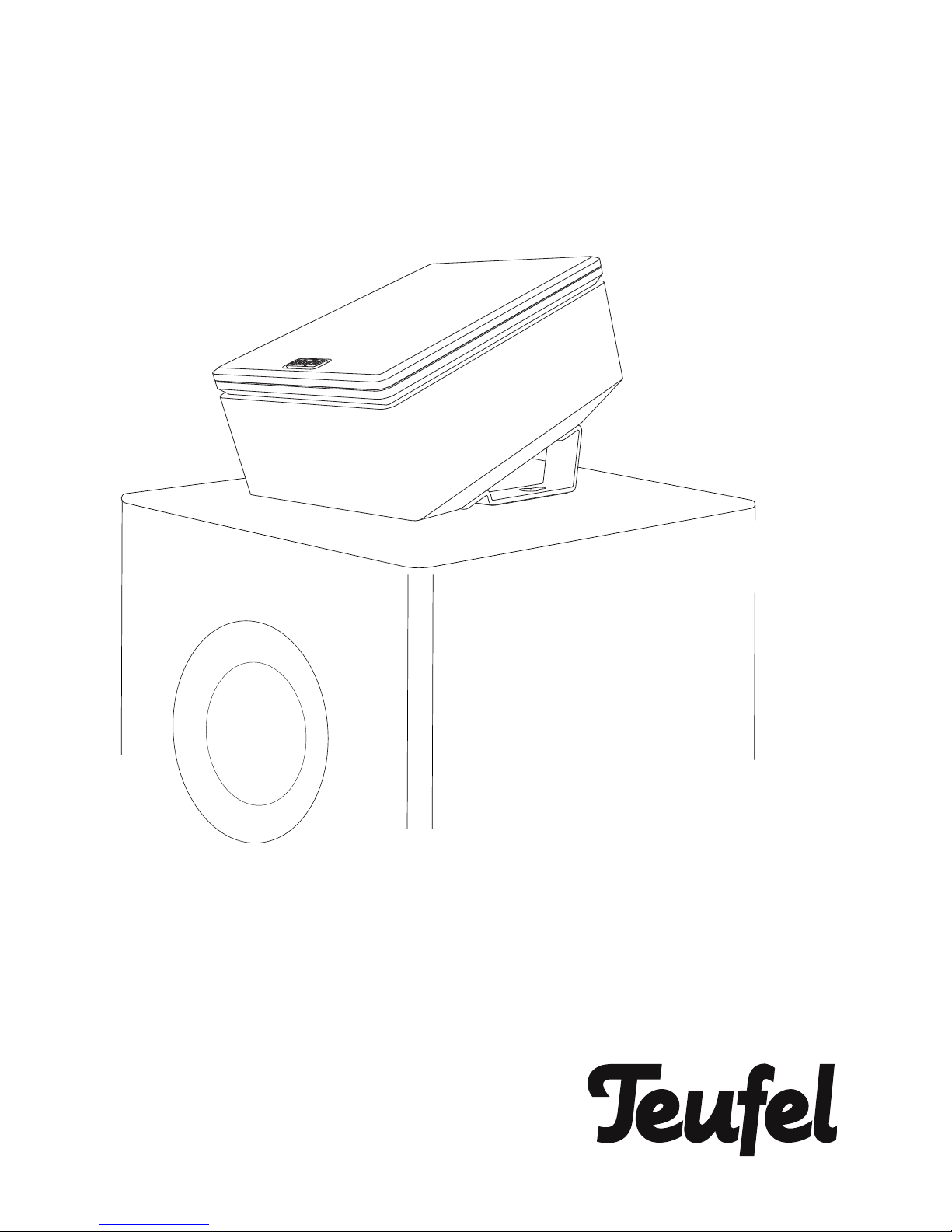

Set up the Reflect speakers in an
upright or lateral position onto the
existing speaker boxes. The Reflect
speakers should be in a diagonal
position pointing up to the ceiling.

Wall mounting

Proceed with care when mounting
the product on the wall and follow the
instructions below.

You will need the following material
to mount the product on a solid stone
wall (not included in the package
contents):

• 2 dowels (ø 5 mm)

• 2 screws, 4 x 45 mm, screw head =
ø approx. 8 mm

CAUTION

Risk of injury/damage!

– Only qualified persons may

mount the Reflect speakers
on the wall.

– They may only be mounted

on a suitable, solid wall.
Special dowels or anchors
may be necessary when
mounting the product on
lightweight walls. Consult a
qualified professional in this
case.

– Make sure that there are no

cables or pipes in the drilling
areas. Before you drill, use a
metal detector to check the
applicable areas.

12 • Reflect

1. Space the two keyhole openings (5)
in the wall where you would like to
mount the Reflect speaker. Use a
ruler, pencil and spirit level for this.

2. Use a metal detector to check the
drill areas. If necessary, select
another area for mounting.

3. Use a 5 mm rock drill to drill holes,
which are approx. 40 mm deep, at
the marked positions.

4. Insert 2 dowels (ø 5 mm) all the
way in the drill holes.

5. Screw one screw (4x45 mm) into
each dowel until there is approx.5
mm of space between the wall and
the screw head.

6. Press the Reflect speaker up
against the wall so that the screws
fit into the keyhole openings

(5)

.

7. Now pull the Reflect speaker down
so that the screws slip into the
small slot.

8. If applicable, screw the screws
further in or out until the Reflect
speaker is securely mounted on
the wall.

13 • Reflect

Connecting

CAUTION

Risk of injury/damage!

– Lay the cables so that

they do not pose a tripping
hazard.

1. Lay speaker cables from your AV
receiver to each Reflect speaker. If
possible, use high-quality dual core
speaker cables with a diameter of
at least 1 mm2 to do so.

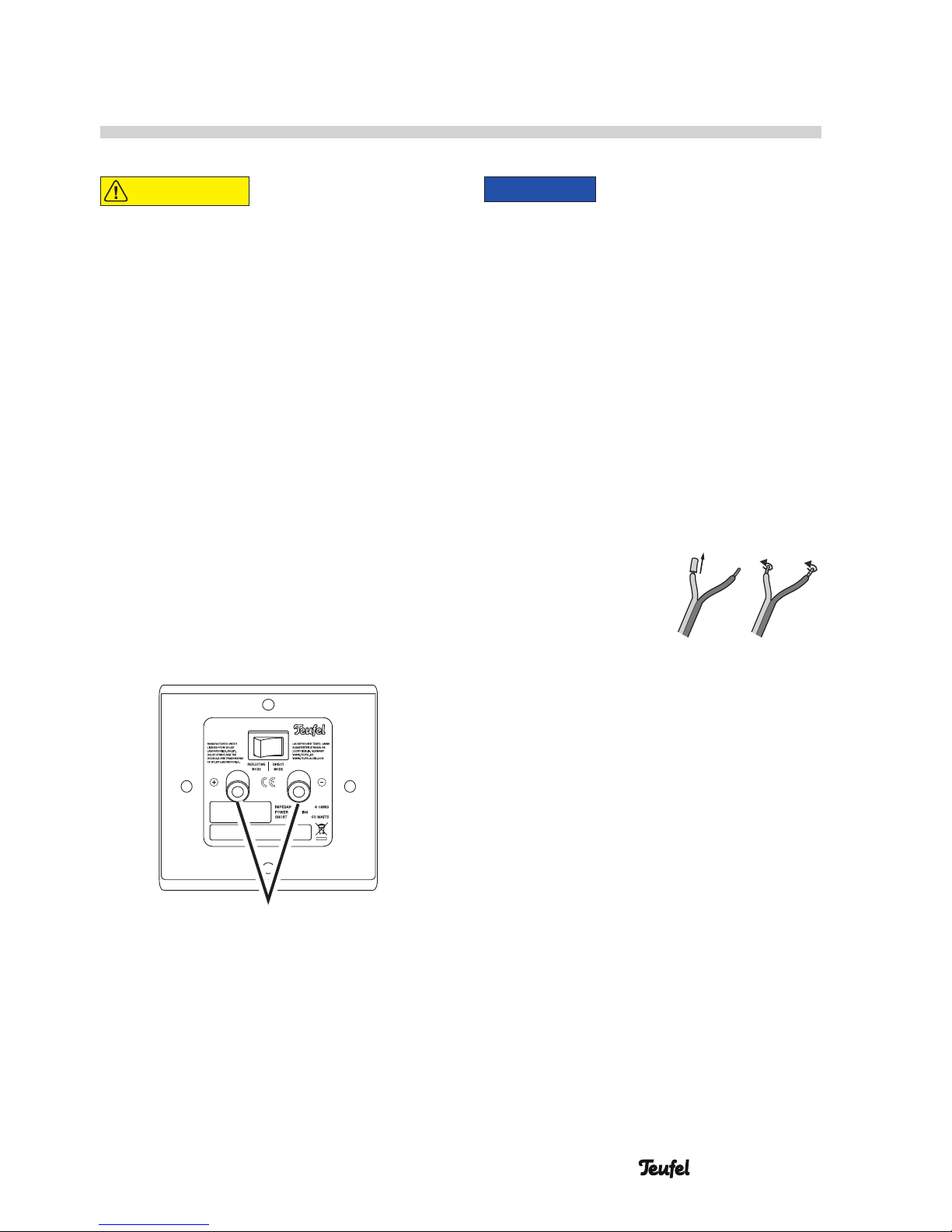

2. On the back of each speaker there is
a connection terminal with two pole
clamps

(7). You can connect the
speaker cable directly here or using
pin plugs. Direct connection only is
described here. The terminals are
marked in red (+) and black (-).

(7)

NOTICE

Make sure the polarity is
correct!

– Connect each of the like

coloured terminals with
one another; otherwise the
sound quality will suffer. To
facilitate this, the individual
single wires of the speaker
cables are marked with
different colours or shapes.

3. Split the wire down
by approx. 30 mm
on both ends and
remove approx.
10mm of insulation each.
Twist the single wire so that no
strands are protruding.

4. Turn the connector terminal coun­terclockwise until loose. Run the
stripped cable end into the now
visible hole. Close the terminal by
turning it counter-clockwise. The
cable has now been clamped in
place.

5. Connect the other end of the
speaker cable to the clamps of
your AV receiver.

14 • Reflect

Care And Cleaning

NOTICE

External influences may
damage or destroy the
device.

– If possible, only use plain

water without any additives.
In case of stubborn marks,
a mild soap solution may be
used.

– Do not use caustic cleaning

products, white spirit, thin­ners, petrol or similar under
any circumstances. Such
cleaning agents may damage
the delicate surface of the
housing.

• Ideally, you should remove dust or
small amounts of dirt with a dry,
smooth leather cloth.

• Use a damp cloth to rub off stub­born dirt. Make sure that no liquid
penetrates the housing.

• Then immediately wipe the damp
surfaces off with a soft cloth
without applying pressure.

15 • Reflect

Dimensions (WxHxD)
without mounting plate 130 x 85.5 x 184 mm

Weight 1.45 kg

Technical Data

You can find further technical data on our website. Technical changes reserved!

Manual No. 195780 GB 20171013

Please contact our customer service department with any questions,
suggestions, or complaints:

Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Straße 44
10787 Berlin (Germany)

Phone: [phone] (toll-free)

Fax: +49 (0)30 / 300 930 930

Online support: www.teufelaudio.com/service

Contact form: www.teufelaudio.com/contact

No responsibility is assumed for the correctness of this information.
Technical changes, typographical errors and other errors reserved.
