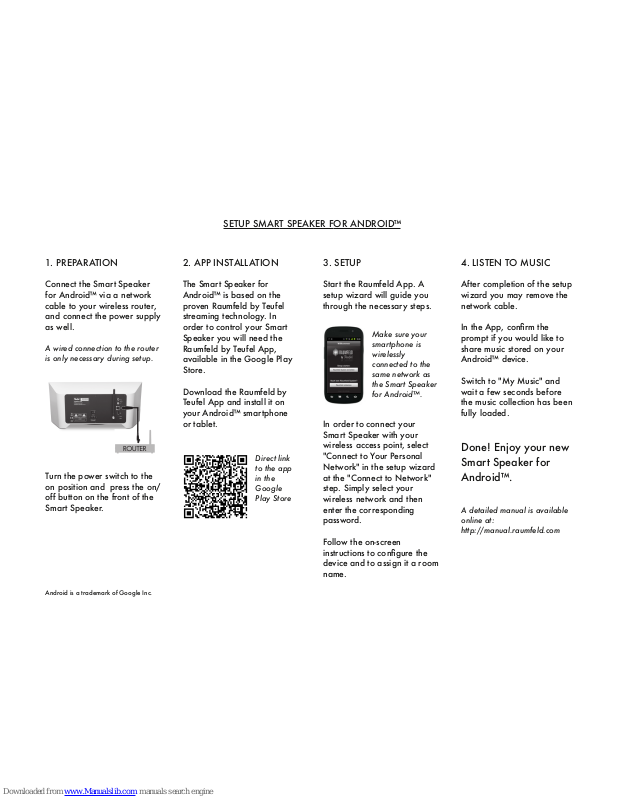

SETUP SMART SPEAKER FOR ANDROID™
1. PREPARATION
Connect the Smart Speaker
for Android™ via a network
cable to your wireless router,
and connect the power supply
as well.
A wired connection to the router
is only necessary during setup.
Turn the power switch to the
on position and press the on/
off button on the front of the
Smart Speaker.
3. SETUP
Start the Raumfeld App. A
setup wizard will guide you
through the necessary steps.
In order to connect your
Smart Speaker with your
wireless access point, select
"Connect to Your Personal
Network" in the setup wizard
at the "Connect to Network"
step. Simply select your
wireless network and then
enter the corresponding
password.
Follow the on-screen
instructions to configure the
device and to assign it a room
name.
4. LISTEN TO MUSIC
After completion of the setup
wizard you may remove the
network cable.
In the App, confirm the
prompt if you would like to
share music stored on your
Android™ device.
Switch to "My Music" and
wait a few seconds before
the music collection has been
fully loaded.
Done! Enjoy your new
Smart Speaker for
Android™.
A detailed manual is available
online at:
http://manual.raumfeld.com
2. APP INSTALLATION
The Smart Speaker for
Android™ is based on the
proven Raumfeld by Teufel
streaming technology. In
order to control your Smart
Speaker you will need the
Raumfeld by Teufel App,
available in the Google Play
Store.
Download the Raumfeld by
Teufel App and install it on
your Android™ smartphone
or tablet.
Direct link
to the app
in the
Google
Play Store
Make sure your
smartphone is
wirelessly
connected to the
same network as
the Smart Speaker
for Android™.
Android is a trademark of Google Inc.
Page 2
gb was
here

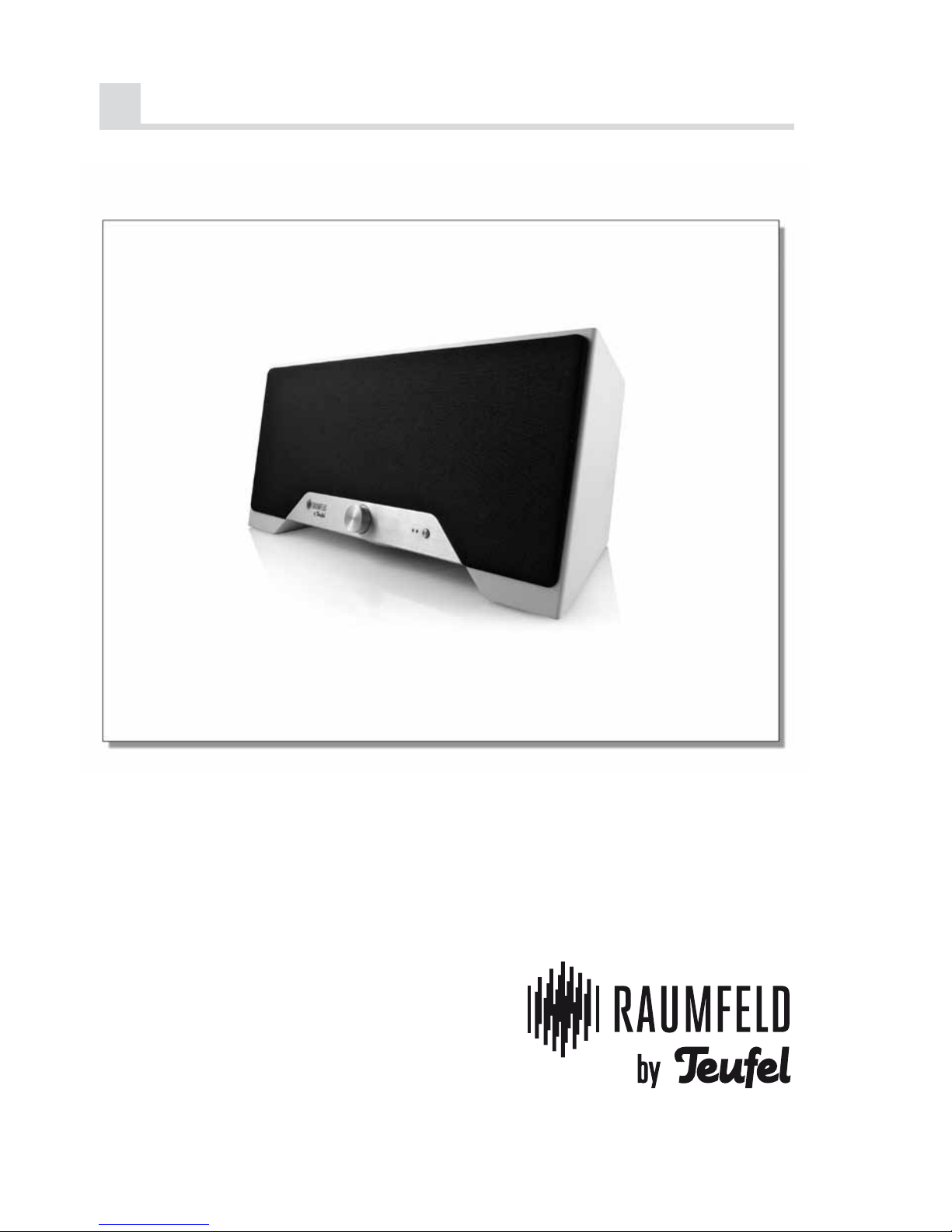

Setup Guide
Raumfeld One
For a detailed online manual, visit
http://manual.raumfeld.com
Page 3
2
1.
Install the equipment as described in the
chapter „Installation“.
2. Connecting to Your Network

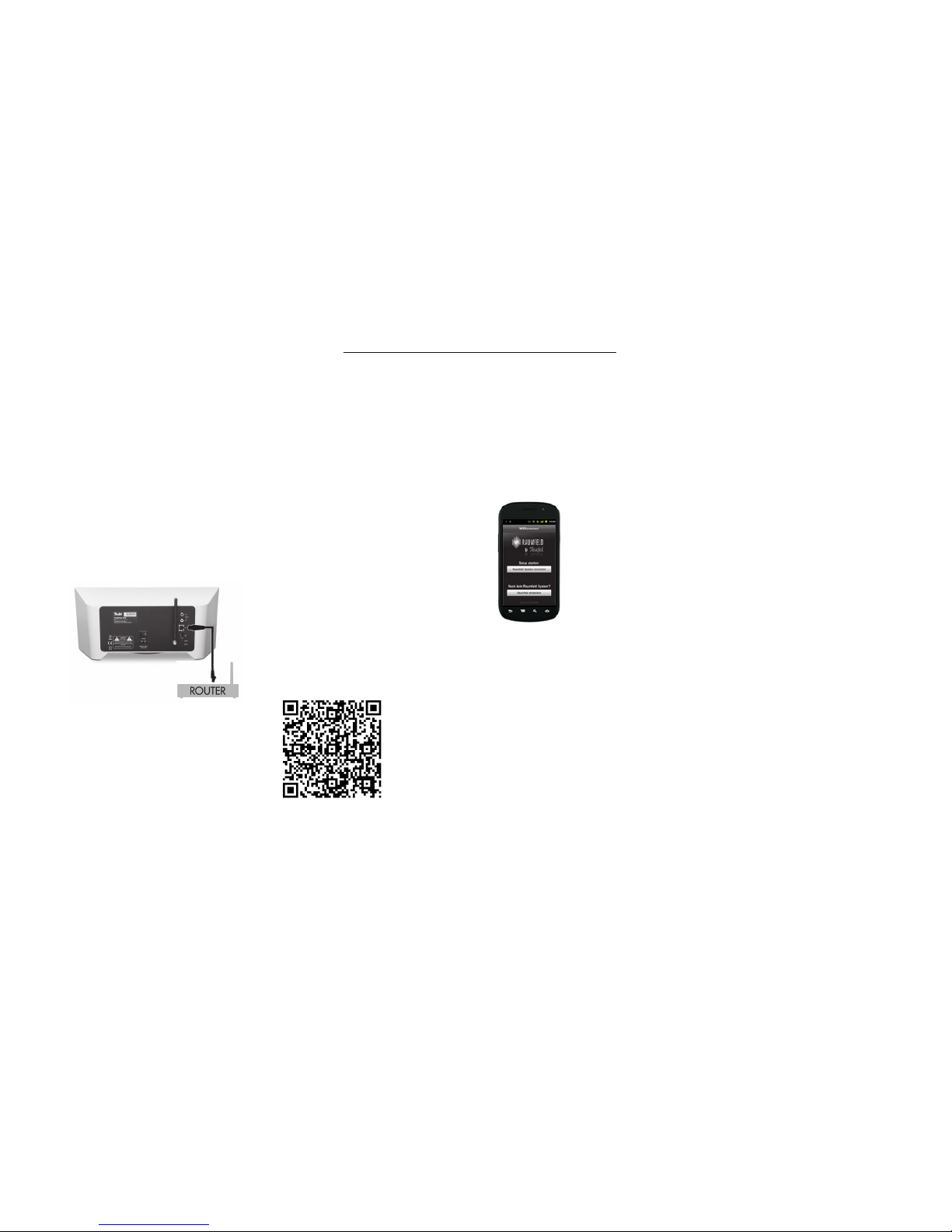

If you wish to set up your Raumfeld One
with the Raumfeld App on your smartphone,
the device must be connected via a network
cable to your network router for the duration of the setup. Your smartphone must be
wirelessly connected to the same network.
.
Quick Guide: Setting Up a New System*
* If you would like to set up a new system
with a Raumfeld Base, then please follow
the instructions found within the Raumfeld
Base’s setup guide.
3.
Then, power on your Raumfeld One.
Installing Your Raumfeld One
ĕ This step is not necessary when setting
up the device with a Raumfeld Controller.
ROUTER
Powering On Your Raumfeld One
Page 4
3
Quick Guide: Setting Up a New System*

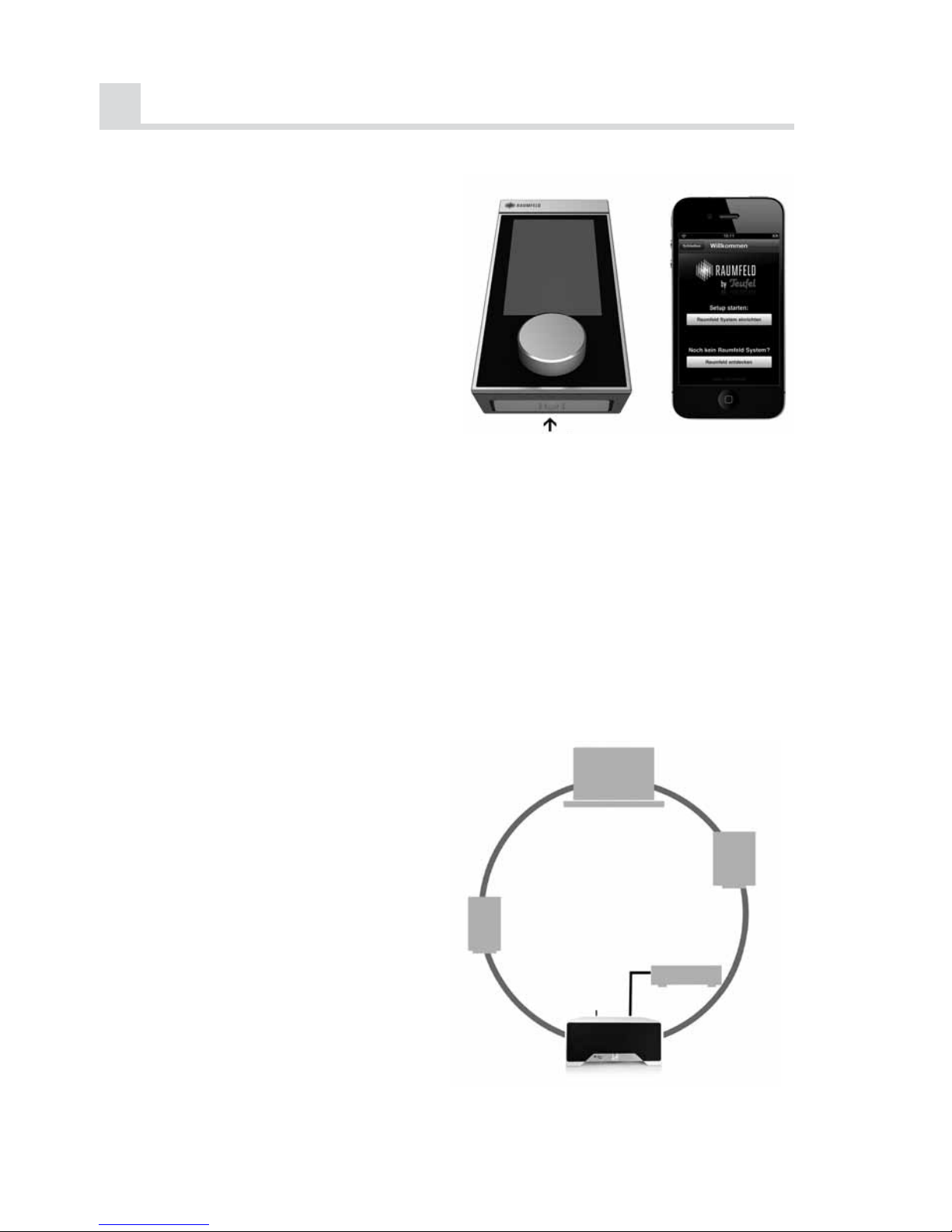

4. Starting the Setup Assistant
Briefly press the On/Off button to turn
your Raumfeld Controller on or start the
Raumfeld App.
After a few seconds, the setup assistant
will activate and guide you through the remaining setup procedure.
5.
In order to connect your Raumfeld One
with your wireless access point, select
„Connect to Your Personal Network“ in
the setup wizard at the „Connect to Network“ step. Simply select your wireless network and then enter the corres-
ponding password.
6. Configuring Music Resources
Music shared locally in your network can
be made available to your Raumfeld System by adding it as a music resource via
your Controller or the Raumfeld App under „Settings> Music Resources“.
You may also attach a USB stick or a USB
HDD with an independent power supply
to the active device.
Follow the on-screen instructions to configure the device and to assign it a room
name.
Press briefly
Setting Up Your Raumfeld One
COMPUTER
UPnP
STORAGE
USB
NAS
Personal network
Page 5
4
Contents
Quick Guide ..................................... 2-3
Overview ............................................ 4
General Notes and Information ............5
Connections & Operational Controls ..... 6
Operation Modes ................................ 7
Package Contents
a 1 x Raumfeld One
b 1 x Power cable
• Please check if your shipment is complete and not damaged.
• Should your shipment be incomplete or
damaged, please contact our service
department before use (see page 5).
Overview
a
b
Installation .......................................... 8
Setup ............................................. 9-10
Frequently Asked Questions ............11-12
Advice on Save Use & Maintenance 13-14
Cleaning, Maintenance & Environmental
Protection .......................................... 15
System Requirements
• A Raumfeld Controller or the Raumfeld App, for setup and to control audio playback
• A Raumfeld Base or wireless access
point (IEEE 802.11g), for wireless playback
Page 6
5
Notice
The information in this document may be
changed without prior notice and in no
way constitutes any liability on the part of
Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any form or be broadcasted
in any way electronically, mechanically, by
photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
October 2011
Original packaging
If you wish to exercise your eight-week
right of return, we ask that you be absolutely sure to hold onto the packaging. We
can only accept the return of the device
WITH THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following information to process your enquiry:
1. Invoice Number
Can be found on the sales slip (enclosed
with the product) or on the order confirmation received as a PDF document, e.g.
4322543.
2. Serial number or batch number
Visible on the back side of the device, e.g.
serial #: IL30009440122A-123
Many thanks for your support!
Contact
For questions, suggestions or any other issues please contact our customer service
department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen
Buelowstraße 66
10783 Berlin (Germany)
Tel.: 00800-200300400 (free of charge)
Fax: +49 (0)30-300 930 930
www.teufelaudio.com
Proper use
Only use the unit as described in these instructions and in the online manual. Any
other use will be deemed as not in accordance with the instructions and may lead to
damage to property or even persons. The
manufacturer accepts no liability for damage
caused by use not in accordance with the instructions. The unit is intended for private use.
Before operating the unit for the
first time please read the safety
notes and the setup guide carefully. This is the only way to use all functions
safely and reliably. Keep the setup guide safe and pass them on to anyone who
may own the unit after you.
General Notes and Information
Page 7
6

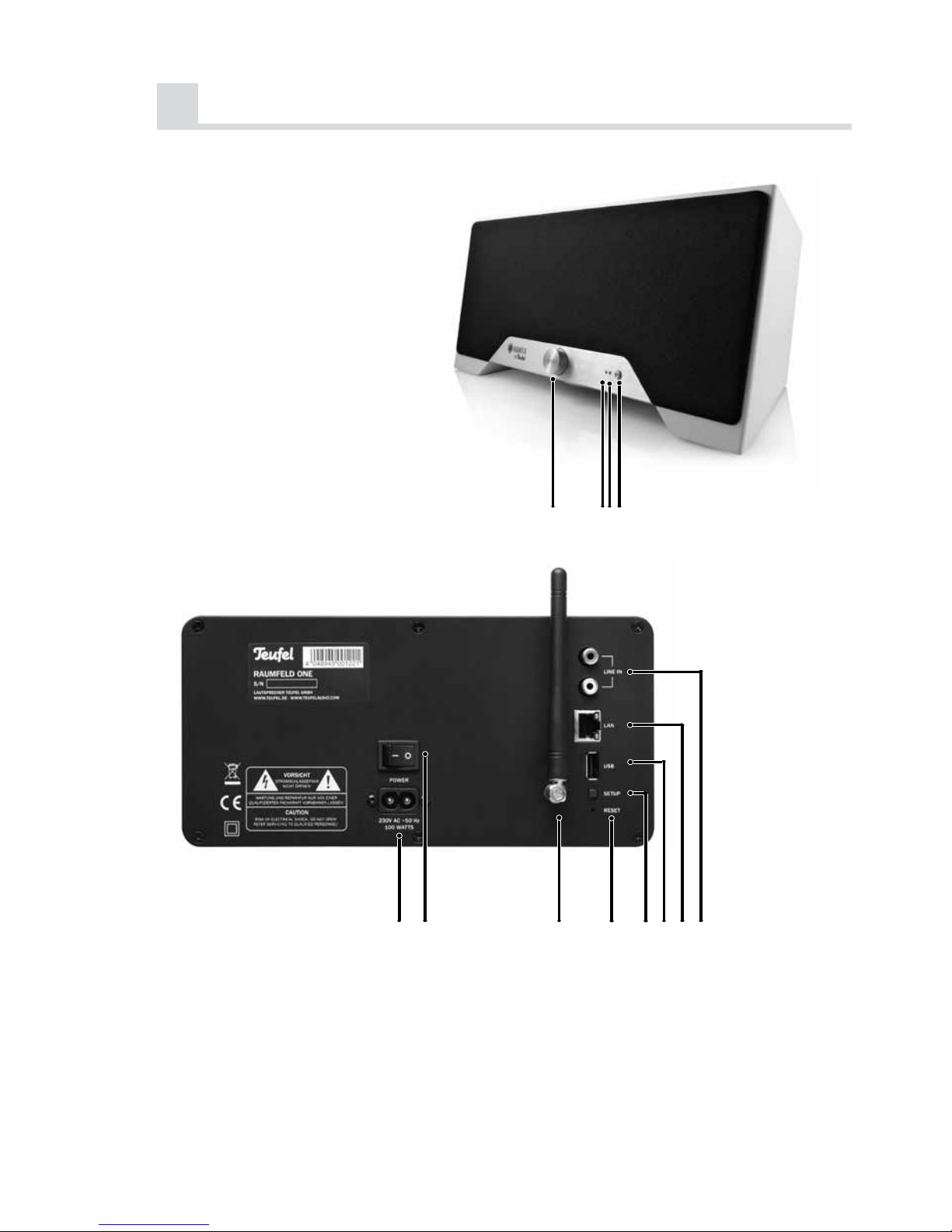

Connections and Operational Controls
5 Main power switch
6 Power cable socket
7 Audio input analogue (RCA)
8 Network connector
1 Volume Control
2 Power LED
3 System LED
4 On/Off button
1 234
9 USB port (master, type A)
10 Setup button
11 Reset button
12 WLAN Antenna
6 5 12 11 10 9 8 7
Page 8
7
Operation Modes
Overview
SYSTEM MODE
SETTING
THE MODE
MODE
CHARACTERISTICS
On
Briefly press On/Off
button with the main
power switch turned on
Powersave
System reverts automa-
tically to powersave when
inactive
Amplifier off,
CPU throttled
Sleep Mode
Briefly press
On/Off button
Amplifier, CPU
and WLAN off
Off
Turn main power
switch off
All modules off
Status Display
OPERATION MODE POWER LED SYSTEM LED
On /
Powersave
On On
No Connection to the
Raumfeld System
On Flashing
Off /
Sleep Mode
Off Off
Setup Flashing Flashing
Page 9
8
Installation

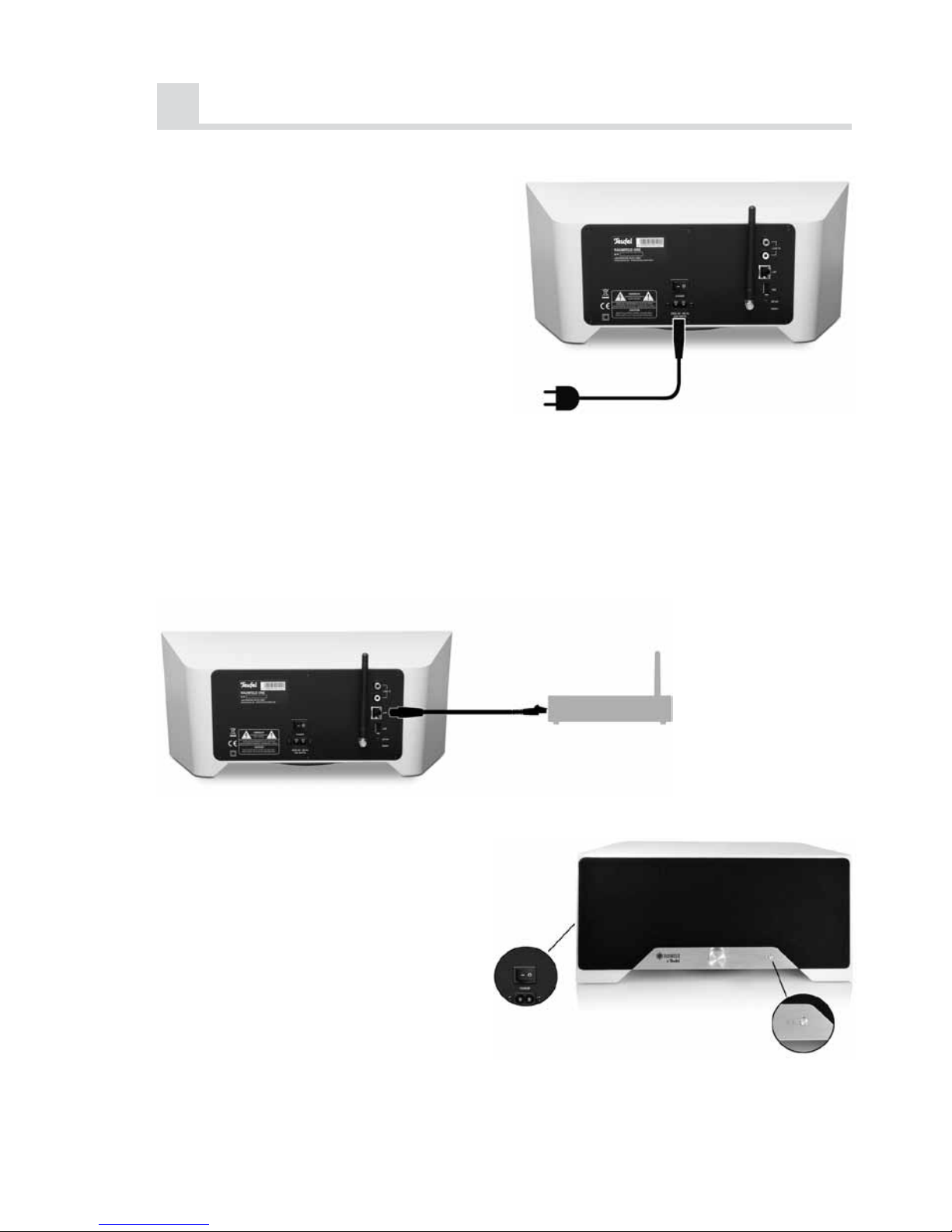

1. Attach the Raumfeld One to the power
supply and turn on the main power
switch on the back of the device.
2. Briefly press the On/Off button on
the front to start the device. Continue
when the System LED (right) starts blinking.
Connecting the Raumfeld One
Page 10
9
Setup
Setting Up a New Raumfeld
System
You can operate the Raumfeld One in a
system with or without the Raumfeld Base.
If you have a Raumfeld Base, please consult the Base’s setup guide. For setup without the Raumfeld Base, please follow the
instructions below.
1. If you wish to set up your system with
the Raumfeld App on your smartphone, the device must be connected
via a network cable to your network
router for the duration of the setup.
Your smartphone must be wirelessly
connected to the same network.
ĕ This step is not necessary when
setting up the device with a Raumfeld
Controller.
2. Pick up your Raumfeld Controller
or start the Raumfeld App on your
smartphone.
ĕ After a few seconds, the setup assistant will activate and guide you
through the remaining setup procedure.
3. In order to connect your Raumfeld
One with your wireless access point,
select „Connect to Your Personal Network“ in the setup wizard at the
„Connect to Network“ step. Simply
select your wireless network and then
enter the corresponding password.
4. Follow the on-screen instructions
to configure the device and to assign it a room name.
5. If you wish to add more playback
devices to your Raumfeld system,
select „Connect More Rooms“
and follow the on-screen instructions.
ĕ Please note that the network
cable of the first device may be
only removed after the completion of the entire setup process.
6. Music shared locally in your network can be made available to
your Raumfeld System by adding it as a music resource via
your Controller or the Raumfeld
App under „Settings> Music Resources“.
You may also attach a USB stick
or a USB HDD with an independent power supply to the Raumfeld One. The music will then be
available without further configuration in your Raumfeld System.
Page 11
10
Setup
Adding to an Existing
Raumfeld System
Your Raumfeld One can be integrated into
the Raumfeld System in two ways: Wireless via WLAN or hardwired via network
cable. In either method integration takes
place in a few simple steps.
Wireless Network (WLAN)
1. Pick up your Raumfeld Controller
or start the Raumfeld App on your
smartphone.
2. Open „Settings > Room Configuration“ and simply select „Add Room >
New Raumfeld Player“.
ĕ If you do not have a Raumfeld
Base and you wish to set up your
Raumfeld One with the Raumfeld
App on your smartphone, the devicemust be connected via a network cable to your network router for the duration of the setup.
3. Follow the on-screen instructions to
configure the device and to assign it
a room name.
Wired Network (LAN)
1. Connect the Raumfeld One to your
network router via a network cable.
2. Pick up your Raumfeld Controller
or start the Raumfeld App on your
smartphone.
3. Open „Settings> Room Configuration“ and simply select „Add Room >
New Raumfeld Player“.
4. Follow the on-screen instructions to
configure the device and to assign it
a room name.
Page 12
11
Frequently Asked Questions
Access to a full list of frequently asked
questions and a detailed online manual is
available online at:
http://manual.raumfeld.com
Question 1: Music playback constantly
stops. What are possible causes?
ĕ Should music playback be constantly interrupted, there is probably a connection
problem between the wireless playback
device and your Raumfeld Base or personal access point. You can see an overview
of the signal strength of all Raumfeld devices within your network by opening “Settings > Network > Network Analysis.” A
manual for improving the signal strength
can be found in the Raumfeld online manual in chapter “Network Analysis.” Problems can also appear when using your existing access point, specifically when there
is not enough bandwidth available. Make
sure when you are listening to music with
Raumfeld not to transfer large files over
your home WLAN.
Question 2: In which case should I connect
my players to my personal access point
rather than the Raumfeld Base?
ĕ In a system with Raumfeld Base your
Raumfeld devices are connected with
the Base’s wireless network by default.
However, in some cases it may be useful
to connect one or more devices with your
existing, personal access point:
1. The signal of your personal access
point is stronger than the Base‘s signal
throughout your whole house, e.g. the
signal of the personal access point
is repeated with a wlan repeater. In
this case we suggest to connect all
Raumfeld devices with your personal
access point.
2. In one specific room, the signal of
your personal access point is stronger
than the Base‘s signal. In this case
the playback device located in that
room should be connected with your
personal access point.
3. You are utilising different access points
in your house that are all connected
to the same network (e.g. Devolo
dLAN® with multiple access points).
Each Raumfeld device should be
connected to the access point with the
strongest signal in that room. In all
cases it is required that your Raumfeld
Base is connected to your network
router.
ĕ Directions regarding the connection of
Raumfeld devices in other networks can
be found in our online manual under the
chapter “Setup”.
Question 3: My Raumfeld One isn‘t shown
on my Controller under „Line In“. What can
I do?
ĕ In order to be shown on the Controller
under the application Line In, Raumfeld
Speakers, Connectors and Raumfeld
One need to be set to a mode that allows
streaming their analogue input signal to
other rooms. In short, the following preconditions need to be met:
1. The device has to be set up and connected to the Raumfeld system (both
LEDs permanently lid).
2. The device is operated in streaming
mode (see the online manual for
further instructions).
Page 13
12
Frequently Asked Questions
Question 4: My USB storage is not recognized as a music resource. What are
possible causes?
ĕ USB storage will only be integrated
as a music resource if it is connected to
the host of your Raumfeld System. Should
your system contain a Raumfeld Base,
the Base is the host by default. For systems without a Raumfeld Base you can set
the host device yourself under “Settings >
Network > Host Configuration”. Please also note that a USB HDD connected to a
Raumfeld player must have an independent power supply. For the Base, all kinds
of USB HDD are supported.
Page 14
13
Advice on Safe Use and Maintenance
Warning icons
The following symbols can be found in this
guide:
Danger
High Risk!
Disregard for this warning can
cause life threatening damage.
Attention
Middle Risk!
Disregard for this warning can
cause damage to the product.
Low Risk!
Procedures that should be observed while handling the product.
Advice on Safe Use
Danger
Electrical Shock Hazard!
Faulty installation or high voltage
may lead to electrical shock.
• When connecting, ensure that the voltage is correct. Further information can
be found at the power cable socket of
the device.
• In order to completely remove power
from the device, unplug the power cord.
• In order to be easily able to remove power from the device, the plug should be
easily accessible.
• Should the device begin to smoke, emit
burning smells, or produce unfamiliar
sounds immediately remove the power
cord and do not turn it back on.
• Do not open the case of the device.
The device may only be serviced by an
authorized party. Unauthorized access
of the device will void the guarantee. Instructions on how to proceed in case of
repair will be provided by our service
department. Please make sure to use only replacement components that comply with the technical specifications of the
original part. This device contains electrical and mechanical parts that are essential for the protection of the unit.
• Only use device accessories specified
by the manufacturer.
• Do not insert any objects into the case’s
air vents.
• Only use the product indoors.
• Do not expose the equipment to rain or
humidity of any kind. Do not place objects filled with liquid, such as vases or
bottles, anywhere near the equipment.
Should water or any other foreign body make its way into the case, immediately remove the power cord. For further
support please contact our service department.
• Constantly check the device for physical defects.
Danger
Danger of Explosion!
Poor placement of the device can
lead to an explosion.
• Do not use the equipment in extreme
temperatures, or where there is a fire or
explosion hazard.
Page 15
14
Danger
Child Safety!
Children can get caught in the
packaging materials and suffo-
cate.
• Never let your children play with the
device or its packaging material. There
is a risk of suffocation.
• Make sure that your children do not remove or pull small pieces from the device (such as cables or buttons), as they may swallow the piece and choke.
Should your child have swallowed a
small piece of the device, immediately
contact your local hospital.
•Never leave children unattended while
using electronic devices.
Attention
Risk of Damage!
Poor placement can cause damage to the device.
• Position the device so that it cannot be
accidentally kicked and so that cables
are not trip hazards.
• Avoid using magnetic or paramagnetic
objects nearby the speakers.
• Keep this device away from sources of
heat such as radiators and stoves and
keep it out of the immediate vicinity of
other devices to prevent excessive heat
from developing.
Attention
Fire Danger!
Improper use of the device may
cause damage or fire.
• Do not place open flames such as
candles or other similar items on top of
the device.
• Make sure vent holes are not blocked
when positioning the equipment.
• Provide adequate ventilation.
• Do not expose the device to direct sun-
light.
• Do not cover the ventilation openings
with curtains, blankets, magazines or
other similar items. Built up heat within
the device can shorten its lifespan.
Attention
Risk of Damage!
Electrical surges caused by lightning can damage or destroy the
device.
• As a precaution, disconnect the equipment from the power supply in the
event of impending thunderstorms.
• Disconnect the equipment from the power supply if not in use for a prolonged
period of time.
Attention
Risk of Damage!
Improper use of the device can
cause damage.
• Only use a dry, soft cloth when cleaning the equipment. Detergents may affect the surface of the equipment.
Advice on Safe Use and Maintenance
Page 16
15
Cleaning and Maintenance
Clean the device regularly with a soft,
lightly damp micro fiber cloth. Pay close
attention to the following details:
• Use as clear of a water as possible without any cleaning product. By stubborn spots use a mild combination of
water and soap.
• Under no circumstances should harsh
cleansers, alcohol, paint thinner, gasoline, or similar substances be used for
cleaning.
Environmental Protection
Disposing of the unit
Used units must not be disposed of with household waste
If the unit is no longer operational, every consumer is re-
quired by law to dispose of
used devices separate from household
waste, e. g. at a collection point run by the
communal authority borough. In this way,
used devices can be recycled and waste
materials disposed of in an environmentally friendly manner.
For this reason, electrical equipment is labelled with the displayed symbol.
Page 17
All trademarks are the property of their respective owners.
For questions, suggestions or other issues please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
10783 Berlin (Germany), Buelowstr. 66
Tel.: 00800 200 300 400 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No liability is accepted for the accuracy of this information. Technical changes,
typographical errors and other errors reserved.
Loading...
