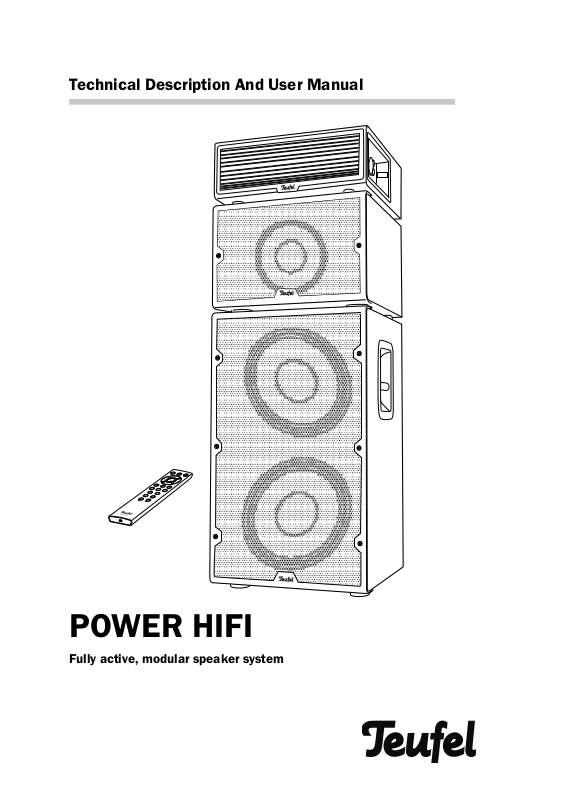

Page 1
Technical Description And User Manual
POWER HIFI
Fully active, modular speaker system
Page 2
Contents
General Notes And Information ............................... 3
Notice ..................................................................... 3
Trademarks ............................................................3
Original packaging ................................................3
Complaints ............................................................ 3
Contact .................................................................. 3
For Your Safety ........................................................... 4
Proper use .............................................................4
Label description .................................................. 4
Safety notes .......................................................... 4
Explanation of symbols ......................................... 5
Overview ..................................................................... 6
Unpacking .............................................................. 6
Package contents .................................................6
Checking the package contents........................... 6
Introduction ........................................................... 7
Controls And Connections ........................................ 8
Remote Control ......................................................... 9
Inserting/changing the batteries .........................9
Setup......................................................................... 10
Setup location .....................................................10
Connecting ............................................................... 11
Connecting the speakers....................................11
Inputs for source devices ...................................11
Analogue sources LINE IN, AUX IN .............11
Digital source...............................................11
USB Sound Card ..........................................11
Output for companion mode ..............................12
Mains connection ................................................12
Bluetooth® Mode ..................................................... 21
Bluetooth
Bluetooth® pairing ...............................................21
Interruption of connection ..................................22
Playback...............................................................22
Party mode ..........................................................22
Terminating the connection ................................22
USB Sound Card ...................................................... 23
Mac OS X .............................................................23
Windows 7, 8 and 10: .........................................23
Playback...............................................................24
Software Update ...................................................... 25
Installing new software .......................................25
Care And Cleaning ................................................... 26
Troubleshooting ....................................................... 27
Technical Data ......................................................... 29
Declaration of Conformity ...................................... 29
Disposal .................................................................... 30
Important information in accordance with
the Electrical and Electronic Equipment Act
(Germany: ElektroG) ............................................30
Important information about the Batteries
Act (Germany: BattG) ..........................................30
®
options ..............................................21
Restoring the connection with a paired
external player .............................................21
“Sound” system preference .......................23
“Sound” control panel ................................23
Operation .................................................................. 13
Activating and deactivating ................................13
Automatic activation/deactivation .............13
Selecting a source ..............................................14
Adjusting the volume ..........................................14
Mute .............................................................14
Balance ........................................................15
Adjusting the sound ............................................15
Setting the stereo channel .................................15
Locking the control panel ...................................15

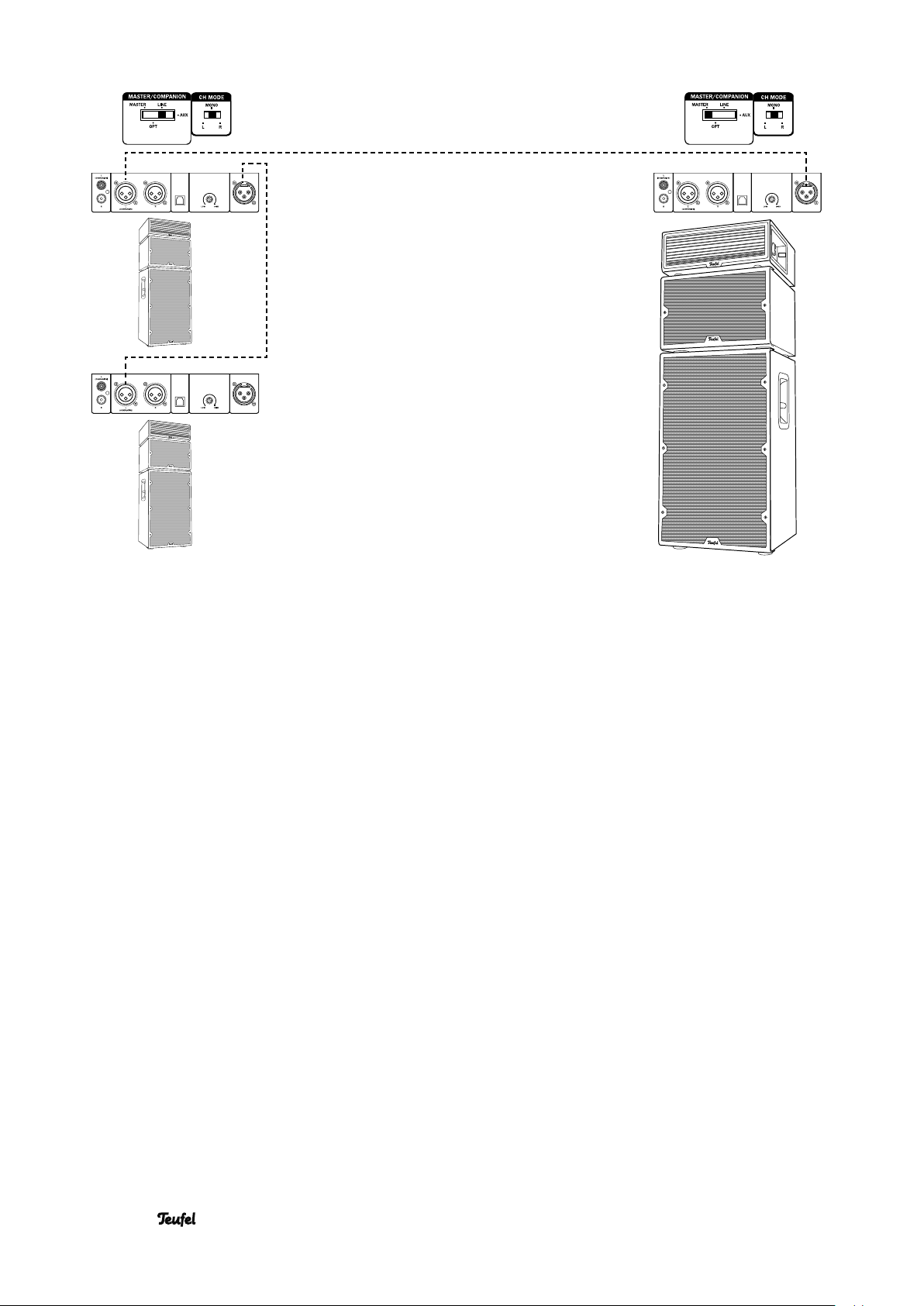

Mode ....................................................................16
MASTER .......................................................16
COMPANION ................................................16
2 • POWER HIFI
Page 3
General Notes And Information
Notice
The information in this document may change without
prior notice and in no way constitutes any liability on
the part of Lautsprecher Teufel GmbH.
No part of this user manual may be reproduced in
any form or be broadcasted in any way electronically,
mechanically, by photocopy or recording without the
written permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 2.0
January 2022
Trademarks
© All trademarks are the property of their respective
owners.
The Bluetooth® word mark and
Bluetooth® symbol are registered
trademarks of Bluetooth SIG, Inc.
and any use by Lautsprecher Teufel is licensed.
Qualcomm aptX is a product of Qualcomm Technologies International, Ltd.
Qualcomm is a trademark of Qualcomm Incorporated,
registered in the USA and other countries, whose use
has been approved. aptX is a trademark of Qualcomm
Technologies International, Ltd., registered in the USA
and other countries, whose use has been approved.
Complaints
In case of a complaint we will need the following information to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with the
product) or on the order confirmation received as a
PDF document, e.g. 4322543.
2. Serial number or batch number
Located on the back side of the device, e.g. serial no.:
KB20240129A-123.
Thank you for your support!
Contact
Please contact our customer service department with
any questions, suggestions, or complaints:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Telephone: 00800 200 300 40 (tollfree)
Fax: +49 (0)30 / 300 930 930
Online support:
www.teufelaudio.com/service
Contact form:
www.teufelaudio.com/contact
Original packaging
If you wish to exercise your right of return, we ask that
you be absolutely sure to hold onto the packaging. We
can only accept the return of the speakers WITH THE
ORIGINAL PACKAGING.
Empty boxes are not available!
3 • POWER HIFI
Page 4
For Your Safety
Proper use
The POWER HIFI is designed for the playback of audio
signals via Bluetooth® or via direct connection to
external players.
Only use the active speaker as described in this
user manual. Any other use will be deemed as not
in accordance with the instructions and may lead to
damage to property or even persons.
The manufacturer accepts no liability for damage
caused by improper use.
The active speaker is intended for private use.
Before operating the amplifier for the first
time, please first read the safety notes and
user manual carefully. This is the only way to
use all functions safely and reliably. Store the user
manual in a safe place and also be sure to pass it on
to any subsequent owner.
Label description
You can find the following signal terms in this user
manual:
WARNING
Indicates a moderate risk, which, if not
avoided, may result in severe injury.
CAUTION
Indicates a low risk, which, if not avoided,
may result in minor or moderate injury.
NOTICE
Warns you of potential damage to
equipment.
Safety notes
This chapter contains general safety notes which
you should always observe to protect yourself and
third parties. Also observe the warning notes in each
chapter of this user manual.
WARNING
Improper electrical installation or excessive mains
voltage may result in an electrical shock.
– The device is suitable for a mains voltage of
220–240V, 50 Hz. When connecting the device,
make sure that the correct voltage is present. You
can find more information about this on the rating
plate.
– Check the device regularly for damage.
Immediately disconnect the mains plug and do not
operate the device if its housing or mains cord is
defective or exhibits other visible damages.
– This device is disconnected from the grid by pulling
the mains plug. Thus, make sure that the mains
plug is always easily accessible.
– If the device emits smoke, smells burnt or produces
unusual sounds, immediately disconnect it from the
mains and do not operate it further.
– Never touch the mains plug with wet hands.
– If the mains cord is damaged, replace it with an
equivalent one.
– Never open the device housing.
Repairs may only be carried out by an authorised
specialist workshop. Only parts that match the
original specifications may be used.
– Never modify the device. Unauthorised modifica-
tions may affect the safety and functionality.
– Only use the accessory products specified by the
manufacturer.
– Only use the device indoors.
– Do not operate the device in wet rooms and protect
it from dripping and splashing water. Make sure
that no vases or other liquid-filled objects are
located on or near the device in order to prevent
liquid from penetrating the housing. If water or any
foreign objects have entered the housing, immediately disconnect the mains plug and send the
device to our service address.
4 • POWER HIFI
Page 5
WARNING
An unsuitable setup location may result in injury
and damage.
– If the active speaker is not securely mounted, do
not use it in vehicles, in unstable locations, on
wobbly tripods or furniture, on underdimensioned
brackets etc. The components could tip or fall over
and cause injury to persons or be damaged themselves.
– Set the components up so that they cannot be
knocked over inadvertently and make sure that the
cables do not pose a trip hazard.
– Carefully follow the user manual.
– Do not place the amplifier near heat sources (e.g.
heaters, ovens, other heat generating equipment
such as amplifiers etc.).
– Avoid prolonged exposure to direct sunlight. This
may cause the housing to be discoloured.
WARNING
An unstable base may cause the unit to tip and
injure or even kill persons, children are particularly
at risk. You can prevent a large number of accidents by taking the following precautions:
– If possible, place the speakers on the ground.
– When storing the product, also ensure that it
stands safely and that it cannot be knocked down
or over.
WARNING
Children can become trapped in the plastic wrapping when playing and suffocate.
– Do not allow children to play with the device or the
plastic wrapping. There is a danger of suffocation.
– Ensure that children do not remove small parts
from the device or take them off of the device (e.g.
control knobs or plug adapters). They could swallow
the parts and choke.
CAUTION
The total system weighs 60 kg.
– Make sure that the floor has the required load-
bearing capacity.
– Only carry/transport the individual components
– never the entire system stacked on top of one
another.
– The additional weight limit of the toppart/amplifier
is 5 kg. Do not go above this limit.
CAUTION
Leaking battery acid may lead to chemical burns.
– Do not allow battery acid to come into contact with
skin, eyes or mucous membranes. In the event of
contact with acid, immediately flush the applicable
areas with plenty of clean water and consult a
physician if necessary.
CAUTION
Batteries can explode if handled improperly.
– Never attempt to recharge batteries.
– Only use batteries of the same or equivalent type.
– You must not heat or short circuit batteries and
rechargeable batteries or dispose of them in fire.
– Do not expose batteries and rechargeable batteries
to direct sunlight.
CAUTION
Extended listening at high volumes may
lead to hearing loss.
To avoid damage to health, avoid extended
listening at high volumes.
– When the volume is set high, always keep a certain
distance from the device and never place your ear
directly on the speakers.
– If an amplifier is set to full volume, this may
produce very high sound pressure. This may have
psychological consequences and also cause
physical injury. Children and pets are particularly at
risk. Set the volume control to a low setting when
switching on the device.
CAUTION
This product contains magnetic material.
– If necessary, consult your physician and ask for
effects on implants such as pacemakers or defibrillators.
– Keep magnetically sensitive objects (e.g. credit
cards etc.) away from the speakers.
Explanation of symbols
Protection class II
Dual insulation
Risk of electrical shock
Do not open the housing.
5 • POWER HIFI
Page 6
Overview
Unpacking
• Carefully open the box, take out the EPE foam half-
shells and carefully lift the speakers out of the box.
Package contents
(1) 1× control unit with high-range speaker
(2) 1× mid-range speaker
(3) 1× low-range speaker
(4) 1× remote control POWER HIFI RC
(5) 1× mains cord for (1)
(6) 2× LR03/Micro/AAA batteries for (4)
(1)
(2)
Optional accessories
(7) 1× XLR connector cord for master/companion
mode (available in our online shop)
Checking the package contents
• Check that all items have been delivered and that
nothing is damaged.
• If the delivery is incomplete or exhibits damage
from transport, please contact our service team
(see page 3).
NOTICE
Do not operate the device if you identify
damages on it.
NOTICE
If the device is subjected to warm temperatures after being cold (e.g. after transport),
condensation may occur inside of it.
– In this case, wait at least 2 hours before
you connect and activate it.
(3)
(4)
(5)
(6)
(7)
6 • POWER HIFI
Page 7
Introduction
The POWER HIFI speaker sound system is for music
enthusiasts with high standards, who prefer highquality audio playback of various styles of music like
jazz, big band and brass band, rock, gospel, soul,
techno, house, but also film music. The extended
dynamic range of the POWER HIFI speaker system
is both impressive and delightful in every listening
session since the musical content that is played back
sounds like you’re at a live concert.
POWER HIFI brings the crisp, high sound pressure,
which the ROCKSTER is known for, as well as the
extended dynamic range of audio playback to your
living room and similar environments.
The amplifier has its own 3-band sound control (bass,
approx. 100 Hz/middle bands approx 1 kHz/treble
bands, approx. 10 kHz), that can be used to adjust
the sound to perfectly suit the local acoustics.
The following inputs are available for your source
devices:
• Bluetooth
• USB sound card for PC and Mac
• AUX IN (stereo via RCA)
• LINE IN (stereo via XLR)
• OPT IN (stereo via Toslink e. g. the Teufel Streamer)
®
Stereo setup
XLR cable
POWER HIFI
Stereo Companion
POWER HIFI
Stereo Master
Stereo setup with mixing console and two compan-
ions
Mixing console
The respective stereo channel that is not played back
is transmitted via the output LINE OUT (via XLR).
Here, you can control an additional POWER HIFI as a
companion.
In master/companion mode, a POWER HIFI provides
all controls as the master and it controls the second
POWER HIFI, the companion for which all controls are
locked except for the volume adjustment and standby
function.
To the side, you can find some examples for the configuration. Detailed connection examples can be found
in the section „Mode“ on page 16.
Connections via XLR
cable
POWER HIFI
Stereo Companion
POWER HIFI
Stereo Companion
Mono setup with a master and multiple companions
POWER HIFI
Mono Companion
POWER HIFI
Mono Companion
POWER HIFI
Mono Master
Each input on the master can be used, cascade
connection via XLR cable
7 • POWER HIFI
Page 8
Controls And Connections
(8) (9) (10)(11)
(15) (14)(16)(17)
(18)
(19) (20) (21) (22) (23)
(12) (13)
08
No. Name Function
(8) VOLUME Adjust the volume
(9) TREBLE Adjust the high range level
(10) MID Adjust the mid-range level
(11) POWER Switch the device on and to
standby
(12) DISPLAY Display panel
(13) COMPANION Lights up during companion
operation
(14) AUX, LINE,
OPT, USB,
(15) PAIRING Start Bluetooth
(16) SOURCE Select a source
(17) BASS Adjust the low-range level
(18) LED Power indicator (red LED)
Displays the active source
®
pairing
No. Name Function
(19) USB SOUND Micro-USB port to the PC for
sound card operation and software updates
(20) PANEL LOCK Lock/unlock the control panel
(21) MASTER/
COMPANION
(22) CH MODE Choose audio channel
(23) AUTO POWER Enable/disable automatic acti-
(24) MAINS
CONNECTION
8 • POWER HIFI
Switch between master/
companion mode
vation/deactivation
Mains connection with glass
tube fuse (3.15 AL)
(24)(25)(26)(27)(28)(29)(30)(31)
No. Name Function
(25) SUB OUT Connector cord for bass
speaker
(26) MID OUT Connector cord for mid-range
speaker
(27) LINE OUT Analogue audio output (mono)
for master/companion mode
(28) SENSITIVITY Set the level for automatic
activation
(29) OPT IN Optical digital audio input
(30) LINE IN Analogue audio input
(31) AUX IN Analogue audio input
Page 9
Remote Control
(46)
(45)
(44)
(43)
(32)
(33)
(34)
(35)
(36)
(37)
(38)(42)
(39)(41)
(40)
Inserting/changing the batteries
The remote control is powered by 2 type AAA
batteries.
1. To open the battery compartment, carefully unscrew the lid
off – it is slightly under tension
from the springs.
2. If applicable, remove the old
batteries and dispose of them
in an environmentally-friendly
manner.
3. Slide the new batteries into the
battery compartment according
to the image on the back of the
remote control.
4. Screw the lid back closed – it only fits the right
way around and is slightly under tension from the
springs.
NOTICE
When inserting the batteries in the compartment, make sure that the polarity is correct.
(32)
(33)
(34)
+ Increase the volume
(35)
– Reduce the volume
(36)
MID Adjust the mid-range level
(37)
TREBLE Adjust the high range level
(38)
LINE Select LINE IN as the analogue
(39)
USB Select PC as the source via the
(40)
BALANCE Set the sound level ratio on the
(41)
OPT Select OPT IN as the digital
(42)
AUX Select analogue source AUX IN
(43)
BASS Adjust the low-range level
(44)
(45)
(46)
Select Bluetooth® source, pushing
and holding: Start pairing
Mute on/off
source
sound card
left/right
source
Start/pause playback
Skip track forward/back
Switch the device on and to
standby
Pushing and holding forces
the device to switch to
standby (useful with multiple
POWER HIFI).
CAUTION
Batteries can explode if handled improperly.
– Never attempt to recharge batteries.
– Only use batteries of the same or equiva-
lent type.
– You must not heat, short circuit batteries
and rechargeable batteries, dispose of
them in fire or expose them to direct
sunlight.
– Leaking battery acid may lead to chemical
burns.
– Do not allow battery acid to come into
contact with skin, eyes or mucous
membranes. In the event of contact with
acid, immediately flush the applicable
areas with plenty of clean water and
consult a physician if necessary.
9 • POWER HIFI
Page 10
Setup
You can find comprehensive notes and tips for
correct setup on our website.
Setup location
CAUTION
The total system weighs 60 kg.
– Make sure that the floor has the required
load-bearing capacity.
– Only carry/transport the individual compo-
nents – never the entire system stacked
on top of one another.
NOTICE
Risk of damage! The isolation pads can
produce discolouration on sensitive
surfaces.
– On parquet, varnished wood and similar
surfaces, you should stick felt gliders to
the rubber feet of the speakers or put
blankets or small carpets under them. This
will prevent discolouration of the floor over
the long term.
• Select a stable, level base.
• Make sure that the environment is clean and free
from dust.
• Ensure sufficient ventilation.
• Select a location away from heat sources and
prolonged exposure to direct sunlight.
• Always place the components on top of one another
in this order: Bass speaker on the bottom, then the
mid-range speaker and the high-range speaker with
the control unit on the top.
• Make sure that the feet of the top components are
positioned directly in the recesses in the underlying
housing.
• Lay the connector cords so that they do not pose a
tripping hazard.
• Do not place any heavy objects on the cables or the
speakers.
• Do not place open flames such as burning candles
or similar on the speakers.
• Do not place any containers with liquids such as
vases, beverages or similar on the speakers.
• Depending on the set-up location, it may make
sense to angle the speakers towards the listening
position. You should definitely try this to determine
whether it noticeably improves the sound.
10 • POWER HIFI
Page 11
Connecting
CAUTION
– Observe the volume of the master device
and the external player: With the Power
Hifi Companion, large input signals will
result in very high output volumes!
– Before switching it on, make sure that the
MASTER/COMPANION switch is set to the
desired position (be absolutely sure to
refer to „Mode“ on page 16).
CAUTION
Risk of injury/damage!
– Lay all cables so that they do not pose a
tripping hazard.
Connecting the speakers
The speaker connections from
the control unit to the two
speakers (25) and (26) are
designed as 4-pole SpeakON
plug connectors. The different
cable lengths ensure that the
cables cannot be mixed up.
Insertion:
1. Hold the plug with the cable up in front of the jack.
2. Turn the plug approx. 45° to the left so its pivots fit
into the jack.
3. Slide the plug all the way into the jack.
4. Turn the plug approx. 45° to the right until the
locking mechanism clicks into place. The cable is
now pointing up.
Disconnection:
1. Pull the chromed latch back and turn the plug
approx. 45° to the left.
2. Pull the plug out of the jack.
(25)(26)
Inputs for source devices
Analogue sources LINE IN, AUX IN
You can connect a source device with analogue sound
(e.g. a CD player, a mixing console or a TV set) to each
of the XLR jacks LINE IN (30) and the RCA jacks AUX
IN (31).
(29)(30)(31)
Digital source
You can connect the optical digital audio output of a
source device to the OPTICAL jack (29). You will need
an optical cable with a TOSLINK plug for this. Your
source device requires either an optical 3.5 mm plug
or also a TOSLINK plug.
In companion mode, the optimal input is intended for
applications in connection with professional sound
projection technology (see „Mode“ on page 16).
USB Sound Card
The POWER HIFI features an integrated USB
sound card for audio output from a PC. To do
so, connect the PC to the USB jack(19) via
a USB cable (USB A to Micro B). You can find
information about playback from the PC in
„USB Sound Card“ on page 23.
Via this USB jack, you can also load software
updates to your POWER HIFI (see „Software Update“
on page 25).
(19)
11 • POWER HIFI
Page 12
Output for companion mode
The analogue output LINE OUT (27) is
especially designed for companion mode:
The stereo channel, which this POWER HIFI
does not play back is relayed here.
You can connect a second POWER HIFI here
with the optional XLR connector cord (see
„Mode“ on page 16).
(27)
Mains connection
1. Insert the IEC power plug of the mains cord(5) into
the jack(24).
2. Insert the mains plug in a mains power socket
(220–240 V ~/50 Hz).
(24)
The power indicator(18) lights up continuously in a
dim red on the front side and thus indicates the
standby mode.
(18)
12 • POWER HIFI
Page 13
Operation
Activating and deactivating
– By pressing the Power button (11) or (46), you
switch the POWER HIFI on.
After switching the device on in master mode, the
last active audio source and volume will be set
(max. 25).
The power indicator (18) goes out, the LED (14)
for the active source will light up and the display
panel (12) will show the volume within a range from
0–100.
– By pressing the Power button(11) or
you switch the POWER HIFI to standby. The power
indicator(18) is illuminated in a dim red now.
– By pushing and holding the button
securely switch multiple POWER HIFI to standby.
This is particularly useful in master/companion
mode: Hold the button down and target the
POWER HIFI one after another. They will then switch
off.
Automatic activation/deactivation
You can enable automatic activation and deactivation
with the AUTO POWER switch (23):
OFF – automatic disabled
ON – automatic enabled
• If the POWER HIFI does not receive an audio
signal and if there is no operation for more than
20minutes, it will automatically switch to standby.
• As soon as a signal is detected on an audio source,
the POWER HIFI will also wake up and switch to the
detected audio source.
With the AUTO ON SENSITIVITY control (28), you can
adjust the sensitivity from which the activation function is to recognise an audio signal:
• LOW: The sensitivity is set to low. Thus, an input
signal is only considered at high input levels and
the POWER HIFI will wake up.
• HIGH: The sensitivity is set to high. Thus, an input
signal is already considered at low input levels and
the POWER HIFI will wake up.
(46) again,
(46), you also
(46)
(18)
(23) (28)
(11)
(12)
08
(14)
13 • POWER HIFI
Page 14
Selecting a source
On the control panel, switch the sources by pushing
the SOURCE button (16).
On the remote control, select the sources with the
following buttons:
Button Connection
(32)
LINE (38) LINE IN (30)
USB (39) USB (19)
OPT (41) OPT IN (29)
AUX (42) AUX IN (31)
The selected source is indicated by one of the LED (14).
Bluetooth
®
(32)
(42)
(19) (29)(30)(31)
(38)
(39)(41)
08
(14)(16)
Adjusting the volume
– Increase the volume: Turn the VOLUME control (8)
to the right or push the + button (34).
– Decrease the volume: Turn the VOLUME control(8)
to the left or push the – button (35).
• If you turn the VOLUME control (8) quickly by more
than 45°, the volume will increase or decrease
quickly.
• Pushing the – button (35) longer will quickly
decrease the volume.
The current volume level is shown from 0–100 on the
display panel (12).
The volume setting of an external player often
affects the volume of the POWER HIFI.
Mute
– By pressing the button (33), (34) or (35), you can
switch the sound off and back on.
A zero (“0”) will appear on the display panel (12)
during muting.
– You can also activate the sound by adjusting the
volume.
(8) (12)
08
(33)
(34)
(35)
14 • POWER HIFI
Page 15
Balance
The BALANCE buttons
volume level ratio between the left and right stereo
channel.
The display panel (12) will indicate a shift to the left
as a negative value and a shift to the right as a positive value.
This setting is not possible in mono mode (see below).
If power is lost or the stereo channel changes (see
below), this setting is deleted.
/ (40) are used to set the
(43)
(36)
(37)
(40)
Adjusting the sound
You can adjust the sound in three frequency ranges:
• BASS – low tones, set with the BASS +/–
buttons(43) or the BASS control (17).
• MID – mid-range tones, set with the MID +/–
buttons(36) or the MID control (10).
• TREBLE – high-range tones, set with the TREBLE
+/– buttons(37) or the TREBLE control (9).
– Possible settings: From “-6” (decrease) to “+6”
(increase).
Setting the stereo channel
With the CH MODE switch (22), you determine
the stereo channel, which is played back by this
POWER HIFI.
• L – left channel
• MONO – both channels are mixed together
• R – right channel
The respective other channel is available via the
output LINE OUT (27), with “MONO” the mixed signal.
Switching during operation will reset the balance
setting (see above) to “0”.
(9) (10)
(17)
(22)
(12)
08
Locking the control panel
To avoid inadvertent or unauthorised operation, you
can lock the display panel with the PANEL LOCK
switch (20): The buttons and the controls are inoperable in the “
with the remote control.
To unlock the control panel, slide the switch to the
“
” position.
” position – operation is only possible
(20)
15 • POWER HIFI
Page 16
Mode
Set the mode of the POWER HIFI with the MASTER/
COMPANION switch (21):
MASTER
• All inputs, buttons and controls are active.
• The stereo channel set with CH MODE (see “Setting
the stereo channel” on page 16) is played back; the
respective other channel is available on the output
LINE OUT(27).
CAUTION
– Observe the volume of the master device
and the external player: With the Power
Hifi Companion, large input signals will
result in very high output volumes!
COMPANION
Companion operation is activated when the MASTER/
COMPANION switch (21) is set to the following
settings:
OPT digital input OPT IN (29) With this input, you
can select the stereo channel (L/R) for playback with the CH MODE switch (22).
LINE analogue input LINE IN (30) Only the
“L (COMPANION)” jack is active.
AUX analogue mono input AUX IN (31) . Only the
“L (COMPANION)” jack is active.
• The selected input is limited to a volume of 0 in
the first configuration and must be manually set to
100. All other inputs are inoperable.
• The COMPANION LED (13) lights up as well as the
LED(14) for the selected source.
(21) (22)
(27)
(29)(30)(31)
(46)
16 • POWER HIFI
(8)
(11)
(12) (13)
08
(14)
Page 17
• The power buttons (11) and
VOLUME control (8) work.
• All other buttons and controls are inactive; when
operated, only the COMPANION LED (13) will blink
briefly.
After the entire system is connected and switched
on, each companion will display a pulsating plug sign
in front of the “+0” volume display. In so doing, the
companion indicates that its volume is set to the
safety level.
– On the companion, carefully turn the volume to
maximum (level of 100) with the VOLUME control (8).
This is the only way to correctly control the entire
volume from the master. Otherwise, the balance
between the left and right channel will not be correct.
After initial setting of the volume, the companion will
only display three dashes on the display panel.
(46) as well as the
CAUTION
Risk of injury/damage!
– Once the volume on the companion has
been set, a very high playback level can be
reached.
If a POWER HIFI is operated as a companion, you
can decrease the volume with respect to the source
with the VOLUME control (8). However, the maximum
volume is controlled on the source.
• The recently set volume on the companion will be
saved after approx. 30 seconds of operation and
restored after standby.
• When disconnected from the power supply or when
the MASTER/COMPANION switch (21) is operated,
the volume will be set to 25 for the purpose of
safety.
(12) (13)(8)
08
(21)
17 • POWER HIFI
Page 18
Example for a mono setup
Example for a stereo setup
All inputs can be used on the master. Operation
occurs via the control panel or the remote control for
the master.
The MASTER/COMPANION switch is set to MASTER on
the master and to LINE on the companion.
The master is set to the right stereo channel with the
CH MODE switch and it passes the left channel to
the companion via the XLR cable. The position of this
switch is ignored on the companion.
The master’s output LINE OUT is connected to the
companion’s input LINE IN L via XLR cable.
Once the volume on the companion has been initially
set, the volume and sound on the master will be
controlled.
POWER HIFI
Mono Master
POWER HIFI
Stereo Companion
18 • POWER HIFI
POWER HIFI
Stereo Master
Page 19
Example for a stereo setup with mixing console
Mixing console with
XLR outputs
The mixing console is connected to the LINE IN L
inputs of both POWER HIFI via XLR cable.
The MASTER/COMPANION switch is set to LINE on
both POWER HIFI.
The position of the CH MODE switch is ignored on
both POWER HIFI.
Once the volume on the companions has been initially
set, the volume and sound will be controlled on the
mixing console.
POWER HIFI
Companion
POWER HIFI
Companion
Example for a stereo setup with preamplifier
Preamplifier with RCA
outputs
CD player
The preamplifier is connected to the AUX IN L inputs
on both POWER HIFI via RCA cable.
The MASTER/COMPANION switch is set to AUX on
both POWER HIFI.
The position of the CH MODE switch is ignored on
both POWER HIFI.
Once the volume on the companions has been initially
set, the volume and sound on the preamplifier will be
controlled.
POWER HIFI
Companion
POWER HIFI
Companion
19 • POWER HIFI
Page 20
One to three
POWER HIFI
Mono Companion
Example for a mono cascade
All inputs can be used on the master. Operation
occurs via the control panel or the remote control for
the master.
The MASTER/COMPANION switch is set to MASTER on
the master and to LINE on all companions.
The master is set to MONO with the CH MODE switch
and it passes the mixed stereo signal to the first
companion via the XLR cable. The position of these
switches will be ignored on all companions.
The master’s LINE OUT output is connected to the
first companion’s LINE IN L input via XLR cable. The
first companion’s LINE OUT output is connected to
the LINE IN L input of the next companion and so on.
This way, up to four companions can be connected in
a cascade.
Once the volume on the companions has been initially
set, the volume and sound on the master will be
controlled. However, the volume of the companions
can be reduced via the master if, for example, the
dance area is to be supplied with louder sound than
the back part of the room.
POWER HIFI
Mono Master
20 • POWER HIFI
Page 21
Bluetooth® Mode
Via Bluetooth®, you can connect a compatible external
player wirelessly to the POWER HIFI. The audio
output of your external player is then emitted via the
POWER HIFI.
The Bluetooth® wireless transmission system has a
range of approximately 10 metres that is limited by
walls and furnishings. If the connection is cut off, the
POWER HIFI will attempt to re-establish a connection
until you select another source.
You can also register two Bluetooth® devices and have
them played in alternation.
NOTICE
Only use the Bluetooth® function in locations where wireless radio transmission is
allowed.
®
Please keep in mind that the Bluetooth
behaviour may differ depending on the
external player’s operating system.
®
2. Select the “Bluetooth
For this, push the button
push the SOURCE button (16) multiple times until
the LED (14) illuminates in blue.
3. If the POWER HIFI is not connected to an external
player, pairing will start automatically and the LED
(14) will quickly flash blue.
Otherwise, push the button (32) and hold it down
for approx. 2 seconds or briefly push the PAIRING
button (15) to start pairing.
Pairing will be active for approx. 60 seconds.
Afterwards, the LED (14) will blink slowly. This
indicates that there is no connection.
4. Let your external player scan for Bluetooth®
devices. You will find more information about this in
the user manual of your external player.
After the search run, the “POWER HIFI” should also
be present in the list of detected devices.
5. Select “POWER HIFI” from the list of detected
devices.
If your external player asks for a code, enter “0000”
(four zeros).
Pairing is now complete and your POWER HIFI
will now act as a Bluetooth® playback device. The
POWER HIFI will now play back all sounds that
would otherwise be played by your external player/
smartphone.
6. If you would like to pair a second external player,
repeat the above steps with the second device.
Then select the POWER HIFI again from the list of
paired devices on the first device. Now you can use
both devices in party mode in alternation.
” input on the POWER HIFI.
(32) or, if applicable,
Bluetooth® options
Depending on the device type, your external player
(e.g. smartphone) may also have a menu for Bluetooth® options such as media playback. You can find
more information about the Bluetooth® options in the
instruction manual for your external player/smartphone.
Bluetooth® pairing
To play the audio of your external player on your
POWER HIFI via Bluetooth®, you must first connect the
devices with each other. The technical term for this is
“ pairing”.
1. Activate the Bluetooth® function on your external
player (e.g. smartphone).
Restoring the connection with a paired external
player
If your POWER HIFI was previously connected to the
external player, it is no longer necessary to switch it
to pairing mode to connect again. Simply selecting
“POWER HIFI” on your external player from the list of
paired devices is enough.
The POWER HIFI stores the pairing data of the last 7
external players (max.) which were connected to the
system.
– To delete the list of external players, push the
button (32) for 10 seconds.
External players can then only establish a connection after re-pairing.
21 • POWER HIFI
Page 22
(15) (14)(16)
(32)
(45)
08
Interruption of connection
If your external player moves out of the range of your
POWER HIFI, the Bluetooth® connection will be interrupted. The connection will be re-established automatically when you are back within range.
Playback
The volume and sound settings of the external
player also affect the volume and the sound of
the POWER HIFI.
1. Select the “Bluetooth
For this, tap the button (32), or, if applicable, the
SOURCE button (16) multiple times until the LED
(14) illuminates in blue.
2. On your external player, switch the Bluetooth® function on and select “POWER HIFI” as the playback
device.
3. Start and control the playback on your source
device.
Depending on the source device, you can also control
playback with the remote control of the POWER HIFI:
– Play next track: Tap the navigation button (45).
– Play the track or chapter from the beginning: Briefly
tap the navigation button (45).
– Play the previous track or previous chapter: Briefly
tap the navigation buttons (45) twice.
– Pause/continue playback: Push the button (44).
If your source device is a smartphone, the Bluetooth
connection will be interrupted in the event of an
incoming call and you can make phone calls as usual.
After finishing your phone call, the sounds will
once again be diverted and played back by your
POWER HIFI.
®
” input on the POWER HIFI.
®
(44)
22 • POWER HIFI
Party mode
If you are using two external players at the same time,
you can look for the next track on one device while
the other is playing. Once the track is over, push the
stop or pause button and start playback on the other
device.
Terminating the connection
To terminate the Bluetooth® connection, switch the
Bluetooth® function on your external player/smartphone off.
Page 23
USB Sound Card
The POWER HIFI features an integrated USB sound
card for audio output from a PC.
No driver software is required for playback from the
PC under Windows 7, 8 and 10 as well as Mac OS X
10.5 and higher. The operating systems detect the
POWER HIFI as a USB Advanced Audio Device when it
is connected to the USB port.
Connect the USB micro port (19) to a USB port
on your PC. For this, you can use any type A
USB 2.0 adapter cable to micro B.
(19)
Mac OS X
To quickly switch playback to the POWER HIFI, push
the [alt] button on the Mac and click the speaker icon
on the menu bar (you can
enable this icon under
“Sound” in the system preferences, see below). Select the
“PowerHIFI” from the list
under “Output device”.
All Mac sounds will now be
played back via the
POWER HIFI.
“Sound” system preference
In the “Sound” system preference, you can select the
POWER HIFI as the playback device on the “Output”
tab: In the list, click “PowerHIFI”. All Mac sounds will
now be played back via the POWER HIFI.
Windows 7, 8 and 10:
When establishing the USB connection, Windows
automatically detects the POWER HIFI and allocates
playback accordingly.
To quickly switch between the playback devices, right
click the speaker icon on the task bar and select
“Playback devices”. The corresponding “Sound” tab of
the control panel will open.
“Sound” control panel
In the “Sound” control panel, you can select the
POWER HIFI as the playback device on the “Playback”
tab: In the list, click “Speaker” under “PowerHIFI”.
All PC sounds will now be played back via the
POWER HIFI.
If you want the audio output to permanently occur via
the POWER HIFI (also after rebooting the PC), click the
button “As Standard”.
If you check “Display volume on the menu bar” at the
very bottom, you can also access the menu described
above via the speaker icon.
Further sound settings depend on the programme in
use, e.g. iTunes or Facetime.
Other sound settings depend on the programme being
used, e.g. Media Center or Skype.
23 • POWER HIFI
Page 24
Playback
The volume and sound settings of the PC also
affect the volume and the sound of the
POWER HIFI.
1. Select the “USB” input on the POWER HIFI. For this,
briefly push the USB button (39), or, if applicable,
the SOURCE button (16) multiple times until the
USB LED (14) illuminates in red.
2. Select “PowerHIFI” as a playback device on your PC.
3. Start and control the playback on your PC.
You can also control playback with the remote control
of the POWER HIFI:
– Play next track: Tap the navigation button
– Play the track or chapter from the beginning: Briefly
tap the navigation button
– Play the previous track or previous chapter: Briefly
tap the navigation buttons (45) twice.
– Pause/continue playback: Push the button (44).
(45).
(45).
(45)
08
(44)
(39)
(14)(16)
24 • POWER HIFI
Page 25
The software of the POWER HIFI is being continually
developed. You can download subsequent versions
from our website.
Installing new software
1. Load the new software from our website.
2. Unpack the downloaded file.
3. Pull the mains plug of the POWER HIFI and wait
until the power indicator (18) is off.
4. With a USB cable, connect your PC or Mac to the
USB jack (19) of the POWER HIFI.
5. Push and hold the buttons POWER (11) and
SOURCE (16) at the same time and insert the
mains plug of the POWER HIFI back into the socket.
Continue to hold the buttons down until the power
indicator (18) blinks rhythmically.
6. A USB drive “POWER HIFI” will be displayed on your
PC now. There, you will see a file “version.txt”, from
which you can determine the currently installed
version.
7. At this point, you can still cancel the update without
risk by interrupting the USB connection to the PC.
Software Update
(18)
(19)
08
(16)(11)
NOTICE
Risk of damage!
– During the following steps, the
POWER HIFI must not be switched off and
the USB connection must not be interrupted!
8. Copy the unpacked update file on your PC to the
“POWER HIFI” drive.
The update will now run automatically. The power
indicator(18) will continue to blink rhythmically.
9. Once the update is complete, the POWER HIFI will
switch to standby.
At the same time, the USB connection to the PC will
be interrupted, which may cause an error message
on the PC. Ignore this message if applicable.
10. Pull the mains plug of the POWER HIFI again and
wait until the power indicator (18) is off.
11. Connect the POWER HIFI to the power supply
again.
The new software was installed.
25 • POWER HIFI
Page 26
Care And Cleaning
NOTICE
External influences could damage the
speakers.
– If possible, only use plain water without
any additives. In case of stubborn marks,
a mild soap solution may be used.
– Do not use caustic cleaning products,
white spirit, thinners, petrol or similar
under any circumstances. Such cleaning
agents may damage the delicate surface
of the housing.
• Ideally, you should remove dust or small amounts of
dirt with a dry, smooth leather cloth.
• Use a damp cloth to rub off stubborn dirt. Make
sure that no liquid penetrates the housing.
• Then immediately wipe the damp surfaces off with
a soft cloth without applying pressure.
26 • POWER HIFI
Page 27
Troubleshooting
The following advice should help you to solve problems. If this does not help, you will find useful information in the
detailed FAQs on our website. Otherwise, please contact our hotline (see page 3). Take note of the warranty
instructions.
Problem Possible cause Solution
No function. No power supply. Check the function of the socket with another
device.
Control panel locked. To unlock the control panel, slide the PANEL
” position.
2.
Mains fuse defective
LOCK switch (20) to the “
1.
No sound. The wrong source has been
selected.
The volume has been set too low. Carefully increase the volume.
The volume of the external player
has been set too low.
Speaker cable not connected. Properly connect the speaker (page11).
No sound with Bluetooth®.
No sound via cable (LINE,
AUX).
The balance is incorrect
in master-companion
mode.
No Bluetooth® connection. Establish a connection (see page „Bluetooth®
POWER HIFI has not been
selected as the output device.
Bluetooth® connection impaired
by another radio system (e.g. cordless telephone, Wi-Fi).
With some smartphones,
switching to another app may
result in no sound being emitted
in the new app.
Volume of the playback program
has been set to zero.
The volume on the companion has
been set too low.
Disconnect the
mains cord.
Carefully pull the
fuse holder on the
mains connection
jack out.
Select the correct source (see “Selecting a
source” on page 14).
Carefully increase the volume of the external
player.
pairing“ on page 21).
On the external player, select “POWER HIFI” as
the Bluetooth® output device.
Set up the POWER HIFI and/or external player in
another location. Move to another room to test.
Before switching between apps, pause the previously used app to prevent this from happening.
Carefully increase the volume on the source
device.
Carefully set the companion’s volume to 100
with the (8) control.
Push the old fuse
down and out.
Insert a new fuse
(3.15 A delayed
action) and push
the holder back.
27 • POWER HIFI
Page 28
A hum is emitted from the
speaker.
The POWER HIFI is connected to
a different power circuit than the
rest of the system.
The hum is due to line disturbance.
The humming is caused by a
multiple socket strip.
Connect the POWER HIFI and source device/
preamplifier to the same power circuit.
Buy a line filter and connect all devices to it.
Use a different multiple socket strip or connect
the POWER HIFI directly to the wall socket.
28 • POWER HIFI
Page 29
Technical Data
Bass speaker
Dimensions (W × H × D) 440 × 760 (thereof attributed to the feet: 15 mm) × 400
Weight 38.2 kg
Mid-range speaker
Dimensions (W × H × D) 440 × 300 (thereof attributed to the feet: 15 mm) × 400
Weight 13.2 kg
High-range speaker with control unit
Dimensions (W × H × D) 440 × 200 (thereof attributed to the feet: 15 mm) × 400
Weight 9.1 kg
Operating voltage 220–240 V ~, 50 Hz
Max. power consumption 500watts
The following radio frequency bands and radio transmitting powers are used in this product:
Radio
network
Bluetooth
You can find further technical data on our website.
Technical changes reserved!
Frequency bands in MHz Transmission power in mW/
dBm
®
2400–2483.5 2.5/4
Declaration of Conformity
Lautsprecher Teufel GmbH declares that this product complies with Directive 2014/53/EU. The full
text of the EU Declaration of Conformity can be found at this web address:
www.teufel.de/konformitaetserklaerungen
www.teufelaudio.com/declaration-of-conformity
29 • POWER HIFI
Page 30
Disposal
Important information in accordance
with the Electrical and Electronic
Equipment Act (Germany: ElektroG)
We advise owners of electrical and electronic appliances that old electrical and electronic devices must
be handed in separately from municipal waste, in
accordance with the applicable regulations. Batteries
and rechargeable batteries that are not firmly
enclosed in old electrical devices and lamps, and
that can be removed from the old device without
destroying them, must be separated from them in a
non-destructive manner before they are handed to
the collection point for their intended disposal. Please
take note of our information on the Batteries Act
[Germany: BattG] below for disposing of batteries.
You make an important contribution to returning,
recycling and further processing of old devices if you
separate your old devices into the correct collection
groups for recycling.
The symbol below of a crossed-out dustbin, applied to
electrical and electronic appliances, also advises of
the duty to separate collections:
Consumer electronics stores and supermarkets are
obliged, under certain conditions, to take back old
electrical and electronic devices, in accordance with
section 17 of the Electrical and Electronic Equipment
Act. Stationary retailers must take back an old electrical device of the same type when a new electrical
device is bought (1:1 return). This also applies to
home deliveries. These retailers must also take back
up to three small old electrical devices (≤ 25cm)
without this being linked to a new purchase (0:1
return).
In accordance with the Electrical and Electronic Equipment Act, as online retailers of electrical devices and
due to our product range, our obligation is limited to
1:1 return of large devices of > 50 cm when selling a
new electrical or electronic device of the same type.
We comply with the obligation of return of devices
other than large devices through our service provider.
You can find the exact contact data and collection
points on our website
is also possible to return old electrical and electronic
appliances free of charge at an official delivery point
run by the public waste disposal authorities.
www.Teufel.de/entsorgung. It
Important: For safety reasons we ask that you refrain
from sending lighting fixtures (some lamps). For
return of lighting fixtures please use the public waste
disposal collection points or contact us directly at
www.Teufel.de/entsorgung.
As an end-user, you are responsible for deleting any
personal data on old electrical appliances before
handing it in.
Important: Our appliances can contain batteries/
rechargeable batteries. If this is the case, please refer
to its attached product documentation for additional
information on the type and chemical make-up of
the battery. For products with battery compartments
you can directly remove the batteries or rechargeable batteries and dispose of them properly. If the
batteries are built in to the product, do not in any
case attempt to remove the batteries yourself,
instead contact one of our employees or appropriate
specialist staff.
Important information about the
Batteries Act (Germany: BattG)
Batteries and rechargeable batteries must not be
disposed on in household waste.
Old batteries can contain toxic substances that could
damage the environment or your health if not stored
or disposed of properly. This applies especially to
improper handling of batteries containing lithium.
However, batteries also contain important raw materials such as iron, zinc, manganese and nickel and
these can be reused. Separate collection enables
recycling of these raw materials and avoids any negative impact on the environment or human health due
to toxic substances being released.
The crossed-out dustbin symbol means that you
should not dispose of old batteries and rechargeable
batteries in household waste. In addition, you, as the
end-user, are legally obliged to return old batteries.
You can hand in batteries and rechargeable batteries
free of charge at an official return point such as any
public waste disposal collection point. You can also
hand in old batteries, that we stock or have stocked
as new batteries, at one of our Teufel stores or at one
of our dispatch warehouses. However, if you send
them to our dispatch warehouses we would like to
point out the dangerous goods regulations of the
30 • POWER HIFI
Page 31
dispatch provider you opt for and ask you not send
batteries to us by post. You can get the addresses of
our dispatch warehouses from our customer service.
Due to existing legal regulations, the battery manufacturer must use the following symbols with the
following meanings when marking the batteries.
Hg: the battery contains more than 0.0005 mass
percent of mercury
Pb: the battery contains more than
0.004 mass percent of lead
Cd: the battery contains more than
0.002 mass percent of cadmium
Otherwise, to avoid waste and littering, batteries with
a long service life or rechargeable batteries should be
used. Exchangeable rechargeable batteries enable
long service for electrical and electronic appliances
and thus devices and rechargeable batteries can be
prepared for recycling (e.g. regenerating/exchanging
rechargeable batteries).
Further information on preventing waste for
consumers can, however, be found in the Federal
waste prevention programme with the participation of
the Federal states.
31 • POWER HIFI
Page 32
Please contact our customer service department with any questions, suggestions,
or complaints:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
www.teufelaudio.com
Phone.: 00 800 200 300 40 (toll-free)
Fax: +49 (0)30 - 30 0 930 930
www.teufelaudio.com/service
Service:
Contact: www.teufelaudio.com/contact
No responsibility is assumed for the
correctness of this information.
Technical changes, typographical
errors and other errors reserved.
Manual No. 199867_20220106_EN_V2.0
Loading...
