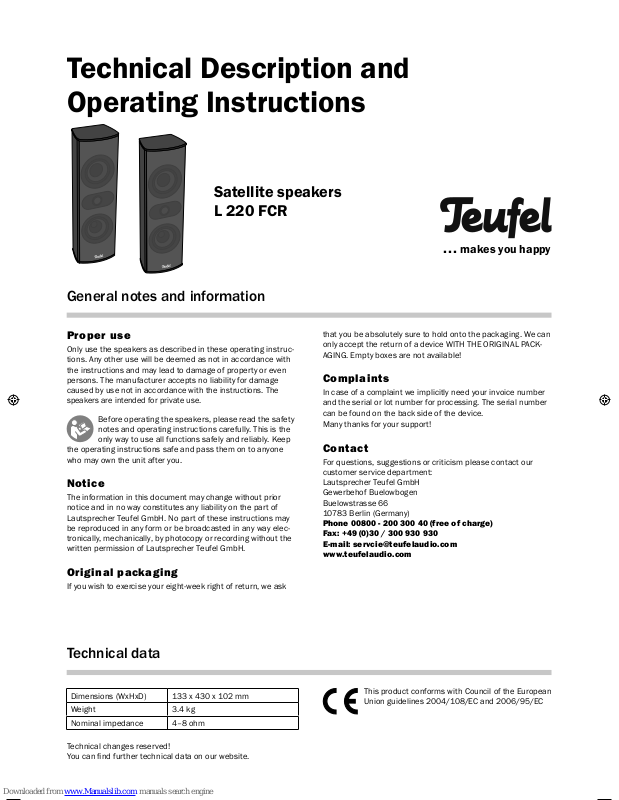

Only use the speakers as described in these operating instructions. Any other use will be deemed as not in accordance with
the instructions and may lead to damage of property or even
persons. The manufacturer accepts no liability for damage
caused by use not in accordance with the
speakers are intended for private use.
Before operating the speakers, please read the safety
notes and operating instructions carefully. This is the
only way to use all functions safely and reliably. Keep
the operating instructions safe and pass them on to anyone
who may own the unit after you.
instructions. The
Notice
The information in this document may change without prior
notice and in no way constitutes any liability on the part of
Lautsprecher Teufel GmbH. No part of these instructions may
be reproduced in any form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the
written permission of Lautsprecher Teufel GmbH.
Original packaging
If you wish to exercise your eight-week right of return, we ask
that you be absolutely sure to hold onto the packaging. We can
only accept the return of a device WITH THE ORIGINAL PACKAGING. Empty boxes are not available!
Complaints
In case of a complaint we implicitly need your invoice number
and the serial or lot number for processing. The serial number
can be found on the back side of the device.
Many thanks for your support!
Contact
For questions, suggestions or criticism please contact our
customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen
Buelowstrasse 66
10783 Berlin (Germany)
Technical changes reserved!
You can fi nd further technical data on our website.
This product conforms with Council of the European
Union guidelines 2004/108/EC and 2006/95/EC
Page 2
Safety notes
Caution icons
You will fi nd the following caution icons in these instructions:
Danger
Attention
to maximum volume and the unit is activated, very high
noise pressure may suddenly be produced. This may have
psychological consequences and also cause physical injury.
Children and pets are particularly at risk.
• Set your signal source unit volume control to a low setting.
• When the volume is set high, always keep a certain dis-
• To avoid damage to health, avoid extended listening at
• Do not allow children to play with the unit or the packing
• Ensure that children do not remove small parts from the
High risk ! Failure to observe the warning may result
=
in severe personal injury or death.
Moderate risk ! Failure to observe the warning may
=
r e s u l t i n p r o p e r t y d a m a g e .
Minor risk! Points which should be observed when
=
handling the unit.
Danger to hearing
Loud noise may lead to hearing loss.
Particularly when the subwoofer has been set
tance from the unit and never place your ear directly on
the speaker.
high volume.
Danger
Danger to children!
Children can become trapped in the packing fi lm
when playing and suffocate.
fi lm. Danger of suffocation.
unit or take them off of the unit (e.g. control knobs or plug
adapters). They could swallow the parts and choke.
Never allow children to operate electrical devices unsupervised.
Danger
• Never use the unit unmounted in vehicles, in unstable
• Place the speakers in such a way that they cannot be
• Carefully follow the installation instructions.
• If mounting the speakers on the wall, make sure that the
• Only use suitable wall holders to mount the speakers.
• Do not place the unit near sources of heat (e.g. heaters,
Attention
• Do not place open fl ames such as burning candles or
• Ensure suffi cient ventilation.
• Do not place the unit in direct sunlight.
• Only use the unit in indoor areas.
• Do not operate the unit in moist areas and protect it from
Danger of injury/damage!
Incorrect location may result in damage.
locations, on wobbly stands or furniture, on underdimensioned brackets etc. The speakers could tip or fall
down and cause injury to persons or be damaged.
knocked over unseen and make sure that the cables do
not pose a trip hazard.
job is carried out by a professional.
Verify the carr ying capacity of the walls.
ovens, other heat generating equipment such as amplifi ers etc.).
Fire hazard!
Improper use may lead to damage or fi re.
similar on the unit.
drops of water and splash water.
Also take care not to stand vases or other containers fi lled
with liquid on or near the unit in order to avoid liquid getting into the housing.
Product contents
햲 2 x satellite speaker L 220 FCR
Check to be sure
Check that all items have been delivered and that
nothing is damaged.
If the delivery is incomplete or you fi nd damage sustained in
transit, do not operate the device; instead contact our service
department.
햲
Page 3
Setup and connection
Setup
Note
Our website contains comprehensive notes for correct setup.
• Select a stable, level base.
• Make sure that the environment is clean and free from dust.
• Avoid placing the unit close to sources of heat or in direct
sunlight.
• Arrange the connector cables so that they do not pose a trip
hazard.
• Do not place any heavy objects on the cables or the speakers.
Wall mounting
Danger
• If mounting the speakers on the wall, make sure that the
• Before drilling the holes, make sure that no pipes are
• Only use suitable screws and dowels to mount the speak-
Risk of damage!
Improper assembly may result in damage.
installation is carried out expertly.
located within the drilling area using a metal detector.
ers. Verify the carrying capacity of the walls.
Connecting
Danger
• Pull the power plug of your AV receiver or multi-channel active subwoofer out of the socket.
• Lay the speaker cables from your AV receiver or multichannel active subwoofer to each speaker. These cables
should be high-quality double-wire speaker cable with marked
strands. The cross section should amount to 1.5 to 4 mm
• A connector comprising two terminals is located on the
back side of each speaker, to which you have to connect the
speaker cables.
• The terminal clips are each marked red (+) and black (-).
The speaker connections of your AV receiver or
active subwoofer
of the speaker cables are marked with different colours or
shapes.
Danger of injury/damage!
Arrange the cables so that they do not pose a
trip hazard.
Make sure the polarity is correct!
Connect the like coloured terminals. Other wise the
sound quality will suffer.
multi-channel
should be marked similarly. The strands
2
.

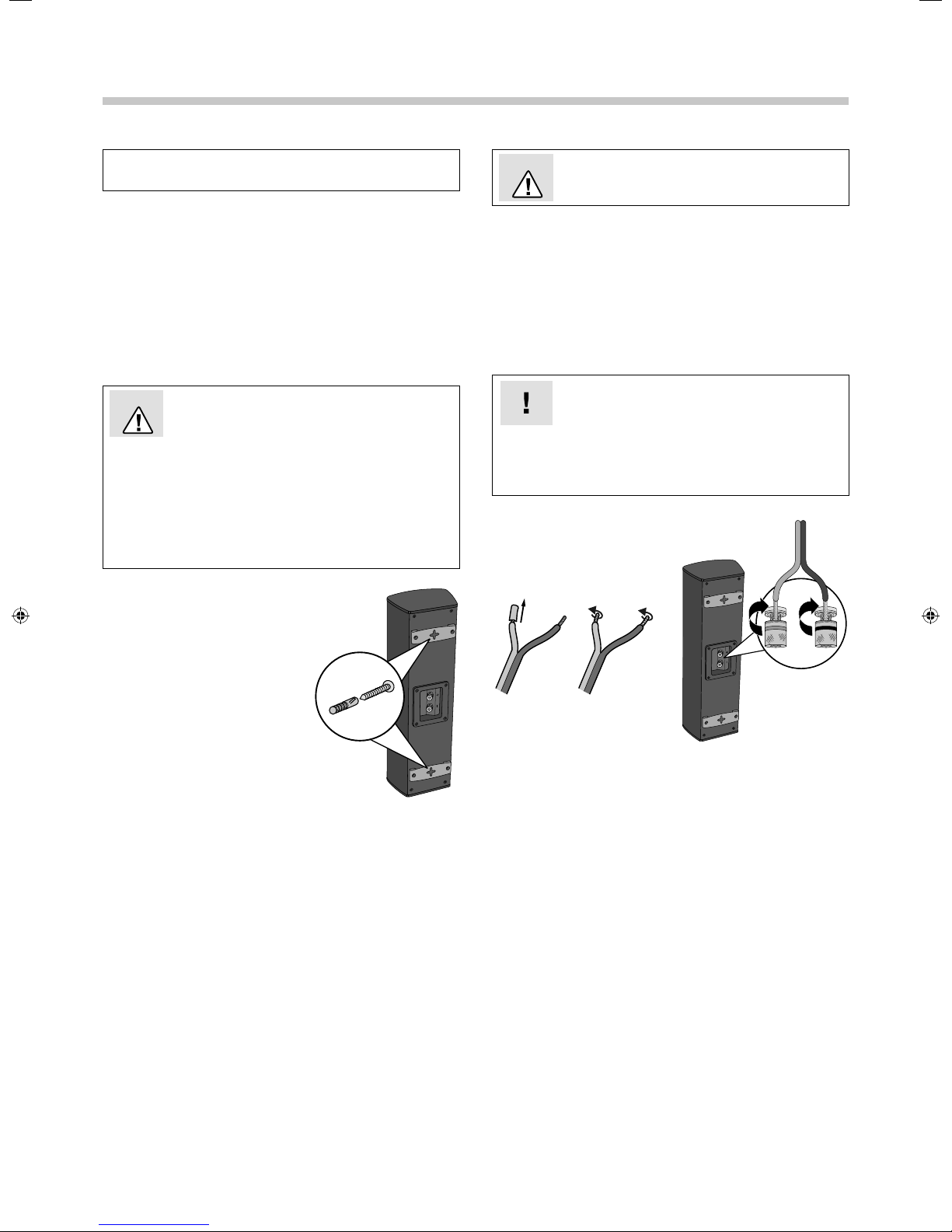

• Hang the satellite speakers up
on the wall using the keyhole
openings on the speaker back
side and the screws you previously
mounted.
• You can also use these openings for mounting a wall holder
or speaker stand. You can fi nd
suitable products for this in our
web shop.
1. Split the single wire down to approx. 30 mm on both ends
and strip approx. 10 mm of insulation off of each cord.
2. Twist the stripped single wire ends together so that no wire
protrudes. Tin coating is not necessary.
3. Turn the connector terminal counterclockwise until loose.
Run the stripped cable end into the now visible hole. Close
the terminal by turning it counterclockwise. The cable has
now been clamped in place.
4. Connect the cables to the other speaker in the same way.
5. Connect the speaker cables to your AV receiver
channel active subwoofer. The operating instructions of the
appliance should contain notes on this.
Crossover frequency
The ideal separation frequency on the AV amplifi er or multi-
channel active subwoofer for the satellite speaker L 220 FCR is
120 Hz.
or
multi-
Page 4
Cleaning and care
Clean the speakers regularly with a soft, damp microfi bre cloth.
Please be absolutely sure to observe the following notes in the
process:
• If possible, only use plain water without any additives. In
case of stubborn marks, a mild soap solution may be used.
• Make sure that no liquid penetrates the unit.
Attention
If possible, only use plain water without any additives. In
case of stubborn marks, a mild soap solution may be used.
In no circumstances should caustic cleaning products, white
spirit, thinners, petrol or similar be used for cleaning.
Risk of damage!
Using the wrong cleaning materials may damage
the delicate surface of the case.
Troubleshooting
The following notes and further detailed information on our website should help you to rectify malfunctions. If this does not lead
to success, please contact our hotline
ProblemPossible causeSolution
Playback is noisy.
The sound seems dull.The speakers have been connected with the
00800 - 200 300 40 (free of charge). Please also observe the warranty notes.
In general, the speakers are very low-noise.
In most cases, the speaker system with
exceptional resolution in the high range
area can expose the poor quality of a signal
source (e.g. from MP3 fi les).
wrong poles.
Ensure that the source is sending a clear signal.
Verify the correct connection of the cables for all speakers.
Protecting the environment
Disposal of the unit
Used units must not be disposed of with
household waste.
If the unit is no longer operational, every consumer
is required by law to dispose of used devices
separately from household waste, e.g. at a collec-
tion point run by the communal authority borough. In this way
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
Buelowstr. 66, 10783 Berlin (Germany)
it is ensured, that used devices are properly recycled and that
negative consequences on the environment are avoided. For
this reason, electrical equipment is labelled with the displayed
symbol.
