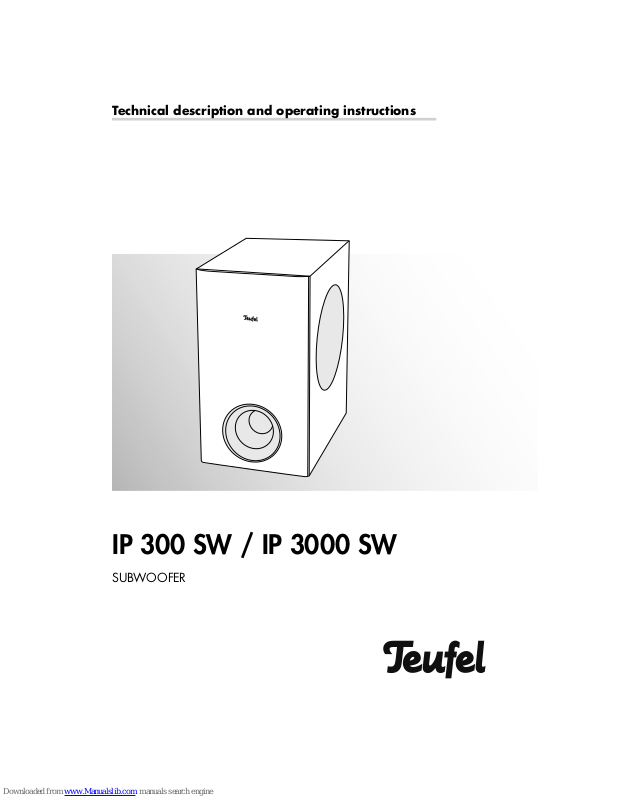

Page 1
Technical description and operating instructions
SUBWOOFER
IP 300 SW / IP 3000 SW
Page 2
2
• IP 300 SW / IP 3000 SW
Contents
General notes and information ......................................................................................................................................3
Notice 3
Original packaging ........................................................................................................................................ 3
Complaints .................................................................................................................................................... 3
Contact ........................................................................................................................................................ 3
Proper use ..................................................................................................................................................... 3
Product contents ............................................................................................................................................................3
Safety notes ..................................................................................................................................................................4
Caution icons ................................................................................................................................................ 4
Safety notes .................................................................................................................................................. 4
Setup and connection ....................................................................................................................................................5
Setup notes ................................................................................................................................................... 5
Connecting the subwoofer .............................................................................................................................. 5
Care and cleaning .........................................................................................................................................................6
Protecting the environment ............................................................................................................................................6
Disposal of the unit......................................................................................................................................... 6
Technical data ...............................................................................................................................................................7
Page 3
3
• IP 300 SW / IP 3000 SW
Notice
The information in this document may change without
prior notice and in no way constitutes any liability on the
part of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any
form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
June 2011
Original packaging
If you wish to exercise your eight-week right of return,
we ask that you be absolutely sure to hold onto the
packaging. We can only accept the return of a device
WITH THE ORIGINAL
PACKAG ING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following information to process your enquiry:
1. Invoice Number
Can be found on the sales slip (enclosed with the
product) or on the order confi rmation received as a PDF
document, e.g. 4322543.
2. Serial number or batch number
Located on the back of the unit,
e.g. serial number: UL 04007480121A
Many thanks for your support!
Contact
For questions, suggestions or criticism please contact our
customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen
Buelowstrasse 66
10783 Berlin (Germany)
Phone: 00800 - 200 300 400 (free of charge)
Fax: +49 (0)30 / 300 930 930
E-mail: service@teufelaudio.com
www.teufel.de / www.teufelaudio.com
Proper use
The product is designed for playback of audio signals.
Use the unit only as described in these operating instructions. Any other use will be deemed as not in accordance
with the instructions and may lead to damage to property
or even persons.
The manufacturer accepts no liability for damage caused
by use not in accordance with the instructions.
The unit is intended for private use.
Before operating the unit for the fi rst time please
read the safety notes and operating instructions
carefully. This is the only way to use all functions
safely and reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
General notes and information
Product contents
1 Subwoofer
The BD receiver, the speakers and the accessories are
delivered in a separate packaging.
Page 4
4
• IP 300 SW / IP 3000 SW
Safety notes
Caution icons
You will fi nd the following caution icons in these instructions:
Danger
High risk !
Failure to observe the warning may result in
severe personal injury or death.
Attention
Moderate risk !
Failure to observe the warning may result in
p roperty damage.
Minor risk!
Points which should be observed when handling the unit.
Safety notes
Danger
Danger to children!
Children can become trapped in the packing
fi lm when playing and suffocate.
• Do not allow children to play with the unit or the packing fi lm. Danger of suffocation.
• Ensure that children do not remove small parts from the
unit or take them off of the unit (e.g. batteries from the
remote control, knobs or plug adapters). They could
swallow the parts and choke.
Danger
Risk of injury
An unstable base may cause the unit to tip and
injure or even kill persons, children are particularly at risk. You can prevent many accidents by taking
the following precautions.
• Only place the subwoofer on the fl oor.
• If you want to use underframes or speaker stands, only
use those recommended by the manufacturer.
• When storing the product, also ensure that it stands
safely and that it cannot be knocked down or over.
Danger to hearing!
Loud noise may lead to hearing loss.
Very high noise pressure may suddenly be
emitted, especially if a subwoofer is activated and set to
full volume. This may have psychological consequences
and also cause physical injury. Children and pets are
particularly at risk.
• Set the volume control of your signal source to a low
setting.
• When the volume is set high, always keep a certain di-
stance from the unit and never place your ear directly
on the speaker.
• To avoid damage to health, avoid extended listening at
high volume.
Danger
Danger of injury/damage!
Setting the device up in an unsuitable location
may result in injury to persons and/or damage
to property.
• Never use the unit unmounted in vehicles, in unstable
locations, on wobbly tripods or furniture, on insuffi ciently dimensioned brackets etc. The device could tip or
fall down and cause injury to persons or be damaged
itself.
• Arrange the device so that it cannot be knocked over
accidentally and make sure that the cables do not pose
a trip hazard.
• Do not place the unit near sources of heat (e.g. hea-
ters, ovens, other heat generating equipment such as
amplifi ers etc.).
Attention
Fire hazard!
Improper use may lead to damage or fi re.
• Do not place open fl ames such as burning
candles or similar on the unit.
• Do not place the unit in direct sunlight.
Page 5
5
• IP 300 SW / IP 3000 SW
Setup and connection
Setup notes
• Select a stable, level base.
• Make sure that the environment is clean and free from
dust.
• Avoid placing the unit close to sources of heat or in
direct sunlight.
• Arrange the connector cables so that they do not pose
a trip hazard.
• Do not place any heavy objects on the cables or the
speakers.
• The location of the subwoofer can be freely selected
and does not infl uence the other speakers. However, do
not place it in the corner of a room as this may cause
uncontrollable frequency overloads. A location between
the front speakers is often ideal.
Connecting the subwoofer
Use the enclosed purple/black speaker cable to connect
the subwoofer. You can order longer cables if you need
them in our webshop (www.teufelaudio.com) in the “Accessories” area.
Speakers
4048945 547507
AUX OUT
AUDIO OUT
The coloured connector terminals “Speakers” for the
speakers are located on the back side of the receiver.
The speaker terminal clips and the enclosed speaker
cables are marked with the same colours.
Therefore, connect the purple speaker cable with the purple terminals and the black cable with the black terminals
of the receiver and the subwoofer.
Make sure the polarity is correct!
Connect the like-coloured terminals. Otherwise
the sound quality will suffer.
Push down the lever of the connection terminal and run the stripped cable end into the
opening which is free now. When releasing
the lever, the opening is closed again and
the cable end is clamped in place.
SUBWOOFER
IP 3000 SW
Screen
Stereo triangle
Center
Rear Rear
Front Center Front
SUBWOOFER
IP 300 SW
Screen
Stereo triangle
Front Front
Speaker arrangement for a 5.1 system
Speaker arrangement for a 2.1 system
Page 6
6
• IP 300 SW / IP 3000 SW
Care and cleaning
Attention
Risk of damage!
Using the wrong cleaning materials may damage the delicate surface of the case.
• If possible, only use plain water without any additives.
In case of stubborn marks, a mild soap solution may
be used.
• In no circumstances should caustic cleaning products,
white spirit, thinners, petrol or similar be used for
cleaning.
• Clean the subwoofer regularly with a soft, damp microfi ber cloth. Please be absolutely sure to observe the
notes mentioned previously!
Disposal of the unit
Used units must not be disposed of with
household waste.
If the unit is no longer operational, every consumer is required by law to dispose of used
devices separately from household waste,
Protecting the environment
e.g. at a collection point run by the communal authority
borough. In this way it is ensured, that used devices are
properly recycled and that negative consequences on the
environment are avoided.
For this reason, electrical equipment is labelled with the
displayed symbol.
Page 7
7
• IP 300 SW / IP 3000 SW
Technical data
This product conforms with Council of the
European Union guidelines 2004/108/EC and
2006/95/EC.
Technical changes reserved!
Model IP 300 SW IP 3000 SW
Depth 36.50 cm 36.50 cm
Width 24.00 cm 24.00 cm
Height 42.00 cm 42.00 cm
Net weight 9.6 kg 9.6 kg
Page 8
Instruction No. 91904 EN 20110720
For questions, suggestions or criticism please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
Buelowstrasse 66
10783 Berlin (Germany)
Phone: 00800 - 200 300 40
(free of charge)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No responsibilit y is assumed for the
correctness of this information.
Technical changes, typographical
errors and other errors reserved.
