Page 1
Technical Description And User
Manual
Effect Wireless Speaker
Page 2
Contents
General Notes And Information ........ 2
Overview ............................................ 7
Setup .................................................. 8
Operation ........................................... 9
Troubleshooting ............................... 11
Technical Data .................................12
Declaration Of Conformity ..............12
General Notes And Information
Notice
The information in this document may
change without prior notice and in no
way constitutes any liability on the part
of Lautsprecher Teufel GmbH.
No part of this user manual may
be reproduced in any form or be
broadcasted in any way electronically, mechanically, by photocopy or
recording without the written permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0, September 2018
Original packaging
If you wish to exercise your eightweek right of return, we ask that
you be absolutely sure to hold on to
the packaging. We can only accept
product returns with the ORIGINAL
PACKAGING.
Empty boxes are not available!
Complaints
In case of a complaint we will need
the following information to process
your enquiry:
1. Invoice number
Can be found on the sales slip
(enclosed with the product) or on the
order confirmation received as a PDF
document, e.g. 4322543
2. Serial number or batch number
Located on the back side of
the device, e.g. serial no.:
KB20240129A-123.
Thank you for your support!
2 • Effect
Page 3
Contact
Please contact our customer service
department with any questions,
suggestions, or complaints:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Telephone:
00800 200 300 40 (toll-free)
Fax:
+49 (0)30 / 300 930 930
Online support:
www.teufelaudio.com/service
Contact form:
www.teufelaudio.com/contact
Before operating the product
for the first time, please read
the safety notes and user
manual carefully. Only in this way,
you can ensure that all functions are
used in a safe and reliable manner.
Store the user manual in a safe place
and also be sure to pass it on to any
subsequent owner.
Proper use
The wireless speakers are designed
for the playback of audio signals
from an external player via wireless
connection.
Only use the wireless speakers as
described in this user manual. Any
other use will be deemed as not in
accordance with the instructions and
may lead to damage to property or
even persons.
The manufacturer accepts no liability
for damage caused by improper use.
The wireless speakers are intended
for domestic use.
NOTICE
Check that all items have
been delivered and that
nothing is damaged. If you
find any damage, do not
operate the device; instead
contact our customer service
department.
3 • Effect
Page 4
Explanation of terms
You can find the following signal
terms in this user manual:
CAUTION
This signal term indicates a
low risk, which, if not avoided,
may result in minor or
moderate injury.
NOTICE
This signal term warns you of
potential damage.
Safety notes
This chapter contains general safety
notes which you should always
observe to protect yourself and third
parties. Also observe the warning
notes in each chapter of this user
manual.
Touching live parts can result in
severe injury or death.
• When connecting the device, make
sure that the correct voltage is
present. You can find more information about this on the rating plate.
• Regularly check the device and the
mains adapter for damage.
Immediately disconnect the mains
plug from the socket and do not
operate the device if its case is
defective or exhibits other visible
damages.
• This device is disconnected from
the mains by pulling the mains plug
out of the socket. Therefore make
sure that the socket is always
easily accessible.
• If the device emits smoke, smells
burnt or produces unusual sounds,
immediately disconnect it from the
mains and do not operate it further.
• Never open the device housing.
Repairs may only be carried out by
an authorised specialist workshop.
Only parts that match the original
specifications may be used.
• Only use the accessory products
specified by the manufacturer.
• Never modify the device. Unauthorised modifications may affect the
safety and functionality.
• Never touch the mains plug with
wet hands.
An unsuitable setup location may
result in injury and damage.
• Never use the device unmounted
in vehicles, in unstable locations,
on wobbly tripods or furniture, on
insufficiently dimensioned brackets
etc. The device could tip or fall
down and cause injury to persons
or be damaged itself.
• Arrange the device so that it cannot
be knocked over accidentally and
make sure that the cables do not
pose a tripping hazard.
• Do not place the device near heat
sources (e.g. heaters, ovens, other
heat generating equipment such as
amplifiers etc.).
• Do not use the device in environments where there is a risk of
explosion.
4 • Effect
Page 5
• Only use the wireless speakers
in locations where wireless radio
transmission is allowed.
Children can become trapped in
the plastic wrapping when playing
and suffocate.
• Do not allow children to play with
the device or the plastic wrapping.
There is a danger of suffocation.
• Never allow children to operate
electrical equipment unsupervised.
Extended listening at high volumes
may lead to hearing loss.
To avoid damage to health, avoid
extended listening at high volumes.
• When the volume is set high,
always keep a certain distance
from the device and never place
your ears directly on the speaker.
• If your external player is set to full
volume, it may produce very high
sound pressure. This may have
psychological consequences and
also cause physical injury. Children
and pets are particularly at risk. Set
your signal source device volume
to a low setting before turning on
the power.
This product contains magnetic
material.
• If necessary, consult your physician
and ask about effects on implants
such as pacemakers or defibrillators.
Improper use may lead to damage
or fire.
• Do not place open flames such as
burning candles or similar on the
device.
• Ensure sufficient ventilation.
• Do not expose the device to direct
sunlight.
• Only use the device indoors.
• Do not operate the device in wet
rooms and protect it from dripping
and splashing water.
Make sure that no vases or other
liquid-filled objects are located
on or near the device in order to
prevent liquid from penetrating the
housing. If water or other debris
have infiltrated the device, immediately pull the mains adapter out of
the socket. Then send the device to
our service address.
The isolation pads can produce
discolouration on sensitive
surfaces.
• On parquet, varnished wood and
similar surfaces, you should stick
felt gliders to the rubber feet of the
device or put a blanket under it.
This will prevent discolouration of
the floor over the long term.
5 • Effect
Page 6

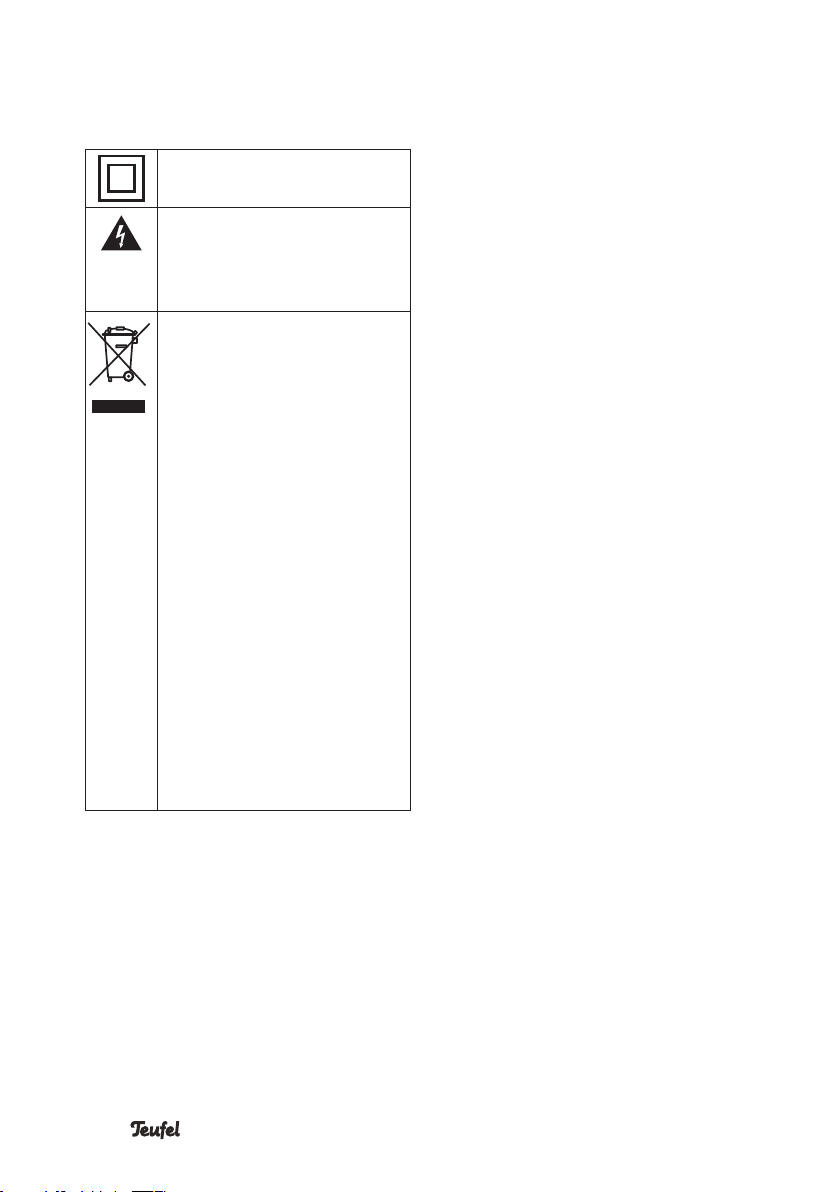

Explanation of symbols
Protection class II
Dual insulation
Risk of electrical shock –
do not open the housing.
Disconnect the mains cord
before changing a fuse.
Old devices must not
be disposed of with
household waste!
If the device is no longer
operational, every
consumer is required
by law to dispose of old
devices separately from
household waste, e.g. at
a collection point run by
the communal authority/
borough. This ensures that
old devices are recycled
in a professional manner
and also rules out negative consequences for the
environment.
For this reason, electrical
equipment is marked with
the adjacent symbol.
6 • Effect
Page 7

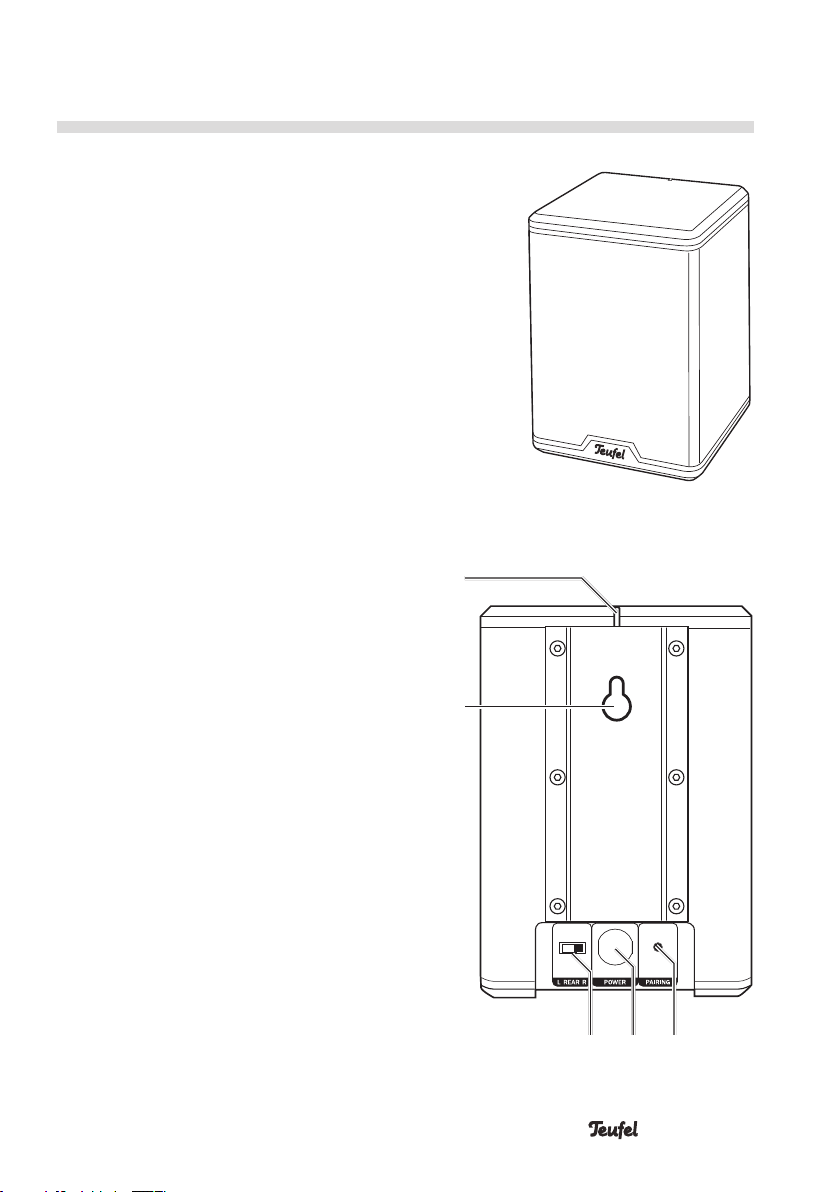

Overview
Package contents
(1) 2× “Effect” wireless speaker
• Check that all items have been
delivered and that nothing is
damaged. If you find any damage,
do not operate the device; instead
contact our customer service
department (see back side).
• Please keep the packaging for the
duration of the warranty period.

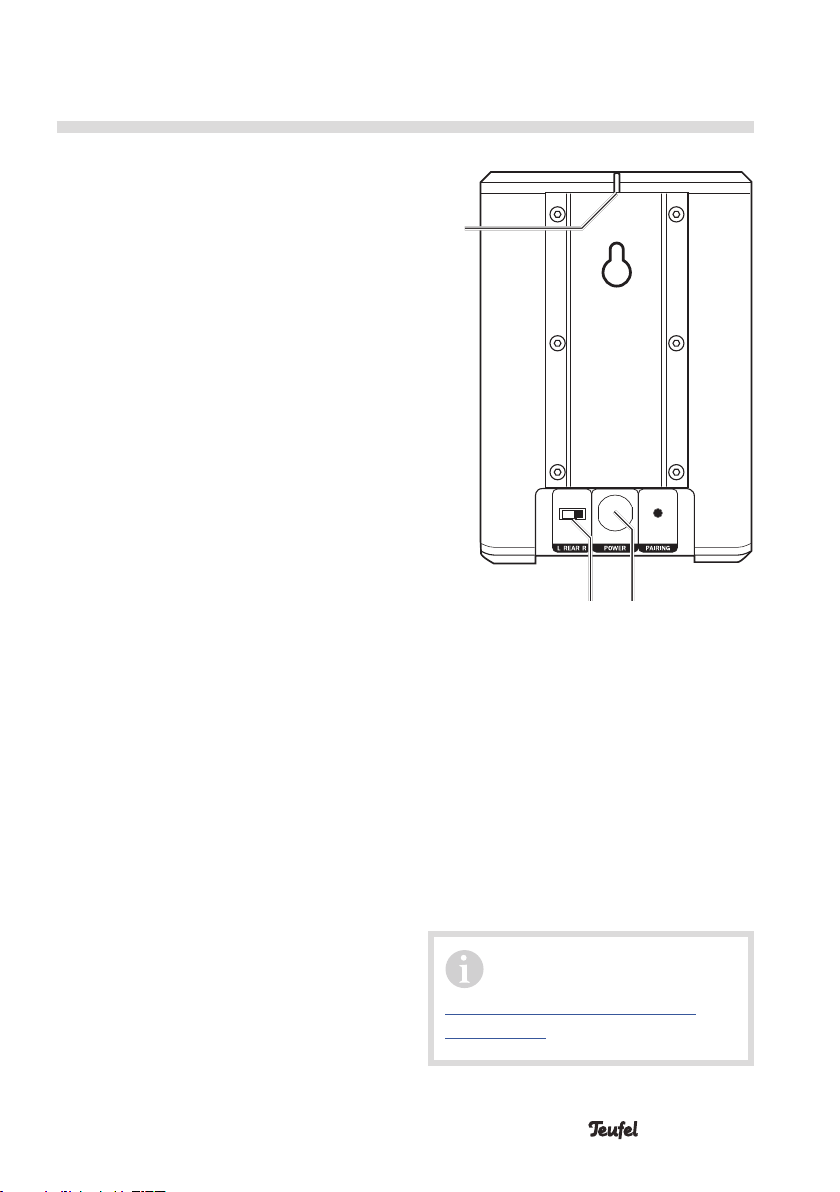

Operational controls
(2) Power indicator:
LED illuminates continuously in
white with the wireless connection.
Blinks slowly in white if there is
no connection to the external
player.
Blinks quickly in white in pairing
mode.
Illuminates in red in standby.
(3) Keyhole openings for wall
mounting.
(4) PAIRING: Establish a wireless
connection to the external player
(see chapter „First-time connection“ on page 10).
(5) Mains cord (approx. 4 metres
long).
(6) L REAR R: Toggle for the left or
right channel.
(1)
(2)
(3)
(6) (5) (4)
7 • Effect
Page 8
Setup
NOTICE
If the device is subjected
to warm temperatures after
being cold (e.g. after transport), condensation may occur
inside of it.
– In this case, wait approx. 2
hours before you connect
and activate it.
CAUTION
The device is disconnected
from the mains by pulling the
mains plug out of the socket.
– Therefore make sure that
the socket is always easily
accessible.
Location tips
• Make sure that the environment is
clean and free from dust.
• Select a location away from heat
sources and direct sunlight.
• Do not place any heavy objects on
the cables or the device.
• The wireless connection has a
maximum range of 50 m, but can
be obstructed by objects, walls and
other transmitters (Wi-Fi, DECT).

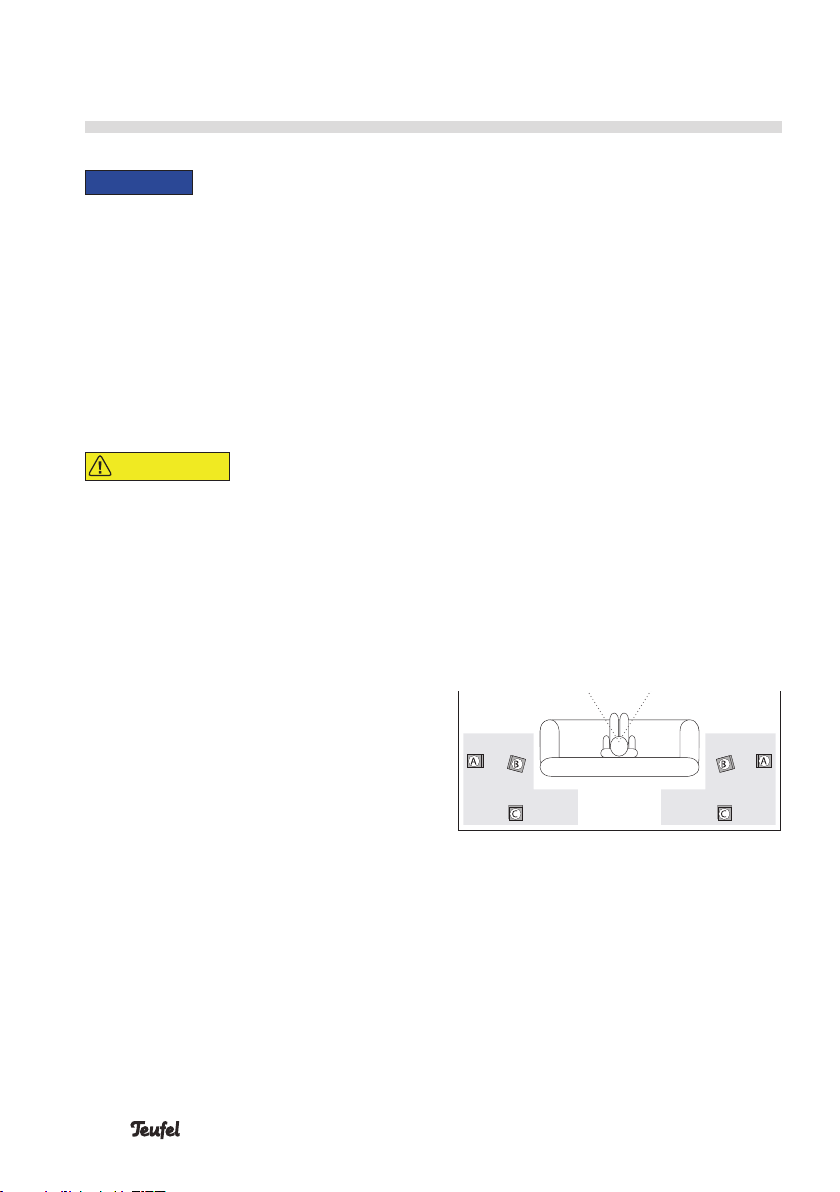

Rear speakers
As rear speakers, the wireless
speakers are set up or hung to the
side of or behind the listener at a
height of 1.20 m to 2.10 m (see the
grey areas in the graphic).
The ideal position is offset by approx.
20 degrees from the parallel position to the listener on the left and
right side (A). The distance between
the rear speakers and the listening
position should not be less than 1 m.
However, if you (need to) sit closer,
please ensure that the front side of
the speaker is not directly facing you.
Rather, the speaker must be angled
towards the wall (B). Alternatively,
you can create a greater distance
by placing the speakers higher than
1.20 m (e.g. also on the ceiling) or
further away (C).
8 • Effect
Page 9
Operation
Setting the channel
With the L REAR R switch (6), you
determine the stereo channel (right
or left) to be played back by the
respective wireless speaker.
This switch is only queried when
establishing the power supply. When
you modify the setting,
– pull the mains plug,
– wait until the power indicator (2) is
off,
– insert the mains plug back in the
socket.
Mains connection
1. Insert the plug of the mains cord
(5) in a mains socket (220–240
V ~/50 Hz).
• The first time you turn the wireless
speaker on, it will switch to pairing
mode and the power indicator (2)
will quickly blink in white.
• The power indicator (2) will slowly
blink in white for approx. 30
seconds. If no compatible transmitter is detected during this
period, the wireless speaker will
switch to standby mode and the
power indicator (2) will continuously illuminate in red.
(2)
(6) (5)
You can find further tips
and infos here:
https://www.teufelaudio.com/
service.html
9 • Effect
Page 10

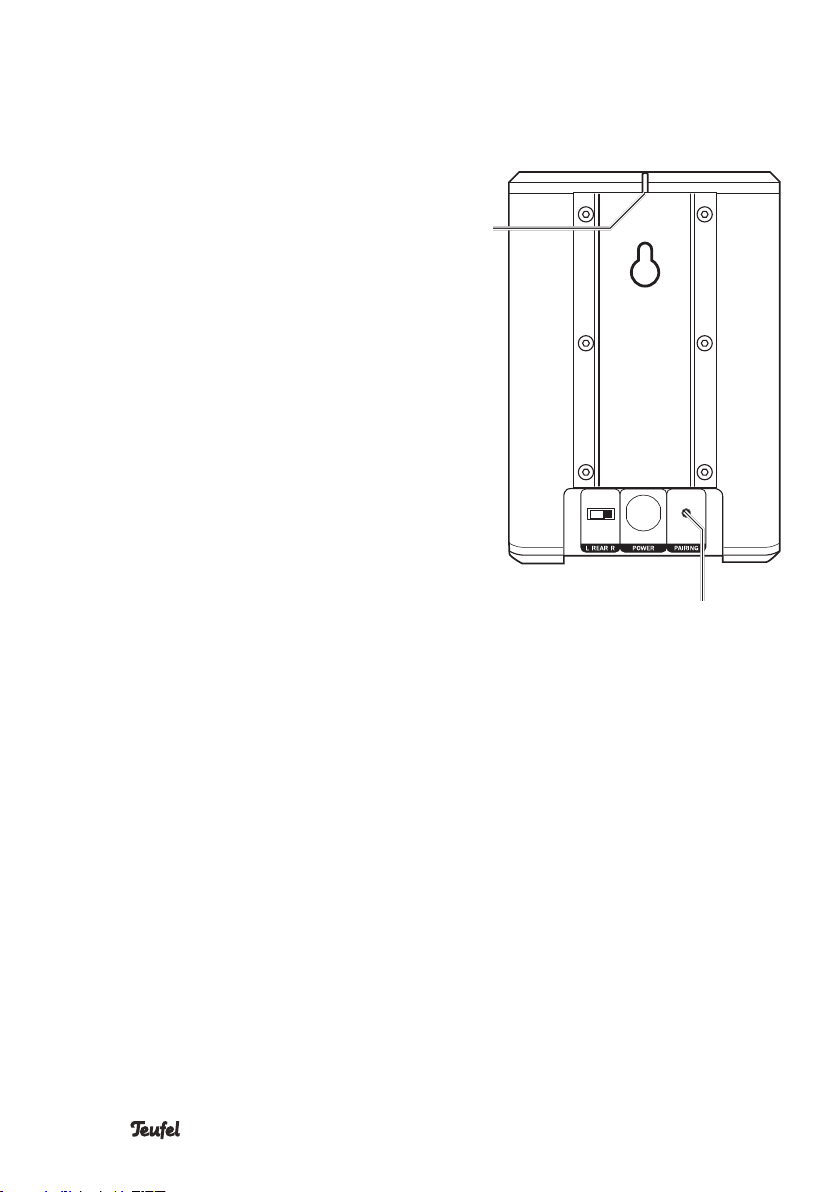

First-time connection
1. Hold the PAIRING button (4) down
until the power indicator (2) blinks
quickly in white.
2. Switch the transmitter unit
(receiver, transmitter) to pairing
mode. Please refer to the user
manual for the transmitter unit for
more information.
3. As soon as the Effect has found
a compatible transmitter, it will
connect with it.
The power indicator (2) illuminates
continuously in white then.
Automatic connection
• If the wireless speakers were
already connected to a compatible
transmitter, they will immediately
be connected to it.
The power indicator (2) illuminates
continuously in white.
• If there is no transmitter nearby or
if it is switched off, the Effect will
search for the transmitter.
The power indicator (2) will slowly
flash in white in the process.
• The connection will be established
as soon as you switch on the transmitter.
The power indicator (2) illuminates
continuously in white now.
(2)
(4)
Automatic activation/
deactivation
As soon as the wireless speakers
receive a signal from a connected
transmitter, they will switch back on
from standby mode.
If the signal is deactivated, the
wireless speakers will switch back to
standby mode after a short time. In
standby mode, the power indicator (2)
will be continuously illuminated in red.
10 • Effect
Page 11
Troubleshooting
The following advice should help you to solve problems. If this does not work, our
online manual will provide help:
https://manual.teufelaudio.com
Problem Possible cause/solution
The wireless
speaker’s power
indicator (2) does
not illuminate.
No sound. The volume has been set too low. Increase the volume on
No 5.1 audio. If e.g. a pure stereo signal is played, the rear speakers will
No connection Transmitter is off – switch the transmitter on.
The connection is
not automatically
established.
The transmission
is disrupted.
With stereo
sources such as
the playback of
radio or an MP3
player, the rear
satellites and/
or the center
speaker do not
emit sound.
Make sure that power is supplied. Check to make sure that
the mains plug is securely seated.
the transmitter.
remain mute. Then select a surround sound simulation such
as Dolby Prologic on the transmitter unit.
A “test tone” is suitable for testing the connection providing
your transmitter unit offers this function for adjusting the
level.
Distance is too great or objects are blocking the connection
signal. Correct the allocation of the devices.
Reconnect the devices (see chapter „First-time connection“
on page 10).
Other wireless signal sources (cordless telephones, Wi-Fi
stations or microwaves) affect the connection. Move the
devices causing the disturbance.
MP3s, radio as well as many TV programmes only transmit
stereo sound. Switch your receiver to a Pro-Logic mode or a
DSP mode (5.1 Stereo).
11 • Effect
Page 12
Technical Data
Operating voltage 220–240 V~/50 Hz
Power consumption max. 40 W
Dimensions (W × H × D) 113 × 162 × 115 mm
Weight 1.2 kg
The following radio frequency bands and radio transmitting powers are used in
this product:
Frequency bands in MHz Max. transmission power in dBm
2.40535 GHz–2.47735 GHz 1 mW / 0 dBm
You can find further technical data about the product on our website.
Declaration Of Conformity
Lautsprecher Teufel GmbH hereby declares that this product complies
with the requirements of the directives 2014/30/EU, 2014/35/EU
and 2014/53/EU to the extent they are installed and used in accordance with the instructions of the manufacturer. The full text of the EU declaration
of conformity is available at the following Internet address:
www.teufelaudio.com/konformitaetserklaerungen.html
12 • Effect
Page 13
13 • Effect
Page 14
Please contact our customer service department with any questions, suggestions, or complaints:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Telephone: 00800 200 300 40 (toll-free)
Fax: +49 (0)30 / 300 930 930
Online support: www.teufelaudio.com/service
Contact form: www.teufelaudio.com/contact
No responsibility is assumed for the correctness of this information.
Technical changes, typographical errors and other errors reserved.
Manual no. 196625 GB 20180906
Loading...
