Motiv 5 Digital
Page 2
Technical specifications and operating instructions
Motiv 5
PC/multimedia/home cinema system with integrated 5.1 amplifier and remote control
Page 3
For your information
The information in this document may be changed
without advance notication and does not repre­sent any obligation on the part of Lautsprecher
Teufel GmbH.
No part of these operating instructions may be copied in any way, whether electronically, me­chanically, using photocopies or recordings, or transferred without the prior written agreement of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.6 August 2010
Original packaging
We recommend that you keep the packaging if
you want to use the eight-week right of return
because we can accept the loudspeakers only IN THEIR ORIGINAL PACKAGING. Empty boxes are not
available.
Trademark
® All trademarks are the property of their respective owners.
Technical data
Technical data can be found on our homepage at:
www.teufelaudio.com
Warranty terms
12 year warranty for speakers and 2 year war­ranty for power ampliers and electronics (from purchase date) on materials and work time, with the exception of damage caused by incorrect use
or electrical or mechanical overload. An original
copy of our invoice is required as the warranty document. This warranty is exclusively valid for speakers, power ampliers and electronics that have been purchased from Teufel for private use
by end customers. The warranty is not valid for
speakers, power ampliers and electronics that the end user has purchased from a different dis­tributor. If the Teufel product is sold on privately, the warranty may be transferred to the purchas­er, providing that the original proof of purchase is
also transferred.
Returns
Teufel provides an eight-week right of exchange or return with reimbursement of the full purchase price paid. The return of individual components from a set is only possible if these components are also of­fered for sale separately by Lautsprecher Teufel. If one or more components are returned, any pri­ce discount given by Lautsprecher Teufel on all components in a set as part of the price for the set is waived. For the components returned, cu-
stomers shall therefore be refunded only the dif-
ference between the set price and the purchase price of the individual components that they retain. The nancial outcome for customers is as if they had bought the remaining components at the individual price from the outset.
· Motiv 5
Contact
Please contact our service department if you have any questions, suggestions or if there is
anything you think we could do better.
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen · Buelowstraße 66 10783 Berlin (Germany)
Ph .: 00800 200 300 40 Fax:+49(30) - 300 930 930
www.teufelaudio.com
You can nd more information on the subject of returns on the returns form that accompanies the delivery or online in the support area of our
website www.teufel.eu.
If you need to return an item, do not act without the prior agreement of Lautsprecher Teufel.
We can only process and accept returns if you have informed us first by phone and discussed the procedure with us!
Page 4
Contents
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Set-up
PC system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Home cinema system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
Connection
Satellites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
5.1 sound card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
DVD player/recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 12
Stereo sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
AV receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 14
Set-up
DVD player · Receiver ¦ Decoderstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15
Operating elements on the subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16
Start-up · remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18
Frequently asked questions · Cleaning · Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20
Manual Version 1.6
· Motiv 5
3
Page 5
Safety information
Please read the following
safety information carefully.
Risk of suffocation – keep
packaging materials
(e.g. the plastic lm) out of the
reach and sight of children.
Risk of electrocution – do not
leave children unsupervised with
electrical appliances!
In case of emergency:
If any of the following occur, disconnect the appliance from
the mains and consult our tech-
nicians:
4 If the plug or cable are da-
maged
4 If foreign bodies or liquid
have entered the appliance
4 If the appliance has been in
direct contact with rain or other water
4 If the appliance does not
play, even though you have followed the operating in-
structions
4 If the appliance has been
dropped or damaged in
some other way
We cannot accept any responsi­bility for incidences that occur because safety information has not been adhered to.
Important: Please read through these operating instructions very carefully. It is essential that you take note of all of the sa­fety information and operating instructions before switching on the appliance. Please keep these operating instructions in a safe place for future reference.
Important: Please read the operating instructions. You should also follow all instructions for start-up and ongoing use.
Information on cleaning: Please do not attempt to clean the appliance using household chemicals because they could dama­ge its surface. Simply use a dry cloth. Disconnect the appliance
from the mains before cleaning.
Caution - moisture and sunlight: Never operate the appli­ances in damp rooms, i.e. close to baths, showers, wash basins, drains, damp cellars or swimming pools; never use them where there is moisture. Never expose the speakers to high air humi­dity and avoid direct sunlight. Do not expose device to dripping or splashing water. Do not place objects lled with liquids, such
as vases on the device.
Information on location: Do not use the appliance unsecured in vehicles, in unstable places, on wobbly tripods or furniture or supports that are too small. The speakers could fall and cause damage to people, including yourself. Speakers, particularly if positioned on st ands or on the TV/monitor, may fall and cause damage due to their weight, even if they have been positioned securely and stably, as a result of external inuences (pulling on the cable, tripping over the cable, unintentional physical contact). This also applies to wall supports that have been atta­ched inappropriately or incorrectly to walls that may not be ca­pable of supporting their weight. Only use suitable wall brackets
for mounting. Make sure that you know how much weight the
walls can bear. The appliance must not be placed near sources of heat. This includes radiators and heaters, ovens and other appliances that emit heat (e.g. ampliers). Sources of heat, such as fan heaters or candles, should not be placed on the speakers.
For ventilation: Slots and openings in the case have been provided for ventilation. Their purpose is to guarantee reliable operation and to prevent the appliance from overheating. These openings must not be blocked or covered, including by placing the appliance on a bed, sofa, carpet or other soft surface. Do not place any newspapers or table cloths, etc. on the appliance. The cooling plate of the amplier electronics must not be covered or exposed to direct sunlight. Additional active cooling of the appliance is generally not permitted.
Electrical supply: The subwoofer must only be supplied from a power source with the correct voltage as specied on the iden­tication label. If you are unsure about the electricity supply in your home, please contact us or your electr icity supplier for more information. The appliance does not need to be grounded. Please only use the appropriate mains cable for connecting to the mains socket. This mains cable must not be modied under any circumstances. Regulations on polarity and earth connec­tion must be adhered to. Use only an appropriate mains plug for
receiving the mains cable.
This appliance uses the main plug as separating device. In order to completely disconnect the device from power supply, please pull the plug from the mains. The mains plug must be easy ac-
cessible.
Information on wiring: Please place the supply cable flat and flush to the wall and floor. Cables that are laid loosely represent a risk of tripping. This could also result in interference and cau­se the sound to be disrupted. The electricity supply cable should be laid so that it is not likely to be stepped on or squashed from the sides or above by heavy objects. Damaged cables must be replaced. Pay particular attention to the cable/plug connection, the mains socket and the cable output from the subwoofer. The power supply cable and the cables that connect the speakers should be checked regularly for insulation faults or breaks. If a fault is discovered, the appliance and the cabling must be dis-
connected from the mains immediately and the defective cable
must be replaced. Make sure the power switch is in the »off« position before connecting or disconnecting the device.
During periods w ithout use: Remove the subwoofer’s power supply cable from the socket for longer periods of absence or
non-use.
During thunderstorms: In order to avoid damage caused by lightning strikes, the appliance should be switched off and also
detached from the mains socket as soon as a thunderstorm is
expected.
Risk of overload: You should not overload wall sockets, exten­sion cables or integrated appliance sockets, because this could potentially lead to short circuits and even res. You should also avoid turning up the volume very high on the relevant amplier, especially if you have increased the bass using the bass control, the loudness button or one of the deep bass boost switches.
Foreign bodies and liquids: Foreign bodies and liquids must
not get into the appliance via its openings under any circum­stances, as they could come into contact with parts carrying high voltages, which could then cause short circuits and res. Therefore do not spill any liquids of any kind on the appliance. Do not attempt to repair the appliance yourself. The appliance must be sent to our service depar tment for repair.
Information on spare parts: Lautsprecher Teufel will provide you with spare parts during the warranty period. Your warranty will not be invalidated if you replace the parts yourself on-site using Lautsprecher Teufel spare parts.
Unusual sounds: If any unusual sounds occur during use or the sound becomes distorted, the speaker output must be reduced immediately so that the system plays an undistorted sound.

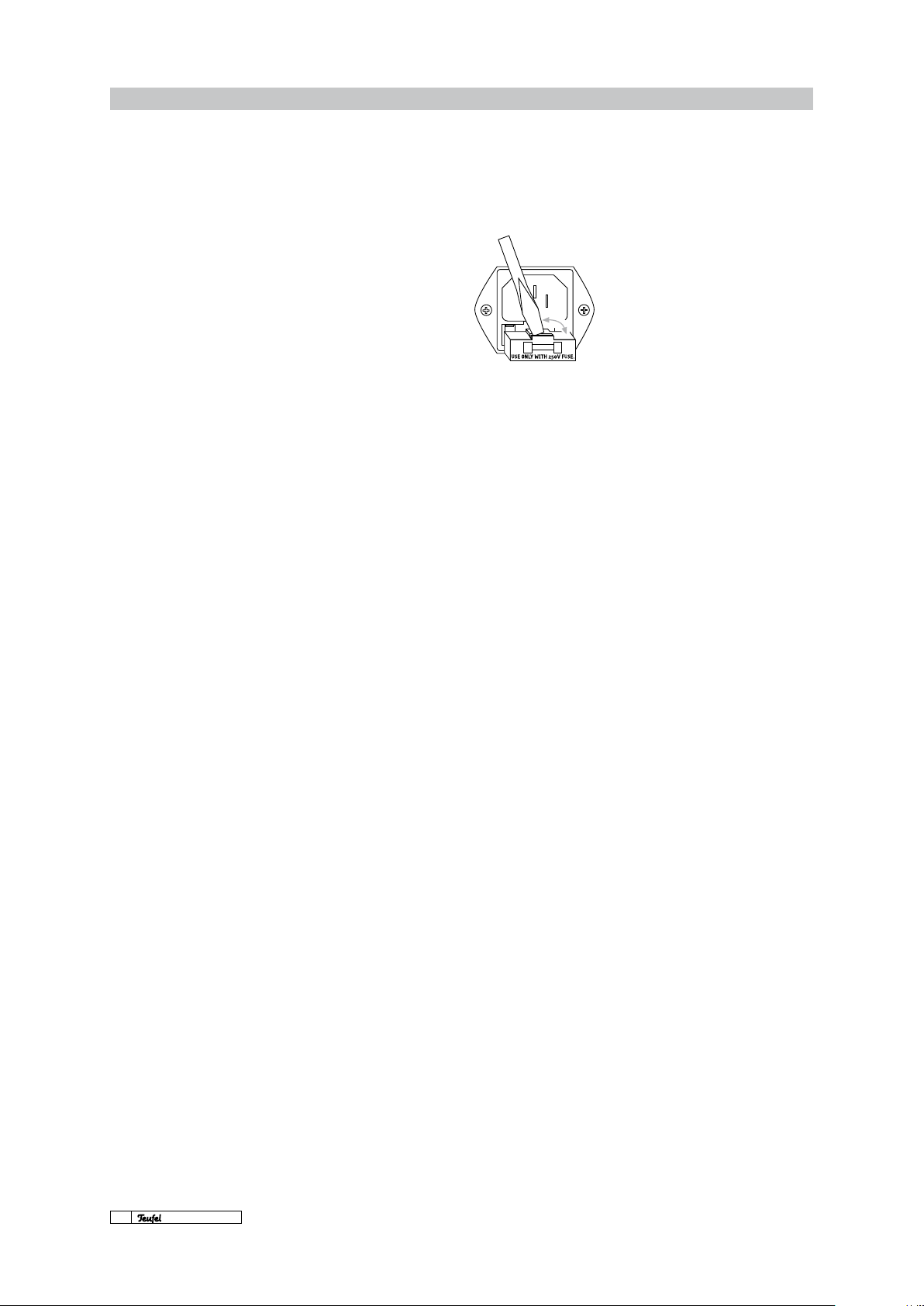

Connecting and changing the fuse: Disconnect the mains plug. A faulty fuse may only be exchanged for one of the same type.
Information on volume: Loud noises can damage hearing. Sud­den high pressure may be created, par ticularly if a subwoofer in “Standby/Auto On” mode is switched on by a bass impulse at full volume. In addition to physical damage, please be aware of possible psychological consequences. Children and pets require particular care. If necessary, set the volume control of your signal source appliance to the lowest level. At high volumes, al­ways keep a certain distance from the appliance and never have your ears right next to the speaker.
4
· Motiv 5
Page 6
Instruction Motiv 5
Dear Lautsprecher Teufel customer,
Thank you for purchasing this Motiv 5 system.
With this speaker set from Teufel, you have cho­sen an elegant and powerful multimedia home entertainment system that, despite its compact dimensions, delivers excellent sound quality.
This set can be operated either with a multichan­nel AV receiver/amplier (partially active) or inde­pendently, without an additional amplier (fully active) through a PC or DVD player with decoder. Stereo sources, such as MP3 players, satellite re­ceivers, TV sets, games consoles, CD players or DJ mixers, can also be excellently used with the
Motiv 5.
The Motiv 5 subwoofer features six integrated power ampliers. One for the integrated bass speaker and ve for the satellites. There is an an­alogue 5.1 input on the back for direct connection of compatible sound cards, DVD players, a decod­erstation or receivers with subwoofer pre-out.
Please write down the serial number that can be found on a sticker on the box and the invoice number here:
The set comes equipped with all of the individual parts required for surround reproduction. You only have to provide the cables and a source of the signal, for example via a DVD player with ana­logue 5.1 outputs. A selection of suitable cables
can be found on our website www.teufelaudio.com
in the “accessories” area.
Because the set-up has a decisive inuence on
the sound characteristics of any surround sys-
tem, we recommend that you take the time to position all of the speakers correctly. These oper-
ating instructions contain all of the information
you need for correctly setting up and operating
your Motiv 5 multimedia home cinema set.
Before operation, please read these instructions carefully and store them in a safe place for fu­ture reference. We recommend that you keep the packaging.
My INVOICE NUMBER is
......................................................................................
My  is
......................................................................................
The serial number and the invoice number make
it easier for us to process your request quickly if
you require service.
If you encounter difculties during operation or
if you think that there is something wrong with
the appliance, please read the “Frequently asked questions” section on pages 18 to 20 carefully. You can nd answers here to the most frequently
asked questions.
Please take a note of the serial number and invoice number
· Motiv 5
5
Page 7

First please check that the
system is complete.
Please keep the boxes for at
least the eight-week return
period, as we can ONLY repay
the full purchase price if the products are returned in the
ORIGINAL PACKAGING in which
inappropriate replacement of
the battery. Replacement only
by the same or an equivalent
type. Do not expose batteries to
excessively warms as sunshine,
If you plan to not use the device
for a longer period of time: Remove the batteries from
remote control and store them
appropriately to prevent possible
Please note
they were supplied.
Explosion hazard with
damage from leaking.
Warning:
re or like.
Unpacking
Fold back the aps on the top of the box, remove the polystyrene packaging and carefully lift each loudspeaker out of the box.
We recommend retaining the boxes in order to ensure safe transport for any later servicing.
The Motiv 5 is supplied as a complete system.
Contents

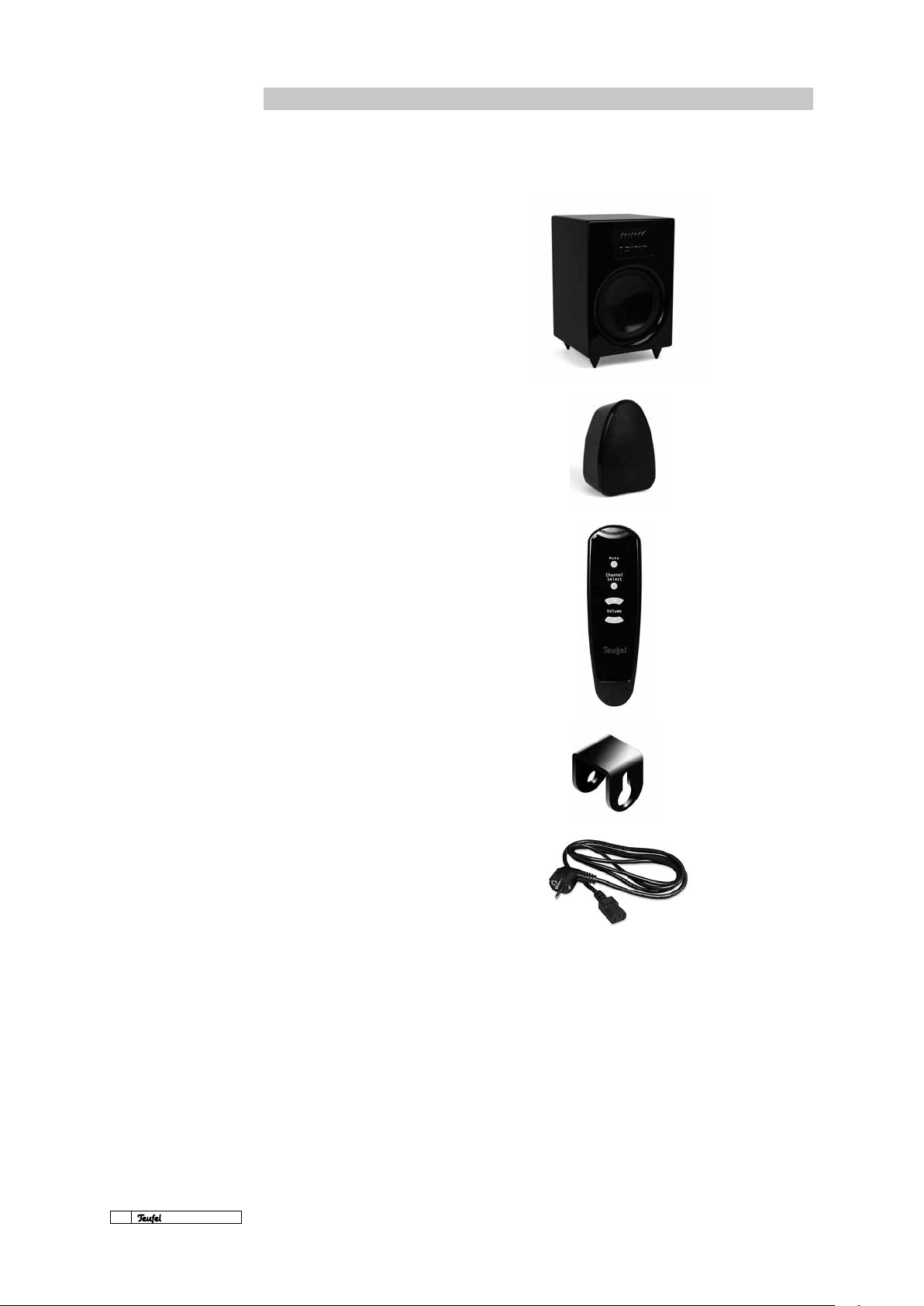

41 x Motiv 5 subwoofer A 500/6 SW with integrated 5.1 amplifier
45 x identical Motiv 5 satellite speakers MO 5 FCR
41 x Motiv 5 remote control A 500 RC incl.
batter ies
45 x U-shaped profiles for attaching the satellites to the wall brackets/bases
4Screws, for mounting speakers
420 rubber feet for the satellites
41 x IEC cable for AC power supply
3Subwoofer

35 x satellite
speakers MO 5 FCR
3 Motiv 5
remote control

*
All optional accessories can
easily be ordered as required,
e.g. from the accessories area
6
on our website:
www.teufelaudio.com
· Motiv 5
3U-shaped profile
3IEC cable

Due to varying customer requirements, the Motiv 5 is supplied without any accessories. Suitable optional accessories for the system are shown on the next page.
First please check that the system is complete.
Page 8


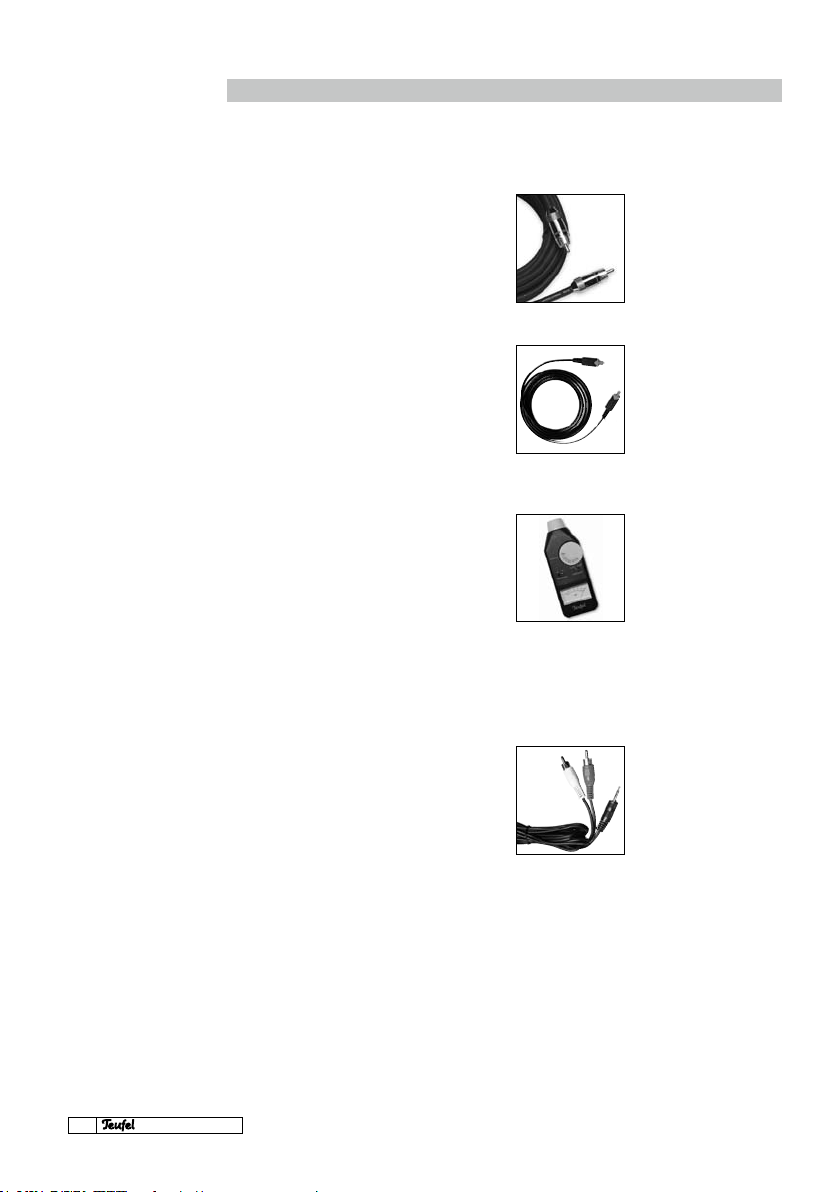

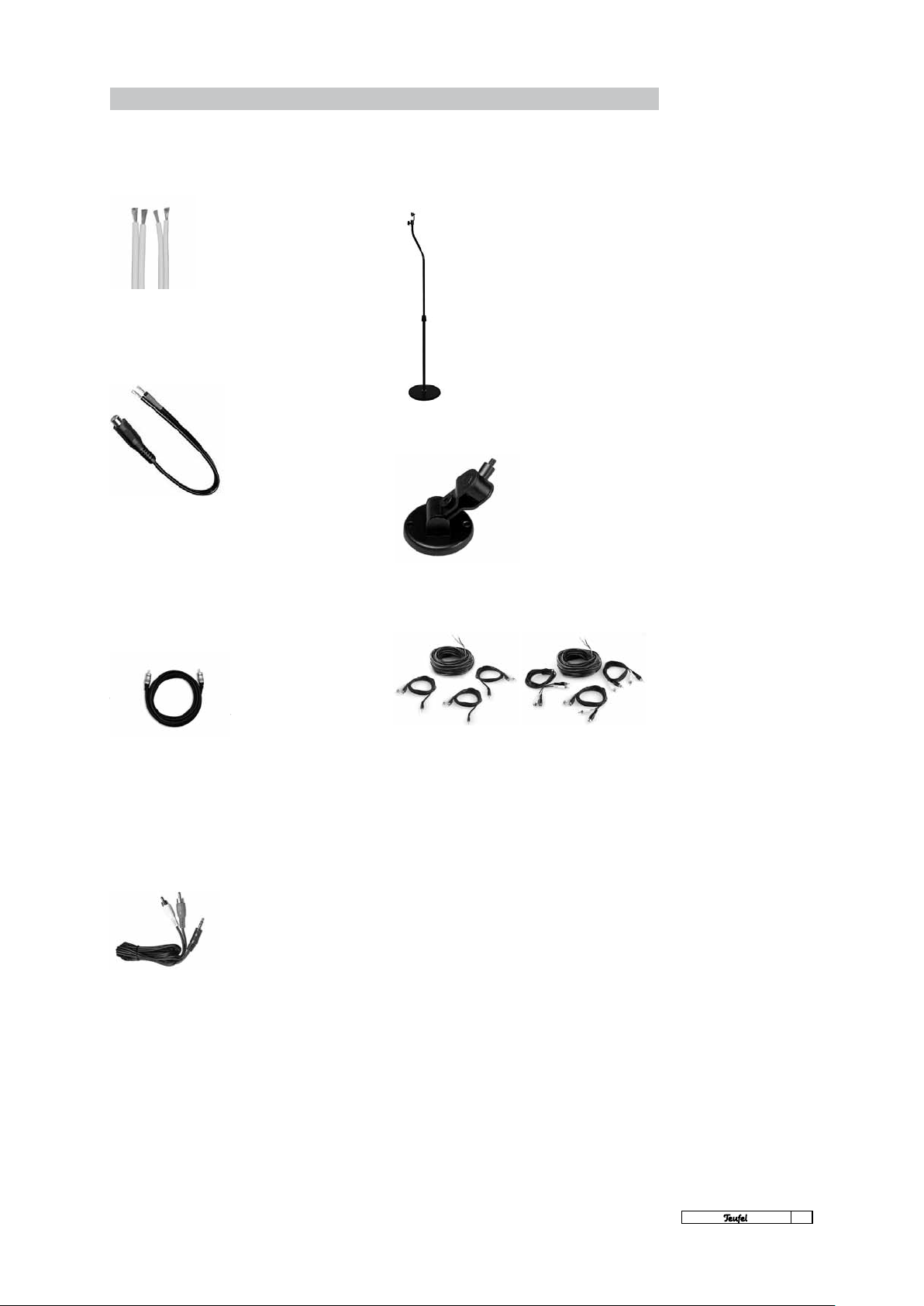

Teufel speaker cable 2 x 2.5 mm
2
The highly exible, unilat­erally marked OFC cable has sufcient diameter to
ensure unhindered bridg-
ing up to 15 meters. The white casing is inconspic-
uous, and is offered as a cable roll in two lengths:
15 or 30 meters.
Teufel voltage reducer
Specially developed ca­ble adapter from Teufel.
Allows the Motiv 5 to
be connected to ampli- fiers/receivers that do not have a specific sub­woofer line output (Sub
out) in cinch format, but only standard speaker outputs (e.g. older stereo amplifiers). A speaker cable [+] and [–] is adapted to a cinch jack. You will need two pieces for stereo amplifiers.
Teufel Subwoofer Cable
Special RCA cable - de­veloped for use with the
subwoofer. The best con­nection between an active
subwoofer and an AV Re­ceiver. Protected via high-
quality shielding against interference from other
sources, with stable gold-plated connectors to pro­vide secure contact. The cable is available in three
different lengths, so your subwoofer can truly stand whereever you’d like it.
Base Teufel M 50 P
Slimline, height-adjustble
base for the Motiv 5
satellites. The speaker
cable can be hidden inside the base.
Height: 80 – 120 cm
Design: metal, black or
silver
Shortlock wall bracket This bracket makes it easy
to mount the satellites using the thread in the
speakers. The bracket
allows free horizontal
and vertical positioning.
Available in black and silver.
Teufel cable packages
We have complete cable packages which make it
easy to connect the Motiv 5 set to your source
appliance. There are a range of sets, with different types and
lengths of cables.
You can order the accesso­ries shown here from Teufel online at:
www.teufelaudio.com
Teufel Y adapter cable
For sound connections
to PC or portable CD/MP3
players for amplifying
the Motiv 5 set. The 3.5
mm plug makes it easy to
connect a sound card. You
need one adapter for fully
active operation on a PC
in stereo and three for surround mode.

3 x stereo cinch ĕ mini-jack cables for sound cards plus 20-metre speaker cable (0.75 mm2)

3 x stereo cinch ĕ mini-jack cables for sound cards plus 30-metre speaker cable (1.5 mm2)

3 x stereo cinch cables for DVD player/ Decodersta­tion plus 20-metre speaker cable (0.75 mm2)

3 x stereo cinch cables for DVD player/ Decodersta­tion plus 30-metre speaker cable (1.5 mm2)
· Motiv 5
7
Page 9
Set-up: PC system
General information on configuration
Because of its compact size and elegant design, it’s easy to integrate the Motiv 5 harmoniously into your home. For a surround set, however, there are some set-up criteria you need to ob­serve, in order to get the best sound from your Teufel speakers.
The recommended set-up on the following pages represents the best possible arrangement for perfect multichannel playback at home. Your available space, your partner or furniture may not always permit such ideal placement. Try to meet as many requirements as possible. Modern AV receivers and DVD players or the sound card software of a PC offer lots of opportunities to electronically compensate for any restrictions in the set-up. Generally speaking, the following rule applies: You can always use our recommendations to experiment with what works best acoustically and optically. Let your ears (and eyes) decide!
Setting up the Motiv 5 as a PC system
When using the Motiv 5 as a PC sound system, it is
advisable to focus on the sound requirements of
the PC workplace, i.e. the area where the screen
and receivers are located.
Because the centre reproduces actors’ dialogue, this speaker must be positioned as centrally as possible under/over/next to/on top of the moni-
tor and inclined or angled towards the listener.
The front speaker is attached next to the moni­tor at the same distance from it or the reception
area left and right or attached to the wall. Attach-
ment at ear height is optimal, but anything in the range between 0.80 and 1.60 metres is accepta­ble. If the values are outside of the recommended range, you can slightly tilt the front speaker.
The location of the subwoofer is freely selectable and does not affect the other speakers. Place­ment within a straight line between the two
front satellites is usually ideal. The rear speakers should be behind or next to the listening posi­tion – ideally at the same height or higher (max.
2.10 metres). We do not recommend placing them
lower.
Example set-up of a Motiv 5 being used as a PC sound
system.
Imperfect placement because of
different distances and heights
can be compensated for in the
setting options of the sound
card’s control software.
Place the front and rear
speakers in the grey area.
Front left
Rear left
Subwoofer
Centre
Front
right
Rear
right
8
· Motiv 5
Page 10
Set-up: Home cinema system
Setting up the Motiv 5 as a home cinema sys­tem
When using the Motiv 5 as a home cinema system,
we recommended that you focus on the section of
the room where the TV and seats are located. It is useful to position the screen as centrally as pos­sible, from the perspective of the viewer/listener.
Because the centre reproduces actors’ dialogue, this speaker must be positioned as centrally as possible under or over the TV and inclined
or angled towards the listener. Using the old stereo tradition (distance to listener = distance
between the left and right speaker), the front speakers are set up next to the TV with the same distance to left and right or xed to the wall. The M 50 P bases are ideal for this purpose, as
are the Microlock or Shortlock wall brackets. Us-
ing the base automatically guarantees optimum playback height for satellite boxes. The Shortlock
brackets allow horizontal and vertical alignment to the listener.
The following apply to wall or shelf placement: The set-up heights should be between 40 centimetres and 1.20 metres. If the values have to be outside of the recommended range, you can slightly tilt the front speaker towards the reception area. It is important that the centre and main speakers are placed in an even arc, possibly slightly curved
towards the TV.
The location of the subwoofer is freely selectable and does not affect the other speakers. Place­ment within a straight line between the two front satellites is usually ideal.
The two rear speakers should be set up to the left
and right either to the side or behind the listen-
ing position – ideally at a height of no more than
2.10 metres, e.g. on a shelf or directly on the wall
using the Microlock or Shortlock wall bracket. The
speakers can be set-up at the same height as the front speakers using the M 50 P bases; but we ad-
vise you not to locate them lower.
The optimum positioning is left and right from
the listener (A) at around 20 degrees from the
parallel. We always recommend that the distance between the rear speakers and the listening loca-
tion is more than 1.00 m. But if you (have to) sit
closer, please ensure that the front of the speaker is not pointing directly at you but rather angle the speakers more towards the wall (B). Or create a greater distance by positioning the speakers
higher than 1.20m (this can also be on the ceiling)
or further away (C).

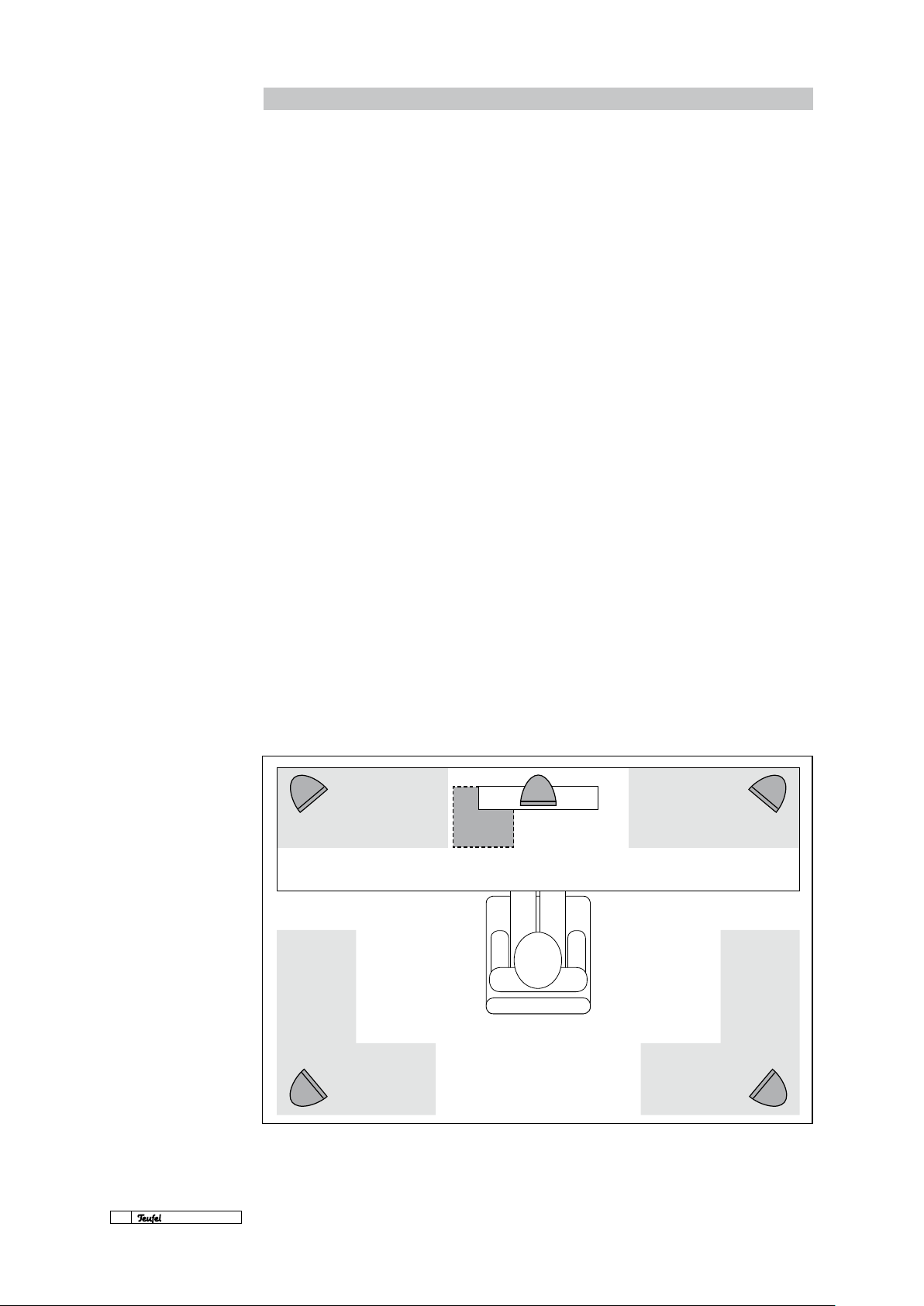

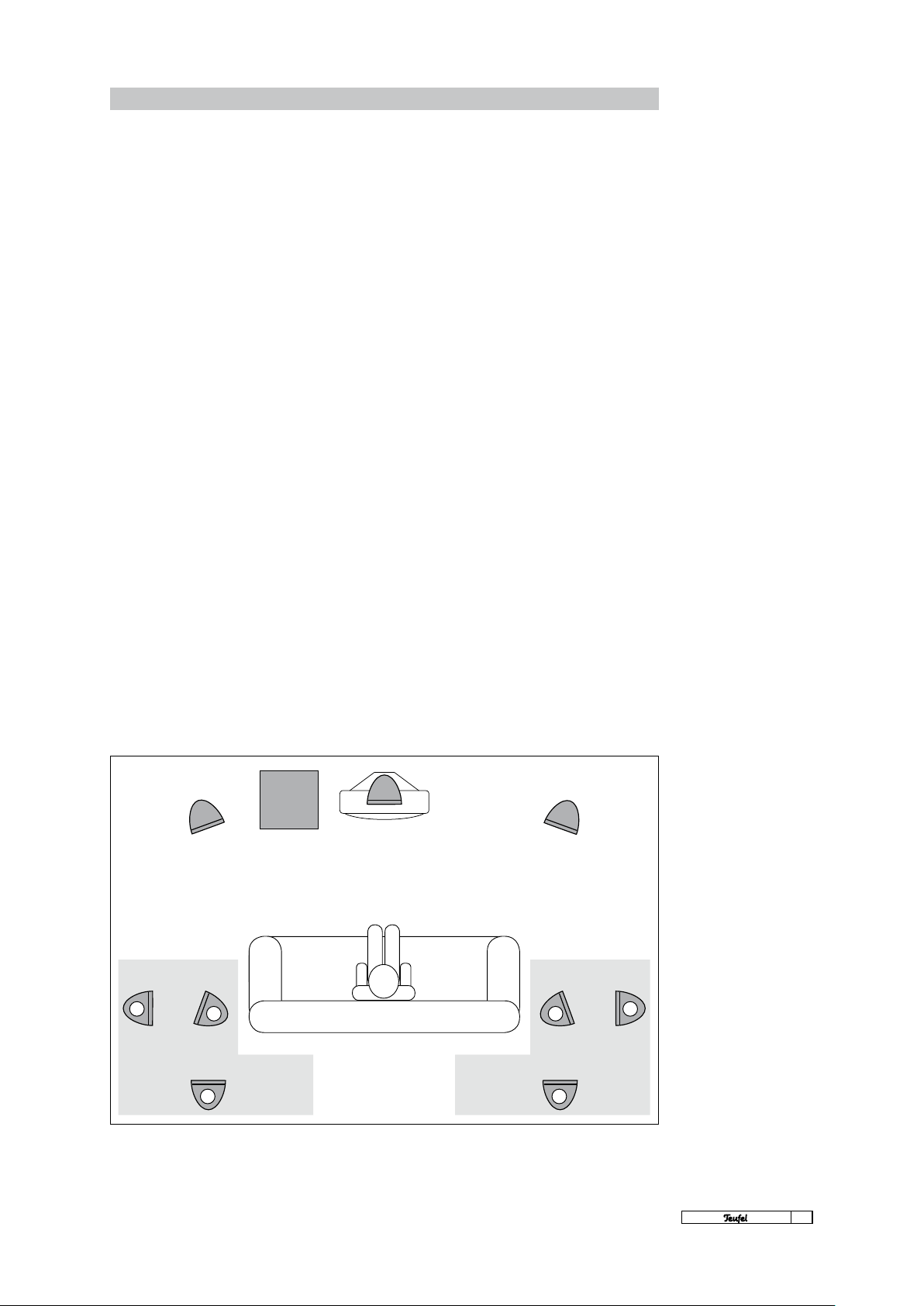

Example set-up of a Motiv 5 being used as a home cinema system.
Imperfect placement because of different distances and heights can be compensated for using the setting options in the AV receiver’s speaker management settings.
Please position the rear speakers within the grey area.
A
Rear left
Front left
C
Subwoofer
Centre
Front
right
B
B
C
A
Rear
right
· Motiv 5
9
Page 11

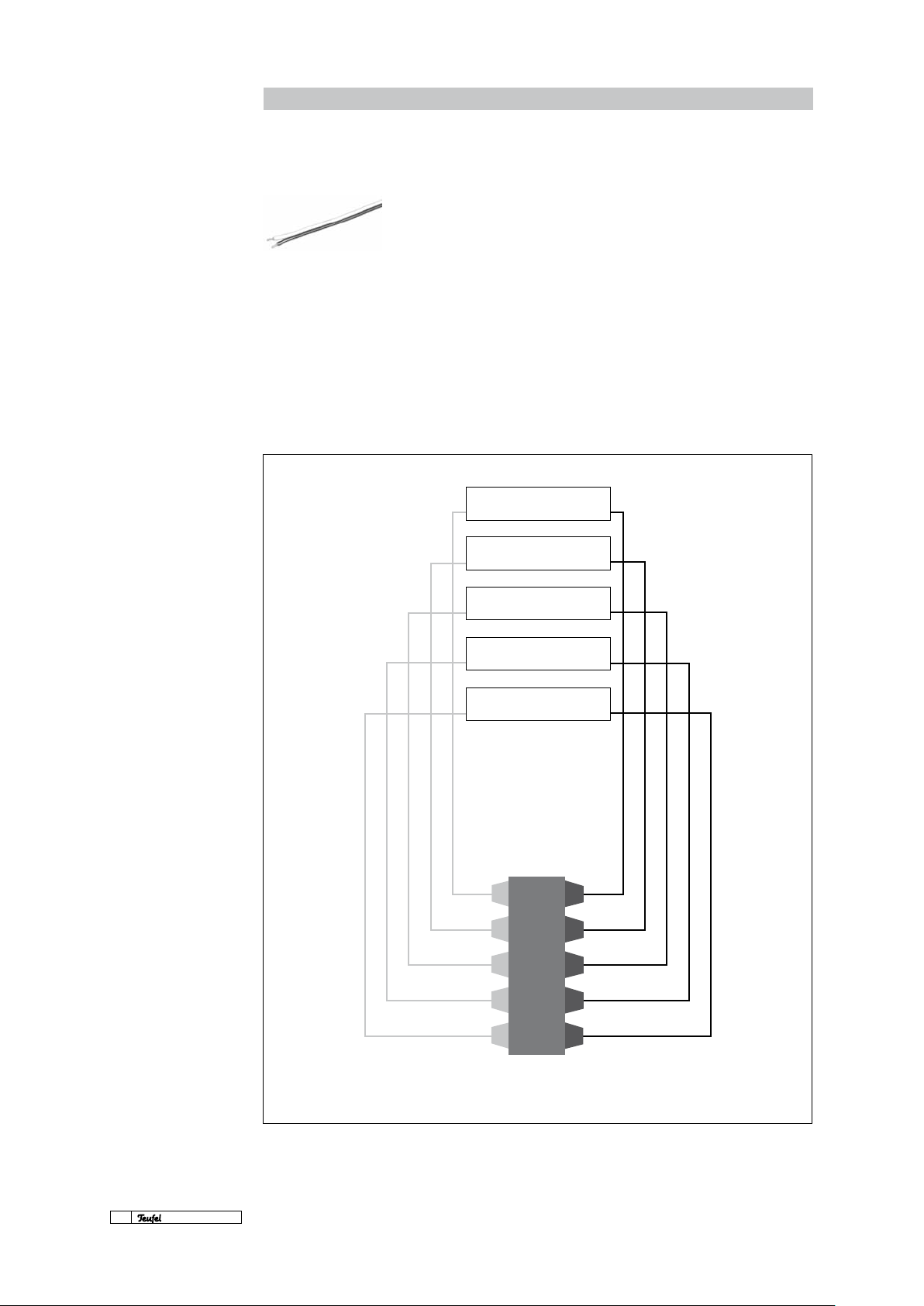

Connection: Satellites
Connecting the satellites
For connecting the satel­lites cut the cable to the
required lengths. Strip
the plastic coating from the ends of the speaker cables (as shown). The speakers and amplier have corresponding [+] and [–] terminals. The [+] cable of the speaker ca­ble is marked with a stripe. It is important that you observe the correct polarity when connect­ing the speakers: the plus pole of the speaker to the plus pole of the amplier and the minus pole of the speaker to the minus pole of the ampli­er. Connecting the cables with the incorrect
FRONT SPEAKER
+
FRONT SPEAKER
+
phases can result in thin sound, weak bass and
reduced stereo characteristics. For multichannel
surround systems, it is also important that all speakers are connected with the correct polarity in order to ensure an appropriate three-dimen­sional atmosphere and the correct alignment of
the sound.
Connect the speakers to the correspondingly marked clamp connections on the rear of the subwoofer; i.e. the front left speaker to FL and the rear left speaker to RL and so on.
LEFT
RIGHT
REAR SPEAKER
+
LEFT
REAR SPEAKER
+
RIGHT
CENTRE
+
CONNECTOR PANEL,
SUBWOOFER
REAR SIDE
FRONT
+
+
+
+
+
LEFT
FRONT RIGHT
REAR
LEFT
REAR
RIGHT
CENTRE
10
· Motiv 5
SPEAKER LEVEL OUTPUT
Page 12
Connection: 5.1 sound card
Connection to a 5.1 sound card
The Motiv 5 is perfect for direct connection to any computer. If your sound card is set up for 5.1 op­eration, you will usually nd three 3.5mm mini-jack outputs. Connect the card, using three adapters (3.5 mm stereo mini-jacks to 2 x cinch), to the in­puts for the front R/L, rear R/L, centre and sub-
woofer on the back side of the Motiv 5. The colours
of the outputs and the types of signals trans-
ferred at each output differ from sound card to sound card. Please refer to the handbook of your soundcard. The Teufel system then reproduces the
surround signal decoded by the sound card.

LINE OUT FRONT L/R
LINE OUT REAR L/R
LINE OUT SUBWOOFER CENTRE
SUBWOOFER MOTIV 5

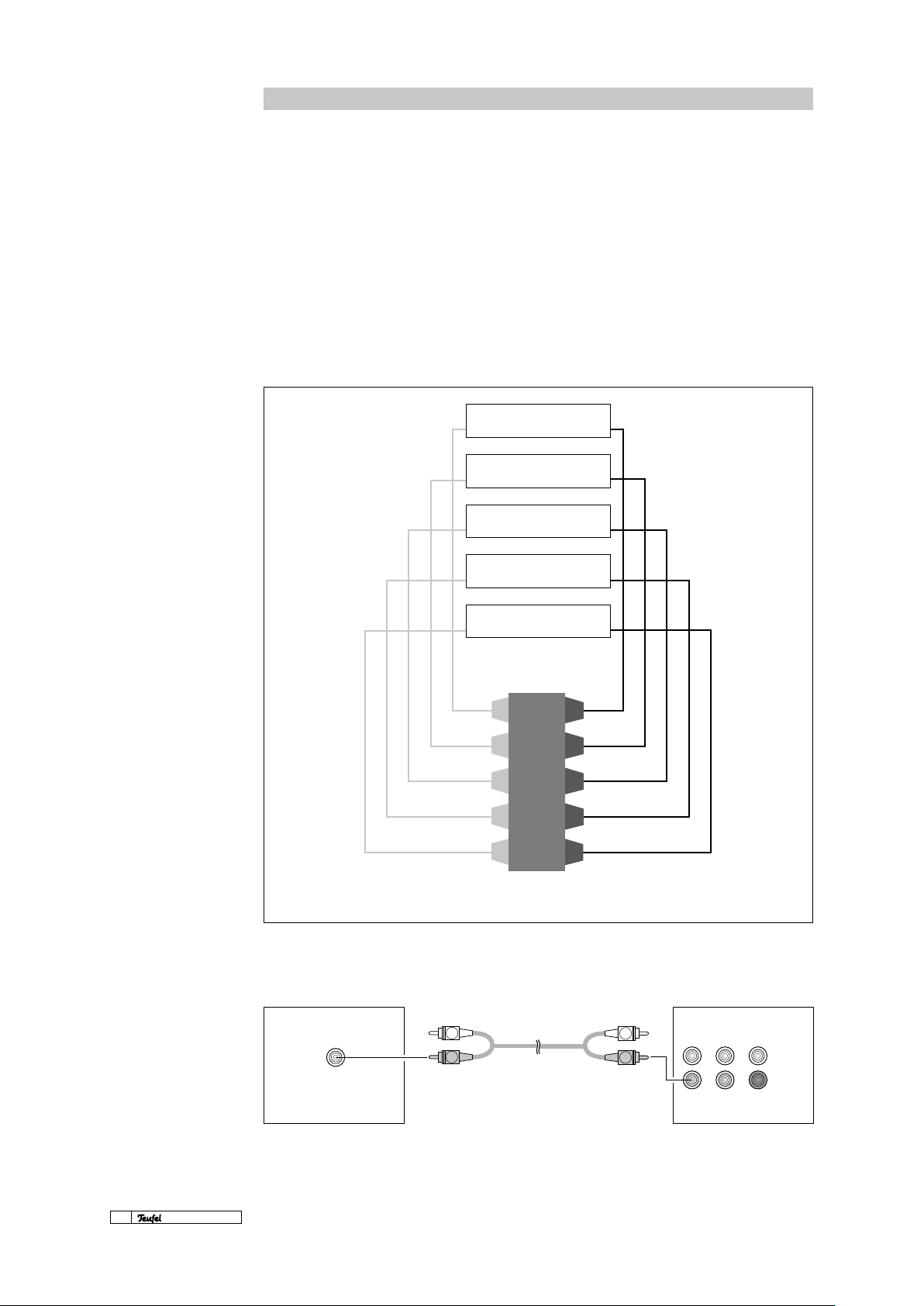

Example connection of a 5.1 sound card
REAR CENTRE
FRONT
L
L
R
R
L
L
R
R
L
L
R
R
L
R
L R
INPUT
SUB
Information
If you are using a 7.1 sound
REAR CENTRE
FRONT
L
R
L R
INPUT
card, the outputs for the centre channels are not used.
SUB
REAR CENTRE
FRONT
L
R
L R
INPUT
SUB
· Motiv 5
11
Page 13

A selection of suitable DVD
players can be found on our
website www.teufelaudio.com
in the “FAQ/support” area.
DVD player settings are descri-
bed in detail on page 16.

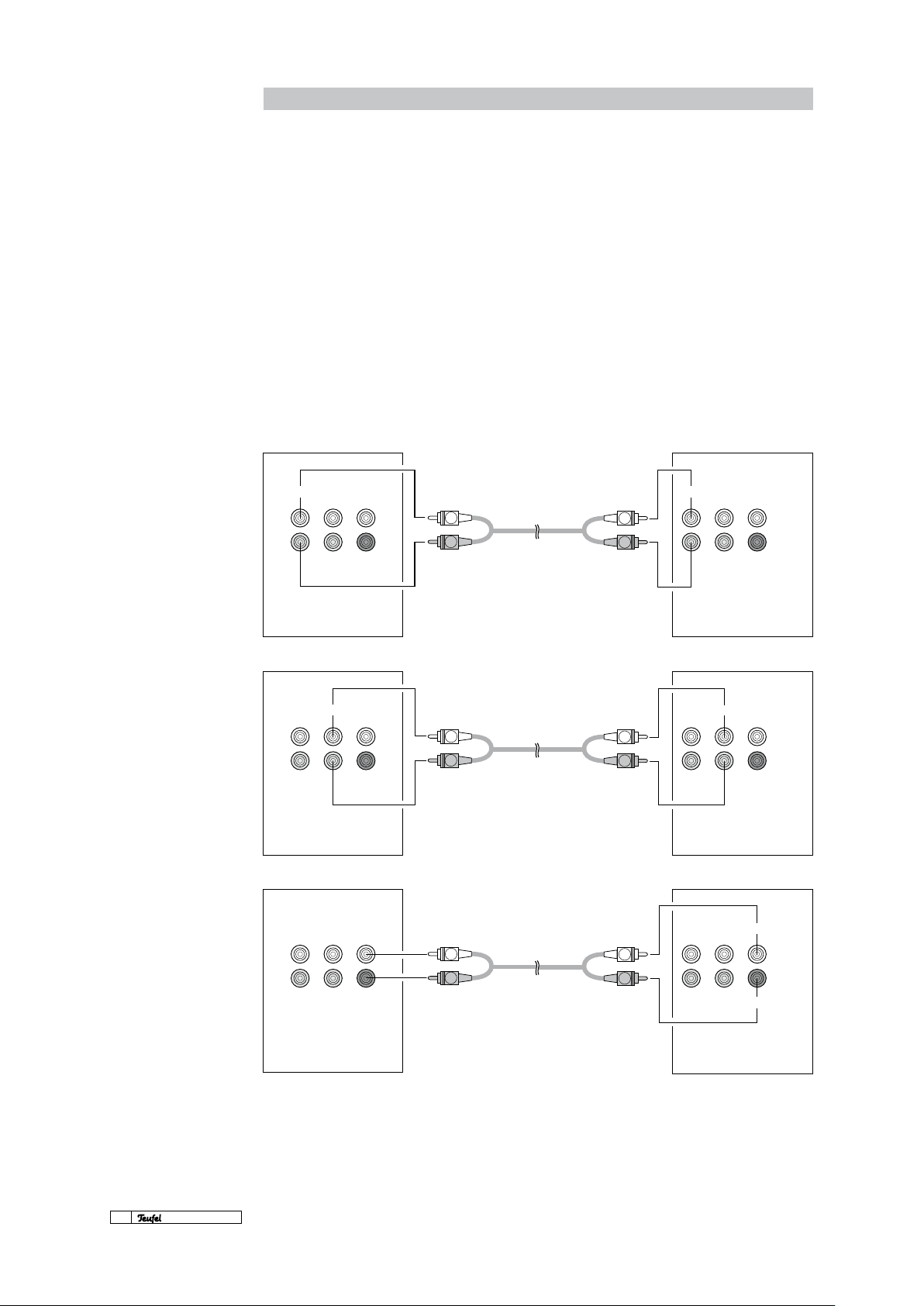

Connecting the Motiv 5 to a

The Motiv 5 can be used not only for direct con-
nection to the PC, but also for direct connec­tion to a DVD player/recorder. It allows you to create a complete home cinema sound system with just two audio appliances!
ment can often be recognised by the fact that
the DVD player has an analogue 5.1 cinch output at the back (6 cinch jacks for front R/L, rear R/L, centre and subwoofer). The DVD player/recorder
is connected directly to the subwoofer with
three stereo cinch cables, from the 5.1 cinch outputs of the DVD player to the 5.1 cinch in-
To control the Motiv 5 directly via a DVD player,
puts of the subwoofer. the player/recorder must have an integrated Dolby Digital or DTS decoder. This type of equip-

FRONT REAR CENTRE FRONT
L
R
SUB
L
R
L
R
5.1 ANALOGUE OUT
SUBWOOFER MOTIV 5
REAR
CENTRE
SUB
L
INPUT
R
Connecting the Motiv 5 to a DVD
player/recorder without 5.1
Even if your DVD player/recorder
does not have a decoder or six
analogue cinch outputs, you can
still successfully use the Motiv 5.
cinch cable with the front input
“upmix” function in the Motiv 5,
doesn’t sound as perfect as Dol-
by Digital, but does defeniteley
sound better than pure stereo
reproduction. Later you will also
still have the chance to operate
your speaker using an AV recei-
ver/amplier or a decoderstation
to experience the full pleasure of
analogue outputs
Connect the stereo output of
your appliance using a stereo
“In R/L” on the subwoofer.
Thanks to the integrated
the four satellite speakers
reproduce a stereo signal and
the centre speaker and the
subwoofer each reproduce a
mono signal. This of course
Dolby Digital and DTS.
FRONT REAR CENTRE FRONT
L
R
SUB
L
R
L
R
5.1 ANALOGUE OUT
FRONT REAR CENTRE FRONT
L
R
SUB
L
R
L
R
5.1 ANALOG OUT
REAR
REAR
CENTRE
L
INPUT
R
SUB
CENTRE
L
INPUT
R
SUB
12
· Motiv 5
Page 14
Connection: Stereo sources
Connecting the Motiv 5 to stereo sources
Stereo soundcard, notebook, MP3 player, satellite receiver, TV set, game console, CD player, DJ mixer, Discman, Walkman, etc…
The Motiv 5 can be used universally. The set can be
operated successfully with any of the above appli­ances. And not just in stereo, but also with virtual surround sound, using the integrated “upmix” func­tion that involves all six of the Motiv 5 speakers. This admittedly doesn’t sound as perfect as Dolby Digital, but does sound better than pure stereo re­production.
NOTEBOOK
   
Here is how it works: Connect the stereo output of your appliance to the front left/right inputs on the rear connec­tor panel of the subwoofer. It is possible to use a
3.5mm mini-jack to stereo cinch adapter. All ve satellite boxes are connected to the subwoofer via the speaker cable. The subwoofer now pro­duces a mixed signal for all speakers. With this type of connection, the four satellites reproduce
a stereo signal and the centre and the subwoofer
reproduce a mono signal.
SUBWOOFER MOTIV 5
Notebook/laptop
For 5.1 reproduction you usually need an external sound card with six analogue outputs. Dif­ferent companies offer solutions for connection to the PCMCIA port or via USB or FireWire. If your notebook already has three analogue mini-jack outputs, please proceed as described in the section “Connecting to a 5.1 sound card”.
REAR CENTRE
FRONT
LINE OUT
L
L
R
R
L
R
SUB
L R
INPUT

TV
 
DJ MIXER SUBWOOFER MOTIV 5
REAR CENTRE
FRONT
L R
AUDIO OUT
L
R
L
R
SUB
L R
INPUT
Please note
No other plugs should be in the other sockets on the Motiv 5-Subwoofers (in Centre, Sub-
woofer, Rear R/L)!
Please note
No other plugs should be in the other sockets on the Motiv 5-Subwoofers (in Centre, Sub-
woofer, Rear R/L)!
· Motiv 5
13
Page 15
AV receiver settings are de­scribed in detail on page 15.


The numerous possibilities for using the Mo­tiv 5 even include connection to an AV receiver.
Although designed to be fully active, the set is partially active in cooperation with an AV receiv-
er. You can connect the Motiv 5 like a standard
speaker system: the ve satellites via speaker ca­ble to the corresponding speaker outputs front R/L, rear R/L and centre of the AV receiver/ampli­er and the subwoofer from the front R input via a mono-cinch cable to the sub out output on the A/V receiver/amplier.
FRONT SPEAKER
+
FRONT SPEAKER
+
REAR SPEAKER
+
If the AV receiver/amplier has preamplier out­puts for all channels (front R/L, rear R/L, centre and subwoofer), the Motiv 5 can also be connected via three cinch cable pairs to the subwoofer and the satellites via speaker cables to the subwoofer. However, we recommend using the rst version.
LEFT
RIGHT
LEFT
In order to guarantee that the
(auto on) works correctly, the
front cinch input (front right)
has to be used. The auto on/
standby switch only reacts when
the front R input is being used.
The subwoofer also receives the
full subwoofer signal via this
channel! The subwoofer input
Information
automatic on function
can remain open.

SUB
OUT
REAR SPEAKER
+
RIGHT
CENTRE
+
FRONT
+
+
+
+
+
LEFT
FRONT RIGHT
REAR
LEFT
REAR
RIGHT
CENTRE
AV RECEIVER SPEAKER OUTPUT
L
R
SUBWOOFER MOTIV 5
L
R
FRONT
REAR
CENTRE
L
INPUT
R
SUB
14
· Motiv 5
Page 16
Settings: DVD player · Receiver ¦ Decoderstation
 with 5.1 analogue output
The Motiv 5 itself has no built-in decoder func-
tion. Therefore it is “dependent” on external de­coders when splitting the signals. This decoder is a component of the DVD player software. Its set­up options differ greatly from model to model. Please consult the handbook for your DVD player.
The following basic settings should always be made:
4The front/centre/rear speakers should be
dened in the speaker set-up menu (speaker management/bass management) of the DVD player as “small” or “normal” (not “large”!).
4Set the subwoofer to “on” or “yes” in the
speaker set-up menu.

During operation on the AV receiver, the Motiv 5 is dependent on the AV receiver being set-up correctly. Only when the receiver’s decoder assigns the signals optimally will all of the boxes of the Teufel speaker set be activated, as the Motiv 5 itself has no built­in decoder function. The set-up options for the AV receiver differ greatly from appliance to appliance. Please consult the handbook for your AV receiver.
The following basic settings should always be made:
4Our front/centre/rear speakers should be
dened in the speaker set-up menu (speaker management/bass management) of the AV re­ceiver as “small” or “normal” or (not “large”!).
4Set the subwoofer to “on” oder “yes” on the
speaker set-up menu.
4The optimal cut-off frequency is 120Hz. 100Hz
or 150Hz are also possible.
4Set the rocker switch of the subwoofer to
“Bypass”.

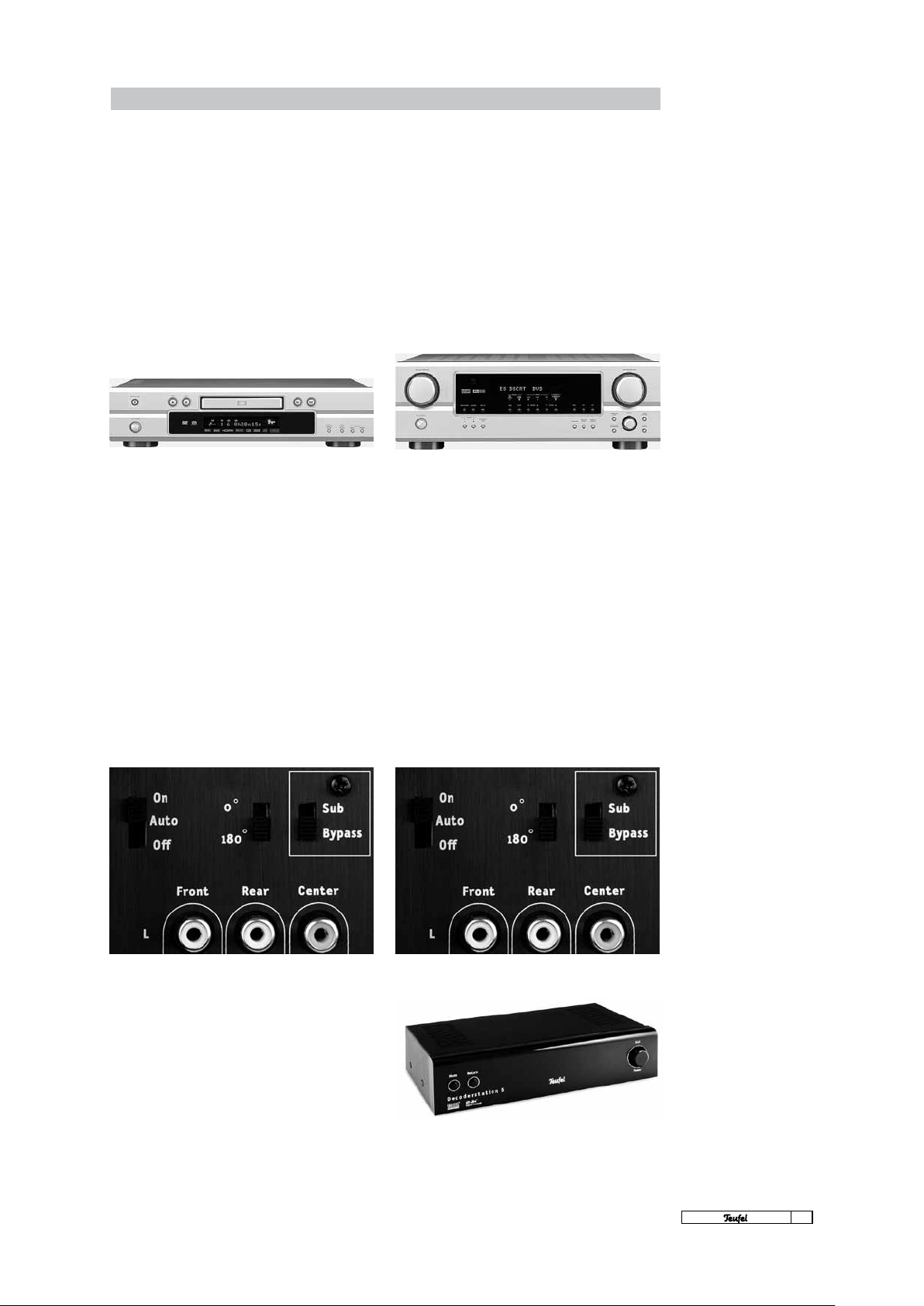

Decoderstation settings
Please observe the detailed description in the Teufel Decoderstation manual or consult the sup­port section on our website: www.teufelaudio.com.
4The optimal cut-off frequency is 120Hz. 100Hz
or 150Hz are also possible.
4Set the rocker switch of the subwoofer to
“Bypass”.
· Motiv 5
15
Page 17

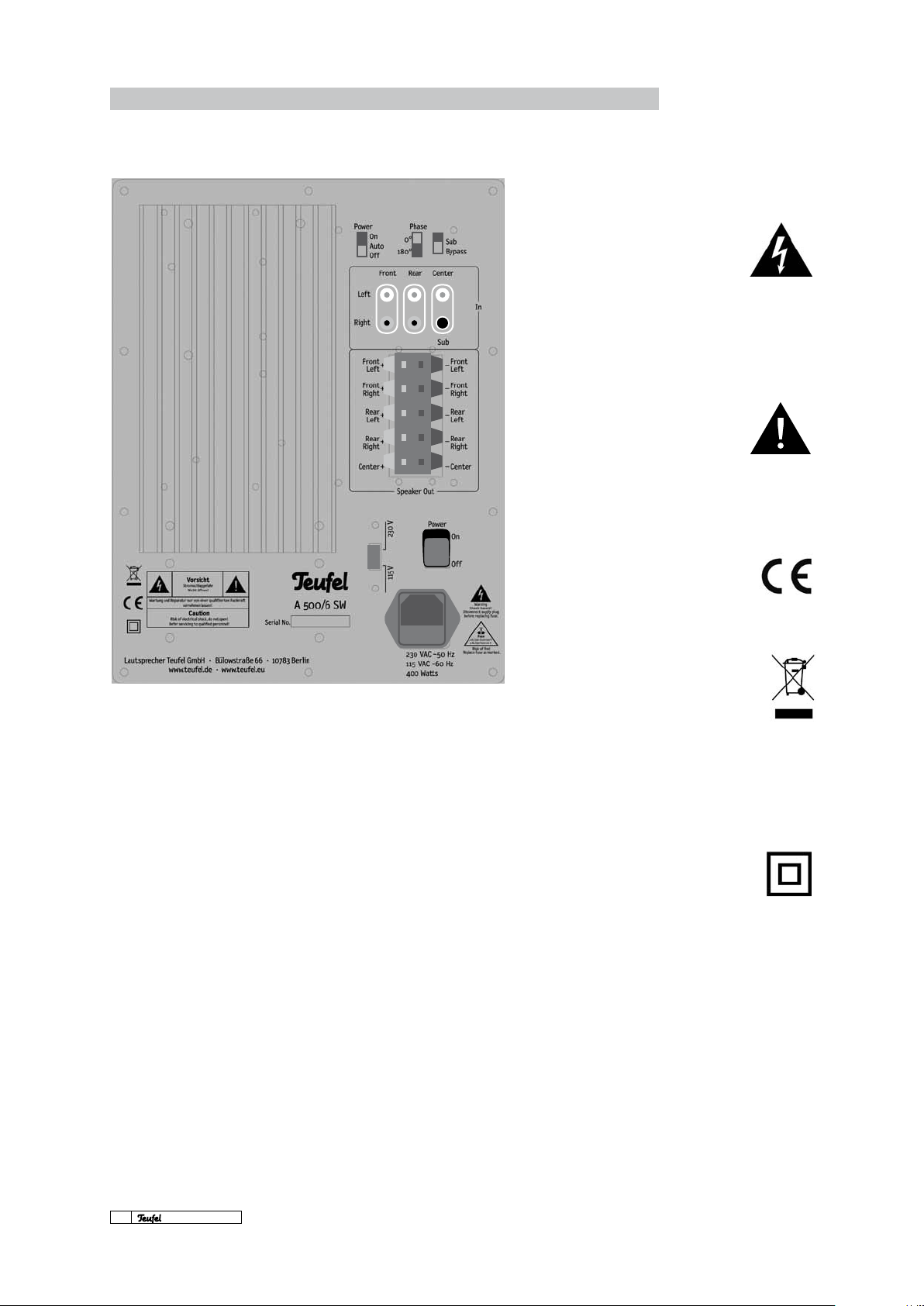

Operating elements on the subwoofer
Q
Explanation of symbols
Q
R
Y
T
U
W
I O
E
The arrow-headed lightning
symbol in an equilateral triangle
indicates the presence of a
dangerous uninsulated electrical
voltage within the system
housing and therefore a risk of
electrical shock.
The exclamation mark in an
triangle, as afxed to the appli-
ance, is to make the user aware
of important operating and
maintenance instructions.
0
1
This product complies with
European Community guidelines
2004/108/EC and 2006/95/EC.
Q Operating mode
When set to “Off”, the subwoofer is switched off, and on when it is set to “On”. If you set the switch to “Auto”, the subwoofer will switch on automati­cally when it receives an audiosignal. If it receives no audiosignal, it switches itself off after about
20 minutes.
W 
The phase switch allows you to adjust the phase of your amplier to the different listening posi­tions. For a subwoofer position between the front speakers, we recommend 0°. For a position near the listening area we recommend 180°. If the sub­woofer is in a different position, the setting at 180º can compensate for reduced bass reproduc-
tion.
E Sub bypass switch
If you operate your Motiv 5 with a source that allows you to set the cut-off frequency (“Crosso­ver”), choose the position “Bypass”. If there is no option to set the cut-off frequency (e.g. in de­vices that only offer a stereo signal) select “Sub”.
R Input
Connect your cinch cable from the playback de­vice (sound card/DVD player/Receiver) here.
T Speaker Out
Clamp the speaker cables from the ve satellites
here.
Y Voltage selection switch
Allows you to adjust for regional voltage differenc­es. The switch is preset to the standard European
voltage of 230 V. Under no circumstances should
the switch be moved to the 115 V position during operation at 230 V.
U Power
When set to “Off”, the subwoofer is switched off, and on when it is set to “On”.
I IEC socket
The mains power cable is connected here.
O Fuse
You can change the fuse here.
The dustbin symbol printed
on our products’ type plates
and ampliers states that
Lautsprecher Teufel guarantees
proper disposal of these speakers
and subwoofers in line with the
Electrical and Electronic
Appliance Act.
This product corresponds to
standards DIN EN 61140 (VDE
0140-1) and IEC 60417 of safety
class II and does not require
a safety plug, just the plug
included (2-pole). The casing has
reinforced or double insulation
against electric shock.
The separating equipment of
this equipment is the mains
plug, this separating equipment
must be usable without
Attention:
difculties.
16
· Motiv 5
Page 18
Start-up · remote control
Start-up
Switch on the 5.1 amplier by setting the mains switch on the rear U to “On” and set the opera­tion mode switch (“Off/Auto/On”) Q to “Automat- ic” mode (middle position). If your PC/DVD player is switched off or is not sending output to the 5.1 amplier, the 5.1 amplier will be in standby mode. The 5.1 amplier switches on automatically when it receives an audio signal. If the signal stops, it
will automatically return to standby mode af-
ter around twenty minutes. When the operation mode switch Q is set to “On”, the 5.1 amplier will stay on permanently (regardless of whether a programme is running or not).
Settings on the display
It is also possible to perform all equalisation set­tings on the subwoofer of the Motiv 5 using the remote control. The display for the settings is lo­cated on the front of the subwoofer.
Power
Mute
Main
Front
Rear
Centre
Subwoofer

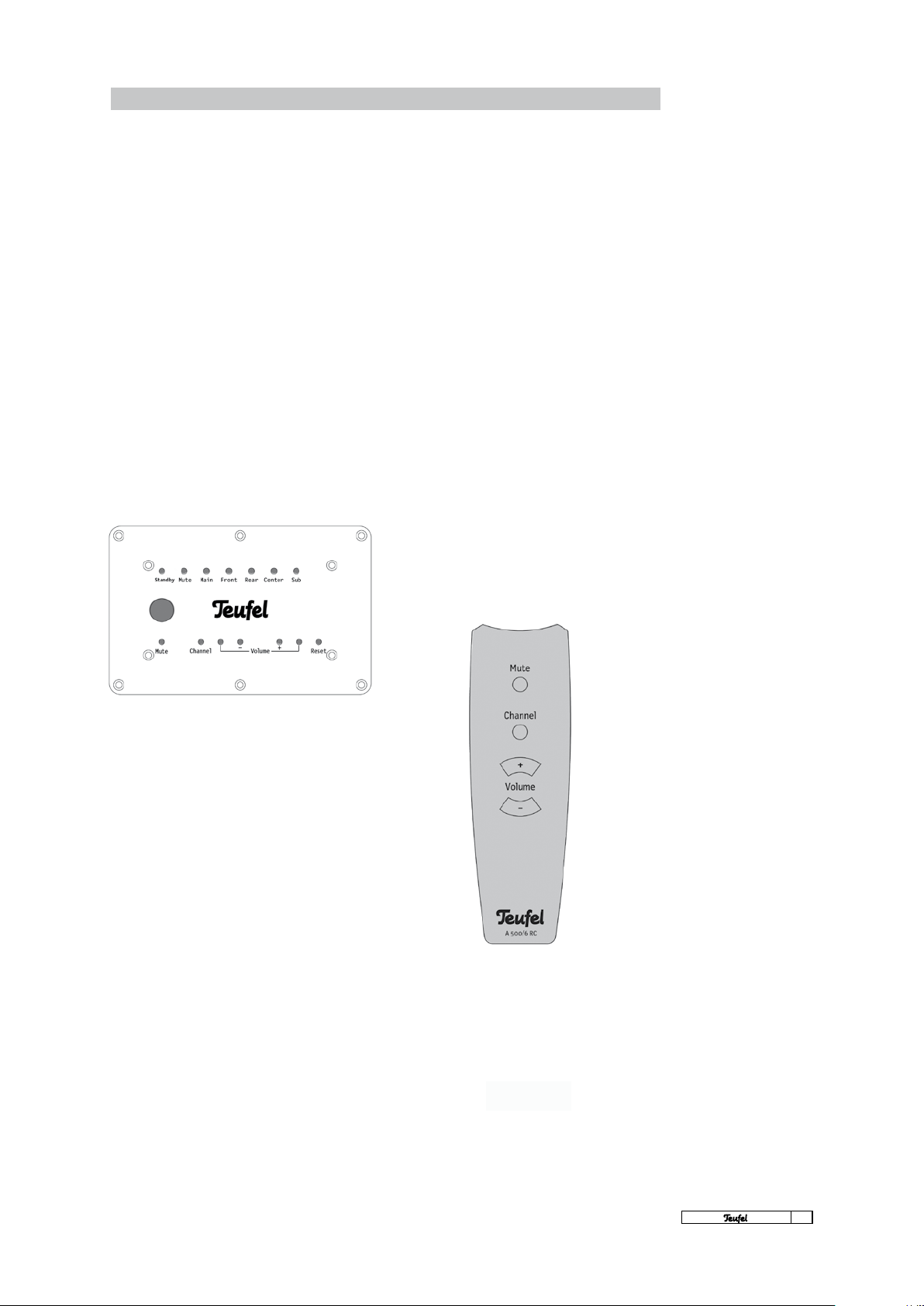

What is shown on the subwoofer display:
Once the subwoofer has been switched on using the rear main power switch, the Standby LED lights up red when the system is in Standby mode. While the subwoofer is being operated the Stand­by LED turns dark. In this case, the LED over the word “Main” lights up red. The system is now ready for operation.
Mute = all sounds switched off
Main = Master volume
Front = Volume of the front speakers Rear = Volume of the rear speakers Centre = Volume of the centre speakers
Sub = Volume of the subwoofer
The red LED marks the selected channel for ad­justment.
With the exception of Reset, all of the above
described functions can be accessed by the remote control.
Please note
If you are going to be away for a long period of time or if the 5.1 amplier is not being used, switch the mains switch U to “Off”.
Channel Select
Volume
Reset
+
Mute
The “Mute” button immediately mutes the com­plete system; if you press it again, the system re­turns to its previous operating status. When the system has been muted, the LED over the word “Mute” on the front of the subwoofer lights up
continuously in red.
The “Channel Selection” button scrolls through
each of the available control areas of the sub­woofer.
Use the [+] and [-] keys in the “Volume” area to set each required level. During level increases or decreases, the adjoining LEDs ash red. Once the maximum or minimum level has been reached, the respective LED lights up constantly. You should ensure that all of the speakers gener­ate the same level at the listening position. In or­der to achieve this, it is best to use a sound level meter and the signal generator built into the DVD player/AV receiver.
The level set is automatically saved by the sub­woofer.
Press the “Reset” button to reset the system to its
original factory settings.
· Motiv 5
17
Page 19
Frequently asked questions
The subwoofer is buzzing, what can I do?
These buzzing noises may be produced by connected devices or interference in the power supply. Please perform the following test to help determine
the cause of the buzzing.
1. Disconnect all cinch cables from the subwoofer’s in­put jacks. If this eliminates the buzzing noise, please proceed to step B. Otherwise, start with step A.
. Connect the subwoofer’s power cable to a different power circuit (e.g. kitchen or bedroom). If the subwoofer continues to buzz, please contact our support team.
If this action stops the buzzing noise, it means there is interference in your power supply. This may be caused by a dimmer switch or charging devices, for example. To determine the source of interference, please dis­connect all electrical appliances from the mains power supply in succession. As soon as the buzzing noise dis­appears, you have found the source.
B. In this case, an “interference loop” is responsible for the fault. Please proceed as follows in order to ascer-
tain the cause.
“There is no sound – neither from the satellites nor from the subwoofer”
Please check if the LEDs on the front of the subwoofer display are illuminated; if not, change the fuse of the subwoofer as it might be blown, possibly as a re­sult of a power surge. The Motiv 5’s fuse compartment is located underneath the IEC power connector (see illustration of page 16, item O). Use a small screw driver to lever this out, exchange both
fuses and then return the fuse switch
to the fuse compartment. The subwoofer should now work - if it does not contact Lautsprecher Teufel.
“The subwoofer doesn’t start in auto-standby mode – or goes into standby too quickly”
Please check whether the level settings in the speaker/bass man­agement of the signal source (DVD player, sound card, receiver) is at a high value (around +4 dB to maximum). The higher this value,
the sooner the subwoofer will start.
Is the switch on the back of the subwoofer in the middle po­sition “Auto”? During receiver operation: Is the subwoofer out cinch cable from the receiver connected to the front in R of the subwoofer?
ĕ Disconnect the lead from your cable or satellite con- nection from the TV receiver and check whether the
buzzing noise disappears. If so, use a sheath current lter for the cable connection to stop the loop, e.g. the coax AC 9022 ED sheath current lter. If you have satel­lite television, please connect the satellite receiver to the Decoderstation using an optical cable like Teufel’s optical digital cable.
ĕ If this action fails to solve the problem, please con­tact us again so we can provide further individual as-
sistance.
“There is no sound or distorted sound from one of the satel­lites – all of the other satellites are working”.
In order to pinpoint the defect more specically, please swap
the non-functioning satellite for a functioning satellite in or­der to determine whether the defect is in the satellite or the
subwoofer. If the previously non-functioning satellite plays on a different channel of the subwoofer, the defect is probably in the subwoofer electronics. If the satellite does not play on a differ­ent channel, the satellite is defective.
“There is no sound from the subwoofer – all of the other sat­ellites are working”.
You can check the function of the subwoofer by connecting the
subwoofer cinch input on the subwoofer only to the output from one of the front channels L/R front on the sound card or a de­vice such as a portable CD player. If the subwoofer now plays, it
could not have been getting the correct signal before. Either the
cinch cable is defective or the subwoofer output of your source appliance is not generating a signal. Alternatively, set the subwoofer volume to “minimum” (LED lights up constantly), remove the subwoofer cinch cable from the PC/DVD player/AV receiver, increase the volume carefully and touch the central cinch contact with your nger. If you can hear buzzing or crackling, there is an error in the PC/DVD player/
18
· Motiv 5
Page 20
Frequently asked questions
AV receiver or its settings. If the subwoofer stays silent, please
read the following frequently asked questions carefully.
»The Subwoofer switches off after playing high volumes for

It is possible that you have operated the Motiv 5 beyond its per­formance limits.
If the system is operated with excess volume, the safety shut-
down may activate. This safety shut-down is mandatory for safe-
ty reasons and prevents the power pack, the power ampliers and the speakers from sustaining damage. When this shut-down switch is activated, it means that the system has exceeded its performance boundaries.
Our problem-solving tips:
4 Position the speakers of the Motiv 5 closer to where you are sitting. Then less power will be needed for loud sound reproduc-
tion.
4Use an AV receiver tto power the satellites with power. This re­lieves the power supply and the power ampliers of the Motiv 5.
However, a fault condition cannot be ruled out if the Motiv 5
switches off at lower volumes in rooms of 30m
2
or less.
We are unable to authorize additional active cooling of the pow­er amplier. It no longer corresponds to the specications for the operation of our products. Failures caused in this way can clearly be attributed to negligent action by the user. As opera-
tion with active cooling has a direct effect on the function of
the product, it voids all guarantee claims.
“The subwoofer does not play with stereo sources such as

dependent peculiarity of the Motiv 5 and not a defect . As you can set the volume yourself using the volume options on your PC/DVD player, instead of using the remote control and the equalizer on the subwoofer, this critical setting point can simply
be avoided in everyday life.

In rare cases it may be possible to receive radio/interference frequencies; this depends on the local environment. Please re-
move all cinch cables from the subwoofer and check whether
the interference still occurs. We recommend trying out shorter, higher quality, shielded cinch connection cables.
“The satellites crackle”
Please disconnect the Teufel speaker system from your PC or
other connected devices by loosening the cable connection and
check whether the “crackling” stops. Try operating the set with a different power source/in a different room ( just use an ex­tension cable). If you can still hear the crackling, please check which satellite is affected by swapping them over and nding
out whether it is the satellite or the subwoofer electronics that
are generating the excessive crackling. If the fault “moves” with the satellite, the satellite is affected. On the other hand, if the crackling is still on the same channel, the subwoofer amplier electronics are responsible.
“The satellites hiss”
Generally speaking, the Motiv 5 is a very low-noise system. In the high range area, very good-quality high-resolution speaker systems can expose the defective quality of a signal source (e.g. from mp3 les or analogue cassette recordings) that is hardly noticeable on less high-quality speakers.
The Motiv 5 is purely a playback system – it has no built-in decoder function. Therefore it is “dependent” on external decoders split­ting the signals. This decoder is a component of the sound card or DVD player software. If the signal only plays on two satellites in stereo mode, for example, the correct allocation in the software of the sound card/DVD player is either not possible or not cor-
rectly set.
The Motiv 5 is “blameless” – it only plays back the signals it re­ceives. Therefore, correct allocation in the software of the sound card/DVD player is essential. Please contact the support depart­ment of the sound card/DVD player manufacturer.
“I can hear background noises that only occur at certain volumes”
When the background noises keep occurring at certain levels in “steps of 10”, the phenomenon you have described is a design-
You can check the basic noise level by connecting an output signal (via a cinch cable) from an external source that is guar­anteed to be good quality – such as a music CD on a portable CD player – to the front L/R input on the subwoofer. If all of the satellites are now playing noise-free, then they were not getting
the correct signal before. Either the cinch cable is defective (try
swapping them) or the output of your source appliance is not producing a sufcient signal.
However, if you continue to hear increased noise on this chan­nel there is possibly a fault in the Motiv 5. Please check which satellite is affected by swapping the satellites over and nding
out whether it is the satellite or the subwoofer electronics that
are generating the excessive noise. If the fault “moves” with the satellite, the satellite is affected. On the other hand, if the noise remains on the same channel, the subwoofer amplier electron­ics are responsible.
· Motiv 5
19
Page 21
Frequently asked questions · Cleaning · Technical data
“When I switch the PC on or off I can hear a loud snapping or crackling.”
The speaker system reproduces any kind of acoustic signal that it receives from the signal source. It cannot differentiate be­tween useful and disruptive signals. When the PC’s sound card transfers the on/off impulses to the box set, the speakers will reproduce it. These will not usually damage your speakers. Nev­ertheless, we recommend minimising the volume using the PC’s software before switching off, in order to limit these strong impulses.
Basic function test
You can check the function of the subwoofer and the satellites
by only connecting the (stereo) signal from an external source that is guaranteed to be good quality – such as a music CD played on a (portable) CD player – via a cinch cable (and possibly a Y adaptor) with the front input L/R on the subwoofer. The other four inputs on the subwoofer do not need to be occu­pied (= cinch cable disconnected). Using this connection set-up for front in L/R, the Motiv 5 amplier activates all satellites and
the subwoofer via internal distribution.
If the subwoofer and all ve satellites now play the signal from a directly connected CD player properly, the Motiv 5 was not re-
ceiving the correct signal before.
Either the cinch cable is defective (try exchanging it) or the out­put of your source appliance is not producing the correct signal. If you continue to experience unwanted noise/individual mal­functions, there is possibly a defect in the Teufel system.
Cleaning
To make sure you are able to enjoy your product from Laut­sprecher Teufel for a long time, please note the following tips:
Do not expose the casing to direct sunlight.
Avoid extreme temperature differences and protect your speak-
ers from moisture.
When cleaning the speaker, only use a slightly damp or dry cloth. Abrasive cleaners and products that contain alcohol should be avoided. Remove dust from the membrane very carefully with a
dry cloth.
Technical data
Technical data can be found on our homepage at:
www.teufelaudio.com.
Please contact our service department if you have any questions, suggestions or if there is anything you think we could do better.
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen · Buelowstraße 66 D-10783 Berlin (Germany)
Ph .: 00800 200 300 40
Fax: +49(30) 300 930 930
www.teufelaudio.com
All information is provided without guarantee of correctness. Subject to technical changes; typing errors and mistakes excepted.
Page 22
Technical specifications and operating instructions

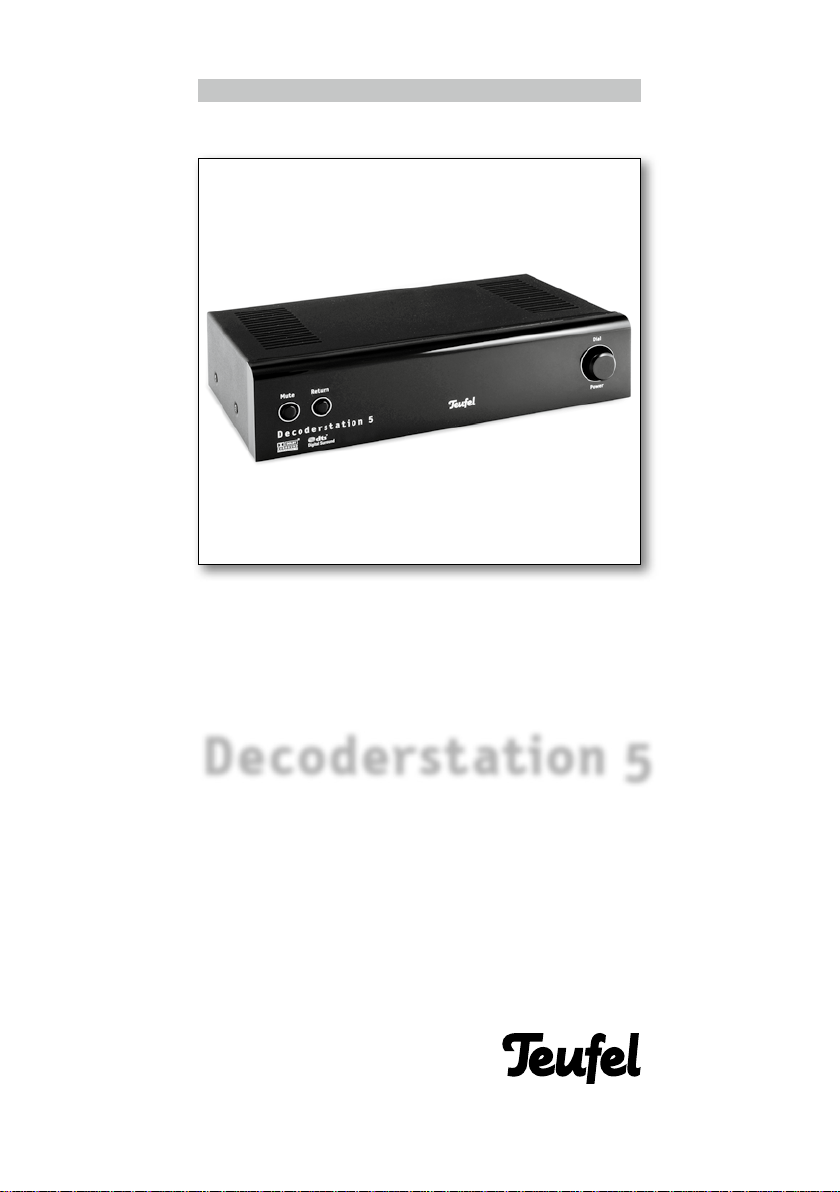

Decoderstation 5
Page 23
· Decoderstation 5
Technical description and operating instructions for Decoderstation 5
For your information
The information in this document may be changed without advance notification and does not repre­sent any obligation on the part of Lautsprecher Teufel GmbH. No part of these operating instructions may be copied in any way, whether electronically, mecha­nically, using photocopies or recordings, or trans­ferred without the prior written agreement of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH Version 1.2, May 2009
Trademarks
® All trademarks are the property of their re­spective owners.
Dolby
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.
DTS Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. ©1996-2008 DTS, Inc. All Rights Reserved.
Original packaging
We recommend that you keep the packaging if you want to take advantage of your right to return goods withn eight weeks, because we can only ac­cept the Decoderstation 5 IN ITS ORIGINAL PACKAGING. We are unable to supply empty boxes!
Contact
Please contact our service department if you have any questions, suggestions or if there is anything you think we could do better:
Lautsprecher Teufel GmbH
Buelowstrasse 66 D-10783 Berlin (Germany) Tel: +49 (0)30-30 09 300 Fax: +49 (0)30-30 09 30 30 www.teufel.eu
Technical data
Technical data can be found in the product de­scription on our website at: www.teufel.eu
Warranty terms
There is a two-year warranty on equipment and labour for electronics, starting from the date of purchase, with the exception of damage caused by incorrect use or electrical or mechanical over­load. An original copy of our invoice is required as the warranty document. This warranty is only valid for electronics that was purchased from Teufel by end users for their own private use. The warranty is not valid for electronics that the end user has purchased from a different distributor. For third­party products, the warranty conditions of the respective manufacturers shall apply. If the Teufel product is sold on pr ivately, the warranty may be transferred to the purchaser, providing that the original proof of purchase is also transferred.
Returns
Teufel grants customers the right to return or exchange goods within eight weeks of purchase, with reimbursement of the full purchase price paid. The return of individual components from a set is only possible if these components are also offered for sale separately by Lautsprecher Teu­fel. If one or more components are returned, any price discount given by Lautsprecher Teufel on all components in a set as part of the price for the set is waived. When returning a component, the customer will be reimbursed for the pr ice diffe­rence between the set price and the purchase pri­ce of the individual components retained by him/ her. The financial outcome for the customer is as if they had bought the remaining components at the individual price from the outset.
You can find more information on the subject of returns on the returns form that accompanies the delivery or online in the support area of our website, www.teufel.eu.
If you need to return an item, do not act without the prior agreement of Lautsprecher Teufel.
We can only process and accept returns if you have told us about the return by telephone first and discussed the procedure with us!
Page 24
3
Decoderstation 5 ·
Technische Beschreibung und Bedienungsanleitung Impaq 400
Contents
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Instructions for safety and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Unpacking • Contents • Attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Front / Display Decoderstation 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Back / Decoderstation 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Signal sources with digital and analogue outputs . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the Decoderstation 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Overall volume and equalising the speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Input source, surround and speaker configuration and equalisation . . . . . . . . . . . . . . . 16
Setting the delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting the speaker size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Page 25
4
· Decoderstation 5
Instructions for safety and care
Please read the following safety
information carefully.
Risk of suffocation – keep
packaging materials (e.g. the
plastic bags and lm) out of
the reach and sight of children.
Risk of electrocution – do not
leave children unsupervised with
electrical devices!
In case of emergency:
If any of the following occur,
disconnect the appliance from
the mains and consult our
technicians:
Ě If the plug or cable is damaged
Ě If foreign bodies or liquid have
entered the appliance,
Ě If the appliance has been
in direct contact with rain or
Ě If the appliance does not play,
even if you have followed the
Ě If the appliance has been
dropped or damaged in some
We cannot accept any respon-
sibility for incidents that occur
because safety information has
other water,
instructions for use
other way.
not been adhered to.
Important: Please read through these op erating instruc­tions very carefully! It is essential that you take not e of all of the s afety information and operating instruc tions before switching on the appliance. Please keep these operating in­structions in a safe place for future reference.
Essential: Please read the operating instructions. You should also follow all instructions for start-up and ongoing use
Caution – moisture and sunlight: Never operate the appli­ances in damp rooms , i.e. near baths, showers, wash basins, drains, in damp cellars or next to swimming pools. Never expose the device t o high humidity and do not place it in di­rect sunlight. D o not expose device to dripping or splashing water. Do not place objects filled w ith liquids, such as vases on the device.
Information on location: Do not use the appliances un­secured in vehicles, in unst able places, on wobbly stands or furniture or suppor ts that are too small. The spe akers could fall down and injure people, including you. The appliance must not b e placed near sources of heat. This includes radiators and heaters, ovens and other appliances that emit heat (e.g. amplifiers). Sources of heat may not be placed on the appli­ance e.g. fan heaters or candles.
Ventilation: Any slits and openings in the casing have been provided for ventilation. Their purpose is to guarantee reliable operation and to prevent the appliance from overheating. These openings must not be blocked or covered, including by placing the appliance on a bed, sofa, carpet or other soft surface. Do not place any newspapers or table cloths, etc. on the appliance. Additional active cooling of the appliance is generally not per­mitted.
Electrical supply: The appliance must only be supplied from a power source with the correct voltage, as specified on the identification lab el. If you are unsure about the electr icity supply in your home, please contact us or your electricity supplier for more information. Only the mains adapter pro­vided should be used for the electricity supply. This mains adapter must not be modified under any circumstance s. Re­gulations on polarity and e arth connection must be adhered to. Only use an appropriate mains plug for the mains cable.
Information on wiring: Please place the power cord flat and flush to the wall and floor. Cables that are laid loosely present a trip hazard. This could also result in interference and cause the sound to be disrupted. The electricity supply cable should be laid so that it is not likely t o be stepped on or squashed from the sides or above by he avy objects. Damaged cables must be replaced. Pay p articular attention to the cable/plug connection, the mains socket and the cable output from the subwoofer. If a fault is discovered, the appliance and the ca­bling must be disconnected f rom the mains immediately and the defective cable must be replaced. Remove the appliance’s power supply cable from the socket for longer periods of absence or non-use.
Batteries: Be sure to insert the b atter ies with correct posi­tive (+) and negative (-) polarities. Use batteries of the s ame type; never use different types of batteries together. If the
batteries leak remove them immediately and wipe away the liquid inside the battery compartment. Risk of explosion! Ne­ver throw batteries in a fire. Batteries must not be exposed to sun or heat.
During thunderstorms: In order to avoid damage caused by lightning strikes, the appliance should be swit ched off and also unplugged from the mains socket as soon as a thunder­storm is expected.
Risk of overload: You should not overload wall sockets, ex­tension cables or inte grated appliance sockets, bec ause this could potentially lead to short circuits and even fires. Avoid turning up the volume control very high even when using a compatible amplifier.
Foreign bodies and liquids: Foreign bodies and liquids must not get into the appliance via its openings under any circum­stances, as they could come into contact with part s carrying high voltages, which could then cause short circuits and fires. Therefore, do not spill any liquids of any kind on the device.
Troubleshooting: D o not attempt to repair the appliance yourself. Contact our service department first for autho­risation, if you think that you can repair the fault yourself. Otherwise the appliance must be sent in for testing.
Unusual sounds: Any unusual sounds occur during use or the sound become s distorted, the speaker output must be red­uced immediately so that the system plays an undistorted sound.
Information on volume: Loud noises c an damage hearing. Sudden high sound pressure may be created, particularly if a subwoofer in »Standby/Auto On« mode is switched on by a bass impulse at full volume. In addition to physical damage, please be aware of possible psychological consequence s. Children and pets require par ticular care. If necessary, set the volume control of your signal source device or amplifier to a low level. At high volumes, always keep a certain distance from the appliance and never have your ears right next to the speaker.
Care instructions and cleaning
To make sure you are able to enjoy your Lautsprecher Teufel product for a long time, please note the following tips:
Ě Do not expose the case to direct sunlight . Avoid extreme fluctuations in temperature and protect your speakers from moisture. Ě Please only use a lightly dampened or dr y cloth to clean the Decoderstation 5. Ě Abrasive cleaners, products that contain alcohol and household chemicals should be avoided. Ě Disconne ct the appliance from the mains before cleaning.
Page 26
5
Decoderstation 5 ·
Teufel Decoderstation 5
Dear Customer,
many thanks for buying the Decoderstation 5.
You have bought a very high quality decoder, be­cause Teufel appliances are fitted with high quali­ty components and have been carefully made.
Please read these instructions carefully before operating the unit and store the manual in a safe place for future reference. If you have any ques­tions you can contact our engineers on +49(30)­300 9 300. You can also send us an e-mail using the contact form at www.teufel.eu. Please have your invoice number ready, so we can immediately locate your product and provide the best possible support.
Before contacting us with a question, please read these instructions carefully and visit our website at www.teufel.eu, where you can find the answers to many questions in the »FAQ/Support« area.
Please also refer to our safety information on page 4 of these operating instructions and only use the appliance once you have read the safety information. Please take note of the serial number displayed on the sticker on the box (e.g. DE00509070122A-025) and this invoice number:
My INVOICE NUMBER is:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
My SERIAL NUMBER is:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
This serial number and the invoice number make it easier for us to process your request quickly if you require service.
Please make a note of your serial number and invoice number.
Page 27
6
· Decoderstation 5
Unpacking · Contents · Attachments
You can order the optional
attachments shown directly
from our online store:
www.teufel.eu .
Explosion hazard with
inappropriate replace-
Replacement only by the
same or an equivalent
type. Not expose batteries
to excessively warms as
the device for a longer
period of time: remove the
batteries from remote control and store them
appropriately to prevent
possible damage from
Warning:
ment of the battery.
sunshine, re or like.
If you plan to not use
leaking.
Unpacking
Fold the flaps on the top of the box outward, re­move the rigid foam or polystyrene and carefully lift the appliance out of the box.
For your own benefit, we recommend that you do not dispose of the box as it can be used to guaran­tee safe transport if the device requires servicing later on.
Contents

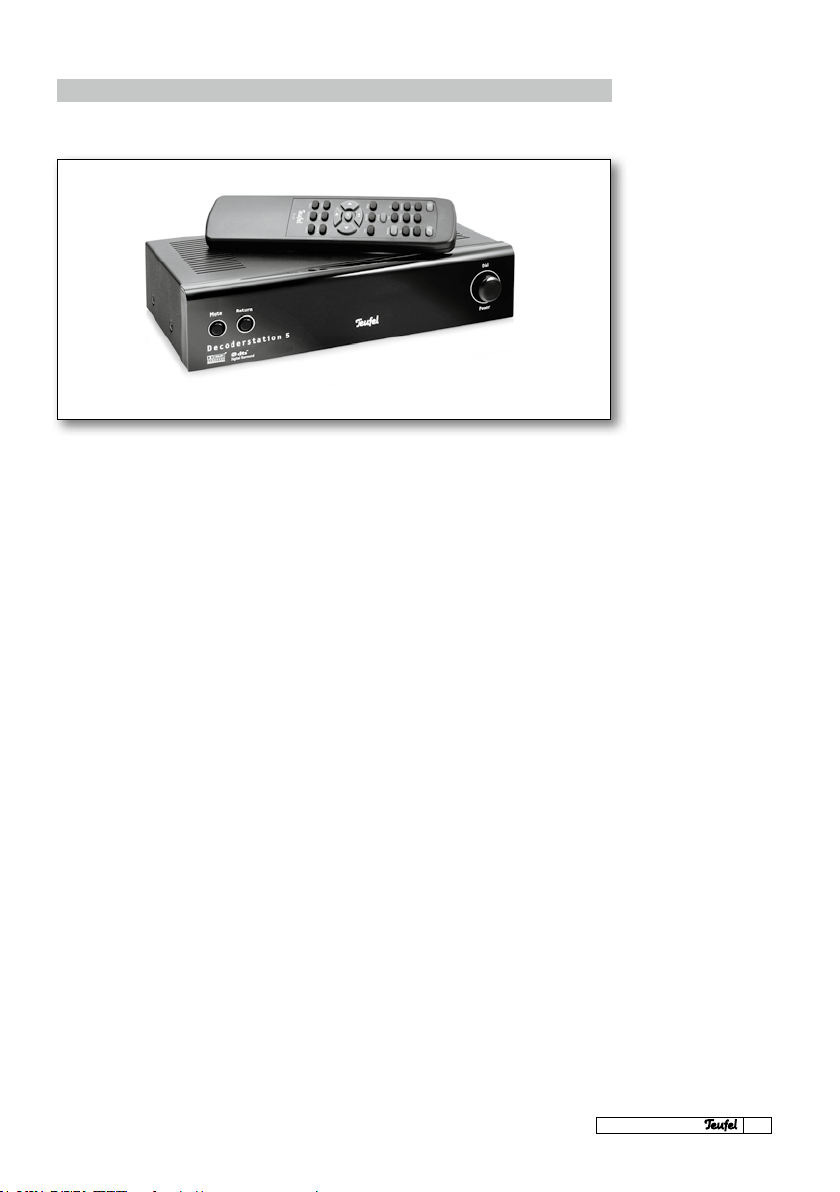

Ě 1 x Decoderstation 5
Ě 1 x Infrared remote control
Ě 1 x Batteries for the remote control
Ě 1 x Mains adapter
Ě 1 x Operating instructions
Accessories (optional)
Mono-cinch cable
You can connect the Decoderstation 5 to a coaxial digital output using the mono cinch cable available from our online shop.
Optical fibre (Toslink)
You can connect the Decoderstation 5 to appliances with an optical digital output using the optical fibre cable avail­able from our online shop.
Equalisation measuring device
The equalisation measu­ring device also available from our online shop allows the Decodersta­tion 5 to be precisely equalised. We advise using a gauge measuring device because you cannot achieve a similarly good result by equalising the levels by ear.
Teufel Y adapter cable The first choice for sound connections from PC or portable CD or MP3 players to the Decoder­station 5. Connection to almost any sound card is ensured by using the thin plug on the 3.5mm jack. Available in 1.5 metre,
2.5 metre and 5 metre lengths.
Page 28
7
Decoderstation 5 ·
Introduction
About the Decoderstation 5
Decoderstation 5 is a stand-alone decoder that can be used to process audio signals from analo­gue and digital sources. The appliance not only makes it possible to switch between various signals, it can also enhance ste­reo signal sources, for example, for a surround sound experience. The Decoderstation 5 is the perfect appliance for anybody who wants to ope­rate a fully active speaker set without missing out on the comprehensive features that are otherwise only offered by AV-receivers.
The following signal sources can be connected to the Decoderstation 5:
Digital signal sources
The Decoderstation 5 can decode digital signals and reproduce them via the integrated analogue
5.1 multi-channel output . Digital sources such as DVD players that can transfer multi-channel digi­tal sound tracks with the appropriate media (e.g. film DVDs) are especially well-suited to this type of connection. The digital signals are transmitted to the optical or coaxial connections of the Deco­derstation 5.
Analogue signal sources
The Decoderstation 5 also offers ample connec­tion options for analogue stereo sources. A total of three cinch stereo inputs are available for the same number of stereo signal sources. These two-channel stereo signals can be emitted with the Decoderstation 5 in various surround modes (configurations), for example in Dolby Pro-Logic II format encrypted in the stereo signal. This means that it is possible to reproduce all stereo sources effectively over several channels, either with or without the use of rear surround speakers.
Analogue 5.1 signal input
The Decoderstation 5 has an analogue 5.1 input. You can connect the appropriate signal sources, e.g. from a computer soundcard, here and forward them to the connected sound system.
Equalising the 5.1 speaker system
In addition, the comprehensive setting options of the Decoderstation 5 allow perfect equalisation of the speakers and therefore audio adjustment for your individual loudspeaker settings.
Page 29
8
· Decoderstation 5
Description of the display
and operating elements
on the front of the
Decoderstation 5.

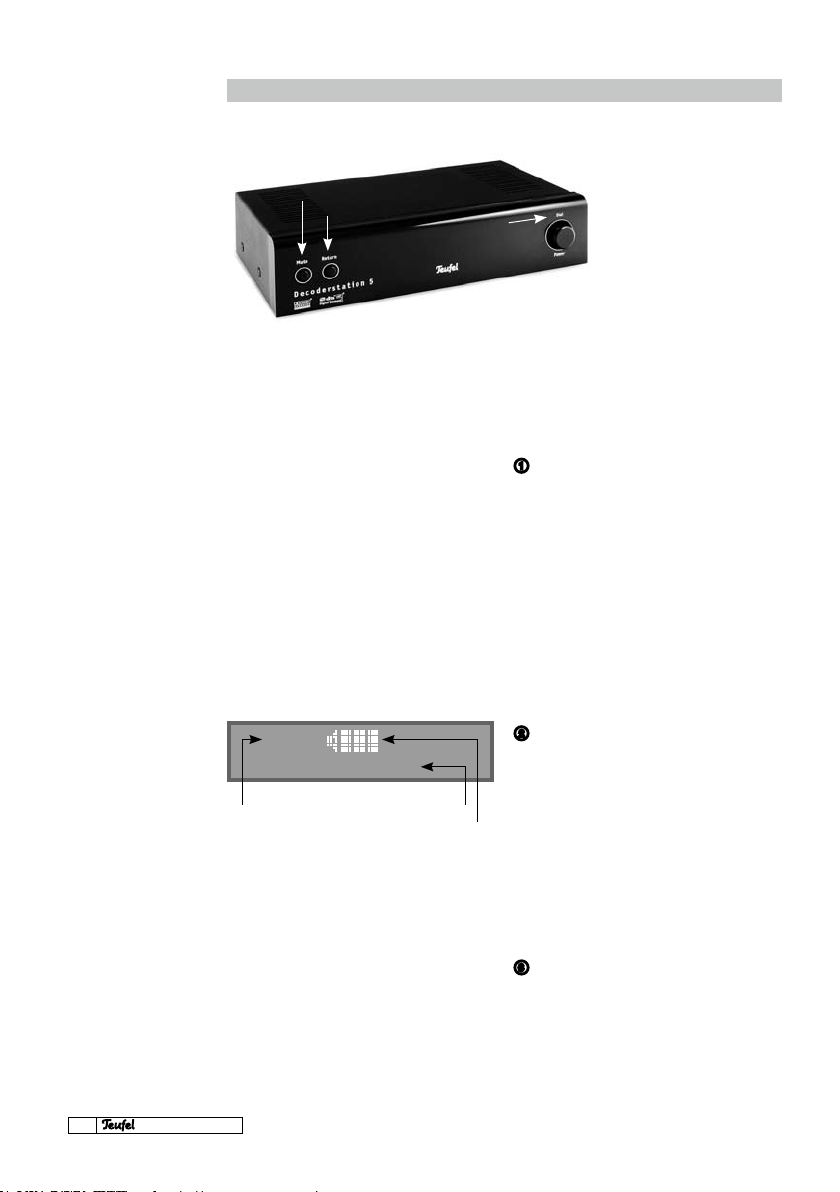

Function: Front / Display Decoderstation 5
E mute-button
W return-button
dial control Q
Please note that the
Note
Decoderstation 5 dis-
play will automatically
return to its default
state after a few
seconds if no input
has been given.
Switching on the Decoderstation 5
Switch on the Decoderstation 5 by pressing the dial control. The appliance will be ready for use af­ter a few seconds. A progress bar will be shown in the display during this time.
Switching off the Decoderstation 5
Switch off the Decoderstation 5 by pressing the dial control for one second. Alternatively you can use the »Off« button on the remote control, which immediately switches off the appliance.
Standby
Soft blue illumination around the main dial indi­cates stand-by mode and that the Decoderstation 5 is ready to start up.
Display
The two-line display is your central information source about the status of the Decoderstation 5. All setting parameters are displayed here.
CD PLII Music
Signal source
Default display state
The left of the top line always shows the signal source selected: »5.1« for analogue multi-channel input, »OPT1« and »OPT2« (optical inputs), »COAX1« and »COAX2« (coaxial inputs) and »TV«, »CD« and »AUX« (analogue stereo inputs). The overall volume is displayed in the form of a bar display to the r ight of this. The second line shows the surround configuration that is active at that time for the selected input. More information on volume control and the sound configurations provided can be found on pages 15 and 16.
Surround configuration
Overall volume
Operation from the appliance itself
You can control all of the Decoderstation 5 menu functions using the dial control, its push function, and the return button. An overview of the menu can be found on page 14.
Q Dial control with push function
The dial control is used to select menu items, spe­cific parameters, and to adjust values. It controls the overall volume of the system in its default setting. The push function of the dial control performs several functions:
Ě Calling up the main menu from the default setting Ě Confirmation of selection and access to subme­ nus
Ě Exiting submenus / value input Ě Confirmation of input - certain parameters, for
example configuration of speaker size, require input confirmation in order to be accepted.
W Return
While you are descending the menu structure of the Decoderstation 5 using the push function of the dial control, the return button is used to navi­gate the next menu level up or to leave the entry field without entering any new values. For example, if you are equalising an individual speaker, pressing Return once will take you to the next menu up and pressing it twice will take you to the main menu. Pressing Return several times lets you quit the menu input and the Decoderstation 5 will return to its default display state.
E Mute
Pressing the button once will mute the Decoder­station 5. If you press it again the appliance will return to the level previously selected. The mute state is shown in the display of the Decodersta­tion 5.
Page 30
9
Decoderstation 5 ·
Function: Back / Decoderstation 5

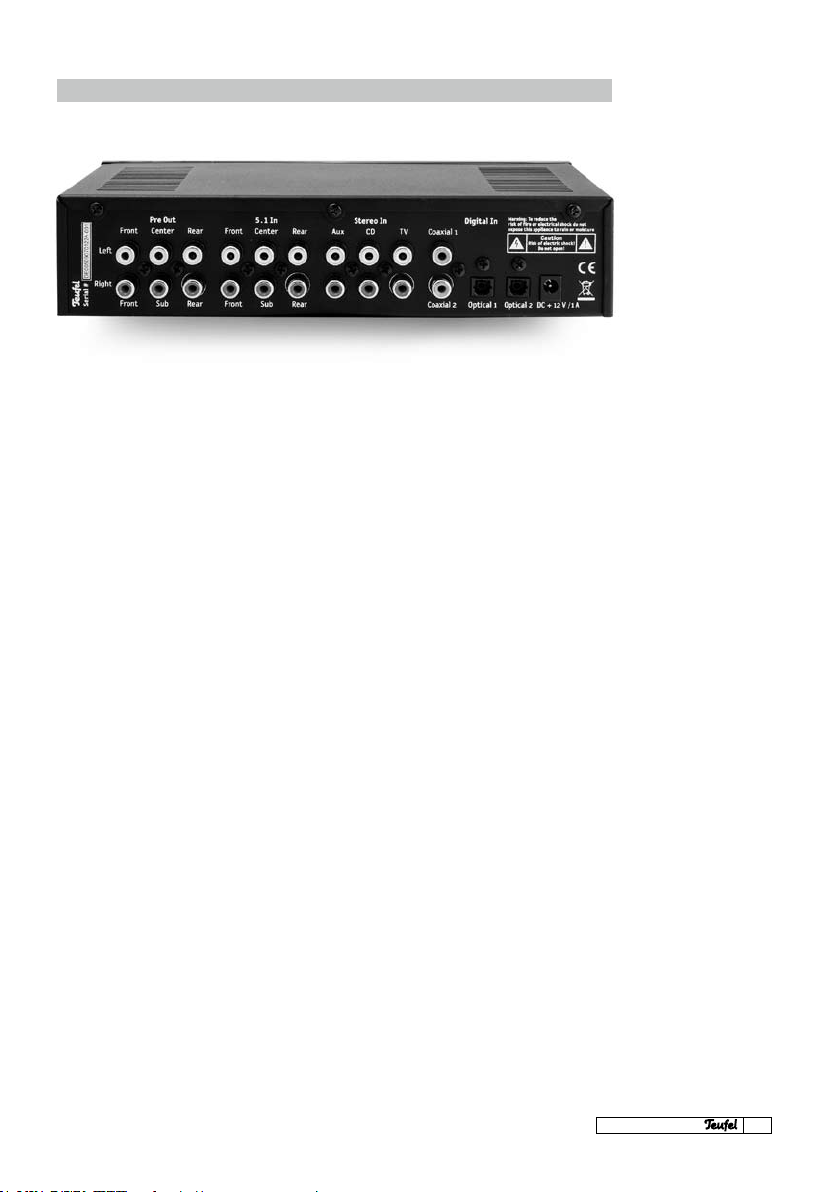

Description of the connections on the back of the Decoderstation 5 and their functions.
5.1 Channel Output (Pre Out)
A decoded analogue multi-channel sound signal is emitted via an analogue 5.1 output. Alternatively you can also use the outputs for the left and right front channels for reproduction in stereo. One cinch cable is required per channel to connect to an external appliance (e.g. a subwoofer with multi­channel input), that is a total of six mono cinch cables or three stereo cinch cables. Ě Front left/right: Sound outputs of the left and right front channels
Ě Centre: Sound output of the centre channel Ě Sub: Subwoofer output
(The subwoofer output reproduces the frequency area below 150Hz). Ě Rear left/right: Sound outputs of the left and right surround channels.
5.1 In
The Decoderstation 5 has an analogue 5.1 input. You can connect the appropriate signal sources, e.g. from a professional computer soundcard, here and forward them to the connected sound system.
TV · CD · Aux ·Stereo In
You can connect the stereo cinch cable (left / right) for connection to the analogue outputs of your stereo reproduction appliances (e.g. TV set, CD player, video recorder etc.) here.
Optical 1 · Optical 2 (Digital In)
For connecting the decoder with a digital signal source in optical format (Toslink). You can buy the cable required from the Lautsprecher Teufel on­line shop.
Coaxial 1 · Coaxial 2 (Digital In)
For connecting the decoder with a digital signal source in coaxial format (cinch).
+ 12 V
DC in power supply from included AC wall adapter.
Note
You will need an extra phono pre-amplier to connect a record player.
Page 31
10
· Decoderstation 5
Function: Remote control

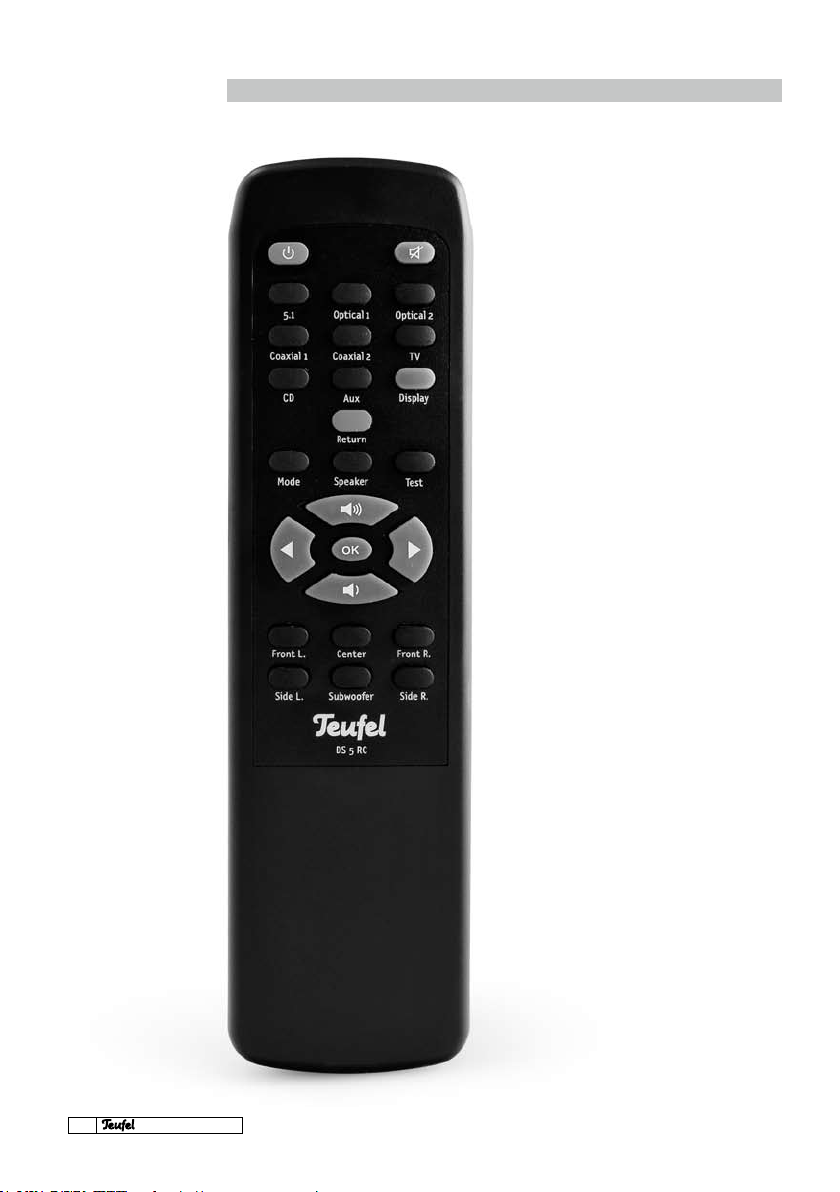

With the included remote control you can fully control all of the Decoderstation 5 settings from the comfort of your sofa.
Standby
Activate the Decoderstation 5 using the standby button of the remote control. Switches the de­vice to active operation (press once) or back into standby mode (by pressing again). You can always tell if the device is ready for operation because the background of the dial control will light up.
Mute
Pressing the button once will mute the Decoder­station 5. If you press it again the appliance will return to the level previously selected. The mute status is shown in the display of the Decodersta­tion 5.
You can select the required input using the se­lection buttons on the remote control.
5.1
Direct selection of the analogue 5.1 signal input on the back of the decoder as input source.
Optical 1 · 2
These buttons select one of the two optical di­gital inputs on the back of the decoder as input source.
Coax 1 · 2
These buttons select one of the two coaxial di­gital inputs on the back of the decoder as input source.
TV · CD · Aux
Each of these buttons select one of the three ana­logue stereo inputs on the back of the decoder as input source.
Display
Pressing this button once switches the LC display off. Pressing the button again switches the LC dis­play back on.
Return
Pressing the return button once will end the cur­rent screen menu or return to the default display state.
Page 32
11
Decoderstation 5 ·
Function: Remote control
Mode
You can select the various surround configu­rations of the Decoderstation 5 by repeatedly pressing this button.
Spe aker
You can select the various speaker configura­tions of the Decoderstation 5 by repeatedly pressing this button.
Te st
After this button has been pressed, the Deco­derstation 5 produces test signals for equalising the speakers. The test signal is then emitted from each loudspeaker in turn (see p. 15 – equali­sing the speakers).
Volume + / – (speaker symbols)
You can use these two buttons to increase or reduce the overall volume of the Decoderst ation 5 or the individual speaker levels. The current setting is shown in the LC display.
Left / right arrow
Pressing these buttons triggers the same functions as rotating the control wheel on the Decoderstation 5.
OK
Pressing this button triggers the same functions as pressing the dial control on the Decodersta­tion 5 (push function).
Front L.
This button leads straight back to the volume control of the left front speaker.
Front R.
This button leads straight back to the volume control of the right front speaker.
Centre
This button leads straight back to the volume control of the centre speaker.
Side L.
This button leads straight back to the volume control of the left surround speaker.
Side R.
This button leads straight back to the volume control of the right surround speaker.
Subwoofer
This button leads straight back to the volume control of the subwoofer.

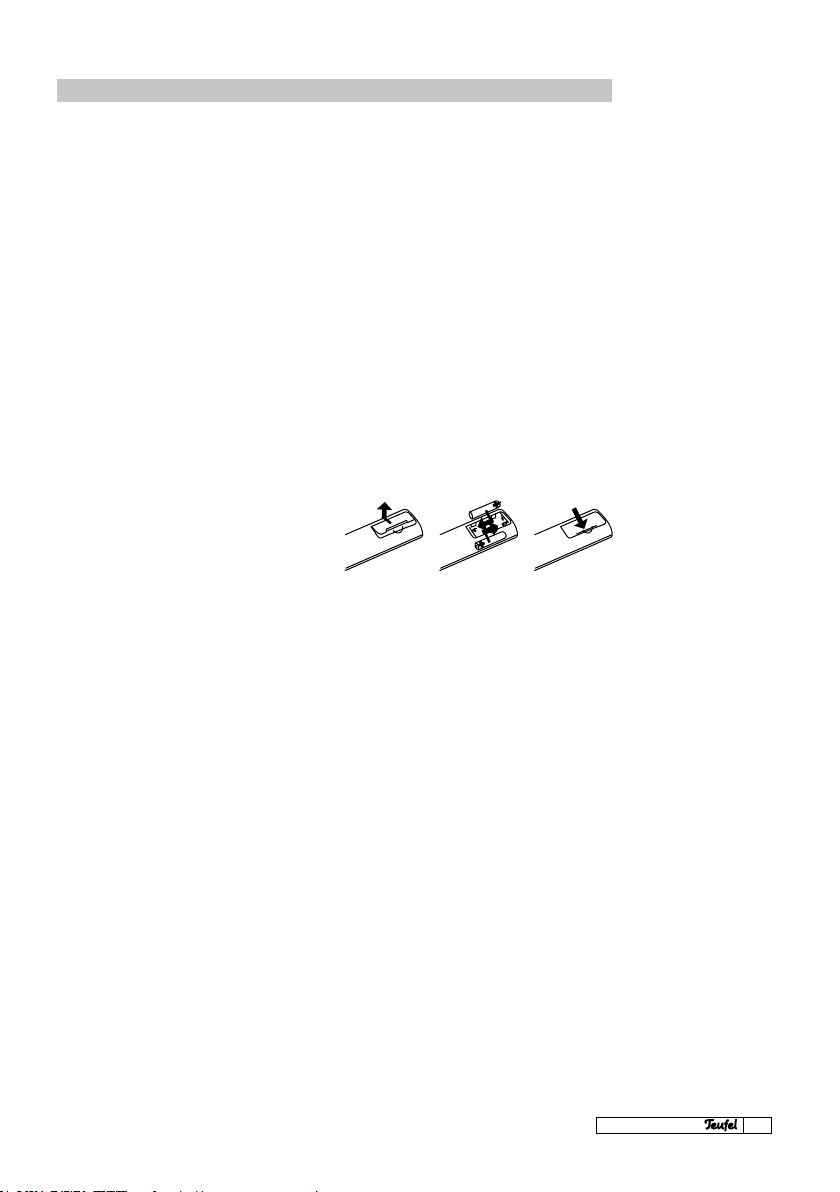

Inserting or changing the batteries.
Please change the batteries if the remote control stops working even when right next to the Decoderstation 5.
Please note:
Ě Do not combine new and old batteries Ě Do not use different types of batteries Ě Observe polarity and the markings in the
battery compar tment
Note
You can reproduce all of the functions of the dial control using the OK button and both arrow buttons, left and right.
Page 33
12
· Decoderstation 5

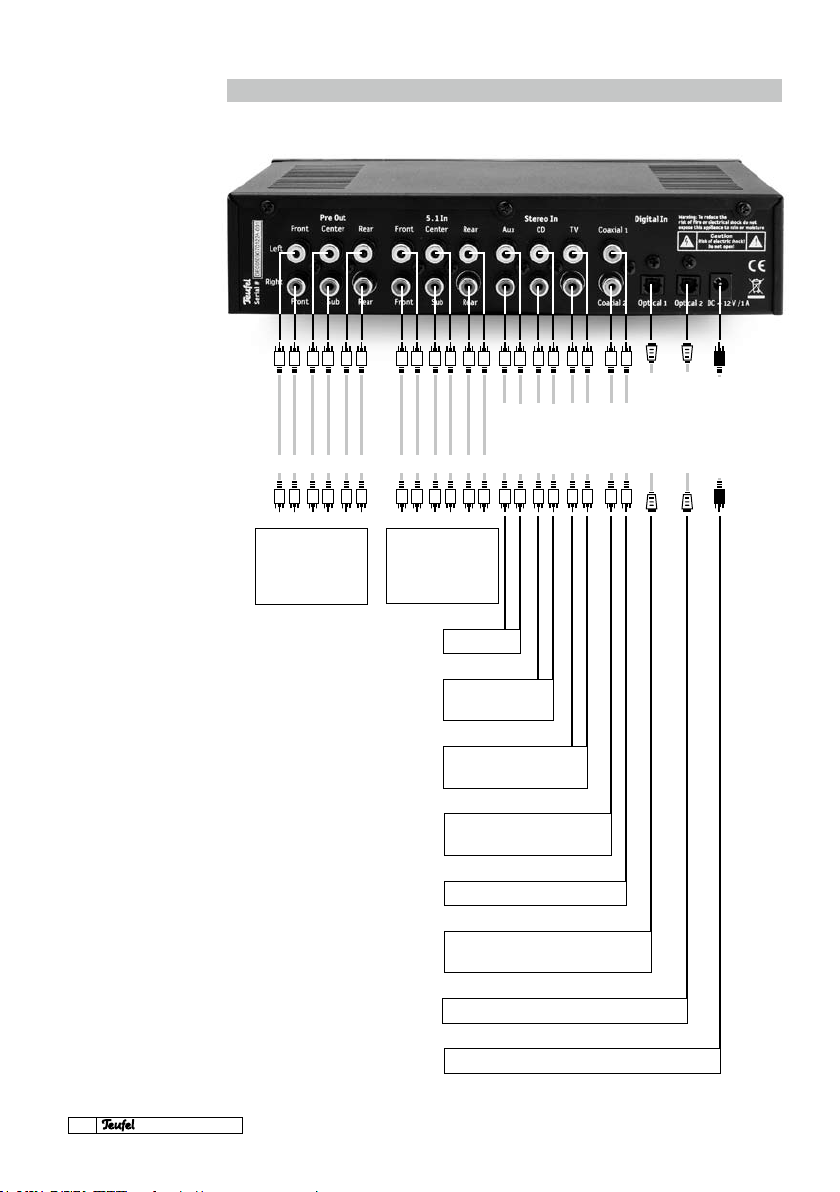

Example allocation of
inputs and outputs of the
Decoderstation 5
Note
You can vary the
allocation of inputs.
For example, the audio
output of a TV set can also be operated from
Aux (here: MP3 player).
Connection
6 x Cinch cable 6 x Cinch cable
Cinch cable
Cinch cable
Cinch cable
Cinch cabelCinch cable
Cinch cabel
Cinch cable
Cinch cable
Cinch cable
Cinch cable
Digital audio cable
Digital audio cable
Mains power cable
5.1 amplifier system, e.g. multi­channel subwoofer with 5.1 input
Analogue 5.1 signal
source, e.g. profes­sional sound card
MP3-Player
CD recorder
CD player/
Video recorder /
TV set
DAT recorder /
SAT receiver
PC sound card
DVD recorder
DVD player /
Games console
Mains power cable
Page 34
13
Decoderstation 5 ·
Connection
The Decoderstation 5 is perfect for combining digital and analogue signal sources. With four di­gital and three analogue inputs and an analogue
5.1 signal input it offers connections for numerous signal sources.
Connecting digital signal sources
The Decoderstation 5 automatically recognises the signal format transferred via the digital in­puts, decodes the data flow and changes it into a stereo or multi-channel signal.
Connection to one of the two optical digital inputs
E.g. sound card with digit al output, CD player, DVD player / recorder and sat receiver etc.
Use an optical digital cable (Toslink) to connect appliances with optical digital output.
Before connecting the optical digital cable, remo­ve the protective caps from the fibre optics and connection jacks. You can obtain the optical cable required from the Teufel online shop.
Connection to one of the two coaxial digital
inputs
E.g. sound card with digital output, DVD player / re­corder, sat receiver and games console etc.
Use a cinch cable for connecting appliances
with coaxial digital output.
Connection of signal sources with analogue out­puts.

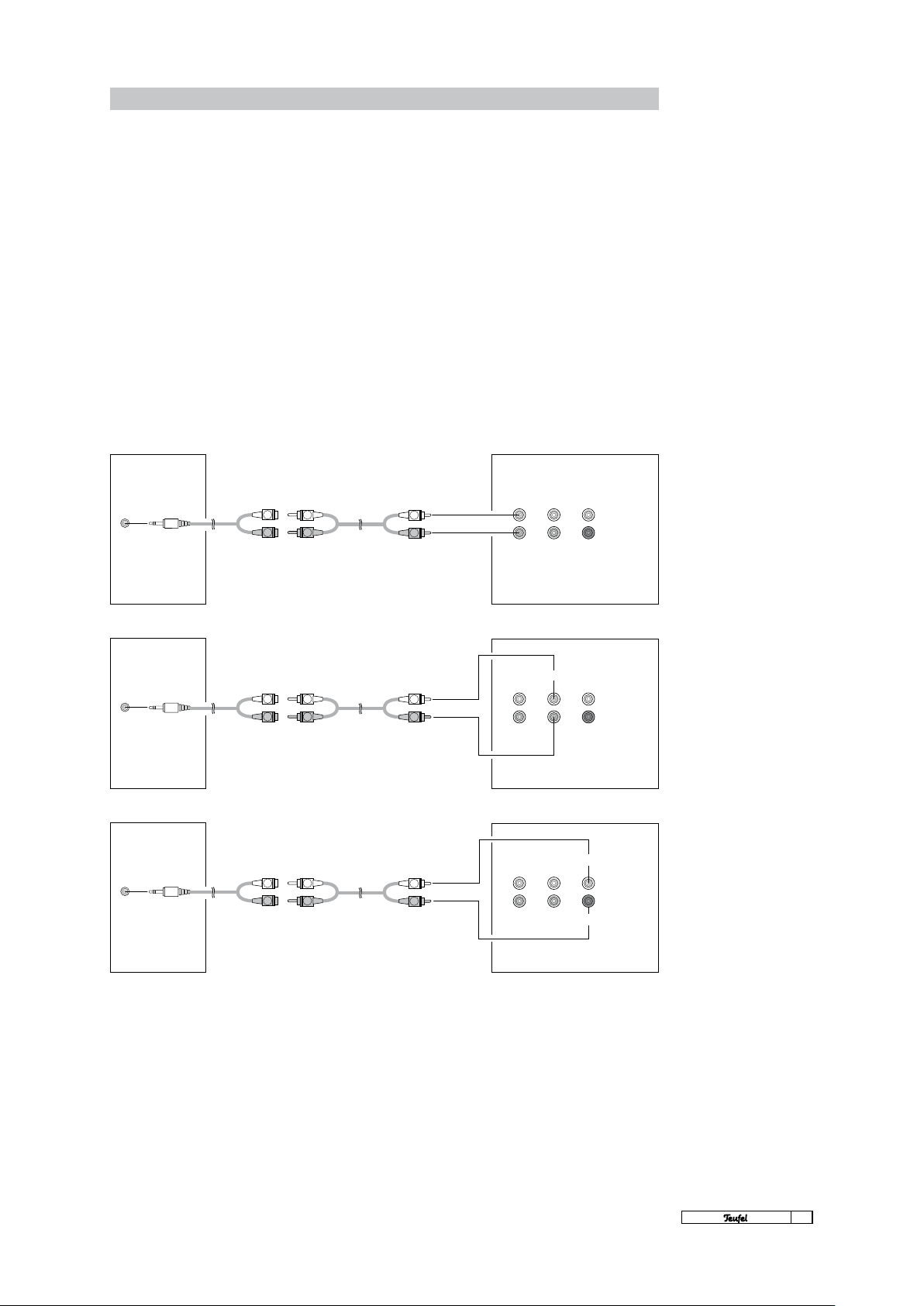

In addition to the digital inputs, the Deco­derstation 5 also has three analogue stereo inputs.
They can be assigned to analogue appliances of your choice, for example, a stereo sound card, an MP3 player, a TV set, CD player, or video recorder etc. Either a stereo cinch cable or a 3.5mm mini-jack-Y adapter cable is required per appliance (e.g. for connecting to an MP3 player).
Connecting an analogue 5.1 signal source e.g. multi-channel computer sound card, etc.
The 5.1 input of the Decoderstation 5 is used for connecting external, analogue 5.1 signal sources, such as a professional sound card or a DVD player with analogue outputs. One cinch cable is required per channel for connection, i.e. a total of six mono cinch cables or three stereo cinch cables.

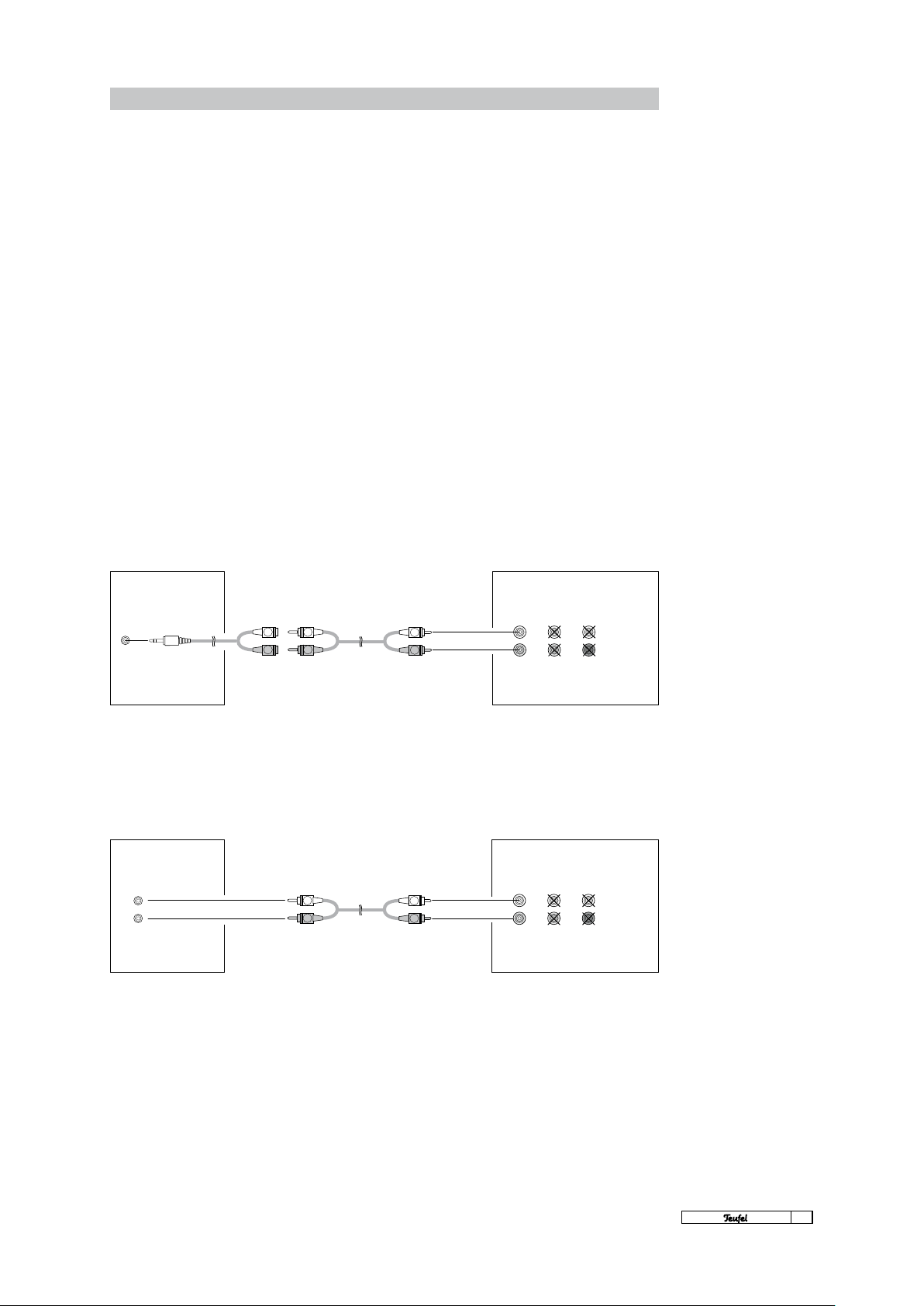

Using the 5.1 input as a 4th stereo input
If you require an extra (fourth) stereo input , you can use the 5.1 input for that. Connect your analo­gue signal source, for example a cassette recorder, to the Front Left and Front Right inputs.
When connecting the devices, please note the relevant information in the handbooks for the components used.
Note
The 5.1 input is not inu­enced by the surround­specic parameters of the Decoderstation 5. Except for changing the overall volume, the signal connected here is only forwarded from the input to the output of the Decoderstation 5. Select the sound setting »5.1 Direct«. The other settings relate to the Front Left and Front Right inputs, i.e. to operation as a 4th stereo input.
Page 35
14
· Decoderstation 5
The display shows arrows
Note
during selection. If you
follow these arrows,
further choices will be
made available.
Setting-up the Decoderstation 5
Menu structure
You can access the default display settings in the main menu by pressing the push button of the dial control once. You can find more specific information on naviga­tion within the menu structure on page 8.
Menu entry Selection Value range
»MAIN MENU«
MAIN MENU
INPUT
* The availability of these
entries depends on the
surround and speaker
congurations selected.
** The availability of the
subwoofer entry depends
on the speaker size
selected.
*** The delay function is only
available for 3.1 stereo and
5.1 stereo speaker congurations.
»INPUT« »5.1«
»OPT 1« »OPT 2« »COAX 1« »COAX 2« »T V« »CD« »AUX«
»SURROUND« »2.1 Stereo«
»3.1 Stereo« * »PLII Movie« * »PLII Music« * »5.1 Stereo« * »5.1 Direct« *
»SPEAKER« »3.1 Channel«
»2.1 Channel«
»LEVEL« »Left« ±12 dB
»Center« * ±12 dB »Sub«** ±12 dB »Right« ±12 dB »Side L« * ±12 dB »Side R« * ±12 dB
»DELAY« *** »Center Spk« 0 - -1,5 m
»Side Spks« 0 - -8,4 m
»SPEAKER SIZE« »LLL«
»LLL+Sub« »LSL« »LSL+Sub« »LSS« »LSS+Sub« »SSS+Sub«
Page 36
15
Decoderstation 5 ·
Setting-up the Decoderstation 5
Overall volume control
You can control the overall volume of the Decoder­station 5 at any time by turning the dial control. You can reduce the volume by turning the dial to the left and increase it by turning it to the right. The control area ranges from -54dB to +10dB. If »---« is shown on the display, you have selected the minimum volume.
CD Volume –35dB
Equalising the speakers*
Before familiarising yourself with the other func­tions of the appliance, we recommend that you perform a basic equalisation of the volume of the connected speakers. The aim of this equalisation is to set the same volume level at the listening po­sition for each of the channels. This is the only way to achieve harmonious and balanced reproduction of the various channels.
Make sure you are in the best possible and most central place for listening. Press the standby button on the remote control and the Decoder­station 5 will be ready for use. Make sure that all signal-sources, any DVD players connected, are not active. Choose a value of -35 dB, for example, as a reference master volume. The aim is to set the levels of the centre, sub and rear in relation to the output level set on the front speaker. Press the »Test« button on the remote control. This activates a test tone that cycles through all satellites and the subwoofer in sequence.
Test Tone
Right 0dB
First make sure that the left and right front spea­kers are set to 0dB. You can select the required speaker simply by pressing a button on the remote control and then adjusting its volume up to ±12dB using the volume buttons.
You now can increase or decrease the levels for the centre, both surround speakers and the sub­woofer until you can hear these four speakers at
the same volume as both front speakers. Press the »Return« button again to complete the calibration process.
Equalisation by ear often requires several attemp­ts and does not always provide perfect results right away. For perfect equalisation of the spea­kers we recommend using a volume level measu­ring device, available online in the Teufel shop. This device will last a lifetime and allows you to make far more precise settings than by ear. Bass levels in particular are often set too loud – exact adjustment is only guaranteed using a measuring device.
Mute
Pressing the button once will mute the Decoder­station 5. If you press it again the appliance will return to the level previously selected. The mute status is shown in the display of the Decodersta­tion 5.
CD MUTE
PLII Music
* You only need to equalise the speakers when using a
5.1 surround set. In pure stereo mode, set the volumes for the left and right front speakers to 0dB each. By lowering r raising one channel you can optimise the sound experience for an asymmetrical listening situation, similar to a balance controller.
Note
Make sure that the emitting amplier (e.g. Concept E Magnum) reproduces all of the channels at the same volume.
Note
The volume setting of the subwoofer may be slightly different when playing back music compared with playing home cinema sound, depending on the recording quality and mixing. Whereas a solid bass element often predominates on DVDs with lots of special effects, the desired level is sometimes not achieved for music (especially if the set has been set up for ideal DVD playback). Your personal taste is the best guide for nding a compromise between the two sources. You can directly adjust the subwoofer level as required at any time using the »Subwoofer« button on the remote control.
Page 37
16
· Decoderstation 5
Setting-up the Decoderstation 5
The Decoderstation 5
* Note
memorises the selected
surround conguration
for each input separately.
For example, you can
listen to your CDs as a
conventional two-channel
stereo mix or your DVDs using the optical input,
but always in 5.1.
** You only need to equa-
lise the speakers when
using a 5.1 surround set.
1. »INPUT« – selecting the input signal
You can choose the desired input signal source using the »INPUT« option in the menu. The following are available: »5.1« Analogue 5.1 input »OPT 1« · »OPT 2« Optical digital inputs »COAX 1« · »COAX 2« Coaxial digital inputs »TV« · »CD« · »AUX« Analogue stereo in­ puts
INPUT
OPT 2
2. »SURROUND« – Selecting surround configu­ration*
Depending on the choice of speaker configuration (see 3, »SPEAKER«) the Decoderstation 5 offers the following surround modes:
Speaker configuration »2.1 Channel« »3.1 Channel« »5.1 Channel«
2.1 Stereo 2.1 Stereo 2.1 Stereo
3.1 Stereo 3.1 Stereo PLII Movie PLII Movie PLII Music PLII Music
5.1 Stereo
5.1 Direct
The decoupling of the source signal format and the speaker configuration provides you with some practical options: You can expand the two-channel stereo signal to 3.1 (without surround speakers) and 5.0/5.1 (with surround speakers) formats. The two Dolby PLII operating modes expand the re­production by centre and surround reproduction, according to Dolby specifications.
SURROUND MODE
5.1 Stereo
Use the PLII Movie setting if you are using Dol­by Pro-Logic encoded media such as certain video cassettes.
Conversely you can also reproduce a multi-chan­nel signal using a smaller surround configuration, such as 2.1. This downmix function also allows you to replace a missing subwoofer with bass manage­ment (see page 18). If you use digital inputs, Dolby and DTS encoded formats are recognised by the Decoderstation 5 and the sound configurations are set automatical­ly and cannot be changed.
3. »SPEAKER« –Selecting speaker configuration
You can use the »SPEAKER« option in the menu to tell the Decoderstation 5 which scope the con­nected speaker set has. You can choose the following: »5.1 Channel« »3.1 Channel« »2.1 Channel«
SPEAKER SETUP
5.1 Channel
4. »LEVEL« – Equalisation**
You can use the »LEVEL« option in the menu to ad­just the levels of all of the speakers that you have registered in the »SPEAKER« menu option.
You can choose between the following entries, depending on the speaker configuration and the speaker sizes registered:
»Left« The left front speaker »Center« The centre speaker »Sub« The subwoofer »Right« The right front speaker »Side L« The left surround speaker »Side R« The right surround speaker
LEVEL ADJUST
Left
By pressing the dial control you can access the equalisation control of the respective speaker from the level menu. You have a control range of ±12dB per speaker.
LEVEL ADJUST
Left -1dB
As a rule, you will only need this menu once for initial adjustment of your surround system. Please read page 15.
Page 38
17
Decoderstation 5 ·
Setting-up the centre delay
5. »DELAY« – Delay *
In order for the appliance’s digital signal pro­cessor (DSP) to be able to convert Dolby and DTS multi-channel signals perfectly, it must be aware of the spatial positioning of the individual boxes to each other. Distance differences between the speakers can be equalised by using a delay. The aim is that the signals from all speakers reach the listening position at the same time. The Decoderstation 5 assumes that the front and surround speakers (side) are all positioned sym­metrically to the listening position. It is also as­sumed that the front speakers are furthest away from the listening position. You can use menu entries [DELAY]/[Center Spk] and [DELAY]/[Surr Spks] to enter how much closer the centre and surround speakers are positioned relative to this maximum distance. They should be at a comfortable relative distance to the front speakers.
1. Measure the distance between the listening point and the front speakers.
2. Measure the distance between the listening point and the centre speaker
3. Now subtract the distance from the centre box from the distance from the front boxes. Set this value in the Decoderstation 5; use the closest matching value. **
DELAY - REL DIST
Center Spk
Setting the surround delay
1. Measure the distance between the
listening point and the front speakers.
2. Measure the distance between the listening point and the surround speakers.
3. Now subtract the distance from the surround speakers from the distance from the front speakers. Set this value in the Decoderstation5; use the closest matching value. **
DELAY - REL DIST
Surr Spks
Example
Distance to the front speakers = 3.5 metres each, Distance to the surround speakers = 2.0 metres each. Subtracting the distances gives the following re­sult: 3.5 – 2.0=1.5 metres. Therefore the surround speakers are 1.5 metres closer to the listening position than the two front speakers.
DELAY - REL DIST Surr Spks-1,5m
As a rule you will only need this menu once for ini­tial adjustment of your surround system.
* Note
The delay function is only available for 3.1 stereo and
5.1 stereo speaker congu­rations.
** Information
The distance can be entered in 30 cm incre­ments. Use the setting that is as close as possible to the resulting distance.
Example
Distance to the front speakers = 3.5 metres each, Distance to the centre box = 2.6 metres. Subtracting the distances gives the following re­sult: 3.5 – 2.6=0.9 metres. Therefore the centre speaker is 0.9 metres closer to the listening position than the front speaker.
DELAY - REL DIST
Center Spk - 0,9m
Page 39
18
· Decoderstation 5
Settingup the Decoderstation 5
* Notice:
When selecting "Large" in the speaker set-up the subwoofer will only repro­duce 1 LFE-channel from a multi channel source such as DVD. If there is no discrete LFE­channel (e.g. from a stereo source) the subwoofer will not carry a signal as the bass frequencies are directed to the front speakers.
6. »SPEAKER SIZE«
You can tell the Decoderst ation 5 the size of your speakers using the »SPEAKER SIZE« menu option. The 5.1 speaker set-up only consists of five iden­tical speakers, each able to reproduce the full frequency range under perfect conditions. This includes a separate subwoofer that only repro­duces the LFE channel. Speakers for home cinema are generally smaller and are therefore limited in the bass range. There is no subwoofer present in other cases. The Decoderstation 5 comes with bass manage­ment to produce a complete sound experience with these systems, too. The function of this setting: The bass of any chan­nel where bass is limited is rounted to the full­area speakers or the subwoofer. If there is no sub­woofer the bass and the LFE channel are rounted to the front left and right full-area speakers. You only need to set the speaker size in your system once. The Decoderstation 5 will then distribute frequencies among the speakers au­tomatically and according to the Dolby and DTS standands.
The Decoderstation 5 differentiates between the front speaker pair [F] in »small« or »large«, the centre speaker [C] in »small« or »large«, the rear or side surround speaker pair [R] in »small« or »large« and a subwoofer if one is present [+ Sub].
Seven configurations are available: The three abbreviations refer to front, centre and surround speakers (FCS). »LLL« »LLL+Sub« »LSL« »LSL+Sub« »LSS« »LSS+Sub« »SSS+Sub«
If you have left and right front speakers, centre or surround speakers that are large enough for deep bass reproduction, select a configuration with the entry »Large« at the corresponding position (FCS). This is the case for floorstanding speakers and large shelf speakers.* Select the setting »Small« in other cases.
Then select whether your speaker system has a se­parate subwoofer. This refers to active subwoofers with built in amplifiers. Only select a configuration with »+Sub« if this is the case. *
SPEAKER SIZE FCS: SSS+Sub
Page 40
19
Decoderstation 5 ·
Troubleshooting
»The rear satellites and/or centre will not play with stereo sources such as music CDs (e.g. via PC or DVD player).«
Use the remote control to switch the decoder into Pro Logic mode or into one of the DSP modes (3.1 stereo, 5.1 stereo).
»The decoder reacts to the remote control of another appliance / another appliance reacts to the decoder’s remote control.«
As there are no clear regulations on the distribu­tion of codes, each manufacturer can work with the code of their choice. Unfortunately, occasional crossovers in individual cases cannot be preven­ted. This is, however, not a fault of the Decoder­station 5! If you have the option to choose another location and can locate the decoder outside the range of the other device`s remote control (and not right next to it) this may reduce this problem, as the reception areas may then no longer overlap.
»The decoder does not respond perfectly to the remote control.«
The batteries may have been inserted incorrectly or they may be discharged: they may need to be inserted correctly or replaced. Operation could be impaired if the decoder is situated too far away or in direct sunlight.
»It is not possible to connect a 6.1 or 7.1 speaker set to the Decoderstation 5.«
The Decoderstation 5 is a 5.1 decoder and is there­fore not able to decode a sixth channel (rear). 6.1 or 7.1 operation is therefore not possible.
»You cannot change the surround congurati­on.«
You are probably using a digital input. If a Dolby or DTS signal is being received at this input, the Decoderstation 5 will automatically switch to the correct sound configuration.
»No Dolby/DTS multi-channel tone is reproduced the digital sources connected.«
The Decoderstation 5 automatically recognises the format of the signal source when reprodu­cing digital sources. If the decoder is not playing a multi-channel tone, there is probably no multi­channel signal present. Digital signal sources do not always have to transfer multi-channel tones but can also emit regular stereo tones (2.0). For example, this is often the case for television re­ception with digital receivers.
»With computer game consoles no multi-channel tones are reproduced via the digitally connected sound cards.«
Lots of sound chips are able to create surround sound in real time and emit via the analogue outputs on the sound card. However, for transfer using a digital connection, digital encoding of the multi-channel tone in a Dolby AC-3 stream is ne­cessary. This can only be carried out if the sound card is able to perform this decoding in real time and transfer it to the decoder. At the moment, only game consoles, such as Mi­crosoft Xbox 360 and Sony Playstation 3 and a few sound cards with Dolby® Digital Live support are able to perform real time encoding.
»You cannot switch off the Decoderstation 5 using the remote control.«
Keep pressing the dial control until the appliance starts up again.
»The Decoderstation 5 cannot complete the start process.«
Temporarily remove the main power supply.
Page 41
Technical description and operating instructions for the Decoderstation 5
Please contact our service depar tment if you have any questions, suggestions or if there is anything you think we could do better.
Lautsprecher Teufel GmbH
Bülowstraße 66 10783 Berlin · Germany
Tel.: +49(30) 30 09 30 0 Fax: +49(30) 30 09 30 30
www.teufel.eu
All information is provided without guarantee of correctness. Subject to technical changes, typing errors and mistakes.
Loading...
