Page 1
AUX
Technical Description and Operating Instructions
CoreStation Compact
Ultra Compact 2.1 AV Receiver with Wireless
Technology
Page 2
2
• CoreStation Compact
Contents
General Notes and Information .........3
Notice ................................................3
Trademarks .......................................3
Original packaging ............................3
Complaints ........................................3
Contact ..............................................4
Proper use .........................................4
Explanation of symbols.....................4
For Your Safety ....................................5
Caution items ....................................5
Safety notes ......................................5
Overview ..............................................7
Unpacking .........................................7
Product contents ...............................7
Checking the product contents ........7
ARC (Audio Return Channel) ............8
CEC (Consumer Electronics
Control) ..............................................8

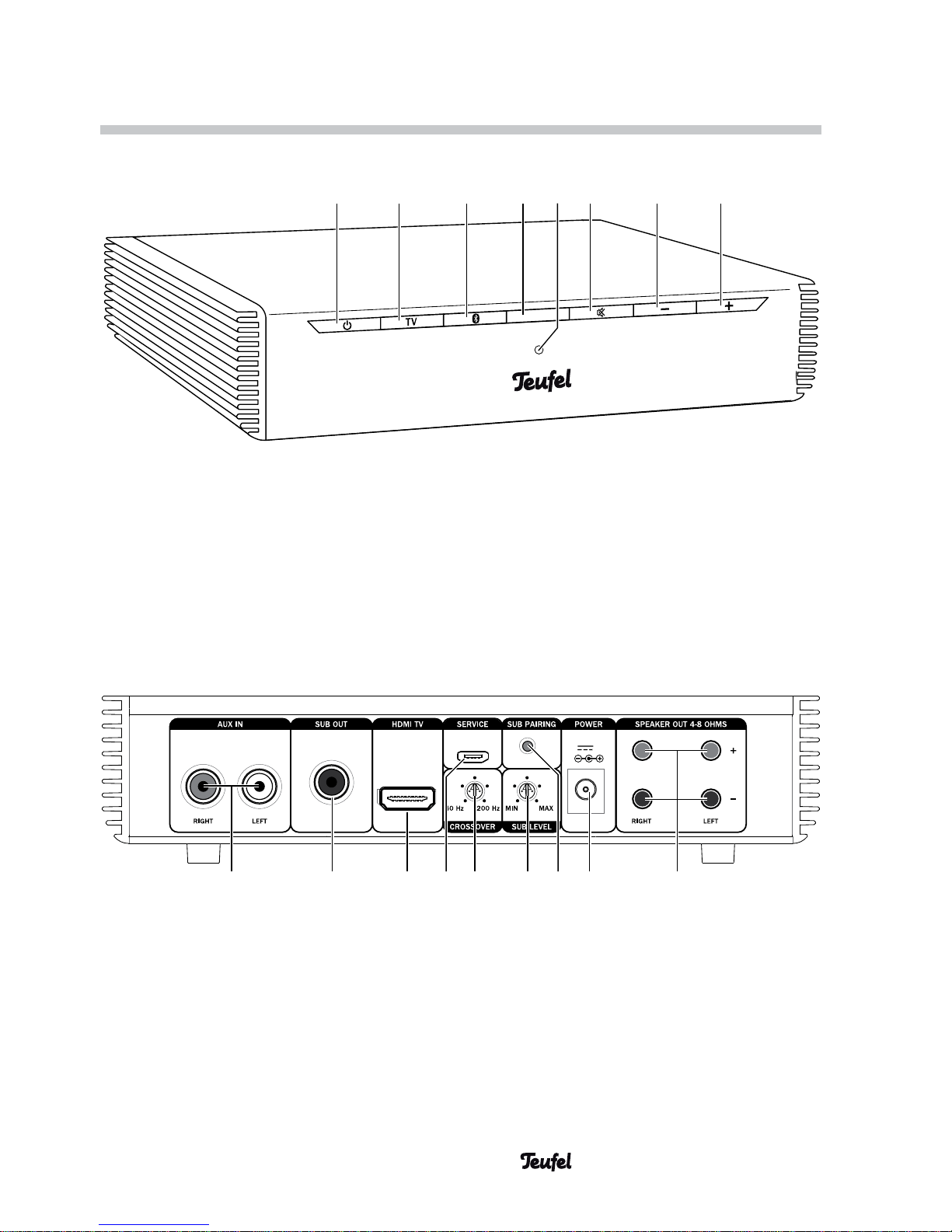

Operational Controls and
Connections ........................................9
Setup / Mounting .............................10
Setup location ................................ 10

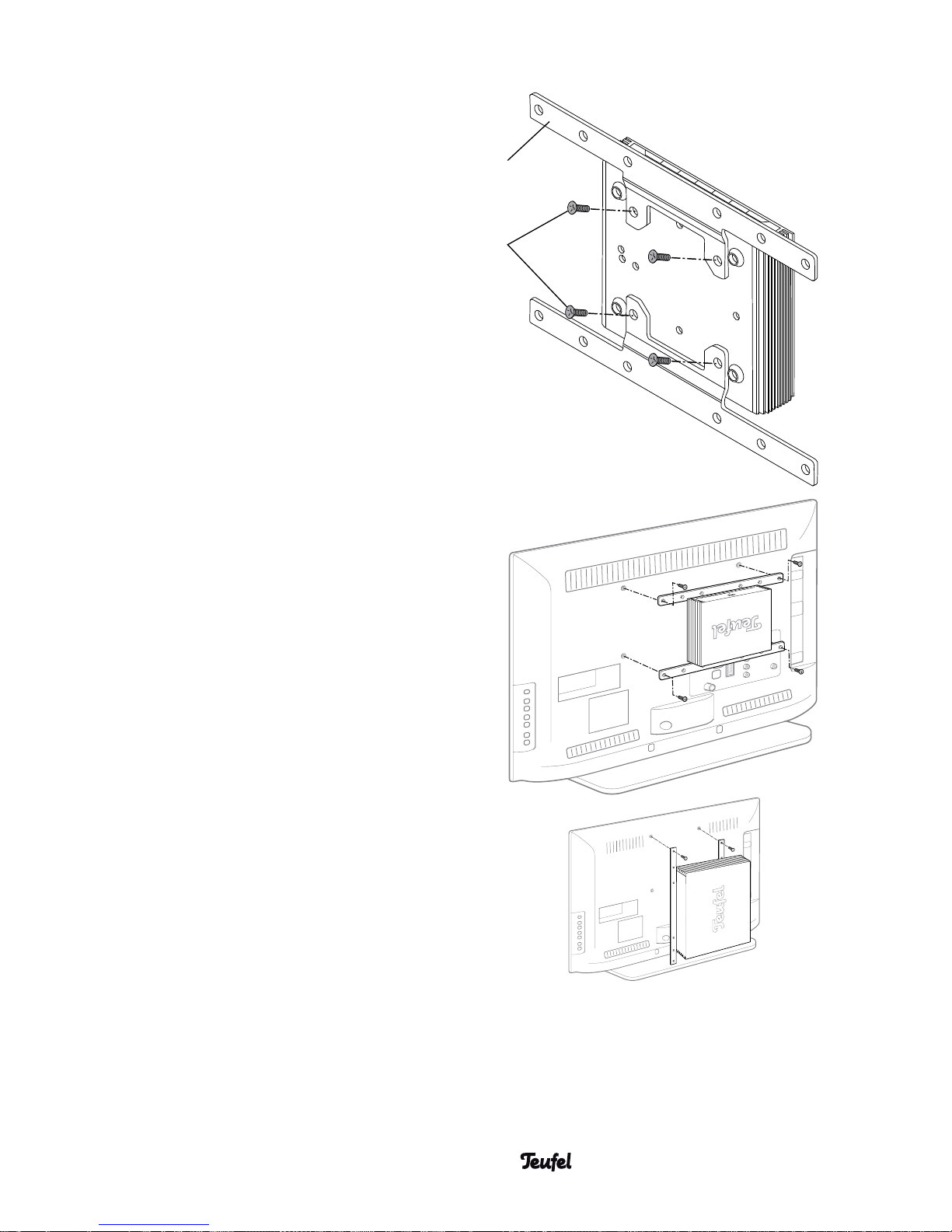

Mounting behind a TV set ............. 10
Connecting ....................................... 12
HDMI TV ......................................... 12

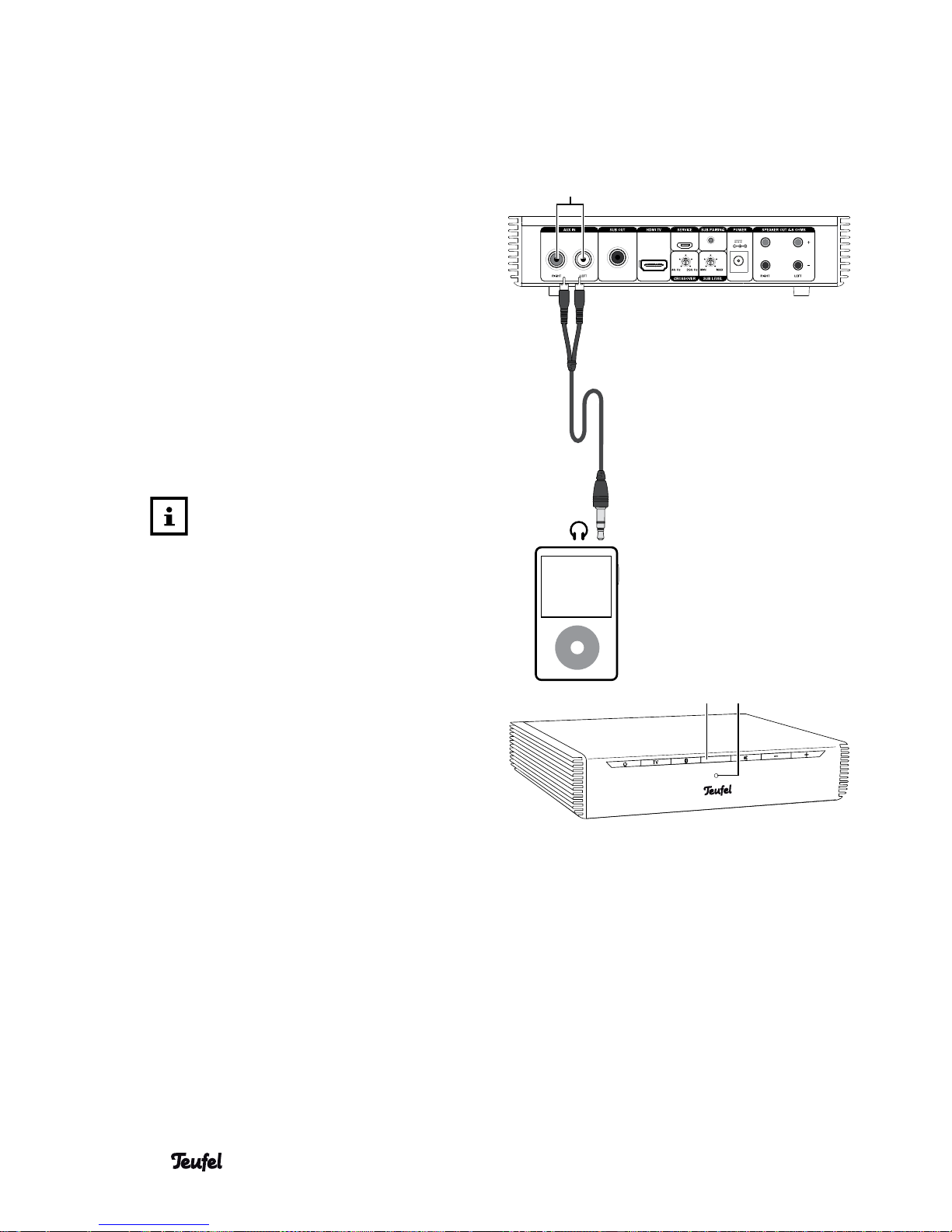

AUX ................................................. 12
Subwoofer ...................................... 12
Speaker outputs ............................ 13
Connecting to a power supply ....... 14
Basic Functions ............................... 15
Activating and deactivating ........... 15
Selecting a source ......................... 16
Setting the volume ......................... 16
Settings .............................................17
Crossover frequency ...................... 17
Wireless subwoofer........................ 17
Subwoofer volume ......................... 18
TV set without ARC ........................ 18
Operation .......................................... 19
TV set .............................................. 19

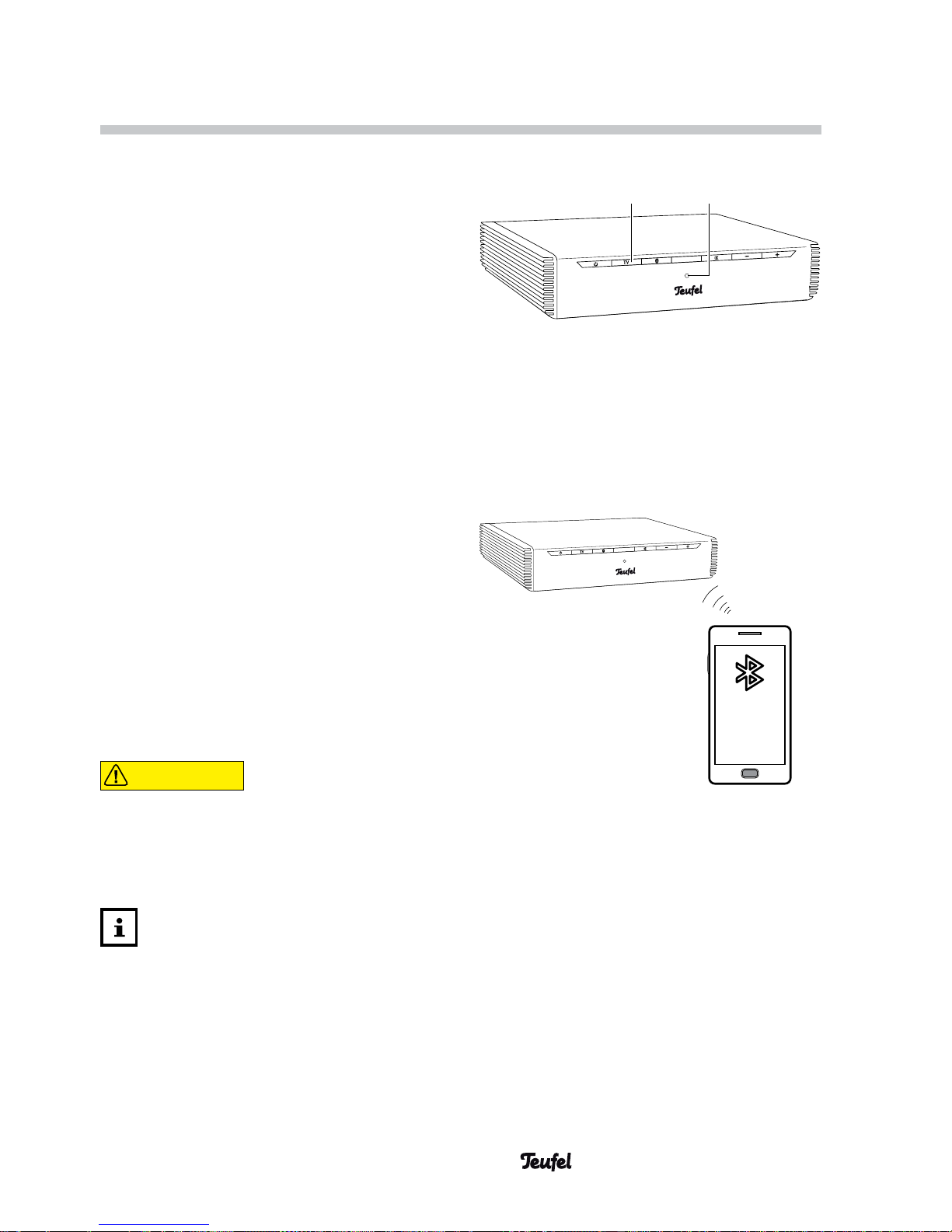

Bluetooth® ...................................... 19
External source .............................. 22
Remote Control ................................ 23
Functions ........................................ 23

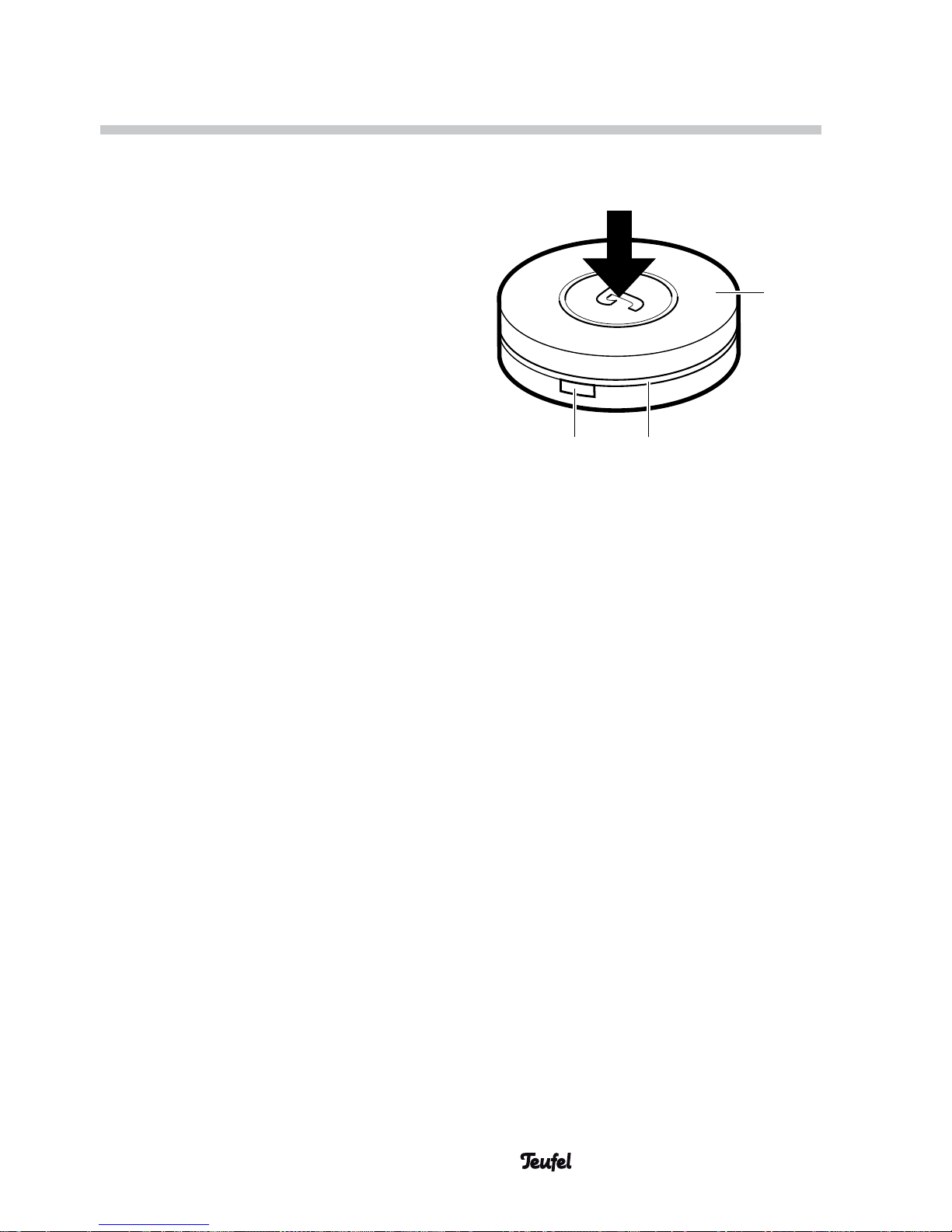

Pairing the remote control ............. 23

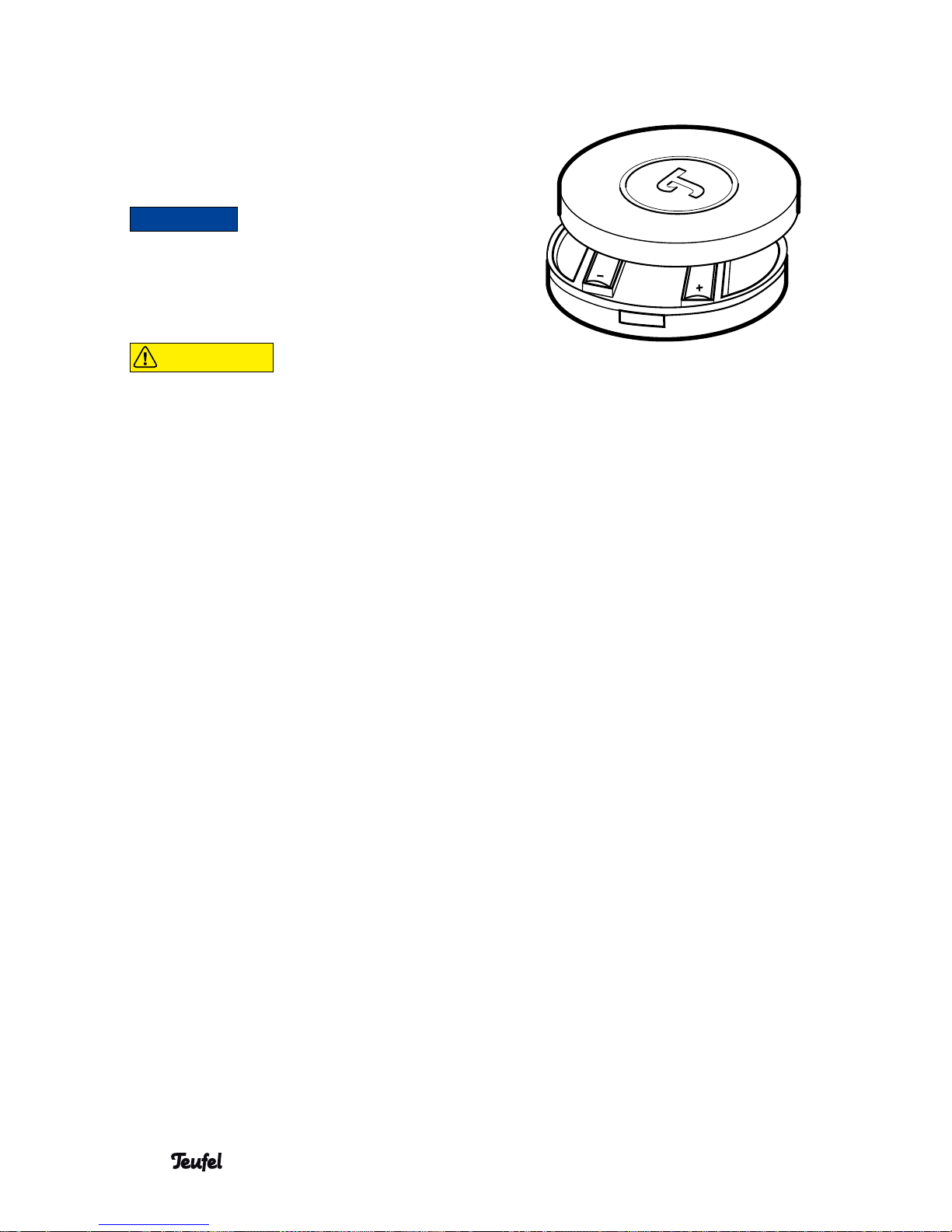

Changing the batteries .................. 24
Software Update .............................. 25
Installing new software .................. 25
Cleaning & Maintenance .................27
Troubleshooting ............................... 28
Technical data .................................. 30
Declaration of Conformity ................31
Before operating the device,
please read the safety notes
and user manual carefully.
Only in this way, can you ensure that all
functions are used in a safe and reliable manner. Store the user manual in a
safe place and also be sure to pass it
on to any subsequent owner.
Page 3
3
• CoreStation Compact
Notice
The information in this document may
change without prior notice and in no
way constitutes any liability on the part
of Lautsprecher Teufel GmbH.
No part of this user manual may be
reproduced in any form or be broadcast
in any way electronically, mechanically,
by photocopy or recording without the
written permission of Lautsprecher
Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
January 2016

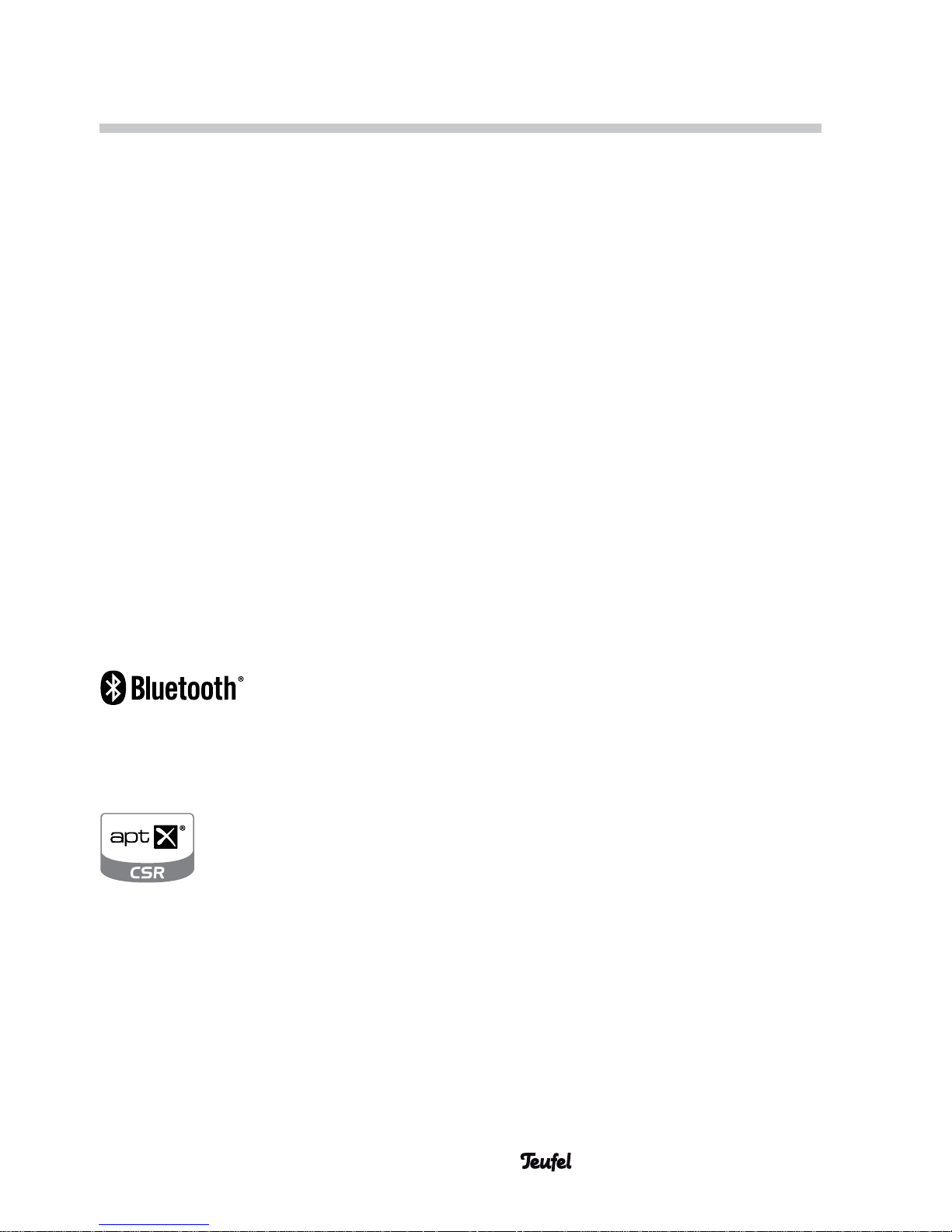

Trademarks
© All trademarks are the property of
their respective owners.
Bluetooth® and the
Bluetooth symbol
are trademarks of
Bluetooth SIG, Inc.
aptX® and the aptX
symbol are trademarks of CSR plc
or affiliated companies and may be
registered in several
countries.
Original packaging
If you wish to exercise your eight-week
right of return, we ask that you be absolutely sure to hold on to the packaging.
We can only accept the return of a unit
WITH THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of a complaint, we will need the
following information to process your
enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with the product) or on the
order confirmation received as a PDF
document, e.g. 4322543.
2. Serial number or batch number
Located on the bottom of the device,
e.g. serial no.: KB20240129A-123.
Thank you for your support!
General Notes and Information
Page 4
4
• CoreStation Compact
Contact
Please contact our customer service
with any questions, suggestions or
complaints:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Phone 00800 - 200 300 40 (toll-free)
Fax +49 (0)30 / 300 930 930
E-mail: info@teufelaudio.com
teufelaudio.com
Proper use
The CoreStation Compact is designed
for the playback of music and speech
from a TV set or an external player.
Only use the device as described in
this user manual. Any other use will be
deemed as not in accordance with the
instructions and may lead to damage of
property or even persons.
The manufacturer cannot be held liable
for damages caused by improper use.
The device is intended for private use.
Explanation of symbols
Protection class II
Dual insulation
Risk of electrical shock
Do not open the housing.
Old devices must not be
disposed of with household
waste!
If the device is no longer operational,
every consumer is required by law
to dispose of old devices separately
from household waste, e.g. at a collection point run by the communal authority/borough. This ensures that old
devices are recycled in a professional
manner and also rules out negative
consequences for the environment.
For this reason, electrical equipment
is marked with the adjacent symbol.
Batteries and rechargeable
batteries must not be
disposed of with household
waste!
Every consumer is required by law to
bring all batteries and rechargeable
batteries, regardless whether they
contain harmful substances*) or not,
to a collection point run by the communal authority or borough or to a
retailer, so that they can be disposed
of in an environmentally friendly
manner.
Please only turn in batteries and
rechargeable batteries which are
empty!
*) labelled with: Cd = cadmium,
Pb = lead, Hg = mercury
Page 5
5
• CoreStation Compact
Caution items
You can find the following signal terms
in this user manual:
WARNING
This signal term indicates a
moderate risk, which, if not
avoided, may result in death or
severe injury.
CAUTION
This signal term indicates a low
risk, which, if not avoided, may
result in minor or moderate
injury.
NOTICE
This signal term warns you of
potential damage to property.
Safety notes
Improper electrical installation or
excessive mains voltage may result in
an electrical shock.
– The mains adapter is suitable for
a mains voltage of 100 – 240 V,
50/60Hz. When connecting the
device, make sure that the correct
voltage is present. You can find more
information in this respect on the
nameplate.
– Check the device regularly for damage.
Immediately disconnect the mains
plug and do not operate the device if
its housing, mains adapter or mains
cord is defective or exhibits other
visible damages.
– If the mains cord is damaged, re-
place it with an equivalent one.
– This device is disconnected from the
grid by pulling the mains plug. Thus,
make sure that the mains plug is
always easily accessible.
– If the device emits smoke, smells
burnt or produces unusual sounds,
immediately disconnect it from the
mains and do not operate it further.
– Never open the device housing.
Repairs may only be carried out by an
authorised specialist workshop. In the
process, only parts that correspond to
the original device data may be used.
– Only use the accessory products
specified by the manufacturer.
– Only use the device in indoor areas.
– Do not operate the device in wet
rooms and protect it from dripping
and splash water. Make sure that
no vases or other vessels filled with
liquid are located on the device or
nearby in order to prevent liquid from
penetrating the housing. If water or
other foreign objects should enter
the unit, immediately disconnect the
mains plug. Then send the device to
our service address.
– Never modify the device. Unauthor-
ised interventions may affect the
safety and functionality.
For Your Safety
Page 6
6
• CoreStation Compact
– Never touch the mains plug with wet
hands.
An unsuitable setup location may
result in injury and damage.
– Never use the device unmounted
in vehicles, in unstable locations,
on wobbly tripods or furniture, on
insufficiently dimensioned brackets
etc. The device could tip or fall down
and cause injury to persons or be
damaged itself.
– Arrange the device so that it cannot
be knocked over accidentally and
make sure that the cables do not
pose a trip hazard.
– Do not place the device near sources
of heat (e.g. heaters, ovens, other
heat generating equipment such as
amplifiers etc.).
– Do not use the device in environ-
ments where there is a risk of
explosion.
– Only use the Bluetooth
®
function in
locations where wireless radio transmission is allowed.
Children can become trapped in the
packing film when playing and suffocate.
– Do not allow children to play with the
device or the packing film. Danger of
suffocation.
– Ensure that children do not remove
small parts from the device or take
them off of the device (e.g. control
knobs or plug adapters). They could
swallow the parts and choke.
– Never allow children to operate elec-
trical equipment unsupervised.

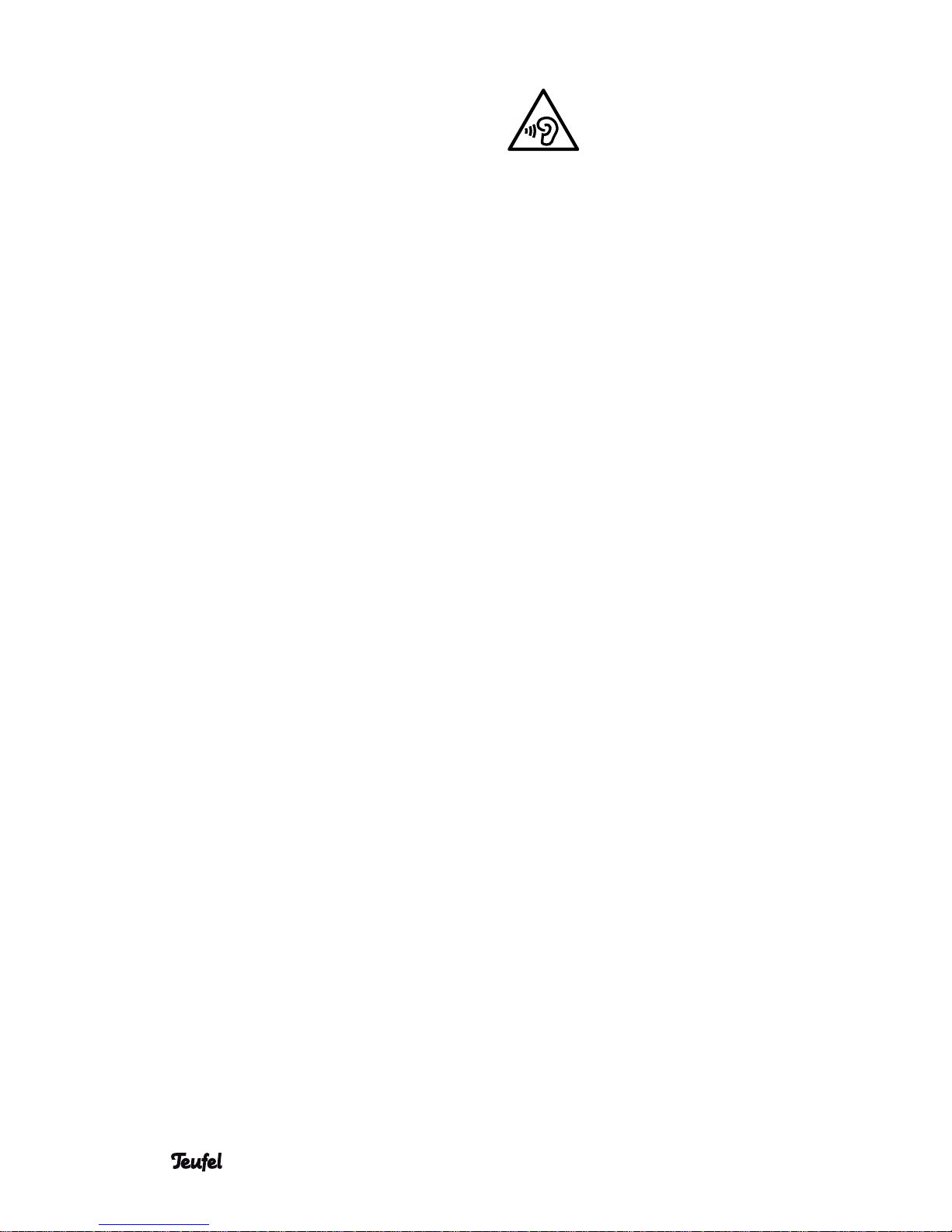

Extended listening at high
volumes may lead to
hearing loss.
To avoid damage to health, avoid
extended listening at high volumes.
– When the volume is set high, always
keep a certain distance from the device and never place your ear directly
on the speaker.
– If a speaker is set to full volume,
this may produce very high sound
pressure. This may have psychic consequences and also cause physical
injury. Children and pets are particularly at risk. Set your signal source
device volume control to a low setting before turning on the power.
Leaking battery acid may lead to
chemical burns.
– Do not allow battery acid to come
into contact with skin, eyes or mucus
membranes. In the event of contact
with acid, immediately flush the
applicable areas with plenty of clean
water and consult a physician if
necessary.
Batteries (particularly lithium batteries) can explode if used improperly.
– Never attempt to recharge batteries.
– Only use batteries of the same or
equivalent type.
– You may not heat or short circuit
batteries and rechargeable batteries
or dispose of them in fire.
– Do not expose batteries and re-
chargeable batteries to direct
sunlight.
Page 7
햲
햳
햴
햵
햶
AUX
7
• CoreStation Compact
Overview
Unpacking
– Carefully open the box and carefully
lift the device and accessories out of
the box.

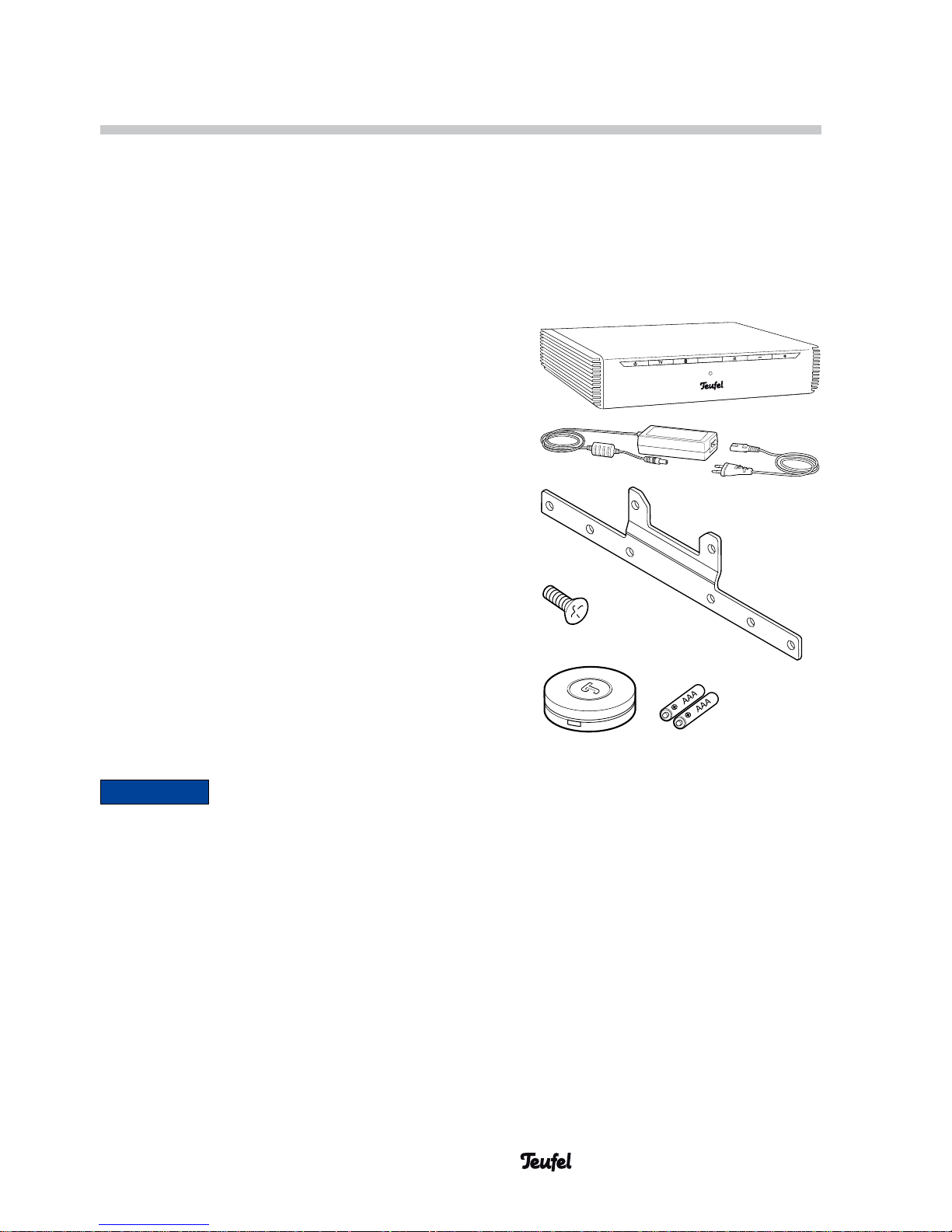

Product contents
햲 1× CoreStation Compact
햳 1× mains adapter with mains cord
햴 2× mounting bracket
햵 4× countersunk screw
햶
Wireless remote control “Teufel Puck”
incl. 2 batteries type AAA
Checking the product
contents
– Check that all items have been deliv-
ered and that nothing is damaged.
– If the delivery is incomplete or exhib-
its transport damages, please contact our service team (see Contact“
on page 4).
NOTICE
Do operate the device if you
identify damages on it.
Page 8
8
• CoreStation Compact
ARC (Audio Return Channel)
In case of a HDMI connection, this
channel provides a return channel for
audio data from the TV set (for TV sets
that support this function). This makes
it possible for audio to be transmitted
from the TV set to the CoreStation
Compact without the need for another cable when a TV signal is being
received.
With many TV sets, the internal speakers are switched off as soon as the
CoreStation Compact plays back the TV
audio.
With some TV sets, you have to activate
these function separately in the menu
– please refer to the user manual for
your TV set.
With many TV sets, the ARC function is
only supported by one HDMI connection. In most cases, it is labelled with
“ARC”.
If your TV set does not support the function ARC via CEC, please observe the
notes regarding ARC in the chapter TV
set without ARC“ on page 18.
CEC (Consumer Electronics
Control)
This function makes it possible to
control devices via the HDMI connection. The CoreStation Compact together
with the TV set is switched on and to
standby with this function. With many
TV sets, you can also adjust the volume
of the CoreStation Compact with the
remote control of your TV set.
Page 9
9 10 11 12 13 14 15 16 17
3.75A24V
64 51 2 3 7 8
AUX
9
• CoreStation Compact
Operational Controls and Connections
1
Turn the device on/off
2
Select the TV set as the source
via HDMI ARC
3
Tap: Select Bluetooth® as a
source
Hold down: Start pairing
4
Select the input AUX (9) as a
source
5
Status LED
6
Mute speaker (mute)
7
Reduce the volume
8
Increase the volume (+)
9
AUX input jacks
10
Connection for active subwoofer
11
HDMI connection for the TV set
12
Service jack
13
Control for crossover frequency
14
Control for subwoofer volume
15
Initiate pairing for the wireless
subwoofer
16
Input jack for mains adapter
17
Speaker terminals
Page 10
10
• CoreStation Compact
Setup / Mounting
NOTICE
If the device is subjected to
warm temperatures after being
cold (e.g. after transport), condensation may occur inside of it.
– In this case, wait approx. 2
hours before you connect and
activate it.
Setup location
You can set up the CoreStation Compact
so that it is concealed as it is controlled
by the TV set via HDMI and the
remote
control operates wirelessly. When
setting the device up in a cabinet,
make sure that it is adequately ventilated and aerated to prevent the
CoreStation Compact from overheating.
Location tips
– Select a stable, level base whose
carrying capacity is sufficient for the
CoreStation Compact and TV set.
– Make sure that the environment is
clean and free from dust.
– Select a location away from heat
sources and direct sunlight.
– Lay the connector cords so that they
do not pose a tripping hazard.
– Do not place any heavy objects on
the cables.
Mounting behind a TV set
You can also mount the CoreStation
Compact behind a suitable flat screen
TV using the enclosed mounting brackets 햴:
• The TV set must be in a stable position and must not be secured with a
wall bracket.
• It must be prepared for a wall bracket in accordance with VESA. Such TV
sets have a stable mounting frame
behind the rear panel where you can
only see the screw holes on the outside. Please refer to the user manual
for your TV set in this respect.
You will also need two or four screws
that fit the VESA holder on your TV set.
For this, be absolutely sure to observe
the notes in the user manual of your TV
set. These screws must not be too long
and are not part of the product contents of the CoreStation Compact.
Page 11
햴
햵
11
• CoreStation Compact
1. Use the enclosed four countersunk
screws 햵 to fasten the two mounting brackets 햴 onto the bottom of
the CoreStation Compact as shown
in the figure.
2. Depending on the spacing of the up-
per VESA mounting points on your TV
set, mount the CoreStation Compact
crosswise (with the connections
facing down) or upright (with the
connections to the left or right).
3. Begin by only screwing the top of the
CoreStation Compact into place.
4. If the bottom bore holes of the
mounting brackets 햴 match up with
the bottom VESA mounting points,
screw the CoreStation Compact into
place on the bottom as well.
Otherwise, it is sufficient if the
CoreStation Compact is secured
along the top with two screws.
AUX
Page 12
12
• CoreStation Compact

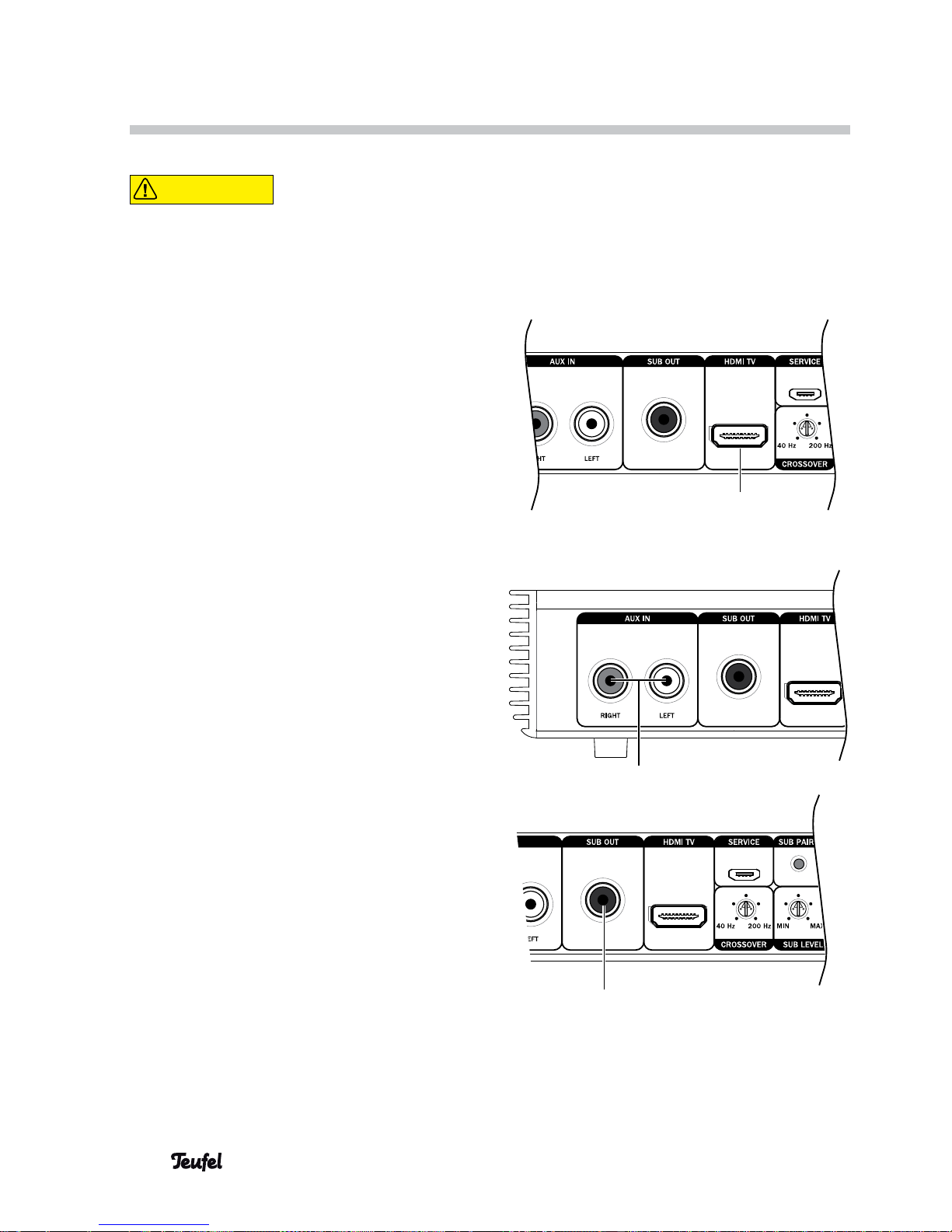

Connecting
CAUTION
Risk of injury/damage!
– Lay the cables so that they do
not pose a tripping hazard.
HDMI TV
Connect your TV set to the HDMI
TV jack (11). You will need a
HDMI cable for this. Only the audio signal will be transmitted to the
CoreStation Compact via this connection.
AUX
You can connect a source device with
analogue audio (e.g. a cassette or CD
player) to the RCA jacks AUX (9).
The TV set can also be connected
here (see TV set without ARC“ on page
18).
Subwoofer
You can connect an active subwoofer
to the SUB OUT jack (10) with an RCA
cable.
If you use an active subwoofer with a
radio connection, activate the connection as described in the section
Settings“ on page 17.
11
9
10
Page 13
13
• CoreStation Compact

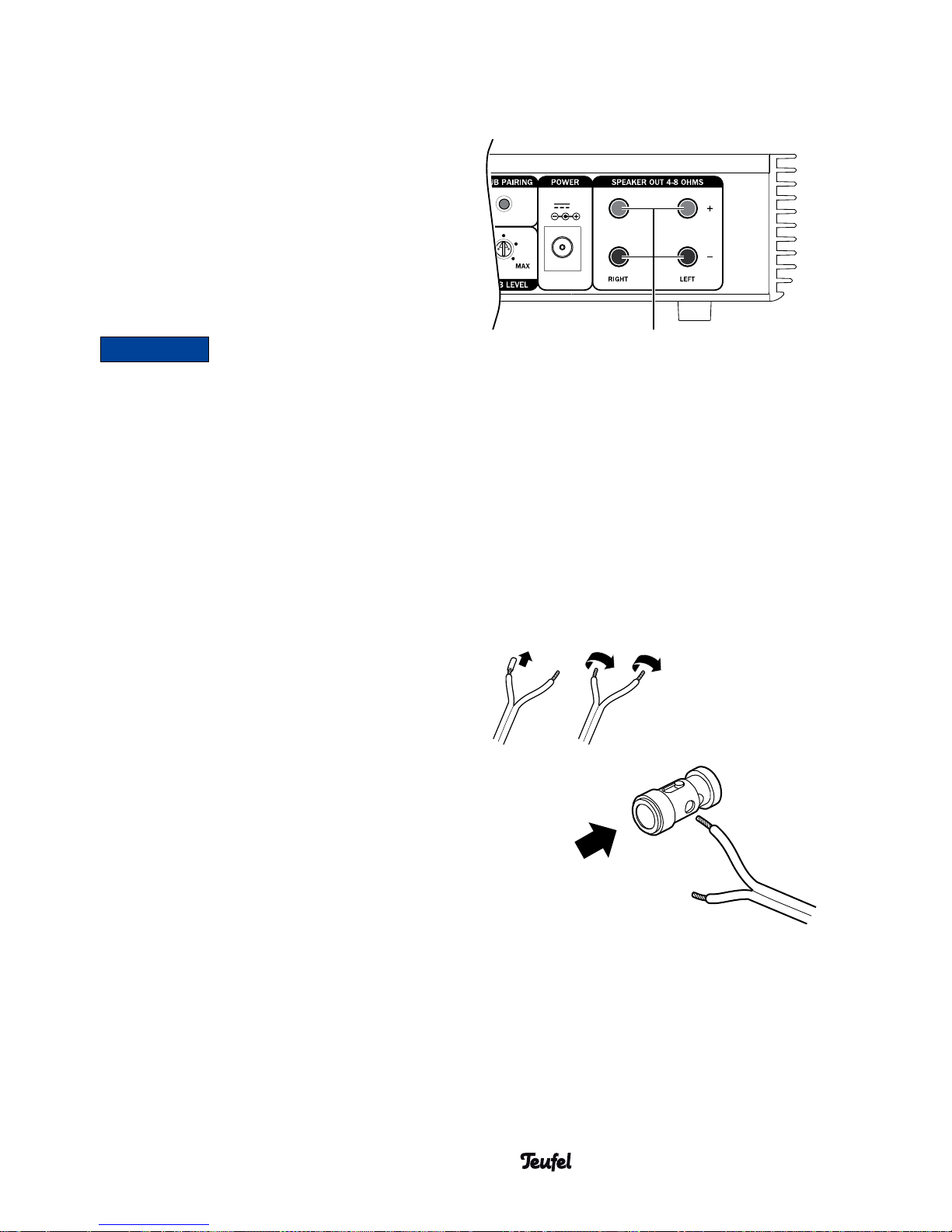

Speaker outputs
If possible, use high-quality, twin-core
speaker single wire with a diameter of
at least 1 mm2 to connect the speakers. You can order corresponding cables in our webshop (www.teufelaudio.
com) in the “Accessories” area.
Connect the speakers to the SPEAKER
OUT connector terminal (17).
NOTICE
Make sure the polarity is correct! Otherwise, the sound quality will suffer.
– Connect the like coloured
terminals.
– The strands of the speaker ca-
bles are marked with different
colours or shapes.
– Split the single wire down to approx.
30 mm and remove approx. 10 mm
of the insulation on each strand.
Twist the single wire so that no
strands are protruding. Tin coating is
not necessary.
– Push down the respective connector
terminal and insert the end of the
cable in the corresponding opening.
Releasing the connector terminal will
clamp the cable in place.
17
3.75A24V
Page 14
14
• CoreStation Compact

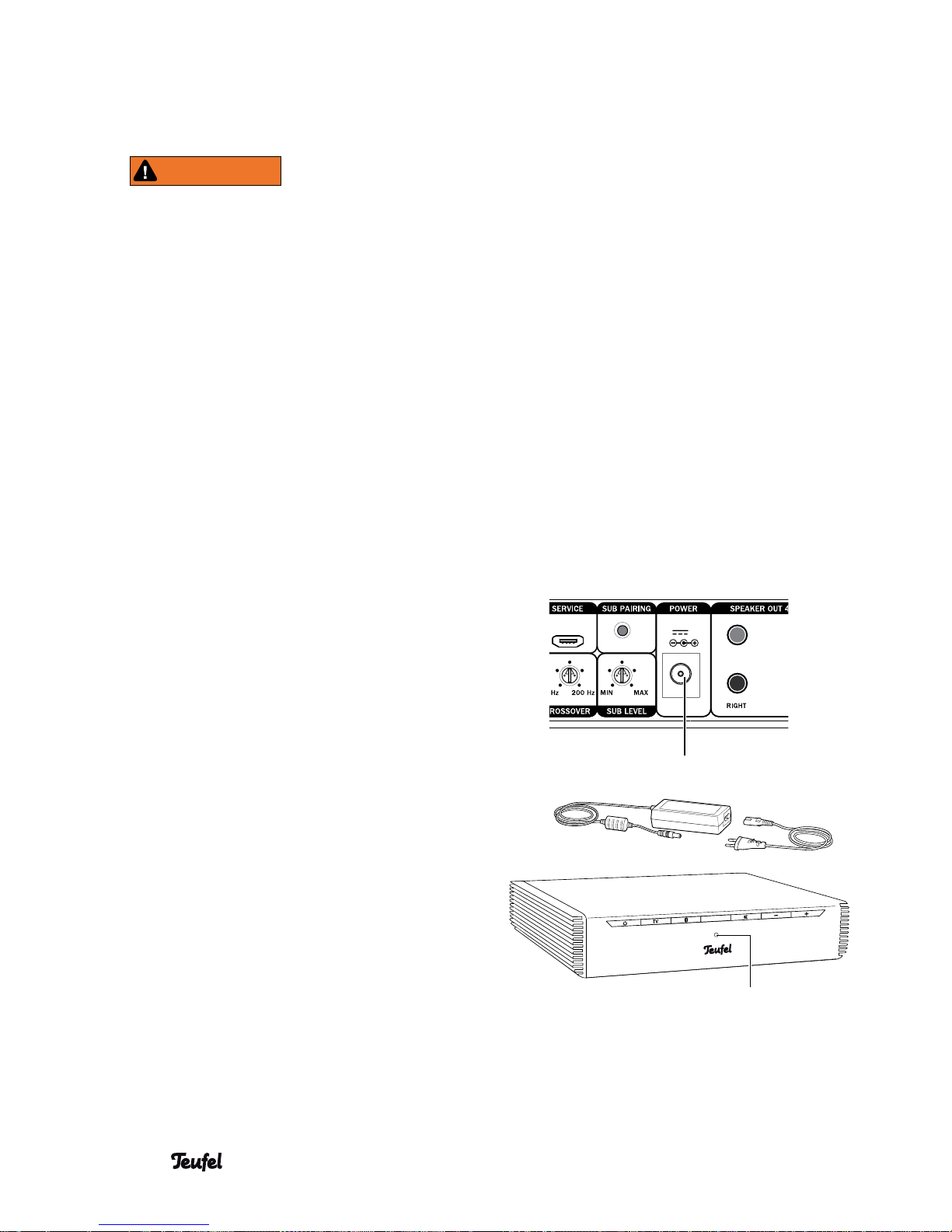

Connecting to a power
supply
WARNING
The mains adapter is suitable
for a mains voltage of 100 –
240 V, 50/60 Hz.
– When connecting the device,
make sure that the correct
voltage is present. You can
find more information in this
respect on the nameplate.
This device is disconnected
from the grid by pulling the
mains plug.
– Thus, make sure that the
mains plug is always easily
accessible.
– If the mains cord is damaged,
replace it with an equivalent
one.
1. Make sure that your active
subwoofer is switched off.
2. Connect the small plug of the mains
adapter 햳 to the POWER jack (16).
3. Connect the mains adapter 햳 over
the mains cord with a mains socket
(100 V – 240 V ~, 50/60 Hz).
The status LED (5) illuminates in red.
16
3.75A24V
햳
5
AUX
Page 15
15

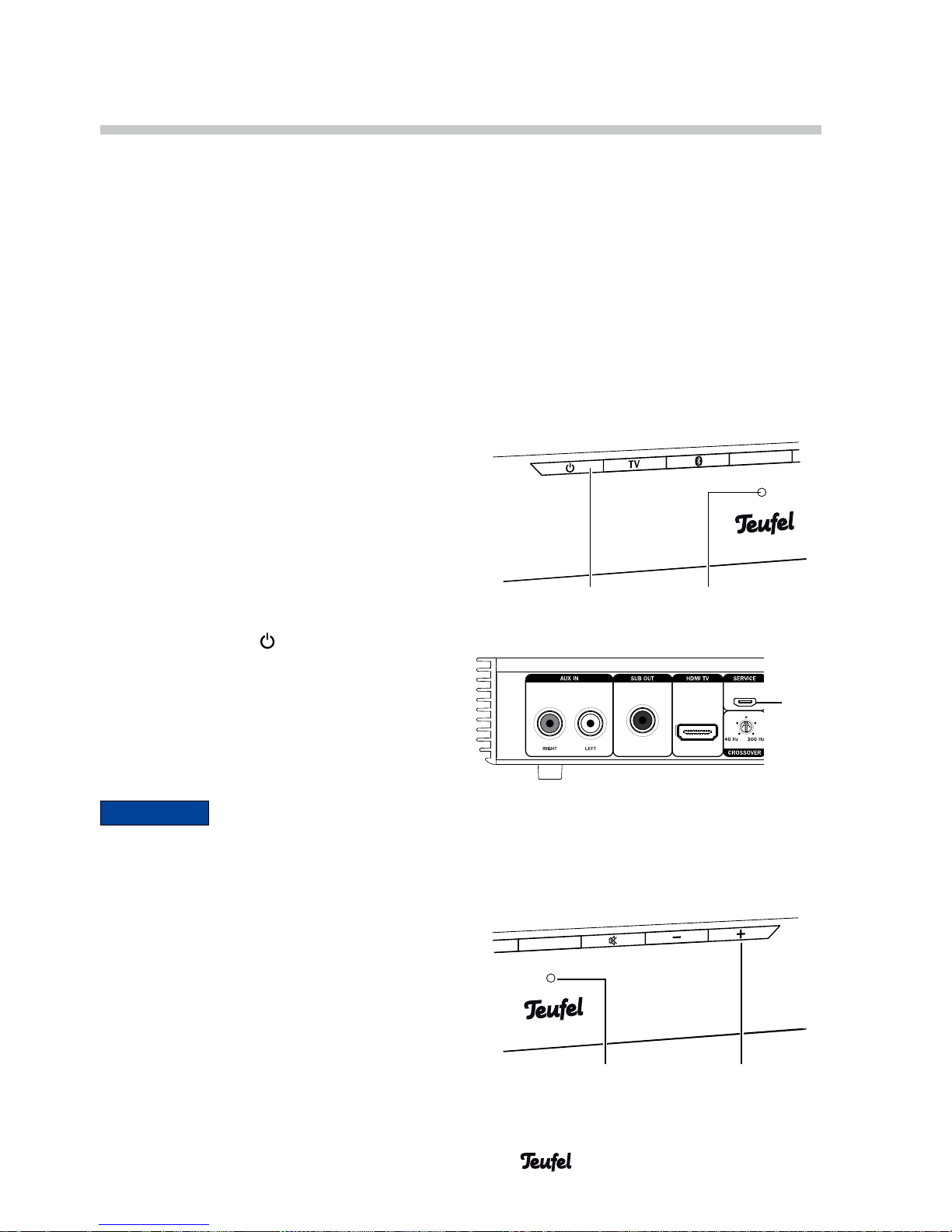

• CoreStation Compact

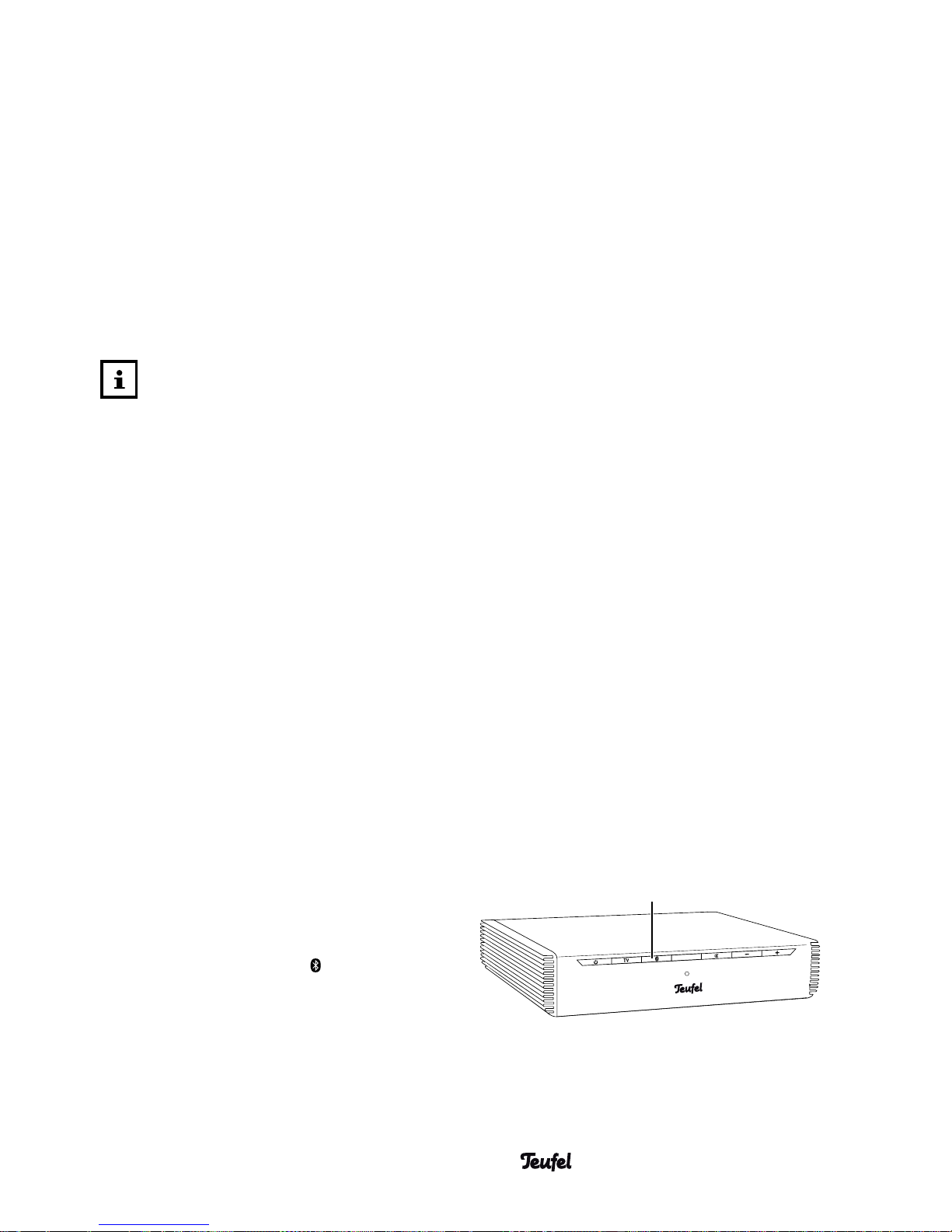

Basic Functions

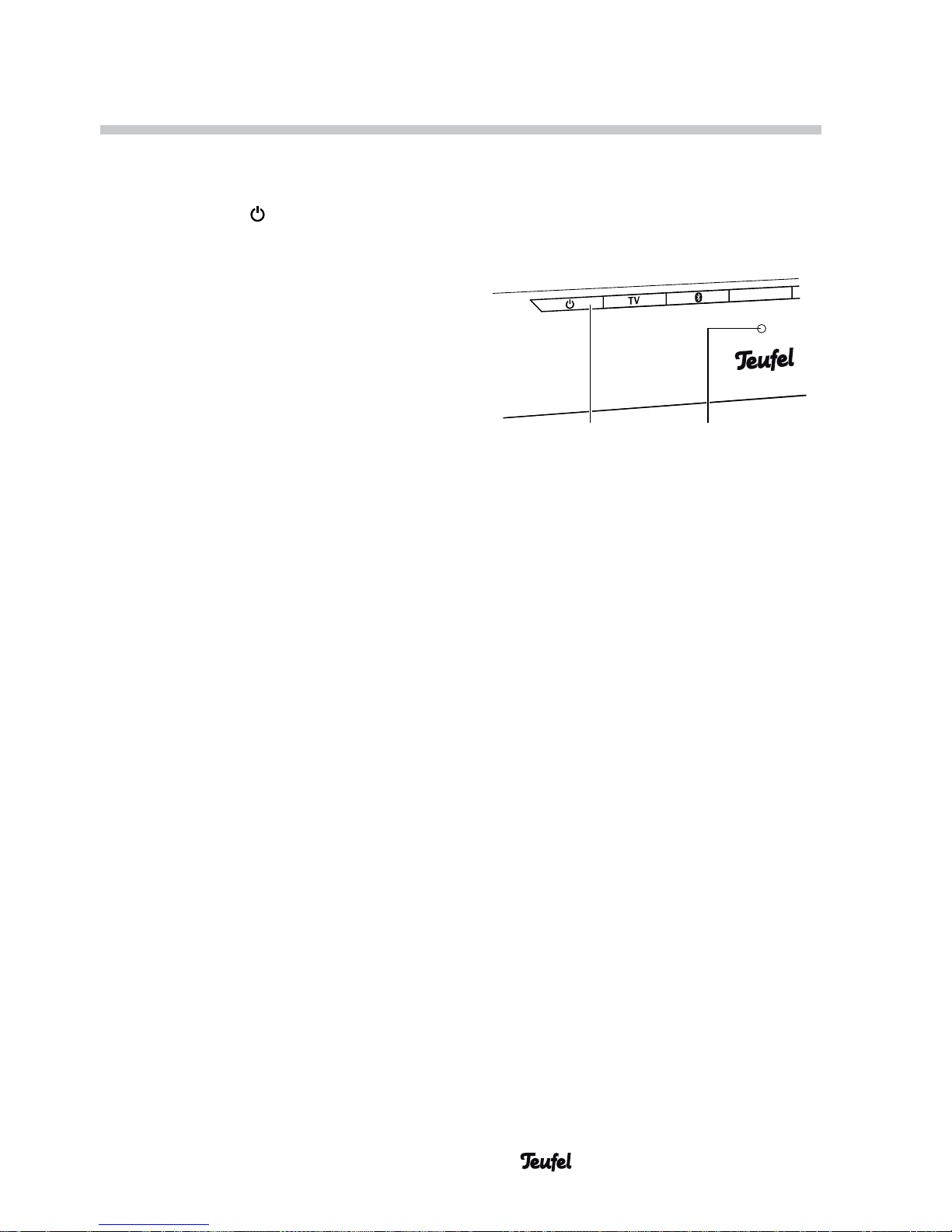

Activating and deactivating
– By tapping the button (1), you
switch the CoreStation Compact on
and to standby.
When switching the device on, the
status LED (5) briefly illuminates
in white and goes out after a short
time.
After switching the device on, the last
active audio source and volume will
be set.
• If the TV set connected via
HDMI is CEC-capable, the
CoreStation Compact will be automatically switched and to standby
together with the TV set.
• If the CoreStation Compact does not
receive any signal for more than 20
minutes, it will automatically switch
to standby.
When in standby, the status LED (5)
will illuminate in red.
The CoreStation Compact is not disconnected from the mains when in standby
mode. Pull the mains plug out of the
mains socket to completely deactivate
it.
51
AUX
Page 16
16
• CoreStation Compact

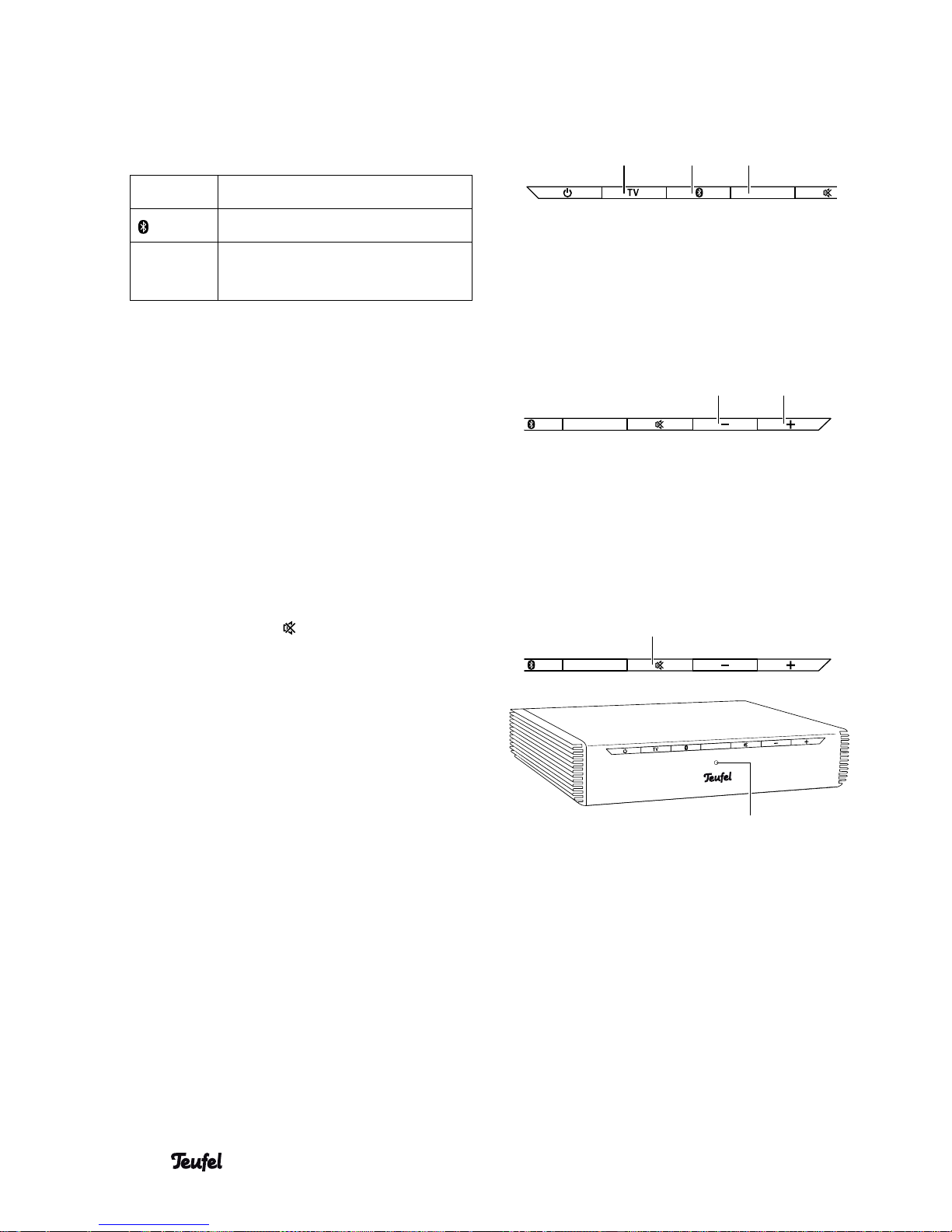

Selecting a source
You can select the source devices with
the following buttons:
TV (2) TV set via HDMI ARC
(3) Bluetooth device
AUX (4) External source on the
connection AUX (9)
Setting the volume
– With the buttons – (7) and + (8), you
set the desired value.
• If a TV is selected as the signal source, the volume of the
CoreStation Compact will, with
CEC-capable TV sets, be set via the
TV set or the remote control of the
TV set.
Mute
– By pushing the button (6), you can
turn the sound on and off again.
The status LED (5) will slowly pulse
in white when muting.
• If TV is selected as the signal source,
the mute will also passed on to the
CoreStation Compact by the remote
control in case of CEC-capable TV
sets.
AUX
2 3 4
AUX
7 8
AUX
6
5
AUX
Page 17
17
• CoreStation Compact
Settings

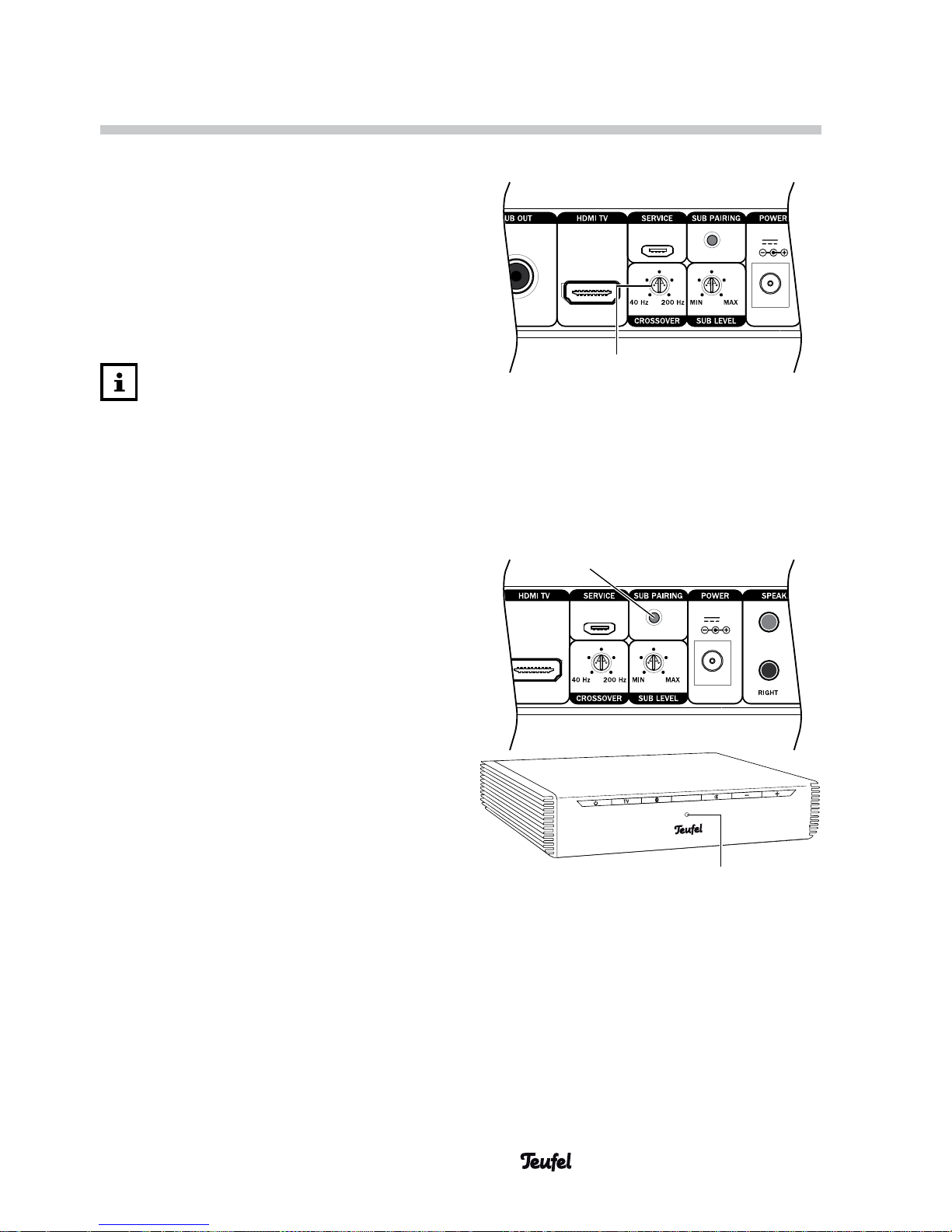

Crossover frequency
With the crossover frequency, you determine the frequency up to which the
subwoofer operates – higher tones will
be passed on to the stereo speakers.
With the CROSSOVER control (13), you
can set the values from 40 to 200 Hz.
Notice: If the CoreStation Com-
pact is in pure stereo operation
without using a subwoofer, set the
crossover frequency to the lowest value
(40 Hz).
Wireless subwoofer
To connect a wireless subwoofer with
the CoreStation Compact:
1. On the wireless subwoofer, start the
process to establish a connection
(see the corresponding user manual).
2. Tap the SUB PAIRING button(15) to
initiate pairing.
The status LED (5) pulses in blue.
3. The status LED (5) will go out after a
short time and you can use the wireless subwoofer with the CoreStation.
13
3.75A24V
15
3.75A24V
5
AUX
Page 18
18
• CoreStation Compact

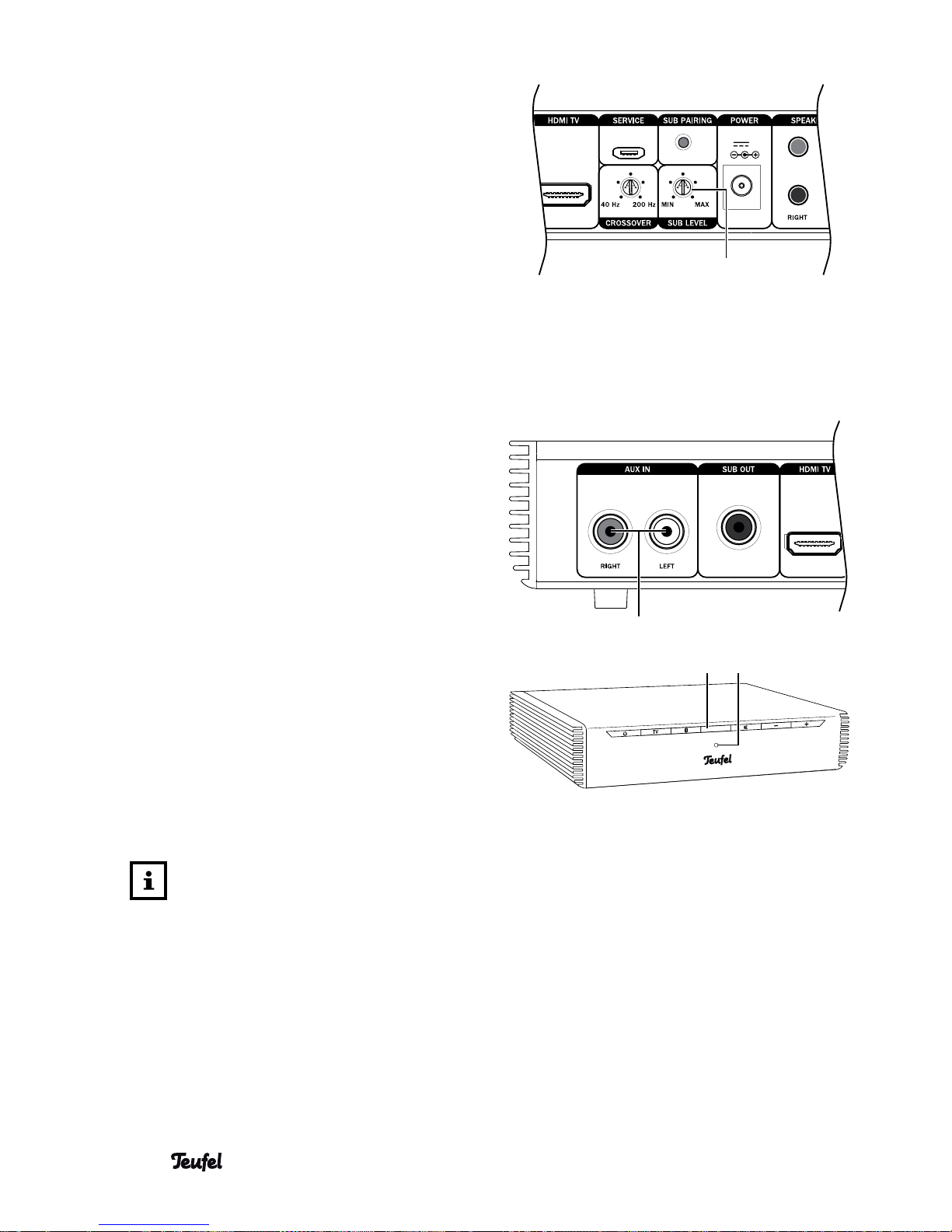

Subwoofer volume
You can control the volume of the
subwoofer and consequently the intensity of the bass with the SUB LEVEL
control (14). You will need a small flat
bladed screwdriver for this (blade width
2 mm).
The small arrow on the control element
indicates the current value.
TV set without ARC
There are TV sets that do not support
the function of ARC audio playback.
If such a TV set has a headphone or
RCA output, you can connect it with the
input AUX (9) of the CoreStation Compact. Configure the following setting
afterwards:
1. Switch the CoreStation Compact to
standby mode.
2. As soon as the status LED (5) con-
tinuously illuminates in red, push
the AUX button (4) until the status
LED (5) briefly illuminates twice as
confirmation.
• The CoreStation Compact will be
started via CEC when switching on
the TV set and the source AUX is now
always activated automatically.
Notice: To change the operational
characteristics back to the factory
default, follow the steps above but
push the TV button (2) instead of AUX.
14
3.75A24V
9
54
AUX
Page 19
19
• CoreStation Compact
TV set
To play back audio from the TV set,
push the TV button (2).
The status LED (5) briefly illuminates in
white and then goes out.
Bluetooth
®
Via Bluetooth® you can wirelessly
connect up to two compatible external
players with the CoreStation Compact
at the same time. The audio output of
your external player is then emitted by
the CoreStation Compact. The audio
output can only be emitted by an external player at the same time.
The Bluetooth wireless transmission
system has a range of approx. 10
metres that can be limited by walls and
furnishings. If the connection is cut off,
the CoreStation Compact will attempt
to re-establish a connection until you
select another source.
CAUTION
Only use the Bluetooth® function in locations where wireless
radio transmission is allowed.
Please keep in mind that the
Bluetooth® behaviour may differ
depending on the external player’s
operating system.
52
AUX
Operation
AUX
Smartphone
Page 20
20
• CoreStation Compact
Bluetooth
®
options
Depending on the device type, your
external player/smartphone may also
have a menu for Bluetooth
®
options
such as media playback. Here you can
activate and deactivate the options
according to your wishes. You can find
more information about the Bluetooth®
options in the user manual for your
external player/smartphone.

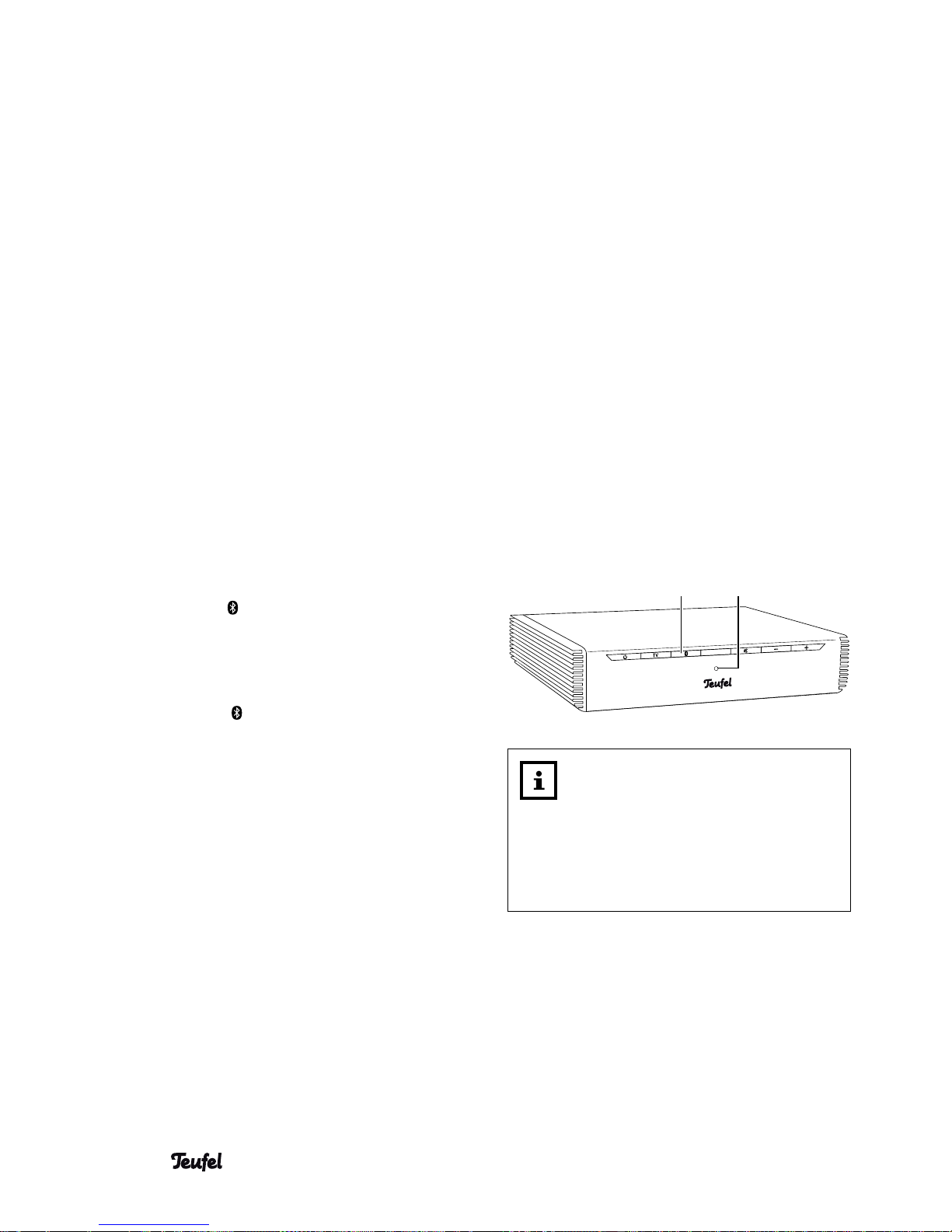

Pairing
To play the audio of your external
player on your CoreStation Compact via
Bluetooth
®
, you must first connect the
devices with each other. The technical
term for this is “pairing”.
1. Turn on the Bluetooth® function
on your external player (e.g. smartphone).
2. With the button (3), select
the “Bluetooth” input on the
CoreStation Compact.
The status LED (5) illuminates in blue.
3. Push the button (3) and hold it for
approx. 3 seconds. The status LED
(5) pulses in blue.
The device is now in pairing mode.
4. Let your external player/smartphone
scan for Bluetooth® devices. You
will find more information about this
in the user manual of your external
player.
“Teufel CoreStation Compact” should
also appear in the list of detected
devices following the scan.
53
AUX
Notice: If Bluetooth® is selected
as the source and no Bluetooth® device is connected to the
Core Station Compact, the CoreStation Compact starts pairing
automatically for 60 seconds.
Page 21
21
• CoreStation Compact
5. Select “Teufel CoreStation Compact”
from the list of detected devices.
Pairing is now complete and your
CoreStation Compact will now act as
a Bluetooth
®
playback device. The
CoreStation Compact will now play
back all sounds that would otherwise
be played by your external player/
smartphone.
Playback
The volume setting of the external
player affects the volume of the
CoreStation Compact.
1. Start playback on your external
player.
2. Use your external player to control all playback functions. You
can only adjust the volume on the
CoreStation Compact.
If your source device is a smartphone,
the Bluetooth® connection will be
interrupted in the event of an incoming
call and you can make phone calls as
usual.
After finishing your phone call,
the sounds will once again be diverted and played back by your
CoreStation Compact.
Terminating the connection
To terminate the Bluetooth® connection
– deactivate the Bluetooth® function
on your external player/smartphone.
– or push and hold the button (3) for
approx. 3 seconds to terminate the
pairing.
3
AUX
Page 22
22
• CoreStation Compact
External source
Connection
The AUX IN jacks (9) serve to connect
an external player using a stereo cable
with RCA plugs. You can connect any
external players with line-out jacks or
an earphone jack here.
Playback
1. Push the AUX button (4) to select
the AUX input.
The status LED (5) briefly illuminates
in green.
2. Start playback on your external
player.
The volume setting of the external player affects the volume of
the CoreStation Compact.
3. Use your external player to control all playback functions. You
can only adjust the volume on the
CoreStation Compact.
MP3 player
9
3.75A24V
54
AUX
Page 23
23
• CoreStation Compact
Remote Control
Functions
– Activating the
CoreStation Compact:
Tap the cover (21).
– Deactivating the
CoreStation Compact:
Push the cover (21) for approx. 3
seconds.
– Selecting a source:
Push the button (20) repeatedly.
– Adjusting the volume:
Turn the cover (21).
– Mute on/off:
Tap the cover (21).
Pairing the remote control
1. Turn the CoreStation Compact on.
2. Position the remote control at a distance of no more than 25cm to the
CoreStation Compact.
3. Hold the button (20) down until the
LED ring (22) starts to blink. Then
release the button.
• Blinks three times: Pairing was
successful.
• Blinks ten times: Pairing failed and
must be repeated.
21
20 22
Page 24
24
• CoreStation Compact
Changing the batteries
The remote control is powered by 2
type AAA batteries. Simply pull off the
cover to open the battery compartment.
NOTICE
When inserting the batteries in
the compartment, make sure that
the polarity is correct.
CAUTION
Batteries (particularly lithium
batteries) can explode if used
improperly.
– Never attempt to recharge
batteries.
– Only use batteries of the same
or equivalent type.
– You must not heat, short circuit
batteries and rechargeable batteries, dispose of them in fire or
expose them to direct sunlight.
Leaking battery acid may lead
to chemical burns.
– Do not allow battery acid to
come into contact with skin,
eyes or mucus membranes. In
the event of contact with acid,
immediately flush the applicable areas with plenty of clean
water and consult a physician
if necessary.
Page 25
25
• CoreStation Compact
Software Update
The CoreStation Compact software is
constantly developed and updated.
Future versions can be downloaded
from our website:
www.teufelaudio.com/support/
Installing new software
You will require a PC and a USB 2.0
cable with a USB A to Micro USB B
connector.
1. Load the new software from our
website.
2. Unpack the downloaded file and
save all files contained to your computer.
3. If not yet done, turn the
CoreStation Compact into standby
mode using the key (1).
The status LED (5) will constantly
illuminate in red.
4. Connect the Service jack (12) to a
free USB port of your PC using a USB
cable.
NOTICE
Risk of damage!
– The CoreStation Compact
must not be switched off during the following steps!
5. Push the volume button (8).
The status LED (5) blinks in white in
rapid succession.
51
AUX
12
5 8
AUX
Page 26
26
• CoreStation Compact
Your PC will set up a new Mass Storage Device (as a new drive) with the
name „Teufel CSC“.
6. Copy the decompressed files to the
newly installed drive.
7. After the copy process is completed pull the USB cable from the
CoreStation Compact.
The update will begin automatically.
Afterwards the CoreStation Compact
will switch to standby mode.
The new software is now installed.
Page 27
27
• CoreStation Compact
Cleaning & Maintenance
NOTICE
External influences may damage or destroy the device.
– If the device is to be left unat-
tended for a prolonged period
of time (e.g. during a vacation)
or if a thunderstorm is forecast, pull the mains plug out
of the socket. Otherwise, sudden overvoltage could cause a
defect.
– If possible, only use plain
water without any additives.
In case of stubborn marks,
a mild soap solution may be
used.
– Do not use caustic cleaning
products, white spirit, thinners, petrol or similar under
any circumstances. Such
cleaning agents may damage
the delicate surface of the
housing.
– Ideally, you should remove dust or
small amounts of dirt with a dry,
smooth leather cloth.
– Use a damp cloth to rub off stubborn
dirt. Make sure that no liquid penetrates the housing.
– Then immediately wipe the damp
surfaces off with a soft cloth without
applying pressure.
Page 28
28
• CoreStation Compact
Troubleshooting
The following advice should help you to solve problems. If this does not help, you
will find useful information in the detailed FAQs on our website. Otherwise, please
contact our hotline (see page 3). Take note of the warranty instructions.
Problem Possible cause Solution
Status LED
(5) flashes in
red.
Software error. Restart the CoreStation Compact:
Pull the mains plug, wait until the
status LED (5) goes out, insert
the mains plug back into the
socket.
No function. No power supply. Check the function of the socket
with another device.
No sound. The wrong source has been
selected.
Select the correct source (see
“Selecting a source” on page
16).
The volume has been set too
low.
Increase the volume.
The volume of the external
player has been set too low.
Carefully increase the volume of
the external player.
Speaker cable not stripped. Properly connect the speaker
(page 13).
The CoreStation Compact as
a 2.1 receiver cannot decode
DTS or Dolby Digital multichannel audio signals.
If the TV set or a connected
Blu-ray player does not
automatically play sound as
“PCM“ or “Stereo Downmix“ and
the CoreStation Compact does
not emit any sound, change
this setting manually on your
TV set/Blu-ray player. Refer to
the operating instructions of the
manufacturer for the respective
device.
Page 29
29
• CoreStation Compact
Problem Possible cause Solution
No audio via
HDMI-ARC.
The TV set does not support
Audio Return Channel (ARC)
via HDMI.
Use the input AUX(9) for the TV
set (see “TV set without ARC“ on
page 18)
The CoreStation Compact as
a 2.1 receiver cannot decode
DTS or Dolby Digital multichannel audio signals.
If the TV set or a connected
Blu-ray player does not
automatically play sound as
“PCM“ or “Stereo Downmix“ and
the CoreStation Compact does
not emit any sound, change
this setting manually on your
TV set/Blu-ray player. Refer to
the operating instructions of the
manufacturer for the respective
device.
No sound in
Bluetooth
®
mode.
No Bluetooth® connection. Establish a connection (see page
20).
CoreStation Compact has not
been selected as the output
device.
On the external player, select
“Teufel CSC” as the output device
via Bluetooth®.
Bluetooth® connection
impaired by another radio
system (e.g. cordless
telephone, Wi-Fi).
Set up the CoreStation Compact
and/or external player in another
location. Move to another room
to test.
The status
LED (5) blinks
repeatedly in
white every
second.
There is no audio signal or
there is an impermissible
audio signal or audio format
via HDMI.
Check the HDMI wiring.
Select the correct source (see
“Selecting a source” on page
16).
Adjust the audio format decoding
to correspond to the settings of
the TV set.
Page 30
30
• CoreStation Compact
Dimensions
(W × H × D):
185 × 37 × 175 mm (without the
mounting brackets and support feet)
Weight: approx. 750 g
Mains adapter: 100 – 240 V ~, 50/60 Hz, 90 W
Technical data
You can find further technical data on our website.
Technical changes reserved!
Problem Possible cause Solution
The
subwoofer
hums.
The CoreStation Compact is
connected to a different power
circuit from the rest of the
system.
Connect the CoreStation
Compact to the same power
circuit.
The humming is caused by
problems with the power
supply.
Buy a line filter and connect all
devices to it.
The humming is caused by a
multiple socket strip.
Use a different multiple socket
strip or connect the CoreStation
Compact directly to the wall
socket.
Playback is
noisy.
Generally speaking, the
CoreStation Compact is a very
low-noise system. The device
with very high resolution in the
high range area can expose
the poor quality of a signal
source (e.g. from MP3 files).
Make sure that the external
player emits a clear signal to the
CoreStation Compact.
Page 31
31
• CoreStation Compact
2015
EG-Konformitätserklärung
EU-Declaration of Conformity
Hiermit bestätigen wir, dass das nachfolgend bezeichnete Gerät den angegebenen-Richtlinien
entspricht.
We herewith confirm that the appliance as detailed below complies with the mentioned directives.
Artikelbezeichnung:
Article description:
CoreStation Compact
Firmenanschrift:
Company address
Lautsprecher Teufel GmbH
Budapester Straße 44
D-10787 Berlin
Einschlägige EG-Richtlinien / Governing EU-directives / Directives CE concernées :
1. Elektromagnetische Verträglichkeit (EMV)
Electromagnetic compatibility (EMC)
2004/108/EC
2. Niederspannungs-Richtlinie
Low-voltage directive
2006/95/EC
3. Sicherheit von Spielzeug
Safety of toys
88/378/EEC, amended 93/68/EEC
4. Medizinprodukte (Klasse 1)
Medical device directive (Class 1)
93/42/EEC
5. Funkanlagen und
Telekommunikationsendeinrichtungen
Radio and Telecommunication Terminal Equipment
R&TTE 1999/5/EC
6. Ökodesign – Richtlinie
Energy – Using – Product – Directive (EuP)
2009/125/EEC
7. Richtlinie zur Beschränkung der Verwendung
bestimmter gefährlicher Stoffe in Elektro- und
Elektronikgeräten (Rohs- Richtline 2011/65/EC)
Harmonisierte EN-Normen /
Harmonised EN-Standards
Der Artikel entspricht folgenden, zur Erlangung des CE-Zeichens erforderlichen Normen:
The article complies with the standards as mentioned below which are necessary to obtain the CE-symbol:
DIN EN 55013:2013
DIN EN 55020/A11:2012
DIN EN 61000-3-2:2015
DIN EN 61000-3-3:2014
DIN EN 55022: 2011
DIN EN 55024: 2011
DIN EN 60065:2011
DIN EN 62321:2005
ETSI EN 301489-1 V1.8.1
ETSI EN 301489-17 V2.2.1
Edgar van Velzen
Geschäftsführer
Ausstellungsdatum / Date of issue:
01. November 2015
Page 32
Manual No. 93572 GB 20160112
Please contact our customer service with any questions, suggestions or criticism:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Phone: 00800 - 200 300 40 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No responsibility is assumed for the correctness of this information.
Technical changes, typographical errors and other errors reserved.
