Technical description and operating instructions
Concept G 850 THX
5.1 PC/Multimedia speaker set with THX certifi cate
Page 2
Contents
General notes and information . . . . . . . . . . . . . . . . . . 3
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caution icons . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Control elements and connections . . . . . . . . . . . . . . . .6
Setting up the speakers . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting the spikes . . . . . . . . . . . . . . . . . . . . . 7
Mounting the table stands . . . . . . . . . . . . . . . . . 7
Setup location . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setup: PC system . . . . . . . . . . . . . . . . . . . . . . . 7
Setup: Home cinema system. . . . . . . . . . . . . . . . 8
Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting to a power supply . . . . . . . . . . . . . . 9
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Confi guring the speakers . . . . . . . . . . . . . . . . . . 10
“Front” and “Rear” switch . . . . . . . . . . . . . . . . . 10
“Sub In” switch. . . . . . . . . . . . . . . . . . . . . . . . . 10
Subwoofer settings . . . . . . . . . . . . . . . . . . . . . . 10
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Protecting the environment . . . . . . . . . . . . . . . . . . . . . 12
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 • Concept G 850 THX
Page 3
General notes and information
Notice
The information in this document may change without
prior notice and in no way constitutes any liability on the
part of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any
form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
July 2012
Trademarks
THX®
Certifi ed Multimedia
THX is a trademark of THX Ltd. which
is registered in some jurisdictions. All rights reserved.
Original packaging
If you wish to exercise your eight-week right of return, we
ask that you be absolutely sure to hold onto the packaging. We can only accept the return of a device WITH
THE ORIGINAL PACKAGING.
Empty boxes are not available!
Contact
For questions, suggestions or criticism please contact our
customer service department:
Phone: 00800 - 200 300 400 (free of charge)
Fax: +49 (0)30 - 300 930 930
E-mail: service@teufelaudio.com
www.teufelaudio.com
Proper use
The speaker set is designed for playback of audio
signals. Only use the product as described in these
operating instructions. Any other use will be deemed as
not in accordance with the instructions and may lead to
damage to property or even persons.
The manufacturer accepts no liability for damage caused
by use not in accordance with the instructions.
The unit is intended for private use.
Before you operate the unit for the fi rst time,
please fi rst carefully read through the safety
notes and operating instructions. This is the only
way to use all functions safely and reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
Complaints
In case of complaint we will need the following information to process your enquiry:
1. Invoice Number
Can be found on the sales slip (enclosed with the
product) or on the order confi rmation received as a PDF
document, e.g. 4322543.
2. Serial number or batch number
Located on the back side of the unit,
e.g. serial #: IL30009440122A-123
Many thanks for your support!
• Concept G 850 THX 3
Page 4
Safety notes
Caution icons
You will fi nd the following caution icons used in these
instructions :
Danger
Attention
High risk !
Failure to observe the warning may result in
severe personal injury or death.
Moderate risk !
Failure to observe the warning may result in
p roperty damage.
Minor risk!
Points which should be observed when handling the unit.
Safety notes
Danger
electric shocks.
• The device is suitable for use with a power supply volt-
• If the unit’s case or the power supply cable is defective
• If the unit emits smoke or smells of burning or other
• The standby button does not disconnect the unit from
• Never open the device casing.
• Only use the accessory products expressly specifi ed by
• Do not insert any objects through the vent slots in the
• Only use the unit in indoor areas.
• Do not operate the unit in moist areas and protect it
• Never touch the mains plug with damp hands.
• Check the unit regularly for damage.
Risk of electric shock!
Faulty installation of electrical equipment or
mains voltage which is too high can cause
age of 100–240 V~ / 50/60 Hz.
or shows other signs of visible damage, immediately
disconnect the mains plug and do not operate the unit.
unusual odours, disconnect it immediately from the
power supply and do not operate it.
the power supply. Set up the device so that the power
plug is easily accessible and the vents are unobstructed.
Repairs may only be carried out by an authorised
specialist workshop. In the process, only parts may be
used, which correspond to the original device specifi cations. This device contains electrical and mechanical parts that are imperative for providing protection
against sources of danger.
the manufacturer.
case.
from drops of water or splash water.
Also take care not to stand vases or other containers
fi lled with liquid on or near the speaker in order to
avoid liquid getting into the case. If water or other
debris do penetrate the case, immediately disconnect the
mains adapter and if applicable, remove any batteries
present. Send the unit to our service address afterwards.
Danger
• Do not allow children to play with the unit or the pack-
• Ensure that children do not remove small parts from
• Never allow children to operate electrical devices
Danger
particular. You can avoid a large number of accidents if
you take the following precautionary measures:
• Only use underframes or speaker stands recommended
• Only place the unit on furniture capable of carrying
• Make sure that the unit is completely situated on the
• Warn your children of the dangers associated with
• When storing the device, make sure that the previously
set to full volume, it may emit very high sound pressure
levels unexpectedly. This may have psychological consequences and also cause physical injury. Children and
pets are particularly at risk.
• Set your signal source unit volume control to a low
• When the volume is set high, always keep a certain
• To avoid damage to health, avoid extended listening at
Danger to children!
Children can become trapped in the packing
fi lm when playing and suffocate.
ing fi lm. Danger of suffocation.
the unit or take them off of the unit (e.g. remote control
batteries, control knobs or plug adapters). They could
swallow the parts and choke.
unsupervised.
Risk of injury!
An unstable base may cause the unit to tip
over and severely injure or even kill children in
by the manufacturer.
the load.
piece of furniture and that it does not hang over the
edge.
climbing up on the piece of furniture in order to reach
the device.
described points are complied with.
Danger to hearing!
Loud noise may lead to hearing loss.
Particularly if the subwoofer is activated and
setting.
distance from the unit and never place your ear directly
on the speaker.
high volume.
4 • Concept G 850 THX
Page 5
Danger
Danger of injury/damage!
Incorrect location may result in damage.
• Never use the unit unmounted in vehicles, in unstable
locations, on wobbly tripods or furniture, on insuffi ciently dimensioned brackets etc. The device could
tip or fall down and cause injury to persons or be
damaged itself.
• Arrange the speakers so that they cannot be knocked
over accidentally and make sure that the cables do not
pose a trip hazard.
• Ensure that any wall mounting is performed in a professional manner.
• Only use suitable wall brackets for mounting. Verify the
carrying capacity of the walls.
• Do not place the speakers near sources of heat (e.g.
heaters, ovens, other heat generating equipment such
as amplifi ers etc.).
Overview
Attention
Fire hazard!
Improper use may lead to damage or fi re.
• Do not place open fl ames such as burning candles or
similar on the unit.
• Do not place the unit in direct sunlight.
• Ensure suffi cient ventilation.
• Do not cover the ventilation slots with curtains, cloths,
newspapers or similar. Heat build-up inside the unit
can shorten its lifetime.
Attention
• If the unit is to be left unsupervised for a long period
Risk of damage!
Outside infl uences may damage or destroy the
unit.
(e.g. during a holiday), or if a thunderstorm is forecast,
disconnect the mains plug from the socket. Otherwise,
sudden overvoltages could cause a defect.

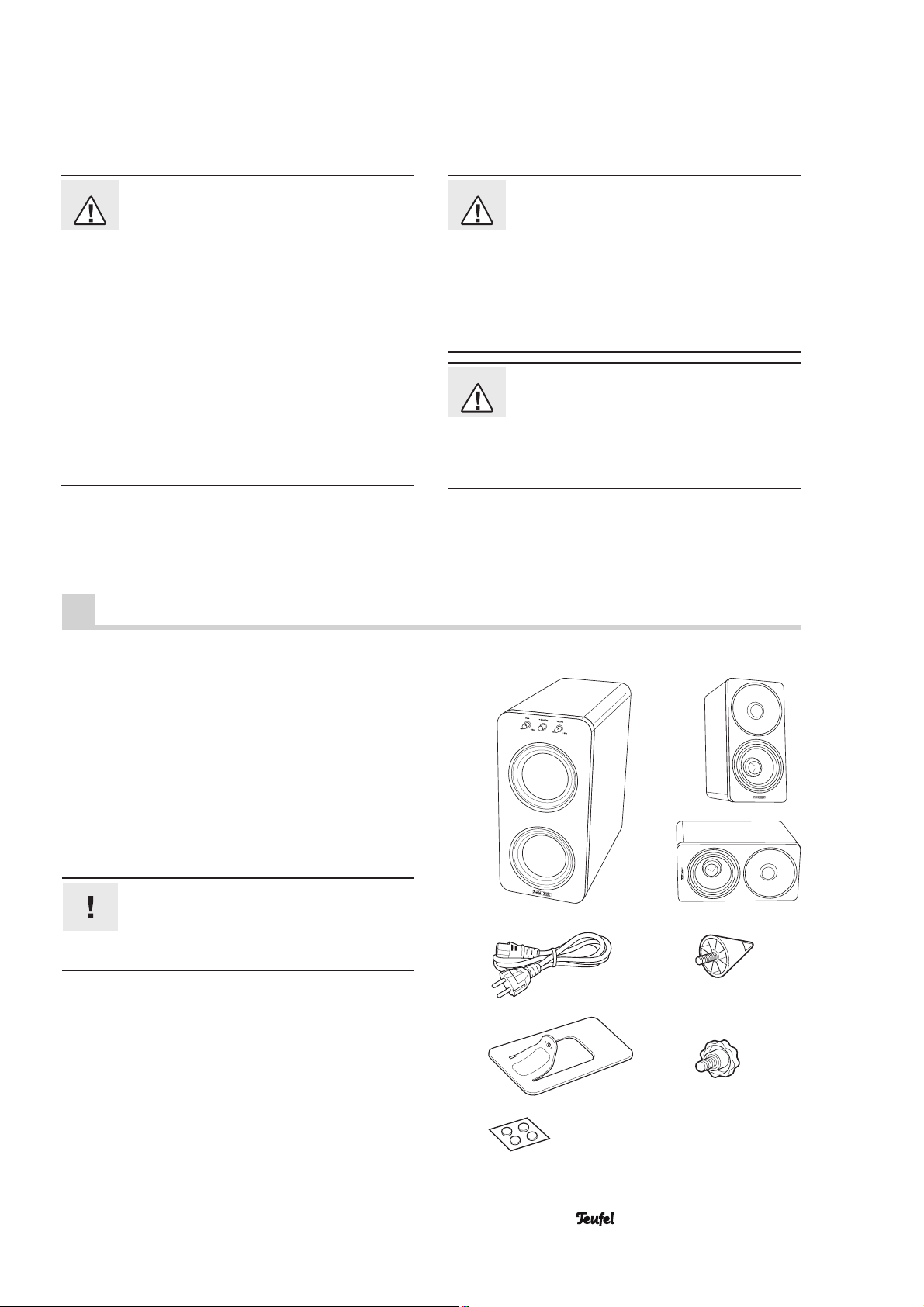

Product contents
1 x active subwoofer
5 x satellite speakers
1 x power cord for the subwoofer
4 x spikes for the subwoofer
5 x table stands for the satellite speakers
5 x toggle screws for the table stands
5 x 4 rubber feet for the table stands
Connector cables
The Concept G 850 THX is delivered without
connector cables due to the variety of different
customer needs. You can fi nd suitable cables in our
webshop (www.teufelaudio.com)
Check to be sure
• Check that all items have been delivered and that nothing is damaged.
• If the delivery is incomplete or you fi nd damage
sustained in transit, do not operate the unit; instead
contact our service department (see page 3).
• Concept G 850 THX 5
Page 6

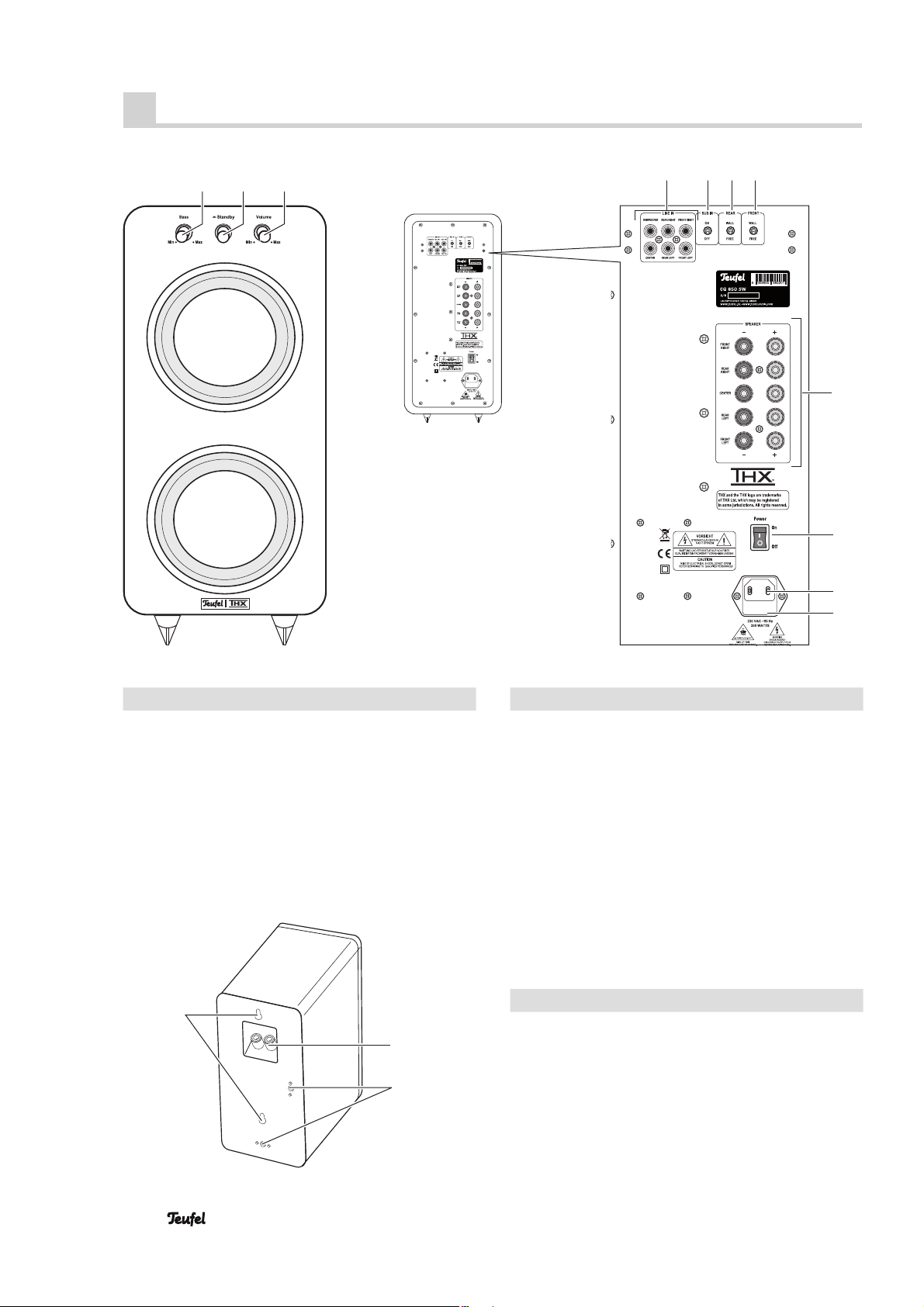

Control elements and connections
123
56
4
7
8
9
10
11
Pos Name Description
1Bass Subwoofer volume control
2Standby On/Standby switch
3Volume Volume control
5.1 input jacks (e.g. from a sound
4Line In
5Sub In
6Rear
12
card, a DVD player or a decoder
station)
)
Activate/deactivate subwoofer
mode
EQ switch for rear speakers (Wall
= wall hung, Free = free-standing)
13
14
Pos Name Description
7Front
8Speaker Speaker output jacks
Power On/Off
9
10
–
–
11
Pos Name Description
12
13 Connector terminals
14
EQ switch for front speakers (Wall
= wall hung, Free = free-standing
Mains switch
Connector jack for power cord
Fuse holder
Keyhole openings for wall mounting
Thread inserts for mounting the
table stands
6 • Concept G 850 THX
Page 7
Setting up the speakers

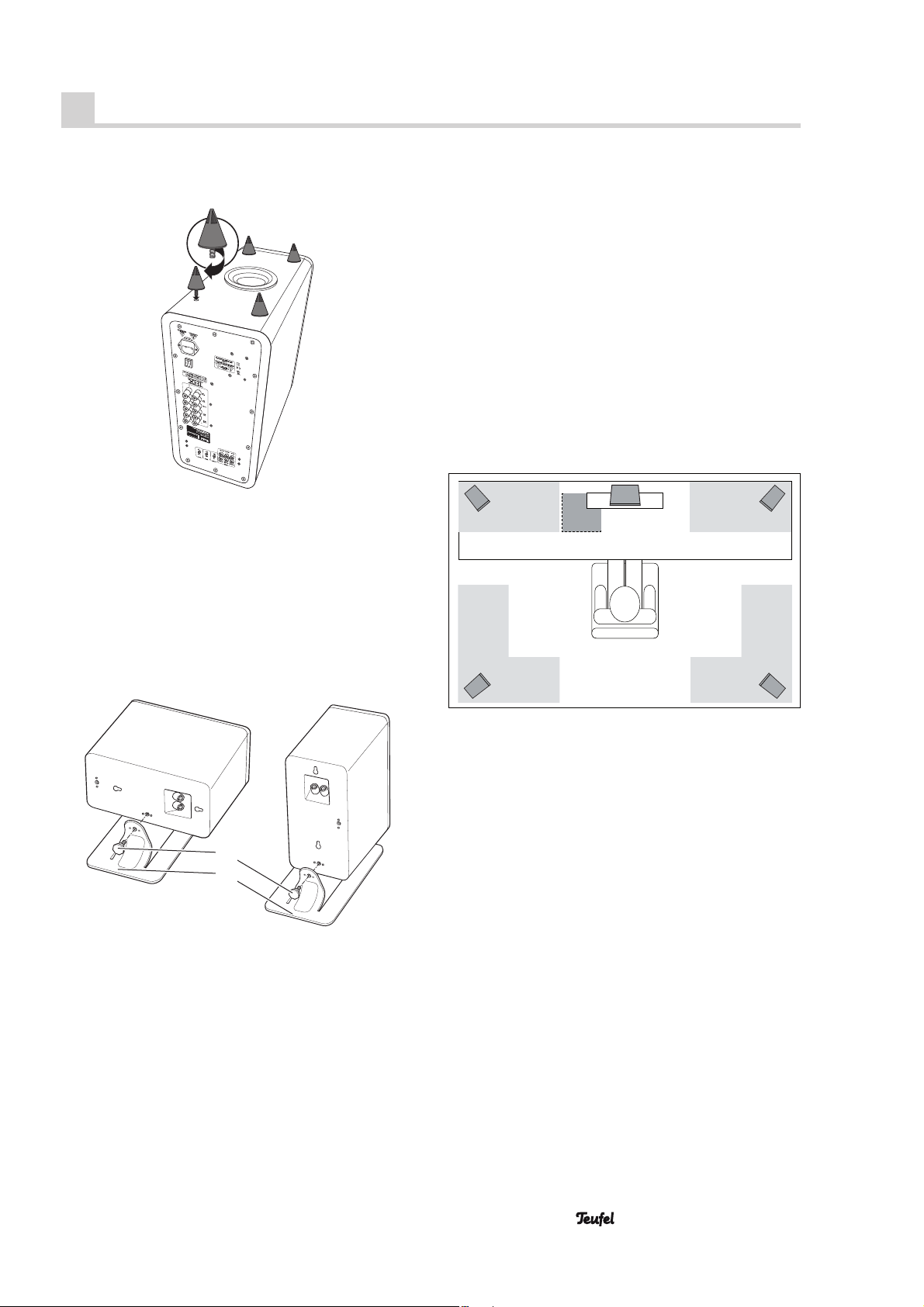

Mounting the spikes
Screw the four spikes into the four threaded holes on
the base of the subwoofer. These spikes ensure that the
unit is stable, minimise vibrations on the fl oor and provide
enough room for the subwoofer’s resonance opening. The
subwoofer may not be operated without spikes.
Setup location
• Select a stable, level base or a suitable wall.
• Make sure that the environment is clean and free from
dust.
• Avoid placing the unit close to sources of heat or in
direct sunlight.
• Arrange the connector cables so that they do not pose
a trip hazard.
• Do not place any heavy objects on the cables or the
speakers.
Setup: PC system
When using the unit as a PC sound system, concentrating
on emitting sound directly at the PC workstation is advisable, that is, the area where the monitor and listener are
located.
Front Front
Center
Subwoofer
Mounting the table stand
You can mount the satellite speakers upright with the
enclosed table stands or set them up on their side:
Screw-tighten the table stands into the desired position
with the knurled screws (see fi gure). Adhere four of the
rubber feet to each table stand to avoid vibrations.
Rear Rear
Please position the speakers within the grey areas.
Center speakers
• Place the center speaker in the most central location
under/over/on the monitor.
Front speakers
• The front speakers are set up to the right and left of the
monitor or hung at a height of approx. 80 to 160 cm.
• They should be in line with the center speaker and
form an equilateral triangle with the listener if possible.
• The speakers should project sound directly into the
room or slightly towards the listener.
Rear speakers
• The rear speakers should be placed to the side or
behind the listener, ideally at the same height as the
listener or higher (no more than 2.10 metres). Setting
them up any lower is not recommended.
Subwoofer
• The location of the subwoofer can be freely selected
and does not infl uence the other speakers. A location
between the front speakers is often ideal.
Operating the subwoofer in the corner of a room is not
advisable.
• Concept G 850 THX 7
Page 8

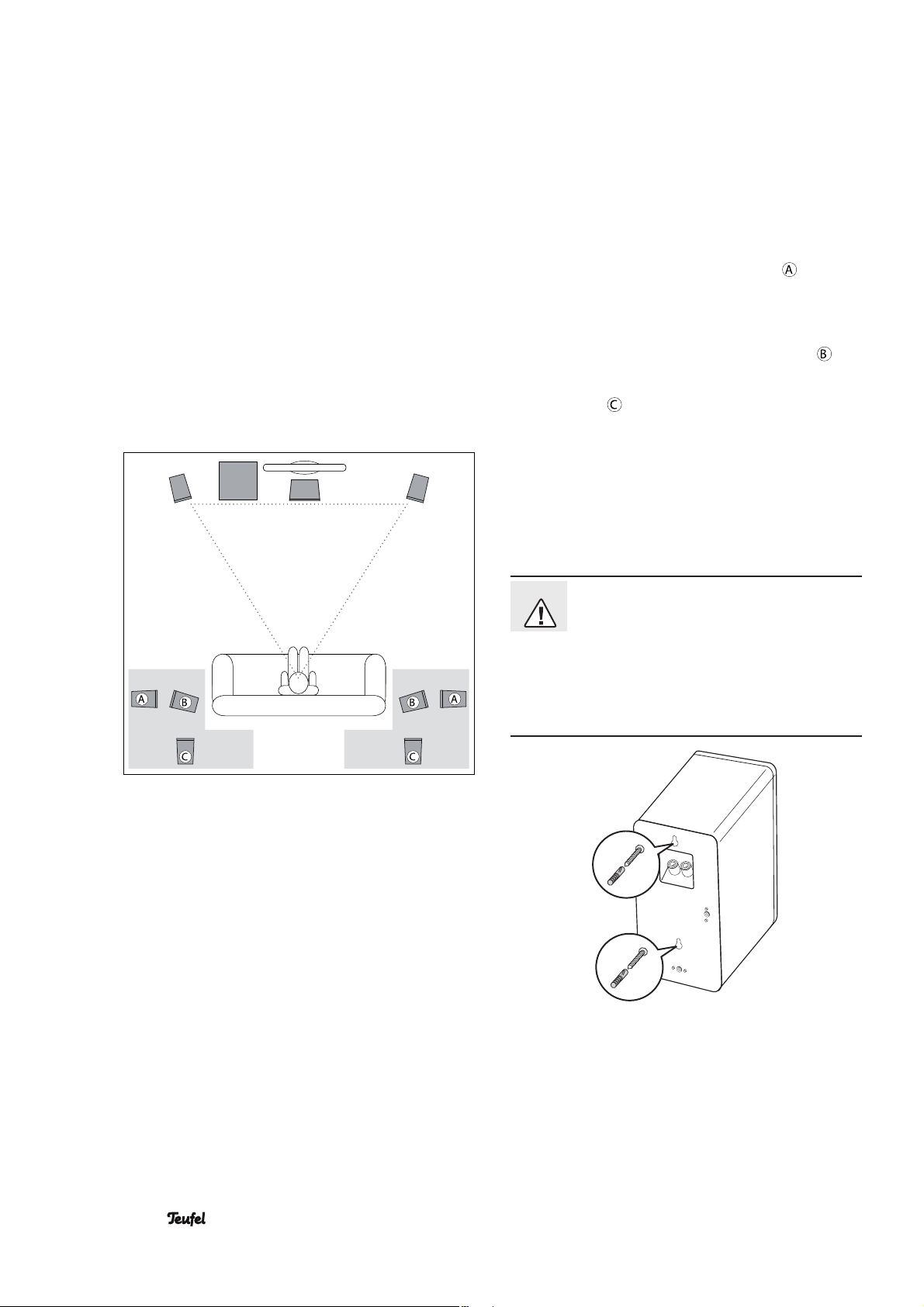

Setup: Home cinema system
The following data concern an “ideal home cinema”, in
which the viewer or listener sits in a central position at a
suffi cient distance in front of the television or screen (see
the adjacent graphic) and no objects (tables or the like)
are located in between. Unfortunately, the room, furnishings or one’s partner do not always allow for optimum
arrangement.
Modern software in playback devices offers a variety of
possibilities for electronically compensating losses associated with the arrangement. The following general rule
applies: You can always experiment on what works best
in your listening room in terms of sound and appearance
based on our recommendations. Let your ears (and eyes)
be the judge!
Front FrontCenter
Subwoofer
Rear speakers
• The rear speakers are set up or wall mounted to the
side or behind the listener at a height of 1.20 m to
2.10 m.
• The ideal position is to the left or right, approx. 20 degrees from being parallel with the listener . It is recommended that the distance from the rear speakers to
the listener exceeds 1 m. If you (have to) sit any closer,
make sure that the front side of the box does not emit
noise in your immediate direction and that, by angling
the speaker, it is pointed more towards the wall
increase the distance by setting up the speakers at a
height of more than 1.20 metres (e.g. on the ceiling) or
further away
Subwoofer
• The location of the subwoofer can be freely selected
and does not infl uence the other speakers. A location
between the front speakers is often ideal. Operating
the subwoofer in the corner of a room is not advisable.
.
. Or
Wall mounting
Stereo
triangle
Rear Rear
Please position the speakers within the grey areas.
Center speakers
• Place the center speaker in a central position under or
over the screen.
Front speakers
• The front speakers are set up to the right and left of the
screen or hung at a height of approx. 80 to 160 cm.
• They should be in line with the center speaker and
form an equilateral triangle with the listener – the
so-called stereo triangle (distance from the listener =
distance between the speakers).
• The speakers should project sound directly into the
room or slightly towards the listener.
Danger
• Ensure that any wall mounting is performed in a profes-
• Before drilling any holes, use a metal detector to check
• Only use suitable screws and dowels to mount the
• Hang the satellite speakers onto the wall using the
Risk of damage!
Improper mounting may result in damages.
sional manner.
that no lines are located in the area to be drilled.
speakers. Verify the carrying capacity of the walls.
keyhole openings in the back of the speakers and the
previously mounted screws.
8 • Concept G 850 THX
Page 9

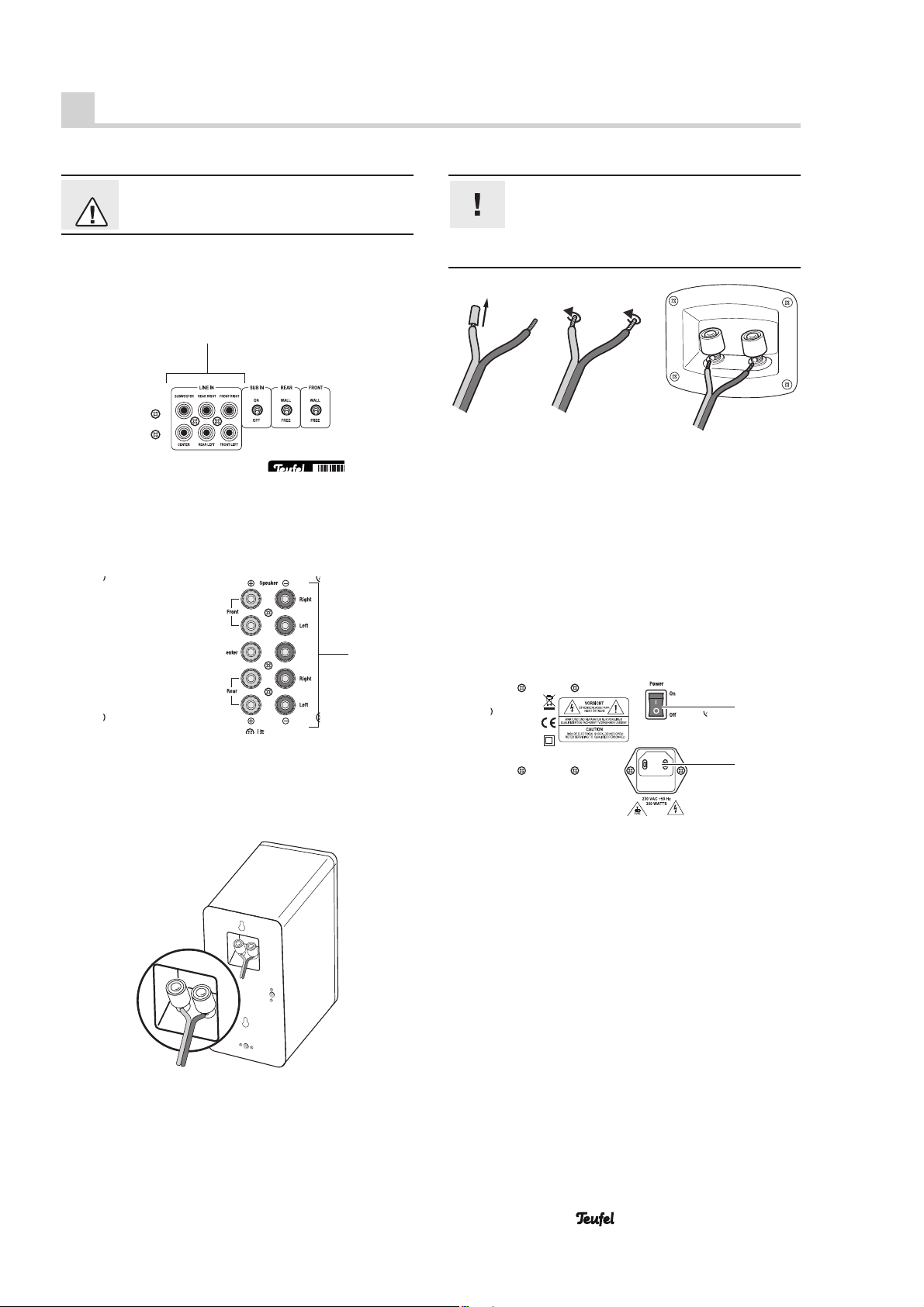

Connecting
Danger
• Pull the power plug of all devices to be connected out
Subwoofer
• Connect the line-in jacks (4) of the subwoofer with the
Speakers
Danger of injury/damage!
Arrange the cables so that they do not pose a
trip hazard.
of the socket to prevent accidental activation.
4
5.1 output jacks of the
or the DVD player
sound card, the decoder station
using 6 high-quality RCA cables.
Observe the correct polarity!
Connect the like-coloured terminals. Otherwise,
the sound quality will suffer. The strands of the
speaker cables are marked with different colours or
shapes.
• Split the single wire down to approx. 30 mm on both
ends and strip approx. 10 mm of insulation off of each
cord. Twist the single wires together so that no strands
are protruding.
• Turn the connector terminal counterclockwise until
loose. Run the stripped cable end into the now visible
hole. Turn the terminal clockwise until closed. The
cable has now been clamped into place.
• Connect all cables to the speakers in this way.
• Connect the other ends of the speaker cables to the
jacks (8) of the subwoofer in the same manner.
8
• Lay the speaker cable from the subwoofer to each
speaker. These cables should be high-quality doublewire speaker cable with marked strands.
A small tip: Label the cables on the subwoofer side.
This will help when taking down and setting up the
system.
• A terminal with a red and black connector clip is located on the back side of each speaker. Here you can
connect the speaker cables directly or with optional
pin plugs. We only describe the direct connection in
these instructions.
Connecting to a power supply
9
10
• Make sure that the mains switch (9) is set to “Off”.
• Use the power cord to connect the mains connector
jack (10) with an easily accessible socket.
• Insert the power plug of the connected unit back in the
socket.
• Now turn on the connected unit and set the mains
switch (9) of the subwoofer to On.
• Concept G 850 THX 9
Page 10

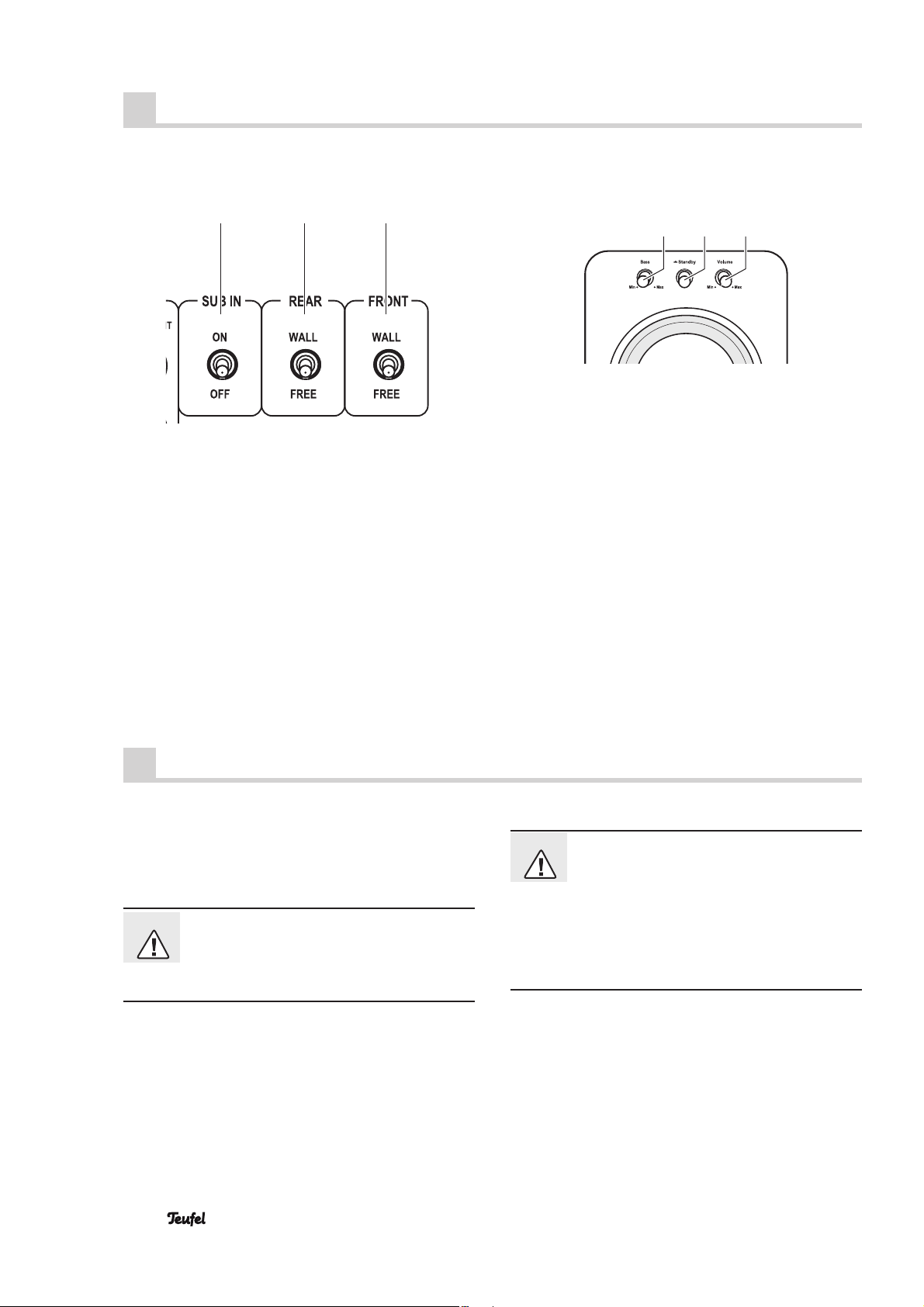

Use
Configuring the speakers
5
3 slider switches are located on the back side of the
subwoofer which have to be adjusted depending on the
position of your satellite speakers:
Switch “Front” (7) and “Rear” (6)
• Wall: This is the correct setting if the satellite speakers are wall hung. It reduces unpleasant bass range
increases that comes from the wall.
• Free: This is the correct setting if the satellite speakers
are mounted on the table stand or are free standing on
a shelf or table.
Switch “Sub In” (5)
• On: Subwoofer is operational.
• Off: Subwoofer is muted.
67
Subwoofer settings
123
The 3 controls on the front side of the subwoofer have the
following function:
• Bass (1): This control adjusts the bass playback inten-
sity.
• Standby (2): This button activates the subwoofer or sets
it to standby.
• Volume (3): This control adjusts the overall volume.
Care and cleaning
Clean the subwoofer and the satellite speakers regularly
with a soft, damp microfi ber cloth. When doing so,
please be absolutely sure to observe the following instructions:
Danger
• Make sure that no liquid penetrates the unit.
• Disconnect the mains plug before cleaning.
Risk of electric shock!
In contact with live parts, water can lead to
electric shock or short circuit.
Attention
• If possible, only use plain water without any additives.
• In no circumstances should caustic cleaning products,
Risk of damage!
Using the wrong cleaning materials may damage the delicate surface of the case.
In case of stubborn marks, a mild soap solution may
be used.
white spirit, thinners, petrol or similar be used for
cleaning.
10 • Concept G 850 THX
Page 11

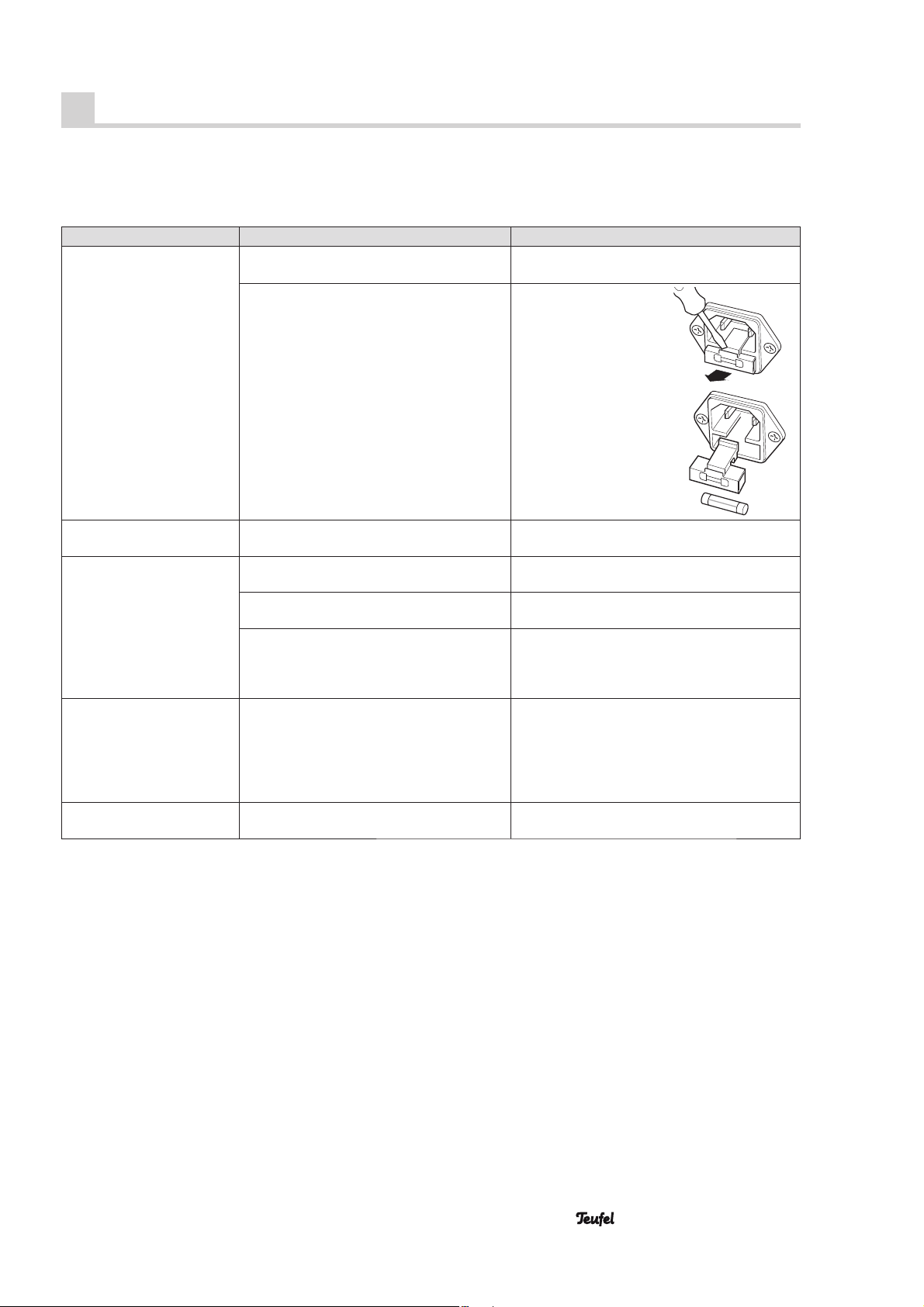

Troubleshooting
The following advice should help you to solve problems. If this doesn’t work, please contact our hotline (see page 3). Take
note of the warranty instructions.
Problem Possible cause Solution
The subwoofer isn’t work-
ing.
The subwoofer is off or doesn’t have any
power.
Fuse defective. Replace the fuse:
Turn on the switch (9) (“I”). Check the power
cord and socket.
1. Disconnect the power
cord.
2. Carefully pull out the
fuse holder (11) on the
mains connector jack
(10).
3. Push the old fuse
down and out. Insert a
new fuse (2 A delayaction).
4. Close the holder.
The subwoofer doesn’t emit
any bass tones.
The subwoofer hums. The subwoofer is connected to a different
The playback has interference.
The sound seems dull. Satellite speakers connected with incorrect
The Sub In (5) switch is set to Off. Set the switch to On.
circuit than the rest of the system.
The humming is caused by line distur-
bance.
The humming is caused by a multiple
socket.
Generally speaking, the Concept G 850
THX is a very low-noise system. In the
high range area, very high-quality highresolution speaker systems can expose the
poor quality of a signal source (e.g. from
MP3 fi les).
polarity.
Connect the subwoofer and the connected
device to the same electric circuit.
Buy a line fi lter and connect both devices to
it.
Use another multi-outlet power strip or connect the subwoofer directly to the wall socket.
It may also help to insert the power plug the
other way around.
Ensure that the source is sending a clear
signal.
Make sure the speaker cables of all satellites
are connected properly.
• Concept G 850 THX 11
Page 12
Protecting the environment
Disposing of the unit
Used units must not be disposed of with household waste!
If the unit is no longer operational, every consumer is required by law to dispose of used
devices separately from household waste,
e.g. at a collection point run by the communal authority
borough. In this way it is ensured that used devices are
properly recycled and that negative consequences on
the environment are avoided. For this reason, electrical
equipment is labelled with the displayed symbol.
Technical data
Subwoofer
Power consumption: max.: 500 W
Operating voltage: 220–230 V~, 50 Hz or 110–115 V~, 60 Hz
Dimensions (WxHxD): 209 x 474 x 425 mm (with spikes)
Weight: 12.85 kg
Satellite
Dimensions (WxHxD): 115 x 290 x 240 mm
Weight: 1.9 kg
This product conforms with Council of the
European Union guidelines 2004/108/EC and
2006/95/EC.
Technical changes reserved!
For questions, suggestions or other issues please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
10783 Berlin (Germany), Buelowstr. 66
Tel.:
00800 200 300 400 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No liability is accepted for the
accuracy of this information. Technical changes, typographical errors
and other errors reserved.
Instruction No. 91806_01 GB 20120709
Loading...
