Page 1

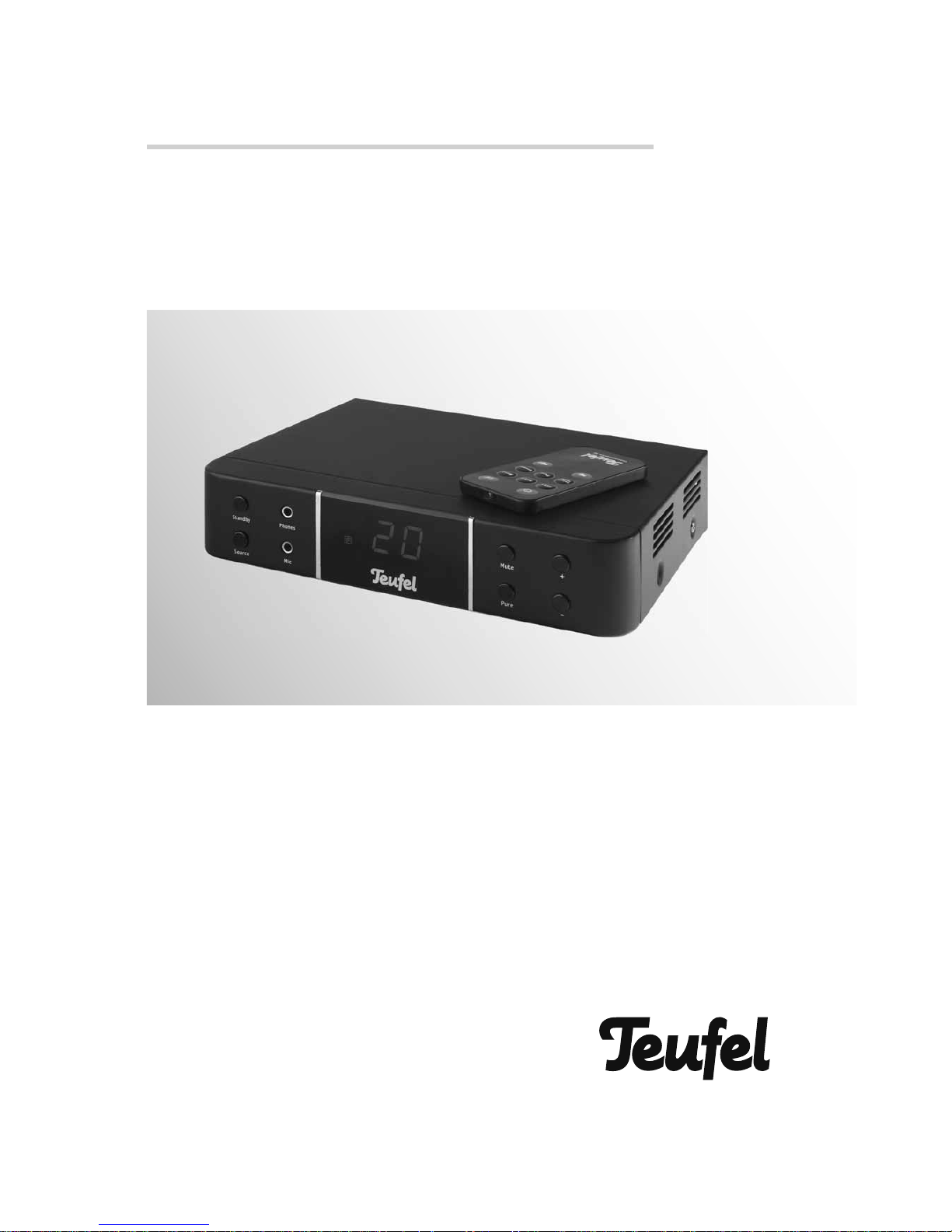

Technical description and operating instructions
Control Unit for PC Speaker Systems
ControlStation 2
Page 2
2 • ControlStation 2
Contents
General notes and information ......................................................................................................................................3
Safety notes ..................................................................................................................................................................4
Overview ......................................................................................................................................................................5
Control elements and connections ..................................................................................................................................6
Front side 6
Setup and connection ....................................................................................................................................................7
5.1 RCA input Aux 1 ...................................................................................................................................... 7
Connecting to a power supply ......................................................................................................................... 7
Remote control ..............................................................................................................................................................8
Basic functions ...............................................................................................................................................................8
Activating and deactivating ............................................................................................................................ 8
Adjusting the volume 8
Mute ............................................................................................................................................................ 8
Care and cleaning .......................................................................................................................................................10
Troubleshooting ...........................................................................................................................................................10
Technical data .............................................................................................................................................................11
Protecting the environment .......................................................................................................................................... 11
Page 3
• ControlStation 2 3
Notice
The information in this document may be changed with­out prior notice and in no way constitutes any liability on the part of Lautsprecher Teufel GmbH. No part of these instructions may be reproduced in any form or be broadcasted in any way electronically, me­chanically, by photocopy or recording without the written permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH Version 1.0 November 2009
Original packaging
If you wish to exercise your eight-week right of return, we ask that you be absolutely sure to hold onto the packag­ing. We can only accept the return of the device WITH THE ORIGINAL PACKAGING. Empty boxes are not available!
Complaints
In case of complaint we will need the following informa­tion to process your enquiry:
1. Invoice Number
Can be found on the sales slip (enclosed with the product) or on the order confi rmation received as a PDF document, e. g. 4322543.
2. Serial number and/or batch number
Located on the back of the device, e. g. serial no. CS29440122A-123
Many thanks for your support!
Contact
For questions, suggestions or criticism please contact our customer service department: Lautsprecher Teufel GmbH Gewerbehof Buelowbogen Buelowstrasse 66 10783 Berlin (Germany)
Tel.: +49 (0) 30 - 300 930 0 Fax: +49 (0) 30 - 300 930 930 www.teufel.eu
Warranty conditions
2 year warranty for amplifi ers and electronics from date of purchase. Covers materials and workmanship, excludes damage caused by improper use or electrical or mechanical overload. Proof of warranty is the original of our invoice. This warranty applies solely to electronics purchased from Teufel by an end user for private use. The warranty is not valid for loudspeakers, amplifi ers and
electronics, which pass to an end user via a third party merchant. In the case of a private re-sale of Teufel prod­ucts the warranty may be transferred to the purchaser as long as the original proof of purchase is also passed on to the purchaser.
Returns
Teufel provides the right to exchange or return within eight weeks with refund of the purchase price paid. Return of individual components sold as a package is only possible if these components are also sold individu­ally by Lautsprecher Teufel. In the case of the return of one or more individual components the package price reduction offered by Lautsprecher Teufel on all com­ponents in a package no longer applies. The amount refunded to the customer for the components returned will therefore only be the difference between the package price and the purchase price of the individual parts. The economic result for the customer is that it is as if he/she had originally bought the remaining components at their individual prices.
Further information on the subject of returns may be found on the back of the return form enclosed with the order or online in the support area of our website www.teufel.eu
If you need to return your goods please do not act with­out fi rst speaking to Lautsprecher Teufel. We can only process or accept your returns if you give us prior notifi cation by telephone and discuss how to proceed!
Proper use
Only use the unit as described in these instructions. Any other use will be deemed as not in accordance with the instructions and may lead to damage to property or even persons. The manufacturer accepts no liability for dam­age caused by use not in accordance with the instruc­tions.
The unit is intended for private use.
Before operating the unit for the fi rst time please read the safety notes and operating instructions
carefully. This is the only way to use all functions safely and reliably. Keep the operating instructions safe and pass them on to anyone who may own the unit after you.
General notes and information
Page 4
4 • ControlStation 2
Safety notes
Caution icons
You will fi nd the following caution icons used in these instructions :
Danger
High risk !
Failure to observe the warning may result in severe personal injury or death
Attention
Moderate ri sk!
Failure to observe the warning may result in property damage .
Minor risk!
Points which should be observed when hand­ling the unit.
Safety notes
Danger
Risk of electric shock!
Faulty installation of electrical equipment or mains
voltage which is too high can cause
electric shocks.
The wall adapter is designed for a mains voltage of • 100 V–240 V ~ / 50/60 Hz. Only use the enclosed wall adapter. Immediately pull the wall adapter out of the socket if • the casing is defective or exhibits other visible dam­ages. If the unit emits smoke or smells of burning or other • unusual odours, disconnect it immediately from the power supply and do not operate it. Never open the unit casing. • Repairs may only be carried out by an authorised specialist workshop. Only parts which conform with the original unit specifi cations may be used. There are specifi c electrical and mechanical parts in this unit which are essential for safe operation. Do not insert any object through the vent slots in the • case. Only use the unit indoors.• Do not operate the unit in moist areas and protect it • from drops of water or splash water. Also take care not to stand vases or other containers of liquid on or near the unit in order to avoid liquid getting into the case. If water or other foreign bodies should enter the case, disconnect it immediately from the mains power supply and remove any batteries. Send the unit to our service address. Never touch the wall adapter with wet hands.• Check the unit regularly for damage.•
Danger
Danger to children!
Children can become trapped in the packing
fi lm when playing and suffocate. Do not allow children to play with the unit or the pack-• ing fi lm. Danger of suffocation. Ensure that children do not remove small parts from • the unit (e. g. control buttons). They could swallow the parts and choke. If a child does swallow a part, take him/her to a doc­tor immediately. Never allow children to operate electrical devices • unsupervised.
Danger
Danger to hearing!
Loud noise may lead to hearing loss.
There is a potential risk of very high noise pres-
sure especially when activating an amplifi er that is set to full volume. This may have psychological consequences and also cause physical injury. Children and pets are particularly at risk.
Set your signal source unit volume control to a low • setting. When the volume is set high, always keep a certain • distance from the unit and never place your ear directly on the speaker. To avoid damage to health, avoid extended listening at • high volume.
Danger
Danger of chemical burns!
Leaking battery acid may lead to chemical
burns. Do not allow battery acid to come into contact with • skin, eyes or mucus membranes. In case of contact with acid rinse the affected location immediately with plenty of plain water and if necessary see a doctor.
Danger
Danger of explosion!
Lithium batteries can explode if handled im-
properly. Never attempt to recharge lithium batteries.• Only use batteries of the same or equivalent type.• Do not heat or short circuit batteries or rechargeable • batteries and do not dispose them of by burning. Do not leave batteries or rechargeable batteries in direct sunlight.
Page 5
• ControlStation 2 5
Danger
Danger of injury/damage!
Incorrect location may result in damage.
Never use the unit unmounted in vehicles, in instable • locations, on wobbly stands or furniture, with attach­ment fi xtures that are too small etc. The unit could topple over or fall, injuring persons or causing damage to the unit itself. Arrange the device so that it cannot be knocked over • accidentally and make sure that the cables do not pose a trip hazard. Do not place the unit near sources of heat (e. g. heat-• ers, ovens, other heat generating equipment such as amplifi ers etc.)
Attention
Fire hazard!
Improper use may lead to damage or fi re.
Do not place open fl ames such as burning candles or • similar on the unit. Ensure suffi cient ventilation. • Do not place the unit in direct sunlight. • Do not cover the ventilation slots with curtains, cloths, • newspapers or similar. Heat build-up inside the unit can shorten the lifetime of the unit.
Attention
Risk of damage!
Power overload due to lightning strike may
damage or destroy the unit. If the unit is to be left unsupervised for a long period • (e. g. during a holiday), or if a thunderstorm is fore­cast, disconnect it from the mains power supply.

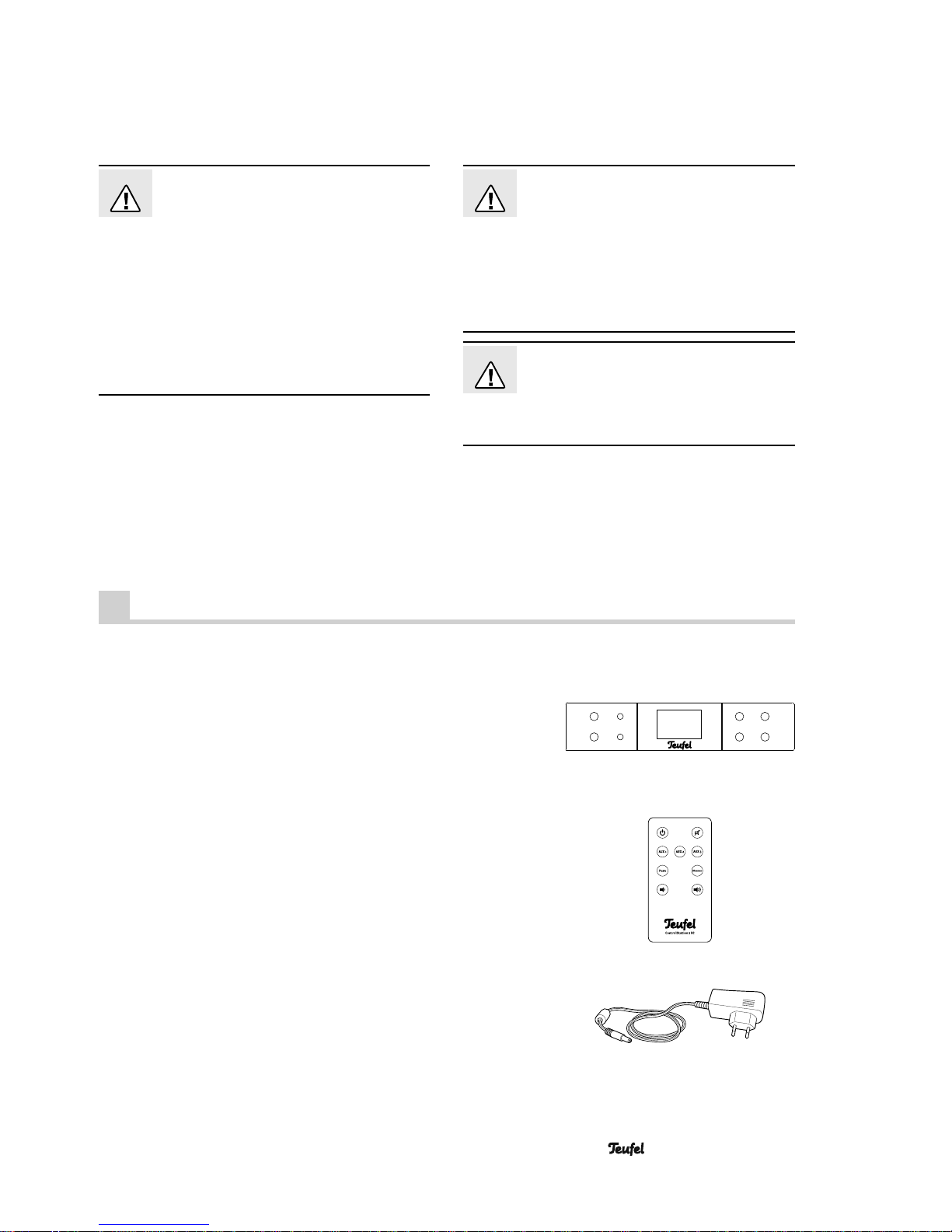

Product Contents
햲 1x ControlStation 2 (Main unit) 햳 1x Remote control including battery 햴 1x Wall adapter
Check to be sure
Check that all items have been delivered and that noth-• ing is damaged. If the delivery is incomplete or you fi nd damage sus-• tained in transit, do not operate the unit but contact our service department (see page 3).
Overview
햲
햳
햴
PhonesStandby
Source Mic
+Mute
Pure –
Page 6
6 • ControlStation 2

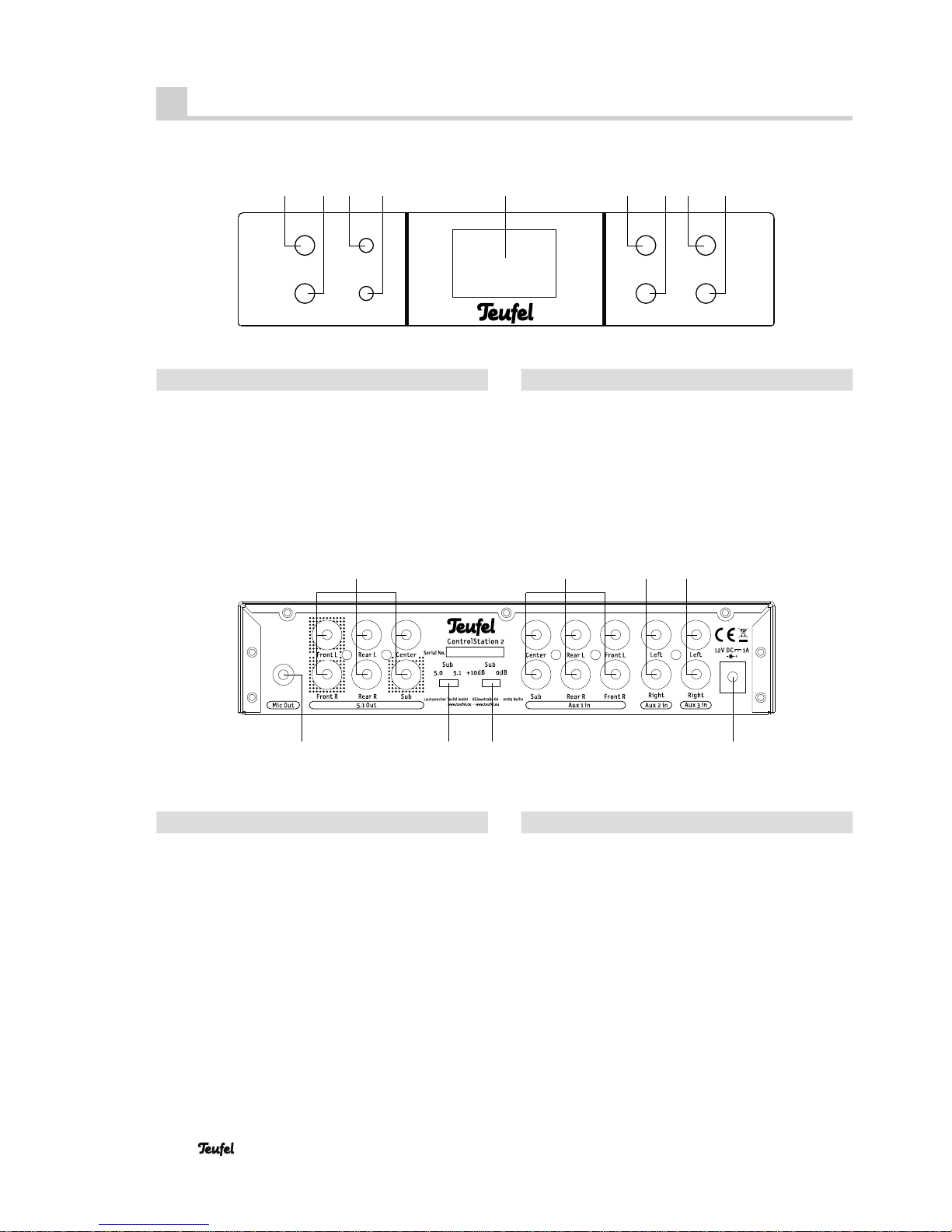

Control elements and connections
Front side
Back side
Pos Name Description
10 5.1 Out 5.1 output to the amplifi er 11 Aux 1 In 5.1 input 12 Aux 2 in 2.0 input 13 Aux 3 in 2.0 input
Pos Name Description
14 12V DC
Connection for the adapter 햴
15
Sub +10dB/0dB
Activate/deactivate the subwoofer boost
16 Sub 5.0/5.1
Mix subwoofer channel from front channels/route directly
17 Mic out Microphone output to the PC
Pos Name Description
1Standby On/Standby button 2 Source Select an audio source 3Phones Earphone connection 4Mic Microphone connection 5— Display fi eld
Pos Name Description
6Mute Muting
7Pure
Switch between stereo (2.0) or
5.1 upmix
8+ Increase the volume 9– Reduce the volume
PhonesStandby
Source Mic
+Mute
Pure –
1234 5 6789
10 11 12 13
15 141617
Page 7
• ControlStation 2 7

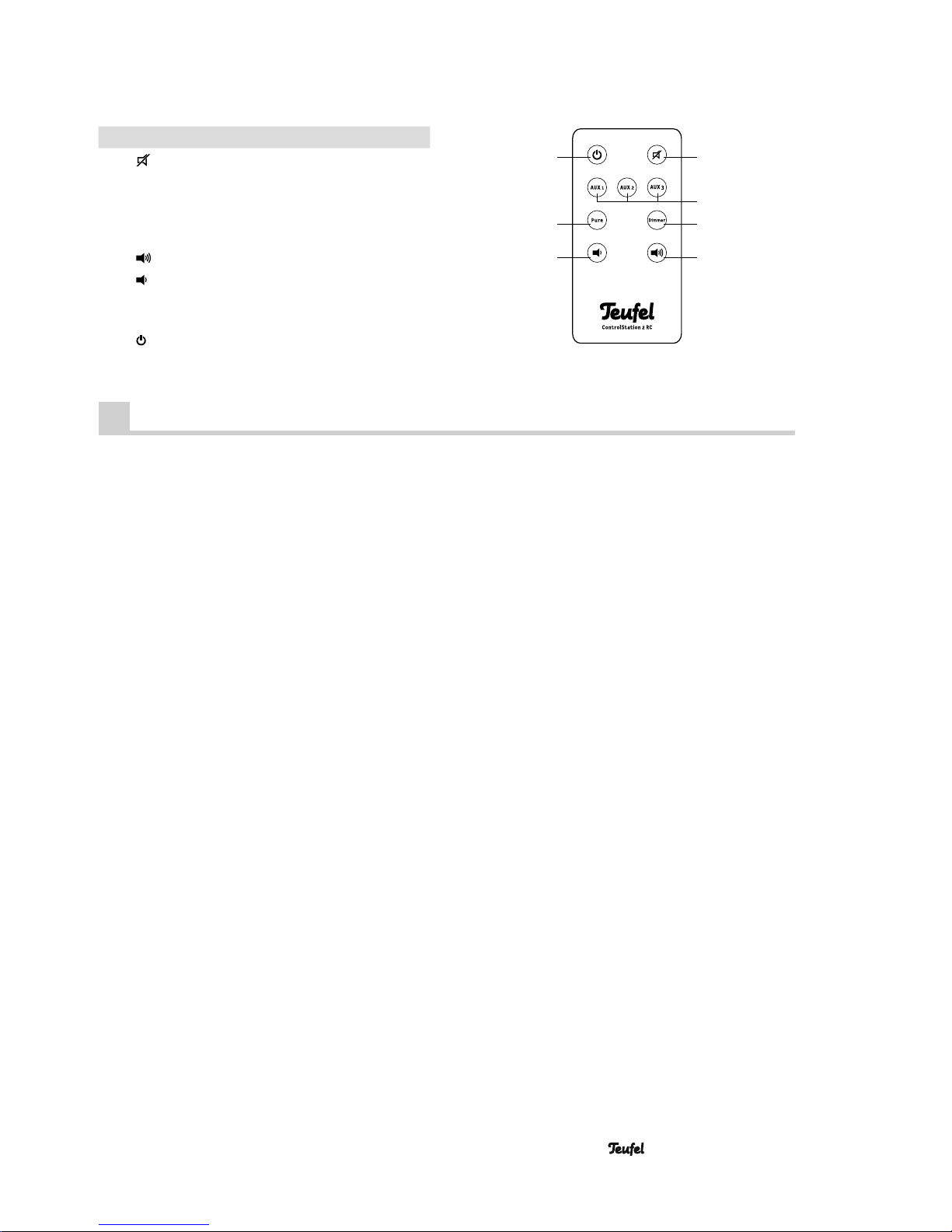

Remote control
Pos Name Description
18
Mute
19
Aux 1, Aux 2, Aux 3
Select an audio source
20 Dimmer
Control the display panel bright­ness
21
Increase the volume
22
Reduce the volume
23 Pure
Switch between stereo (2.0) or
5.1 upmix
24
On/Standby button
Setup and connection
Setup location
Select a stable, level base.• Make sure that the environment is clean and free from • dust. Avoid placing the unit close to sources of heat or in • direct sunlight. Arrange the connector cables so that they do not pose • a trip hazard. Do not place any heavy objects on top of the cables or • the unit.
5.1 output
Connect your amplifi er input to the RCA jacks 10 “5.1 Out”. You will need a 6 channel RCA cable set for this. You can fi nd these cables in the “Accessories” area of our webshop at www.teufel.eu. Connect the output jacks with the corresponding inputs on the amplifi er and/or 5.1 ac­tive subwoofer (see corresponding operating instructions):
Front L/R – front channels left/right Rear L/R – rear channels left/right Center – center channel Sub – subwoofer
5.1 RCA input Aux 1
Connect your PC soundcard or another 5.1 audio source to the jacks 11 “Aux 1 in”. You will also need a 6 channel RCA cable set for this.
2.0 RCA inputs Aux 2 and 3
You can connect almost any stereo audio source to the RCA jacks 12 “Aux 2 In” and 13 “Aux 3 In”, that is MP3 players (with/without a dock), video game systems, televisions etc. The source only needs one output with a line control. These outputs are either confi gured as stereo
RCA jacks or as 3.5 mm mini jack. With a corresponding connector cable, you can connect these devices to the RCA jacks 12 “Aux 2 In” or 13 “Aux 3 In”.
Microphone connection
You can connect a microphone (e. g. from a headset) to the jack 4 “Mic”. This mono sound input is emitted via the mini jack 17 “Mic Out” on the back of the subwoofer. Connect this jack with the microphone input of your PC. You will need a connector cable with two mini jacks for this.
The microphone input is also active when the ControlSta­tion 2 is in standby mode.
Headphones
You can connect stereo headphones to the jack 5 “Phones” – the speakers are automatically deactivated when plugging in headphones.
Connecting to a power supply
Insert the small wall adapter plug in the jack • 14 “12V DC”. Insert the wall adapter into a power supply socket.•
18
19
20
2122
23
24
Page 8
8 • ControlStation 2
Basic functions
Activating and deactivating
After activating, the device is fi rst in standby mode and a blue dot will appear on the display panel 5.
With the button • 1 “Standby” and/or 24 “ ” you can switch the unit between operating and/or standby mode. In the operating state, the active audio source will be shown on the display panel.
Adjusting the volume
Increasing the volume: Press button • 8 “+” and/or 21 “
”.
Reducing the volume: Press button • 9 “–” and/or 22 “
”.
The selected volume will be indicated from 0 to 60 on the display panel 5.
Mute
With the button • 6 “Mute” and/or 18 “
” you can turn off the sound. The symbol “– –” will appear on the display fi eld 5. Turning the sound back on: Press button • 6 “Mute” and/ or 18 “ ” again or change the volume.
A 3-volt button cell, type CR2025, is used to power the remote control.
Upon delivery, this button cell is already in the remote control and is secured by a plastic strip. The strip is vis­ible on the back of the remote control. Just carefully pull it out. The remote control is now ready for use.

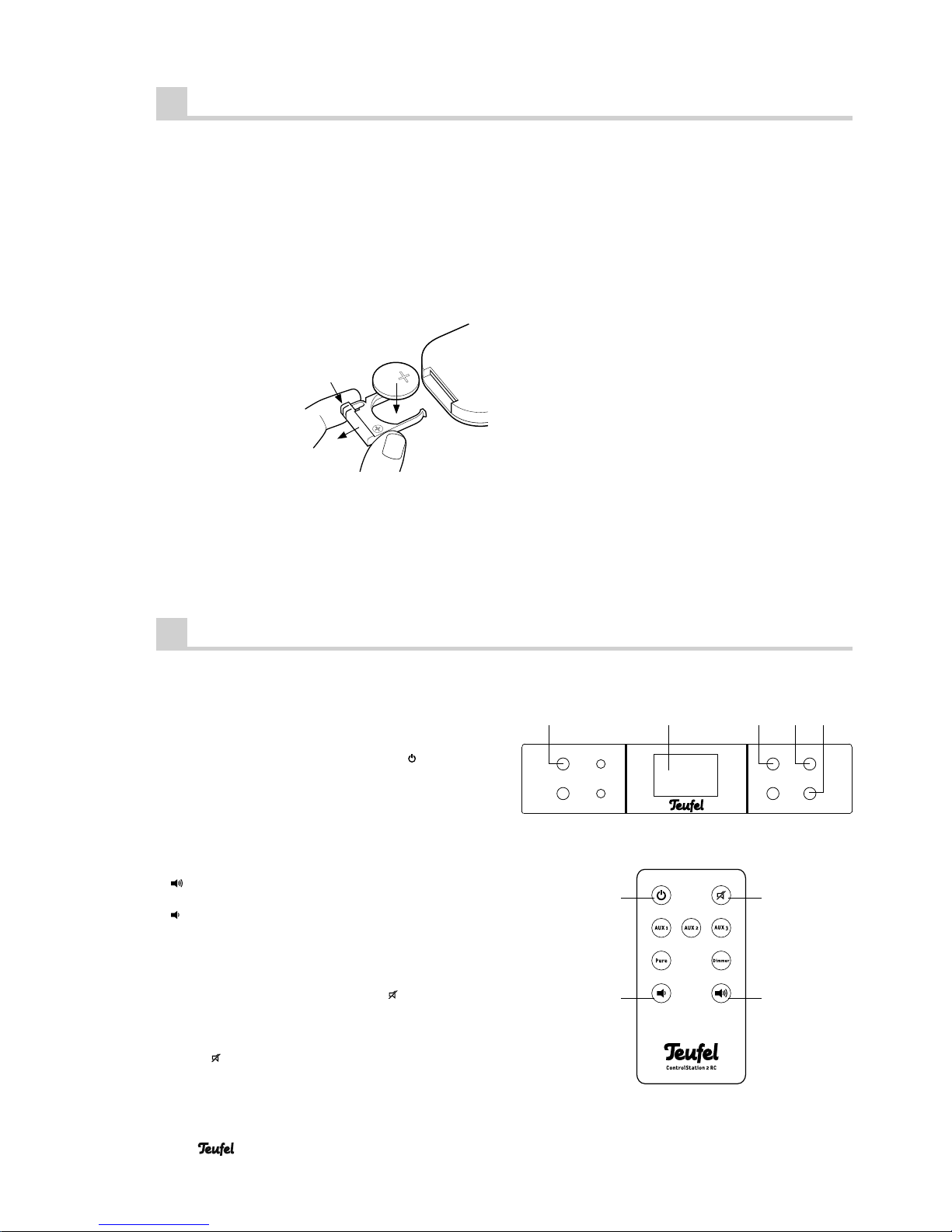

Changing the batteries
Hold the remote con-• trol with the bottom facing up. Press the bar on the • battery compartment to the middle (A) and pull out the compart­ment (B). Take out the empty • battery (please ob­serve the notes on page 11).
A
B
Remote control
Insert the new battery in the holder. Thereby the “+” • symbol must be visible on the battery and bracket. Put the holder back into the unit and push the compart-• ment until it locks into place.
Functionality
The remote control transmits the control signals via infra­red. For this, it is necessary that you point the remote con­trol towards the ControlStation 2. Make sure no objects are in the way of the infrared signal.
Fluorescent lamps and energy saving lamps installed in the direct vicinity may affect the functions of the remote control or prevent it from working.
18
2122
24
PhonesStandby
Source Mic
+Mute
Pure –
15689
Page 9
• ControlStation 2 9

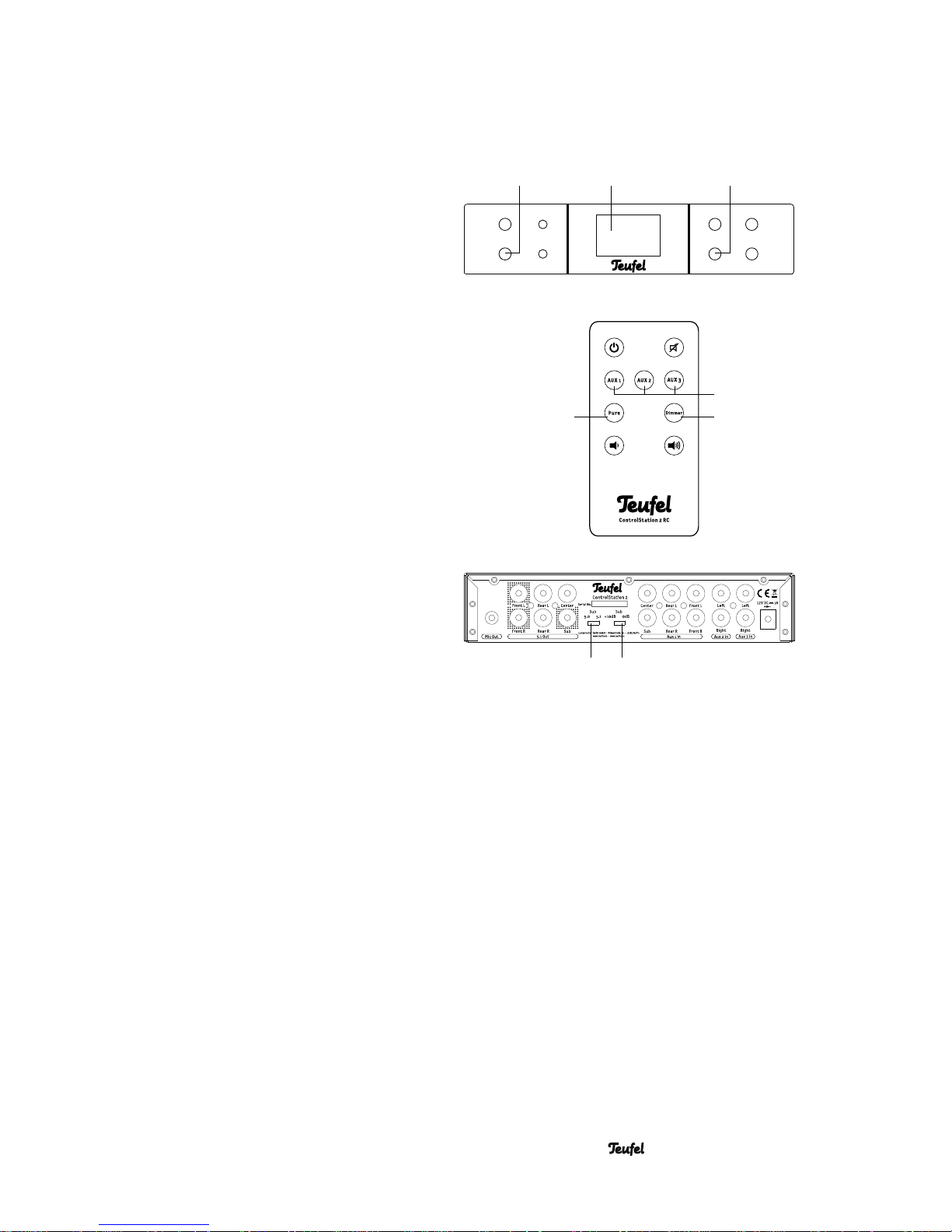

Selecting a source
After turning the unit on, the last audio source is selected.
You can switch the source with the button • 2 “Source” and/or the buttons 19 “Aux 1”, “Aux 2”, and “Aux 3”. The selected source is shown on the display panel 5.
Pure mode
The stereo signal of the sources Aux 2 and Aux 3 In is normally converted to a 5.1 signal (“Upmix”). With the button 7 “Pure” you can turn this conversion on or off. Only the front channels right and left as well as the sub­woofer channel are active in pure mode. The correspond­ing source is shown on the display panel as “P2” and/or “P3” instead of “A2” and/or “A3”.
5.0 mode
If your source device does not provide a subwoofer chan­nel, you can switch from 5.1 mode to 5.0 mode with the switch 16 “Sub”. Then the signal from the front channels right and left will be mixed to the subwoofer channel.
Boosting the subwoofer
With this function, you can correct the drop-off of the signal level at the subwoofer output, which occurs for sev­eral 5.1 sources if the setting “Small” has been selected for the satellites in bass management. Slide the switch 15 “Sub” to the “+10dB” setting in order to increase the volume of the subwoofer channel of the AUX 1 input by approximately 10dB. The signal will be issued to the subwoofer without any adjustment when the switch is set to “0dB”.
Display field
You can adjust the brightness of the display panel from bright to dark using the button 20 “Dimmer”.
19 20
23
16 15
PhonesStandby
Source Mic
+Mute
Pure –
25 7
Page 10
10 • ControlStation 2
Troubleshooting
The following instructions should help you to solve problems. If this doesn’t work, please contact our hotline (see page 3). Mind the warranty instructions.
Problem Possible cause Solution No sound. The connection to the source device or
amplifi er has been cut off.
Check the connections (see page 7).
Volume is set to “0”. Increase the volume. Power supply is cut off. Check the wall adapter and connector cable
(see page 7).
The speakers buzz. The buzzing is caused by problems with
the power supply.
Buy a line fi lter and then connect the device to it.
The buzzing is caused by a multi-way socket.
Use another multi-way socket or plug the subwoofer directly into the wall socket. In the case of two-pin plugs it may help to insert the plug into the socket the other way around.
Playback is noisy. The ControlStation 2 is a very low-noise
system. What often happens is that the speaker system which is excellent in the treble range exposes the poor quality of a signal source (e. g. from MP3 fi les).
Make sure that the signal being sent from the source to the ControlStation 2 is free from faults.
Care and cleaning
Clean your ControlStation 2 regularly with a soft, slightly damp microfi bre cloth. Please note the following care­fully:
Attention
Risk of damage!
In contact with live parts, water can lead to
electric shock or short circuit. Ensure that no liquid penetrates the unit.• Pull the wall adapter out of the socket before cleaning.•
Attention
Risk of damage!
Using the wrong cleaning materials may dam-
age the delicate surface of the case. If possible use only plain water with no cleaning prod-• ucts. In case of stubborn marks, a mild soap solution may be used. In no circumstances should caustic cleaning products, • white spirit, thinners, petrol or similar be used for cleaning.
Page 11
• ControlStation 2 11
Technical data
Power consumption, max: 10 W Operating voltage of the wall adapter: 100–240 V~ / 50/60 Hz Operating voltage of the unit: 12 V DC, 1 A
Inputs: 1x 5.1 audio (RCA jacks) 2x stereo (RCA jacks) 1x microphone 3.5 mm mini jack
Outputs: 1x 5.1 audio (RCA jacks) 1x headphones 3.5 mm mini jack 1x microphone 3.5 mm mini jack
Dimensions (W x H x D): 190 x 41 x 155 mm Net weight: 710 g
This product conforms with Council of the European Union guidelines 2004/108/EC and 2006/95/EC
Technical changes reserved!
Batteries and rechargeable batteries
Batteries and rechargeable batteries must not be disposed of with household waste!
Every consumer is required by law to bring all
batteries and rechargeable batteries, whether they contain harmful substances*) or not, to a collection point run by the communal authority or borough or run commercially , so that they can be disposed of in an envi­ronmentally friendly manner. Please only hand in fully discharged batteries !
*) labe ll ed : Cd = cad mi um, Hg = mer cur y, Pb = lead
Disposing of the unit
Used units must not be disposed of with house­hold waste
If the unit is no longer operational, every consumer is required by law to dispose of
used devices separate from household waste, e. g. at a collection point run by the communal author­ity borough. In this way, used devices can be recycled and waste materials disposed of in an environmentally friendly manner. For this reason, electrical equipment is labelled with the displayed symbol
Protection of the environment
Page 12
Instruction No. 91415_GB/HC-20091118
For questions, suggestions or criticism please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1 10783 Berlin (Germany), Buelowstr. 66
Tel.: +49 (0)30 - 300 930 0 Fax: +49 (0)30 - 300 930 930 www.teufel.eu
No liability is accepted for the accuracy of this information. Technical changes, typo ­graphical errors and other errors reserved.
