Page 1
Technical description and operating instructions
Concept D 500 THX
Active 2.1 Multimedia THX Speaker System
Page 2
2 • Concept D 500 THX
Contents
General notes and information ......................................................................................................................................3
Notice 3
Safety notes ..................................................................................................................................................................4
Overview ......................................................................................................................................................................5
Controls and connections ...............................................................................................................................................6
Setup and connection ....................................................................................................................................................7
Headphones 7
Basic functions ...............................................................................................................................................................8
Care and cleaning .........................................................................................................................................................9
Troubleshooting .............................................................................................................................................................9
Protecting the environment ..........................................................................................................................................10
Technical data .............................................................................................................................................................10
Page 3
• Concept D 500 THX 3
General notes and information
Notice
The information in this document may be changed with­out prior notice and in no way constitutes any liability on the part of Lautsprecher Teufel GmbH. No part of these instructions may be reproduced in any form or be broadcasted in any way electronically, me­chanically, by photocopy or recording without the written permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH Version 1.0 October 2009
Original packaging
If you wish to exercise your eight-week right of return, we ask that you be absolutely sure to hold onto the packag­ing. We can only accept the return of the speakers WITH THE ORIGINAL PACKAGING. Empty boxes are not available!
Complaints
In case of complaint we will need the following informa­tion to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with the product) or on the order conrmation received as a PDF document, e. g. 4322543
2. Serial number and/or batch number
Can be found on the rear of the unit, e. g. Batch No: MO 04007480121A
Many thanks for your support!
Contact
For questions, suggestions or criticism please contact our customer service department: Lautsprecher Teufel GmbH Gewerbehof Bülowbogen · Bülowstrasse 66 10783 Berlin (Germany)
Tel.: +49 (0) 30 - 300 9 300 Fax: +49 (0) 30 - 300 930 930 www.teufel.eu
Warranty conditions
12 year warranty for speakers and 2 year warranty for ampliers and electronic equipment from date of pur­chase covers materials and workmanship, excludes dam­age caused by improper use or electrical or mechanical overload. Proof of warranty is the original of our invoice. This warranty applies solely to speakers, ampliers and electronics purchased from Teufel by an end user for private use. The warranty is not valid for speakers, ampli-
ers and electronics which pass to an end user via a third party merchant. In the case of a private re-sale of Teufel products, the warranty may be transferred to the pur­chaser as long as the original proof of purchase is also passed on to the purchaser.
Returns
Teufel provides the right to exchange or return within eight weeks with refund of the purchase price paid. Return of individual components sold as a package is only possible if these components are also sold individu­ally by Lautsprecher Teufel. In the case of the return of one or more individual components the package price reduction offered by Lautsprecher Teufel on all com­ponents in a package no longer applies. The amount refunded to the customer for the components returned will therefore only be the difference between the package price and the purchase price of the individual parts. The economic result for the customer is that it is as if he/she had originally bought the remaining components at their individual prices.
Further information on the subject of returns may be found on the back of the returns form enclosed with the order or online in the support area of our website www. teufel.eu.
If you need to return your goods please do not act with­out first speaking to Lautsprecher Teufel. We can only process or accept your returns if you give us prior notification by telephone and discuss how to proceed!
Proper use
Only use the unit as described in these instructions. Any other use will be deemed as not in accordance with the instructions and may lead to damage to property or even persons. The manufacturer accepts no liability for dam­age caused by use not in accordance with the instruc­tions. The unit is intended for private use.
Before operating the unit for the rst time please read the safety notes and operating instructions
carefully. This is the only way to use all functions safely and reliably. Keep the operating instructions safe and pass them on to anyone who may own the unit after you.
Page 4
4 • Concept D 500 THX
Safety notes
Caution icons
You will nd the following caution icons in these instruc­tions:
Danger
Attention
High risk!
Failure to observe the warning may result in severe personal injury or death.
Moderate risk!
Failure to observe the warning may result in property damage.
Minor risk!
Points which should be observed when han­dling the unit.
Safety notes
Danger
Risk of electric shock!
Faulty electrical installation or excess mains
voltage may result in an electric shock. The unit is only suitable for mains voltages of • 220
V–230 V ~/50 Hz or 110 V–115 V~/60 Hz. If the unit’s case or mains cable is defective or shows • other signs of visible damage, disconnect the mains adapter immediately from the socket and do not oper­ate the device. If the unit emits smoke or smells of burning or other • unusual odours, disconnect it immediately from the power supply and do not operate it. The standby button does not disconnect the unit from • the power supply. Plug the unit into an easily acces­sible socket so that it can be quickly disconnected in case of a fault. Never open the unit case. • Repairs may only be carried out by an authorised specialist workshop. Only use parts which conform with the original unit specications. There are electrical and mechanical parts in this unit which are essential in order to avoid exposure to sources of danger. Do not insert any object through the vent slots in the •
case.
Only use the unit in indoor areas.• Do not operate the unit in moist areas and protect it • from drops of water or splash water. Also take care not to stand vases or other containers of liquid on or near the unit in order to avoid liquid getting into the case. If water or other foreign bodies should enter the case, disconnect it immediately from the mains power supply and remove any batteries. Send the unit to our service address. Never touch the mains adapter with damp hands.• Check the unit regularly for damage.•
Danger
Danger
sure especially when activating an amplier that is set to full volume. This may have psychological consequences and also cause physical injury. Children and pets are
particularly at risk.
Danger
Danger to children!
Children can become trapped in the packing
lm when playing and suffocate. Do not allow children to play with the unit or the pack-• ing lm. Danger of suffocation. Ensure that children do not remove small parts or pull • them off of the device (e. g. buttons or plug adapters). They could swallow the parts and choke. If something is swallowed, take the child to a doctor
immedia t ely.
Never allow children to operate electrical devices • unsupervised.
Danger to hearing!
Loud noise may lead to hearing loss.
There is a potential risk of very high noise pres-
Set your signal source unit volume control to a low • setting. When the volume is set high, always keep a certain • distance from the unit and never place your ear directly on the speaker. To avoid damage to health, avoid extended listening at • high volume.
Danger of injury/damage!
Incorrect location may result in damage.
Never use the unit unmounted in vehicles, in instable • locations, on wobbly stands or furniture, with attach­ment xtures that are too small etc. The unit could topple over or fall, injuring persons or causing damage to the unit itself. Arrange the speakers so that they cannot be knocked • over accidentally and make sure that the cables do not pose a trip hazard. Do not place the unit near sources of heat (e. g. heat-• ers, ovens, other heat generating equipment such as ampliers etc.)
Page 5
• Concept D 500 THX 5
Attention
Fire hazard!
Improper use may lead to damage or re.
Do not place open ames such as burning candles or • similar on the unit. Ensure sufcient ventilation. • Do not place the unit in direct sunlight. • Do not cover the ventilation slots with curtains, cloths, • newspapers or similar. Heat build-up inside the unit can shorten the lifetime of the unit.
Overview

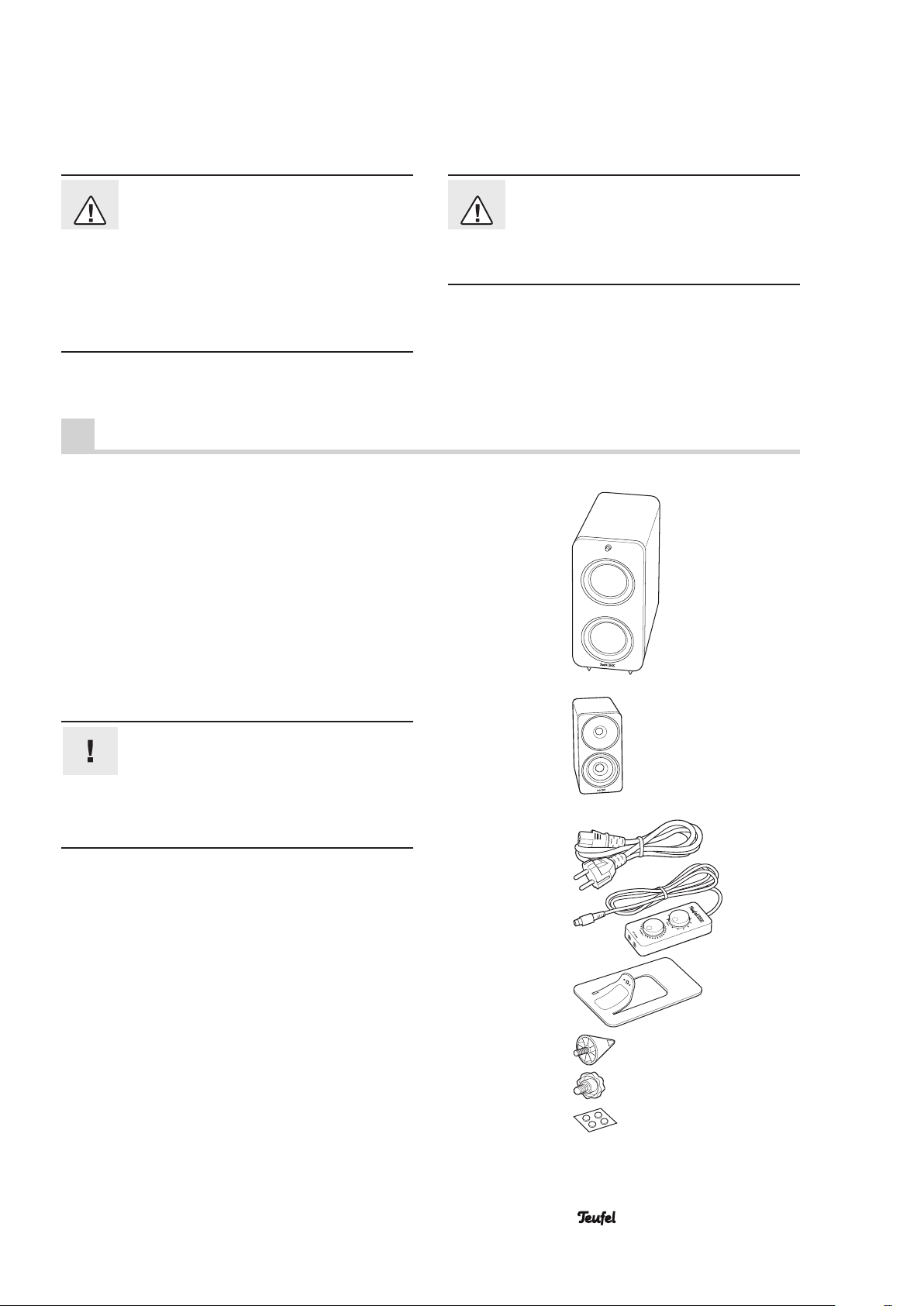

Product Contents
a 1 x subwoofer b 2 x speakers c 1 x mains cord d 1 x cable remote control e 2 x stand for speakers b f 4 x spikes for subwoofer a g 2 x screw for stand e h 2 x 4 rubber feet for speakers
Attention
Risk of damage! Power overload due to lightning strike may
damage or destroy the unit. If the unit is to be left unsupervised for a long period • (e. g. during a holiday), or if a thunderstorm is fore­cast, disconnect it from the mains power supply.
a
Connector cable
Based on differing customer requirements, the
Concept D 500 THX Series is shipped without a connector cable. You can e. g. nd suitable cables in our webshop (www.teufel.eu) in the “Accessories” area. You can also purchase stands and wall brackets for your speakers there as well as other accessories.
Check to be sure
Check that all items have been delivered and that noth-• ing is damaged. If the delivery is incomplete or you nd damage sus-• tained in transit, do not operate the unit but contact our service department (see page 3).
b
c
d
e
f
g
h
Page 6
6 • Concept D 500 THX

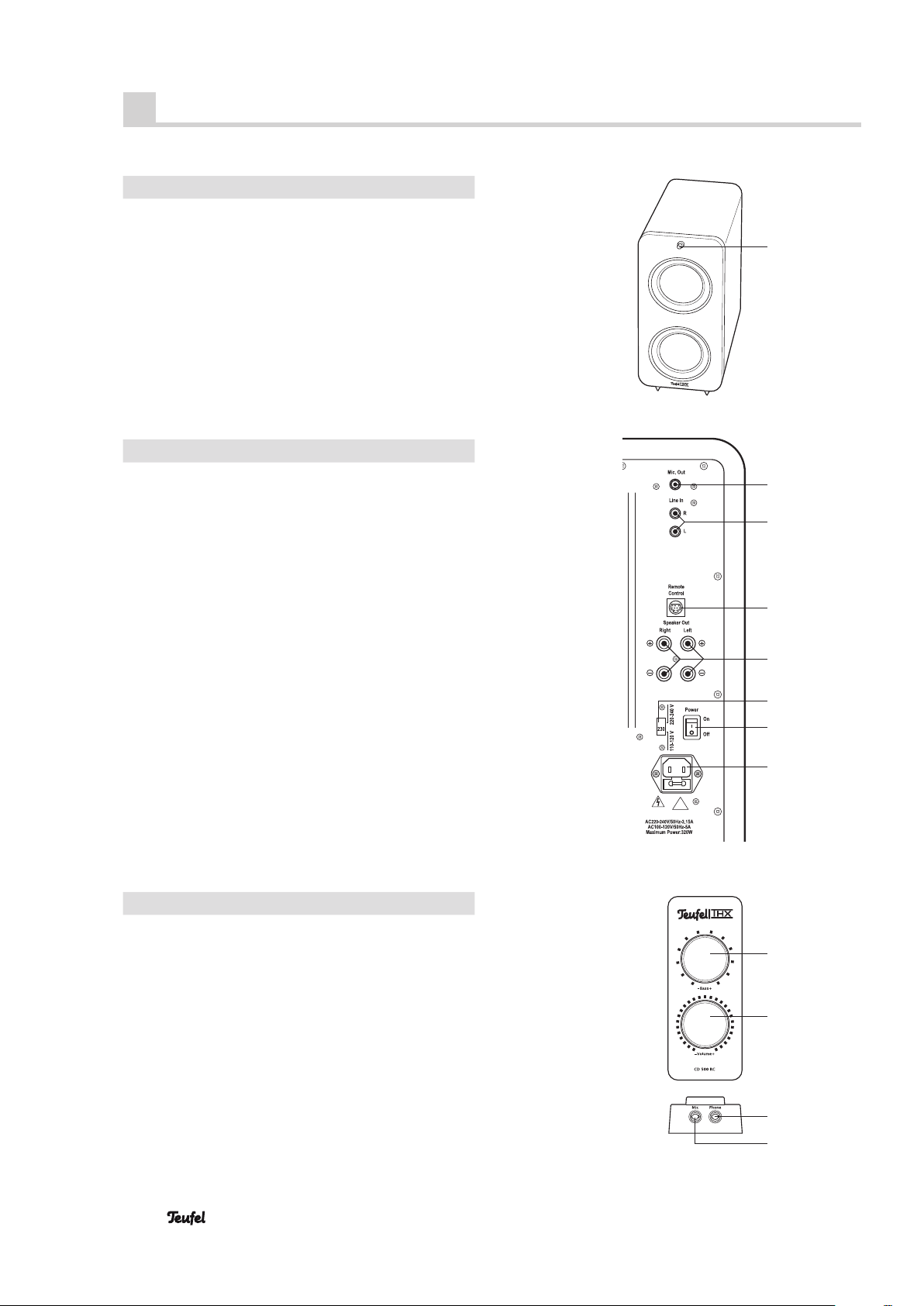

Controls and connections
Pos Name Description
1 Standby On/Standby switch
Pos Name Description
2 Mic. Out Microphone output to PC 3 Line In Audio input from PC
Remote
4
Control 5 Speaker Out Connections for speakers 6 – Switch for mains voltage 7 Power Mains switch
8 –
Connection for remote control d
Connector jack for mains cord d with fuse
Front
1
Back
2
3
4
5
Pos Name Description
9 Bass Subwoofer volume control
10 Volume
11 Phone Connection for headphones 12 Mic Connection for microphone
Volume control and On/Standby switch
6
7
8
Remote control
9
10
11
12
Page 7
• Concept D 500 THX 7
Setup and connection
Setup location
Ideally, you should place the subwoofer under your • computer table and the speakers to the right and left of the monitor. Select a stable, level base.• Make sure that the environment is clean and free from •
dust.
Avoid placing the unit close to sources of heat or in • direct sunlight. Arrange the connector cables so that they do not pose • a trip hazard. Do not place any heavy objects on the cables or the •
speakers.
Mounting the spikes
Screw the four spikes f into the four threaded holes on the bottom of the subwoofer. These spikes ensure that the device has a stable position. Additionally, they minimise vibrations and provide enough space for the subwoofer’s resonance opening. The subwoofer may not be used without spikes.

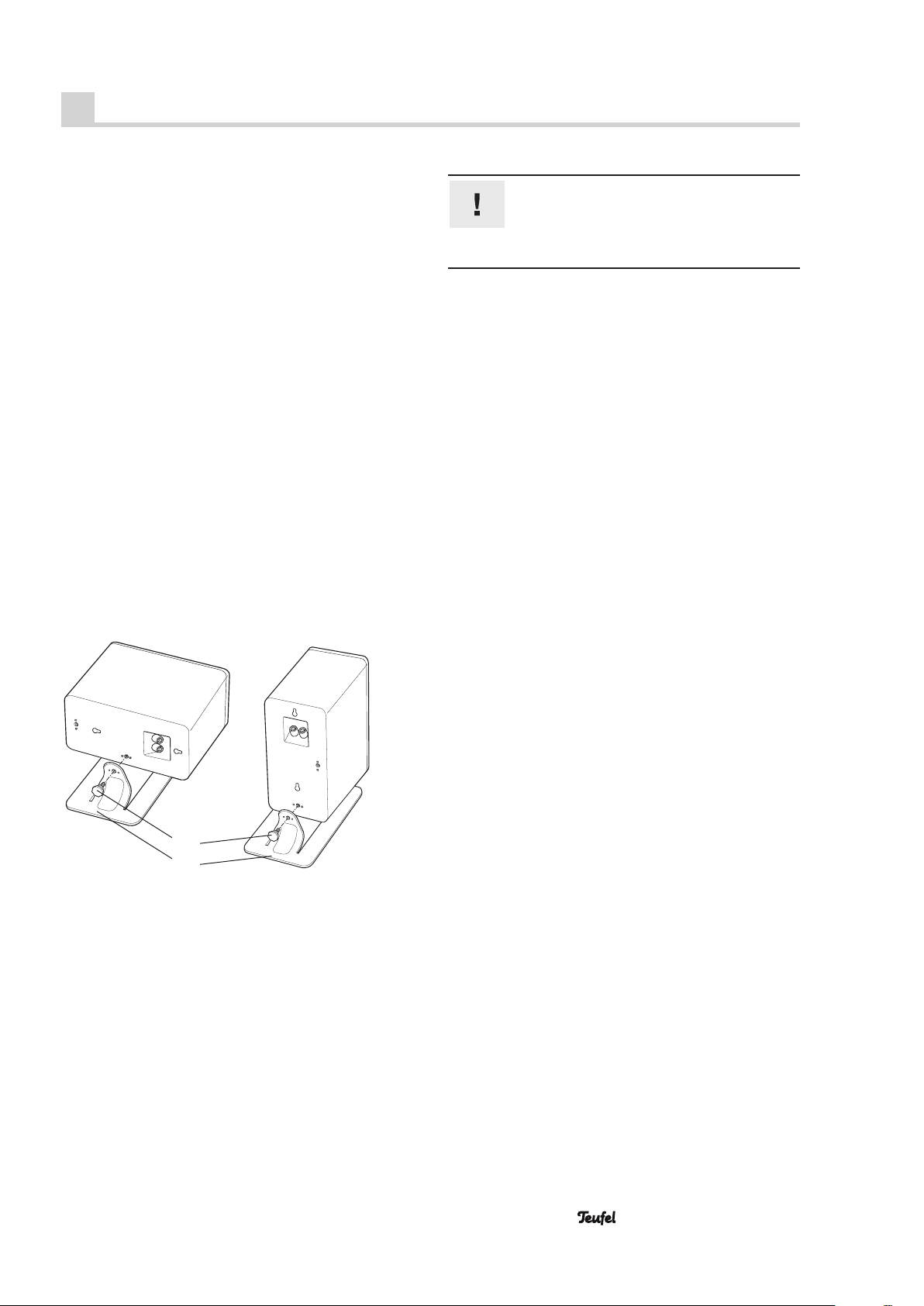

Setting up the speakers
You can set up the two satellite speakers either in an upright position or on their side using the stands included:
Make sure the polarity is correct!
Connect the like coloured terminals with one
another. Otherwise the sound quality will suffer. The wires of the speaker cables are marked with different colours or forms.
Split the core on both ends up to approximately 30 mm • and remove approximately 10 mm of the insulation on each piece. Twist the core so that no wires are protrud­ing. Turn the connector terminal counterclockwise until • loose. Run the stripped cable end into the hole that is now visible. Turn the terminal clockwise. The cable has now been clamped in place. Connect all cables to the speakers this way.• Also connect the respective other end of the speaker • cable to the connections 5 “Speaker out” on the sub­woofer (“Right” = right speaker, “Left” = left speaker) in this way.
RCA input “Line In”
You can connect your PC or almost any other audio source to the RCA jacks 3 “Line In”, such as MP3 players (with/without a docking station), video game systems, televisions etc. The source device only needs an output with line level. These kinds of outputs are congured as stereo RCA jacks or as 3.5 mm mini jacks. With a corre­sponding connector cable, you can connect these devices to the jacks 3 “Line In”. You can purchase these cables in our webshop (www.teufel.eu) in the “Accessories” area.
g e
Screw the stand e into the desired position with a screw g (see graphic). Stick four of the rubber feet h under the
stand to prevent vibrations.
Connecting the speakers
Lay the speaker cable from your subwoofer to each • of the speakers. This cable should be a high-quality double-core speaker cable with marked wires. The cross-section should amount to at least 1.0 mm2. A connector terminal with two terminals is located on • the back of the speakers, one is marked red (+) and the other black (-).
Connecting a microphone
You can connect a microphone (e. g. from a headset) to the jack 12 “Mic” on the front of the remote control. This mono sound input is then transmitted from the mini-jack 2 “Mic. Out” on the back of the subwoofer. Connect this jack with the microphone input of your PC. You will need a connector cable with two mini-jacks for this, which you can purchase in our webshop (www.teufel.eu) in the “Ac­cessories” area.
The microphone input is also active when the amplier is in standby mode.
Headphones
You can connect stereo headphones to the jack 5 “Phone”. The speakers are automatically deactivated in the process.
Page 8
8 • Concept D 500 THX

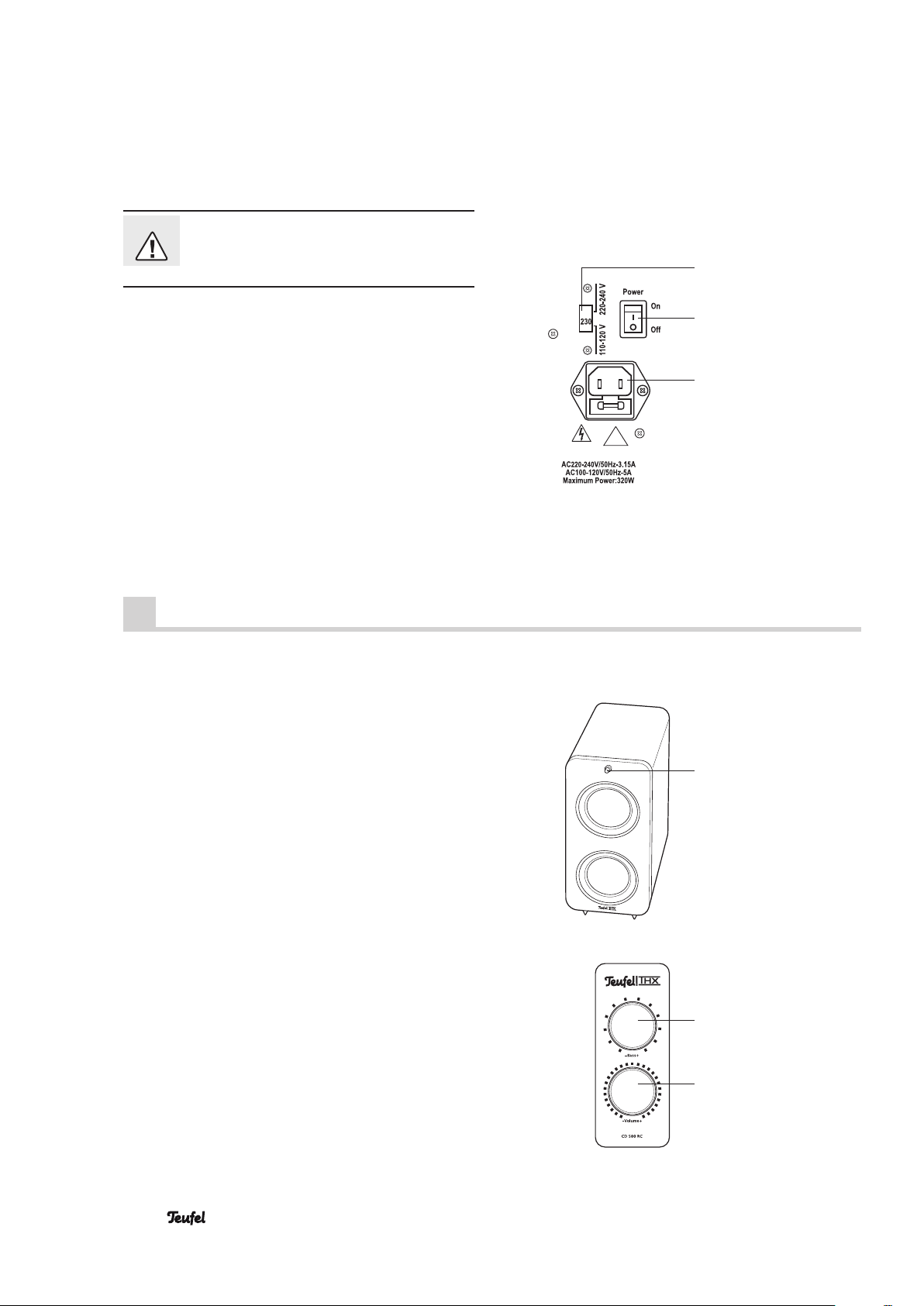

Connecting to a power supply
Danger
set to the right voltage!
The switch 6 has two settings:
The selected setting is visible in white print on the switch’s red plastic slider. In case of doubt, please ask your local energy supplier for your mains voltage.
Check the mains voltage!
Be absolutely sure to check whether the switch for the mains voltage 6 has been
230• (220–240 V) for Germany and Europe 115• (110–120 V) for North America
If necessary, set the correct mains voltage using the • switch 6. Ensure that the mains switch• 7 “Power” is switched off (“OFF” position). Connect the mains connector jack • 8 with a mains socket using the mains cord c.
Basic functions
6
7
8
Activating and deactivating
With the mains switch • 7 “Power”, you can turn your Concept D 500 THX on and off. Following activation, the device is rst in standby mode and the ring around the button 1 “Standby” is red. With the button • 1 “Standby” or by pressing the volume control 10 “Volume”, you switch your amplier to op­eration and/or standby mode. In operating mode, the ring around the button • 1 “Standby” and the scales around the controllers for the remote control are blue.
Adjusting the volume
Increasing volume: Turn the control • 10 “Volume” clock­wise. Decreasing volume: Turn the control • 10 “Volume” counterclockwise.
Adjusting the subwoofer
Increasing the subwoofer volume: Turn the control • 9 “Bass” clockwise. Decreasing the subwoofer volume: Turn the control • 9 “Bass” counterclockwise.
1
9
10
Page 9
• Concept D 500 THX 9
Care and cleaning
Clean your Concept D 500 THX regularly with a soft, damp microbre cloth. In the process, be absolutely sure to observe the following notes:
Danger
Risk of electric shock!
In contact with live parts, water can lead to
electric shock or short circuit. Ensure that no liquid penetrates the unit.• Disconnect the mains plug before cleaning.•
Attention
Risk of damage!
Using the wrong cleaning materials may dam-
age the delicate surface of the case. If possible use only plain water with no cleaning prod-• ucts. In case of stubborn marks, a mild soap solution may be used. In no circumstances should caustic cleaning products, • white spirit, thinners, petrol or similar be used for cleaning.

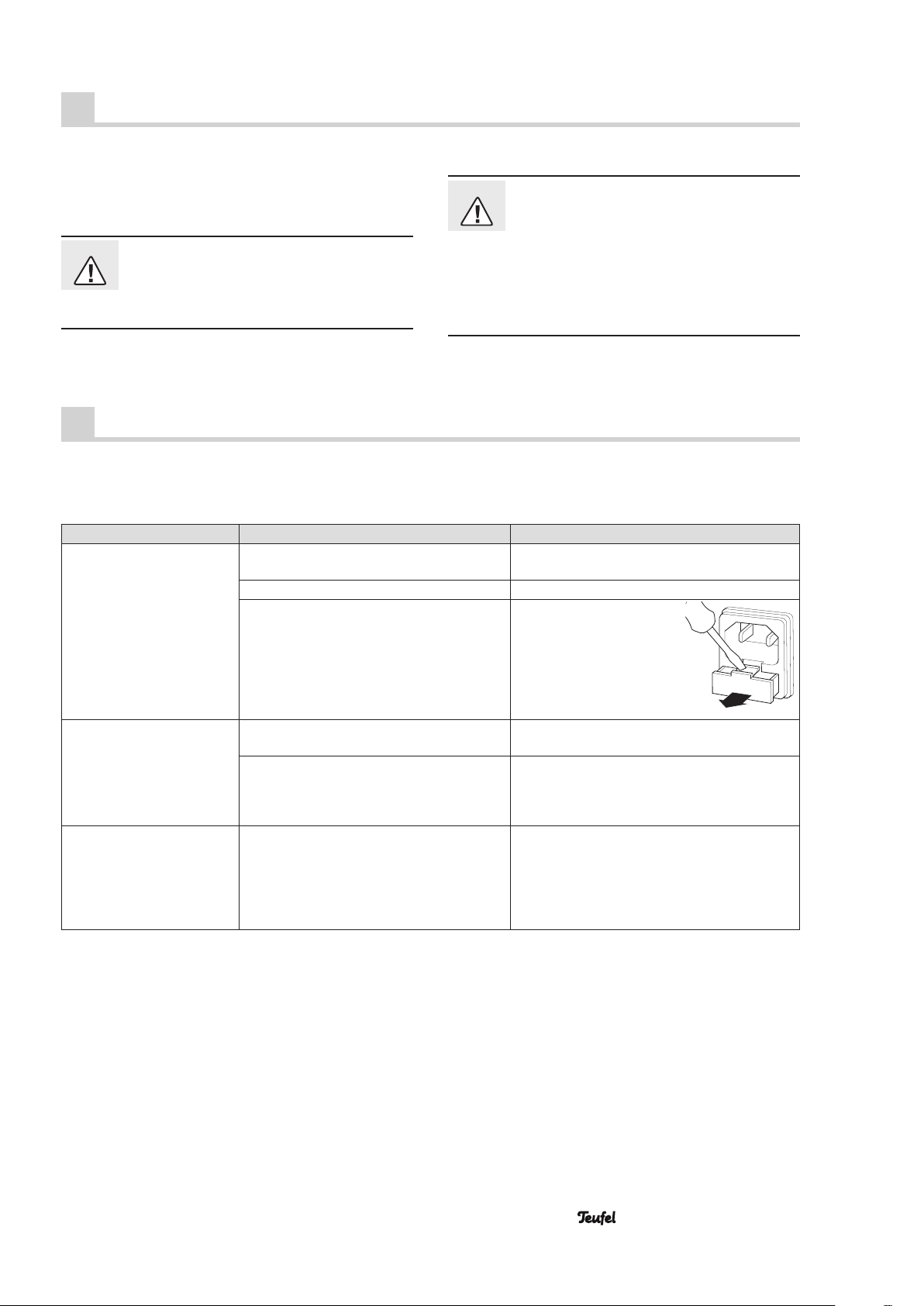

Troubleshooting
The following instructions should help you to solve problems. If this doesn't work, please contact our hotline (see page 3). Mind the warranty instructions.
Problem Possible cause Solution The device emits no sound. The PC link has been interrupted. Check the connection to the PC (see “RCA
input” on page 7). Volume is set to “0”. Increase the volume. Fuse defective. Change the fuse: Remove
the mains cable, carefully
pull the fuse holder out of
the mains connector jack
8. Insert a new fuse (3.5
A delay-action), close the
holder.
The speakers hum. The humming is caused by line distur-
bance. The humming is caused by a multiple
socket.
The playback has interfe­rence.
The Concept D 500 THX is generally a very low-noise system. In the high range area, very good-quality high-resolution speaker systems can expose the poor quality of a signal source (e. g. from MP3 les).
Buy a line lter and connect the device to it.
Use another multiple socket or connect the
subwoofer directly to a wall socket. Connec-
ting the mains plug with the socket the other
way around may also help.
Make sure that the source sends a clean
signal to the Concept D 500 THX.
Page 10
10 • Concept D 500 THX
Protecting the environment
Disposal of the unit
Used units must not be disposed of with house­hold waste!
If the unit is no longer operational, every consumer is required by law to dispose of
used devices separate from household waste, e. g. at a collection point run by the communal author­ity borough. In this way, used devices can be recycled and waste materials disposed of in an environmentally friendly manner. For this reason, electrical equipment is labelled with the displayed symbol.
Technical data
Subwoofer CD500SW
Power consumption, max: 320 W Operating voltage: 220–230 V~, 50 Hz or 110–115 V~, 60 Hz
Inputs: 1 x Stereo Line In (RCA jacks) 1 x microphone via 3.5 mm mini-jack
Outputs: 2 x speakers 1 x headphones via 3.5 mm mini-jack 1 x microphone via 3.5 mm mini-jack
Dimensions (W x H x D): 209 x 474 x 425 mm (with spikes) Net weight: 12.7 kg
Satellite CG80FCR
2 way system 1 x 100 mm low-medium tones, 1 x 19 mm high tones, magnetic screening, Power handling 70 W long term (according to IEC 268-5) 100 W short term
Dimensions (W x H x D) 115 x 230 x 172 mm (without stand) Net weight: 2.0 kg
This product conforms with Council of the European Union guidelines 2004/108/EC and 20 0 6/95/EC
Technical changes reserved!
Page 11
• Concept D 500 THX 11
Notes
Page 12
For questions, suggestions or criticism please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Bülowbogen - Aufgang D1 10783 Berlin (Germany), Bülowstr. 66
Tel.: +49 (0)30 - 300 930 0 Fax: +49 (0)30 - 300 930 930 www.teufel.eu
No liability is accepted for the accuracy of this information. Technical changes, typo­graphical errors and other errors reserved.
Instruction No. 91326_GB/HC-20090917
