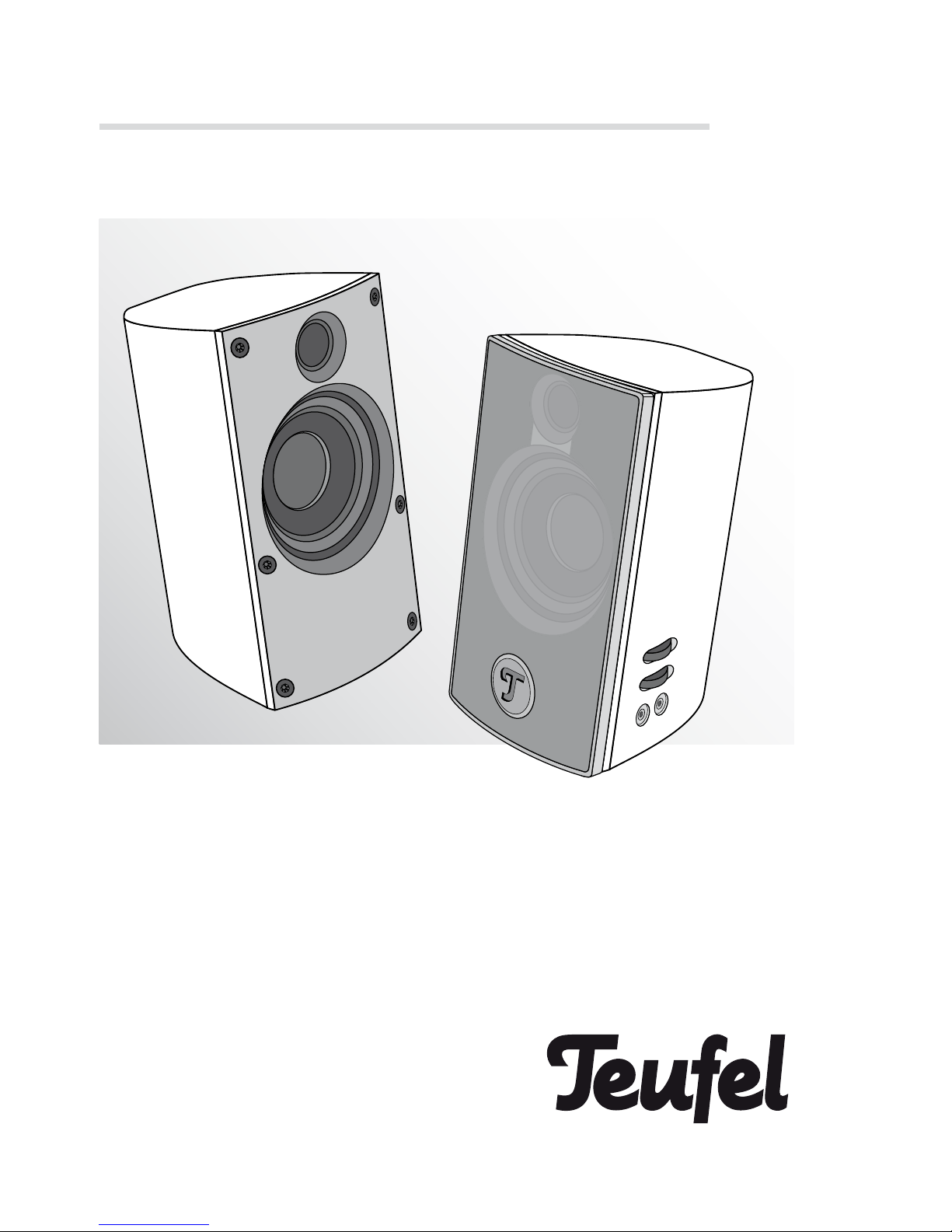

Page 1
Technical Description and Operating Instructions
2.0 PC speakers
Concept B 20 Mk2
Page 2
2
• Concept B 20 Mk2
Contents
General notes and information ................................................................................3
Safety notes ............................................................................................................4
Product contents ......................................................................................................6
Control elements......................................................................................................7
Connecting and setting up the speakers ...................................................................8
Use .......................................................................................................................10
Protecting the environment .................................................................................... 11
Page 3
3
• Concept B 20 Mk2
Notice
The information in this document may
change without prior notice and in no
way constitutes any liability on the part
of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the
written permission of Lautsprecher Teufel
GmbH.
© Lautsprecher Teufel GmbH
Version 2.0
June 2013
Original packaging
If you wish to exercise your eight-week
right of return, we ask that you be absolutely sure to hold onto the packaging.
We can only accept the return of the
speakers WITH THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following information to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed
with the product) or on the order confirmation received as a PDF document,
e.g. 4322543
2. Serial number or batch number
Located on the back side of the unit, e.g.
serial number:TH04....
Many thanks for your support!
Contact
For questions, suggestions or any other
issues please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen
Buelowstrasse 66
10783 Berlin (Germany)
Phone 00800 - 200 300 40 (toll-free)
Fax: +49 (0)30 / 300 930 930
E-Mail: service@teufelaudio.com
www.teufelaudio.com
Proper use
Only use the product as described in these
operating instructions. Any other use will
be deemed as not in accordance with the
instructions and may lead to damage of
property or even persons.
The manufacturer accepts no liability for
damage caused by use not in accordance
with the instructions.
The product is intended for private use.
Before operating the speakers
please read the safety notes
and operating instructions carefully. This is the only way to use all functions safely and reliably.
Keep the operating instructions safe and
pass them on to anyone who may own
the unit after you.
General notes and information
Page 4
4
• Concept B 20 Mk2
Safety notes
Caution icons
You will find the following caution icons
in these instructions:
Danger
High risk!
Failure to observe the warning
may result in severe personal
injury or death.
Attention
Moderate risk!
Failure to observe the warning
may result in property dam-
age.
Minor risk!
Points which should be observed when handling the unit.
Safety notes
Danger
Risk of electric shock!
Faulty installation of electrical equipment or
mains voltage which is too high can cause electric
shocks.
• Use only the supplied mains adapter.
Make sure that the mains voltage is
correct. More detailed information is
available directly on the mains adapter.
• The switch in the volume control does
not disconnect the unit from the power supply. For this reason, connect it
to an easily accessible socket so that
you can quickly disconnect it from the
power supply in the event of faults.
• Immediately disconnect the mains
adapter from the socket if its casing is
defective or exhibits other visible damage.
• Set up the unit so that the mains plug is
easily accessible and no vent slots are
blocked.
• If the unit emits smoke or smells of
burning or other unusual odours, disconnect it immediately from the power
supply and do not operate it.
• Never open the unit’s housing.
Repairs may only be carried out by an
authorised specialist workshop, otherwise any warranty claims are forfeited. Only use parts for repairs which
conform with the original unit specifications. There are electrical and mechanical parts in this unit which are necessary
in order to avoid exposure to sources of
danger.
• Use only accessories specified by the
manufacturer.
• Do not insert any objects through the
vent slots in the housing.
• Only use the unit in indoor areas, do
not use it in moist areas and protect it
from drops of water or splash water.
Also take care not to stand vases or
other containers filled with liquid on
or near the speaker in order to avoid
liquid getting into the case. If water or
other
foreign bodies should enter the
unit, immediately disconnect the mains
adapter. Then send the unit to our service address.
• Never touch the mains adapter with
wet hands.
• Check the unit regularly for damage.
Page 5
5
• Concept B 20 Mk2
Danger
Danger to children!
Children can become trapped
in the packing film when play-
ing and suffocate.
• Do not allow children to play with the
unit or the packing film. Danger of
suffocation.
• Ensure that children do not remove
small parts from the unit or take them
off of the unit (e.g. control knobs or
the like).They could swallow the parts
and choke. Never allow children to
operate electrical units unsupervised.
Danger to hearing
Extended listening at high volumes may lead to hearing loss.
• To avoid damage to health, avoid extended listening at high volumes.
• When the volume is set high, always
keep a certain distance from the unit
and never place your ear directly on
the speaker.
• Particularly when the subwoofer has
been set to maximum volume and
the unit is activated, very high noise
pressure may suddenly be produced.
This may have psychological consequences and also cause physical injury. Children and pets are particularly at risk. Set your signal source unit
volume control to a low setting before
turning on the power.
Danger
Danger of injury/damage!
Selecting an unsuitable loca-
tion may result in damages.
• Never use the unit unmounted in vehicles, in unstable locations, on wobbly stands or furniture, on underdimensioned brackets etc. The speakers
could tip or fall down and cause injury to persons or be damaged.
• Place the speakers in such a way that
they cannot be knocked over unseen
and make sure that the cables do not
pose a trip hazard.
• Do not place open flames such as
burning candles or similar on the
speakers.
• Do not place the speakers near sources of heat (e.g. heaters, ovens, other heat generating equipment such as
amplifiers etc.).
Attention
Risk of damage!
Power overload due to lightning strike may damage or de-
stroy the unit.
• If the unit is to be left unsupervised
for a long period (e.g. during a holiday), or if a thunderstorm is forecast,
disconnect the mains adapter from the
socket.
Page 6
6
• Concept B 20 Mk2

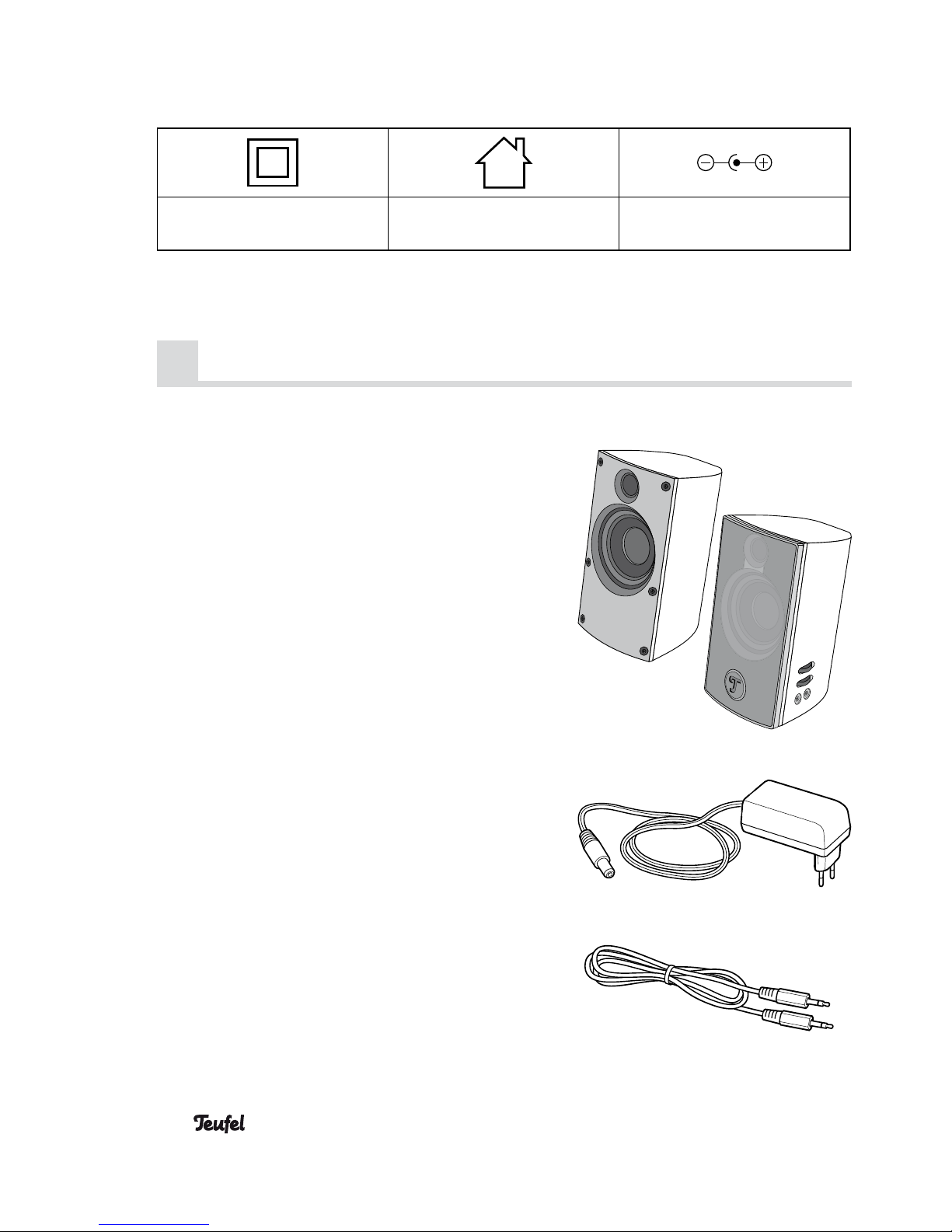

Explanation of symbols
Safety category II May only be used in-
doors.
Polarity:
outside (–), inside (+)
Product contents
Check to be sure
• Check that all items have been delivered and that nothing is damaged:
a 1 speaker right (main speaker)
1 speaker left
b 1 mains adapter
c 1 connector cable with 3.5 mm
stereo jack plugs
• If the delivery is incomplete or you find
damage sustained in transit, do not operate the speakers. Instead contact our
service department (see page 3).
a
b
c
Page 7
7
• Concept B 20 Mk2

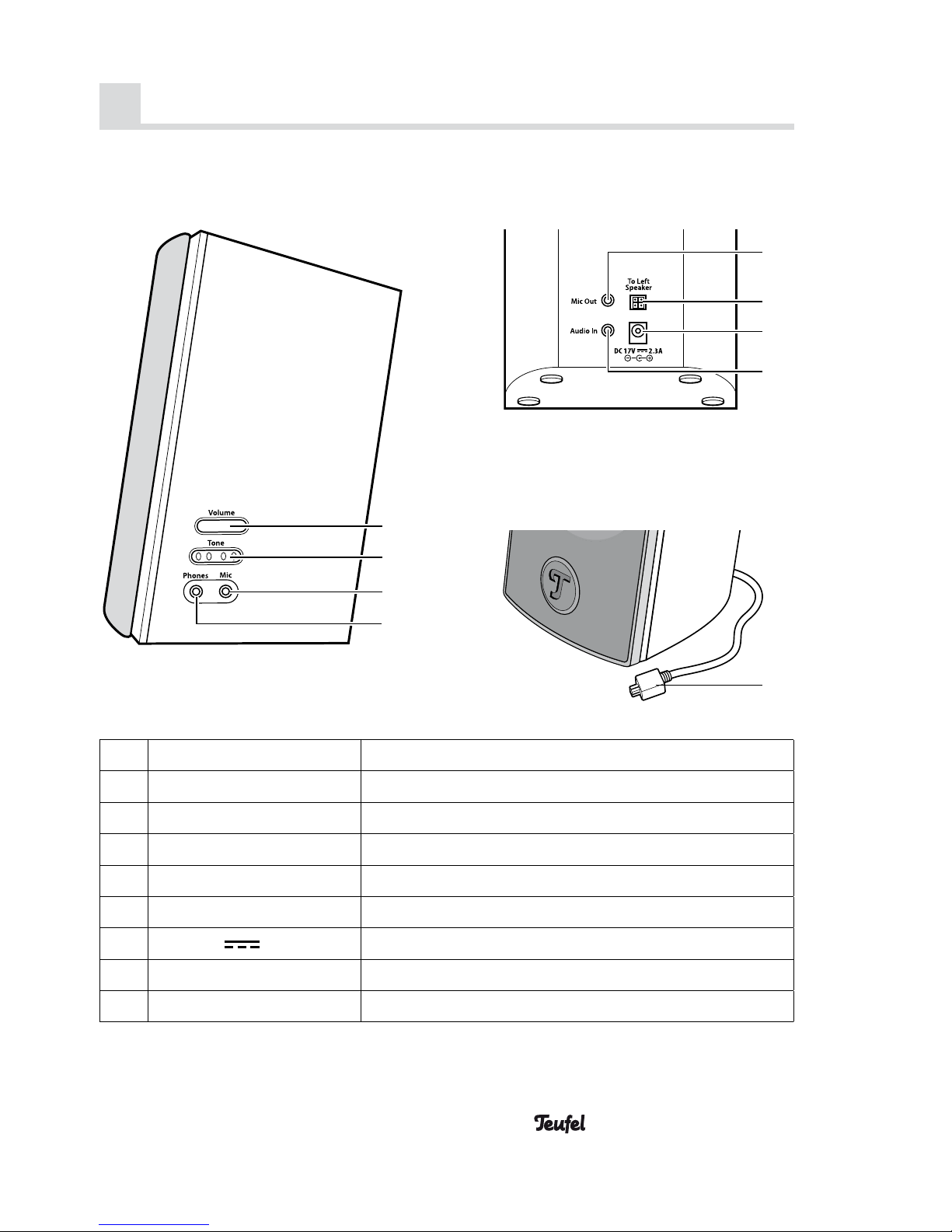

Control elements
Right speaker
Left speaker
5
6
7
8
9
1 Volume
Volume control
2 TONE
Sound control
3 Mic
Microphone input jack
4 Phones
Earphone jack
5 Mic Out
Microphone output jack
6 To Left Speaker
Connector jack for the left speaker
7 DC 17 V
2.3 A
Input jack for the mains adapter
8 Audio In
Audio input jack
9
Connector cable for the right speaker
1
2
3
4
Page 8
8
• Concept B 20 Mk2

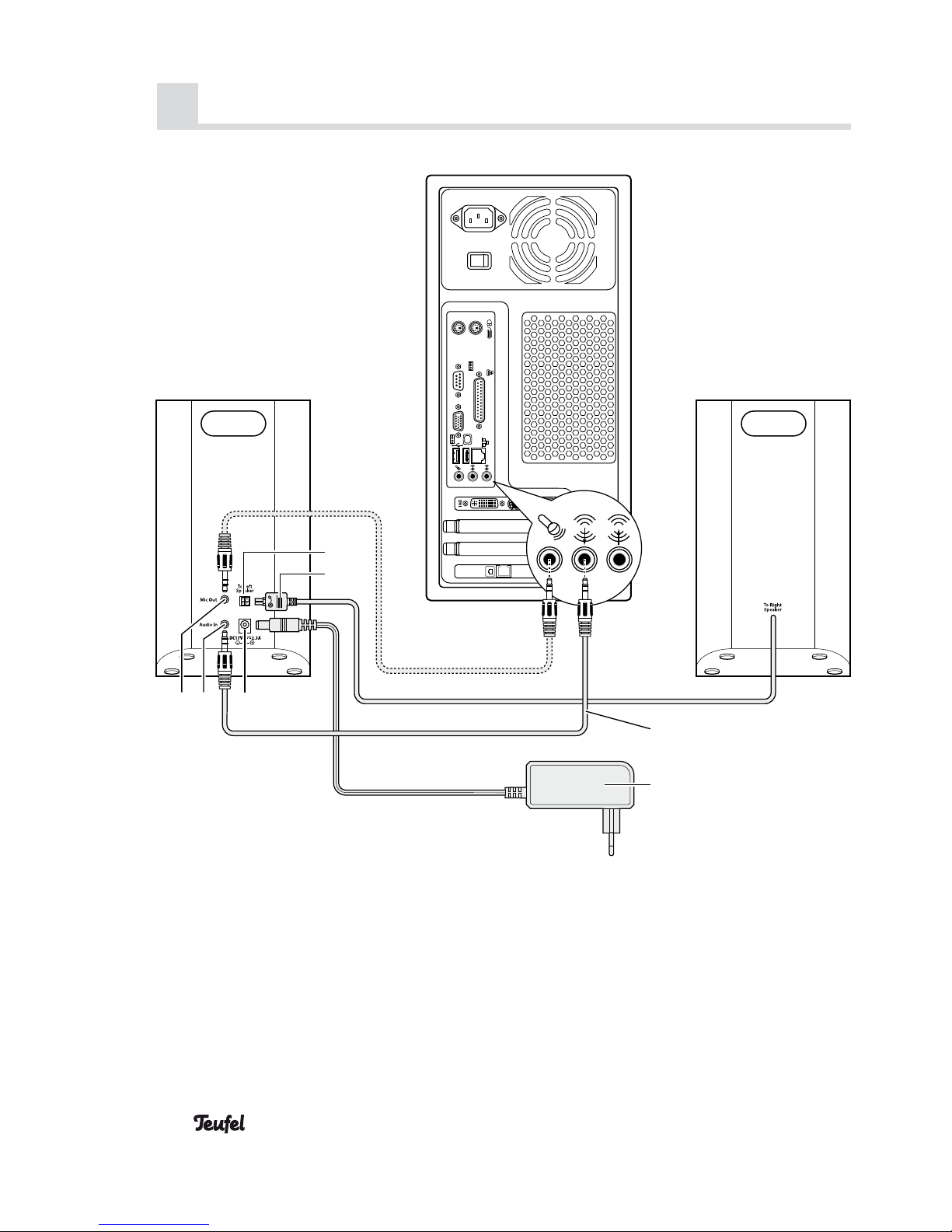

Connecting and setting up the speakers
1. Insert the plug of the connector cable (9) in the jack (6) of the right speaker.
2. Connect the jack Audio In (8) with the line-out jack of your PC/notebook or with
the headphone jack of your music source (e.g. MP3 player, mobile etc.). Use the
connector cable c for this.
3. Connect the right speaker to the power supply using the mains adapter b. Observe all safety notes on page 4/5 in the process.
4. If you would like to use a headset, connect the jack Mic Out (5) with the microphone input jack of your PC/notebook. For this, you will need a cable with a 3.5
mm stereo jack plug
(not included in the product contents)
.
Right speaker Left speaker
6
9
785
c
b
optional
Page 9
9
• Concept B 20 Mk2
Location tips
• Select a stable, level base.
• Make sure that the environment is
clean and free from dust.
• Avoid placing the unit close to sources of heat or in direct sunlight.
• Arrange the connector cables so that
they do not pose a trip hazard.
• Do not place any heavy objects on
the cables or the speakers.
The speakers should be situated to the
left and right of the monitor and if possible, form an equilateral triangle with the
listener – the so-called stereo tri-angle
(distance from the listener = distance between the speakers).The speakers should
project sound straight into the room or
be arranged slightly towards the listener.
Ensure that there is approx. 10 cm of
space between the back of the speakers
and the wall.

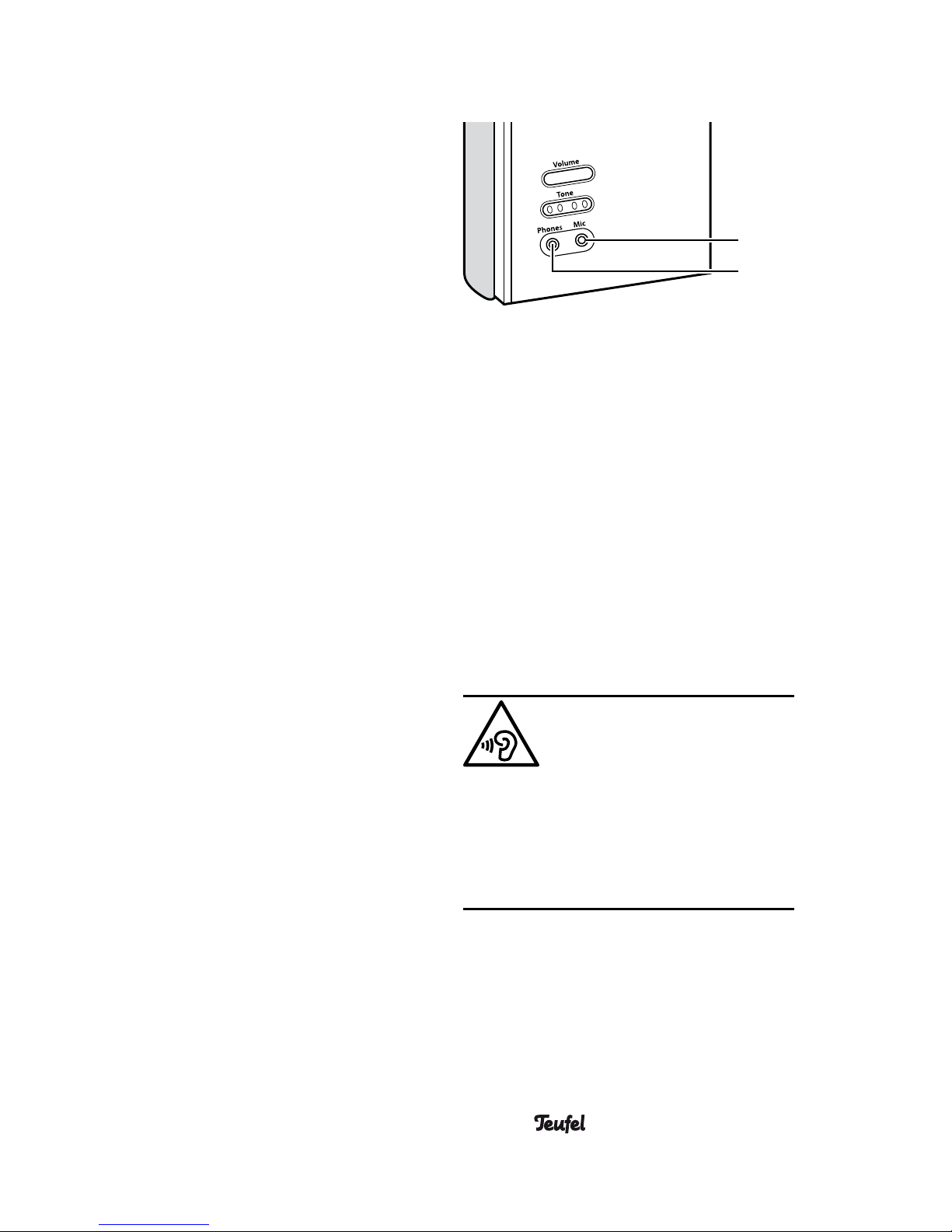

Using a headset/headphones
3
4
If you would like to use a headset, you
can connect it to the jacks (3) and (4) of
the right speaker.
Phones = headphones
Mic = microphone
Prerequisite for the microphone function: The jack Mic Out (5) must be con-
nected to the microphone input jack of
the PC/notebook (see step 4 on the previous page).
Note: If you connect headphones to the
jack Phones (4), the speakers will be automatically muted. Sound will only be
played back via the headphones.
Danger to hearing
Extended listening at high volumes may lead to hearing loss
.
• To avoid damage to health, avoid extended listening at high volumes.
• When the volume is set high, always
keep a certain distance from the unit
and never place your ear directly on
the speaker.
Page 10
10
• Concept B 20 Mk2

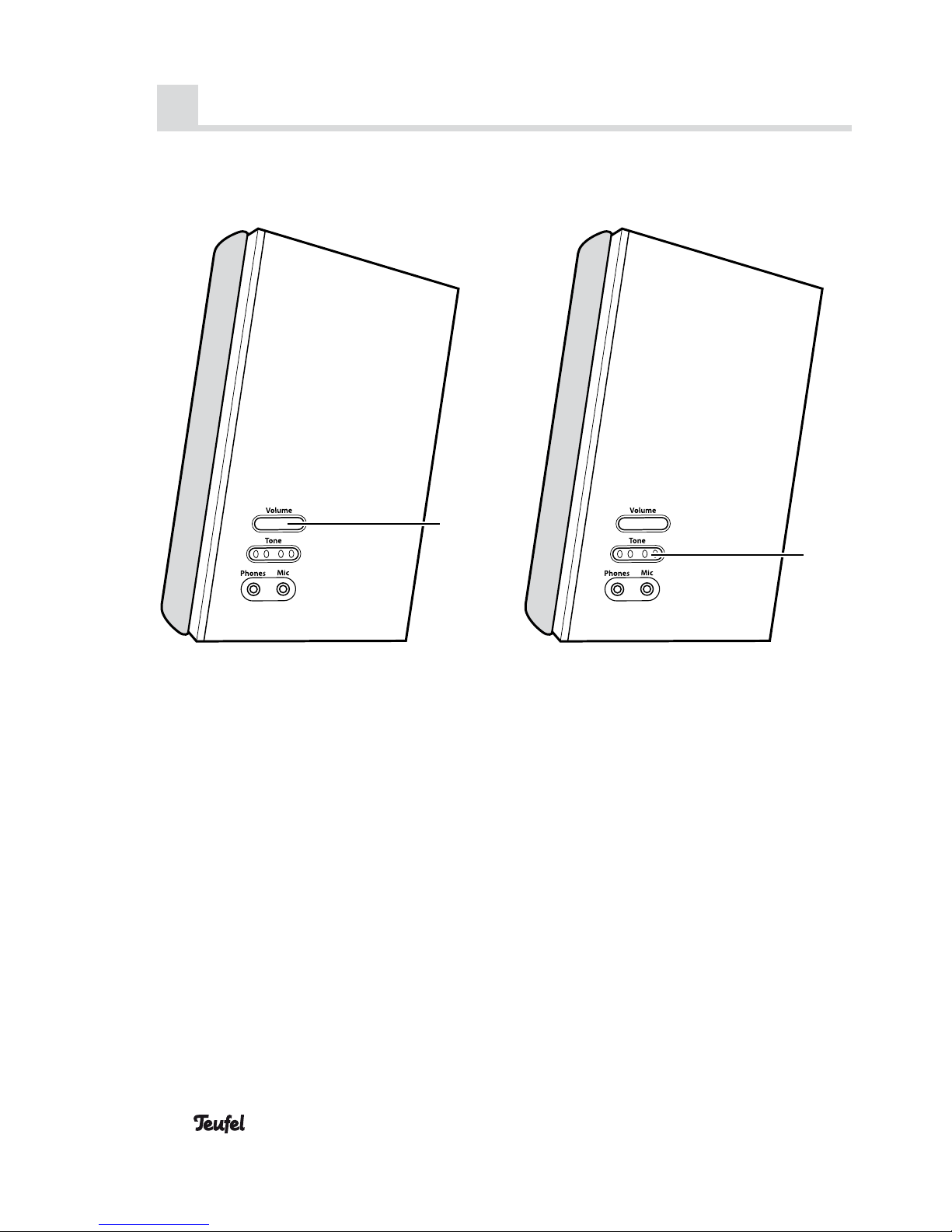

Use
Turning the speakers on / off, adjusting
the volume
1
• Turning the speakers on/increasing
the volume:
Turn dial Volume (1) back.
• Turning the speakers off/decreasing the
volume: Turn dial Volume (1) forward.
To turn off the speakers, turn the dial
across the resistance until it locks into
place and the blue light turns off.
• Automatic activation/deactivation:
The speakers are automatically
switched off if there is no audio signal
for 30 minutes. The blue light goes out.
Once the audio signal is present
again, the speakers are automatically switched on. The blue light is reactivated.
If the speakers are not switched on
automatically, please increase the volume on your PC.
Adjust the sound
2
You can adjust the sound with the dial
Tone (2):
• Turn the dial back for more bass.
• Turn it forward for more treble.
Page 11
11
• Concept B 20 Mk2
Disposing of the device
Used units must not be disposed of with household
waste!
If the unit is no longer opera-
tional, every consumer is required by law to dispose of used devices
separately from household waste, e.g.
Protecting the environment
at a collection point run by the communal authority borough. In this way it is
ensured, that used units are properly recycled and that negative consequences
on the environment are avoided. For this
reason, electrical equipment is labelled
with the displayed symbol.
Page 12
Instruction No. 92271 GB 20130619
For questions, suggestions or any other issues please contact our customer service
department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
Buelowstr. 66
D-10783 Berlin (Germany)
Phone: 00800 - 200 300 40 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No responsibility is assumed for the correctness of this information.
Technical changes, typographical errors and other errors reserved.
Loading...
