Page 1
Technical description and operating instructions
gb was
here
Concept B 20
2.0 PC Speakers
Page 2
Contents
General notes and information ................................................................................3
Safety notes ............................................................................................................4
Product contents ......................................................................................................6
Control elements......................................................................................................7
Connecting and setting up the speakers ...................................................................8
Use .......................................................................................................................10
Protecting the environment .................................................................................... 11
2
• Concept B 20
Page 3
General notes and information
Notice
The information in this document may
change without prior notice and in no
way constitutes any liability on the part
of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the
written permission of Lautsprecher Teufel
GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
March 2011
Original packaging
If you wish to exercise your eight-week
right of return, we ask that you be absolutely sure to hold onto the packaging.
We can only accept the return of the
speakers WITH THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following information to process your enquiry:
1. Invoice number
2. Serial number or batch number
Located on the back side of the unit,
e.g. serial number: TH04....
Many thanks for your support!
Contact
For questions, suggestions or criticism
please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen
Buelowstrasse 66
10783 Berlin (Germany)
Phone: 00800 – 200 300 400 (free of
charge)
Fax +49 (0)30 / 300 930 930
E-mail: service@teufelaudio.com
www.teufelaudio.com
Proper use
Only use the product as described in
these operating instructions. Any other use will be deemed as not in accordance with the instructions and may lead
to damage to property or even persons.
The manufacturer accepts no liability for
damage caused by use not in accordance with the instructions.
The product is intended for private use.
Can be found on the sales slip (enclosed
with the product) or on the order confi rmation received as a PDF document,
e.g. 4322543.
Before operating the speakers
please read the safety notes
and operating instructions carefully. This is the only way to use all functions safely and reliably.
Keep the operating instructions safe and
pass them on to anyone who may own
the unit after you.
• Concept B 20
3
Page 4
Safety notes
Caution icons
You will fi nd the following caution icons
in these instructions:
Danger
injury or death.
Attention
High risk !
Failure to observe the warning
may result in severe personal
Moderate risk !
Failure to observe the warning
may result in property damage .
Minor risk!
Points which should be observed when handling the unit.
Safety notes
Danger
age which is too high can cause electric
shocks.
• Only use the enclosed mains adapter.
When connecting, make sure that the
right voltage is present. More detailed
information is available directly on the
mains adapter.
• The switch in the volume control does
not disconnect the unit from the power supply. For this reason, connect it
to an easily accessible socket so that
you can quickly disconnect it from the
power supply in the event of faults.
• Immediately pull the mains adapter
out of the socket if the casing is defective or exhibits other visible damages.
Risk of electric shock!
Faulty installation of electrical equipment or mains volt-
• Set up the unit so that the mains plug is
easily accessible and no vent slots are
blocked.
• If the unit emits smoke or smells of
burning or other unusual odours, disconnect it immediately from the power
supply and do not operate it.
• Never open the unit housing.
Repairs may only be carried out by an
authorised specialist workshop, otherwise any warranty claims are forfeited. Only use parts which conform with
the original unit specifi cations. There
are electrical and mechanical parts in
this unit which are essential in order to
avoid exposure to sources of danger.
• Only use accessory products, which
are exclusively specifi ed by the manufacturer.
• Do not insert any objects through the
vent slots into the housing.
• Only use the unit in indoor areas, do
not use it in moist areas and protect it
from drops of water or splash water.
Also take care not to stand vases or
other containers fi lled with liquid on
or near the unit in order to avoid liquid getting into the housing. If water
or other
the unit, disconnect it immediately from
the mains power supply. Send the unit
to our service address in this case.
• Never touch the mains adapter with
wet hands.
• Check the unit regularly for damage.
foreign bodies should enter
4
• Concept B 20
Page 5
Danger
Danger to children!
Children can become trapped
in the packing fi lm when play-
ing and suffocate.
• Do not allow children to play with the
unit or the packing fi lm. Danger of
suffocation.
• Ensure that children do not remove
small parts from the unit or take them
off of the unit (e.g. control knobs or
the like). They could swallow the parts
and choke. Never allow children to
operate electrical devices unsupervised.
Danger to hearing!
Loud noise may lead to hear-
ing loss.
This may have psychological consequences and also cause physical injury. Children and pets are particularly at
risk.
• Set your signal source unit volume
control to a low setting.
• When the volume is set to a high lev-
el, never place your ear directly on
the speaker.
• To avoid damage to health, avoid extended listening at high volume.
cause injury to persons or be damaged.
• Arrange the speakers so that they
cannot be knocked over accidentally
and make sure that the cables do not
pose a trip hazard.
• Do not place open fl ames such as
burning candles or similar on the
speakers.
• Do not place the speakers near sources of heat (e.g. heaters, ovens, other heat generating equipment such as
amplifi ers etc.).
Attention
Risk of damage!
Power overload due to lightning strike may damage or de-
stroy the unit.
• If the unit is to be left unsupervised
for a long period (e.g. during a holiday), or if a thunderstorm is forecast,
disconnect the mains adapter from the
power socket.
Danger
Danger of injury/damage!
Selecting an incorrect location
may result in damages.
• Never use the speakers unmounted
in vehicles, in unstable locations, on
wobbly tripods or furniture, on insuffi ciently dimensioned brackets etc. The
speakers could tip or fall down and
• Concept B 20
5
Page 6

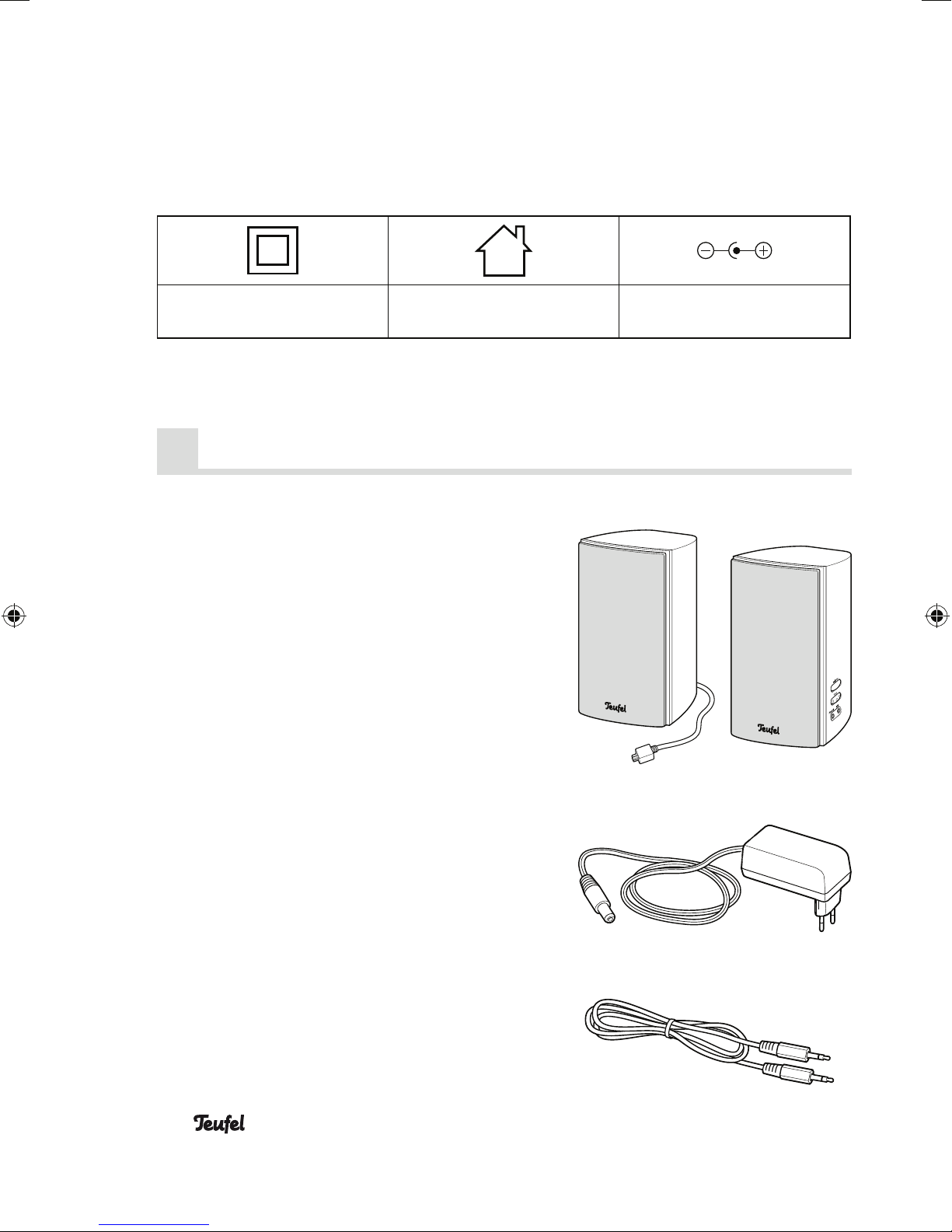

Explanation of symbols
Safety class II Only use in indoor areas Polarity:
outside (–), inside (+)
Product contents
Check to be sure
• Check that all items have been delivered and that nothing is damaged:
햲 1 speaker right (main speaker)
1 speaker left
햳 1 mains adapter
햴 1 connector cable with 3.5 mm
stereo jack plugs
햲
• If the delivery is incomplete or you
fi nd damage sustained in transit, do
not operate the speakers, instead
contact our service department (see
page 3).
6
• Concept B 20
햳
햴
Page 7

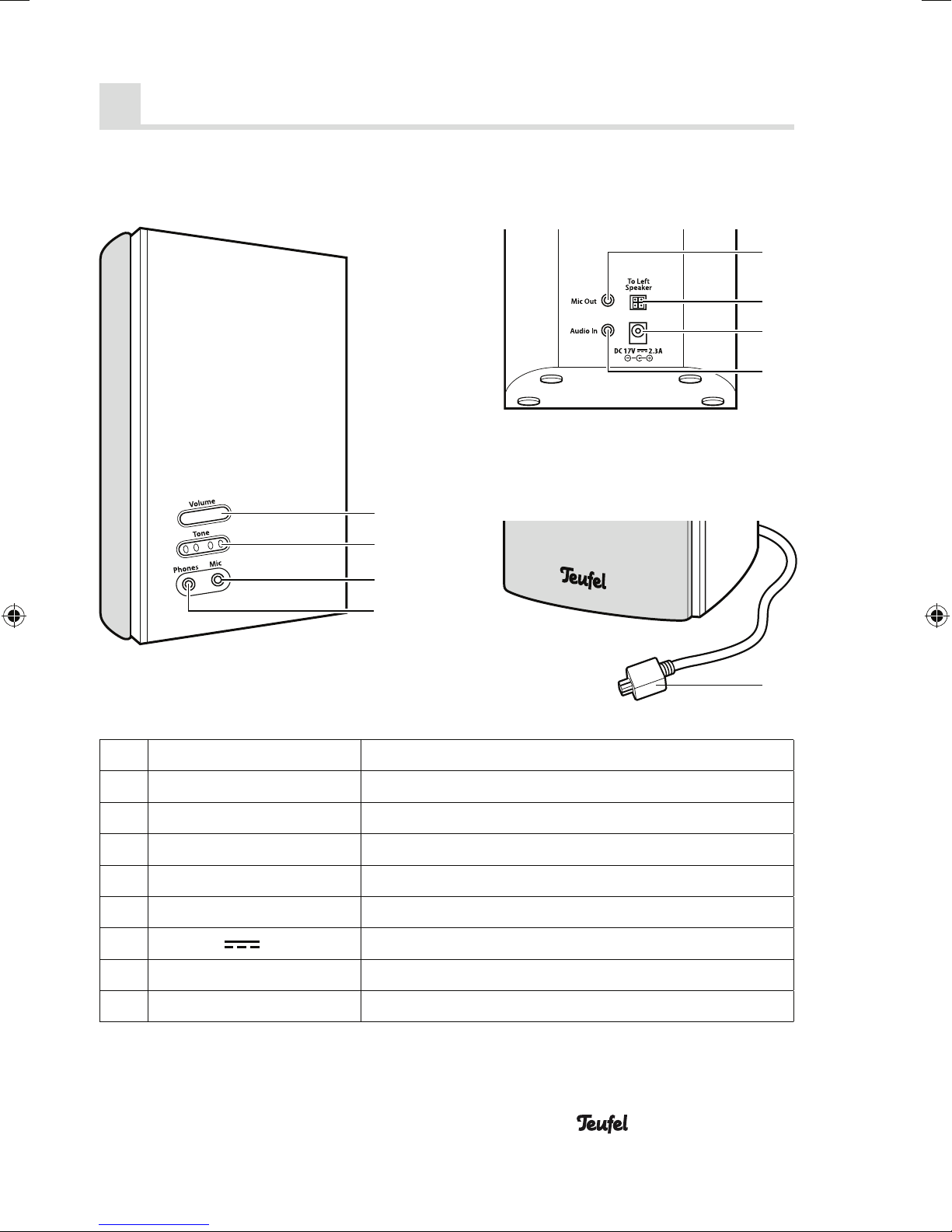

Control elements
Right speaker
5
6
7
8
Left speaker
1
2
1Volume
2Tone
3Mic
4Phones
5Mic out
6 To Left Speaker
7 DC 17 V
8 Audio In
9
2.3 A
3
4
9
Volume control
Sound control
Microphone input jack
Earphone jack
Microphone output jack
Connector jack for the left speaker
Input jack for the mains adapter
Audio input jack
Connector cable for the right speaker
• Concept B 20
7
Page 8

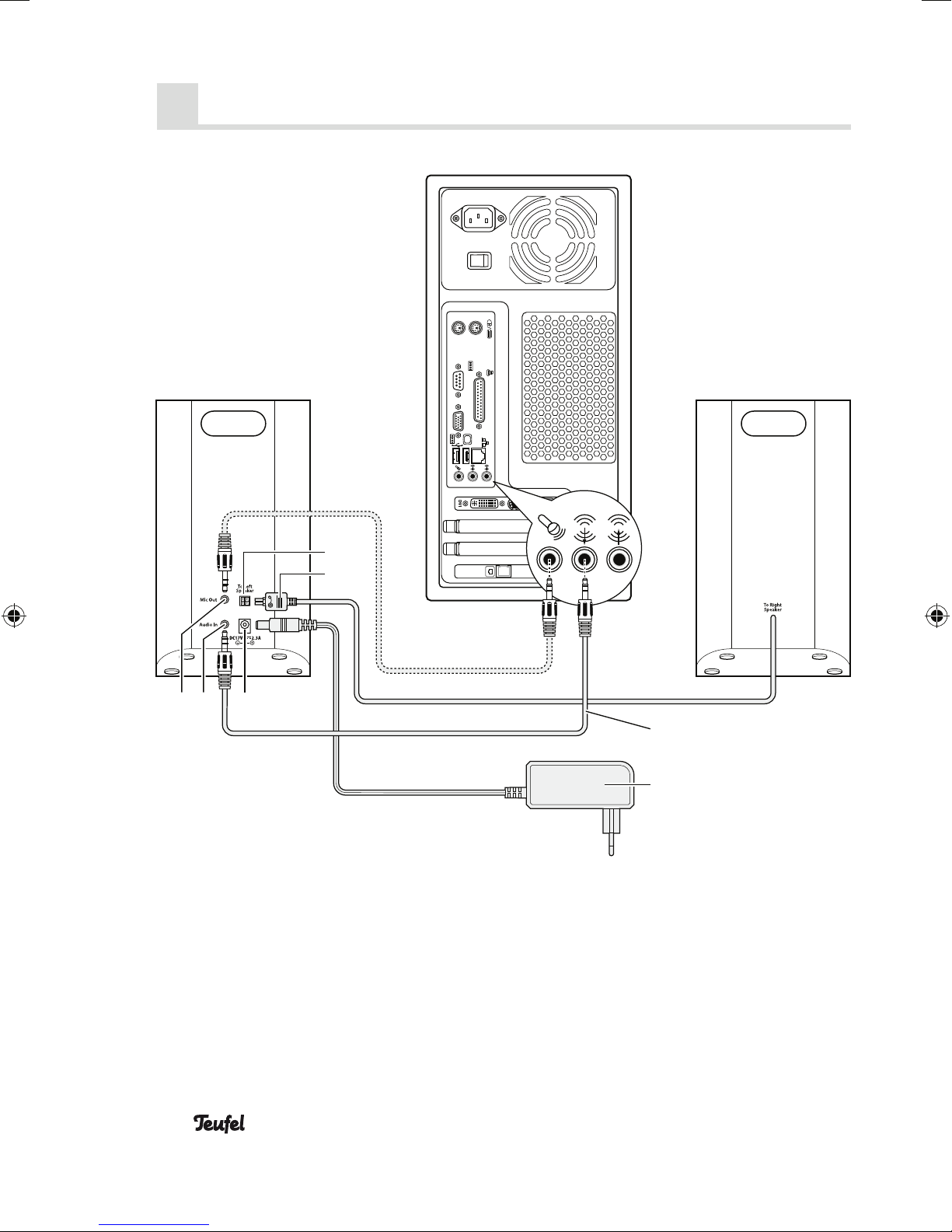

Connecting and setting up the speakers
Right speaker Left speaker
6
9
optional
785
햴
햳
1. Insert the plug of the connector cable (9) in the jack (6) of the right speaker.
2. Connect the jack Audio In (8) with the line-out jack of your PC/notebook or with
the headphone jack of your music source (e.g. MP3 player, mobile etc.). Use the
connector cable 햴 for this.
3. Connect the right speaker to the power supply with the mains adapter 햳. Observe
all safety notes on page 4/5 in the process.
4. If you would like to use a headset, connect the jack Mic Out (5) with the microphone input jack of your PC/notebook. For this, you will need a cable with a
3.5 mm stereo jack plug
(not included in the product contents)
.
8
• Concept B 20
Page 9
Location tips
• Select a stable, level base.
• Make sure that the environment is
clean and free from dust.
• Avoid placing the unit close to sources of heat or in direct sunlight.
• Arrange the connector cables so that
they do not pose a trip hazard.
• Do not place any heavy objects on
the cables or the speakers.
Prerequisite for the microphone function: The jack Mic Out (5) must be con-
nected to the microphone input jack of
the PC/notebook (see step 4 on the previous page).
Note: If you connect headphones to the
jack Phones (4), the speakers will be automatically muted. Sound will only be
played back via the headphones.
The speakers should be situated to the
left and right of the monitor and if possible, form an equilateral triangle with
the listener – the so-called stereo triangle (distance from the listener = distance between the speakers). The speakers should project sound directly into the
room or be arranged slightly towards
the listener.
There should be approx. 10 cm of space
between the back of the speakers and
the wall.

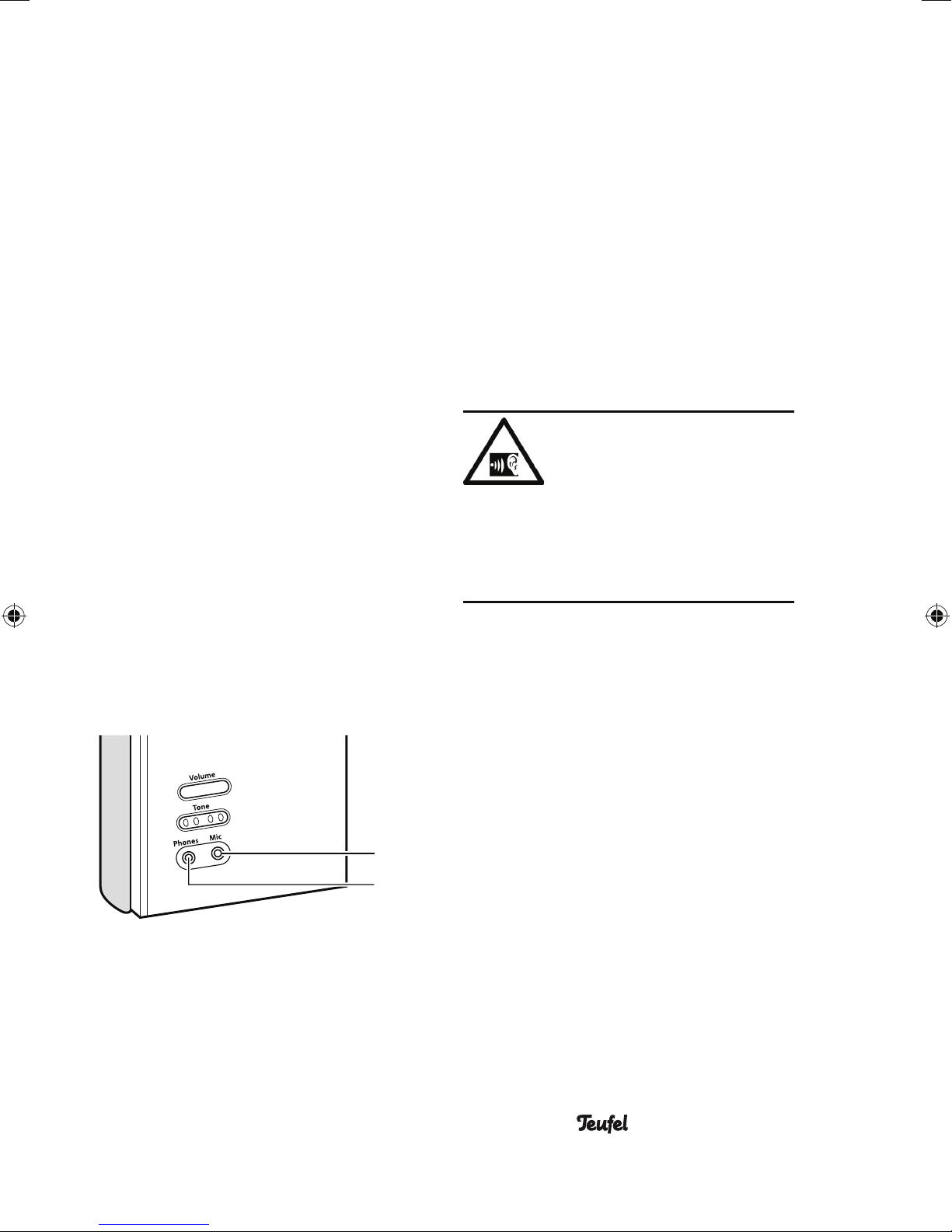

Using a headset/headphones
3
Danger to hearing!
When using headphones
a high volume may lead to
hearing loss.
• Set the volume control Volume (1) to a
low level.
• To avoid damage to health, avoid extended listening at high volume.
If you would like to use a headset, you
can connect it to the jacks (3) and (4) of
the right speaker.
Phones = headphones
Mic = microphone
4
• Concept B 20
9
Page 10

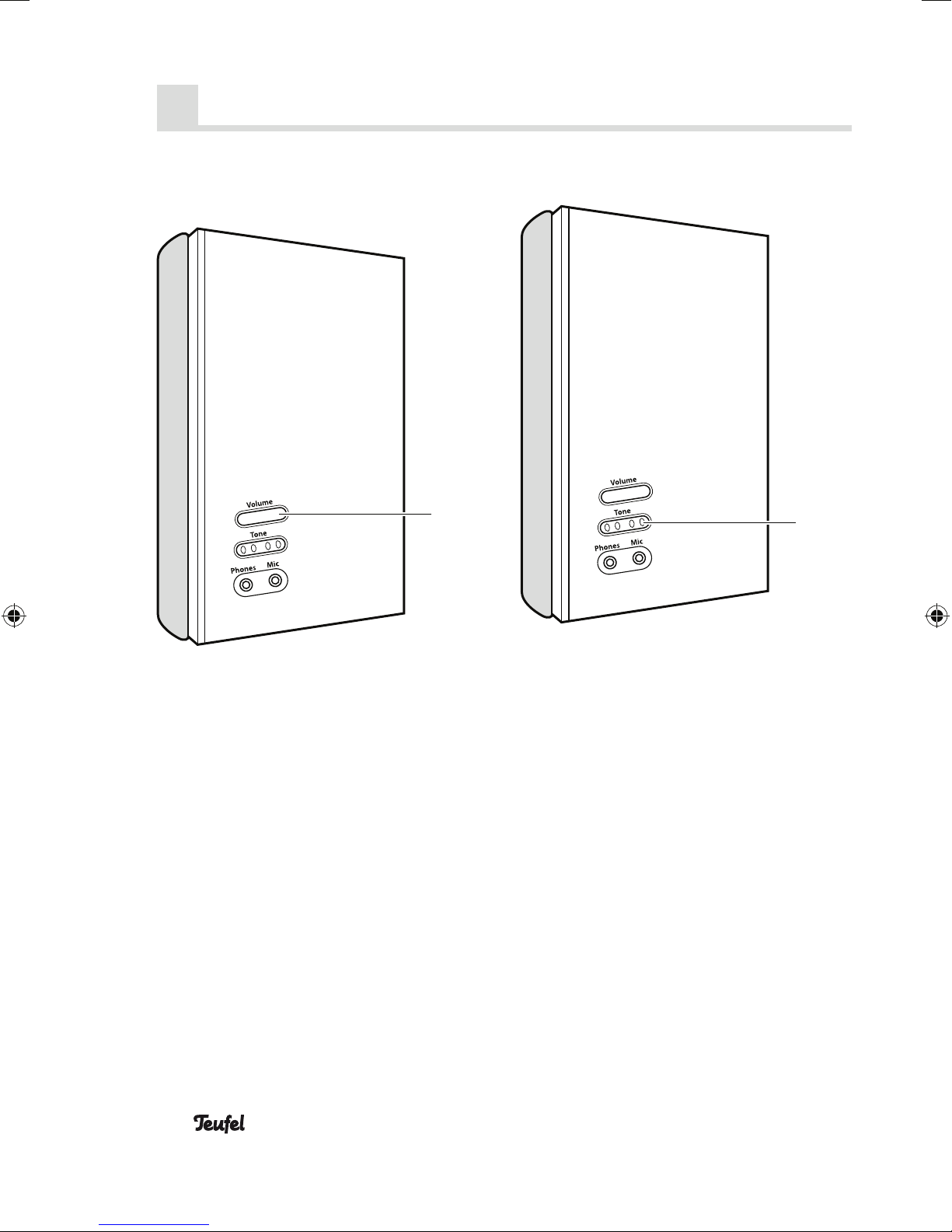

Use
Turning the speakers on/off, adjusting
the volume
1
Adjusting the sound
2
• Turning the speakers on/increasing
the volume:
Turn the dial Volume (1) back.
• Turning the speakers off/decreasing
the volume: Turn the dial Volume (1)
forward.
To turn off the speakers, turn the dial
against the resistance until it locks into
place and the blue light turns off.
You can adjust the sound with the dial
Tone (2):
• Turn the dial back for more bass.
• Turn it forward for more treble.
10
• Concept B 20
Page 11
Protecting the environment
Disposing of the device
Used units must not be disposed of with household
waste!
If the unit is no longer opera-
tional, every consumer is required by law to dispose of used devices
separately from household waste, e.g. at
a collection point run by the communal
authority borough. In this way it is ensured, that used devices are properly recycled and that negative consequences
on the environment are avoided. For this
reason, electrical equipment is labelled
with the displayed symbol.
• Concept B 20
11
Page 12
For questions, suggestions or criticism please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
Buelowstrasse 66
D-10783 Berlin (Germany)
Phone: 00800 – 200 300 400 (free of charge)
Fax: +49 (0)30 – 300 930 930
www.teufelaudio.com
No responsibility is assumed for the correctness of this information.
Technical changes, typographical errors and other errors reserved.
Instruction No. 91789 GB 20110321
