Page 1
Technical description and operating instructions
Columa 200
5.1 Home theater speaker set
with active subwoofer T 800 SW (packaged separately)
Page 2
Contents
Overview ..................................................................... 2
General notes and information ..................................... 3
Safety notes ................................................................. 4
Assembly ..................................................................... 4
Setup ........................................................................... 5
Overview
Product contents
햲 4 x satellite speakers
햳 4 x base plates
햴 8 x screws for the speaker stands
햵 1 x center speaker
The active subwoofer that corresponds to this 5.1 home
theater speaker set is located in a separate box.
Connecting ................................................................... 6
Care and cleaning ........................................................ 7
Troubleshooting ............................................................ 7
Protecting the environment ........................................... 7
Technical data .............................................................. 8
Connector cables
Due to differing customer requirements, the
Columa 200 series is shipped without connector cables. You can fi nd suitable cables in our webshop
(www.teufelaudio.com) in the “Accessories” area.
• Check that all items have been delivered and that noth-
ing is damaged.
• If the delivery is incomplete or you fi nd damage sus-
tained in transit, do not operate the unit but contact our
service department (see page 3).
2 • Columa 200
햲햳
햴
햵
Page 3
General notes and information
Notice
The information in this document may change without
prior notice and in no way constitutes any liability on the
part of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any
form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
December 2010
Original packaging
If you wish to exercise your eight-week right of return, we
ask that you be absolutely sure to hold onto the packaging. We can only accept the return of the speakers WITH
THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following information to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with the
product) or on the order confi rmation received as a PDF
document, e.g. 4322543
Contact
For questions, suggestions or criticism please contact our
customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen
Buelowstrasse 66
10783 Berlin (Germany)
Phone: 00800 - 200 300 400 (free of charge)
Fax: +49 (0)30 - 300 930 930
E-Mail: service@teufelaudio.com
www.teufelaudio.com
Proper use
Only use the product as described in the operating
instructions. Any other use is deemed improper and may
result in damages to property or injury to persons. The
manufacturer accepts no liability for damages that are
incurred as the result of improper use.
The unit is intended for private use.
Before operating the unit please read the safety
notes and operating instructions carefully. This
is the only way to use all functions safely and
reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
2. Serial number or batch number
Located on the back of the device,
e.g. serial number: TH04....
Many thanks for your support!
• Columa 200 3
Page 4
Safety notes
ggg
g
Caution icons
You will fi nd the following caution icons in these instructions:
Danger
Attention
High risk !
Failure to observe the warning may result in
severe personal injury or death.
Moderate risk !
Failure to observe the warning may result in
property damage .
Minor risk!
Points which should be observed when handling the unit.
Safety notes
Danger
• Do not allow children to play with the unit and the
• Ensure that children do not remove small parts from
Danger to children!
Children can become trapped in the packing
fi lm when playing and suffocate.
package wrappers. There is a danger of suffocation.
the unit or take them off of the unit (e.g. control knobs
or plug adapters). They could swallow the parts and
choke.
Never allow children to operate electrical devices
unsupervised.
Danger
logical effects as well. Children and pets are at particularly risk.
• Set your signal source unit volume control to a low
• When the volume is set high, always keep a certain
• To avoid damage to health, avoid extended listening at
Danger
• Do not use the speakers in vehicles if they are not
• Arrange the speakers so that they cannot be knocked
• Ensure that any wall mounting is performed in a profes-
• Only use suitable wall brackets for mounting. Check
• Do not place the speakers near sources of heat (e.g.
Danger to hearing!
Loud noise may lead to hearing loss.
Besides physical injury this may have psycho-
setting.
distance from the unit and never place your ear directly
on the speaker.
high volume.
Danger of injury/damage!
Incorrect location may result in damage.
secured, in unstable locations, on wobbly tripods or
furniture, on insuffi ciently dimensioned brackets etc.
The speakers could tip or fall down and cause injury to
persons or be damaged.
over accidentally and make sure that the cables do not
pose a trip hazard.
sional manner.
the carrying capacity of the walls.
heaters, ovens, other heat generating equipment such
as amplifi ers etc.).

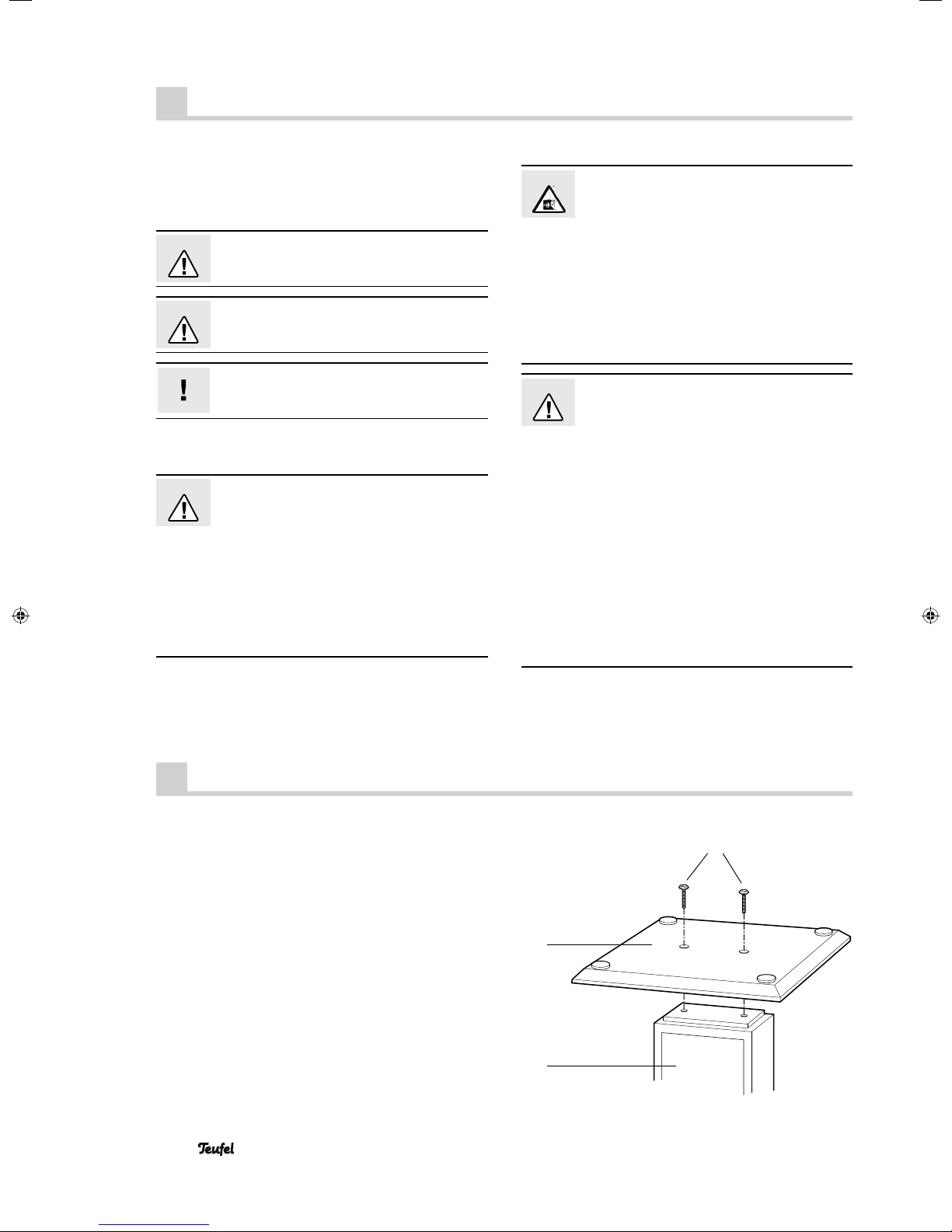

Assembly
For assembly, you will need a size 1 Philips screwdriver.
Mount a base plate 햳 on the bottom of each satellite
speaker 햲. Use two of the enclosed screws 햴 for each
speaker.
4 • Columa 200
햴
햳
햲
Page 5

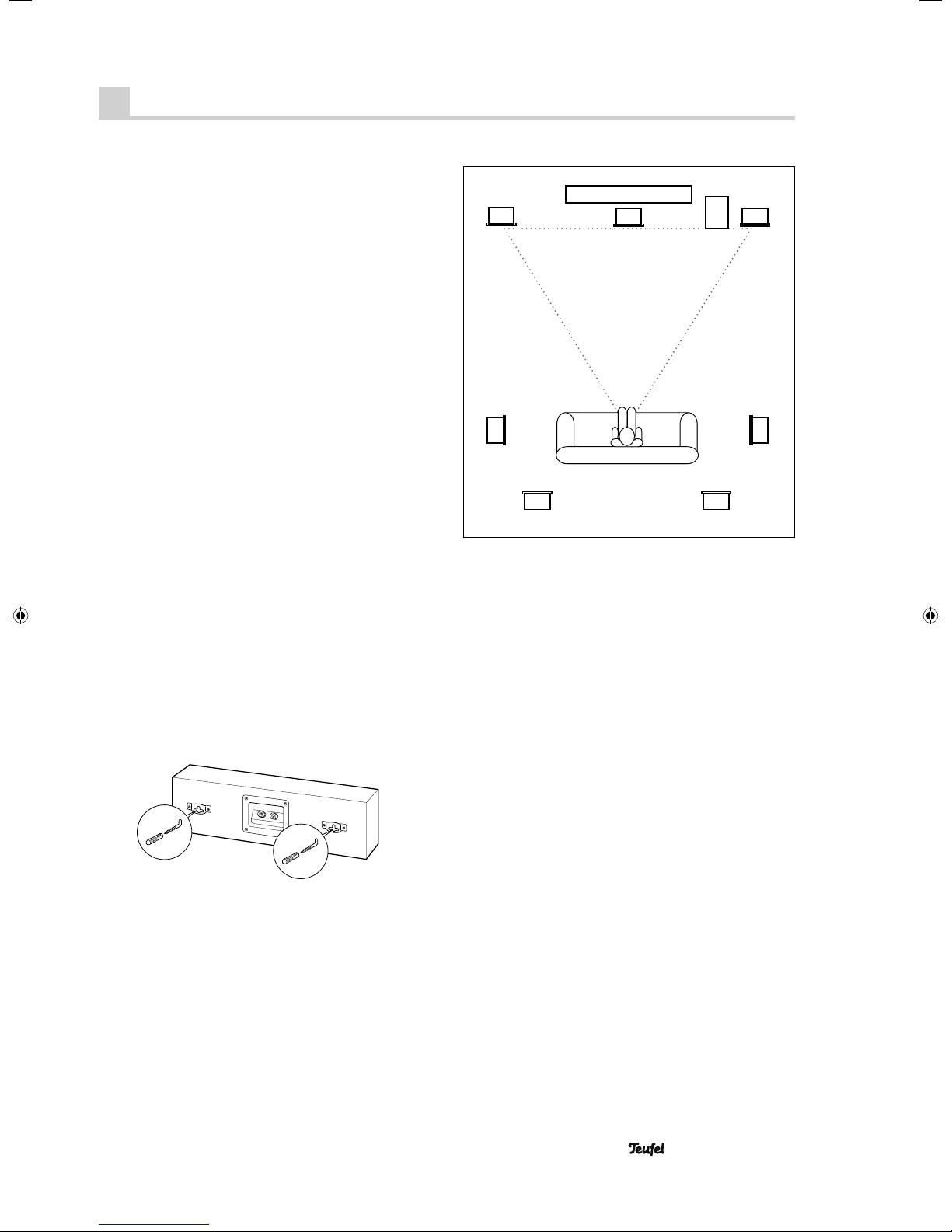

Setup
Location tips
• The room where you use the Columa 200 may be up
to 30 m2.
• Select a stable, level base.
• Make sure that the environment is clean and free from
dust.
• Avoid placing the unit close to sources of heat or in
direct sunlight.
• Arrange the connector cables so that they do not pose
a trip hazard.
• Do not place any heavy objects on the cables or the
devices.
You can purchase installation materials (cables, speaker
stands, wall brackets and resonance dampers) especially designed for these speakers in our webshop
(www.teufelaudio.com) in the “Accessories” area.
The following data concern an “ideal home cinema”, in
which the viewer or the listener sits in a central position
at a suffi cient distance in front of the television (see the
adjacent graphic) and no objects (tables or the like) are
located in between. Unfortunately, the room, furnishings or one’s partner do not always allow for optimum
arrangement.
Modern AV receivers offer a variety of possibilities for
electronically compensating losses associated with the
arrangement. The following general rule applies: Based
on our recommendations you can always experiment on
what works best in your listening room in terms of sound
and appearance. Let your ears (and eyes) be the judge!
Center
If possible, place the center speaker directly above or
under the television. Use the brackets on the back of the
speaker for wall mounting.
TV
Front FrontCenter
Stereo triangle
(a) (a)
Rear
(b) (b)
Rear
Front
Two of the satellites 햲 are set up as front speakers to the
right and left of the television. They should be in line with
the center speaker and form an equilateral triangle with
the listener – the so-called stereo triangle (distance from
the listener = distance between the speakers). The speakers should project sound directly into the room or slightly
towards the listener.
Rear
The two remaining satellites 햲 are set up as “rear”
speakers to the side (a) or to the back (b) of the listener.
The distance to the listener should be at least 100 cm.
Subwoofer
Rear
Rear
Subwoofer
You can place the subwoofer on the fl oor close to the
television. Often a location between the front speakers is
ideal.
• Columa 200 5
Page 6

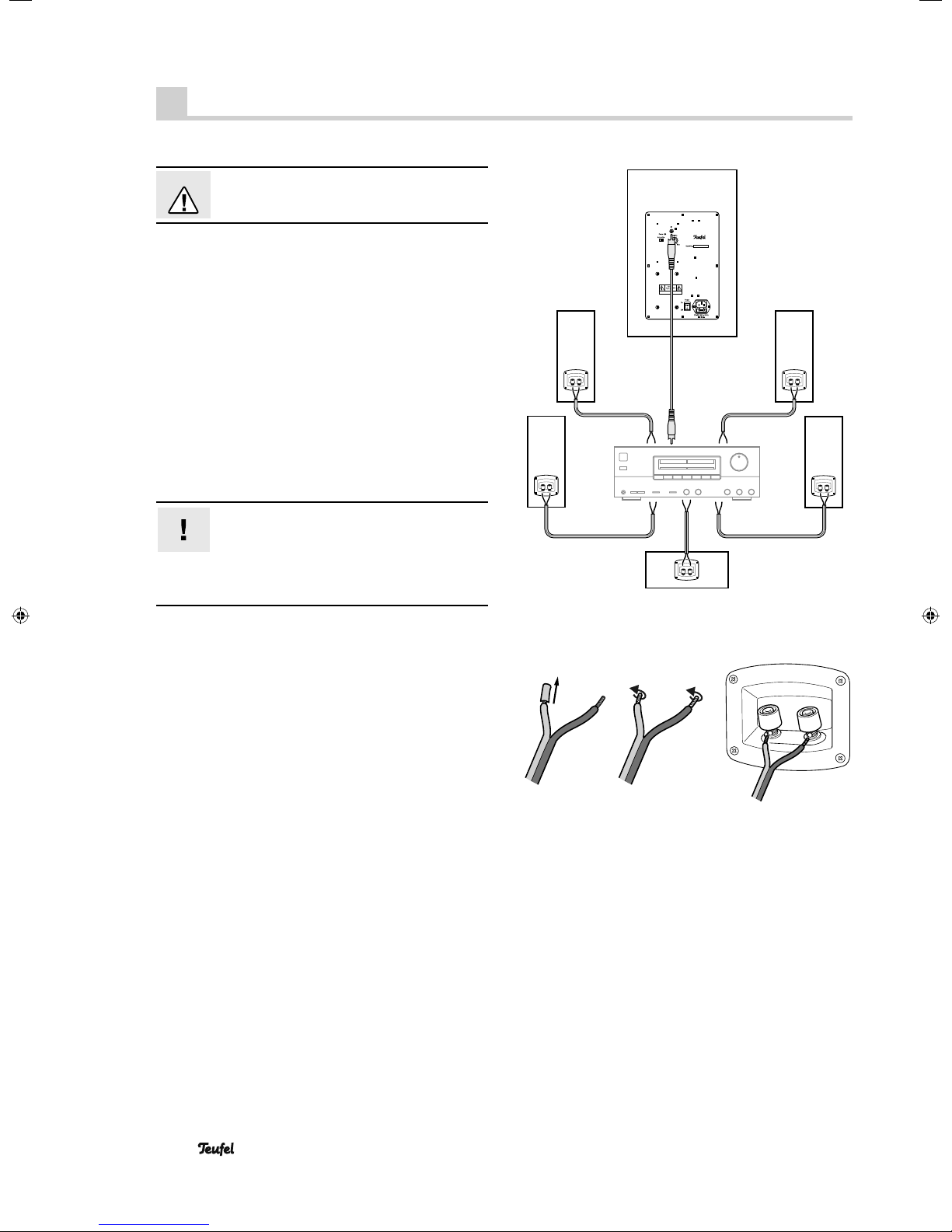

Connecting
Danger
Danger of injury/damage!
Arrange the cables so that they do not pose a
trip hazard.
Satellite speakers
• Pull the mains plug of your AV receiver out of the
socket.
• Lay the speaker cables from your AV receiver to
each of the satellite speakers. This cable should be
high-quality double-wire speaker cable with marked
strands. The cross-section should amount to at least
2
1.5 m m
.
Tip: Label the cables on the receiver side. This will help
when taking down and setting up the receiver.
• A connector terminal with two terminal clips is located
on the back of each satellite speaker. Here you can
connect the speaker cables using pin plugs or directly.
We only describe the direct connection in these instructions.
• The terminals are each marked in red (+) and black (-).
Make sure the polarity is correct!
Connect the like coloured terminals with one
another. Otherwise the sound quality will suffer.
The speaker connectors of your AV receiver should be
marked similarly. The strands of the speaker cables are
marked with different colours or shapes.
• Split the single wire on both ends up to approx. 30 mm
and remove approx. 10 mm of the insulation on each
piece. Twist the single wire so that no strands are protruding.
• Turn the connector terminal counterclockwise until
loose. Run the stripped cable into the hole that is now
visible. Turn the terminal clockwise until closed. The
cable has now been clamped in place.
• Connect all cables to the satellite speakers this way.
• Connect the speaker cable to your AV receiver. The
operating instructions of the appliance should contain
notes on this.
• Also plug the mains plug of your AV receiver back into
the socket.
• Set the crossover frequency between the satellite
speakers and subwoofers on the AV receiver to
120 Hz.
T 800 SW
6 • Columa 200
Page 7
Care and cleaning
Clean the speakers regularly with a soft, damp microfi ber
cloth. Be absolutely sure to observe the following notes:
• If possible use only plain water without any cleaning
products. In case of stubborn marks, a mild soap solution may be used.
• In no circumstances should caustic cleaning products,
white spirit, thinners, petrol or similar be used for
cleaning.
Troubleshooting
The following advice should help you to solve problems. If this is not the case, please contact our hotline (see page 3).
Take note of the warranty instructions.
Problem Possible cause Solution
Playback is noisy. Generally speaking, the Columa 200 is a
passive speaker system, which is unable
to produce noise. In the high range area,
very good-quality high-resolution speaker
systems can expose the poor quality of a
signal source (e.g. from MP3 fi les).
The sound seems dull. The speakers have been connected with
incorrect polarity.
Ensure that the source is sending a clear
signal.
Make sure the speaker cables of all satellites
are connected properly.
Protecting the environment
Disposing of the unit
Used units must not be disposed of with household waste
If the unit is no longer operational, every
consumer is required by law to dispose of
used devices separate from household waste,
e. g. at a collection point run by the communal author-
ity borough. In this way, used devices can be recycled
and waste materials disposed of in an environmentally
friendly manner.
For this reason, electrical equipment is labelled with the
displayed symbol.
• Columa 200 7
Page 8
Technical data
Column speaker
Impedance: 4–8 ohm
Dimensions with base plate (W x H x D): 240 x 1110 x 240 mm
Net weight: 4.4 kg
Center speakers
Impedance: 4–8 ohm
Dimensions (W x H x D): 395 x 120 x 70 mm
Net weight: 1.8 kg
Technical changes reserved!
This product conforms to Council of the
European Union guidelines 2004/108/EC
and 2006/95/EC
For questions, suggestions or other issues please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
10783 Berlin (Germany), Buelowstr. 66
Tel.:
00800 200 300 400 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No liability is accepted for the
accuracy of this information. Technical changes, typographical errors
and other errors reserved.
Instruction No. 91744_GB/HC-20110110
Loading...
