Page 1
Technical description and operating instructions
gb was
here
Columa 100
Active subwoofer US 5108/1
Page 2
Technical description and operating instructions
gb was
here
Columa 100
5.1 Home Cinema Speaker Set
Operating instructions for satellite speakers
Page 3
Contents
Product contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
General notes and information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Connection and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Protecting the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

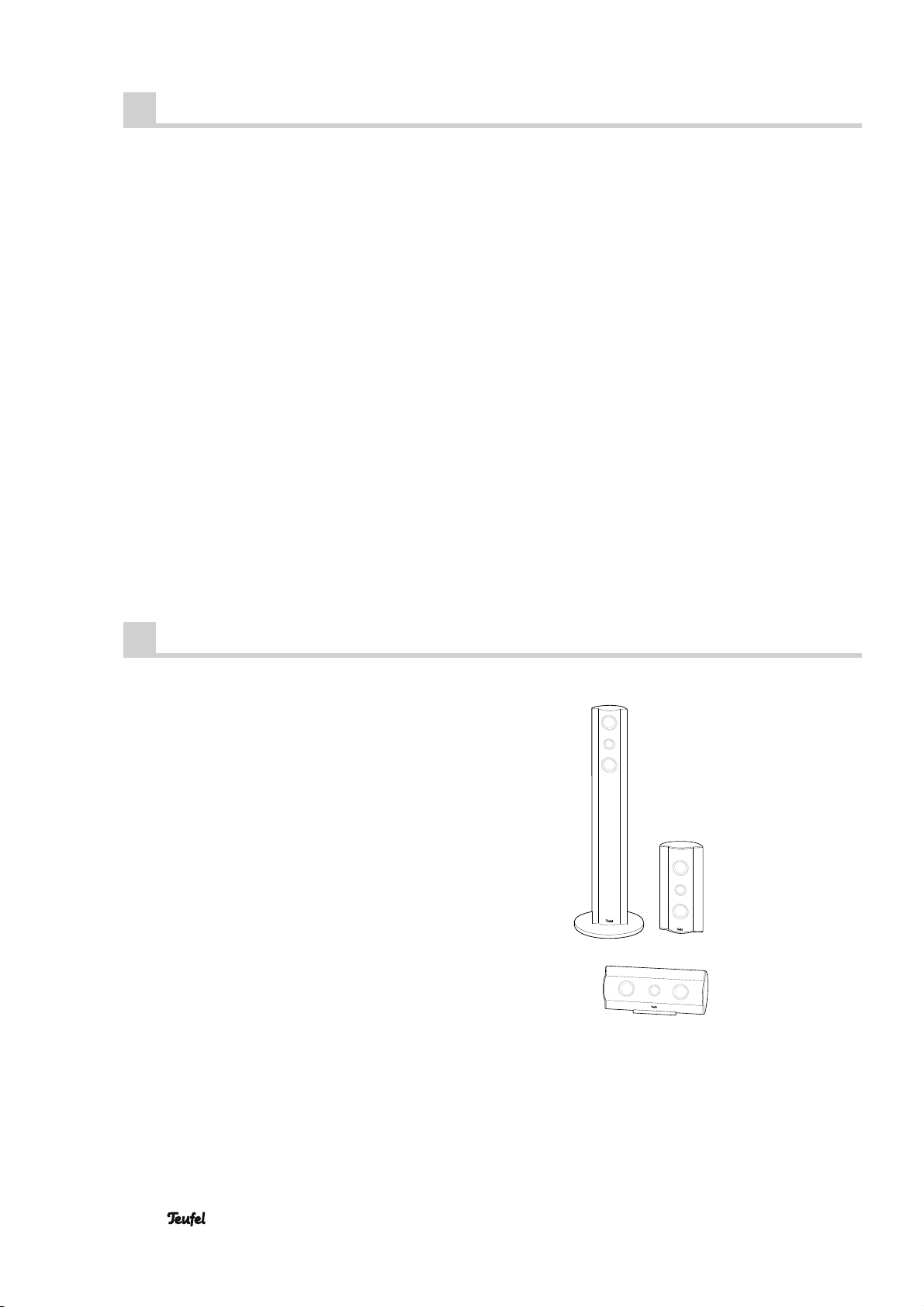

Product contents
햲 4 x satellite speakers
(exact types depend on the ordered set). Following
combinations are possible:
• 4 fl oor speakers (each with a base plate and three
fastening screws)
or
• 2 satellite and 2 fl oor speakers
햳 1 x center speaker
The corresponding active subwoofer for this 5.1 home
cinema speaker set is packed in a separate box.
Check that all items have been delivered and that noth-•
ing is damaged.
If the delivery is incomplete or you fi nd damage •
sustained in transit, do not use the product, instead
contact our service department (see page 3).
햲
햳
2 • Columa 100
Page 4
General notes and information
Notice
The information in this document may be changed without prior notice and in no way constitutes any liability on
the part of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any
form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
April 2010
Original packaging
If you wish to exercise your eight-week right of return, we
ask that you be absolutely sure to hold onto the packaging. We can only accept the return of the speakers WITH
THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following information to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with the
product) or on the order confi rmation received as a PDF
document, e.g. 4322543
Proper use
Only use the speakers as described in these instructions.
Any other use will be deemed as not in accordance with
the instructions and may lead to damage to property
or even persons. The manufacturer accepts no liability
for damage caused by use not in accordance with the
instructions.
The unit is intended for private use.
Before using the speakers for the fi rst time please
fi rst read the safety notes and operating instruc-
tions carefully. This is the only way to use all
functions safely and reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
2. Serial number and/or batch number
Can be found on the back of the device,
e. g. serial number: CL30000240129A-123.
Many thanks for your support!
Contact
For questions, suggestions or criticism please contact our
customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen · Buelowstrasse 66
10783 Berlin (Germany)
Tel.: 00800 - 200 300 40 (free of charge)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
• Columa 100 3
Page 5
Safety notes
Caution icons
You will fi nd the following caution icons used in these
instructions :
Danger
Attention
High risk !
Failure to observe the warning may result in
severe personal injury or death.
Moderate risk !
Failure to observe the warning may result in
p roperty damage.
Minor risk!
Points which should be observed when handling the unit.
Safety notes
Danger
Danger
noise pressure especially when activating the subwoofer
which is set to full volume. This may have psychological
consequences and also cause physical injury. Children
and pets are particularly at risk.
Danger to children!
Children can become trapped in the packing
fi lm when playing and suffocate.
Do not allow children to play with the unit or the pack-•
ing fi lm. Danger of suffocation.
Ensure that children do not remove small parts from •
the unit or take them off of the unit (e.g. control knobs
or plug adapters). They could swallow the parts and
choke. Never allow children to use electrical devices
without supervision.
Danger to hearing!
Loud noise may lead to hearing loss.
There is a potential risk of sudden very high
Set your signal source unit volume control to a low •
setting.
When the volume is set high, always keep a certain •
distance from the unit and never place your ear directly
on the speaker.
To avoid damage to health, avoid extended listening at •
high volume.
Danger
Attention
Danger of injury/damage!
Incorrect location may result in damage.
Never use the unit unmounted in vehicles, in unstable •
locations, on wobbly tripods or furniture, on underdimensioned brackets etc. The speakers could tip or fall
down and cause injury to persons or be damaged.
Arrange the speakers so that they cannot be knocked •
over accidentally and make sure that the cables do not
pose a trip hazard.
Ensure that any wall mounting is performed in a profes-•
sional manner.
Only use suitable wall brackets for mounting. Check •
the carrying capacity of the walls.
Do not place the unit near sources of heat (e.g. heat-•
ers, ovens, other heat generating equipment such as
amplifi ers etc.)
Fire hazard!
Improper use may lead to damage or fi re.
Do not place open fl ames such as burning candles or •
similar on the unit.
Ensure suffi cient ventilation. •
Do not place the unit in direct sunlight.•
Use the unit in indoor areas only.•
Do not use the appliance in damp rooms and protect •
it from water drops and splashes. Ensure that no vases
or other vessels fi lled with liquid are placed on or
near the appliance to prevent the housing from being
penetrated by liquid.
4 • Columa 100
Page 6

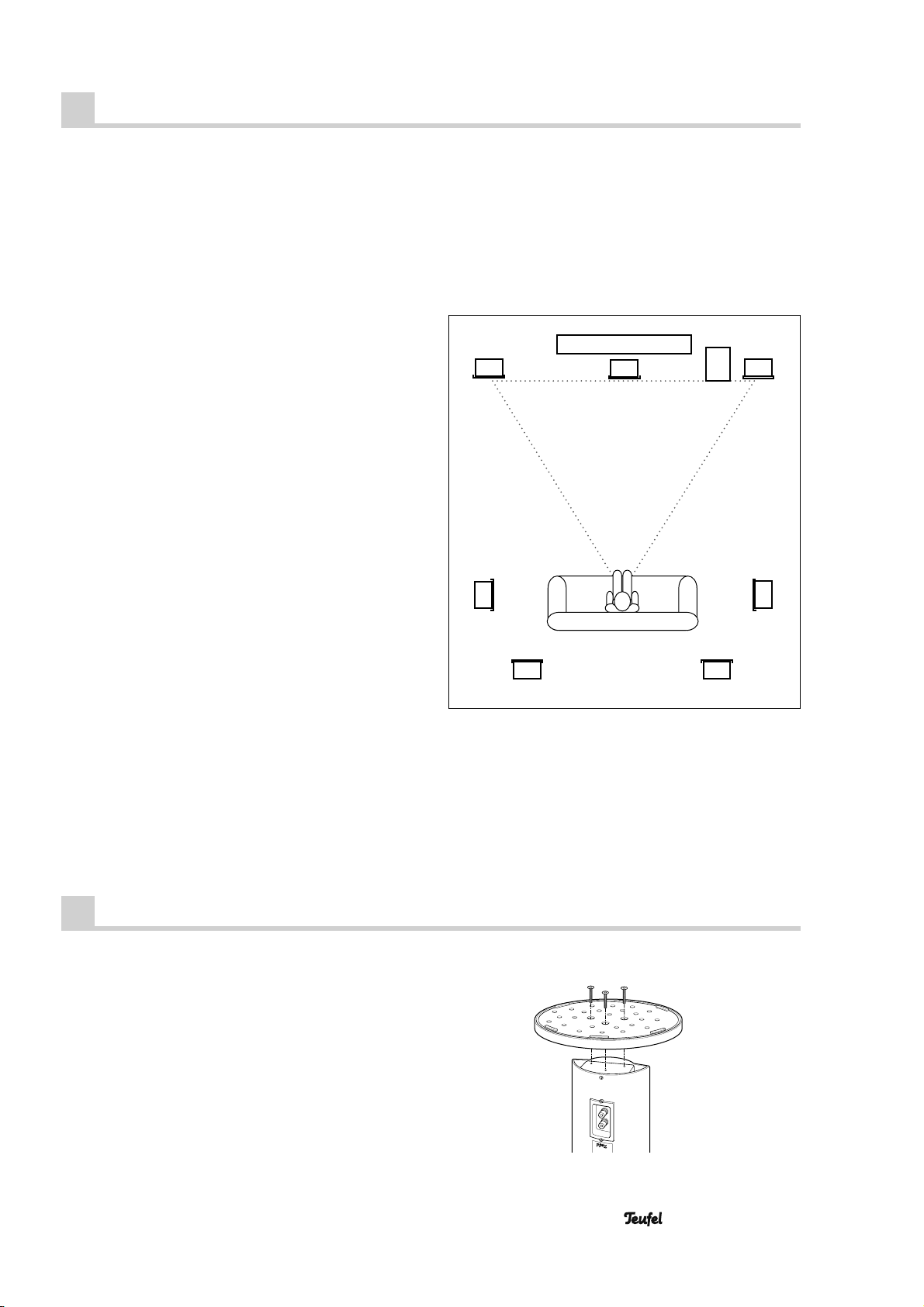

Setup
Setup tips
Select a stable, level base and/or a suitable wall.•
Make sure that the environment is clean and free of •
dust.
Avoid placing the unit close to sources of heat or in •
direct sunlight.
Do not place any heavy objects on the cables or the •
speakers.
Center speakers
Place the center speaker in a central position under or •
next to the screen.
Front speakers
The front speakers are set up to the right and left of the •
screen or hung at a height of approx. 80 cm to 160 cm.
They should be in line with the center speaker and •
form an equilateral triangle with the listener – the so
called stereo triangle (distance from the listener =
distance between the speakers).
The speakers should project sound directly into the •
room or slightly towards the listener.
Rear speakers
The rear speakers are set up or wall mounted to the •
side (a) or behind (b) the listener at a height of 1.20 m
to 2.10 m.
The distance to the listener should amount to at least •
100 cm.
Subwoofer
The position of the subwoofer can be selected as de-•
sired and does not affect the other speakers. An ideal
position is often between the front speakers.
TV
Front FrontCenter
Stereo triangle
(a) (a)
Rear
(b) (b)
Rear
Subwoofer
Rear
Rear
Assembly
Mounting the base plate
To mount the base plate on the fl oor speakers, you will
need a size 0 Philips screwdriver.
Secure the base plate on the bottom end of the fl oor
speaker (see graphic) using the three enclosed screws.
Make sure that the screws are seated in the threading of
the speaker such that they are perfectly straight and do
not excessively tighten the screws.
• Columa 100 5
Page 7
Wall mounting
Danger
Risk of damage!
Incorrect location may result in damage.
Ensure that any wall mounting is performed in a profes-•
sional manner.
Only use suitable wall brackets for mounting. Check •
the carrying capacity of the walls.
You can mount the satellite speakers on a wall using •
the brackets on the back of the speakers or you can
screw them on a support foot.
You can purchase installation materials (cables, •
support feet, wall brackets and resonance dampers) especially for these speakers in our webshop
(www.teufelaudio.com) in the “Accessories” area.
You can set up the center speaker or mount it on a wall •
using its frame.

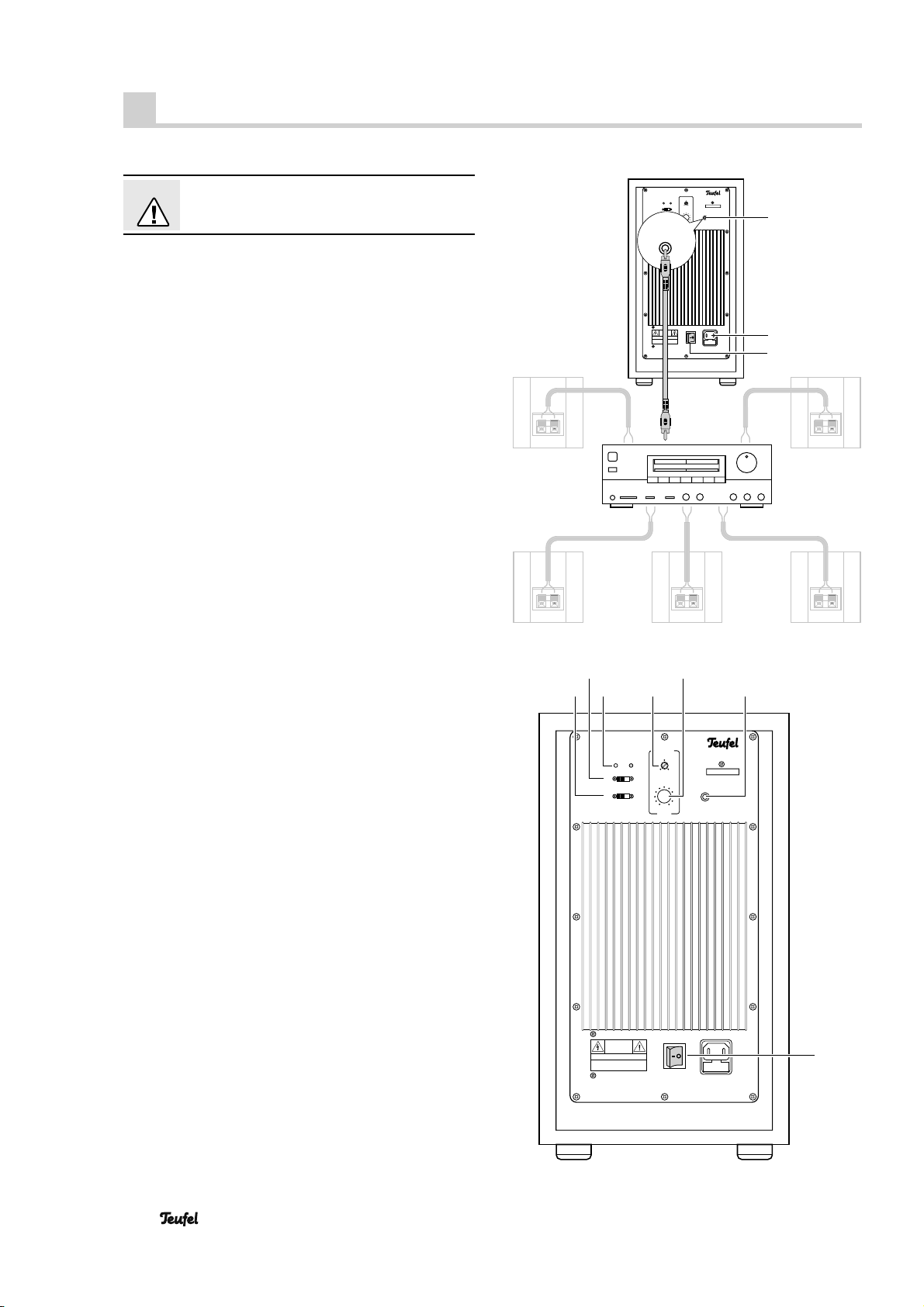

Connection and settings
Danger
Danger of injury/damage!
Arrange the cables so that they do not pose a
trip hazard.

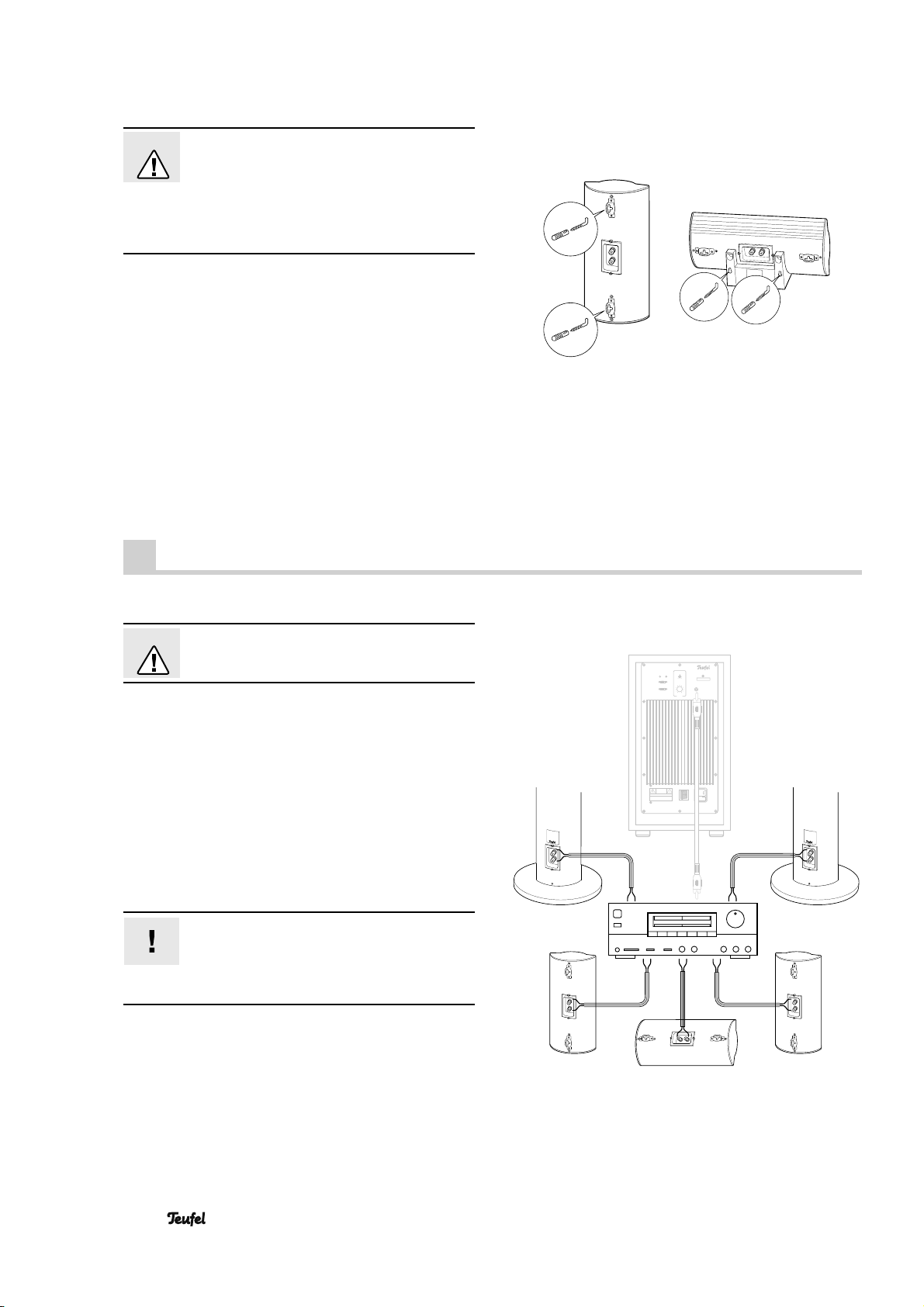

Satellite speakers
Pull the mains plug of your AV receiver out of the •
socket.
Lay the speaker cables from your AV receiver to each •
of the speakers. This cable should be a high-quality
double-wire speaker cable with marked strands. The
cross-section should amount to at least 1.5 mm
2
.
A connector terminal with two terminal clips is located •
on the back of each speaker. You optionally can
connect the speaker cables using pin plugs. Here we
describe the direct connection without using pin plugs.
The terminals are each marked red (+) and black (–).•
Make sure the polarity is correct!
Always connect terminals with the same colour
with each other. Otherwise the sound quality
will suffer. The wires of the speaker cables are marked
with different colours or shapes.

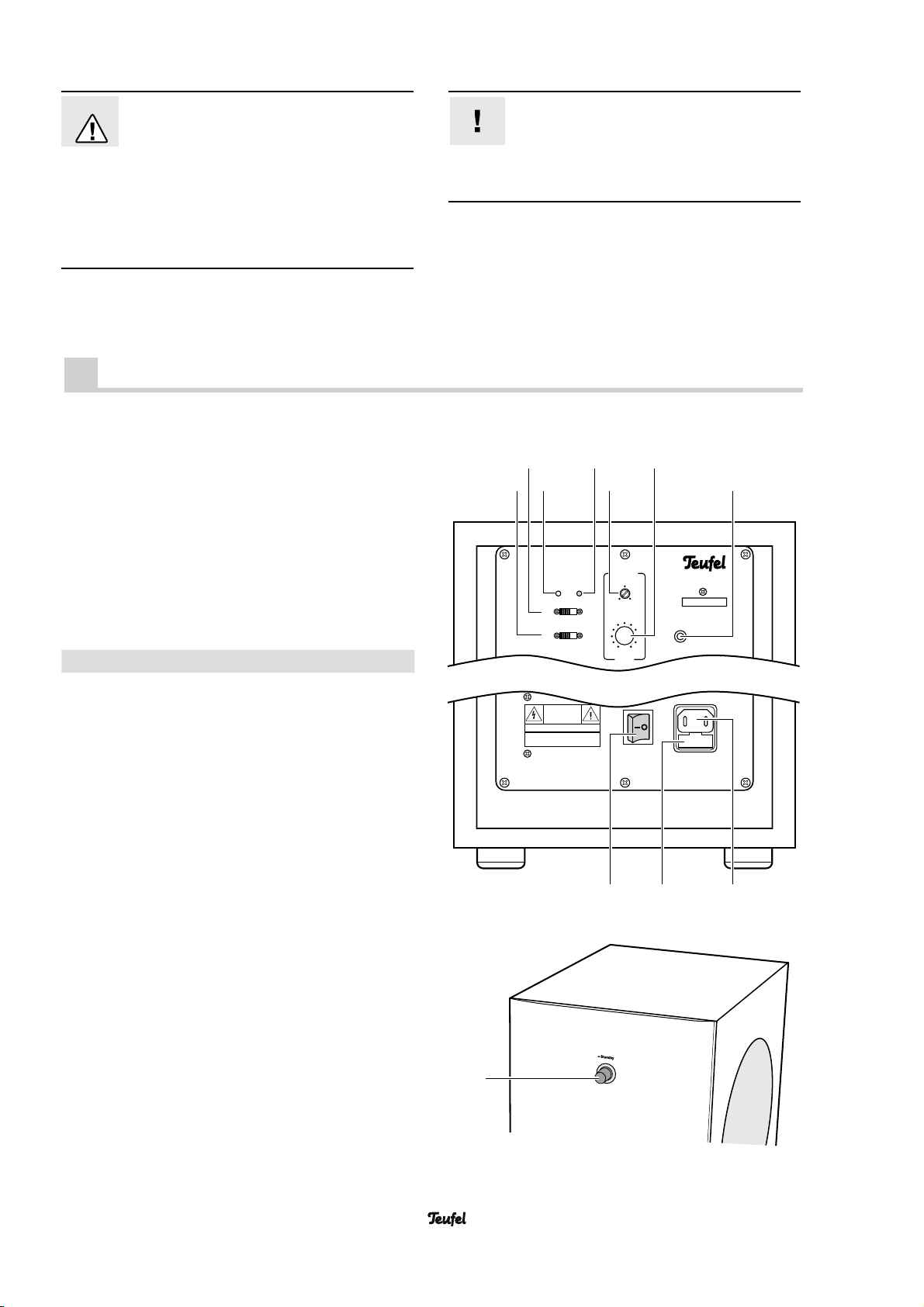

Power Limiter
On Auto
0° 180°
Vorsicht
Auto Level
US 5108/1
Mid
Low High
Line Input
Phase
Min Max
Volume
Power
On Off
220-240V ~50Hz
250 Watts
6 • Columa 100
Page 8

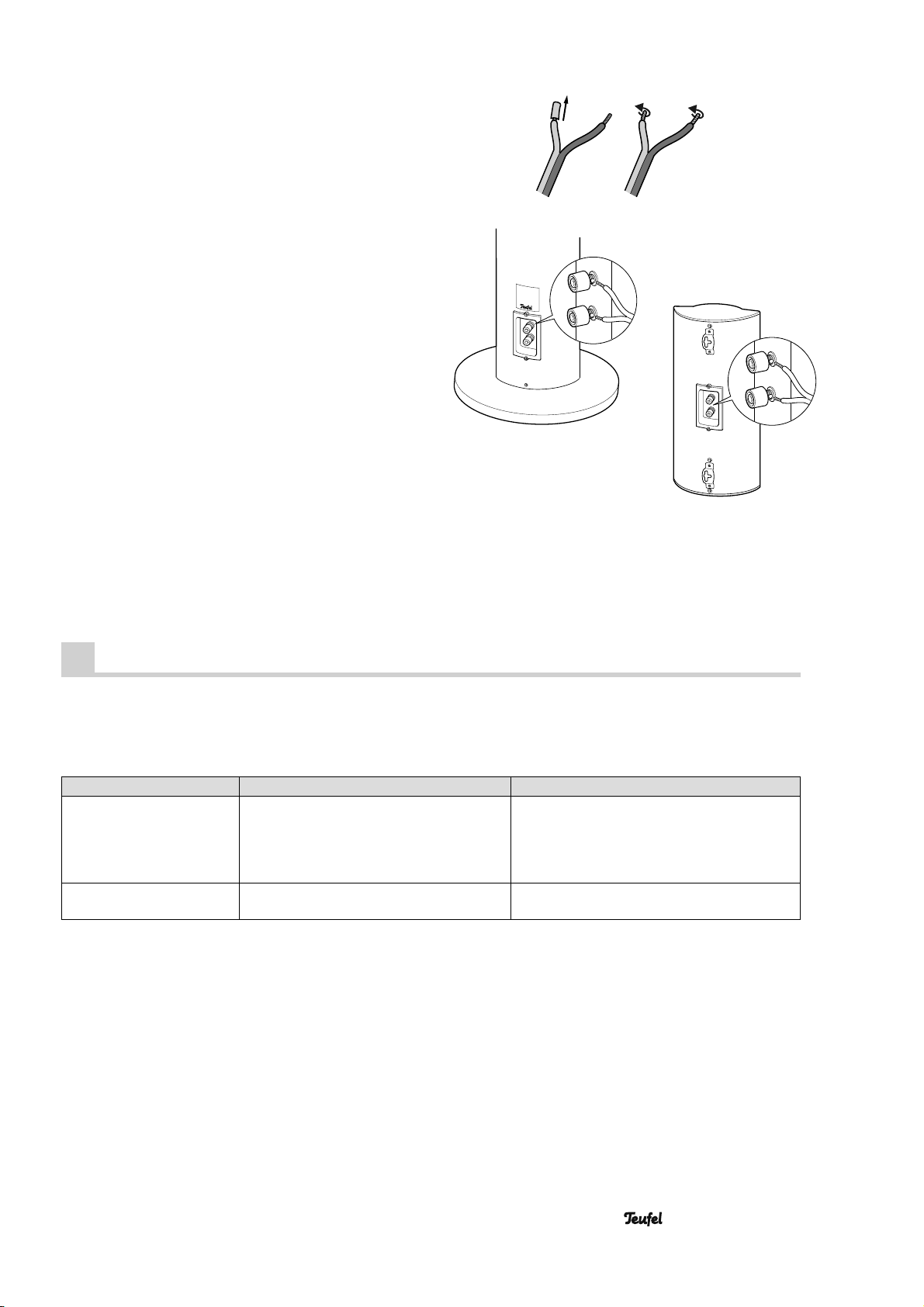

Split the single wires on both ends for approximately 1.
30 mm and remove 10 mm of the insulation on each
wire.
Twist the copper core so that no strands are protruding.2.
Turn the connector terminal counterclockwise until 3.
loose.
Run the stripped cable into the hole that is now visible. 4.
Turn the terminal clockwise. The cable is now clamped
in place.
Connect all speaker cables this way.5.
Connect the speaker cables to your AV receiver. The 6.
operating instructions of the appliance should contain
notes on this.
Subwoofer
Connect the subwoofer as described in the correspond-•
ing operating instructions.
Crossover frequency
The optimal crossover frequency for the Columa 100 •
system amounts to 150 Hz. Set your AV amplifi er to
this value to the extent possible.

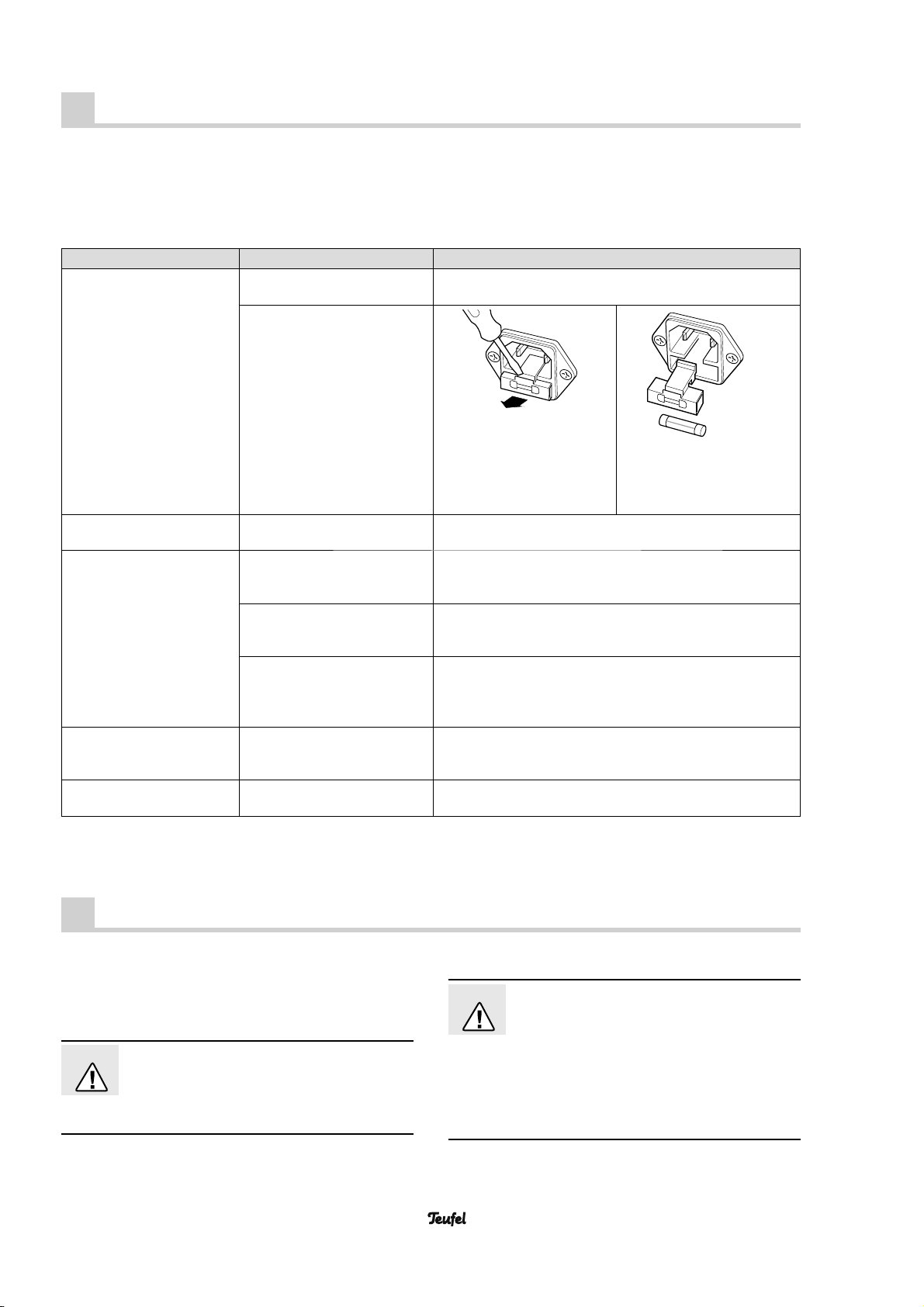

Troubleshooting
The following instructions should help you to solve problems. If this doesn’t work, please contact our hotline (see page 3).
Mind the warranty instructions.
Problem Possible cause Solution
Playback is noisy. Generally speaking, the system is very low-
noise. In the high range area, very goodquality high-resolution speaker systems can
expose the poor quality of a signal source
(e.g. from MP3 fi les).
The sound seems dull. The speakers have been connected with
the wrong poles.
Ensure that the source is sending a clean
signal.
Make sure the speaker cables of all satellites
are connected properly.
• Columa 100 7
Page 9
Care and cleaning
Clean your speakers regularly with a soft, damp microfi ber cloth. In the process, be absolutely sure to observe
the following notes:
If possible use only plain water with no cleaning prod-•
ucts. In case of stubborn marks, a mild soap solution
may be used.
Protecting the environment
Disposing of the unit
Used units must not be disposed of with household waste.
If the unit is no longer operational, every
consumer is required by law to dispose of
used devices separate from household waste,
e. g. at a collection point run by the communal author-
In no circumstances should caustic cleaning products, •
white spirit, thinners, petrol or similar be used for
cleaning.
ity borough. In this way, used devices can be recycled
and waste materials disposed of in an environmentally
friendly manner.
For this reason, electrical equipment is labelled with the
displayed symbol
Technical data
Satellite and Center Speakers
Impedance: 4–8 Ohm
Dimensions (W x H x D): 16.4 x 35 x 8.6 cm
Net weight: 1.5 kg
Technical changes reserved!
This product conforms with Council of the
European Union guidelines 2004/108/EC and
2006/95/EC
For questions, suggestions or other issues please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Bülowbogen - Aufgang D1
10783 Berlin (Germany), Bülowstr. 66
Floor speakers
Impedance: 4–8 Ohm
Dimensions (W x H x D): 16.4 x 108 x 8.6 cm
Net weight: 4.7 kg
Tel.:
00800 200 300 40 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No liability is accepted for the
accuracy of this information. Technical changes, typographical errors
and other errors reserved.
Instruction No. 91565_GB/HC-20100615
Page 10
Technical description and operating instructions
gb was
here
Active subwoofer
US 5108/1
US 5110/1
Page 11
Contents
General notes and information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Original packaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Complaints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Caution icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Product contents, control elements and connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Product contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Control elements and connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Subwoofer back side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connection and operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Signal connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connecting to a power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Automatic activation/deactivation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Changing the input sensitivity of the automatic activation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Protecting the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Disposing of the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2
• Active subwoofer US 5108/1 / US 5110/1
Page 12
General notes and information
Notice
The information in this document may be changed without prior notice and in no way constitutes any liability on
the part of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any
form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
Mai 2010
Original packaging
If you wish to exercise your eight-week right of return, we
ask that you be absolutely sure to hold onto the packaging. We can only accept the return of the speakers WITH
THE ORIGINAL PACKAGING.
Empty boxes are not available!
Complaints
In case of complaint we will need the following information to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with the
product) or on the order confi rmation received as a PDF
document, e.g. 4322543
Proper use
Only use the unit as described in these instructions. Any
other use will be deemed as not in accordance with the
instructions and may lead to damage to property or even
persons. The manufacturer accepts no liability for damage caused by use not in accordance with the instructions.
The unit is intended for private use.
Before operating the unit for the fi rst time please
read the safety notes and operating instructions
carefully. This is the only way to use all functions
safely and reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
2. Serial number and/or batch number
Can be found on the back of the device,
e. g. serial number: CL30000240129A-123.
Many thanks for your support!
Contact
For questions, suggestions or criticism please contact our
customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen · Buelowstrasse 66
10783 Berlin (Germany)
Tel.: 00800 - 200 300 40 (free of charge)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
• Active subwoofer US 5108/1 / US 5110/1
3
Page 13
Safety notes
Caution icons
You will fi nd the following caution icons used in these
instructions :
Danger
Attention
High risk !
Failure to observe the warning may result in
severe personal injury or death.
Moderate risk !
Failure to observe the warning may result in
property damage .
Minor risk!
Points which should be observed when handling the unit.
Safety notes
Danger
electric shocks.
Risk of electric shock!
Faulty installation of electrical equipment or
mains voltage which is too high can cause
The device is only suitable for use with a power supply •
voltage of 220–240 V~/50 Hz.
If the unit’s case or mains cable is defective or shows •
other signs of visible damage, disconnect the mains
adapter immediately from the socket and do not operate the device.
If the unit emits smoke or smells of burning or other •
unusual odours, disconnect it immediately from the
power supply and do not operate it.
Never open the unit case.•
Repairs may only be carried out by an authorised
specialist workshop. Only use parts which conform
with the original unit specifi cations. There are electrical
and mechanical parts in this unit which are essential in
order to avoid exposure to sources of danger.
Do not insert any object through the vent slots in the •
case.
Only use the unit in indoor areas.•
Do not operate the unit in moist areas and protect it •
from drops of water or splash water.
Also take care not to stand vases or other containers of
liquid on or near the unit in order to avoid liquid getting
into the case. If water or other foreign objects should
enter the case, disconnect the device immediately from
the mains power supply and remove any batteries. Send
the unit to our service address.
Never touch the mains adapter with wet hands.•
Check the unit regularly for damage.•
Danger
Danger
noise pressure especially when activating the subwoofer
which is set to full volume. This may have psychological
consequences and also cause physical injury. Children
and pets are particularly at risk.
Danger
Attention
Danger to children!
Children can become trapped in the packing
fi lm when playing and suffocate.
Do not allow children to play with the unit or the pack-•
ing fi lm. Danger of suffocation.
Ensure that children do not remove small parts from •
the unit or take them off of the unit (e.g. control knobs
or plug adapters). They could swallow the parts and
choke. Never allow children to use electrical devices
without supervision.
Danger to hearing!
Loud noise may lead to hearing loss.
There is a potential risk of sudden very high
Set your signal source unit volume control to a low •
setting.
When the volume is set high, always keep a certain •
distance from the unit and never place your ear directly
on the speaker.
To avoid damage to health, avoid extended listening at •
high volume.
Danger of injury/damage!
Incorrect location may result in damage.
Never use the unit unmounted in vehicles, in unstable •
locations, on wobbly tripods or furniture, on underdimensioned brackets etc. The speakers could tip or fall
down and cause injury to persons or be damaged.
Arrange the speakers so that they cannot be knocked •
over accidentally and make sure that the cables do not
pose a trip hazard.
Ensure that any wall mounting is performed in a profes-•
sional manner.
Only use suitable wall brackets for mounting. Check •
the carrying capacity of the walls.
Do not place the unit near sources of heat (e.g. heat-•
ers, ovens, other heat generating equipment such as
amplifi ers etc.).
Risk of damage!
Power overload due to lightning strike may
damage or destroy the unit.
If the unit is to be left unsupervised for a long period •
(e.g. during a holiday), or if a thunderstorm is forecast,
disconnect it from the mains power supply.
4
• Active subwoofer US 5108/1 / US 5110/1
Page 14
Attention
Vorsicht
Stromschlaggefahr
Nicht öffnen!
Power
On Off
220-240V ~50Hz
250 Watts
US 5108/1
Serial No.
Auto Level
Mid
Low High
Power Limiter
On Auto
0° 180°
Phase
Line Input
Min Max
Volume
Fire hazard!
Improper use may lead to damage or fi re.
Check to be sure!
Check that all items have been delivered and
that nothing is damaged.
Do not place open fl ames such as burning candles or •
similar on the unit.
Ensure suffi cient ventilation. •
If the delivery is incomplete or you fi nd damage sus-•
tained in transit, do not operate the unit but contact our
service department (see page 3).
Do not place the unit in direct sunlight. •
Do not cover the ventilation slots with curtains, cloths, •
newspapers or similar. Heat build-up inside the unit
can shorten the lifetime of the unit.
Product contents, control elements and connections
Product contents
1 x active subwoofer US 5108/1 or US 5110/1
1 x mains cord
Control elements and connections
Subwoofer back side
Pos Name Description
1Phase
On/Auto
2
3Power
4Limiter
5 Auto Level
6Volume Volume control for subwoofer
7 Line Input Audio input jack
8– Connector jack for mains cord
9 –
10 Power On/Off
11 S t a nd by
Activate/deactivate phase shift
(180°) for the subwoofer
Switch for automatic activation
Power LED
The limiter LED illuminates when
the amplifi er reaches a distortion
factor of 3–4 % (corresponds to
an output of 120 watts at 4 ohm)
Set the input sensitivity of the
automatic activation
Mains fuse
Mains switch
Switch subwoofer on or to
standby
On: Illumination around the
push-button is blue
Standby: Illumination around the
push-button is orange
642
13 5 7
8910
11
• Active subwoofer US 5108/1 / US 5110/1
5
Page 15
Connection and operation
Danger
Danger of injury/damage!
Arrange the cables so that they do not pose a
trip hazard.
Subwoofer
Signal connection
Connect the RCA jack • 7 “Line Input” on the back side
of the subwoofer and the RCA jack for the subwoofer
on the receiver with a mono RCA connector cable.
For more information, please consult the operating
instructions for your receiver.
Connecting to a power supply
Ensure that the mains switch • 10 “Power” on the subwoofer is switched off (“0 OFF” position).
Connect the mains connector jack • 8 with a mains
socket using the mains cord.
Satellite speakers
Connect the satellite speakers as described in the cor-•
responding operating instructions.
Activating and deactivating
With the “Power” switch • 10, you can turn the subwoofer on or off. If the subwoofer is on, the “Power” LED 3
will illuminate.
Automatic activation/deactivation
Switch • 2:
Auto – position: The subwoofer turns on as soon as an
audio signal is present at the line input 7 (LED 3 is
blue).
If no audio signal is present for 30 minutes, the subwoofer switches to standby (LED 3 is orange).
On – position: The subwoofer is always on.
Auto Level
US 5108/1
Mid
Power Limiter
Low High
On Auto
Line Input
0° 180°
Phase
Min Max
Volume
Line Input
Power
Vorsicht
On Off
220-240V ~50Hz
250 Watts
2
17
35
Power Limiter
On Auto
0° 180°
Phase
Auto Level
Mid
Low High
Min Max
Volume
6
US 5108/1
Serial No.
Line Input
7
8
10
Changing the input sensitivity of the automatic activation
With the control • 5 “Auto Level”, you can change the
sensitivity of the automatic activation. This makes
sense if the subwoofer doesn’t turn on even if an audio
signal is present and/or it is activated by a disturbing
impulse.
Use a narrow screwdriver to turn the controller.
Volume
Adjust the subwoofer volume with the volume control • 6
“Volume”.
Phase
With the switch • 1 “Phase”, you activate and deactivate
the phase shift (180°) for the subwoofer, which may
improve the sound under certain circumstances.
6
• Active subwoofer US 5108/1 / US 5110/1
Vorsicht
Stromschlaggefahr
Nicht öffnen!
Power
On Off
220-240V ~50Hz
250 Watts
10
Page 16
Troubleshooting
The following instructions should help you to solve problems. If this doesn’t work, please contact our hotline (see page 3).
Mind the warranty instructions.
Problem Possible cause Solution
The subwoofer doesn’t
work. The LED 3 does not
illuminate.
The subwoofer is off or
doesn’t have any power.
Fuse is defective. 1.
Turn on the “Power” switch 10 (“On I”).
Check the mains cord and socket.
2.
The subwoofer doesn’t
work, but the LED 3 is blue.
The subwoofer hums.
The subwoofer doesn’t turn
on.
The subwoofer turns on
when this is unintended.
The volume has been set too
low.
The subwoofer is connected to
another circuit than the rest of
the system.
The buzzing is caused by
problems with the power
supply.
The buzzing is caused by a
multi-way socket.
The sensitivity of the automatic
activation has not been set
high enough.
The automatic activation has
been set too high.
Remove the mains cable.
Carefully pull out the fuse
holder on the mains connection jack.
Increase the volume with the “Volume” control 6.
Connect the subwoofer and source device to the same
electric circuit.
Buy a line fi lter and connect both devices to it.
Use another multi-way socket or plug the subwoofer
directly into the wall socket. In the case of two-pin plugs it
may help to insert the plug into the socket the other way
around.
Turn the control 5 “Auto Level” towards “High”.
Turn the control 5 “Auto Level” towards “Low”.
Push the old fuse out downwards. Insert a new fuse (2
A time-lag) and push the
holder back.
Care and cleaning
Clean the subwoofer regularly with a soft, damp microfi ber cloth. In the process, be absolutely sure to observe
the following notes:
Danger
Risk of electric shock!
In contact with live parts, water can lead to
electric shock or short circuit.
Make sure that no liquid penetrates the unit.•
Disconnect the mains plug before cleaning.•
• Active subwoofer US 5108/1 / US 5110/1
Attention
Risk of damage!
Using the wrong cleaning materials may dam-
age the delicate surface of the case.
If possible use only plain water with no cleaning prod-•
ucts. In case of stubborn marks, a mild soap solution
may be used.
In no circumstances should caustic cleaning products, •
white spirit, thinners, petrol or similar be used for
cleaning.
7
Page 17
Protecting the environment
Disposing of the unit
Used units must not be disposed of with household waste
If the unit is no longer operational, every
consumer is required by law to dispose of
used devices separate from household waste,
e. g. at a collection point run by the communal authority
borough. In this way, used devices can be recycled and
waste materials disposed of in an environmentally friend-
ly manner.
For this reason, electrical equipment is labelled with the
displayed symbol
Technical data
US 5108/1 US 5110/1
Operating voltage: 220–240 V~, 50/60 Hz 220–240 V~, 50/60 Hz
Power consumption max. 250 watts 250 watts
in standby 0.4 watts 0.4 watts
Dimensions (W x D x H): 240 mm x 365 mm x 420 mm 240 mm x 410 mm x 490 mm
Net weight: 12.8 kg 17 kg
This product conforms with Council of the
European Union guidelines 2004/108/EC and
2006/95/EC
Technical changes reserved!
For questions, suggestions or criticism please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Bülowbogen - Aufgang D1
10783 Berlin (Germany), Bülowstr. 66
Tel.:
00800 200 300 40 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No liability is accepted for the
accuracy of this information. Technical changes, typographical errors
and other errors reserved.
Instruction No. 91564_GB/HC-20100610
Loading...
