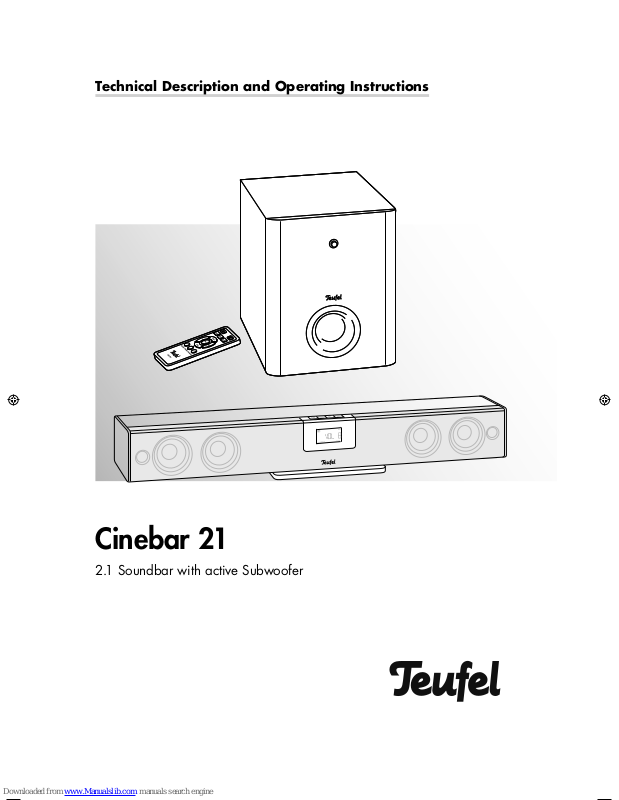

Page 1
Technical Description and Operating Instructions
Cinebar 21
2.1 Soundbar with active Subwoofer
Page 2
Contents
General notes and information ......................................................................................................................................3
Safety notes ..................................................................................................................................................................4
Overview ......................................................................................................................................................................6
Setup/wall mounting .....................................................................................................................................................7
Setup location ............................................................................................................................................... 7
Wall mounting ............................................................................................................................................... 7

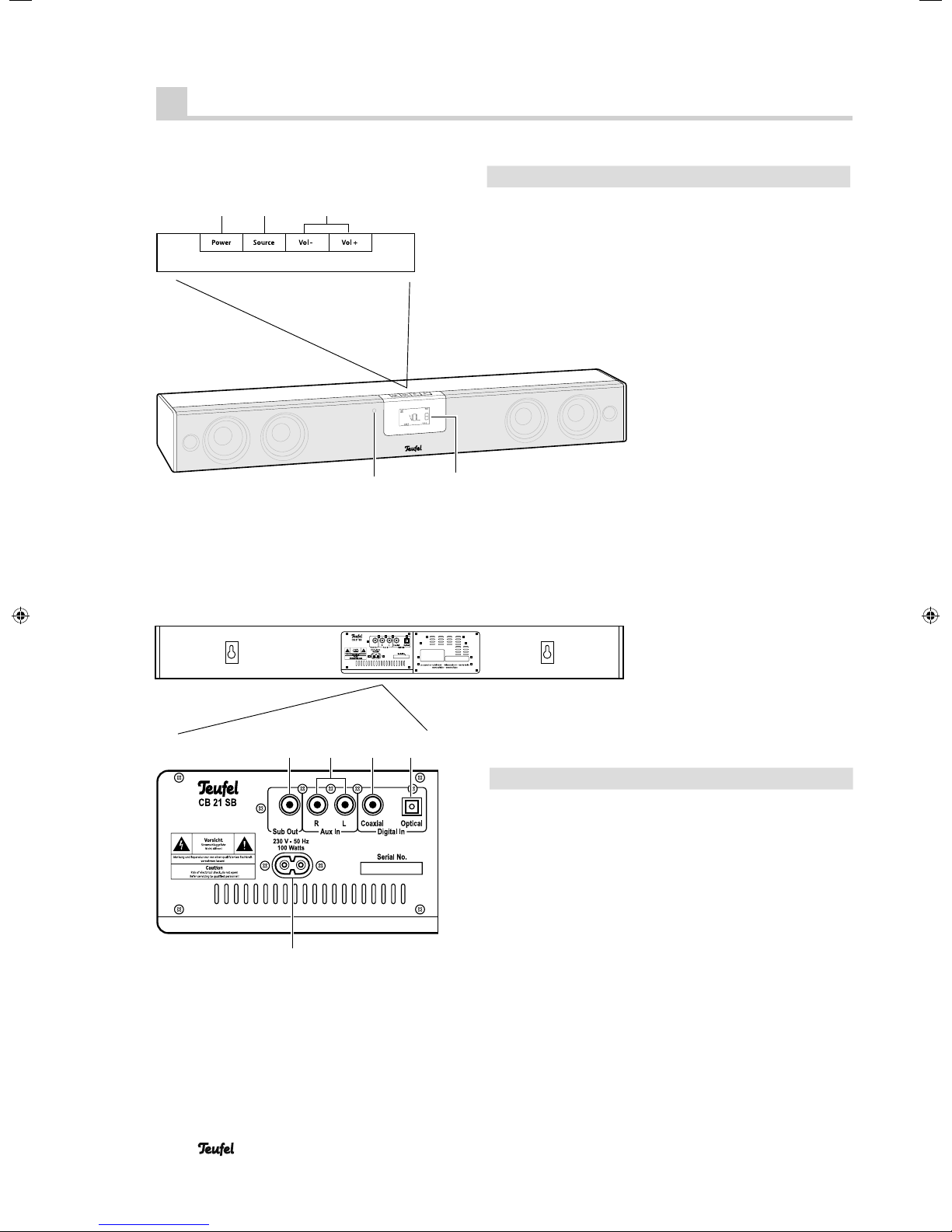

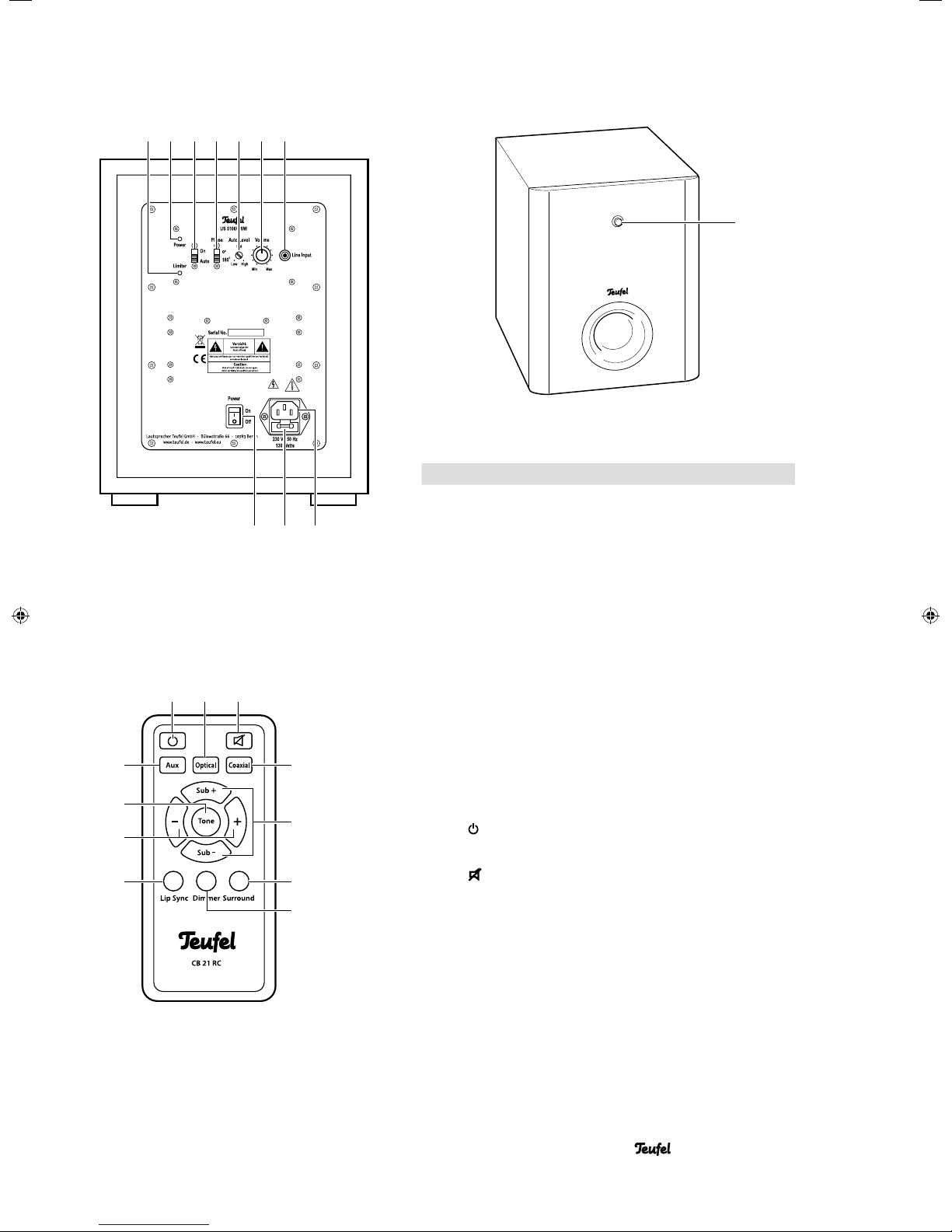

Control elements and connections ..................................................................................................................................8

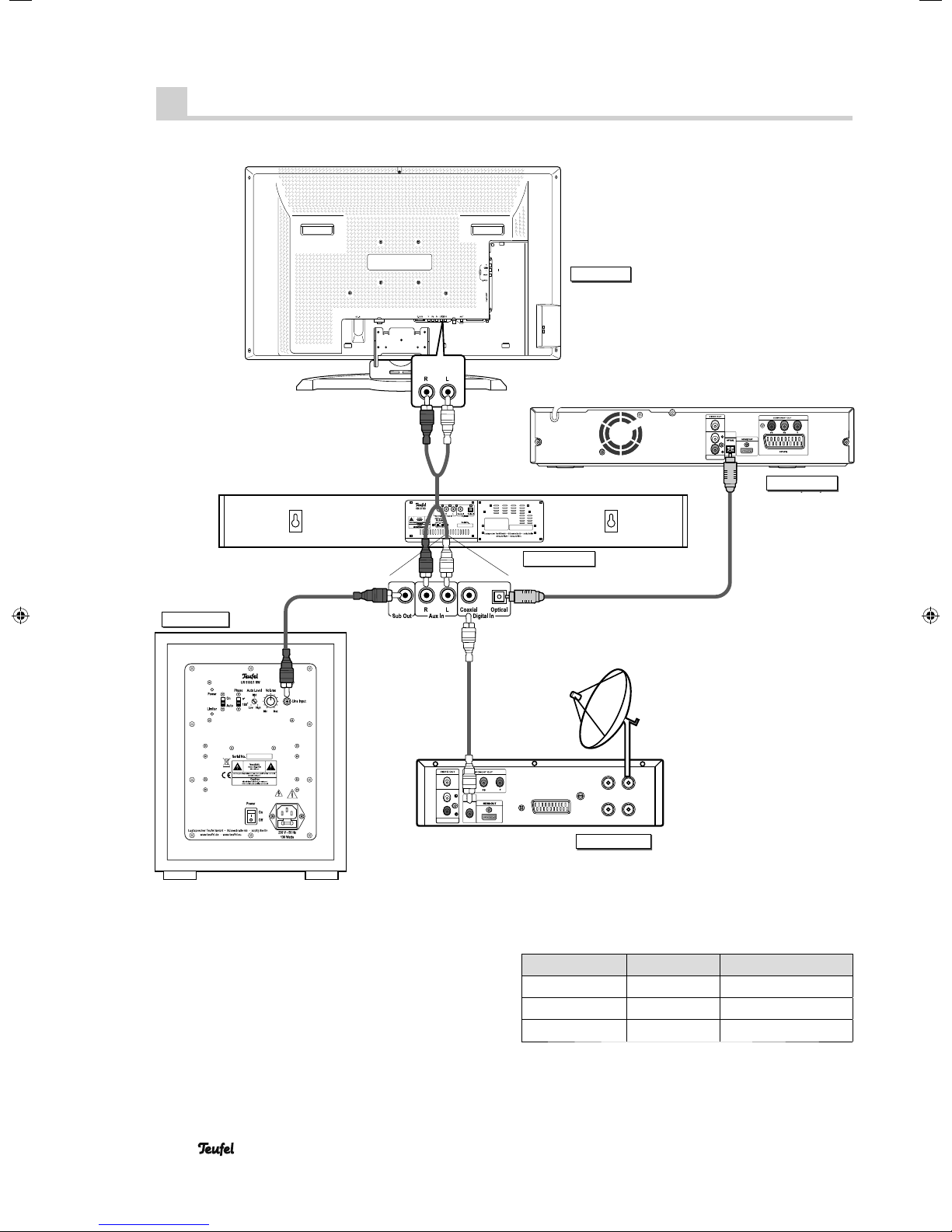

Connection example ....................................................................................................................................................10

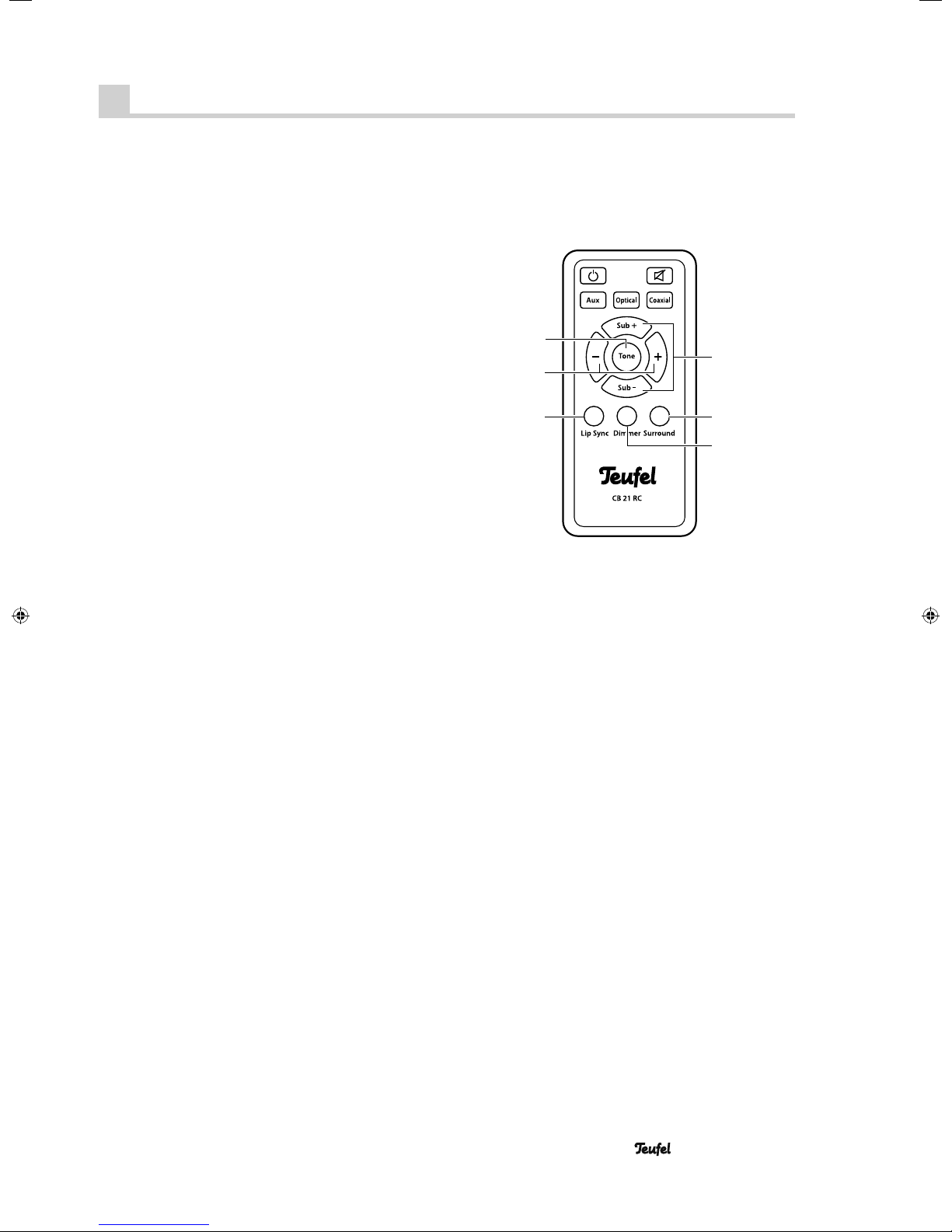

Remote control ............................................................................................................................................................11
The battery ..................................................................................................................................................11

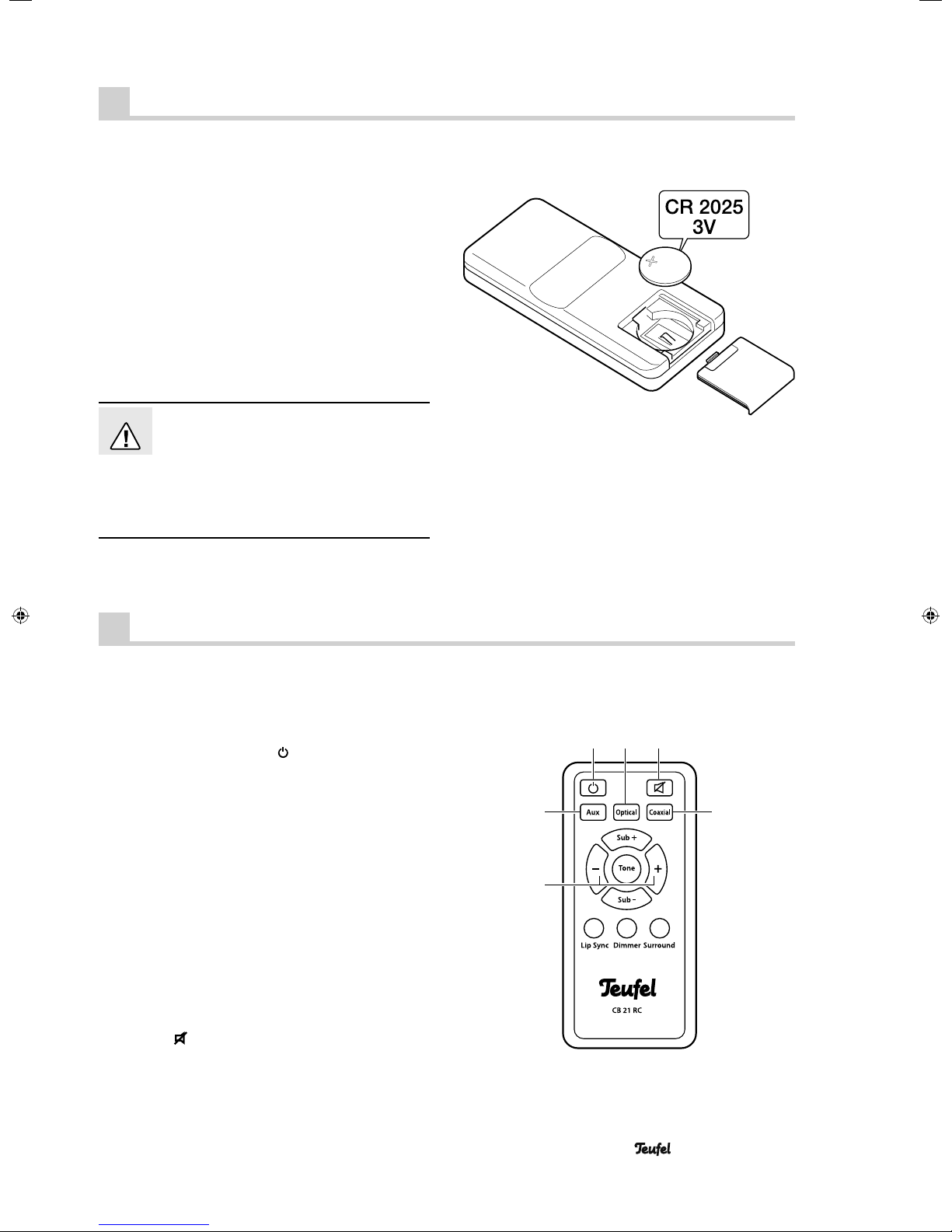

Changing the batteries ..................................................................................................................................11
Basic functions .............................................................................................................................................................11

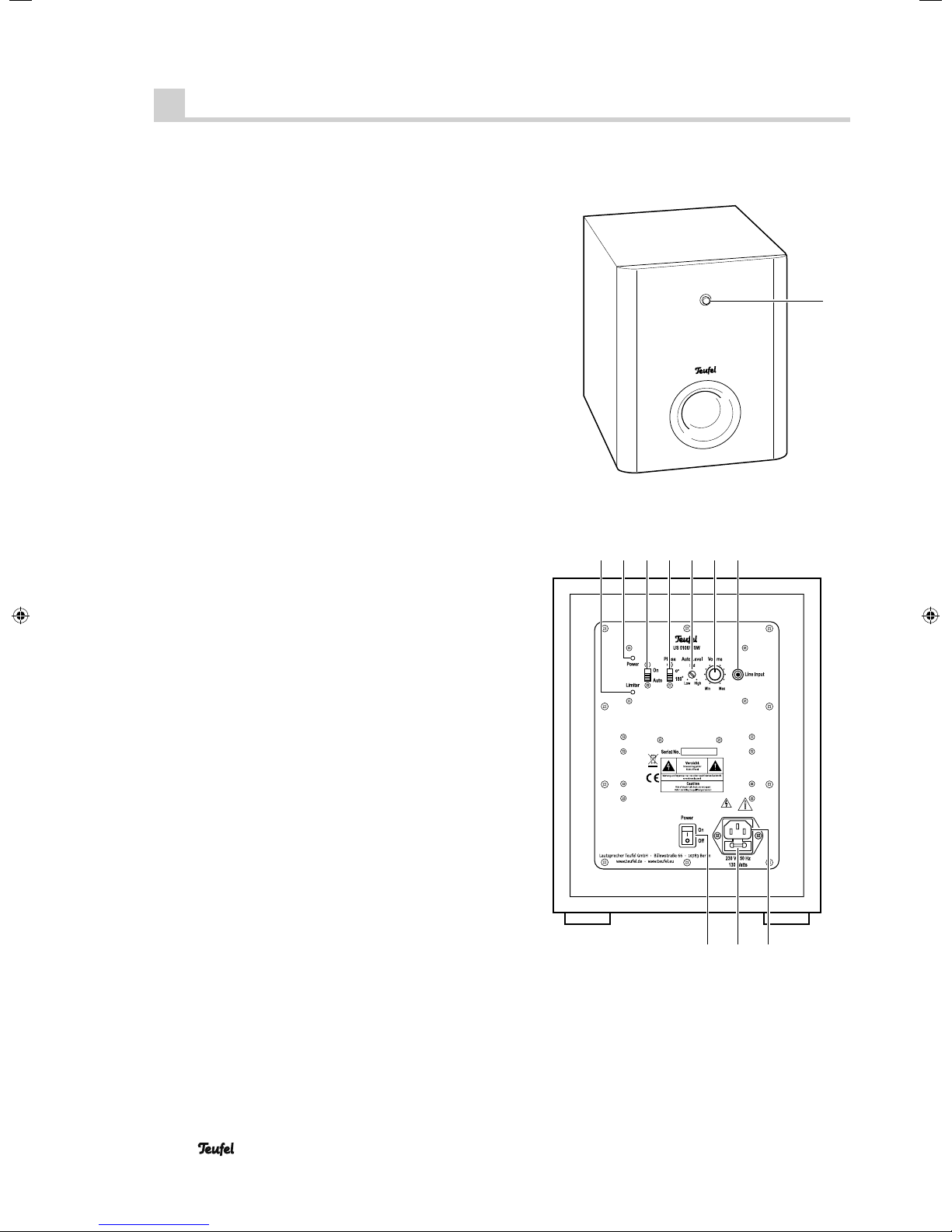

Subwoofer ..................................................................................................................................................................12
Activating and deactivating ...........................................................................................................................12
Auto Level ....................................................................................................................................................12
Subwoofer volume ........................................................................................................................................12
Phase switch.................................................................................................................................................12
Limiter .........................................................................................................................................................12
Adjusting the sound .......................................................................................................................................13
Display brightness .........................................................................................................................................13
Lip Sync .......................................................................................................................................................13
Settings .......................................................................................................................................................................13
Care and cleaning .......................................................................................................................................................14
Protecting the environment ..........................................................................................................................................14
Troubleshooting ...........................................................................................................................................................15
Technical data .............................................................................................................................................................16
2 • Cinebar 21
Page 3
General notes and information
Notice
The information in this document may change without
prior notice and in no way constitutes any liability on the
part of Lautsprecher Teufel GmbH.
No part of these instructions may be reproduced in any
form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written
permission of Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.0
February 2012
Original packaging
If you wish to exercise your eight-week right of return, we
ask that you be absolutely sure to hold onto the packaging. We can only accept the return of the device with
ORIGINAL-PACKAGING.
Empty boxes are not available!
Trademarks
© All trademarks are the property of their respective
owners.
Complaints
In case of complaint we will need the following information to process your enquiry:
1. Invoice Number
Can be found on the sales slip (enclosed with the
product) or on the order confi rmation received as a PDF
document, e.g. 4322543.
2. Serial number or batch number
Located on the back side of the unit,
e.g. serial #: IL30009440122A-123
Many thanks for your support!
Contact
For questions, suggestions or criticism please contact our
customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen
Buelowstrasse 66
10783 Berlin (Germany)
Phone 00800 - 200 300 40 (free of charge)
Fax +49 (0)30 / 300 930 930
E-mail: service@teufelaudio.com
www.teufelaudio.com
Dolby
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
DTS
Manufactured under license under U.S. Patent Nos:
5,956,674; 5,974,380; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS, the Symbol, &
DTS and the Symbol together are registered trademarks
& DTS Digital Surround and the DTS logos are trademarks
of DTS, lnc. Product includes software. © DTS, Inc. All
Rights Reserved.
Proper use
The speaker set is designed for audio signal playback.
Use the unit only as described in these operating instructions. Any other use will be deemed as not in accordance
with the instructions and may lead to damage of property
or even persons.
The manufacturer accepts no liability for damage caused
by use not in accordance with the instructions.
The unit is intended for private use.
Before operating the unit for the fi rst time please
read the safety notes and operating instructions
carefully. This is the only way to use all functions
safely and reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
• Cinebar 21 3
Page 4
Safety notes
Caution icons
You will fi nd the following caution icons in these instructions:
Danger
Attention
High risk !
Failure to observe the warning may result in
severe personal injury or death.
Moderate risk !
Failure to observe the warning may result in
p roperty damage.
Minor risk!
Points which should be observed when handling the unit.
Safety notes
Danger
electric shocks.
• The device is only suitable for use with a power supply
• If the unit’s case or mains cable is defective or shows
• In the event of damage, a power supply cable with a
• If the unit emits smoke or smells of burning or other
• The button Power (1) does not disconnect the device
• Never open the unit’s housing.
• Do not insert any objects through the vent slots in the
• Only use the unit in indoor areas.
• Do not operate the unit in damp areas and protect it
Risk of electric shock!
Faulty installation of electrical equipment or
mains voltage which is too high can cause
voltage of 230 V~/50 Hz.
other signs of visible damage, disconnect the mains
adapter immediately from the socket and do not operate the device.
fi xed connection to the device must be replaced by the
manufacturer, the manufacturer’s customer services or
a similarly qualifi ed person in order to ensure safety.
unusual odours, disconnect it immediately from the
power supply and do not operate it.
from the power supply. For this reason, connect it to an
easily accessible socket so that you can quickly disconnect it from the power supply in the event of faults.
Repairs may only be carried out by an authorised
specialist workshop. Only parts which conform with the
original unit specifi cations may be used in this case.
There are electrical and mechanical parts in this unit
which are necessary in order to avoid exposure to
sources of danger.
housing.
from drops or splashes of water.
Also take care not to stand vases or other containers
of liquid on or near the unit in order to avoid liquid
getting into the case. If water or other
foreign objects
penetrate the case, immediately disconnect the power
plug and if applicable, remove any batteries. Send the
unit to our service address in this case.
• Never touch the mains adapter with damp hands.
• Check the unit regularly for damage.
Danger
• Do not allow children to play with the unit or the pack-
• Ensure that children do not remove small parts from the
• Never allow children to operate electrical devices
emitted, especially if a subwoofer is activated and set to
full volume. This may have psychological consequences
and also cause physical injury. Children and pets are
particularly at risk.
• Set your signal source unit volume control to a low
• When the volume is set high, always keep a certain
• To avoid damage to health, avoid extended listening at
Danger
• Do not allow battery acid to come into contact with
Danger
• Never attempt to recharge lithium batteries.
• Only use batteries of the same or equivalent type.
• Do not heat or short circuit batteries and rechargeable
Danger to children!
Children can become trapped in the packing
fi lm when playing and suffocate.
ing fi lm. Danger of suffocation.
unit or take them off of the unit (e.g. button cells from
the remote control, knobs or plug adapters). They could
swallow the parts and choke.
If a battery is swallowed, immediately consult a physician with the child.
unsupervised.
Danger to hearing!
Loud noise may lead to hearing loss.
Very high noise pressure may suddenly be
setting.
distance from the unit and never place your ear directly
on the speaker.
high volume.
Danger of chemical burns!
Leaking battery acid may lead to chemical
burns.
skin, eyes and mucus membranes. In case of contact
with acid rinse the affected location immediately with
plenty of plain water and if necessary see a doctor.
Danger of explosion!
Lithium batteries can explode if handled improperly.
batteries and do not dispose of them in fi re.
Also never expose batteries and rechargeable batteries to direct sunlight.
4 • Cinebar 21
Page 5
Danger
Danger of injury/damage!
Incorrect location may result in damage.
Attention
Fire hazard!
Improper use may lead to damage or fi re.
• Never use the unit unmounted in vehicles, in unstable
locations, on wobbly stands or furniture, on underdimensioned brackets etc. The speakers could tip or fall
down and cause injury to persons or be damaged.
• Arrange the speakers so that they cannot be knocked
over accidentally and make sure that the cables do not
pose a trip hazard.
• If mounting the speakers on the wall, make sure that
the job is carried out by a professional.
• Only use suitable wall holders to mount the speakers.
Verify the carrying capacity of the walls.
• Do not place the unit near sources of heat (e.g. heaters, ovens, other heat generating equipment such as
amplifi ers etc.)
• Do not place open fl ames such as burning candles or
similar on the unit.
• Ensure suffi cient ventilation.
• Do not place the unit in direct sunlight.
• Do not cover the ventilation slots with curtains, cloths,
newspapers or similar. Heat build-up inside the unit
can shorten the lifetime of the unit.
Attention
Risk of damage!
Power overload due to lightning strike may
damage or destroy the unit.
• If the unit is to be left unsupervised for a long period
(e.g. during a holiday), or if a thunderstorm is forecast,
disconnect it from the mains power supply.
Leaked batteries may damage the remote control.
• In case of prolonged absence, remove the battery from
the remote control.
• Cinebar 21 5
Page 6

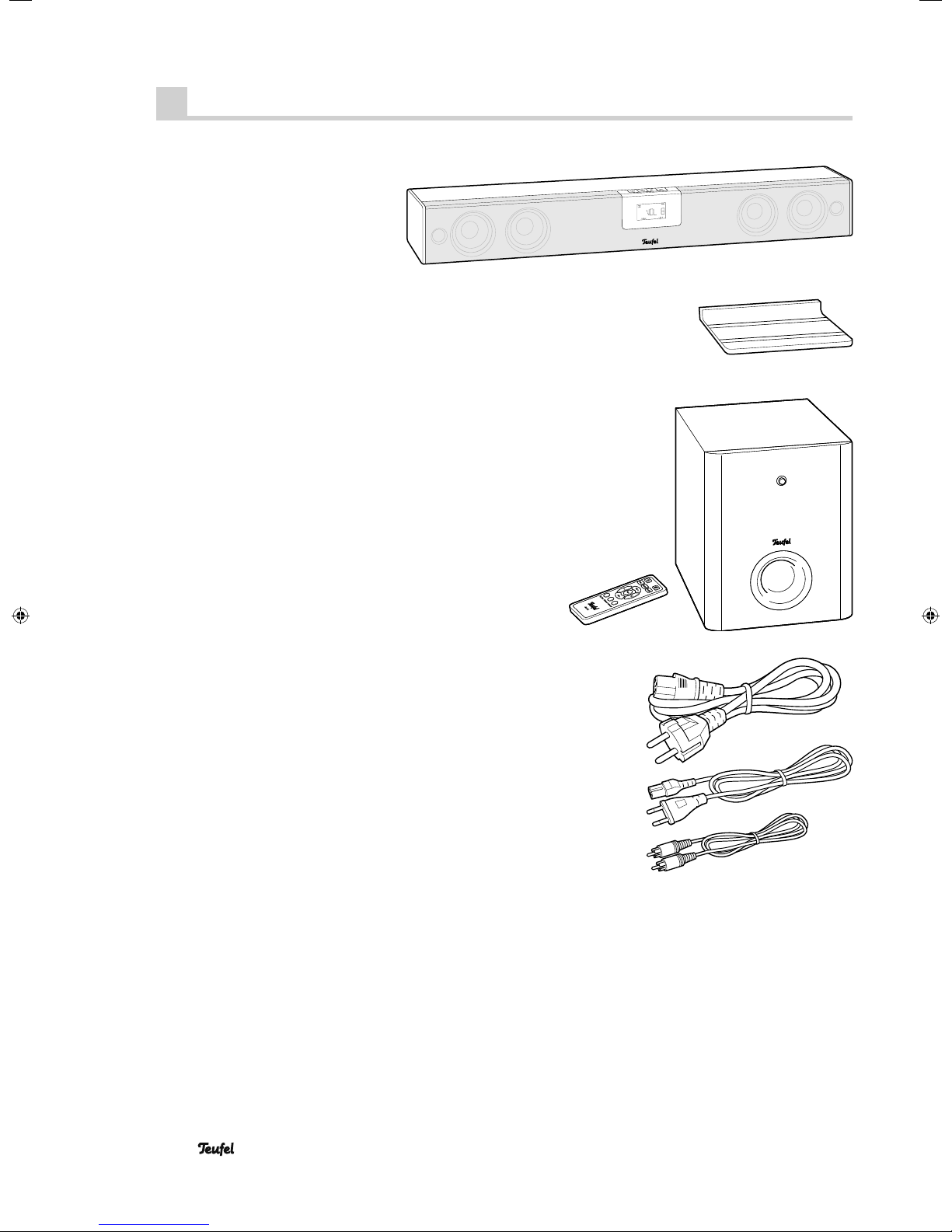

Overview
Product contents
햲 1 x Cinebar 21
햳 1 x stand for Cinebar 21
햴 1 x subwoofer US 5106/1 SW
햵 1 x remote cont rol
햶 1 x power cord for subwoofer
햷 1 x power cord for Cinebar 21
햲
햳
햴
햸 1 x RCA cable for Cinebar subwoofer connection
Check to be sure
• Check that all items have been delivered and that nothing is damaged.
• If the delivery is incomplete or you fi nd damage sustained in transit, do not operate the unit but contact our
service department (see page 3).
햵
햶
햷
햸
6 • Cinebar 21
Page 7

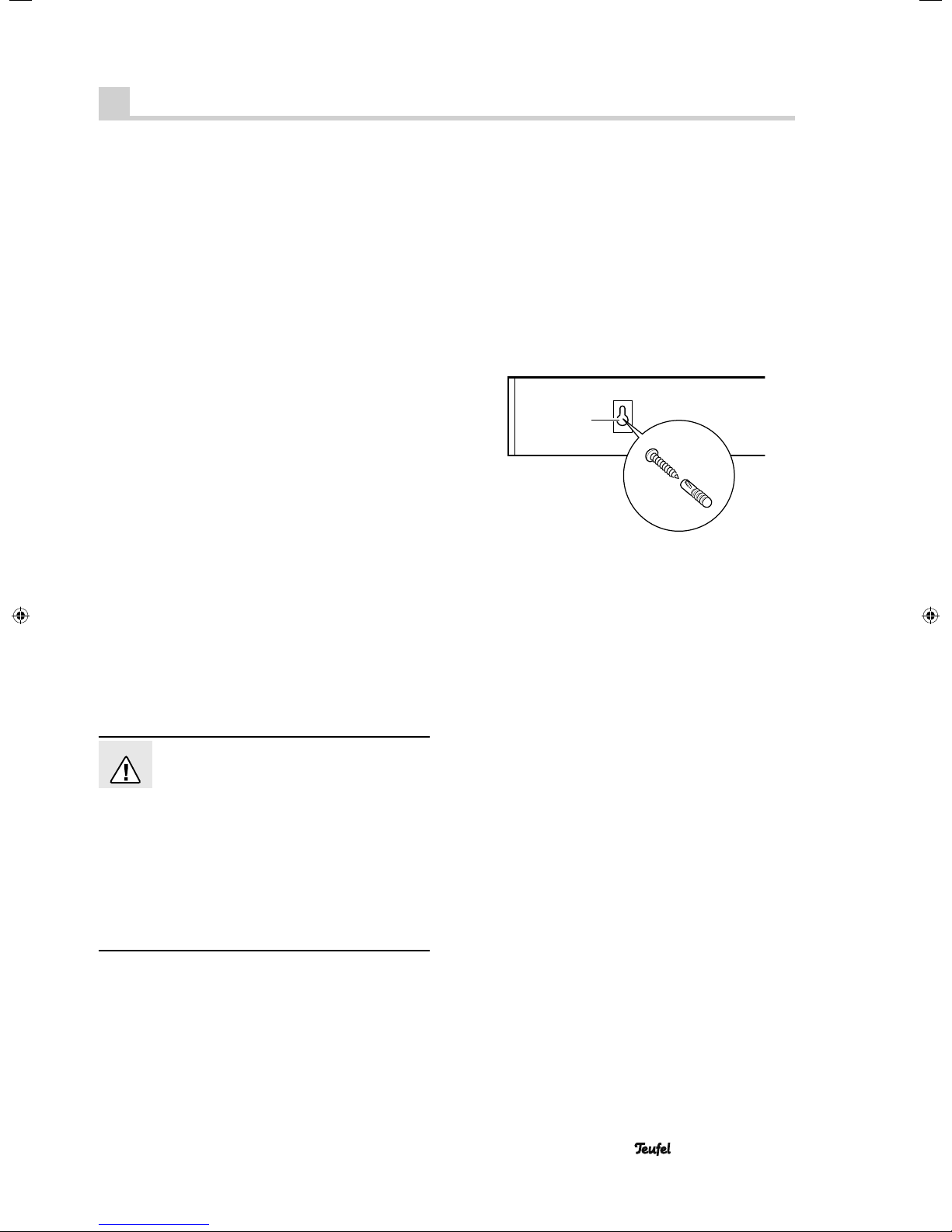

Setup/wall mounting
Setup location
Cinebar 21
A location directly under the TV set is ideal. Hang the
Cinebar 21 either directly to the wall or place it on the
stand 햳 below the TV set.
Subwoofer
If possible, you should also place the subwoofer on the
fl oor close to the television. However, you can also set it
up in another location in the room as the listener’s ears
are unable to locate lower tones.
Operating the device in the corner of a room is not
recommended.
Location tips
• Select a stable, level base.
Please consider the following chapter when mounting
the device on the wall.
• Make sure that the environment is clean and free from
dust.
• Avoid placing the unit close to sources of heat or in
direct sunlight.
• Arrange the connector cables so that they do not pose
a trip hazard.
• Do not place any heavy objects on top of the cables or
the units.
Wall mounting
You will need the following material for wall mounting on
a solid stone wall:
• 2 x dowels (ø 8 mm)
• 2 x screws, 5 x 50 mm
(screw head = ø 10–12 mm)
1. Mark the hole distance between the two wall mounting
profi les of 61.25 cm on the wall where you intend to
install the Cinebar 21. Use a folding rule, pencil and
level for this purpose.
2. Use a metal detector to ensure that there are no cables
or pipes in the areas where you intend to drill. If necessary, select another place for installation.
3. With an 8 mm masonry drill, drill a hole that is approx. 45 mm deep at each of the marked positions.
4. Insert 2 dowels (ø 8 mm) completely in the drill holes.
5. Screw one screw (5 x 50 mm) into each of the dowels
until the distance between the wall and screw head is
approx. 4 mm.
A
6. Push the Cinebar 21 up against the wall so that the
screws disappear into the holes A. Now pull the
Cinebar 21 down so that the screws slip into the narrow slot.
7. If necessary, turn the screws further into or out of the
holes until the Cinebar 21 is fi rmly mounted on the wall.
Danger
provided below.
• Only skilfull persons may mount the Cinebar 21 on the
• The product may only be mounted on a suitable, solid
• Make sure that no cables or pipes are located in the
Risk of damage and electrical shock!
Proceed with caution when mounting the
device on the wall and follow the instructions
wall.
wall. Special dowels or brackets may be necessary for
walls with a lightweight construction. Consult a professional.
areas where you are drilling. Use a metal detector to
check the areas before drilling.
• Cinebar 21 7
Page 8
Control elements and connections
Cinebar 21 – Top and front side
12 3
Cinebar 21 – Back side
Item Name Description
1Power Switch the device on or to standby
2 Source
3Vol –/+
4 Display
5 Standby LED
5
4
Select an input jack (Aux In, Digital In
Optical, Digital In Coaxial
Increase (+) /
reduce (–) volume
6
10
8 • Cinebar 21
897
Item Name Description
6Sub Out RCA output jack for subwoofer
7 Aux In R/L
Digital In
8
Coaxial
Digital In
9
Optical
10 230 V - 50 Hz
RCA input jacks for analogue audio
signals from external players
RCA input jacks for digital audio
signals from external players
TOSLINK input jack for digital (optical)
audio signals from external players
Euro 8 jack for power cord
햶
Page 9
Subwoofer backside Subwoofer front side
12 13 14 15 16 17
11
Item Name Description
11 L i m i t e r Overload control LED
12 P owe r Power control LED
19 1820
13 Auto / On Subwoofer switched on continuously
(On) or only switched on when receiving a control signal from the Cinebar 21
(Auto)
14 Phase Switch the subwoofer phase (similar to
swapping the speaker cables)
Remote control
22
23
24
15 A uto Level
16 Vo lum e Adjust subwoofer volume
17 Line Input RCA input jack of Cinebar 21, jack Sub
Adjust sensitivity of automatic activation
Out (6)
18 230 V / 50 Hz Low heat device input jack for
power cord
32
25
19
Mains fuse
20 Power Mains switch for subwoofer
31
26
30
21 Switch the subwoofer on/to standby
22
Switch the Cinebar 21 on/to standby
23 Optical Select Digital In Optical (9) as a source
2729
24
Mute the speakers
25 Coaxial Select Digital In Coaxial (8) as a source
28
26 Sub +/–
27 Surround
Reduce subwoofer volume
Activate and deactivate surround sound
effects
28 Dimmer Adjust the display brightness
29 Lip sync
Synchronise speech and fi lm
30 + / – Increase (+) / decrease (–) volume
31 Tone
Increase / decrease bass and high
range tones
32 Aux Select Analog In (7) as a source
21
햵
• Cinebar 21 9
Page 10
Connection example
RCA audio cable
AUDIO OUT
TV set
DIGITAL
AUDIO OUT
AUDIO OUT
DVD player
RCA coaxial cable
Subwoofer
DIGITAL
AUDIO OUT
COAXIAL
AUDIO OUT
• This connection example only provides a few possibilities for connecting the device. There are often different
connecting methods possible for a device. Please consult the operating instructions of the respective device
for more information in this regard.
• If your TV set does not have separate audio output
jacks, you can relay the sound to the Cinebar 21 using
a scart/RCA adapter.
you have connected all devices, you can also
• Once
connect the Cinebar 21 and the subwoofer to the power
supply using the enclosed power cord. Make sure that
the sockets are easily accessible.
Cinebar 21
Optical cable
RCA
coaxial cable
Sat receiver
• If you have connected and activated the devices as
described in this example, you must set the Cinebar 21
as follows:
Device audio Transfer Cinebar setting
TV set analogue
DVD player digital
Sat receiver digital
Aux
Optical
Coaxial
Table 1
10 • Cinebar 21
Page 11
Remote control
The battery
An insulating strip has been affi xed between the battery
and the contact in order to preserve the entire battery
capacitance for delivery. Simply pull this strip out.
Changing the batteries
The battery should be replaced if the remote control stops
functioning properly or no later than after 2 years. Battery type: CR 2025 LITHIUM BATTERY.
Remove the battery compartment cover from the remote
control and replace the batteries in order to change the
batteries.
Make sure that the polarity is correct!
Danger
• Never attempt to charge the lithium battery.
• Only insert a battery of the same or equivalent type.
• Do not heat, short circuit or dispose of the battery in
Danger of explosion!
Lithium batteries can explode if handled improperly.
fi re.
Do no subject the batteries to direct sunlight.
Basic functions
Cinebar 21
Activating and deactivating
• With the Power (1) button or
your Cinebar 21 on or to standby. The standby indicator (5) will illuminate in red in standby mode.
Selecting a source
Also see page 10, table 1.
• Push the device button Source (2) until the connector
jack of the desired source appears on the display.
• On the remote control, select the source with the buttons Aux (32) or Optical (23) or Coaxial (25).
The respective setting will appear on the display.
(22), you can switch
32
30
23
22 24
25
Adjust the volume
• On the device: Push the buttons Vol +/– (3).
• Using the remote control: Push the buttons +/– (30).
Mute (switching to mute)
• You can activate or deactivate the sound by pushing
the button
(24) repeatedly.
• Cinebar 21 11
Page 12
Subwoofer
Activating and deactivating
• You can turn the subwoofer on and off with the mains
switch (20).
After activation, it is in standby.
The On/Off button (21) and the power control LED
Power (12 ) are illuminated in red.
• Turn the subwoofer on or to standby with the On/Off
button (21).
The On/Off button (21) and the power control LED
Power (12 ) are illuminated in turn blue when activated.
• Switch On/Auto (13)
Switch setting Auto:
The subwoofer will switch to standby approx. 20
minutes after the Cinebar 21 has been switched to
standby. The subwoofer will be activated when the
Cinebar 21 is activated.
Switch position On:
The subwoofer remains on even if the Cinebar 21 is
switched to standby.
Auto Level
• You can adjust the activation sensitivity of the subwoofer using the Auto Level (15) control. Turning the
control in a clockwise direction increases the sensitivity
of the auto-on function. This means that the subwoofer
will already be activated by a very low audio signal.
12 13 14 15 16 17
11
21
Subwoofer volume
• You can set the subwoofer volume with this control
Volume (16).
• The buttons Sub +/- (26) are another way of adjusting
the subwoofer volume.
Phase switch
• Have another person switch the Phase (14) back and
forth while you assess the bass playback. Leave the
phase switch in the position where the bass is the loudest and clearest.
Limiter
• The control LED Limiter (11) will light up if the sub-
woofer is overloaded by an excessive input signal.
Reduce the input signal if this LED lights up.
19 1820
12 • Cinebar 21
Page 13
Settings
Adjust the sound
You can only adjust the sound settings with the remote
control only.
Selecting sound effects
You r Cinebar 21 is equipped with Dolby Virtual Speaker
technology. This simulates the audio impression of a 5.1
surround sound system using the soundbar.
Two sound effects are possible:
– The surround sound effect: Reference
– An effect that makes the distance between the speak-
ers appear greater: Wide
• If necessary, push the Surround (27) button several
times to set the desired sound effect.
The respective setting will appear on the display.
• If no surround sound effect has been selected, then the
audio will be emitted in stereo.
Adjusting bass and high-range tones
In addition to the sound effects, you can also increase or
decrease the bass and high-range tones individually.
1. Push the button Tone (31) several times if necessary.
You will either see the setting for the bass tones (e.g.
BASS +2) or for the high-range tones (e.g. TREB -1) on
the display.
2. With the buttons + /
to your taste.
, adjust the respective setting
– (30)
31
26
30
2729
28
Adjusting the subwoofer volume
• Adjust the subwoofer volume with the buttons Sub +/–
(30).
Display brightness
• Push the button Dimmer (28) several times if necessary
in order to set one of the display’s 3 brightness levels.
Lip Sync
During playback of movies, the picture and sound are not
synchronous sometimes. You can eliminate this bothersome effect with your Cinebar 21.
• Push the button Lip Sync (29) and then adjust the delay
between the picture and sound using the buttons +/–
(30). Values can be adjusted between 0 and 200 ms.
• Cinebar 21 13
Page 14
Care and cleaning
Clean your Cinebar 21 regularly with a soft, damp microfi bre cloth. When doing so, please be absolutely sure to
observe the following instructions:
Danger
• Ensure that no liquid penetrates the unit.
• Disconnect the mains plug before cleaning.
Risk of electric shock!
In contact with live parts, water can lead to
electric shock or short circuit.
Protecting the environment
Batteries and rechargeable batteries
Batteries and rechargeable batteries must
not be disposed of with household waste!
Every consumer is required by law to bring
all batteries and rechargeable batteries,
whether they contain harmful substances*) or not, to a
collection point run by the communal authority or borough or run commercially, so that they can be disposed
of in an environmentally friendly manner.
Please only hand in fully discharged batteries and rechargeable batteries!
*) labelled with: Cd = Cad mi um, Hg = Mercury , Pb =
Lead
Attention
• If possible, only use plain water without any additives.
• In no circumstances should caustic cleaning products,
Risk of damage!
Using the wrong cleaning materials may damage the delicate surface of the case.
In case of stubborn marks, a mild soap solution may
be used.
white spirit, thinners, petrol or similar be used for
cleaning.
Disposing the unit
Used units must not be disposed of with household waste.
If the unit is no longer operational, every
consumer is required by law to dispose of used
devices separately from household waste,
e.g. at a collection point run by the communal authority
borough. In this way it is ensured, that used devices are
properly recycled and that negative consequences on the
environment are avoided.
For this reason, electrical equipment is labelled with the
displayed symbol.
14 • Cinebar 21
Page 15
Troubleshooting
The following advice should help you to solve problems. If this doesn’t work, the extensive FAQs on our website will surely provide you with support. Otherwise, please contact our hotline (see page 3). Take note of the warranty instructions.
Problem Possible cause Solution
The device emits no sound. Wrong source selected. Select the right source (see page 11).
Device has been set to “mute”.
Volume is set to “0”. Increase the volume.
The sound is not optimal. The settings are not correct. Adjust the sound settings as described on
The subwoofer isn’t working.
The subwoofer hums. The subwoofer is connected to another
The subwoofer sound is
dull.
The subwoofer does not
automatically switch on.
Playback is noisy.
The subwoofer is off or doesn’t have any
power.
The volume has been set too low.
circuit than the rest of the system.
The buzzing is caused by problems with
the power supply.
The buzzing is caused by a multiple
socket.
The Phase (14) switch setting is incorrect.
The switch Auto/On (13) has not been set
to “Auto”.
The input signal is too weak.
Generally speaking, the Cinebar 21 is a
very low-noise system. In most cases, the
speaker system with exceptional resolution
in the high range area can expose the
poor quality of a signal source (e.g. from
MP3 fi les).
Push the button
page 13.
Turn on the subwoofer with the switch (20).
Check the power cord and socket.
Increase the volume with the Volume (16)
control and/or the Sub + (30) button.
Connect the subwoofer and Cinebar 21 to the
same circuit.
Buy a line fi lter and connect both devices to
it.
Use another multi-outlet power strip or con-
nect the subwoofer directly to the wall socket.
It may also help to insert the power plug the
other way around.
Change the switch position as described on
page 12.
Set the switch Auto/On (13) to “Auto”.
Turn the Auto Level (15) control to “high”.
Ensure that the source is sending a clean
signal to the Cinebar 21.
or adjust the volume.
Page 16
Technical data
Active subwoofer
Cinebar 21
US 5106/1 SW
Dimensions (WxHxD) 240 x 312 x 330 mm 918 x 115 x 110 mm
Weight 6.9 kg 6.2 kg
Operating voltage: 230 V~/50 Hz 230 V~/50 Hz
Max. power consumption 130 watts 100 watts
For further technical information, please view the product
description on our website at www.teufelaudio.com.
This product conforms with Council of the
European Union guidelines 2004/108/EC and
2006/95/EC.
Technical changes reserved!
For questions, suggestions or other issues please contact our customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen - Aufgang D1
10783 Berlin (Germany), Buelowstr. 66
Tel.: 00800 200 300 40 (toll-free)
Fax: +49 (0)30 - 300 930 930
www.teufelaudio.com
No liability is accepted for the
accuracy of this information. Technical changes, typographical errors
and other errors reserved.
Instruction No. 92014 GB 20120207
