Instruction manual en
Bluetooth® printer
0554 0543
2
Safety and the environment
Bluetooth
The product may only be operated in countries in which it is type approved (see
Technical Data).
Changes or modifications, which are not expressly approved by the responsible official
body, can lead to a withdrawal of operating permission.
Interference with data transfer can be caused by instruments which transmit on the
same ISM band, e.g. microwave ovens, ZigBee.
The use of radio connections is not allowed in e.g. aeroplanes and hospitals:
To deactivate the radio function: Remove rechargeable battery from the
instrument.
Ensure correct disposal
Dispose of defective rechargeable batteries and spent batteries at the collection
points provided for that purpose.
Send the product directly to us at the end of its useful life. We will ensure that it is
disposed of in an environmentally friendly manner.
Specifications
Functions and use
The Bluetooth
®
printer is used to produce printouts of protocols in conjunction with
compatible devices:
· Testo measuring instruments, e.g. testo 330 (from firmware 1.54), testo 335 (from
firmware 1.27).
· Windows Handheld PCs with Bluetooth
®
interface (if compatible) , Windows Mobile
2003 operating system or later, .NET Compact Framework 2.x.
Technical data
Characteristic Values
General data
Model Thermal printer with Bluetooth® interface
Printing speed 50 mm/s /1,97inch/s (typical)
Storage/operating temp. 0…+50°C / 32…122°F
Dimensions (LxWxH) 108 x 92 x 47mm / 4.25 x 3.63 x 1.85”
Weight 330g / 0.73lb (including rechargeable battery pack and paper roll)
EU Directive 89/336/EEC
Warranty 2 years (apart from printer head, rechargeable battery pack)
Rechargeable battery pack 5-cell NiMH rechargeable battery pack, 1.8 Ah
Battery charger Universal charger, input 110 V/60 Hz or 230 V/50 Hz
Thermal paper roll 58.0mm / 2,28” wide, 36mm / 1,42” diameter
3
Characteristic Values
Bluetooth® data
Type designation Bluegiga WT12
Specification 2.0
Radio class Class 2
Range <10m / < 32,8ft.
Qualified product notice WT12
Listing identifier B011198·
Listing company 10274
Certification EU countries:
Belgium (BE), Bulgaria (BG), Denmark (DK), Germany(DE), Estonia (EE), Finland
(FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT),
Luxembourg (LU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL),
Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain
(ES), CzechRepublic (CZ), Hungary (HU), United Kingdom (GB), Republic of
Cyprus (CY)
EFTA Countries:
Iceland, Liechtenstein, Norway, Switzerland
Other countries:
Colombia, El Salvador, Turkey, Ukraine, Australia, USA, Canada
Information from FCC (Federal Communcations Commision)
- This instrument fulfils 15 of the FCC guideline
- Commissioning is subject to the following two conditions:
1. This instrument may not cause any dangerous interference
2. This instrument must accept any interference received, including interference which
may cause undesired operation.
Changes
The FCC requires that the user is informed that all changes and modifications to the
instrument which are not expressly approved by Testo AG, can void the right of the user to
operate the instrument.
Accessories and spare parts
Designation Article no.
5-cell NiMH rechargeable battery pack, 1.8 Ah 0515 0034
Universal charger, input 110 V/60 Hz or 230 V/50 Hz 0554 1099
Spare thermal paper, 6 rolls 0554 0569
Spare thermal paper, 6 rolls, long-term legibility for up to 10 years 0554 0568
deenfresitptsvnl????
4

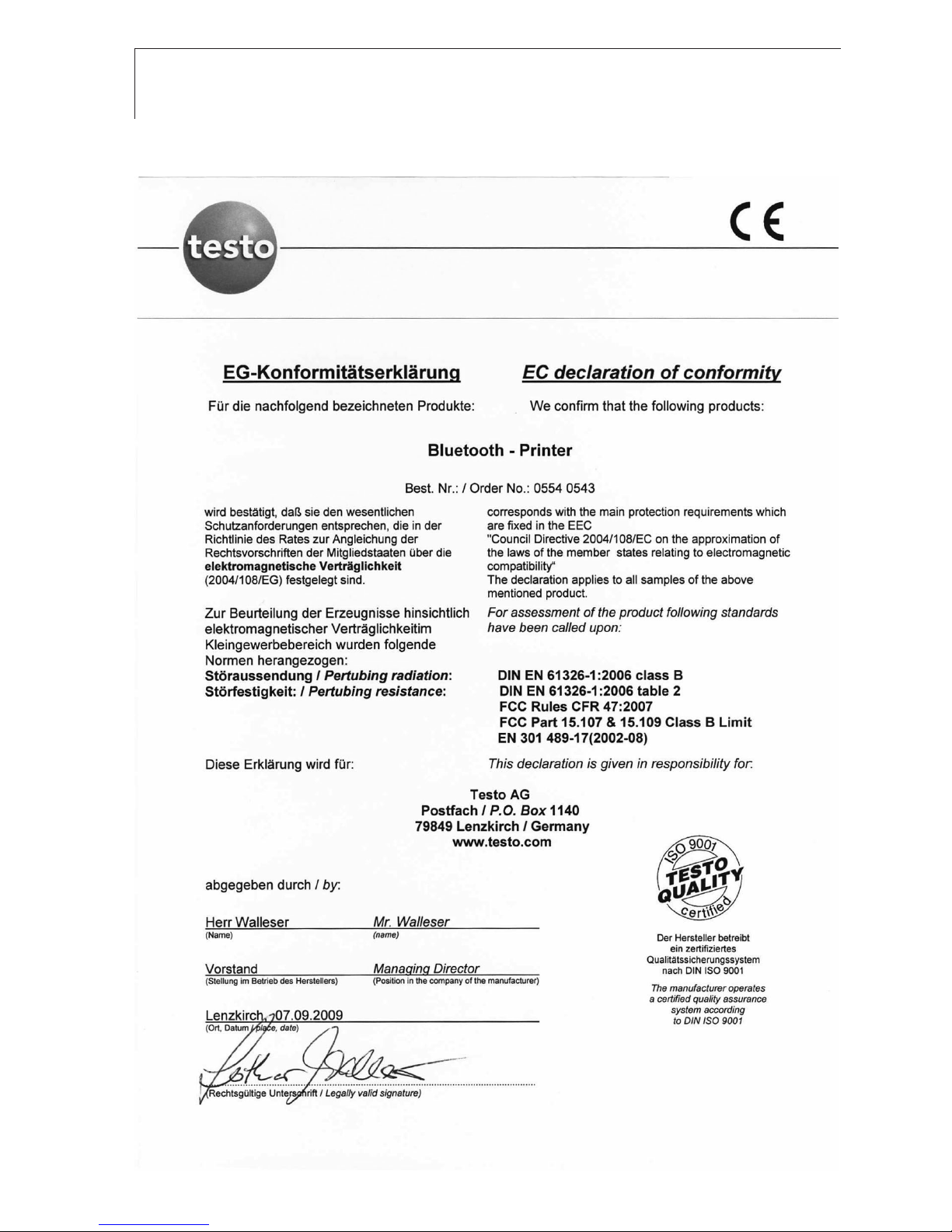

Certification of conformity
5
Product description
At a glance
Paper compartment cover
Lock release button for paper compartment
Control key
Status LED
Bluetooth
®
module (built in)
Charger socket
Service socket: only for Testo customer service!
Displaying the operating mode
· LED off: sleep mode, automatically activated 2 minutes after a button was last
pressed.
· LED lights green: standby mode, automatically activated when print data are
received.
· LED flashes green: not ready for operation, e. g. paper compartment cover open or
no paper inserted.
· LED flashes orange: rechargeable battery pack is being charged
· LED flashes red/green: rechargeable battery low.
· LED flashes red: Error.
Functions of the control key
· Pressing control key in sleep mode: activates standby mode.
· Pressing control key in standby mode: activates paper feed.
· Pressing control key twice in standby mode: starts test print-out.
First steps
For safety reasons, the printer is supplied with the rechargeable battery pack inserted
but not connected. The rechargeable battery pack must be connected and fully charged
before using the printer for the first time.
Connecting tthe rrechargeable bbattery ppack:
1 Remove screw of battery compartment.
2 Push battery compartment cover gently
downwards, slide downwards and remove the
rechargeable battery pack.
3 Connect rechargeable battery pack connector.
Observe the polarity!
4 Reinsert rechargeable battery pack. Ensure that
the lines are in the guide and are not trapped.
deenfresitptsvnl????
6
Charging tthe rrechargeable bbattery ppack:
The charging time is approx. 15 hrs. The printer should not be used while the
rechargeable battery is charging.
Connect battery charger to a mains socket and connect the printer.
If the battery is to stored for longer periods, it should be charged occasionally, as
total discharge can damage it.
Inserting ppaper:
1 Push the open button forwards until the cover
springs open.
2 Unwind a small section of paper from the roll and
insert the roll into the paper compartment.
3 Close the cover.
Using the product
Printing ddata:
Start the print process from the device transmitting the data.
7
