Page 1
testostor
117711
Data logger
and software module
Instruction Manual
and Software Description
Page 2
Contents
OPTIONS ...
GENERAL FUNCTIONS
Acoustic signal when measuring...................
27
Acoustic signal when limits are exceeded.....
27
D
ATE AND TIME ....................................................28
UNITS ..................................................................28
CALCULATION (calculated values) ........................28

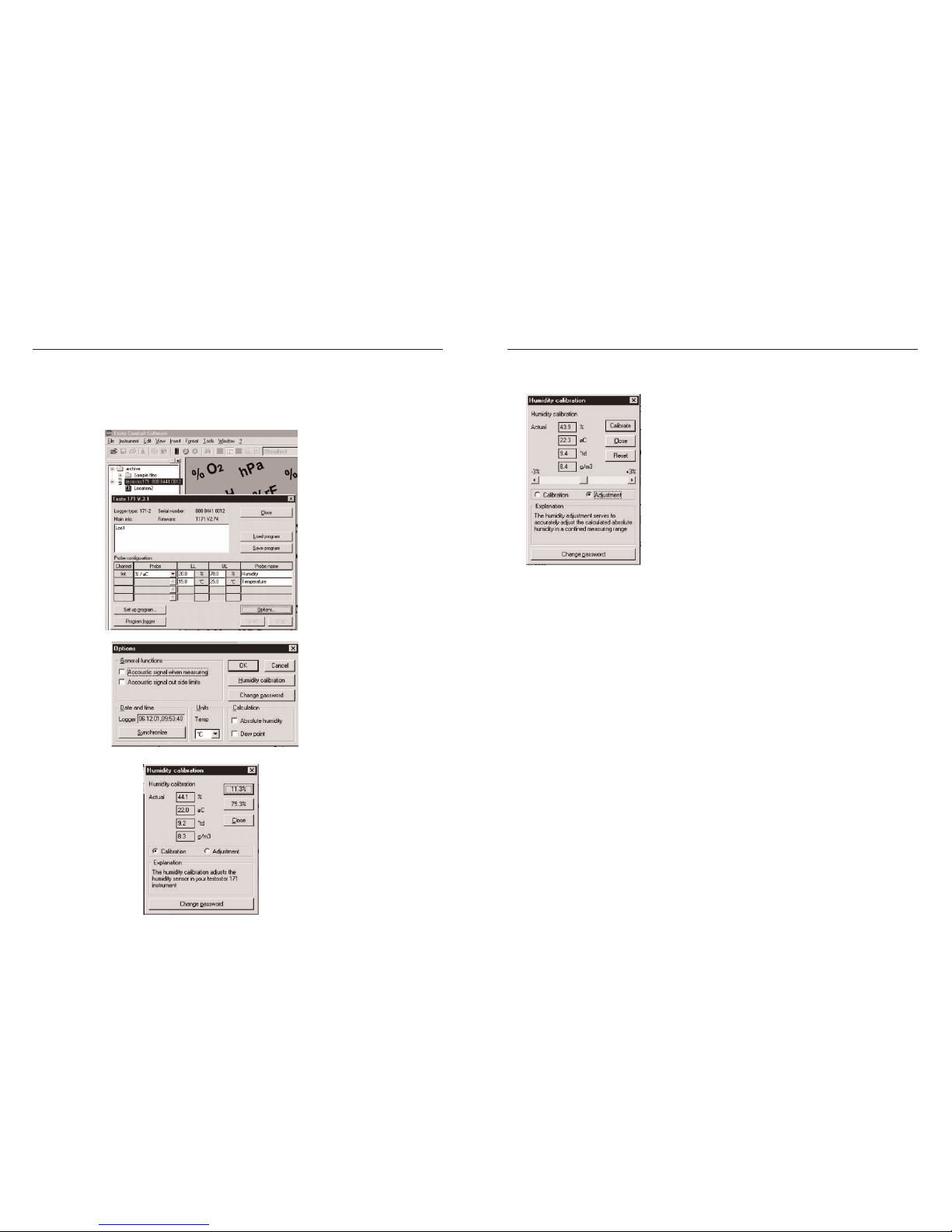

HUMIDITY CALIBRATION
Calibration .....................................................
28
Adjustment ....................................................
28
PASSWORD...........................................................29
S
AVING THE PROGRAM ..............................................29
O
PENING THE PROGRAM ............................................29
S
TART/STOP.............................................................29
Warranty.......................................................................30
Ordering data...............................................................31
testo worldwide
3
Contents
Important information...................................................4
Description ....................................................................5
Connection instructions...................................................7
Technical data.................................................................8
Requirements ..............................................................12
Making backup copies................................................12
On the job...

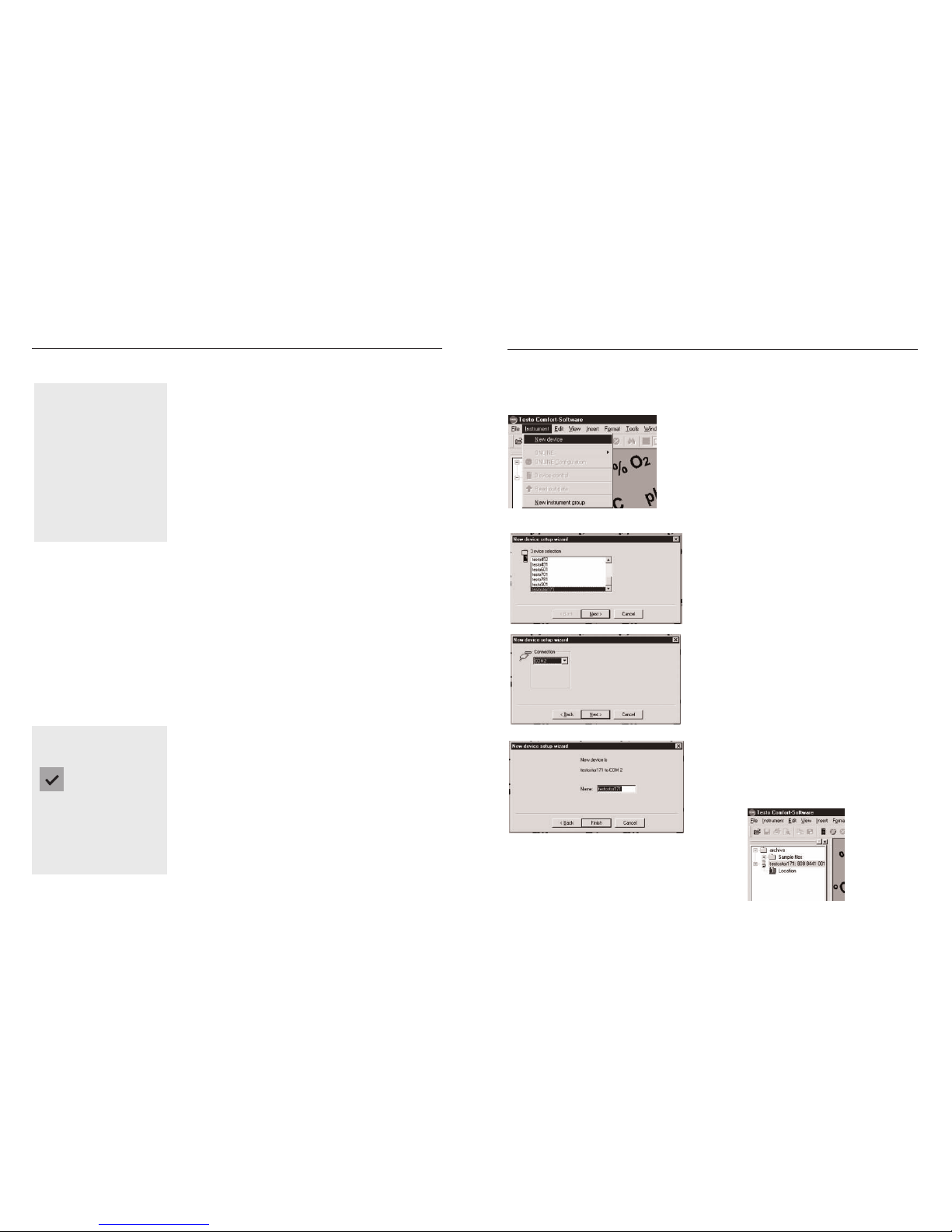

Installation ..............................................................
12
Programming the logger (Application information) .
13
Reading the memory (Application information) ......
15
Error messages ......................................................
16
Humidity calibration ................................................
17
Adjustment .............................................................
19
Changing batteries - Battery life .............................
20
Description of the “Testo 171 V.3.1” dialog box
L
OGGER TYPE and SERIAL NUMBER ............................22
MAIN INFORMATION ....................................................22

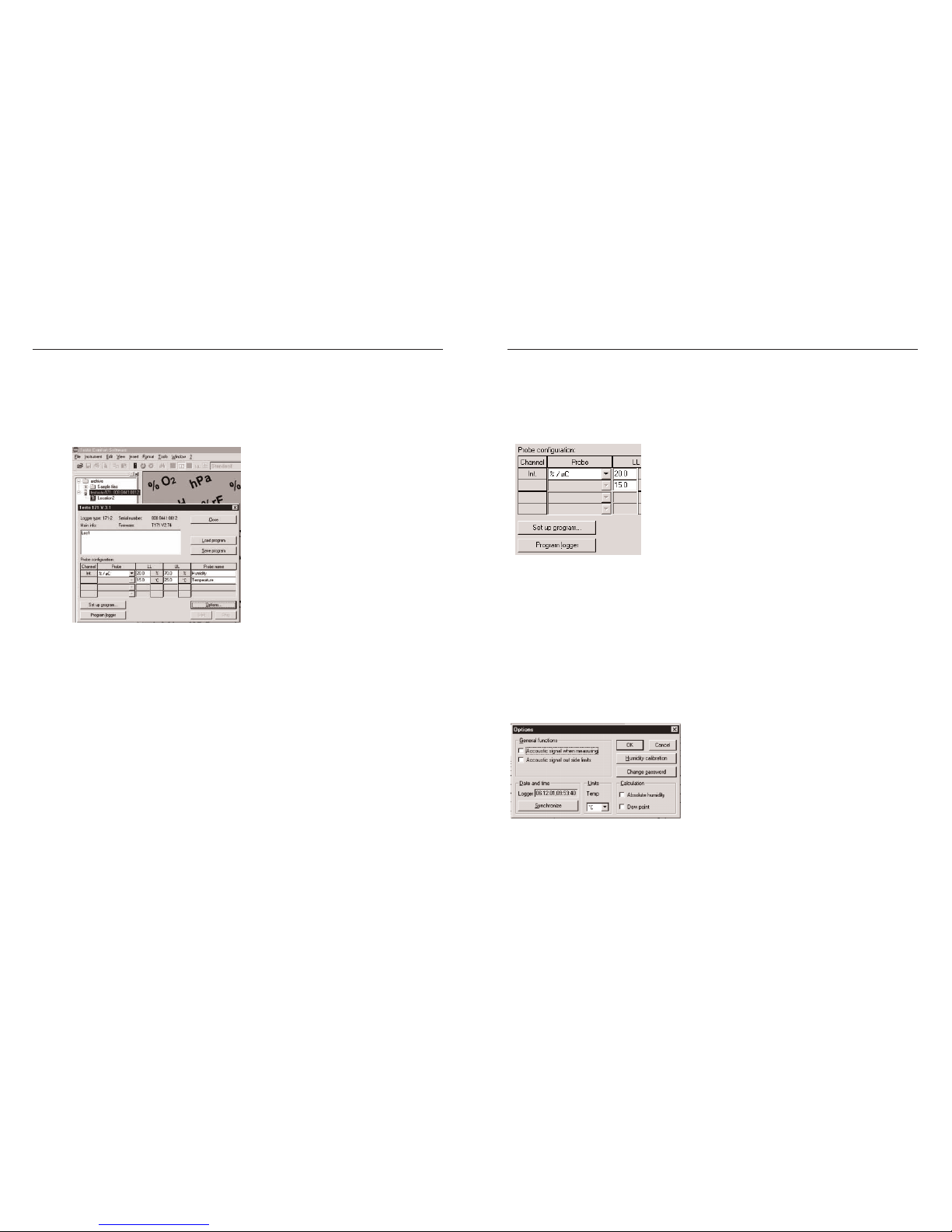

PROBE CONFIGURATION .............................................23
C
HANNELS............................................................23
PROBES
...............................................................23
UPPER/LOWER LIMIT VALUE ....................................23
NAME
..................................................................24
M

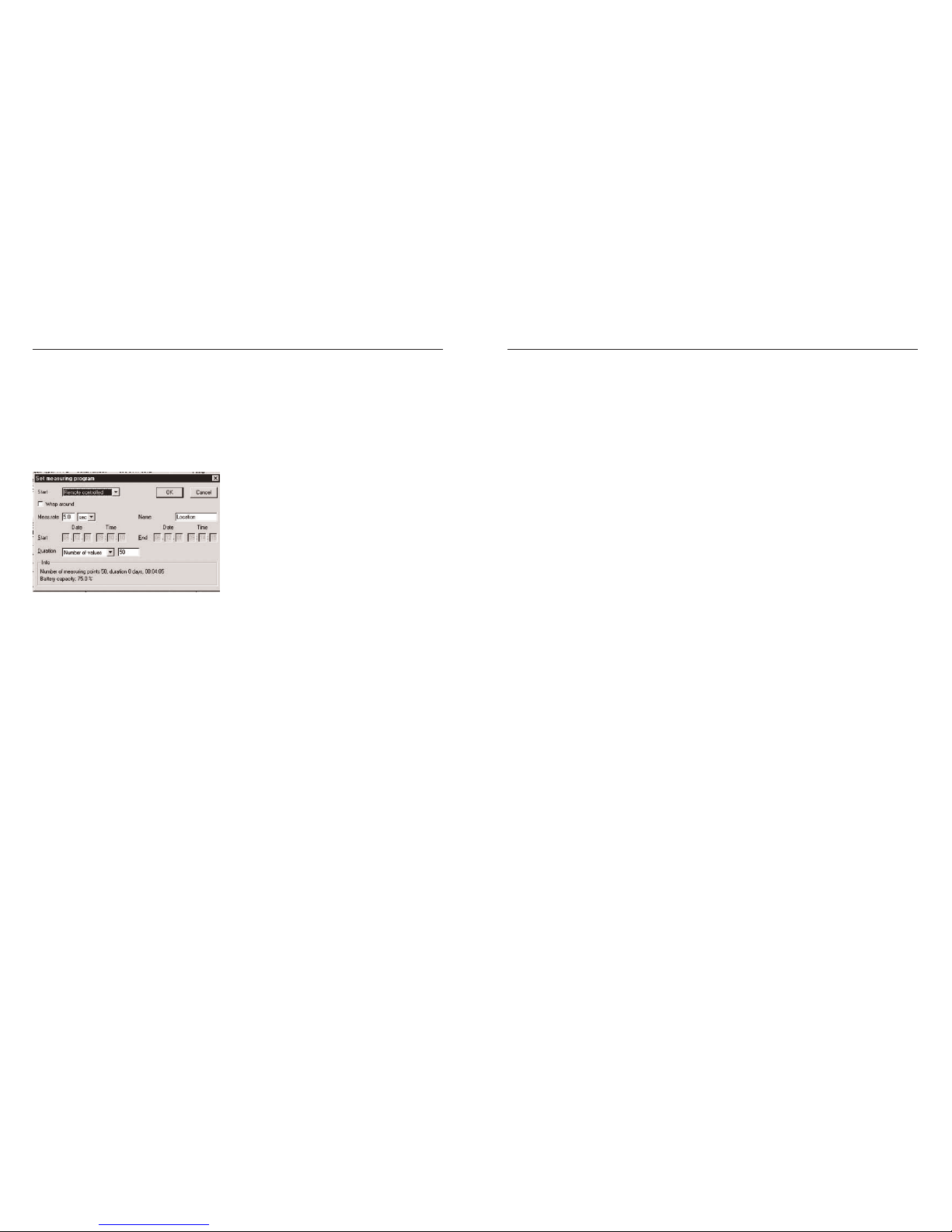

EASURING PROGRAM
START .................................................................24
WRAP
-AROUND MEMORY ........................................25
M
EASURING RATE..................................................25
N
AME
..................................................................25
I
NFO
Number of readings ....................................
25
Battery life ...................................................
25
P
ROGRAMMING THE LOGGERS.....................................26

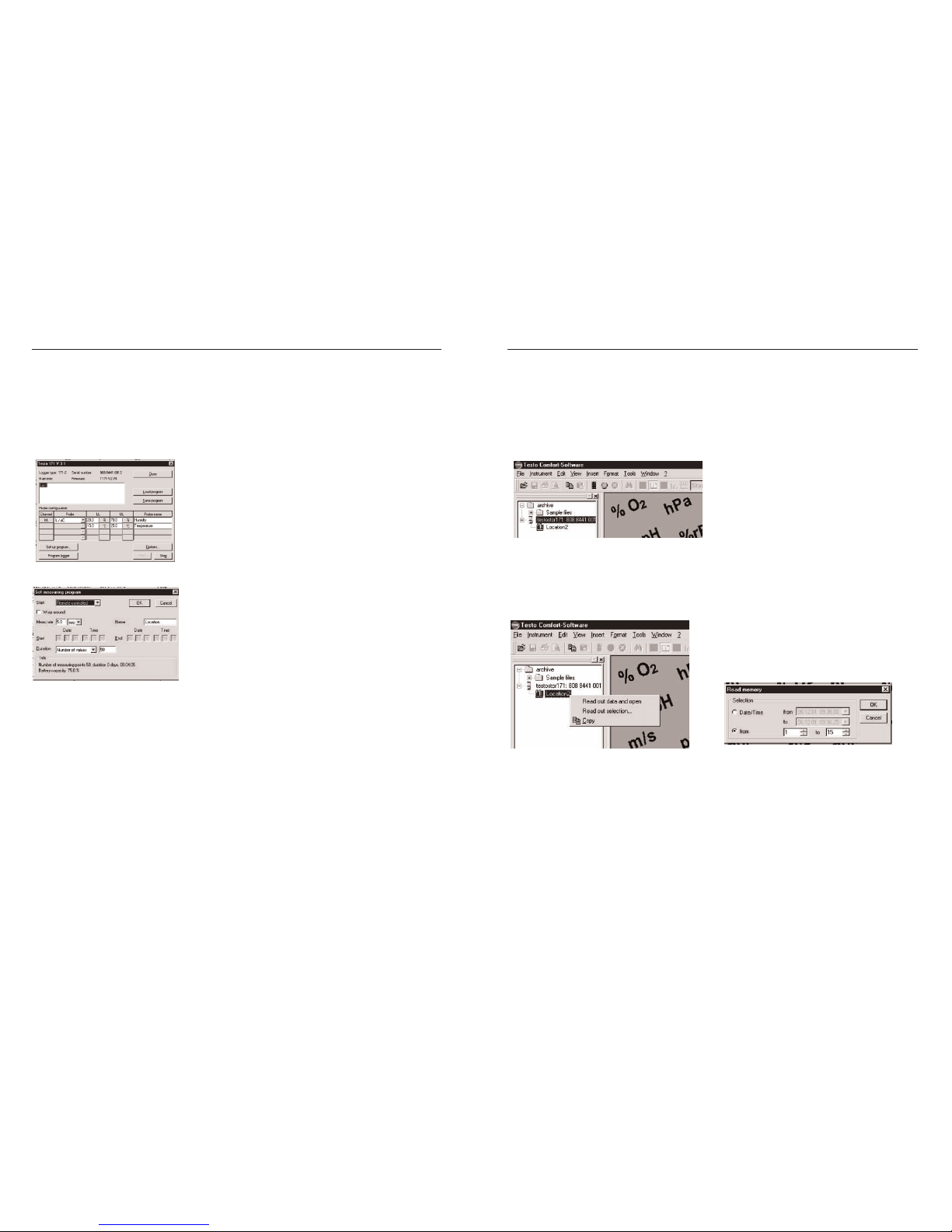

READ OUT MEMORY ...................................................26
ONLINE MEASUREMENT ..............................................27
2
According to the conformity certificate, the
instruments fulfill 89 / 336 / EWG guidelines.
Page 3
Description
General information
The data loggers from the testostor 171 series measure
and save up to 55,000 readings with a battery life
(depending on version) of up to 4 years (see also page
21).
These loggers are designed for mobile use in the food
industry, for quality control and monitoring during the
transport of sensitive products or to monitor ambient
conditions following installation (or for the service) of air
conditioning systems.
The series includes the following versions:
testostor 171-0
testostor 171-1
testostor 171-2
testostor 1722
testostor 171-3
testostor 171-4
testostor 171-6
testostor 171-8
5
Safety information
- The testostor 171-1, 171-2, 1722, 171-3, 171-4 and
171-6 logger housings come under protection class IP
65, the testostor 171-0 logger housing comes under
protection class IP 68, the testostor 171-8 logger
housing is subject to protection class IP 42.
- The plug-on display module for monitoring data, as an
alternative to the PC, is described in a separate
Instruction Manual.
- Please refer to the licence agreement and the software
warranty in the Comfort software Instruction Manuals.
4
Data logger with ...
...internal temp. sensor
...internal humidity/
temperature sensor
...external temp. sensor
... alarm output
...external humidity on
temperature sensor
171-0
171-1
171-2
171-3
171-4
171-6
171-8
x
x x (1) x (1)
x (4)
x (4)
x (2) x (2)
x
xx
x
1722
Page 4
Connection instructions
To program or read your data logger, the interface
connected to the computer is plugged into the data
logger.
7
Description
The Testo Comfort Software provides user-friendly and
uncomplicated measured data analysis and processing
in Windows®. It is a modular system, which can be
adapted to the user’s requirements. The data logger
software is an ideal basis having all of the necessary
functions of a graphic or table analysis software for
measurement data at its disposal.
The testostor 171 software module can only be operated
together with Testo Comfort software. The enclosed
instrument driver sets up communication between the
testostor 171 series and your PC.
Optimum use of all the functions is only possible with the
mouse i.e. your PC must have two free interfaces
(COM1 and COM2) in order to operate. The standard
configuration is interface at COM1, mouse at COM 2.
Testo Comfort software is constantly brought up to date
based on the feedback we receive from our customers.
Please discuss your requirements with your Testo sales
partner and ask for the latest update.
6
9 pin subminiature D
plug or standard
adapter required.
COM1
A separate available display module can be plugged
onto the logger to read the measured values on
location.
You will find a detailed description in the Instruction
manual for the display module. Please contact Testo
or one of its agencies if interested.
Page 5
Technical data
Measuring rate:
2 s to 24 h (freely selectable) XXXXXX XX
Memory capacity:
20,000 readings X
55,000 readings XXXX XXX
Alarm output:
Relay contact
1 A/42 V DC max.
30 W/30 VA max. X
Protection class:
IP 65 XXX
IP 68 X
IP 42 X
Power supply:
Lithium battery X XXXXX XX
Housing:
Aluminium, anodized X XXXXX XX
Dimensions:
131 x 68 x 26 mm XX XXX
131 x 68 x 72 mm XXX
Max. ambient temperature:
-20 to +70 °C, no condensation XXXXX XX
-35 to +70 °C X
Max. storage temperature:
-40 to +85 °C X XXXXX XX
Software:
Testo
Comfort
Software X XXXXX XX
Warranty:
Instruments: 2 years
Probes: 1 year X XXXX XXX
* All accuracy data
plus ± 1 digit
** See probes data on pages 10 and 11
testostor 171 data logger series
9
Technical data
Temperature:
Measuring sensor:
Measuring range
NTC XXXXXXX
-35 to +70 °C X
-35 to +70 °C XXX
(internal)
-10 to +50 °C X
-50 to +120 °C XXX
(external)
Type K (TE plug-in connection)
-200 to +1100 °C X
Type T (TE plug-in connection)
-50 to +350 °C X
Resolution:
0.1 °C XXXXXXXX
1 °C from +250 °C X
Accuracy*:
in permissible ambient
temperature range
Instruments
± 0.4 °C (in the range < -35 °C) XXX
± 0.2 °C (in the range -35 to +60 °C) XXX
± 0.4 °C (in the range > +60 °C) XXX
± 0.4 °C, ±0.2% of reading
(internal logger temp. ±0 to +40 °C) X
±0.5 °C, ±0.2% of reading
(internal logger temp. +40 to +70 °C) X
System accuracy with
internal sensors
± 0.5 °C (in the range < +40 °C) XXXXXX
± 0.6 °C (in the range > +40 °C) XXXXXX
Humidity:
Measurement sensor:
Capacitive humidity sensor XXXX X
Measuring range
0 to 100 %RH XXXX X
Resolution:
0.1 %RH XXXX X
Accuracy*:
± 2 %RH (in the range 2 to 98 %RH) ** X X **
± 3 %rF (in the range 2 to 98 %RH) X
Temperature drift
at rated temperature +22 °C
otherwise plus ± 0.03 %RH/°C XXXX X
testostor 171 data logger series
8
testostor type:
171-0
171-1
171-2
1722
171-3
171-4
171-6
171-8
testostor, type:
171-0
171-1
171-2
1722
171-3
171-4
171-6
171-8
Page 6
The following applies if you use a non-Testo plug:
11
Technical data
Technical data
Immersion/air probe 0610.1720
Sensor: NTC
Cable length: 6 m
Measuring range: -50 to +80 °C
t99: 5 s in water
Air probe 0610.1722
Sensor: NTC
Measuring range: -20 to +70 °C
(with direct connection
without cable)
t90: 180 s
In air at 2 m/s
Frozen food probe 0610.3217
Sensor: NTC
Measuring range: -50 to +120 °C
Cable length: 2 m
t99: 8 s in water
Humidity/temperature probe 0636.9717
Sensor: NTC/cap. sensor
Measuring range: -20 to +70 °C
0 to 100 %RH
Cable length: 3 m
Accuracy %rF ± 2% (at 22 °C,
2 to 98 %RH)
Ansprechzeit t90: <15 s (with plastic
cap) at 2 m/s
air velocity
Temperature
dependency: ±0.03 %RH/°C
Accuracy ° C: ±0.2 °C
Immersion/air probe 0610.1721
Sensor: NTC
Cable length: 12 m
Measuring range: -50 to +80 °C
t99: 5 s in water
Food probe 0610.2217
Sensor: NTC
Cable length: 2 m
Measuring range: -50 to +120 °C
t99: 10 s in water
Pipe probe 0610.4617
Sensor: NTC
Measuring range: -50 to +80 °C
Cable length: 3 m
Accuracy of external temp. probe:
-50 ° C to -25.1 °C: ±0.4 °C
-25 to +80 °C ±0.2 °C
> +80 °C ±0.5 °C
Surface probe 0602.4592
Sensor: Thermocouple
Cable length: 1.2 m
Measuring range: -60 to +130 °C
Short-term to +280 °C
t99: 5 s
Exchange measuring head 0602.0092
Sensor: Thermocouple
Measuring range: -60 to +130 °C
Short-term to +280 °C
t99: 5 s
Clamp probe 0602.4692
Sensor: Thermocouple
Measuring range: -50 to +100 °C
Cable length: 1.2 m
t99: 5 s
Magnetic probe 0602.4792
Sensor: Thermocouple
Measuring range: -50 to +170 °C
Probe tip: ø 20 mm
Adhesive force: Approx. 20 N
Magnetic probe 0602.4892
Sensor: Thermocouple
Measuring range: -50 to +400 °C
Probe tip: ø 21 mm
Adhesive force: Approx. 10 N
Immersion measuring tip 0602.5792
Sensor: Thermocouple
Measuring range: -60 to +1000 °C
Length: 500 mm
Measuring tip: ø 1.5 mm
t99: 5 s
Thermocouple, flexible
0602.0644
Sensor: Thermocouple
Measuring range: -50 to +400 °C
Insulation: Fibre glass
Cable length: 800 mm
Cable diameter: 1.5mm
t99: 5 s
Thermocouple, flexible
0602.0645
Sensor: TE
Measuring range: -50 to +400 °C
Insulation: Fibre glass
Cable length: 1500 mm
Cable diameter: 1.5mm
t99: 5 s
Thermocouple, flexible
0602.0646
Sensor: Thermocouple
Measuring range: -50 to +250 °C
Insulation: Teflon
Cable length: 1500 mm
Cable diameter: 1.5mm
t99: 5 s
NTC probes / Alarm output
Thermocouple probes
10
Alarm output in testostor 1722
The relay switches if the programmed limit values are exceeded or not reached. Pin
assignment in the Lemo socket:
The standard maximum
permissible cable temperature
for long-term use is 80 °C.
Ask for special versions if required.
Limit value not exceeded
Limit value exceeded
11 mm
Page 7
13
12
On the job...
Application notes: Programming the logger
Connect the PC to the data logger via interface and start
the “Comsoft.exe” program.
Activate the instrument driver for the testostor 171 data
logger series in INSTRUMENT / “NEW DEVICE” and
click on the “Next” button.
Once you have selected the correct interface, click
on “Next”.
Enter name and click on “Finish” button
If no other name is entered in Diagram 4, Diagram
5 appears, if communication has been successful,
with a newly setup testostor 171 instrument
symbol + serial number.
Requirements/Installation
Minimum system requirements
• PC with operating system
- Microsoft Windows 95 or newer
(if compatible)
- Microsoft Windows NT 4, Service pack 4, or newer
(if compatible).
- Windows 2000 or newer (if compatible).
• CD Rom drive
• Pentium 100 MHz
• 32 MB RAM
• 15 MB hard disk
• Free serial interface (COM) or corresponding adapter.
Installation
1. Place CD ROM in drive
2. The installation menu starts automatically. If it fails to
appear, please click twice on “Setup.EXE” on the CDROM.
3. You are asked to enter licence number (see sticker
on CD-ROM).
It may be necessary to reboot when installing for the
first time.
Note: If the number entered is not accepted, check
- if the caps key is activated?
- if “Num” in the separate digit block is activated?
- if l was entered instead of 1?
- if o was entered instead of 0?
4. Installation is carried out following confirmation and
you are asked to enter your name and company
name.
5. The procedure continues driven by the menu. Please
note the information and explanations beside the
buttons.
General information on using and installing software
The software environment (how it looks, operation
philosophy ) is defined in accordance with Microsoft®
Office Standard. Symbols and menu items are selected
in accordance with this standard. You will very quickly
get used to working with this environment, if you are
already familiar with Office programs (Word®, Excel®,
PowerPoint® ...).
The instructions in this
manual presume you are
familiar with WINDOWS
®
.
If you are not, please read
your WINDOWS®manuals
to get acquainted with the
system and its workings.
Note:
If you activate
“Protected” during
installation, the “Range of
functions” register will be be
unavailable to the user and
will not be available in the
future.
Page 8
15
14
On the job ...

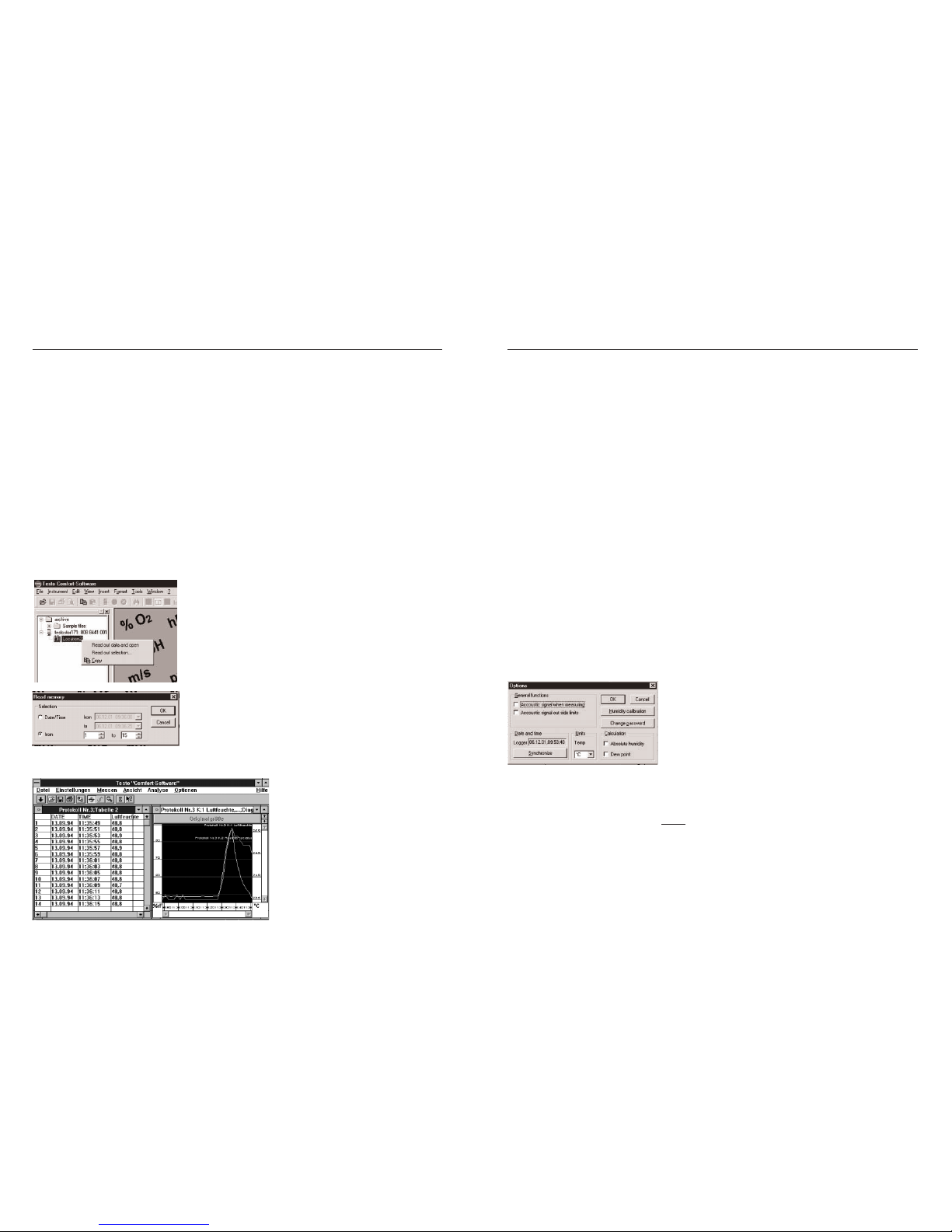

Application information: Reading the memory
Connect your PC to the data logger via interface and
start the program.
Activate the instrument driver by clicking with the right
mouse key on the testostor 171 icon and select OPEN.
The logger appears with its serial number
and the saved protocol.
Select the protocol and drag it to the main memory by
keeping the right mouse button pressed or click with the
right mouse button on the protocol symbol to read out a
section.
You can get information about the data of your
measurement protocol (→ Page 26, M
EMORY
CONTENT
).
On the job ...
Application information: Programming the logger
Connect your PC to data logger via interface and start
the program.
Activate the instrument driver by clicking with the right
mouse button on the testostor 171 icon and select
INSTRUMENT SELECTION.
If communication between the PC and the data
logger has been successful, the window opposite
appears with the status information of the data
logger which is to be read out...
Write a new M
EASURING PROGRAM (→ Page 24,
M
EASURING PROGRAM) or open one which is already
available (→ Page 29, O
PEN PROGRAM). The program
saved in the logger is the first to appear in the selection
window.
Do you wish measurements or limit deviations to be
indicated audibly during a measurement series?
Is it required that D
EW POINT and ABSOLUTE HUMIDITY are
also measured (→ Page 27, O
PTIONS
)?
Does the (humidity) data logger have to be calibrated
(→ Page 17, O
N THE JOB
...)?
Do you wish to change the temperature unit to °F (° C)
(→ Page 28, U
NITS)?
Is the given
Date
and
Time
correct
(→ Page 28, S
YNCHRONIZE)?
Pass on the programming to the data logger via
P
ROGRAM LOGGER (→ Page 26).
Save the programming for later e.g. on your hard disk (→
Page 29, S
AVE PROGRAM).
Page 9
17
16
On the job...

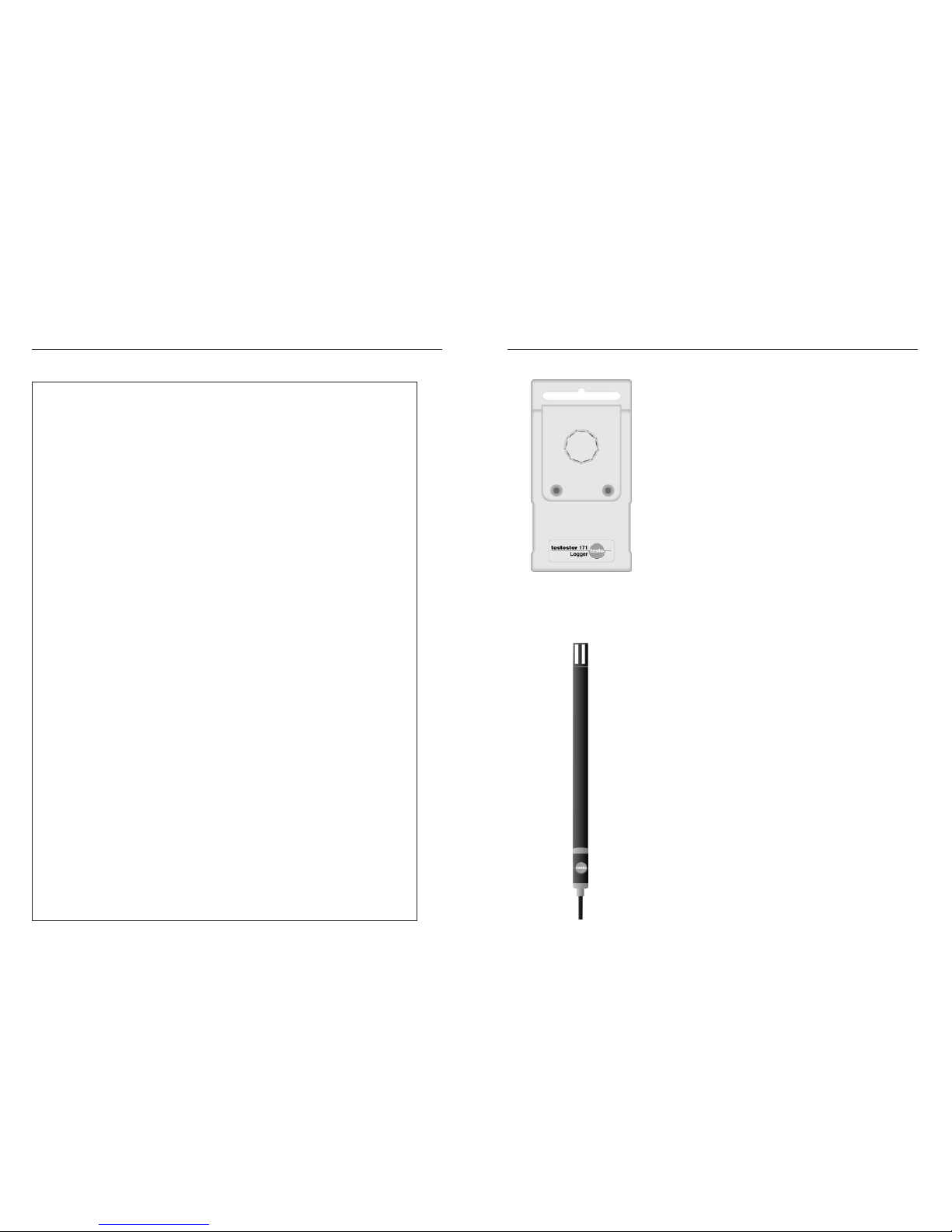

Humidity calibration
The humidity sensors in the testostor 171 series (Type
171-2/1722/171-3 with integrated Testo humidity sensor
or Type 171-1/171-6 with humidity/temperature probe
which can be connected separately) must be checked in
accordance with application conditions and recalibrated
if there are large deviations.
The recommended control cycles range from yearly
intervals when the loggers are used for room climate
measurements to monthly controls under extreme
conditions when harmful gases or dusty air are present.
Find out which protective cage is suitable for your
sensor, in accordance with your application.
To control and calibrate the humidity sensors, a control
and adjustment set (Item no. 0554.0660) is available as
an accessory. The set consists of two small containers
with saturated salt solutions which permanently produce
humidity values of 11.3 and 75.3 %RH.
Remove the protective or the sintered cap and ensure
that the temperature and humidity sensor look to be in
order.
In the case of Type 171-2/1722/171-3 (with integrated
sensor) the humidity containers are screwed on directly.
An adapter for the separate humidity probe is included
with the calibration set which you can attach to the 12
mm probe. Screw the probe together with the adapter
into the container (the standard protective cap should
remain on the probe, the sintered cap should be
removed).
Screw on the 11.3 %RH container and wait until the
required thermal and humidity balance is reached
(recommendation: 30 min, 60 min is preferable). A stable
temperature between +20 to +25 °C is important in this
case.
On the job...
Error messages
Error message
• The last command was
not processed
• Incorrect date/time
received
• Starting time in the
past
• Error in the data memory
• Error in EEPROM
• Error in EPROM
• Your probe configuration
is not set up for a
calibration.
• Instrument type and
programming data
do not correspond.
Cause
Communication fault
Technical problem
The starting time which is to
be transmitted is behind the
current time in the logger.
Technical problemContact Service Dept.
An external humidity probe is
not configured on channel 1.
A program file not suitable
for the connected type was
opened.
Remedy
Check connection cable and
try again.
Please contact our Service
Department.
Reset the clock in the logger
(→ O
PTIONS, Page 28).
Please contact our Service
Department.
Change the configuration
and program the logger.
Open a program file
corresponding to the logger
or connect the correct logger
type.
Page 10
19
18
On the job...
Adjustment
The second window (activate by setting the button to
Adjustment) in H
UMIDITY CALIBRATION is not an
alternative for adjustment. However, it provides the
option of moving the characteristic curve parallel in a
small working range, if the data is correct at the
calibration points (11.3 or 75.3 %RH ± 2 %RH) to, for
example, superimpose the calculated values (dew
point and absolute humidity) with a reference
instrument.
Example: Drying, dew point range approximately -20
°C td. A standard humidity adjustment is often
insufficient since deviations of less than 0.1 %RH can
lead to integral modifications in the dew point display.
Move the point in the bar so far until the calculated
values correspond to the exact values or enter the
%RH values directly. It must be guaranteed that the
logger sensor system and the reference instrument
have the same climatic conditions (the same
temperature is particularly important).
The humidity containers are not needed for this fine
adjustment in the 0.1 %RH humidity range.
You can revise the humidity adjustment via the reset
button. The software then brings the factory values
again.
On the job...
Humidity calibration
External humidity probes (connected to socket 1)
should be configured in the PROBE CONFIGURATION
mask prior to calibration
Connect the logger to the PC
and open the main instrument
window. Select the H
UMIDITY
CALIBRATION
window in
O
PTIONS. The measured
Actual
values
are shown in the
additional window which
appears. When the
Actual
value
is stable, confirm with
the
11.3 %
button so that the
calibration is saved directly in
the probe/instrument, the old
calibration data is discarded
and the actual value shows
11.3%. Repeat the process
with the 75.3 %RH container
(adaption time is also 30 min
to 1 h).
Page 11
2120
Battery life
The testostor 171 series is equipped with long-life Li
batteries which guarantee operation for several years.
Battery life is reduced by above-average PC
communication e.g. by longer online measurements. The

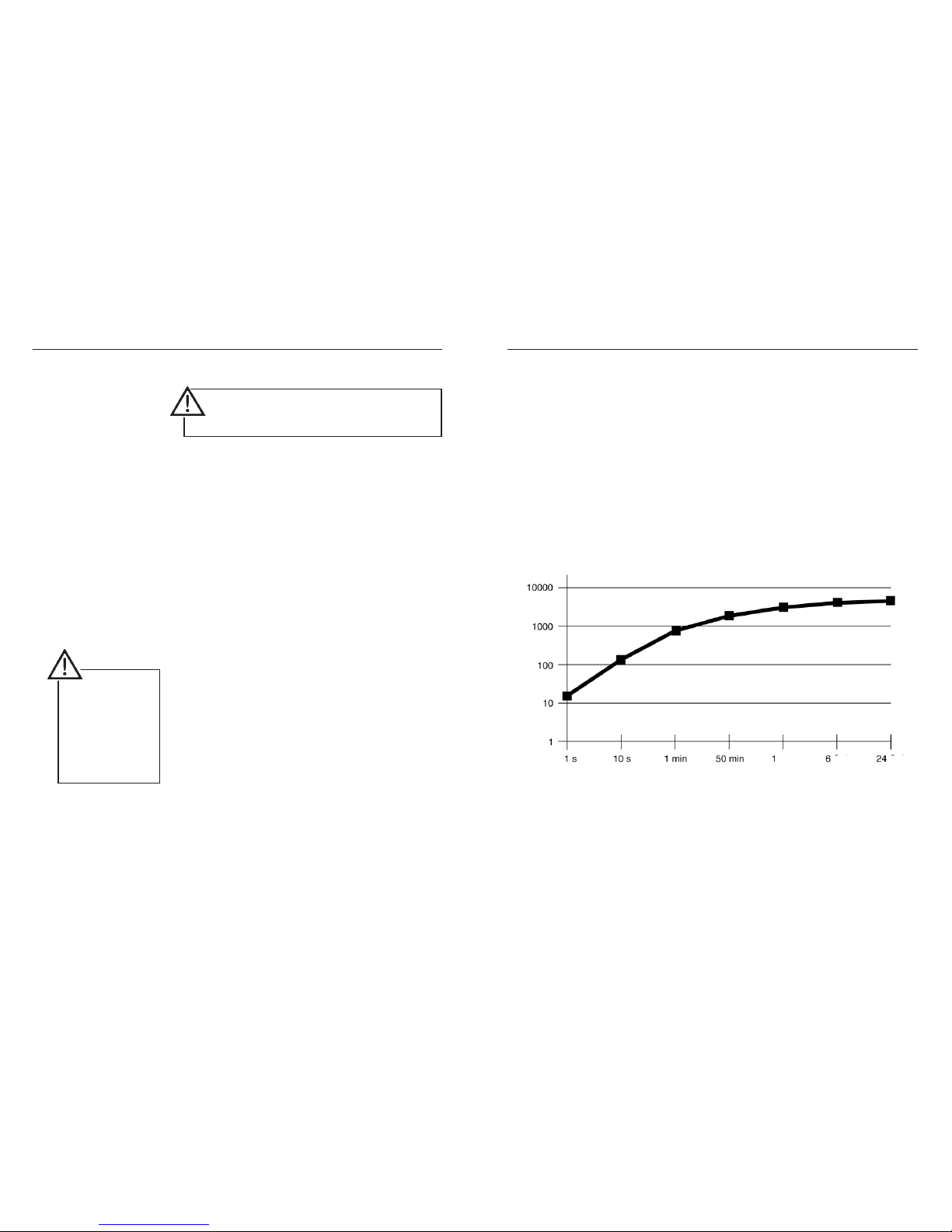

calculated remaining capacity is given in percent. The
diagram below provides information on the battery life
possible with testostor 171-0.
On the job...
Changing batteries - Battery life
Battery life
in days
Measuring rate
On the job...
Changing batteries - Battery life
If your measurement program exceeds the remaining
calculated battery life or if the logger interrupts the
measurement series due to insufficient battery capacity
(warning appears) the battery must be changed. The
logger usually stops the data measurement
independently just before the end of the battery life so
that the logger can be read with the remaining battery
capacity.
When a battery is changed, the saved measured data
is lost (the calibration data is saved). In case of
emergency, please contact an authorised service
point.
You can change the battery yourself using the battery
set which is available as an accessory (Item no.
0515.0018). Please proceed as follows:
1. Remove the black cover plugs at the back of the
instrument. Unscrew the 4 screws crosswise and
remove the screws.
2. Attach the enclosed jumper to the two pins on the
circuit board (near the battery minus connection).
3. Unscrew the screws on the battery terminals, take
out the old battery and dispose of it responsibly.
4. Put in the new battery. Select the correct polarity in
accordance with the length of the connections pins.
Insert the battery so that it is located on the foamed
material between the circuit board and the edge of
the housing.
5. Tighten the terminals.
6. Now remove the jumper.
7. Change the O ring on the cover.
The guaranteed
protection class
of IP65/68 applies
only if handled
with care.
To protect the lithium battery, the maximum
permissible storage and transport
temperature in the instruments is + 85 °C.
hour
hours hours
Page 12
23
22
Description of the “testostor 171 V1.” dialog box
PROBE CONFIGURATION
Carry out the probe configuration shown in the table.
The probe configuration determines the following ...
C
HANNELS
The channels/sockets of the connected data
logger type are available for selection.
P
ROBES
Select the probes from the list with which you
wish to work. The name “INTERNAL” in front of
the probe name indicates that it is an internal
channel (while “EXTERNAL” stands for external
channels).
UPPER/LOWER LIMIT VALUE
An upper and lower limit can be assigned to each
measurement channel. These limit values are
monitored in the logger. If the limits have been
exceeded, a limit counter allocated to the channel
calculates the number of measured values
outside the limit. This information is included in
the measurement protocol.
The exceeding of the limit can be indicated
acoustically (See O
PTIONS). In testostor 1722, the
connected signal device gives off an alarm if the
programmed limit values are exceeded or are not
reached (acoustically and optically).
You can call up a table summarizing the number
of times the limits have been exceeded by
clicking twice in the limit value on the limit value
column.
The limit values, the number of values outside the
limits, the measurement duration and the amount
of measurement time outside the limits are
shown.
Description of the “testostor 171 V1.” dialog box
Once the data logger has been set up in INSTRUMENT,
NEW DEVICE, open the menu for the instrument icon
via the right mouse button. INSTRUMENT CONTROL
leads to the main window in which all of the status
information is clearly shown.
Here is the example of a programmed
logger.
L
OGGER TYPE
and SERIAL NUMBER
You are informed about the connected logger type and
its serial number. If you are using several data loggers
simultaneously you can differentiate between the various
logger using this information.
M
AIN INFORMATION
Here you have the possibility of inputting freely
selectable information needed for programming. This
can include data on the sender or recipient, data on
transported goods etc. The input box has space for 250
characters.
Page 13
25
24
Description of the ”testostor 171 V1.” dialog box
c)
Magnet start
Once programmed, the logger goes into standby
mode. The saving function is activated by placing
a magnet on the housing (where the Testo label
is). A successful start is confirmed audibly by a
buzzer sound. The start can be monitored via
display if a display module is attached.
W
RAP-AROUND MEMORY
If the WRAP-AROUND MEMORY mode is activated, the first
readings are overwritten should there be no room for
additional readings in the logger during subsequent
measurements. Therefore the
last
55,000 or 20,000
readings (total of all channels) are always available in
the Type 171-3 logger.
M
EASURING RATE
Enter the required rate frequency for the measurement.
The rate frequency should not be set at an unnecessarily
high level in order to protect the battery.
N
AME
The character sequence input here accompanies the
data set (for identification when reading out, when
processing graphics or tables).
I
NFO
Number of readings
The total number of readings to be recorded per
channel, corresponding to your input for Start and
Measuring rate, are shown here.
Battery life
The testostor 171 series is equipped with long-life Li
batteries which guarantee operation for up to several
years. Battery life is reduced by an above-average
PC communication e.g. by extended online
measurements. The calculated remaining capacity is
indicated in percent.
Description of the “testostor 171 V1.” dialog box
NAME
If a piece of information is given a name specific
to the user, it is then possible, for example, to
identify the measurement location. 24 characters
are available.
M
EASURING PROGRAM...
A measurement program is the information
required by the logger to save measured data in
the required form. An additional window is
opened for this purpose using the button.
S
TART
The following is available as starting criteria:
a)
Time plan (
Date/Time)
The required starting or end time is input directly
in the marked boxes.
The suggested end time is calculated from the
rate of measurement and the memory available.
You can of course write over these values.
b)
Remote-control
Start PC via START/STOP button in the main
window.
Page 14
27
26
Description of the “testostor 171 V1.” dialog box
ONLINE MEASUREMENT
...
You can
- install the logger with an attached display module and
read off the readings from the display on site during
the measurement
or
- operate the logger like a measuring instrument using
your PC
With the logger activated, click on the green symbol in
the toolbar to start online measurement directly.
With this function, two situations are presumed.
a) If the logger does not save when online measurement
is activated, you will get the current values as measured
by the probes.
b) If the logger is activated and is already saving values
when online measurement is selected, there may be
delays of up to 3 seconds between the displayed online
readings and the actual readings since the saving
function has priority.
Therefore, it is recommended to switch off the saving
mode in the logger by newly programming or switching
off via the Stop switch.
O
PTIONS...
The following Settings can be made in GENERAL
FUNCTIONS:
Acoustic signal when measuring
Should the data logger give off an audible signal (bleep
sound) during every measurement?
Acoustic signal outside limits
Should an audible signal (cricket sound) be given off
when limit values are exceeded?
Note: the relay in testostor 1722 is activated once the limit
values are determined in the probe configuration (See
page 23). The connected signal device is then in the
alarm standby mode.
Description of the “testostor 171 V1.” dialog box
OK/CANCEL
OK confirms your inputs while Cancel discards your
input. Following both commands, you will find yourself
back in the original window.
P
ROGRAM LOGGER
...
The P
ROGRAM LOGGER command transmits the program
settings to the data logger. All of the contents of the
memory (all readings) are automatically deleted.
Successful transmission is confirmed by a message on
your screen. The data logger is activated and waits on
the decisive starting criteria. The measurement can then
start.
R
EAD OUT MEMORY
...
If a logger with data already saved is opened, the
measurement protocol appears as a symbol under the
logger symbol with the serial number. Click on this
symbol with your right mouse button. Another window is
opened offering you various reading out options. The
following are available:
- Read out or open all of the readings.
- Read out section:
• From ... to corresponding to
Date/Time
• From reading number
to
reading number
• The last ...values
(when the wrap-around memory is switched on).
Analysis of the measured data is
described in the Comfort Software
Instruction manuals.
Page 15
29
28
Description of the “testostor 171 V1.” dialog box
PASSWORD
You can create a password, which will be saved in the
logger, via this button. If a password exists, it is required
before data is loaded up to the logger or readings are
read out of the logger. If an incorrect password is
entered, the function is not carried out.
If the function is confirmed without entering characters,
the password function is deactivated.
Changes to an existing password must be entered
beforehand.
If you have forgotten what your password is, please
contact our Service Department.
S
AVING THE PROGRAM
...
Program settings can be stored on a data carrier (hard
disk, disks etc.) to predefine certain standard
programming for the logger. These can be opened, if
required, via OPENING THE PROGRAM
... and transmitted to
the logger.
O
PENING THE PROGRAM
...
You can load the programming data for the logger from
the disk via this button. In this way, loggers with
predefined standard programs can be programmed
without the need for time-consuming settings.
S
TART/STOP
This button starts and stops measurements which were
programmed in the
Remote controlled
starting criteria.
Every
measurement can be stopped via the stop button.
Description of the “testostor 171 V1.” dialog box
The DATE
and TIME are adapted to the date and time of
your PC via the
Synchronisation
button.
You can switch between °C and °F in UNITS.
The control box D
ERIVATE enables the additional
calculation of the derived values
Dew point
and
Absolute
humidity
(in g/m3).
H
UMIDITY CALIBRATION
Via this button, you can access a window offering you
the option of calibrating the internal or external humidity
sensor (provided you have connected Type 171-1,171-2,
1722, 171-3 or 171-6 data loggers).
Selects from the options:
Calibration
→ Process to conform with the technical data of the
data logger i.e. the standard two point calibration with
11.3 or 75.3 %RH.
and
Adjustment
→ Fine adjustment to optimise the calculated
absolute humidity values in a limited measuring
range by parallel relocation of the calibration
characteristic curve (by comparing and matching with
a reference instrument e.g. with reference to °C td).
Calibration is described in the “On the job...”
Chapter.
Page 16
31
30
Ordering data
Data logger incl. battery and magnet
with internal external
°C - testostor 171-0 0577.1719
°C ° C or %RH/ °C testostor 171-1 0577.1715
- 4 x °C testostor 171-4 0577.1714
%RH / °C - testostor 171-3 0577.1713
%RH/ °C, td - testostor 171-2 0577.1712
%RH/ °C, td - testostor 1722 with alarm output 0577.1722
- %RH/ °C, td or °C testostor 171-6 0577.1716
- 4x °C testostor 171-8 0577.1718
Software English Comfort Software 0554.0830
Interface 0554.1781
Display module Without print option 0554.0176
With print option 0554.0175
Temperature probe Immersion/air probe, 6 m cable 0610.1720
Immersion/air probe, 12 m cable 0610.1721
Air probe (can be directly attached) 0610.1722
Food probe (stainless steel), 2 m cable 0610.2217
Frozen food probe, 2 m cable 0610.3217
Pipe probe with Velcro, 3 m cable 0610.4617
Contact maker, cable length as required 0628.1787
Immersion meas. tip, 500 mm probe pipe, ø 1.5 mm 0600.5792
Pipe probe, for pipe diameter 5 to 65 mm 0602.4592
Exchangeable measuring head for pipe probe 0602.0092
Clamp probe, pipe diameter max. 1“ 0602.4692
Magnetic probe, adhesive force approx. 20 N 0602.4792
Magnetic probe, adhesive force approx. 10 N 0602.4892
Thermocouple, fibre-glass, 800 mm, ø 1.5 mm 0602.0644
Thermocouple, fibre-glass, 1500 mm, ø 1.5 mm 0602.0645
Thermocouple, Teflon, 1500 mm, ø 1.5 mm 0602.0646
Humidity/temperature probe with standard protective cap (plastic) 0636.9717
Accessoris for humidity/temperature probes
Stainless steel sintered cap for measurements in high velocities and
dirt ingressed air for 0636.9717 0554.0647
Stainless steel sintered cap for measurements in high velocities and
dirt ingressed air for testostor 171-2/171-3 0554.0640
Teflon sintered filter, suitable for measurements in corrosive substances
(for 0636.9717) 0554.0756
Teflon sintered filter, suitable for measurements in corrosive substances
(testostor 171-2/171-3) 0554.0666
Even after the
warranty time has
elapsed
our customer service
will look after you. Send
us your measuring
instrument with a brief
description of the fault.
Include your telephone
number should we
need to contact you.
Warranty from Testo
Dear Customer
Thank you for your confidence in Testo which you have
shown by buying this measuring instrument. You have
made the right choice in choosing a quality product.
The warranty time is
- 2 years for the data logger
- 1 year for the probe
Warranty services do not extend the warranty time.
The warranty and licence agreement for the software are
included in the Comfort Software Instruction Manuals.
The following are not under warranty:
- All working parts such as rechargeable batteries,
measuring cells, filters, measuring elements etc.
- Fragile parts
- Damage caused by improper use
- Damage caused by non-adherence to the
Instruction Manual
- Measuring instruments which have been opened
after purchase, provided this is not described in the
Instruction manual for maintenace purposes,
- Instruments in which the serial numbers have been
changed, damaged or removed.
We will repair any faults free of charge if
- it can be proven that they are manufacturing faults
- the faults are reported to us immediately
- the faults are reported to us within the warranty time.
You will be charged for any additional repairs,
adjustments or similar carried out by us and not under
warranty. There is also a charge for transport and
packaging.
Other claims, in particular those for damage occurring
outside the instrument, will not be accepted unless
legally binding.
Page 17
32
Testo worldwide
Ordering data
Wire filter (protects from dirt) for 0636.9717 0554.0757
Wire filter for testostor 171-2/171-3 0554.0667
Metal protective cage, robust and temperature resistant, for 0636.9717 0554.0755
Metal protective cage, for testostor 171-2/171-3 0554.0665
Control and calibration set for humidity sensors 0554.0660
Extension cables
Extension cable for interface (5 m) 0554.1785
Extension cable for probes (5 m) 0554.1786
Connection cable for alarm output, testostor 1722 On request
General accessories
Holder with lock for data logger 0554.1782
Additional holder for attached display (theft-proof) 0554.1789
Probe holder which can be stuck on (suitable for all probes) 0554.1783
Probe holder, magnetic (suitable for all probes) 0554.1784
Spare starting magnet 0554.1780
Spare battery (Set incl. sealing ring) 0515.0018
Heat paste (14 g) 0554.0004
Signal device for testostor 1722 incl. permanently attached
connection cable (10 cm) with Lemo plug and mains cable 0554.1722
Case
Case for 5 data loggers and accessories 0516.0117
Calibration certificates - Temperature -
Standard calibration certificate
(Measuring points -20°/0° and +60.0 °C for immersion probes,
or +60,0/+120 ° C for surface probes) 0520.0001
Special calibration certificate
(Measuring points freely selectable in the range -40 to +120 °C) 0520.0101
Please note the measuring ranges specified for the loggers
DKD calibration certificate (for testostor 171-1, 171-4, 171-6)
(Measuring points, freely selectable in the range from -40 to +120 °C) 0520.0201
Calibration certificates - Humidity -
Standard calibration certificate
Measuring points 12%RH and 76 %RH (at +25 °C) 0520.0006
Special calibration certificate
Measuring points freely selectable in the range from 5 to 95 %RH at temperatures
in the range +10 to +100 °C (max. dew point temperature 70 °C) 0520.0106
DKD calibration certificate/Humidity
Measuring points 11.3 and 75.3 %RH at a fixed temperature value of +25 °C 0520.0206
Measuring points, freely selectable from 5 to 95 %RH at a fixed temperature value
of +25 °C On request
Measuring points, freely selectable from 5 to 95 %RH at a freely selectable
temperature value of +5 to +70 °C On request
Note the application conditions for the respective probes when selecting the calibration
certificates.
ARGENTINA
Testo Argentina S.A.
C1440ACR - Buenos Aires
Tel. (11) 46 83 - 50 50
Fax (11) 46 83 - 50 50
testo@infovia.com.ar
ASIA
Testo (Asia) Ltd.
Shatin, N. T., Hong Kong
Tel. (2) 26 36 38 00
Fax (2) 26 47 23 39
testo@testo.com.hk
AUSTRALIA
Testo Pty. Ltd.
Bayswater, Victoria 3153
Tel. (3) 97 20 00 11
Fax (3) 97 20 00 22
info@testo.com.au
AUSTRIA
Testo Ges. mbH
1170 Wien
Tel. (1) 4 86 26 11- 0
Fax (1) 4 86 26 11 20
info@testo.at
BELGIUM / LUXEMBURG
S. A. Testo N. V.
1741 Ternat
Tel. (2) 5 82 03 61
Fax (2) 5 82 62 13
info@testo.be
BOLIVIA
T.E.C.
Cochabamba
Tel. (4) 4 40 09 17
Fax (4) 4 28 60 02
tec@supernet.com.bo
BOSNIA-HERZIGOWINA
Tehnounion Sarajevo
Sarajevo
Tel. (33) 20 59 44
Fax (33) 44 40 00
BRAZIL
Testo do Brazil
13028-015 Campinas - SP
Tel. (19) 37 31 - 58 00
Fax (19) 37 31 - 58 19
testo@testo.com.br
BULGARIA
Global Test OOD
1408 Sofia
Tel. (2) 9 53 07 96,
Fax (2) 9 52 51 95
glbl_tst@sps.bg
CHILE
ANWO S.A.
Santiago
Tel. (2) 7 31 00 00
Fax (2) 2 73 04 04
instrumentos@anwo.cl
CHINA
Testo (Far East) Ltd.
Shanghai 200031
Tel. (21) 54 56 - 64 70
Fax (21) 54 56 - 14 70
testo@guomai.sh.cn
CIS
Global Export GmbH
105 023 Moscow
Tel. (0 95) 3 60 53 68
Fax (0 95) 3 60 53 68
global_export@aport2000.ru
COLOMBIA
Arotec Colombiana S. A.
Bogota D. E.
Tel. (1) 2 88 77 99
Fax (1) 2 85 36 04
mantenimiento@arotec.net
COSTA RICA
Representaciones
Corelsa S. A.
Santo Domingo de Heredia
Tel. 2 44 25 50
Fax 2 44 30 90
corelsa@racsa.co.cr
CROATIA
"H.I.P." Zagreb d.o.o.
10090 Zagreb
Tel. (1) 3 73 40 07
Fax (1) 3 73 40 44
hip@inet.hr
CYPRUS
Deksa Ltd.
Nicosia
Tel. (2) 2 45 55 55
Fax (2) 49 70 59
deksa@cytanet.com.cy
CZECH REPUBLIC
Testo s.r.o.
158 00 Praha 5
Tel. (2) 57 29 02 05
Fax (2) 57 29 04 10
info@testo.cz
DENMARK
Buhl & Bonsoe A/S
2830 Virum
Tel. 45 95 04 10
Fax 45 95 04 12
inf@buhl-bonsoe.dk
EASTERN EUROPE
Testo Osteuropa GmbH
79850 Lenzkirch
Tel. (0 76 53) 6 81 - 141
Fax. (0 76 53) 6 81 - 102
pmies@testo.de
EGYPT
Future Plants Contractors
Heliopolis 11361, Cairo
Tel. (2) 4 18 67 79
Fax (2) 4 18 95 04
future98@intouch.com
EL SALVADOR
Eco Control S.A de C.V.
San Salvador
Tel. 2 60 66 01
Fax 2 60 66 02
eco.control@saltel.net
FINLAND
Humitec Oy
00410 Helsinki
Tel. (9) 5 30 84 00
Fax (9) 53 08 40 99
testo@humitec.fi
FRANCE
testo Sàrl
57602 Forbach
Tel. 3 87 29 29 00
Fax 3 87 87 40 79
info@testo.fr
GREECE
Sigma Hellas Ltd.
18536 Piraeus
Tel. (10) 4 18 01 67
Fax (10) 4 51 90 20
sigmahellas@hol.gr
GREAT BRITAIN
Testo Ltd.
Alton, Hampshire GU34 2QJ
Tel. (14 20) 54 44 33
Fax (14 20) 54 44 34
info@testo.co.uk
HONG KONG
Testo Far East Ltd.
Shatin, N. T., Hong Kong
Tel. (2) 26 36 38 00
Fax (2) 26 47 23 39
testo@testo.com.hk
HUNGARY
Testo Kft.
1139 Budapest
Tel. 237 17 47
Fax 237 17 48
testo@testo.hu
ICELAND
Rafn Jensson, Mechanical
Engineers ehf
110 Reykjavik
Tel. 5 67 80 30
Fax 5 67 80 15
rj@rj.is
INDIA
Siskin Instruments Co. (P) Ltd.
Bangalore 560 054
Tel. (80) 3 60 25 60
Fax (80) 3 60 36 79
siskin@eth.net
IRAN
Mehr Kanaz Sanat Co.
Tehran
Tel. (21) 2 26 26 89
Fax (21) 2 22 37 77
info@mehr-kanaz.com
ISRAEL
Manoraz Ltd.
Azur 58001
Tel. (3) 5 59 33 99
Fax (3) 5 58 44 95
david@manoraz.com
ITALY
Testo S.p.A.
20019 Settimo Milanese (Mi)
Tel. (02) 3 35 19 - 1
Fax (02) 3 35 19 - 200
info@testo.it
JAPAN
Testo K.K.
Yokohama 222-0033
Tel. (45) 4 76 22 88
Fax (45) 4 76 22 77
info@testo.co.jp
JORDAN
Al-Masar Technique Est.
Sahab 115-12
Tel. (6) 4 02 95 22
Fax (6) 4 02 35 64
masar@nets.com.jo
KOREA (Republic of)
Testo (Korea) Ltd.
Seoul 150-102
Tel. (2) 6 72 72 00
Fax (2) 6 79 98 53
testo@testo.co.kr
MALTA
Technoline Ltd.
Gzira GZR 06
Tel. (21) 34 23 66
Fax (21) 34 39 52
admin@technoline-mt.com
MACEDONIA
Pharmachem Skopje
1060 Skopje
Tel. (2) 33 11 93
Fax (2) 33 14 34
farmahem@mt.net.mk
MAROC
A.F.M.I.L. SARL
Belevedere-Casablanca
Tel. (22) 24 01 84
Fax (22) 24 01 87
Belha3@caramail.com
MEXICO
Grupo de Instrumentación y
Medición Industrial de México,
S.A. de C.V.
08920 Mexico, D.F.
Tel. (55) 56 34 04 02
Fax (55) 56 33 04 01
scc@gimin.com
NETHERLANDS
Testo B.V.
1314 BH Almere-Stad
Tel. (36) 5 48 70 00
Fax (36) 5 48 70 09
info@testo.nl
Page 18
notes
Testo worldwide
NEW ZEALAND
Eurotec Instruments Ltd.
Auckland
Tel. (9) 5 79 19 90
Fax (9) 5 25 33 34
cfarmer@eurotec.co.nz
NICARAGUA
Adolfo Gröber & Cía Ltda.
Managua
Tel. 2 66 51 36
Fax 2 66 51 39
a.grober@cablenet.com.ni
NORWAY
Max Sievert A/S
0134 Oslo
Tel. (22) 17 30 85
Fax (22) 17 25 11
firmapost@maxsievert.no
PERU
JJL Asociados S.A.
Lima 17
Tel. (1) 2 61 17 52
Fax (1) 2 61 46 07
jjlasociados@hotmail.com
PHILIPPINES
Keystone Industrial
Trading Corporation
Pasay City 1300,
Tel. (2) 8 31 95 71
Fax (2) 8 31 40 13
keystone@globenet.com.ph
POLAND
Testo Sp. z.o.o.
02-362 Warszawa
Tel. (22) 8 63 74 22
Fax (22) 8 63 74 15
testo@testo.com.pl
PORTUGAL
Testo Lda.
3800-559 Cacia
Tel. 9 67 60 45 34
Fax 2 34 08 37 08
testo@netvisao.pt
REP. OF SOUTH AFRICA
Unitemp
Landsdowne, Cape Town, 7779
Tel. (21) 7 62 89 95
Fax (21) 7 62 89 96
info@unitemp.com
ROMANIA
Test Line SRL
72217 Bucharest
Tel. (21) 6 87 34 62
Fax (21) 2 42 68 24
testline@customers.digiro.net
SINGAPORE / MALAYSIA /
INDONESIA
Futron Electronics PTE LTD
Singapore 329 714
Tel. (65) 62 50 24 56
Fax (65) 62 50 65 92
futron@cyberway.com.sg
SLOVAKIA
K - Test s.r.o.
042 60 Kosice
Tel. (1) 55 625 36 33
Fax (1) 55 625 36 33
ktest@kbc.sk
SLOVENIA
Tehnounion D.D.
1000 Ljubljana
Tel. (1) 5 13 50 88
Fax (1) 5 13 52 96
matjaz.ponikvar@tehnounion.si
SPAIN
Instrumentos Testo S. A.
08348 Cabrils
Tel. (93) 753 95 20
Fax (93) 753 95 26
info@testo.es
SWEDEN
Nordtec Instrument
40241 Göteborg
Tel. (31) 704 10 70
Fax (31) 12 50 42
nordtec@nordtec.se
SWITZERLAND
Testo AG
8604 Volketswil
Tel. (1) 9 08 40 50
Fax (1) 9 08 40 51
info@testo.ch
SYRIA
Medical Business Center
Damascus
Tel. (11) 2 32 23 01
Fax (11) 2 31 75 55
bahah@net.sy
TAIWAN, R.O.C.
Hot Instruments Co. Ltd.
Chungho City
Tel. (2) 89 23 23 18
Fax (2) 89 23 23 17
info@testotaiwan.com
THAILAND
Entech Associate Co. Ltd.
Bangkok 10210
Tel. (2) 9 54 54 99
Fax (2) 9 54 54 95
info@entech.co.th
TUNISIA
Starepr
Immeuble Mouradi (Touta)
2000 Le Bardo
Tel. (71) 50 92 86
Fax (1) 58 49 20
afri.sta@gnet.tn
TURKEY
Testo Elektronik ve Test Ölcüm
Cihazlari Dis Ticaret Ltd. STi
80280 Esentepe-Istanbul
Tel. (212) 2 75 77 99
Fax (212) 2 72 06 13
info@tetrainc.com.tr
UNITED ARAB EMIATES
Enviro engineering
General Trading
Dubai
Tel. (14) 2 27 70 20
Fax (14) 2 23 36 83
envireng@emirates.net.ae
USA
Testo Inc.
Flanders, NJ. 07836
Tel. (973) 2 52 17 20
Fax (973) 2 52 17 29
info@testo.com
VENEZUELA
G & M International Service,
C. A.
San Antonio de los Altos,
Edo.Miranda
Tel. (2) 3 72 77 70
Fax (245) 5 71 67 74
gminter@cantv.net
VIETNAM
MTC
Measuring and Testing
Equipment Company Ltd.
Hanoi
Tel. (4) 7 33 36 36
Fax (4) 7 33 21 03
mtc-hn@hn.vnn.vn
_________________________
Stand: 01.08.2002
Stets aktualisierte Adressdaten
unserer Töchter und LandesVertriebspartner finden Sie im
Internet unter: www.testo.com
01.08.2002
The most up-to-date address
details of our subsidiaries and
agencies can be found in Internet
at: www.testo.com
Page 19
0971.2530/T/Ni/PC_qxd/08.02
Testo AG
Postfach 11 40, D-79849 Lenzkirch
Testo-Straße 1, D-79853 Lenzkirch
Tel. (0 76 53) 6 81 - 0
Fax (0 76 53) 6 81 - 1 00
E-Mail: info@testo.de
http://www.testo.de
Loading...
