Testo Testo 915i Quickstart
Test Equipment Depot - 800.517.8431 - 5
Commonwealth Ave, MA 01801 - TestEquipmentDepot.com

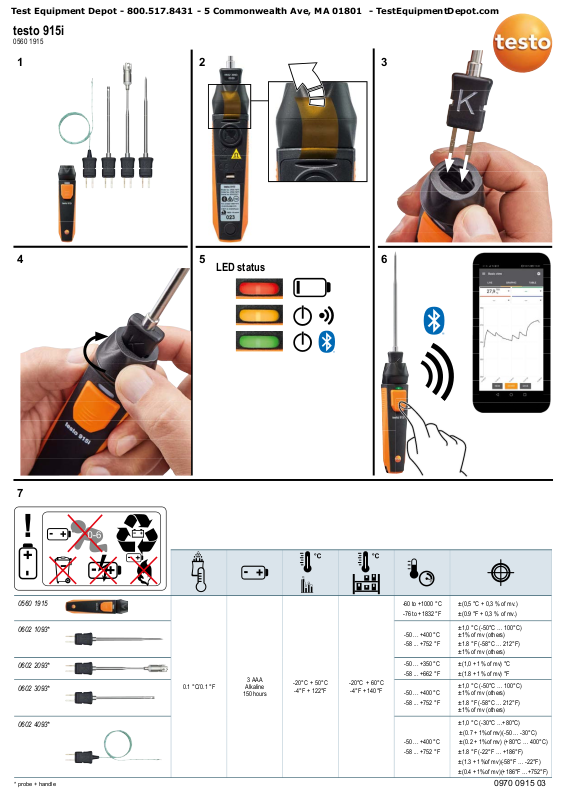

testo 915i
0560 1915
1 2 3
4 5
7
LE
D status
6
0560 1915
0602 1093*
0602 2093*
0602 3093*
0602 4093*
* probe + handle
0.1 °C/0.1 °F
3 AAA
Alkaline
150 hours
-20°C + 50°C
-4°F + 122°F
-20°C + 60°C
-4°F + 140°F
-60 to +1000 °C
-76 to +1832 °F
-50 ... +400 °C
-58 ... +752 °F
-50 ... +350 °C
-58 ... +662 °F
-50 ... +400 °C
-58 ... +752 °F
-50 ... +400 °C
-58 ... +752 °F
±(0,5 °C + 0,3 % of mv.)
±(0.9 °F + 0,3 % of mv.)
±1,0 °C (-50°C … 100°C)
±1% of mv (others)
±1.8 °F (-58°C … 212°F)
±1% of mv (others)
±(1,0 + 1% of mv) °C
±(1.8 + 1% of mv) °F
±1,0 °C (-50°C … 100°C)
±1% of mv (others)
±1.8 °F (-58°C … 212°F)
±1% of mv (others)
±1,0 °C (-30°C …+80°C)
±(0.7 + 1%of mv)(-50 … -30°C)
±(0.2 + 1%of mv) (+80°C … 400°C)
±1.8 °F (-22°F … +186°F)
±(1.3 + 1%of mv)(-58°F … -22°F)
±(0.4 + 1%of mv)(+186°F …+752°F)
0970 0915 03
Approval and Certifi cation
Product
产品名称
Mat.-No.
型号
Date
日期
The use of the wireless module is subject to the regulations
and stipulations of the respective country of use, and the
module may only be used in countries for which a country certifi cation has been granted. The user and every owner has the
obligation to adhere to these regulations and prerequisites for
use, and acknowledges that the re-sale, export, import etc. in
particular in countries without wireless permits, is his responsibility.
Country
Australia
Canada
Europa +
EFTA
Hongkong
Malaysia
Turkey
South Africa
USA
testo 915i
0560 1915
29.03.2021
Comments
E 1561
IC ID: 6127B-05601915
See ISED Warnings
The EU Declaration of Conformity can be
found on the testo homepage www.testo.
com under the product specifi c downloads.
EU countries:
Belgium (BE), Bulgaria (BG), Denmark (DK),
Germany (DE), Estonia (EE), Finland (FI), France
(FR), Greece (GR), Ireland (IE), Italy (IT), Latvia
(LV), Lithuania (LT), Luxembourg (LU), Malta
(MT), Netherlands (NL), Austria (AT), Poland
(PL), Portugal (PT), Romania (RO), Sweden (SE),
Slovakia (SK), Slovenia (SI), Spain (ES), Czech
Republic (CZ), Hungary (HU), United Kingdom
(GB), Republic of Cyprus (CY).
EFTA countries:
Iceland, Liechtenstein, Norway, Switzerland
WEEE Reg. no.:
DE 75334352
Authorized
Type Approval Code: RGOF/05A/0321/S(21-1025)
Authorized
TA-2020/8307
Bluetooth®SIG Listing
Feature
特征与参数
Declaration ID D043363
member company Testo SE & Co. KGaA
Values
数值
EU SAR Information
The SAR limit of Europe is 2.0 W/kg. The highest SAR value
reported for 0560 1915 under testing standard for use in hand
is 0.275W/kg.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
ISED Warnings
CAN ICES-003(B)/NMB-003(B):
This Class B digital apparatus complies with Canadian ICES-
003.
Cet appareil numérique de la classe [B] est conforme à la
norme NMB-003 du Canada.
RSS-Gen & RSS-247 statement:
This device complies with Industry Canada licence-exempt
RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interfe-
rence that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d‘Industrie Canada
applicables aux appareils radio exempts de licence.
L‘exploitation est autorisée aux deux conditions suivantes :
(1) l‘appareil ne doit pas produire de brouillage, et
(2) l‘utilisateur de l‘appareil doit accepter tout brouillage radio-
électrique subi, même si le brouillage est susceptible d‘en compromettre le fonctionnement.
ISED SAR warning:
The highest SAR value reported under this standard during
product certifi cation for use in the hand is 0.450W/kg.
Co-Location:
This transmitter must not be co-located or operated in conjunc-
tion with any other antenna or transmitter.
Avertissement DAS d‘ISED:
La valeur DAS la plus élevée rapportée durant la prise en main
pour utilisation selon la norme standard de certifi cation de produit est de 0,450 W / kg.
Co-location
Ce transmetteur ne peut pas être installé en colocation ou être
utilisé avec une autre antenne ou transmetteur, quel qu‘en soit
le type.
Caution
Changes or modifi cations not expressly approved by the party
responsible for compliance could void the user‘s authority to
operate the equipment. Shielded interface cable must be used
in order to comply with the emission limits.
Warning
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC SAR warning:
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one
gram of tissue. The highest SAR value reported under this
standard during product certifi cation of 0560 1915 (FCC
ID:WAF-05601915) for use when properly worn in the hand is
0.450 W/kg
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Mat.-No.
0560 1915 08
型号
Country
Japan
Comments
Contains Lierda S37 BLE module
see Japan Information
South Korea
R-R-te2-05601915
see KCC Warning
Bluetooth®
Information
Feature
特征与参数
Values
数值
Bluetooth® range / 范围up to100m (328
feet) (free fi eld /无
障碍场地)
power output
9.37dBm
输出功率
KCC Warning
해당 무선 설비는 운용 중 전파혼신 가능성이 있음
Japan Information
当該機器には電波法に基づく、技術基準適合証明等
を受けた特定無線設備を装着している。
Bluetooth®Information
FCC ID: WAF-05601915
See FCC Warnings
Feature
特征与参数
Bluetooth®- Range范围up to150m (490 feet)
radio type
型号
company
制造商
RF Band
Values
数值
(free fi eld /无障碍场地)
Bluetooth® Low
Energy (BLE) 4.2
LSD Science &
Technology Co., Ltd
Lierda LSD4BT_S37
2402 – 2480MHz
射频频段
power output
13,70dBm
输出功率
FCC Warnings
Information from the FCC (Federal Communications Commission)
For your own safety
Shielded cables should be used for a composite interface. This
is to ensure continued protection against radio frequency interference.
FCC warning statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
