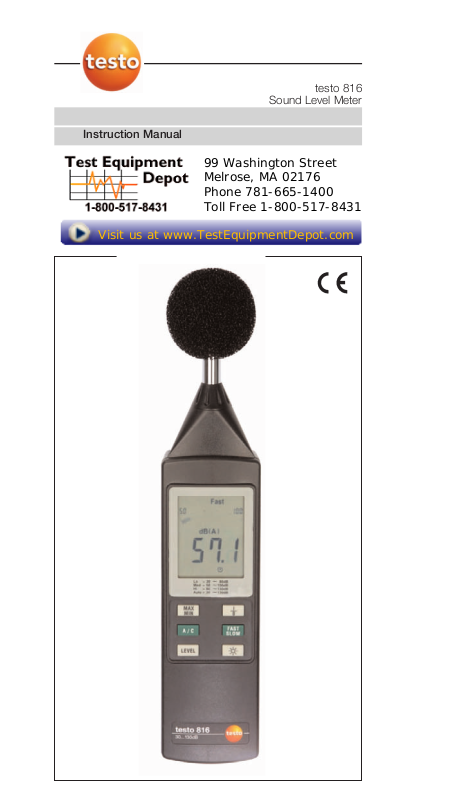

Instruction Manual
testo 816

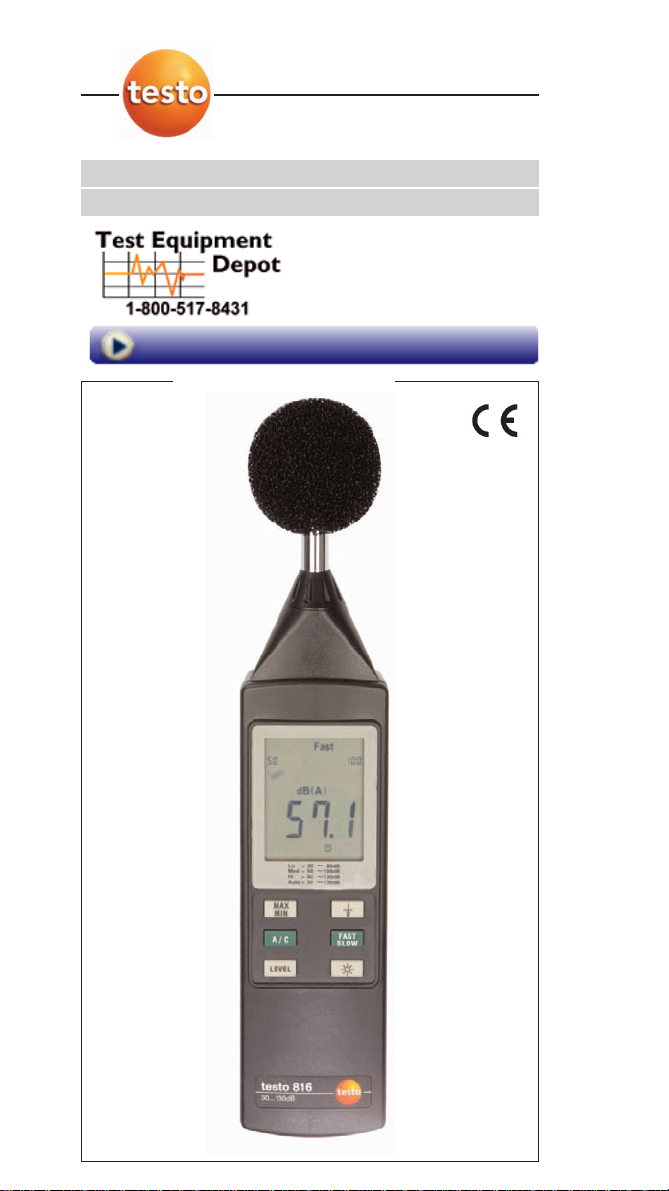

Sound Level Meter
99 Washington Street Melrose, MA 02176
Phone 781-665-1400 Toll Free 1-800-517-8431
Page 2
20
General Information
General Information
Please read this documentation through carefully and familiarise yourself with the operation of the product before putting it to use. Keep this document to hand so that you can refer to it when necessary.
Identification

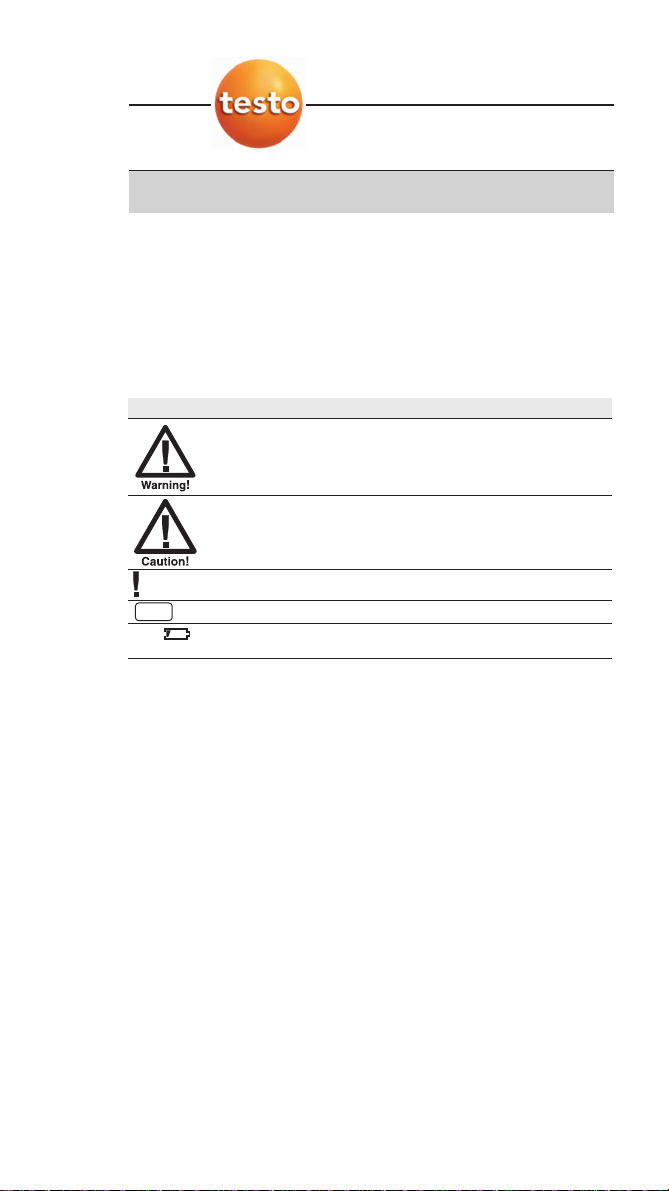

Symbol Meaning Comments
Warning advice: Warning! Read the warning advice Serious physical injury could be caused if the carefully and take the specified precautionary measures are specified precautionary not taken. measures
Warning advice: Caution! Read the warning advice Slight physical injury or damage to equipment carefully and take the could occur if the specified precautionary specified precautionary measures are not taken. measures
Important Please pay particular
attention.
Key Press the key.
Tex t, Display contents Text or symbol is shown on
the display.
Taste
Page 3
21
Contents
Contents
General Information ........................................................20
Contents ........................................................................21
1. Safety Advice..................................................................22
2. Intended Purpose ..........................................................23
3. Product Description........................................................24
3.1 Display and operating elements ........................................................24
3.2 Supply voltage ..................................................................................24
4. Initial Operation ..............................................................25
4.1 Putting in the battery ........................................................................25
5. Operation ......................................................................25
5.1 Switching on/off ................................................................................25
5.2 Setting the meter ..............................................................................25
5.3 Measuring ........................................................................................29
5.4 Calibration ........................................................................................31
6. Care and Maintenance....................................................32
6.1 Changing the battery ........................................................................32
6.2 Microphone ......................................................................................32
6.3 Meter ................................................................................................32
7. Technical Data ................................................................33
8. Accessories and Spare Parts..........................................34
9. Measurement Engineering Fundamentals........................35
en
Test Equipment Depot - 800.517.8431 99 Washington Street
, Melrose, MA 02176
TestEquipmentDepot.com
Page 4
22
1. Safety Advice
1. Safety Advice
Avoid electrical hazards:
Never use to measure on or near live parts!
Product safety/preserving warranty claims:
Operate the meter only within the parameters specified in the technical data. Do not use force.
Never store with solvents (e.g. acetone). Observe maximum storage and transport temperature as well
as operating temperature. Ensure that liquid does not enter into the microphone. Open the meter only when this is expressly described in the
Instruction Manual for maintenance purposes. Carry out only the maintenance and repair work that is
described in the Instruction Manual. Follow the prescribed steps exactly. For safety reasons, use only original spare parts from Testo.
Warranty claims will no longer apply if the meter is handled improperly or force is applied.
Ensure correct disposal:
Dispose of defective rechargeable batteries and spent batteries at the collection points provided.
Send the meter directly to us at the end of its life cycle. We will ensure that it is disposed of in an environmentally friendly manner.
As declared in the certificate of conformity, this product fulfils the guidelines of 89/336/EEC. Meter conforms with DIN EN 60651 (IEC 651), Class 2.
Page 5
23
2. Intended Purpose
2. Intended Purpose
testo 816 is a sound meter with the sound level measurement
ranges 30-80dB, 50-100dB and 80-130dB, automatic range switchover, two time weightings, two frequency weightings, a maximum/minimum function, display light and a tripod screw.
Using the calibrator (accessory), the meter can be recalibrated with the enclosed adjustment screwdriver.
en
Page 6
24
3. Product Description

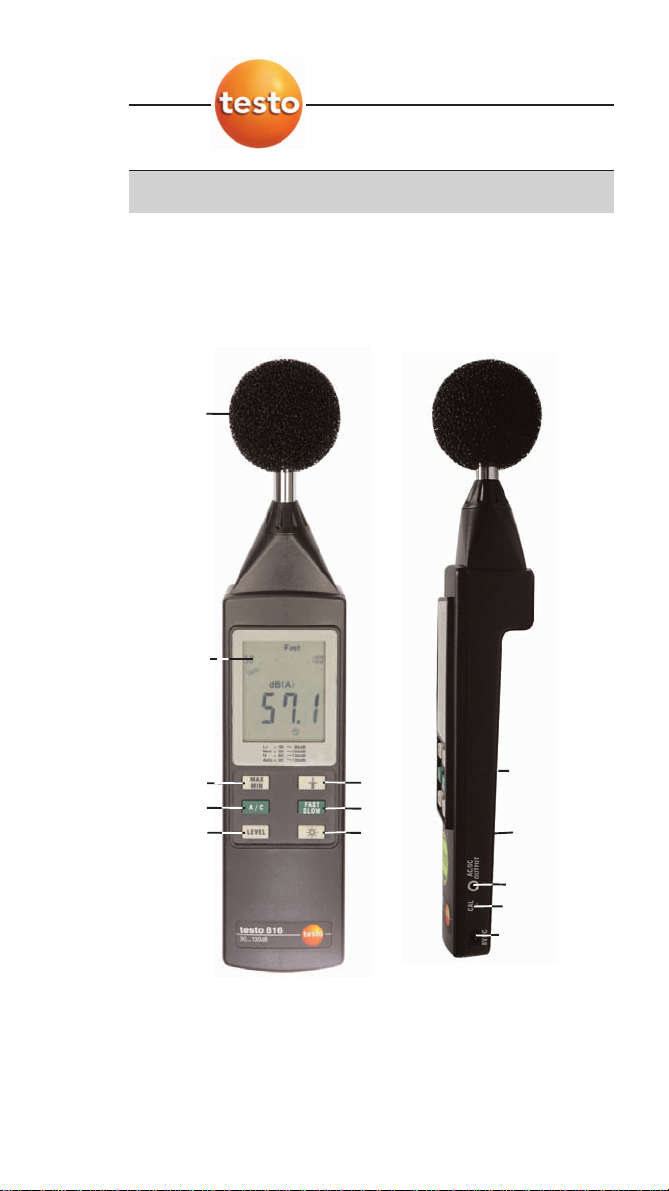

3.1 Display and operating elements
3.2 Supply voltage
Voltage is supplied by a 9V block battery Type 006 P or IEC6F22 or NEDA 1604 (included). If a battery is not inserted, it is possible to supply voltage via an external mains unit.
3. Product Description
Display
Microphone
On/Off button
Fast/Slow button
Light button
Min/Max
button
A/C
weighting
Level
button
Battery compartment
(rear)
Calibration screw
8V input
AC/DC output
Tripod thread
Page 7
25
4. Initial Operation
4.1 Putting in the battery
1
Open battery compartment at the back of the instrument.
2
Insert 9V block battery. Ensure +/- is correct.
3
Close battery compartment.
5. Operation
5.1 Switching on/off
Switch on meter: press .
- All segments light up briefly and the meter switches to the measurement mode (measurement range 50 - 100dB).
Switch off meter: press .
5.2 Setting the meter
The following functions can be set:
Function Description Setting options
Time weighting Sets measurement time Fast or Slow Frequency weighting Sets weighting A or C Level Switches over 30 to 80dB
measurement range 50 to100dB
80 to 130dB
30 to 130dB (Auto range)
Hold function Switches on MAX / MIN
Max Hold/Min Hold Function
Light Switches on display light On/Off
4. Initial Operation
en
Page 8
26
Setting the time weighting
The measurement time (time weighting) is set by pressing .
SLOW/FAST: The ranges "Slow" with a time weighting of 1s and "Fast" with a time weighting of 125ms are available. Incoming sound signals are integrated in a time period from 1s or 125ms respectively. When "Fast" is set, the display rate of a reading increases to approx. 5-6 measurement rates per second. The "Slow" time weighting is selected for noises whose signals only change slowly e.g. machines, photocopiers, printers etc. Select the "Fast" mode to measure sudden changes in sound level (e.g.building machines).
Setting the frequency weighting
Frequency weighting is set with the button.
A/C: The frequency weightings "A" and "C" are available. Frequency weighting A is used for standard sound level measurements. This weighting corresponds to the sound pressure felt by the human ear, also referred to as "aurally compensated sound level". If the low frequency levels of a sound are to be assessed, frequency weighting C is used. If the displayed value is considerably higher during the C weighting than during the A weighting, the level of low frequency noise is high.
5. Operation
Test Equipment Depot - 800.517.8431 99 Washington Street
, Melrose, MA 02176
TestEquipmentDepot.com
Page 9
27
Setting the measurement range
The measurement range is switched using the button.
Level: The testo 816 sound level meter covers the range 30 to 130 dB.
The measurement ranges 30 to 80, 50 to 100 and 80 to 130 dB are available as well as an Auto Range function. The meter is in the middle measurement range 50 to 100 dB when first switched on. The measurement range is switched each time to a higher level by activating the "LEVEL" button: 50...100dB Æ80...130dB ÆAuto range. You can switch back into the lowest range 30 to 80 dB from the Auto Range mode.
MAX/MIN - Hold Function
Use the button to activate the Max Hold or Min Hold function. "Max" appears in the display once the "Max/Min" button is activated. In this mode, the meter shows the maximum value of the sound level since the max mode was set. The display is only updated if a higher value than the previously displayed value is measured. The meter goes into the Min-Hold mode when the "Max/Min" button is activated again. "Min" appears in the display. The display is only updated if the sound level is below the displayed value. Max/Min flashes in the display if the "Max/ Min" button is activated again. The current value is displayed and the maximum or minimum value is stored in this mode. The maximum or minimum value is displayed by again activating the "Max Min" button. The "Max Min" button must be kept pressed for two seconds in order to quit the Max Min mode.
The Max-Min mode is cancelled by activating the Level, Fast/Slow or A/C button.
5. Operation
en
Page 10
28
Switching light on/off
The display light is switched on by pressing the button. The light is switched off again by pressing the button again.
Auto Off function
When switched on, the meter is in the automatic off mode (Auto Off Function). The meter switches off automatically after 30 minutes if no button has activated during this time. This function is symbolised by the clock in the display. You can deactivate this function by keeping the button pressed when switching on the meter. A clock symbol then does not appear in the display.

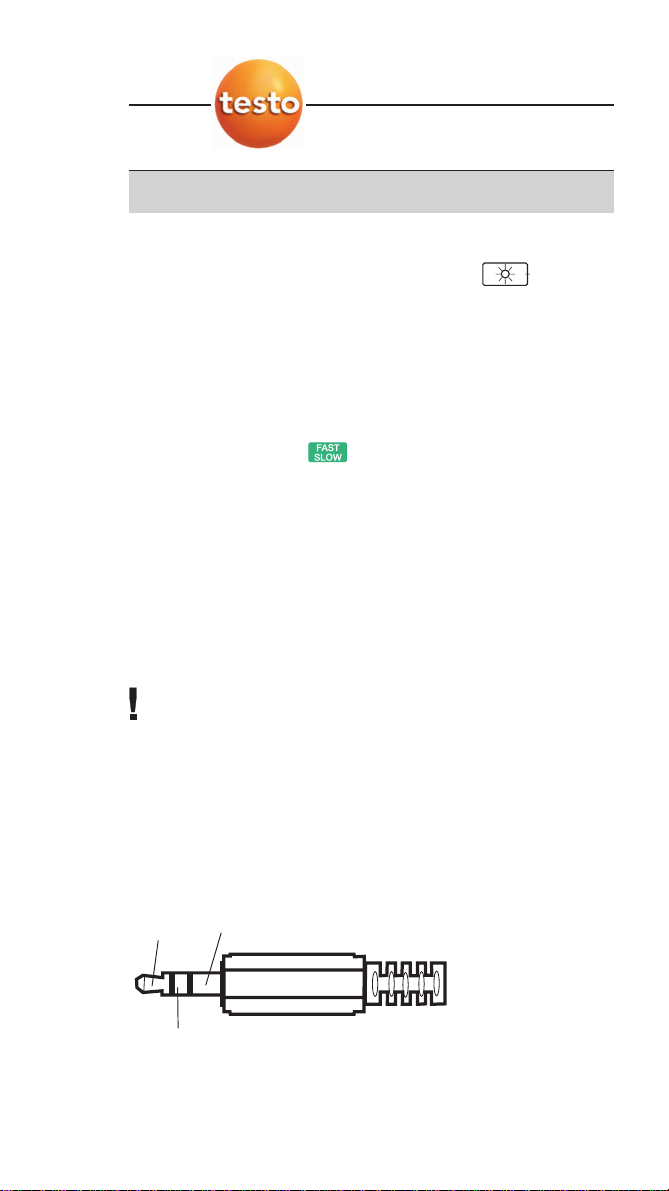

AC/DC output
The testo 816 meter has an AC/DC output with the following specifications:
AC: 1 V RMS at end-scale deflection
Output impedance approx. 100 Ohm Output signal through standard 3,5mm jack connector (see figure below).
Note: If the meter measures in the Auto Range function, the output signal corresponds to the automatically selected measurement range.
DC: Output 10mV/dB
Output impedance 1 kOhm Output signal through standard 3.5mm jack connector (see Figure below).
5. Operation
AC signal
Earth
DC signal
Page 11
29
Mains connection
The testo 816 meter has an 8V mains connection for use with a mains unit (see Ordering data)
5.3 Measuring
Sound waves can be reflected off walls, ceilings and other objects. Also the meter housing and the person measuring (if measuring incorrectly) are disturbing factors in the sound field and can lead to incorrect measurement results.
How to avoid measurement errors
The meter housing and the person operating the meter may not only obstruct the sound coming from a certain direction but they can also produce reflections and consequently serious measurement errors. Experiments have shown, for example, that the body can cause errors of up to 6 dB with frequencies of 400 Hz if a measurement takes place less than one meter away from the person. This error is less for other frequencies but a minimum distance should be adhered to. Generally, it is recommended that the meter is held at least 30 cm - even better 50 cm - away from the body.
We recommend fitting the instrument to a tripod for exact measurements.
Measuring 1 Switch on instrument 2 Set measurement time (”FAST/SLOW”) 3 Set frequency (”A/C”) 4 Set measurement range (”Level”) 5 Always direct the microphone exactly at the sound source to
be measured (reference direction).
6 Save the highest and lowest value via ”Max/Min
5. Operation
en
Page 12
30
Absolute pressure dependency testo 816 is calibrated by default for measurements at a height of
0 m above sea level. Measurements at other heights give rise to measurement errors which can be corrected using a table (see technical data). Subtract the appropriate offset value from the value measured (e.g. - 0.1 dB for measurements at a height of 500 m above sea level). You can avoid this measurement error by calibrating the meter in the corresponding height prior to every measurement. Please refer to the Instruction Manual for the calibrator.
Wind cap
Generally the wind cap supplied should be attached during measurements outdoors and when air movements occur. Wind noises in the microphone cause measurement errors since the wanted signal (of the noise source) and the wind noise add up together.
The wind cap does not falsify the measurement result.
Overmodulation and undermodulation
With every measurement cycle, the sound level meter checks whether the measured sound level is in the validity range of the respective measurement range. Deviations are indicated by "Over" and "Under" on the display. However, the criteria for overmodulation and undermodulation are different. Overmodulation is signalled if the maximum value (peak value e.g. short sound pulse, bang) during the last measurement cycle was too high. This value may be considerably higher than the actual value of the sound level displayed. Therefore, it can happen that "Over" is signalled although a sound level within the normal framework of the respective measurement range is shown. By contrast "Under" is geared to the measured actual value and is therefore set when the lower limit of the measurement range is reached.
5. Operation
Page 13
31
5.4 Calibration
The testo 816 sound level meter has already been calibrated in the factory. In order to check accuracy, recalibration with the calibrator is recommended particularly if the instrument has not been used for a long period of time. The testo 816 meter should also be checked with the calibrator prior to and following measurements in tough conditions, at great heights, at high air humidity levels or when particularly high demands are made on the measurement results.
For calibration purposes, the calibrator is placed with a rotary motion on the microphone. Switch on the sound level meter and set it to the measurement range 50-100 dB, time weighting "Fast" and frequency weighting "A".
The calibrator is then switched on by moving the switch to the middle position (94 dB). If the sound level meter deviates from the value shown, it can be readjusted using the adjustment screwdriver supplied. You can then check whether the second level of the calibrator is also within the error limit of ± 0.2 dB. Please note that to do this you must select the corresponding measurement range (80-130 dB). If the value shown is not within the error limit, please contact our service department.
5. Operation
en
Page 14
32
6. Care and Maintenance
6.1 Changing the battery
If the battery symbol appears in the display, the lifetime remaining is approx. 10 hours. To avoid mismeasurement, please change the battery as soon as possible.
1
Open the battery compartment at the back of the meter.
2
Remove the spent battery and insert the new battery, Type 9V block (ensure+/- is correct).
3
Close battery compartment.
6.2 Microphone
A robust, long-term stable measurement microphone is located in the housing head. A function test can be carried out with the calibrator. The housing can be cleaned with alcohol (isopropanol).
Please ensure that liquid does not get into the microphone.
The attached wind cap also protects the microphone from dust and humidity.
Please contact our service department if the microphone is defect.
6.3 Meter testo 816 is maintenance-free and is therefore not bound by any
maintenance intervals. Clean the housing with a damp cloth. Weak household cleaning agents can be used.
Never clean with abrasive cleaning agents or solutions.
6. Care and Maintenance
Page 15
33
7. Technical Data
Feature Values
Sensor: ½ inch electret condenser measurement microphone Overall measurement range: 30 to 130 dB Level ranges: 30 to 80 dB
50 to 100 dB 80 to 130 dB
Auto range: 30 to 130dB Frequency range: 31.5 Hz to 8 kHz Frequency weighting: A/C Reference frequency: 1000 Hz Backup impedance of microphone: 1 kat 1 kHz AC/DC output AC: 1V RMS at end scale deflection; output impedance approx.
100 Ohm DC: output 10 mV/dB; output impedance approx. 1 kOhm
Absolute pressure dependency: -1.6*10
-3
dB/hPa
Time weighting: 125 ms (Fast) or
1 s (Slow)
Accuracy: ± 1.0 dB (under reference conditions: 94dB at 1kHz) Display: LCD
Digital display: 4 digit LCD display, 13mm high
Resolution: 0.1dB Display refresh: 0.5s
Analog display: 50 segment bar graph
Resolution: 1dB Display refresh: 100ms
Battery: 9V Block (6F 22) Battery life Approx. 50 hours (alkaline manganese) Tripod thread: ¼ inch Operating temperature: 0 to +40°C Operating humidity: 10 to 90 %RH Storage temperature: -10 to +60°C Storage humidity: 10 to 75 %RH Housing material: ABS Mains connection: For 8V mains unit 0554 1084
Temperature dependancy table
Absolute pressure dependancy
Altitude in metres above s.l. Pressure p in mbar Correction in dB
0 - 250 1013 - 984 0.0
>250 - 850 983 - 915 -0.1
>850 - 1450 914 - 853 -0.2
>1450 - 2000 852 - 795 -0.3
7. Technical Data
en
Page 16
34
Temperature correction value table Relative humidity: 65 %RH Reference value sound pressure level: 124 dB Temperature range with discrepancy <0.5 dB:10...40 °C
Temperature in °C Correction in dB
-10 -0.7
0 -0.7
5 -0.6
50 1
Frequency weighting
Nom. frequency in Hz A-weighting C-weighting Error limits
in Hz in dB in dB Class 2 in dB
31.5 -39.4 -3.0 ±3
125 -16.1 -0.2 ±1.5 250 -8.6 -0.0 ±1.5
500 -3.2 -0.0 ±1.5
1000 0 0 ±1.5
2000 +1.2 -0.2 ±2 4000 +1.0 -0.8 ±3 8000 -1.1 -3.0 ±5
8. Accessories and Spare Parts
Name Item no.
testo 816 sound level meter 0563 8165
incl. battery,Instruction Manual, screwdriver, wind cap Calibrator 0554 0452 Wind cap 0193 0816
9V rechargeable battery 0515 0025 Recharger for external recharging of rechargeable battery 0554 0025
Mains unit 0554 1084 Screwdriver 0554 0818
7. Technical Data
63 -26.2 -0.8 ±2
Page 17
35
9. Measurement Engineering
Fundamentals
Pressure and Sound
Noises are changes in the sound pressure in the air. When conditions are normal, the air pressure is 1013 mbar about which the sound pressure of the noise source fluctuates. The human ear senses these pressure fluctuations and converts them to nerve pulses. The ear is like a pressure sensor with an enormous dynamic range. The quietest noise which can be heard by humans causes pressure fluctuations of 0.0002 µbar (corresponding to 0 dB), the loudest noise (which can be heard without pain) has a sound pressure level of 635 µbar (corresponding to 130 dB).
This corresponds to a pressure difference of around 3,000,000­fold. Since stating the pressure in mbar would result in very long figures, logarithmic notation is used and calculation is with level values. In this way, a level increase of 20 dB corresponds to a 10­fold increase in pressure. A sound level meter to EN 60651 measures the frequency weighted actual value of the sound level, it is a measure of the total sound energy converted during measurement time.
9. Measurement Engineering Fundamentals
en
Page 18
Test Equipment Depot - 800.517.8431 99 Washington Street, Melrose, MA 02176 TestEquipmentDepot.com
0973.8160/03/C/wh/05.05.2006
