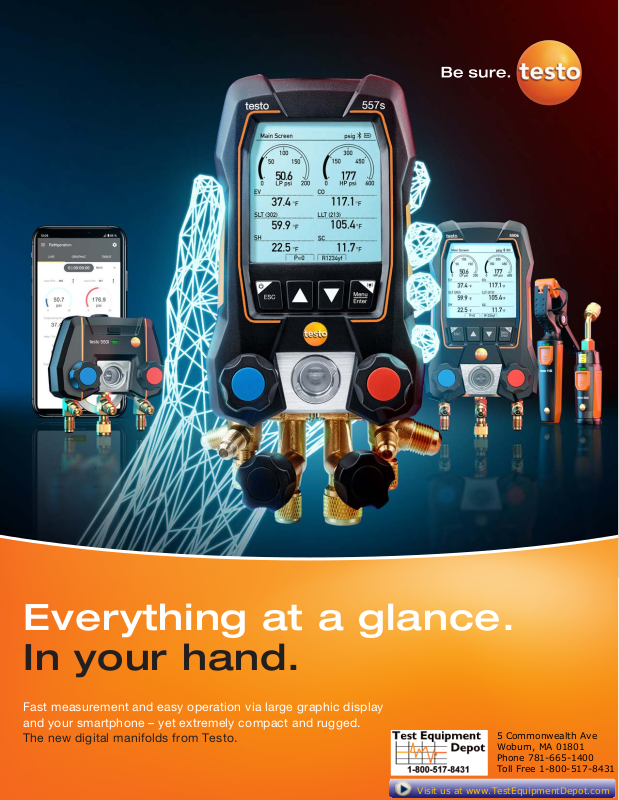

Page 1
Everything at a glance.
In your hand.
Fast measurement and easy operation via large graphic display
and your smartphone – yet extremely compact and rugged.
The new digital manifolds from Testo.
Visit us at www.TestEquipmentDepot.com
5 Commonwealth Ave
Woburn, MA 01801
Phone 781-665-1400
Toll Free 1-800-517-8431
Page 2
The demands are increasing.
There’s a solution at hand.
Good refrigeration, air conditioning, or heating technicians
work with expertise and experience, and the best techs with
a professional assistant: us. Because at Testo, we develop
the tools which use reliable and smart technologies to make
your working day easier. Thanks to Bluetooth
digital manifolds with an extra-large display and rugged
safety housing, are also suitable for wireless measurement.
You save valuable time and avoid stress in the installation,
2
®
5.0, the new
maintenance, and servicing of refrigeration systems and heat
pumps. All important measurement programs are already
stored in the system, as well as the right refrigerants for
different job sites. With the testo Smart App, documentation
is fast and uncomplicated on site. Thanks to wireless data
transfer, you even have both hands free. Sound like a smooth
job? Then we’ve done everything right.
Page 3
The next generation
of digital manifolds.
Allow us to introduce: Today’s way of installing and servicing
refrigeration systems and heat pumps. The new generation
of digital manifolds from Testo are faster, more reliable, and
more flexible than ever before. What was already good, we’ve
made even better:
- larger display with clearer arrangement
- increased durability and convenience of handling
- wireless networking with Bluetooth
®
5.0
Testo has introduced the first fully digital manifold onto the
market, which allows you to display and evaluate all results in
real time, in the testo Smart App. You can see the convincing
results here, and if you want, soon hold it in your hand.
Wireless measurement, uncomplicated
documentation – with Bluetooth® 5.0,
testo Smart App and free testo
DataControl PC software.
Compact, handy and rugged:
The rugged housing with its large
display handles its job reliably even
under extreme conditions.
Extra-large graphic displays, the
new testo Smart App and intuitive user
guidance make measurements faster
and easier than ever before.
3
Page 4
testo 550s / testo 557s
Two New Manifolds.
First choice
for every job.
Bluetooth® 5.0
+ App
testo Smart App
for free download
NOW IN
Download at
The testo 550s and testo 557s digital manifolds make
measurements on refrigeration and air conditioning systems,
as well as heat pumps faster and easier than ever before. The
large display shows all measurement data at a glance and
simplifies the analysis of the results. Measurement menus
guide you step by step through the measurement and allow
automatic determination of important parameters such as
superheat, pressure-drop test, tightness test or evacuation.
Bluetooth® probes for temperature, pressure, and humidity
can be connected wirelessly to the instrument with the testo
Smart App, providing even more flexibility. Additionally, the
Smart Probes App will always select the proper refrigerant.
Thanks to its proven quality and great durability, you can rely
on maximum precision under any conditions, from the first to
the last job.
The advantages
are obvious:
•
All results at a glance with the large graphic
display
Exceptionally compact and reliable thanks
•
to the easy-to-handle, rugged housing with IP54
protection class
Easy, wireless measurement of vacuum and
•
temperature via automatic Bluetooth® connection
to the testo Smart Probes
Even greater flexibility for your measurements
•
and documentation with the testoSmart App
4
Page 5
Field ready practical kits and useful
accessories.
testo550s
Digital manifold
with Bluetooth
2-way valve block.
Practical case
Always included: rugged case for
stowing all kit components, hoses
and probes quickly and safely.
+
Temperature probes
With or without wire for measurements
on pipes Ø 0.2 to 1.4 inches
®
and
+
+ +
testo552i
The wireless vacuum
Smart Probe connects
automatically to the digital
manifolds or the testo
Smart App, Bluetooth
range up to 500 feet.
testo557s
Digital manifold with
Bluetooth
valve block.
®
and 4-way
Magnetic strap
with click system for easy
swapping
®
+
Hoses with valves
3 or 4 x 7/16” UNF /1 x 5/8” UNF,
length 5 feet each
always included Optional
++
5
Page 6
testo 550i
Fully smart, fully wireless:
The smallest manifold
of all time.
Bluetooth® 5.0
+ App
testo Smart App
for free download
NOW IN
Ready for all your jobs. Today and in the future: The first fully
digital manifold, the testo 550i, enables you to control your
daily servicing and maintenance work on refrigeration, air
conditioning systems, and heat pumps entirely via the testo
Smart App and smartphone or tablet. The smallest digital
manifold on the market is equipped with a 2-way valve block,
deals with measurements fast and conveniently, and thanks
to the digital documentation, saves considerable time. In
addition, the compact instrument connects automatically via
the testo Smart App to our Bluetooth
pressure and humidity. Evaporation and condensation
temperatures can be automatically calculated in the App.
With nothing more in your hand than your smartphone, you’re
standing relaxed to one side – or up to 500 feet away.
Download at
®
probes for temperature,
6
Page 7
Your advantages:
•
All activities, from measurement to documenting
using the testo Smart App on your smartphone
The smallest digital manifold on the market
•
• Maximum reliability thanks to the extremely
rugged housing with IP54 protection class
Optionally expandable with testo Smart Probes
•
for wireless measurement of temperature, humidity,
and vacuum
No wires, No hoses – and go!
Vacuum measurement with the testo 552i
smart probe.
No wires. No hoses: The new testo 552i App-Controlled
vacuum probe expands the testo Smart Probes portfolio with
the option of measuring vacuum wirelessly, fast, and with just
one service port.
For the purposes of vacuum measurement, the testo 552i
connects automatically with the testo 550s and testo 557s
digital manifolds, as well as with the testo 550i via the
testo Smart App, and provides alarms directly in the App
in the case of critical values. What more do you need?
The advantages
at a glance:
•
Identify vacuums quickly and easily
through graphical representation in the App,
or on the digital manifold’s display
Automatic Bluetooth® connection
•
with the testo Smart App and all digital manifolds
Compact, reliable and rugged
•
thanks to housing with IP 54 protection class
Easy installation at any service port
•
thanks to the integrated 45° angle
7
Page 8
One for all.
The new testo Smart App.
All applications of the new digital manifolds on your smartphone: With the new testo Smart App, you can evaluate results even
faster Additionally, it helps you to avoid measurement errors, as stored measurement programs guide you step by step through
the configuration and measurements. With the integrated documentation functions, reports can be created on site, and digital
measurement protocols, including photos, can be sent as PDF or CSV files directly by e-mail. You can also set up customer
data and measurement sites at the touch of a button, and synchronization with the free testo DataControl PC software is done
wirelessly via Wi-Fi.
Easy management of customer
data and measurements.
With the testo DataControl
PC software.
From the test site via the PC, to the finished job: With
the testo DataControl software, measurement results and
customer profiles can be managed easily and quickly – and
the documentation is dealt with almost by itself.
Intuitive user interface:
•
all information available in a click
Graphic display
•
of up to 4 readings at the same time
Manage customer profiles and measuring points:
•
App, digital manifold, and software synchronize
via Wi-Fi
8
Page 9
Digital manifolds from Testo
in comparison.
Whatever the digital manifolds from Testo are needed for – our range has the right one. Compare and decide better.
testo 550s testo 557s testo 550i
Valve block 2-way 4-way 2-way
All application-specific
measurement values at a
glance thanks to the large
graphic display
Operation and documentation
with testo Smart App
Compatible with all wireless
probes for temperature,
vacuum, humidity
Compact outer dimensions
and one-hand operation
Protection class IP54 IP54 IP54
Bluetooth 5.0
(range up to 500 feet)
(with automatic connection) (with automatic connection) (with automatic connection)
Bluetooth 5.0
(range up to 500 feet)
(range up to 500 feet)
–
Bluetooth 5.0
(ultra-compact)
Identical pressure measuring
range HP/LP
Pressure measurement
accuracy
Integrated temperature
measurement
Target superheat in the
manifold or testo Smart App
Measurement data
documented and sent via
testo Smart Probes App
Refrigerants stored 90 90 90
Refrigerant update automatically via App automatically via App automatically via App
Temperature-compensated
tightness testing with
temperature probe
Vacuum measurement with
vacuum probe testo 552i
Suitable for A2L refrigerants
PC software testo DataControl
(optional)
up to 870 psi up to 870 psi up to 870 psi
> 0.5 % of fs > 0.5 % of fs > 0.5 % of fs
(up to 2 temperature probes
+ Bluetooth® probe)
(up to 2 temperature probes
+ Bluetooth® probe)
(up to 2 temperature probes
+ Bluetooth® probe)
(App only)
9
Page 10
Field ready kits.
Order now.
Basic Kit
Smart digital manifold
with wired temperature
probes, case, certificate
of conformity, batteries
testo 550s
Order no. 0564 5501 01
Smart Manifold
Smart digital manifold with
certificate of conformity,
batteries
testo 550i
Smart Kit
Smart digital manifold with
wireless temperature
probes, case, certificate
of conformity, batteries
Order no. 0564 5502 01
Smart Kit
Smart digital manifold with
wireless temperature
probes, case, certificate
of conformity, batteries
Smart Kit
Smart digital manifold with
wireless temperature
probes and wireless
vaccuum probe, case,
certificate of conformity
and batteries
Order no. 0564 5504 01
Smart Kit
Smart digital manifold with
wireless temperature
probes and wireless
vaccuum probe, case,
certificate of conformity,
and batteries
Smart Kit with hoses
Smart digital manifold with
wireless temperature
probes, wireless
vaccuum probe, three
hoses, case, certificate of
conformity and batteries
Order no. 0564 5505 01
Smart Kit
Smart digital manifold with
wireless temperature
probes and wireless
thermohygrometers,
case, certificate of
conformity, and batteries
Order no. 0564 2550 01
Smart Vacuum Kit
Smart digital manifold with wireless temperature probes
testo 557s
and wireless vacuum probe, case, certificate of
conformity, and batteries
Order no. 0564 5571 01
Order no. 0564 3550 01
Order no. 0564 4550 01
Smart Vacuum Kit with hoses
Smart digital manifold with wireless temperature probes
and wireless vacuum probe and four hoses, case,
certificate of conformity and batteries
Order no. 0564 5572 01
Order no. 0564 5550 01
Page 11
Do more on the job.
Accessories for your new digital manifold.
testo552i
Wireless vacuum probe
Order no. 0564 2552 01
Temperature probes (x2)
Order no. 0613 5507
NOW IN
Download at
testo115i
Wireless temperature probe
Order no. 0560 2115 02
Pipe wrap probe
Order no. 0613 5605
NOW IN
Download at
Temperature probe with Velcro Watertight NTC surface probe
Order no. 0613 4611 Order no. 0613 1912
NOW IN
Download at
testo605i
Wireless Thermohygrometer
Order no. 0560 2605 02
Air temperature probe
Order no. 0613 1712
Magnetic strap
Order no. 0564 1001
testo Smart Probes
Refrigeration kit
2 x testo 115i / testo 549i
1 x testo Smart Case
Order no. 0563 0002 10
NOW IN
Download at
testo510 kit
Dierential pressure
measuring instrument
with belt holder and batteries
Order no. 0563 0510
testo316-3
Leak detector for refrigerants
Order no. 0563 3163
11
Page 12
One App. Endless possibilities.
Download now free of charge.
Welcome to the new, digital age of measurement technology. With the testo Smart App, you turn your smartphone into a mobile,
multi-functional command centre for all applications involving refrigeration, air conditioning and heating systems. Together with
the Bluetooth
for the future. And everything which comes after it.
®
-enabled measuring instruments and Smart Probes from Testo, this equips you optimally
testo Smart ProbesDigital manifolds
Temperature
Vacuum
Download
now free of
charge
For Android
and IOS
Humidity
Airflow
Electrical measuring instrument
2980 xxxx/msp/01.2021 Subject to change, including technical modifications.
5 Commonwealth Ave
Woburn, MA 01801
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Loading...
