Instruction manual en
testo 545
Luminous intensity measuring instrument
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Page 2
2
Contents
According to the conformity certificate, the instruments fulfill 2004/08/EEC
guidelines.
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Initial operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
First measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Instrument description
-Keypad/Connection assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
-Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Overview of controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Current measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Saving, Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Measurement functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Freezing readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Maximum readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Minimum readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Multi-point mean calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Timed mean calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Location selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Measuring range switchover function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Memory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Manual / Automatic saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Reading out or printing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Clearing memory contents / Sample printouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
© 1999 Copyright Testo GmbH & Co.
The software and software structure included in the product testo 545 are protected by
copyright laws worldwide.
Page 3
Contents
Instrument configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Power save function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Setting date/time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Unit selection / Factory reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Ordering data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
3
Page 4
4
Initial operation
Please read prior to measurement
Do not measure on live parts.
Observe storage and transport temperature and max. operating temperature (e.g. protect
measuring instrument from direct sunlight)
The V24 cable (PC connection) can be inserted anytime.
A simultaneous print command is not possible if the PC cable is connected.
Opening the instrument, inexpert handling and use of force cancels your warranty.
Putting in the batteries
9V block battery is included in delivery.
Open the battery compartment at the back of the instrument.
Put in block battery. Observe polarisation
Close battery compartment.
Refer to “Power supply” Chapter for more information on
alternative power supply, charge, battery quality.
Page 5
5
The description of the instrument and an overview of the
controls provide a quick introduction.
You will receive up to date readings once the instrument is switched
on. However, you will still need to update or define the data in the
instrument:
Date/Time:
Auto Off:
Units:
Some things can only be set via PC software (See Ordering data):
Location name (8 characters)
Log heading (24 characters), e.g. your company
name - is printed when the readings are printed.
i
Instrument configuration
First measurement
Page 6
6
Instrument description
Keyboard/Connection assignment
Prints
On/Off
Saves
Hold Max Min
Mean
Arrow buttons
move the cursor
Return to current
measurement/
location selection
Confirms menu
setting/
executes function
Keypad:

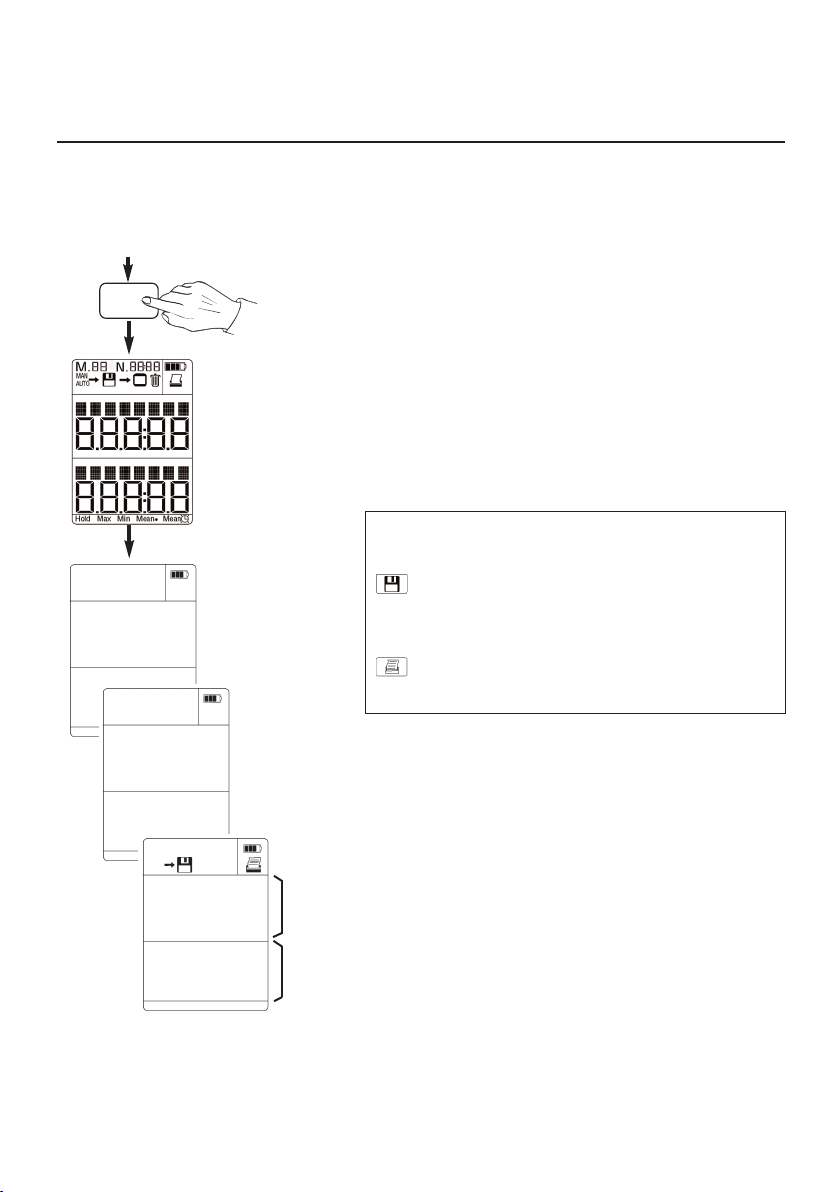

Page 7
7
M. 00
N. 0000
→ The symbols on the top line are explained below
→Name of input socket and parameter
→ Displays reading in line 1
→Name of location
→Time/number of points in mean calculation
→Displays measurement functions
Explanation of symbols:
Counter for the log number in the memory.
When saving manually: number of the measurement saved.
When saving automatically: number of the measurement series. This
counter is needed in order to be able to find single logs or a measurement
series when reading out the memory.
Counter for saving a measurement cycle (required only for automatic
saving). The measurement cycle in a measurement series can be found.
Manual saving of a single measurement by pressing the save button
.
Automatic saving program has been set up.
Saving is activated by pressing the button.
Symbol for reading contents of memory on display.
Symbol for deleting memory contents.
If this symbol appears, the printing function is activated.
The symbol flashes while data is being transmitted. You can print on the
desktop printer by pressing the print button
.
Shows capacity of battery and rechargeable battery.
If the inner segment no longer appears (symbol flashes), the battery has to
be changed or the rechargeable battery has to be recharged. The
instrument switches itself off automatically after 1 minute.
Instrument description
Display
Page 8
8
Overview of controls
4. Measuring range switchover function
Selected
parameter
Lux Switching from resolution of 1 Lux (meas. range 32,000 Lux)
10 Lux (meas. range 100,000 Lux) *
fc Switching from resolution of 0.1 fc (meas. range 3200 fc)
1 fc (meas. range 10.000 fc)
1.
Current measurement
Manual or automatic saving,
depending on setting (5.)
Print readings
2.
Measurement functions
HOLD
Freeze values
MAX
Display maximum values
MIN
Display minimum values
MEAN•
Multi-point mean calculation
Update values
Calculate mean
Reset mean
MEAN
Timed mean calculation
Start and end
Calculate mean
Reset mean
EESSCC
LLooccaattiioonn
Save
manually
Print
readings
3.
Location selection
1... Selection of
99 location
* Multiply displayed value by 10.
Page 9

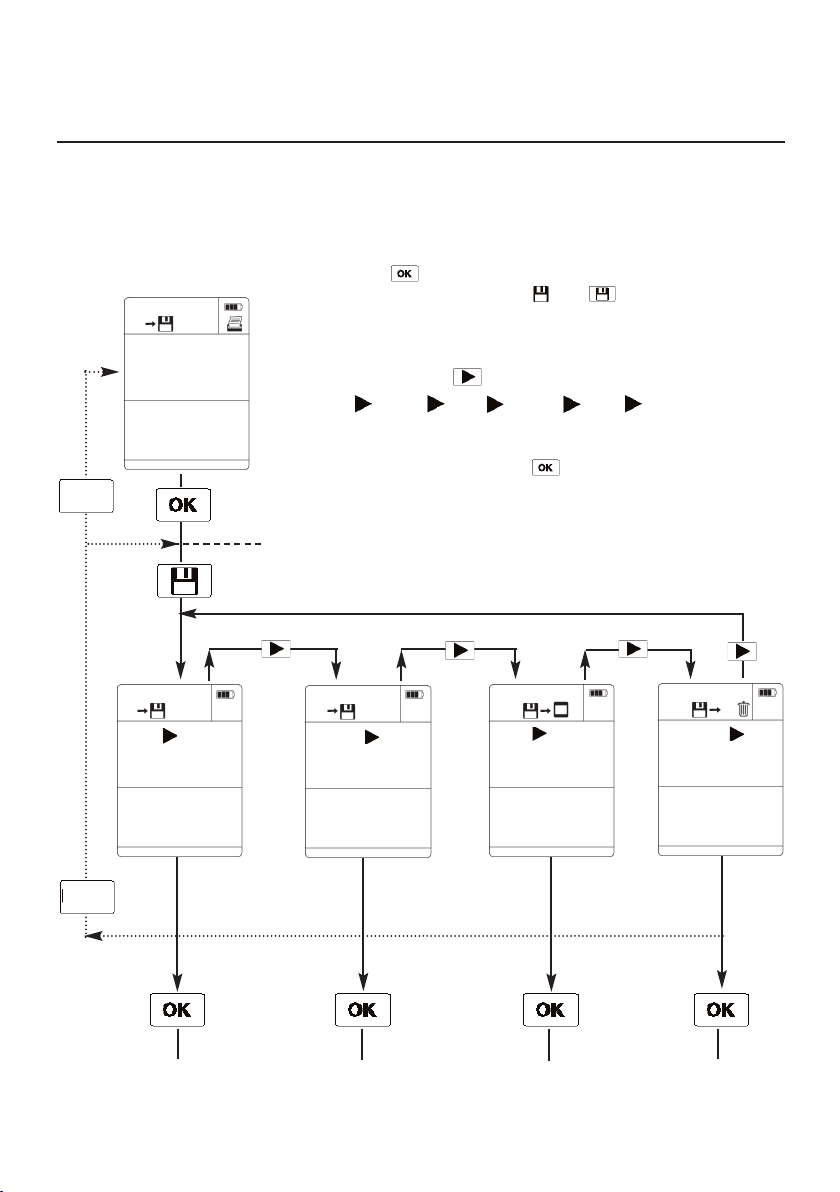

Overview of controls

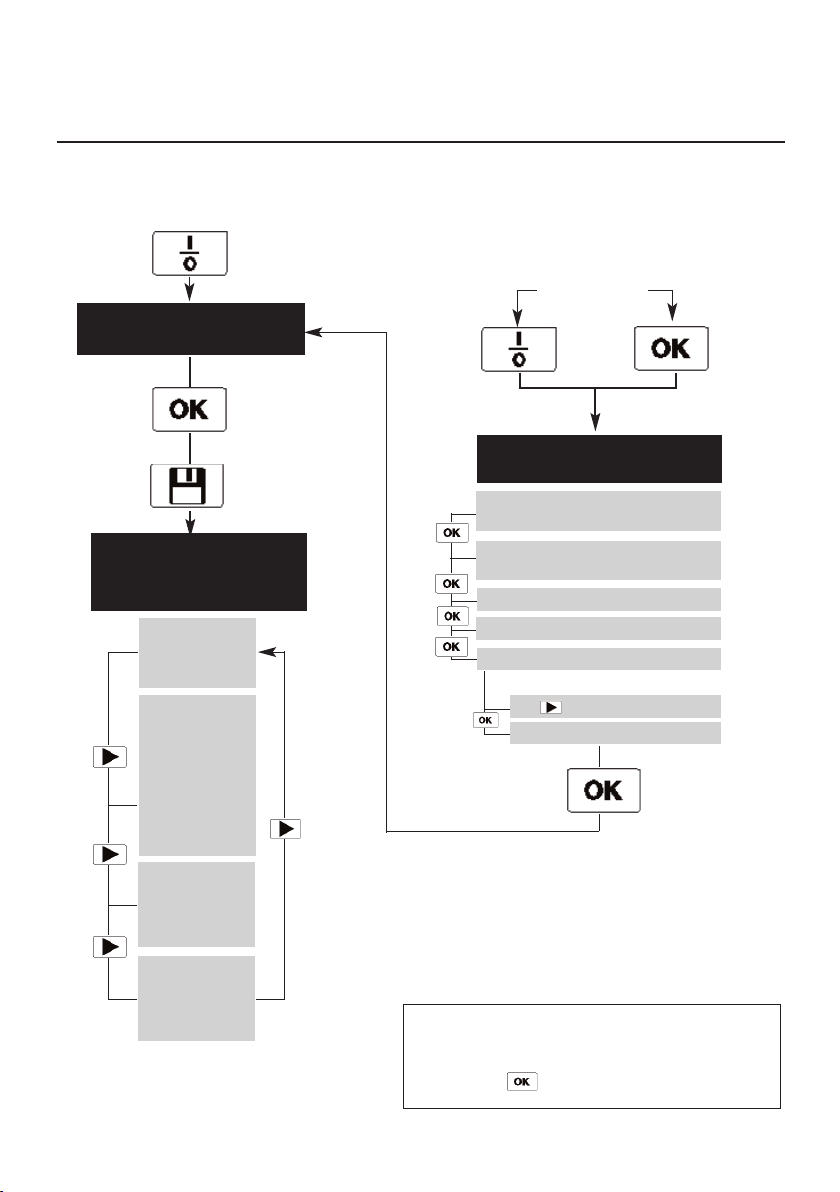

5.
Memory
settings
1.
Current measurement
Simultaneously
Activate - deactivate
automatic switch-off function
Selection: Power supply
Battery - Rechargeable
Setting: Date
Setting: Time
Unit selection
Lux fc
6.
Instrument configuration
Factory reset
MAN
Activate
manual
saving
AUTO
Program
automatic
saving
• Select no. of
meas. cycles
• Set
measurement
rate
OUT
Read memory
contents on
display with
printing option
CLEAR
Clear memory
Note: Everything
in the memory is
deleted
Note
Flashing display is activated and is confirmed
by pressing .

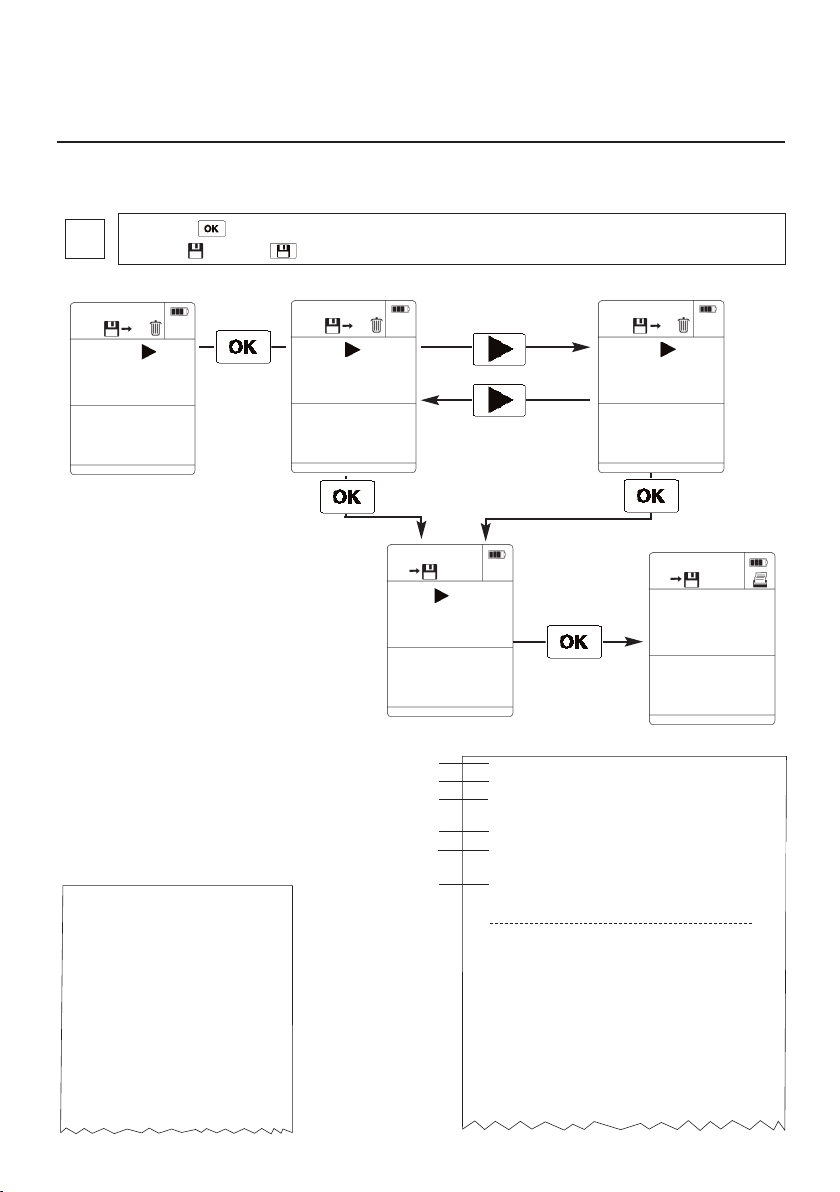

Page 10
10
Switching on / Saving / Printing
Current measurement
Battery / rech.
battery power

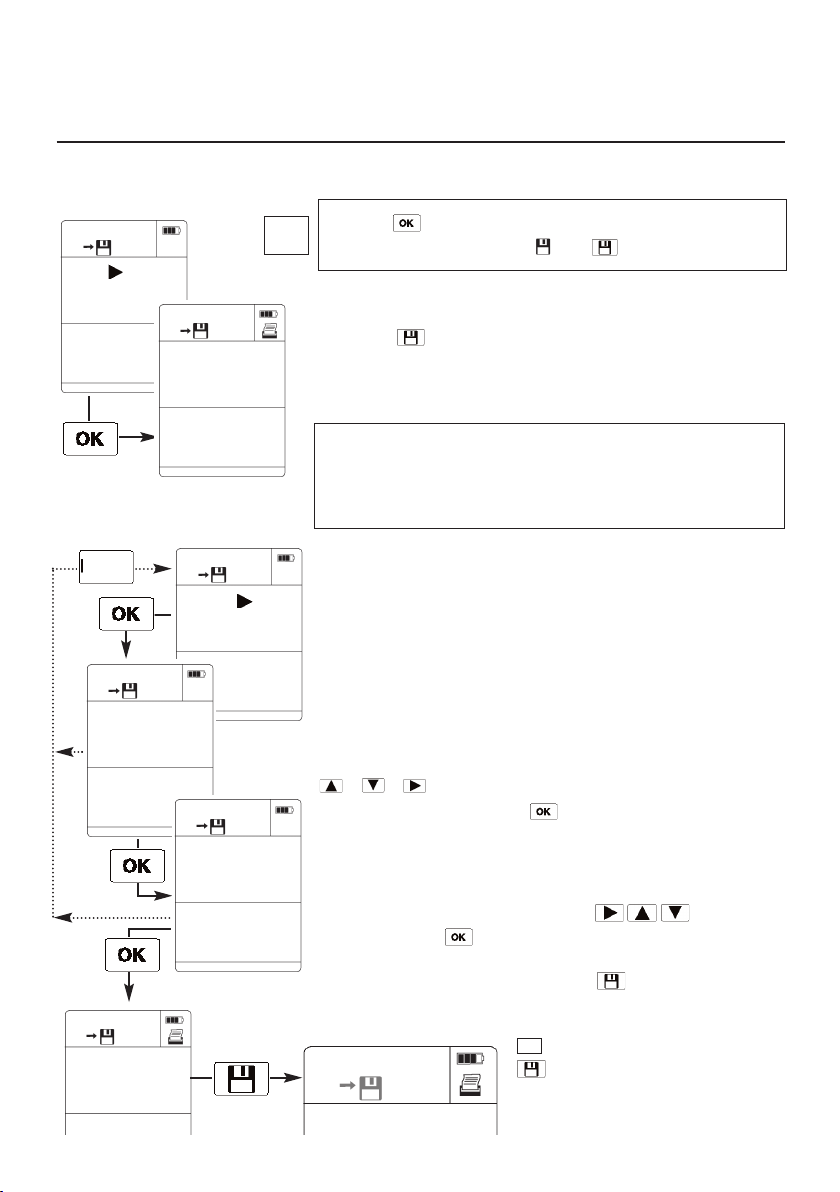

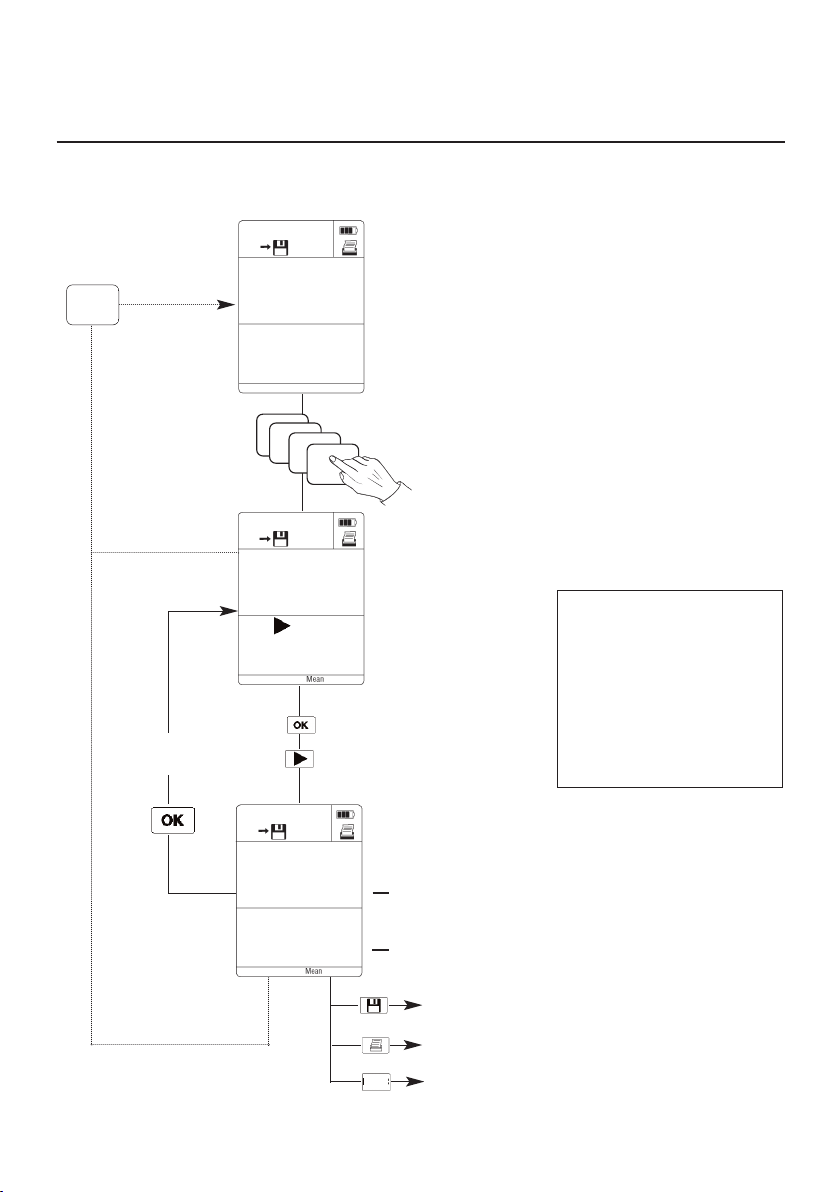

It is possible to activate the following functions during measuring at the touch of a button:
Save readings.
Manual or automatic saving is determined by the
save setting (Chapter 5).
Print readings.
I/0
V
BAT
7.5
1
Location
Museum
Location
Line 1
Line 2
824
M.05
MAN
N.0017
Lux
Museum
Page 11
11

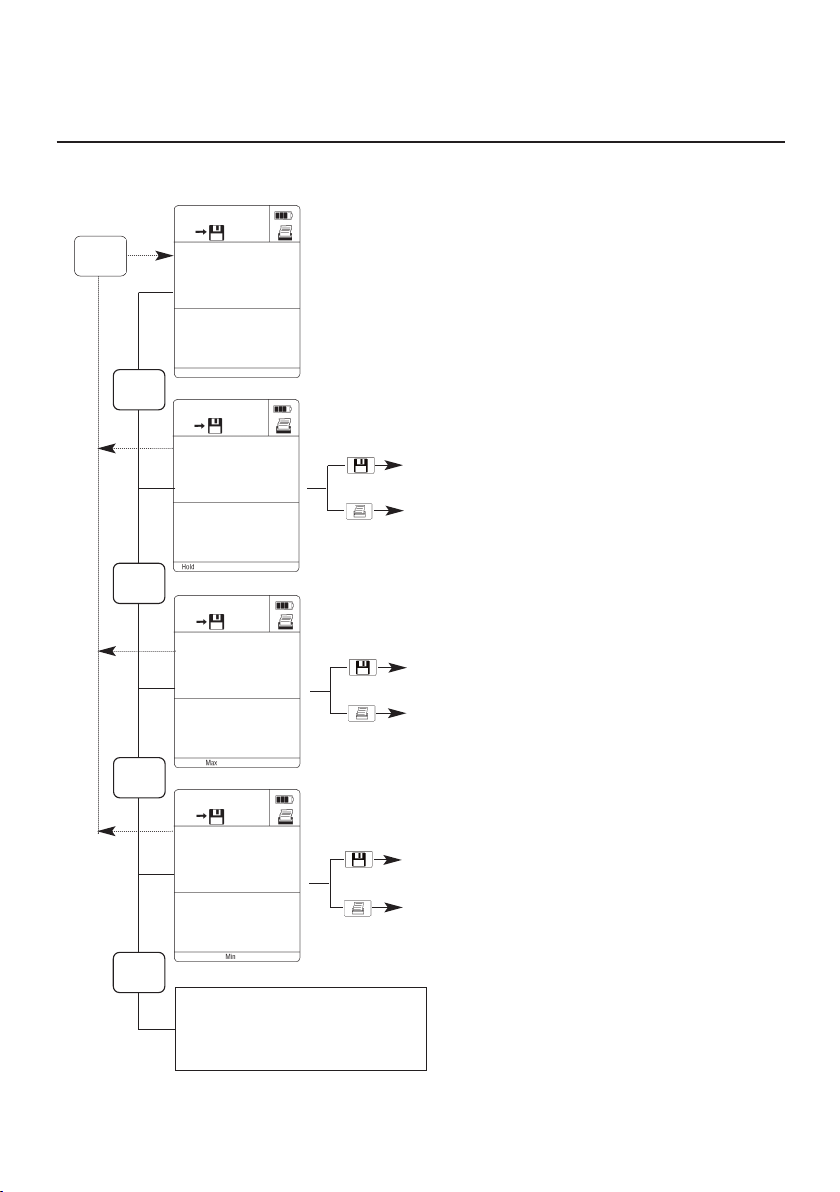

Measurement functions
Freezing values, maximum readings, minimum readings
Freezing values
See multi-point/timed
mean calculation
Current measurement
Maximum readings since
the measurement began
Minimum readings since the
measurement began
824
HLD
Museum
M.05
MAN
N.0017
Lux
824
Lux
Museum
M.05
MAN
N.0017
x10
856
MAX
Museum
M.05
MAN
N.0017
Lux
612
MIN
Museum
M.05
MAN
N.0017
Lux
Hold
Max/Min
Mean
Hold
Max/Min
Mean
Hold
Max/Min
Mean
Hold
Max/Min
Mean
Save reading
Print reading
Save maximum
reading
Print maximum
reading
Save reading
Print reading
ESC
Location
Page 12
Hold
Max/Min
Mean
12
Measurement functions
Multi-point mean calculation Mean•
Multi-point mean calculation
Applies only to parameter on first line
824
0
OOKK
MEAN
M.05
MAN
N.0017
Lux
•
823
5
MEAN
MM EE AANN NNEE WW
M.05
MAN
N.0017
Lux
•
Store values
Calculate mean
Save mean.
Print mean.
Number of values
logged
Mean
Current measurement
823
Museum
M.05
MAN
N.0017
Lux
Hold
Max/Min
Mean
Hold
Max/Min
Mean
Hold
Max/Min
Mean
New mean
calculation possible
ESC
Location
Note on saved or printed logs:
1. The log of a multi-point mean
calculation contains single
values, max. value, min. value
and mean value.
2. The log of a timed mean
calculation contains max. value,
min. value and mean value.
Return to current measurement.
ESC
Location
Page 13
824
00:15
GGOO
MEAN
M.05
MAN
N.0017
Lux
823
EENNDD
MEAN
M.05
MAN
N.0017
Lux
00:10
Measurement functions
Timed mean calculation Mean
823
00:05
MMEEAANN NNEEWW
M.05
MAN
N.0017
Lux
Duration of mean
calculation
Mean
Start timed mean calculation.
Finish timed mean calculation.
Continue timed mean calculation
or
Calculate mean.
Save mean.
Print mean.
New mean
calculation is
possible
Hold
Max/Min
Mean
Current measurement
824
Museum
M.05
MAN
N.0017
Lux
Hold
Max/Min
Mean
Hold
Max/Min
Mean
Hold
Max/Min
Mean
Hold
Max/Min
Mean
824
00:00
SSTTAARRTT
M.05
MAN
N.0017
Lux
Note on saved or printed logs:
1. The log of a multi-point mean
calculation contains single
values, max. value, min. value
and mean value.
2. The log of a timed mean
calculation contains max. value,
min. value and mean value.
Return to current measurement.
ESC
Location
or
Page 14

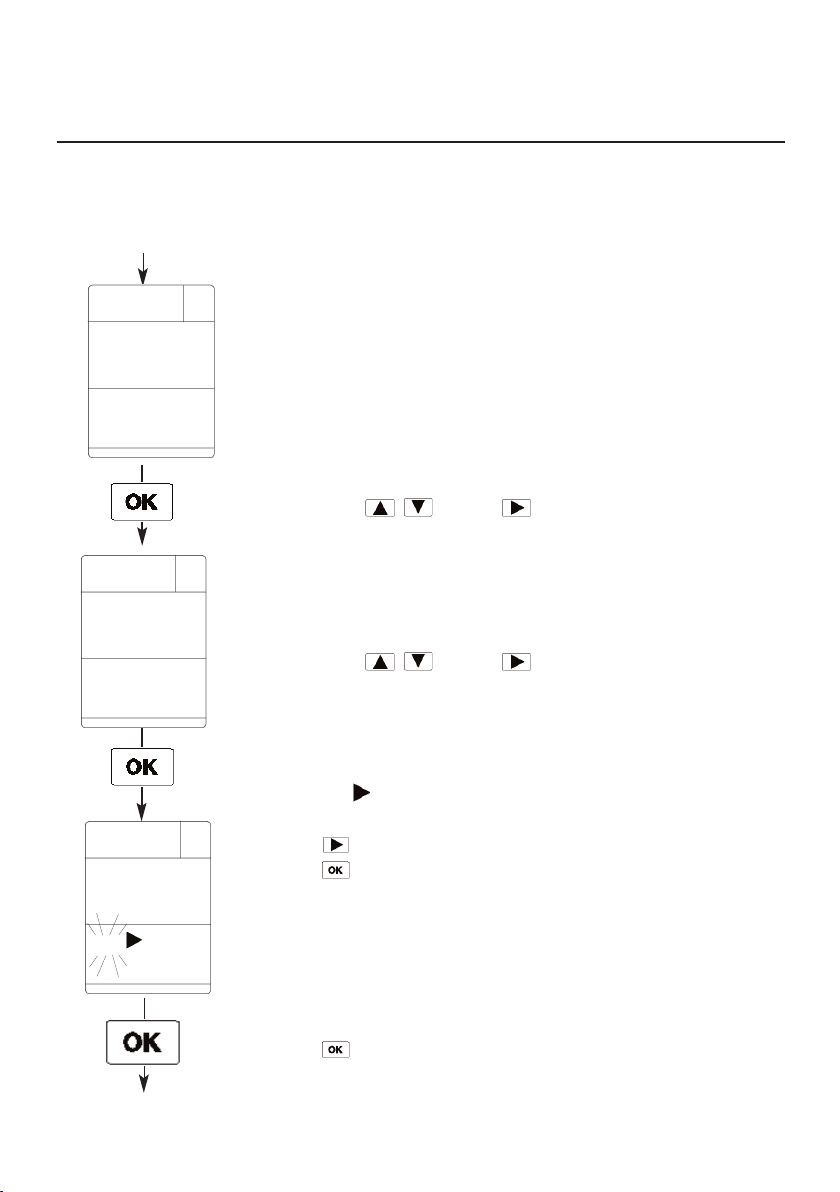

Switching between measuring range and lux or fc resolution
Lux Lux x 10 / 0.1 fc fc
The resolution selected flashes.
Select
Confirm selection and return to measurement.
Resolution Meas. range
1 Lux 32,000 Lux
10 Lux
*
100,000 Lux
Measuring range switchover function
Lux
M.05
MAN
N.0017
Lux Lux x 10
The location names Location 1 to 99 are specified by the factory.
You can load your own location names (8 characters) onto your
instrument using PC software.
/ Selection of location.
Confirm selection and return to measurement.
14
Location selection
824
Museum
M.05
MAN
N.0017
Lux
1. Current
measurement
0011
Location
Museum
EESSCC
LLooccaattiioonn
or :
From now on all measured data which is saved or printed is
linked to the selected location or product names.
Return to current
measurement
Resolution Meas. range
0.1 fc 3200 fc
1 fc 10,000 fc
* Multiply displayed value by 10.
824
Page 15
15
Memory settings
OVERVIEW
4 memory settings are possible. Select the required saving
option by pressing :
MAN AUTO OUT CLEAR MAN ...
The symbol corresponding to the selection appears in the top line.
The function is activated with .
Press the
button to get to the memory settings mode.
Confirm flashing save symbol via button.
1. Current measurement
MEMORY
MAN
AUTO
OOUUTT
CLEAR
MMAANN
AUTO
AAUUTTOO
OUT
CCLLEEAARR
MA
MEMORY
MEMORY
MEMORY
ESC
Location
ESC
Location
Parameter settings
824
Museum
M.05
MAN
N.0017
Lux
Page 16
16

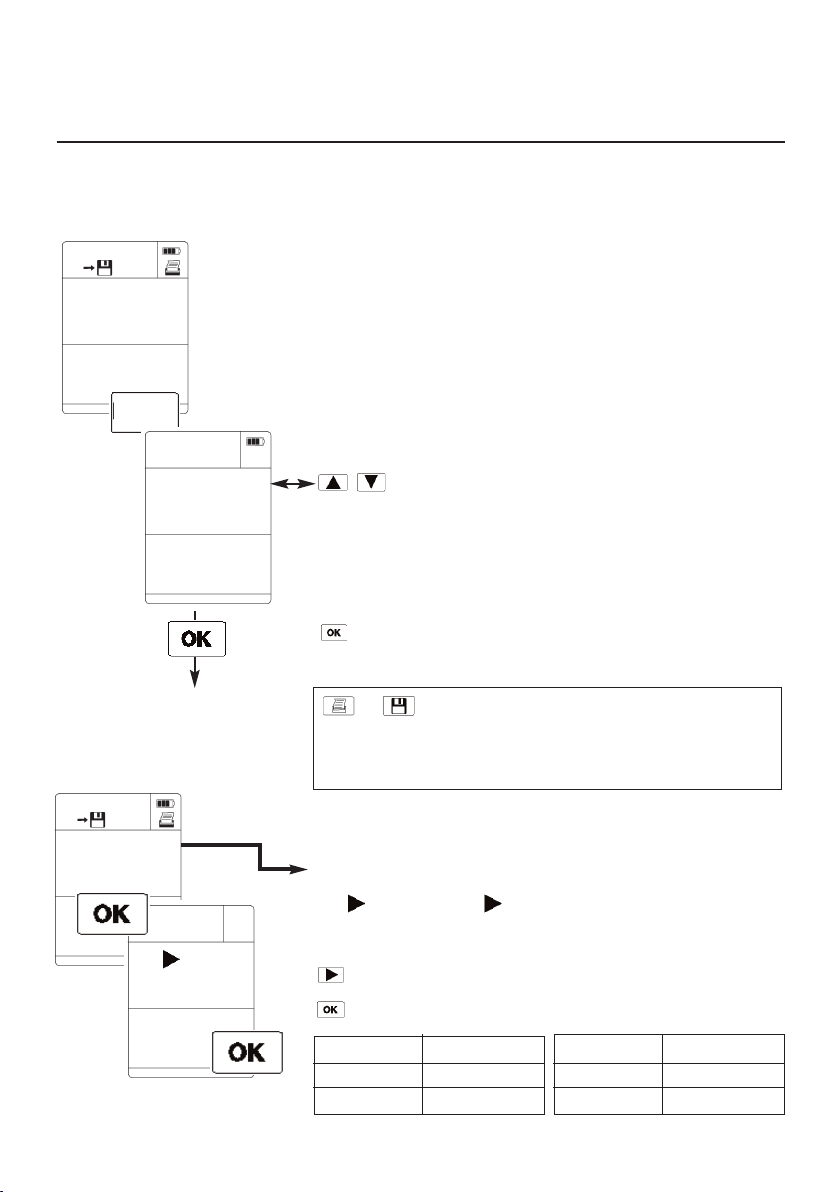

Memory settings
Manual / Automatic saving
824
Lux
M.05 N.0017
AUTO
AUTO
MAN
Manual saving:
Each time is pressed a log of the measurement is saved in
the instrument and includes measured values, location, date and
time. The counter in the top left corner of the display shows the
number of logs saved for this location.
AUTO
Automatic saving:
When this saving function is set, the instrument automatically
accepts the measured values at fixed intervals and saves them
(=logger operation).
The number of measuring cycles (CYCLE-N.) to be saved and
intervals (CYCLE) have to be programmed:
1. Cycle-N.
The instrument automatically offers the maximum possible number
of measuring cycles. Set required number using
/ / .
Confirm set value by pressing .
2. Cycle
Select interval in which the measured values are to be saved. The
blinking position can be changed using . Confirm set
value by pressing .
Automatic saving is started by pressing . The symbol flashes
until the programmed measurement series is accepted.
AAUUTTOO
OUT
MEMORY
MAN
MMAANN
AUTO
MORY
66
00
AUTO
CYCLE-N.
ESC
Location
00
01:3
00
AUTO
CYCLE h
min sec
M.06
N.0017
AAUUTTOO
Cancel saving procedure.
Starts automatic saving again.
An additional measurement series is
added.
EESSCC
LLooccaattiioonn
824
Lux
Museum
M.05
MAN
N.0017
Saving a log with timed or multi-point mean calculation :
The log includes MIN value, MAX value and mean of the
measurement and also single values in multi-point mean
calculations.
Press the button to get to the memory settings mode.
Confirm flashing save symbol
via button.
i
Page 17
17
Memory settings
Reading or printing memory
OUT

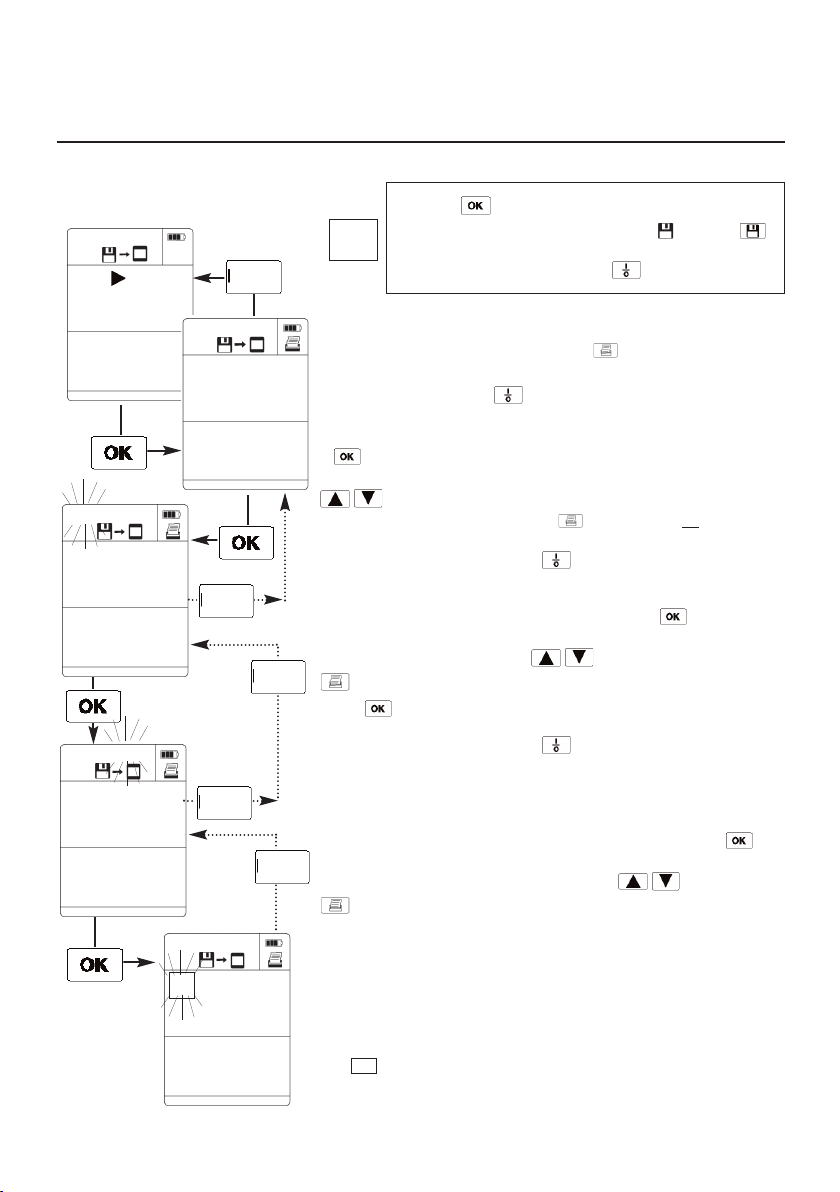

1. Reading out or printing memory contents:
If the “OUT” display is flashing and the button is pressed,
printing of the complete memory contents is started. Cancel
printout by pressing the
button.
2. Selecting the location:
If is activated selection options appear in the display to select
the required location. Select location by pressing
.
If printing is activated by pressing at this point, all
of the logs
(measurement series and cycles) for this location are printed.
Cancel printout by pressing the button.
3. Selecting the log:
Confirm the location selected above by pressing .
The M.0x counter flashes in the display.
Select the log no. by pressing .
activates a printout of the selected measurement log.
Press to display the values measured.
Cancel printout by pressing the button.
4. Select the measurement cycle (only possible if a
measurement log consists of a measurement series):
Confirm the measurement log selected above by pressing .
The N.0x counter flashes in the display.
Select the measurement cycle by pressing .
activates a printout of the selected measurement cycle.
The button enables you to go back one step.
EESSCC
LLooccaattiioonn
01:13
1998
M.055N.0017
Museum
01.01
824
M.055N.00
1177
Lux
824
Lux
M.055N.0017
OOUUTT
CLEAR
MEMORY
0011
Location
Duct 1
ESC
Location
ESC
Location
ESC
Location
ESC
Location
ESC
Location
Press the button to access the memory settings
mode. Confirm flashing save symbol
via the
button.
Cancel printout by pressing the button.
i
Page 18
18
Memory settings
Clearing memory contents/Sample printouts
CLEAR Clearing memory:
CCLLEEAARR
MA
MEMORY
YYEESS
NO
CLEAR
NNOO
YES
CLEAR
Memory is
not cleared.
Memory is
cleared completely
Current measurement
MEMORY
MAN
MMAANN
AUTO
Lux
Museum
M.05
MAN
N.0017
°C
Press the
button to access the memory settings mode. Confirm flashing save
symbol via the button.
i
Smith Ltd.
31.08.1998 11:26:05
Museum
M.01
31.08.1998 11:20:05
1: 725 Lux
Info :
Printout of manual saving
Heading
Date of printout
Location
Log
Start of saving
Measuring cycle
Printout of automatic saving
Smith Ltd.
31.08.1998 11:27:32
Museum
M.05
31.08.1998 11:26:59
cycle 00:00:02
1:Lux
01 653
02 652
03 650
04 690
05 705
06 710
07 695
08 675
09 638
Info :
824
Page 19
19
Instrument configuration
Auto off function: On/Off
Power supply
Simultaneously
AUTO-OFF
OONN
OFF
AUTO-OFF
OOFFFF
ON
Power save function / Power supply
The button enables you to change to the current
measurement from every menu item.
ESC
Location
i
The
button has to be kept pressed for approx. 2
seconds when switching on the instrument
(
button).
The blinking position can be changed by pressing
or confirmed by pressing .
Power save function
Auto OFF function is switched on (“ON”)
If a button has not been pressed in the last 5 minutes or there
is no communication with the PC, the instrument switches off
automatically.
Exceptions:
- the function is deactivated during timed and multi-point
mean calculation
- Automatic saving mode:
The function is only activated if saving cycles > 1 min are
programmed.
- In the case of an activated function (cycle
>1 min) the instrument switches itself on at the
measurement time and switches off again. This also occurs
if the instrument is switched off via the
button after the saving program has been activated.
BAT: Battery operation with 9 V block battery, Alkali
manganese IEC 6LR61.
AKKU: Rechargeable battery operation with Testo
rechargeable battery (Part no. 0515.0025), Type: Ni-MH IEC
6F22. If the rechargeable battery is empty: Recharge battery
in external charger (Part no. 0554.0025).
Note:
If the battery/rechargeable battery is removed, the instrument
retains set values (date/time) and memory contents for
approx. 10 minutes. The data is lost after 10 minutes.
The capacity of the battery/rechargeable battery is shown in
the display:
100 %
75 %
50 %
25 % (last segment is flashing: the battery/
rechargeable battery is almost empty)
0 % (change battery/recharge rechargeable
battery). Instrument switches off after 1 min.
BBAATT
AKKU
AAKKKKUU
BAt
Page 20
Lux fc
The selected parameter flashes.
Select
confirms the selection.
Factory resets all of the settings in the instrument configuration to
the factory settings.
- “AUTO OFF” is set at “ON”
- “Lux” is activated
confirms the selection and switches to the display of the cur-
rent measurement.
Unit
Lux fc
Current measurement
20
Instrument configuration
Select unit
Unit selection / Factory reset / Power supply
Set date/time
01.01
19
9988
DATE
11:25
TIME
Setting date
The flashing position in the display can be set
-
/
= scroll/ = next position -
The blinking position in the display can be set
-
/
= scroll/ = next position -
Setting the time
Page 21
21
Error messages
Memory full The memory is full Clear memory
Measuring range has not The measured values are
been reached outside the allowed
measuring range.
Switch resolution.
Connection to the probe Please contact a Testo
has been interrupted. service point.
Error message Cause Remedy
Page 22
22
Technical data
Sensor: Silicon photodiode
Meas. range: 0 to 100,000 Lux
Accuracy: To DIN EN 13032-1
f1 = 6 %
f1 = V (l) adaptation
f2 = 5 %
f2 = cos like rating
Resolution can 0 to 32,000 Lux 1 Lux
be switched: 0 to 100,000 Lux 10 Lux
0 to 3.200 fc 0,1 fc
0 to 10.000 fc 1 fc
Display: 2 line LCD and
2 matrix lines
Battery 9 V IEC 6F22
lifetime: > 50 h Al-Mn
Battery Automatically
check: in 4 stages
Operating
temperature: 0 to +50 °C
Storage
temperature: -20 to +70 °C
Dimensions: 220 x 68 x 50 (instrument)
Weight: 500 g (incl. packaging)
Warranty: Instrument: 2 years
Probes: 12 months
Page 23
23
Ordering data
0560.0545
Part no.
incl. probe, batteries and instruction manual and calibration protocol
Prints measured data, location with date and time
Testo log printer, with 4 AA batteries and 1 roll of thermal paper
0516.0441
TopSafe (indestructible protective case)
Measuring iinstrument aand aaccessories
testo 545
incl. data base, analysis and graphics function, data analysis, trend curve
0554.0830
0554.0547
ComSoft 3 “Professional” with data management
0516.0445
0409.0178
Transport case
Calibration point: 1000 Lux
0520.0010
ISO calibration certificate
Ordering ddata ffor
testo 545
With bench stand and belt clip, protects measuring instrument from impact, dirt...
RS232 cable
Connects measuring instrument PC for data transmission
For safe storage of measuring instrument, TopSafe, probe and Testo log printer
Page 24
0973 5450 en 03 V01.70
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Loading...
