2 Safety and the environment

2 Safety and the environment

2.1. About this document

Use

> Please read this documentation through carefully and

familiarize yourself with the product before putting it to use. Pay
particular attention to the safety instructions and warning advice
in order to prevent injuries and damage to the products.

> Keep this document to hand so that you can refer to it when

necessary.

> Hand this documentation on to any subsequent users of the

product.

Symbols and writing standards
Representation Explanation

rning advice, risk level according to the

Wa
signal word:

Warning! Serious physical injury may occur.
Caution! Slight physical injury or damage to

the equipment may occur.
> Implement the specified precautionary

measures.

Note: Basic or further information.

32

1. ...

2. ...
> ... Action: a step or an optional step.

- ... Result of an action.

Menu Elements of the instrument, the instrument

[OK] Control keys of the instrument or buttons of

... | ... Functions/paths within a menu.
“...” Example entries

Action: more steps, the sequence must be
followed.

display or the program interface.

the program interface.

2.2. Ensure safety

> Only operate the product properly, for its intended purpose and

within the parameters specified in the technical data. Do not

use any force.
> Never use the instrument to measur
> Before each measurement check that the connections are

correctly

have been correctly plugged in. The protection class in the

technical data specified for the corresponding instrument may

otherwise not be reached.
> testo 176 T3 testo 176 T4: The maximum permissible difference

in potential between the sensor inputs is 50 V. Take this into

account when using surface sensors with non-isolated

thermocouple.
> After the final measurement, allow probes and probe shafts to

cool d

sensor tip or the probe shaft.
> Temperatures given on probes/sensors rela

measuring range of the sensors. Do not expose handles and

feed lines to any temperatures in excess of 70 °C unless they

are expressly permitted for higher temperatures.
> Carry out only the maintenance and repair work on this

instrument that

prescribed steps exactly. Use only original spare parts from

Testo.

closed with blanking plugs or that appropriate sensors

own sufficiently in order to avoid burns from the hot

is describ

2 Safety and the environment

e on or n

ed in the documentation. Follow the

ear live parts.

te only to the

2.3. Protecting the environment

> Dispose of faulty rechargeable batteries/spent batteries in

accordance with the valid legal specifications.
> At the end of its useful life, send the pro

collection for electric and electronic devices (observe local

regulations) or return the product to Testo for disposal.

duct to the separate

33

3 Specifications

3 Specifications

3.1. Use

The data loggers testo 176 serves the purpose of saving and

reading out individual readings and measurement series.

Readings are measured and saved with testo 176 and transferred

to the PC via USB-cable or SD-card, where they can be read out

and evaluated with the help of the testo Comfort Software. With the

software the data loggers can also be individually programmed.

Typical applications

testo 176 T1 is optimally suitable for temperature measurements

under extreme conditions, like e.g. on ships or in power plants,

because its metal housing provides excellent protection against

mechanical influences.

Due to the possibility of connecting external, high-precision Pt100

sensors the testo 176 T2 is optimally suitable for temperature

measurements, e.g. in food applications or in the laboratory.

With its external sensor connections (thermocouples type T, type K

and type J) and its robust metal housing the testo 176 T3 is able to

perform parallel temperature measurements on up to four

measuring locations under extreme conditions.

The external sensor connections (thermocouples type T, type K

and type J) make the testo 176 T4 and excellent choice for different

applications, such as e.g. simultaneous feed and return

temperature measurement in underfloor heating at up to four

measuring locations.

The testo 176 H1 is optimally suitable for parallel temperature and

humidity monitoring, e.g. in warehouses.

With its external sensor connections and its robust metal housing

the testo 176 H2 is able to execute temperature and humidity

measurements in parallel mode under extreme conditions.

The testo 176 P1 is able to measure pressure, temperature and

humidity at the same time and is thus optimally suitable for the

documentation of ambient conditions, e.g. in laboratories.

34

3.2. Technical data

testo 176 T1 (0572 1761)
Feature Values

Measurement
parameter

Sensor type Pt100 class A internal
Measurement range -35 to +70 °C
System accuracy ± 0.2 °C (-35 bis +70 °C) ± 1 digit
Resolution 0.01 °C
Operating

temperature
Storage

temperature
Battery type 1x lithium (TL-5903)
Life 8 years (15 min. measuring cycle, +25 °C)
Degree of

protection
Dimensions in mm

(LxWxH)
Weight approx. 410 g
Measuring cycle 1s – 24h (freely selectable)
Interface Mini-USB, SD card slot
Memory capacity 2 million readings
Warranty 24 months, warranty conditions: see website

Standards 2004/108/EC, EN 128304

3 Specifications

Temperature (°C/°F)

-35 ... +70 °C

-40 ... +85 °C

IP68

103 x 63 x 33 mm

www.testo.com/warranty

4

Please note that, according to EN 12830, this instrument must be regularly
checked and calibrated as specified in EN 13486 (recommendation: every year)
Contact us for more information.

35

3 Specifications

testo 176 T2 (0572 1762)
Feature Values

Measurement

Temperature (°C/°F)

parameter
Sensor type 2 x Pt100 class A external
Measurement range -50 to +400 °C
Instrument

accuracy

± 0.2 °C (-50 bis +200 °C) ± 1 digit

± 0.3 °C (+200.1 bis +400 °C) ± 1 digit
Resolution 0.01 °C
Operating

-35 ... +70 °C

temperature
Storage

-40 ... +85 °C

temperature
Battery type 1x lithium (TL-5903)
Life 8 years (15 min. measuring cycle, +25 °C)
Degree of

IP65
protection

Dimensions in mm

103 x 63 x 33 mm
(LxWxH)

Weight approx. 220 g
Measuring cycle 1s – 24h (freely selectable)
Interface Mini-USB, SD card slot
Memory capacity 2 million readings
Warranty 24 months, terms of warranty: see website

www.testo.com/warranty

Standards 2004/108/EC, EN 128305

5

Please note that, according to EN 12830, this instrument must be regularly
checked and calibrated as specified in EN 13486 (recommendation: every year)
Contact us for more information.

36

3 Specifications

testo 176 T
Feature Values

Measurement
parameter

Sensor type 4 thermocouples (type T, K, J) external
Measurement range -100 to +750 °C (type J)

Instrument
accuracy

Resolution 0.1 °C
Operating

temperature
Storage

temperature
Battery type 1x lithium (TL-5903)
Life 8 years (15 min. measuring cycle, +25 °C)
Degree of

protection
Dimensions in mm

(LxWxH)
Weight approx. 430 g
Measuring cycle 1s – 24h (freely selectable)
Interface Mini-USB, SD card slot
Memory capacity 2 million readings
Warranty 24 months, terms of warranty: see website

EC Directive 2004/108/EC

3 (0572 1763)

Temperature (°C/°F)

-195 to +1000 °C (type K)

-200 to +400 °C (type T)
± 1 % of the measurement value (-200 to

-100.1 °C) ± 1 digit
± 0.3 °C (-100 bis +70 °C) ± 1 digit
± 0.5 % of the measurement value (+70.1 to

+1000 °C) ± 1 digit

-20 ... +70 °C

-40 ... +85 °C

IP65

103 x 63 x 33 mm

www.testo.com/warranty

37

3 Specifications

testo 176 T4 (0572 1764)
Feature Values

Measurement
parameter

Sensor type 4 thermocouples (type T, K, J) external
Measurement range -100 to +750 °C (type J)

Instrument
accuracy

Resolution 0.1 °C
Operating

temperature
Storage

temperature
Battery type 1x lithium (TL-5903)
Life 8 years (15 min. measuring cycle, +25 °C)
Degree of

protection
Dimensions in mm

(LxWxH)
Weight approx. 230 g
Measuring cycle 1s – 24h (freely selectable)
Interface Mini-USB, SD card slot
Memory capacity 2 million readings
Warranty 24 months, terms of warranty: see website

EC Directive 2004/108/EC

Temperature (°C/°F)

-195 to +1000 °C (type K)

-200 to +400 °C (type T)
± 1 % of the measurement value (-200 to

-100.1 °C) ± 1 digit
± 0.3 °C (-100 bis +70 °C) ± 1 digit
± 0.5 % of the measurement value (+70.1 to

+1000 °C) ± 1 digit

-20 ... +70 °C

-40 ... +85 °C

IP65

103 x 63 x 33 mm

www.testo.com/warranty

38

3 Specifications

testo 176 H
Feature Values

Measurement
parameter

Sensor type 2 capacitive humidity sensors external
Measurement range 0 to 100 %rF (non-dewing)

Instrument
accuracy

Resolution 0.1 °C, 0.1 %rF
Operating

temperature
Storage

temperature
Battery type 1x lithium (TL-5903)
Life 8 years (15 min. measuring cycle, +25 °C)
Degree of

protection
Dimensions in mm

(LxWxH)
Weight approx. 220 g
Measuring cycle 1s – 24h (freely selectable)
Interface Mini-USB, SD card slot
Memory capacity 2 million readings
Warranty 24 months, terms of warranty: see website

EC Directive 2004/108/EC

1 (0572 1765)

Temperature (°C/°F) and humidity (%rF,
%RH, °Ctd, g/m³, WB)

-20 to +70 °C

-40 to +70 °Ctd
± 0.2 °C (-20 to +70° C) ± 1 digit
± 0.4 °C (rem. measurement range) ± 1 digit
The accuracy for humidity measurements

results from the accuracy of the connected
sensor.

-20 ... +70 °C

-40 ... +85 °C

IP65

103 x 63 x 33 mm

www.testo.com/warranty

39

3 Specifications

testo 176 H2 (0572 1766)
Feature Values

Measurement
parameter

Sensor type 2 NTC temperature sensors external or

Measurement range 0 to 100 %rF (non-dewing)

Instrument
accuracy

Resolution 0.1 °C, 0.1 %rF
Operating

temperature
Storage

temperature
Battery type 1x lithium (TL-5903)
Service life 8 years (15 min. measuring cycle, +25 °C)
Degree of

protection
Dimensions in mm

(LxWxH)
Weight approx. 430 g
Measuring cycle 1s – 24h (freely selectable)
Interface Mini-USB, SD card slot
Memory capacity 2 million readings
Warranty 24 months, terms of warranty: see website

EC Directive 2004/108/EC

Temperature (°C/°F) and humidity (%rF,
%RH, °Ctd, g/m³, WB)

2 capacitive humidity sensors external

-20 to +70°C

-40 to +70°Ctd
± 0.2°C (-20 bis +70°C) ± 1 digit
± 0.4°C (remaining measurement range)

± 1 digit
The accuracy for humidity measurements

results from the accuracy of the connected
sensor.

-20 ... +70°C

-40 ... +85°C

IP65

103 x 63 x 33 mm

www.testo.com/warranty

40

3 Specifications

testo 176 P1 (0572 1767)

F

re Values

eatu

Measurement
parameter

Sensor type 2 capacitive humidity sensors external

Measurement
range

Accuracy ± 0.2 °C (-20 bis +70 °C) ± 1 digit

Resolution 0.1 °C / 0.1 %rF / 0,1 mbar
Operating

temperature
Storage

temperature
Battery type 1x lithium (TL-5903)
Service life 8 years (15 min. measuring cycle, +25 °C)
Degree of

protection
Dimensions in mm

(LxWxH)
Weight approx. 230 g
Measuring cycle 1s – 24h (freely selectable)
Interface Mini-USB, SD card slot
Memory capacity 2 million readings
Warranty 24 months, terms of warranty: see website

EC Directive 2004/108/EC

Temperature (°C/°F), humidity (%rF, %RH, °Ctd,
g/m³), barometric pressure (mbar, hPa, psi,
inH2O)

1 absolute pressure sensor internal
600 mbar to 1100 mbar

-20 to +70 °C

-40 to +70 °Ctd
0 to 100 %rF (non-dewing)

± 0.4 °C (remaining measurement range) ± 1 digit
± 3 mbar (0 to 50 °C) ± 1 digit
The accuracy for humidity measurements results

from the accuracy of the connected sensor.

-20 ... +70 °C

-40 ... +85 °C

IP54

103 x 63 x 33 mm

www.testo.com/warranty

41

3 Specifications

Battery life

The programmi
guide values for the expected lifetime of the battery. This lifetime is
calculated on the basis of the following factors:

• Measuring cycle

• Number of connected sensors
Since the battery life depends on quite a few other factors, the

calculated data can only serve as guide values.
The following factors have a negative effect on the battery life:

• longer flashing of the LEDs

• frequent reading out (several times per day) via the SD-card

• extreme fluctuations in operating temperature
The following factors have a positive effect on the battery life:

• display switched off
The battery capacity reading in the display of the data logger is

based on the calculated values. However, the data logger is
switched off when a critical voltage level has been reached. It may
therefore happen that:

• readings are still recorded, even though the battery capacity
reading says "empty".

• the measurement program is stopped, even though the battery
capacity reading just before indicated a still remaining battery
capacity.

In case of an empty battery or a battery change saved readings will
not be lost.

ng windows of the software provide you with typical

42

4 First steps

4.1. Unlock the data logger

4 First steps

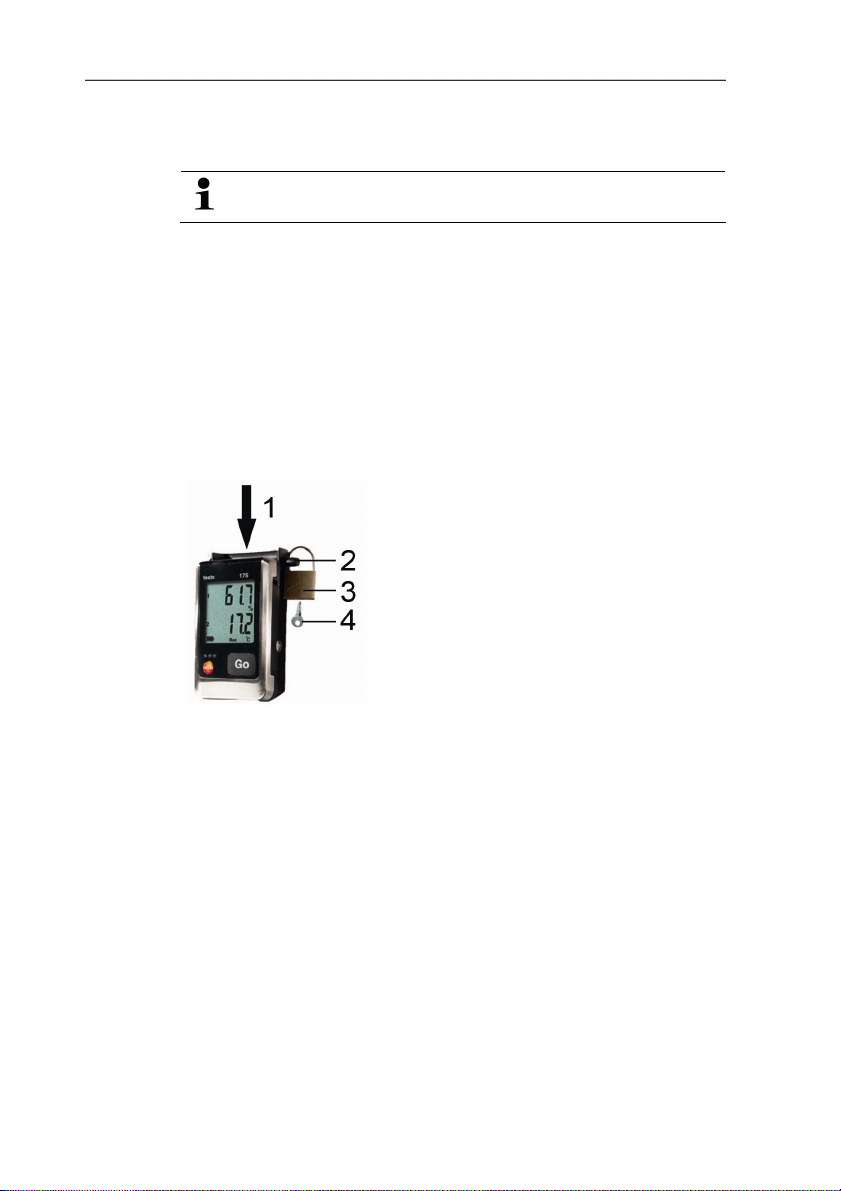

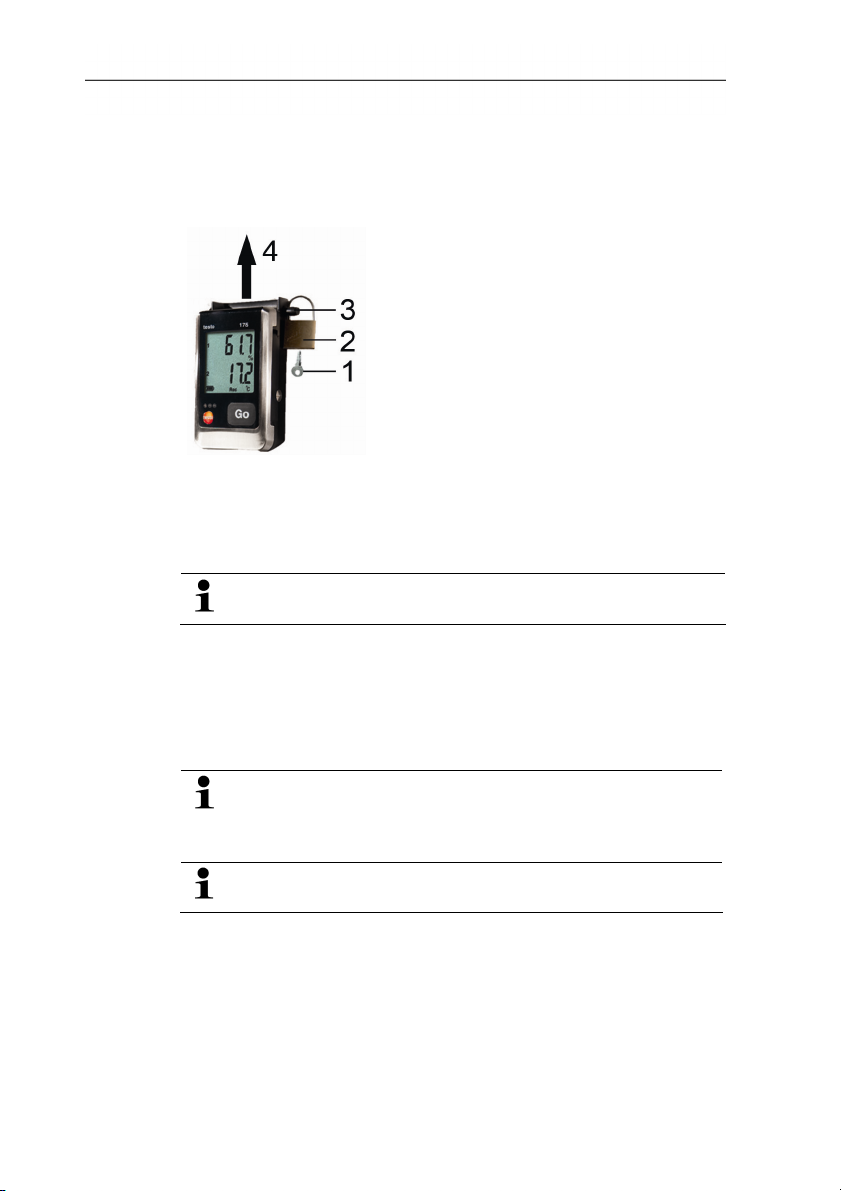

1. Open the lock w

2. Remove the lock (2) from the locking pin.

3. Pull the locking pin (3) out of the holes in the wall bracket.

4. Slide the data logger out of the wall bracket (4).

The data logg
inserted. The display of the data logger shows rSt.

ith the key (1).

er is delivered with the battery (type TL-5903)

4.2. Connecting the data logger to PC

For testo Comfort Software Basic 5:
The software is available in the Internet as a free download

requiring registration: www.testo.com/download-center.

The instruction
software can be found in the testo Comfort Software Basic
5 instruction manual, which can be downloaded together
with the software.

The soft

0580), if the download from the Internet is not desired.

For testo Comfort Software Professional und testo Comfort
Software CFR:

> Insert the CD into the CD-ROM drive.

1. Install the software testo Comfort Software.

2. Connect the USB cable to a free USB port on the PC.

3. Loosen the screw on the right side of the data logger.

s for the installation and operation of the

ware can be ordered on CD (article-no: 0572

43

5 Display and control elements

4. Open the cover.

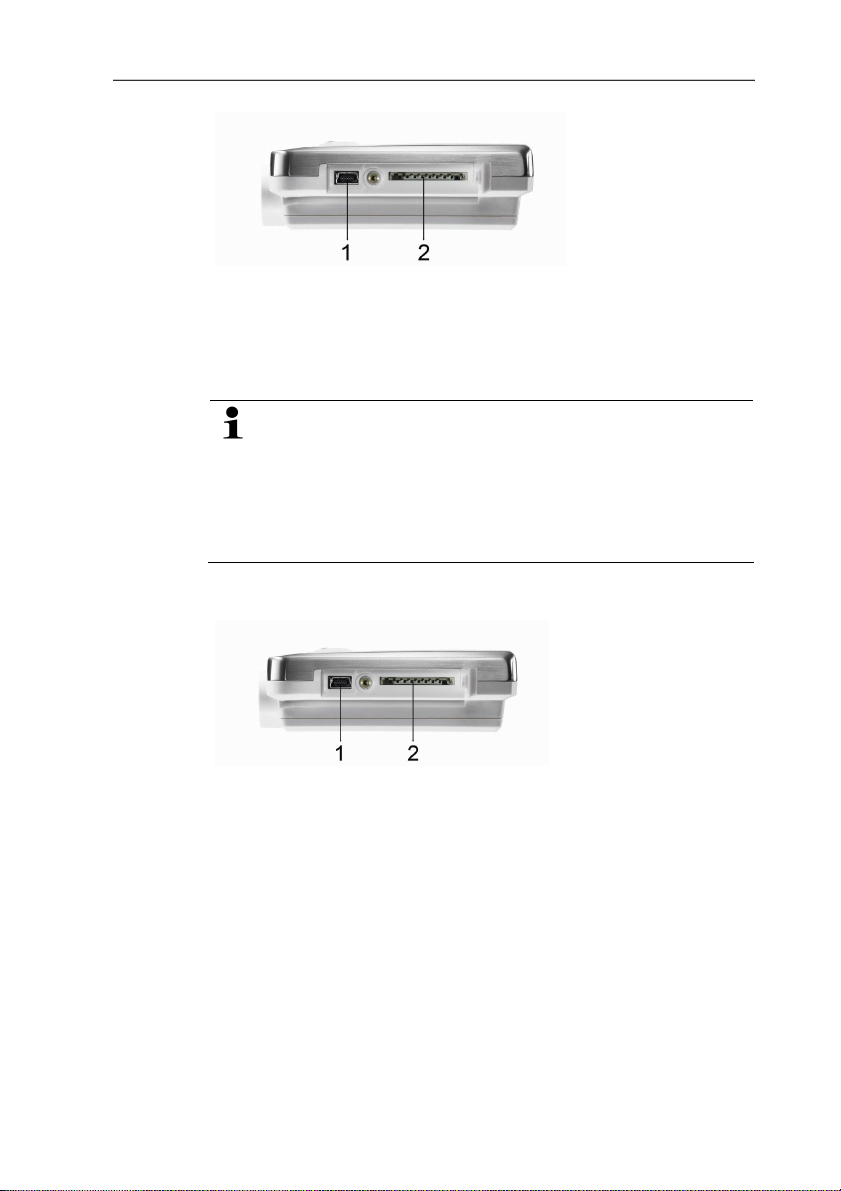

5. Plug the USB cable into the Mini USB port (1).

6. Configure the data logger, see separate operating instructions
testo Comfort Software.

5 Display and control elements

5.1. Display

The data logg
have no display.

The display function can be switched on/off via the testo
Comfort Software.

Depending on the operating status, various information may
be shown in the display. A detailed representation of the
information that can be called up can be found under Menu
overview, page 50.

Fo

r technical reasons the display speed of liquid crystal
displays becomes slower at temperatures below 0 °C
(approx. 2 seconds at -10 °C, approx. 6 seconds at -20 °C).
This has no influence on the measuring accuracy.

ers testo 176 T1, testo 176 T3, testo 176 H2

44

5 Display and control elements

testo 176 T2, testo 176 T4, testo 176 H1, testo 176 P1

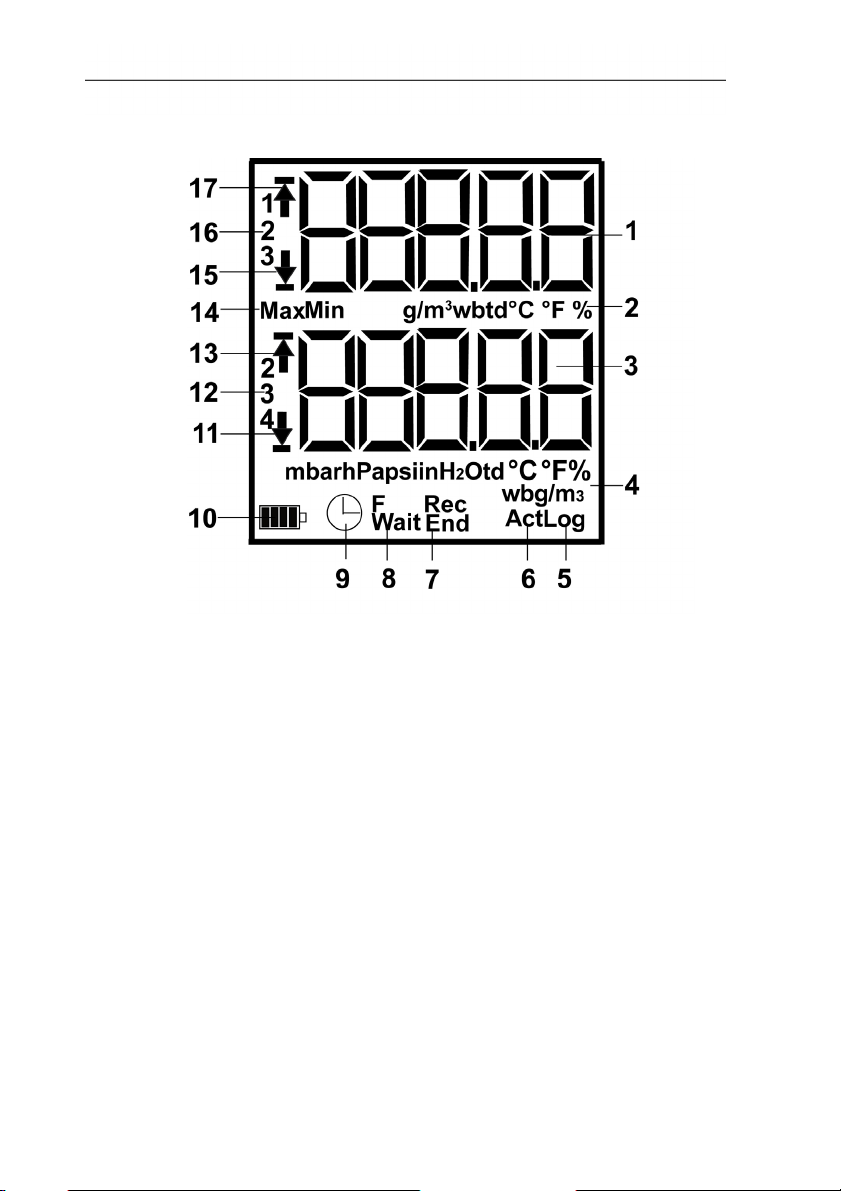

1 Measurement value channel 1, 2, 3 (depending on number of

channels and view)

2 Units channel 1, 2, 3 (depending on number of channels and

view)

3 Measurement value channel 2, 3, 4 (depending on number of

channels and view)

4 Units channel 2, 3, 4 (depending on number of channels and

view)

5 Number of saved measurement values with alarm value

violation (Log)

6 Current intermediate measurement value, appears in the

display, but is not saved (Act)

7 End of measuring program (End), measuring program is

running (Rec)

8 Waiting for start of measuring program (Wait), start criterion

Formula programmed (F)

9. Start criterion Date/ Time programmed

45

5 Display and control elements

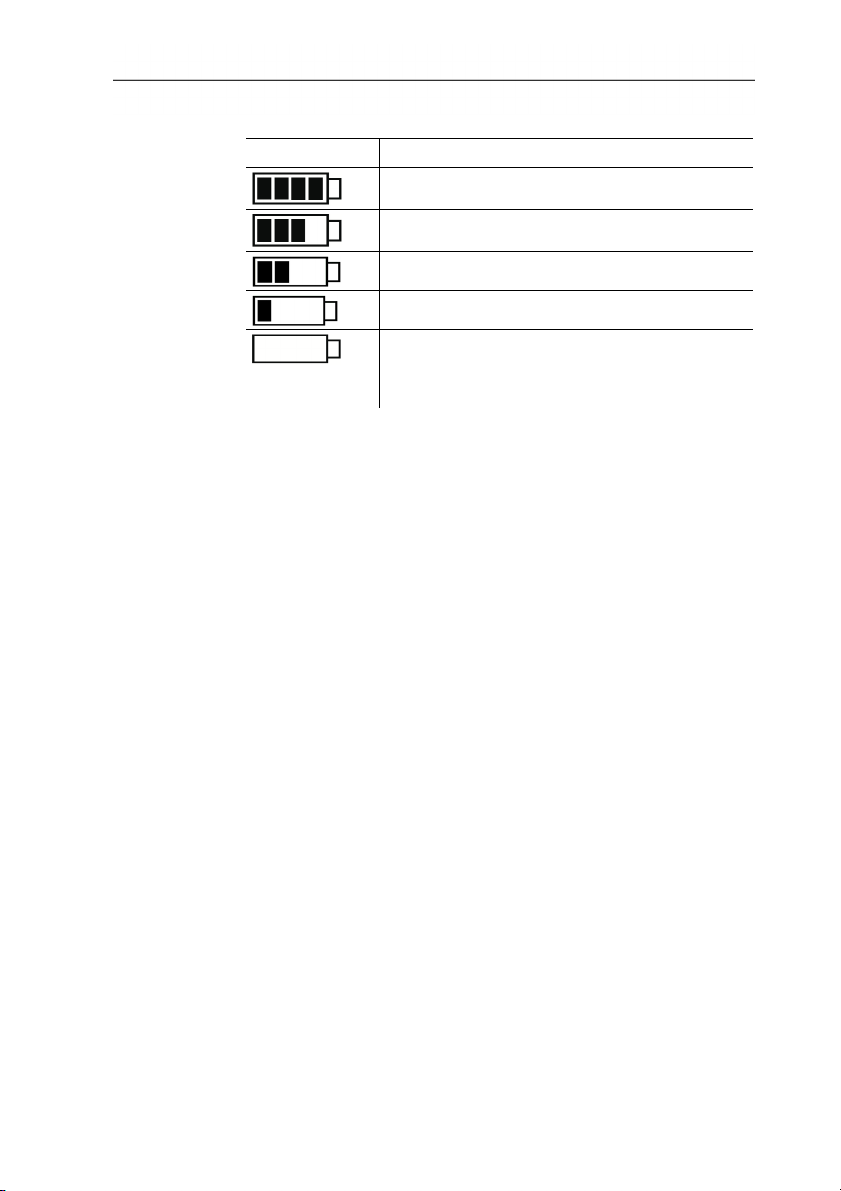

10 Battery capacity

Icon Capacity

> 151 days

< 150 days

< 90 da

< 60 da

< 30 da
> Read out data and change battery (see

11 Lower alarm value displayed channel (2, 3, 4):

• Flashes: programmed alarm value is shown

• Lights: programmed alarm values were fallen short of
12 Channel number (2, 3, 4)
13 Upper alarm value displayed channel (2, 3, 4):

• Flashes: programmed alarm value is shown

• Lights: programmed alarm values were exceeded
14 Identification of measurement value:

Max: highest saved measurement value
Min: lowest saved measurement value

15 Lower alarm value displayed channel (1, 2, 3):

• Flashes: programmed alarm value is shown

• Lights: programmed alarm values were fallen short of
16 Channel number (1, 2, 3)
17 Upper alarm value displayed channel (1, 2, 3):

• Flashes: programmed alarm value is shown

• Lights: programmed alarm values were exceeded

ys

ys

ys

Replacing the battery, page 55).

46

5.2. LED

Representation Explanation

Red LED flashes once
every 10 seconds

Red LED flashes twice
every 10 seconds

Red LED flashes three
times every 10 seconds

Red LED flashes three
times when pressing
the button

Yellow LED flashes
three times

Yellow LED flashes
three times when
pressing the button

Green and yellow LED
flash three times when
pressing the button.

Green LED flashes
three times when
pressing the button

Red, yellow and green
LEDs flash one after
the other

5 Display and control elements

Remaining battery capacity has dropped
below 30 days

Remaining battery capacity has dropped
below 10 days

Battery is empty:

Limiting value exceeded/fallen short of.

Instrument changes from Wait-mode to
Rec-mode.

Instrument is in Rec-mode.

Instrument is in End-mode.

Instrument is in Wait-mode.

Battery was inserted, capacitor in charge
state.

47

5 Display and control elements

5.3. Key functions

A detailed representation of the screen displays can be found
under Menu overview, page 50.

✓ Instrument in operating status Wait and start criterion Button

start programmed.

> Press [GO] for approx. 3 seconds to start the measurement

program.

- The measurement program starts and Rec appears in the

display.

✓ Instrument is in operating status Wait:

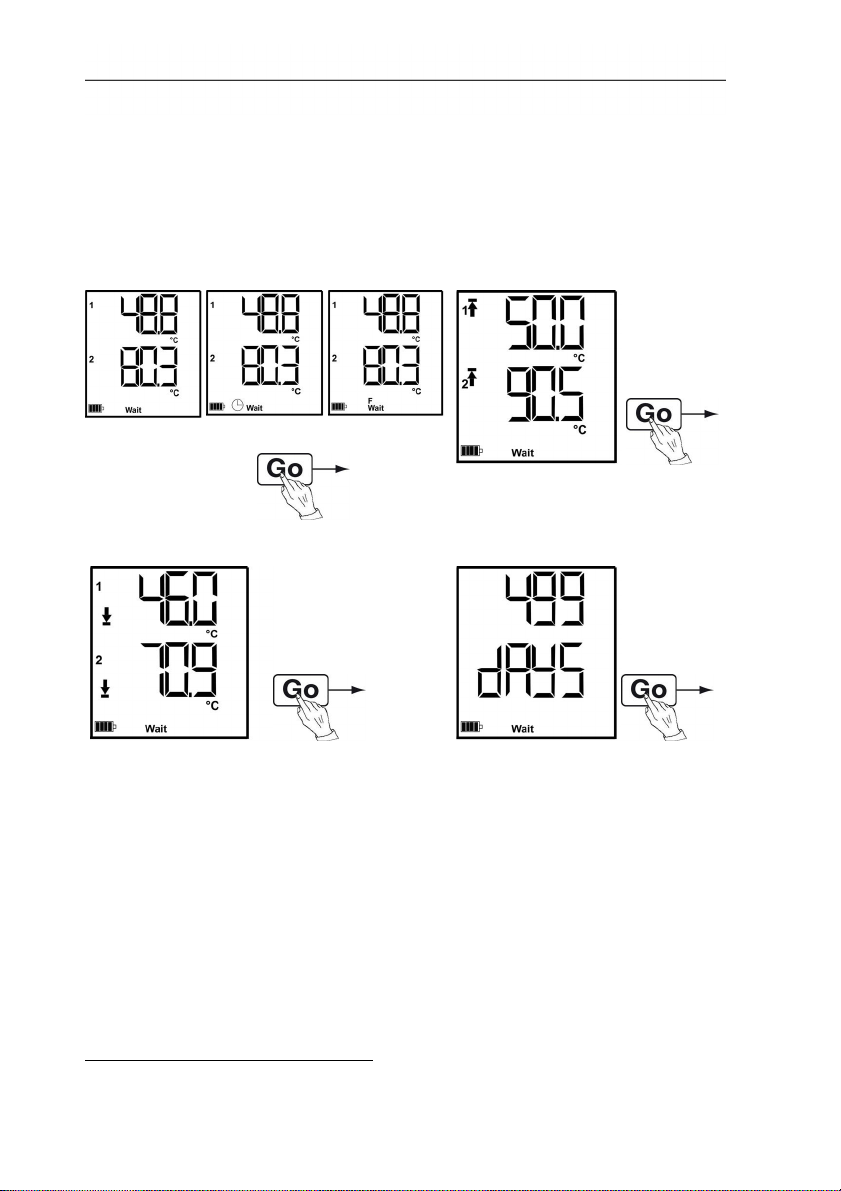

> Press [GO], to toggle between the displays of upper alarm

value, lower alarm value, battery lifetime and last measurement
value.

The displays appear in the specified sequence.

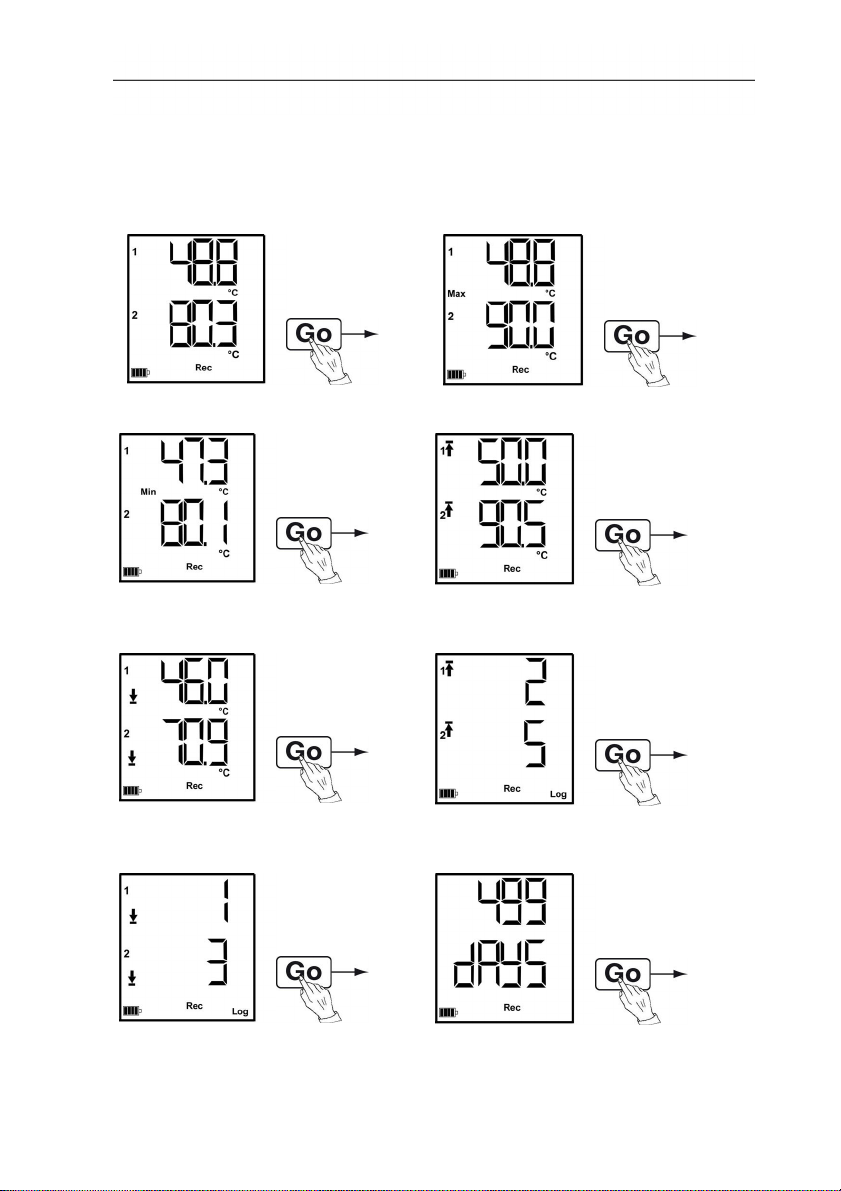

✓ Instrument is in operating status Rec or End:

> Press [GO], to toggle between the displays for highest saved

measurement value, lowest saved measurement value, upper
alarm value, lower alarm value, number of times the upper
alarm value has been exceeded, number of times the lower
alarm value has been fallen short of, battery lifetime and last
measurement value.

The displays appear in the specified sequence.

48

Show current measurement value

✓ The last 10 seconds [GO] has not be pressed.

> Press [GO].

- The current measurement value is determined and appears in

the display.

- The display shows Act.

If [GO] is pressed again
current measurement value for the next channel will be
determined and displayed.

within the next 10 seconds, the

6 Using the product

6.1. Connecting a sensor

Observe the following points when connecting sensors to data
logger and measuring points.

> Ensure correct polarity of the plugs.
> Press the plugs firmly into the ports to ensure leak tightness.

However, do not apply force!

> Make sure that the plugs are firmly connected to the data logger

or that the connections are closed with blanking plugs.

> Ensure correct positioning of the sensor to avoid disturbing

influences affecting the measurement.

> testo 176 T2, testo 176 T3, testo 176 T4, testo 176 H1, testo

176 H2, testo 176 P1: Make sure that you connect the
configured (with the testo Comfort Software) sensors to the
individual connections. The numbers of the connections are
printed on the housing.

6.2. Programming data logger

In order to adapt the programming of your data logger to your
individual requirements, you require the testo Comfort Software
Basic 5 software. It is available in the Internet as a free download
requiring registration www.testo.com, International,

Service&Support | Download Center.

The instruction
software can be found in the testo Comfort Software Basic
5 instruction manual that is downloaded together with the
software.

s for the installation and operation of the

6 Using the product

49

6 Using the product

6.3. Menu overview

The menu over
representations of the data logger testo 176 T2.

The data loggers testo 176 T1, testo 176 T3, testo 176 H2
have no display.

The display must be switched on to be able to show the
corresponding indications. This takes place via the testo
Comfort Software.

The indication in the display is updated according to the
programmed measurement rate. Only readings from active
channels are displayed.

The channels are also activated via the testo Comfort
Software.

The symbols for upper or lower alarm value light up in
operating states Rec and End, if the programmed alarm
value has been exceeded or fallen short off.

After 10 seconds without operating a key the display will
return to its initial state.

view shows exemplary display

50

6 Using the product

Wait-Mode (Wait): Start criterion is pr

① Last

6

reading

Start criterion key
start / PC start

③ Low

Start criterion
Date/Time

Start criterion
Formula

er alarm value ④ Battery capacity in days

ogrammed, but not yet fulfilled.

② Upper alarm value

Last measurement value6 (see Fig. ① Wait mode)

6

Measurement value is not saved

51

6 Using the product

Rec-Mode (Rec): Start criterion was fulfilled, data logger saves readings
End-Mode (End): Measurement program finished (stop criterion reached –

memory full or number of readings) depending on programming

① Last reading ② Highest reading

③ Low

est reading ④ Upper alarm value

⑤ Low

er alarm value ⑥ Number of times the upper alarm

value has been exceeded

⑦ Number of times the low
value has been fallen short of

Last measure

52

ment value (see Fig. ①)

er alarm

⑧ Battery capacity in days

6.4. Mounting the wall bracket

The scope of deliver
(e.g. screws, wall plugs).

✓ The data logger has been removed from the wall bracket.

1. Position the wall bracket at the desired place.

2. Use a pen or something similar to mark the location for the
fastening screws.

3. Prepare the fastening location in accordance with the fastening
material (e.g. drill hole, insert wall plugs).

4. Fasten the wall bracket with suitable screws.

y does not include mounting materials

6.5. Securing the data logger

6 Using the product

✓ The

1. Slide the data logger into the wall bracket (1).

2. Push the locking pin (2) through the holes in the wall bracket.

3. Fasten the lock (3) on the locking pin.

4. Pull off the key (4).

wall bracket has been mounted.

6.6. Reading out data

Via USB cable

1. Connect the USB cable to a free USB port on the PC.

2. Loosen the screw on the right side of the data logger.

3. Open the cover.

53

6 Using the product

4. Plug the USB cable into the Mini USB port (1).

5. Reading out data logger and processing of read out data, see

Via SD card

1. Loosen the screw on the right side of the data logger.

2. Open the cover.

separate operating instructions testo Comfort Software.

If a data logger
logger can record measuring data with a maximum
measuring cycle of 10 seconds during the read-out
process.

Once the read-out process has finished, the data logger
can again record measurement data with a measuring cycle
of 1 second, depending on the programming.

is to be read out in Rec-mode, the data

54

3. Push the SD card into the SD card slot (2).

- Sd CArd appears in the display.

4. Hold [Go] depressed for longer than 2 seconds.

- COPY appears in the display.

- The yellow LED lights during the copying process.

- The green LED flashes twice and after the copying process the

display shows OUT.

5. Remove the SD card.

6. Insert the SD card into the SD card slot on the PC.

7. Further processing of read out data, see separate operating

instructions testo Comfort Software.

7 Maintaining the product

7.1. Replacing the battery

The batter
program. However, stored measurement data are
preserved.

1. Read out stored measurement data, see Reading out data,
page 53.

✓ If it is no longer possible to read out the saved measurement

data because the battery capacity is too low:
> Change the battery and then read out the stored

measurement data.

2. Place the data logger on its front.

y change stops the currently running measuring

7 Maintaining the product

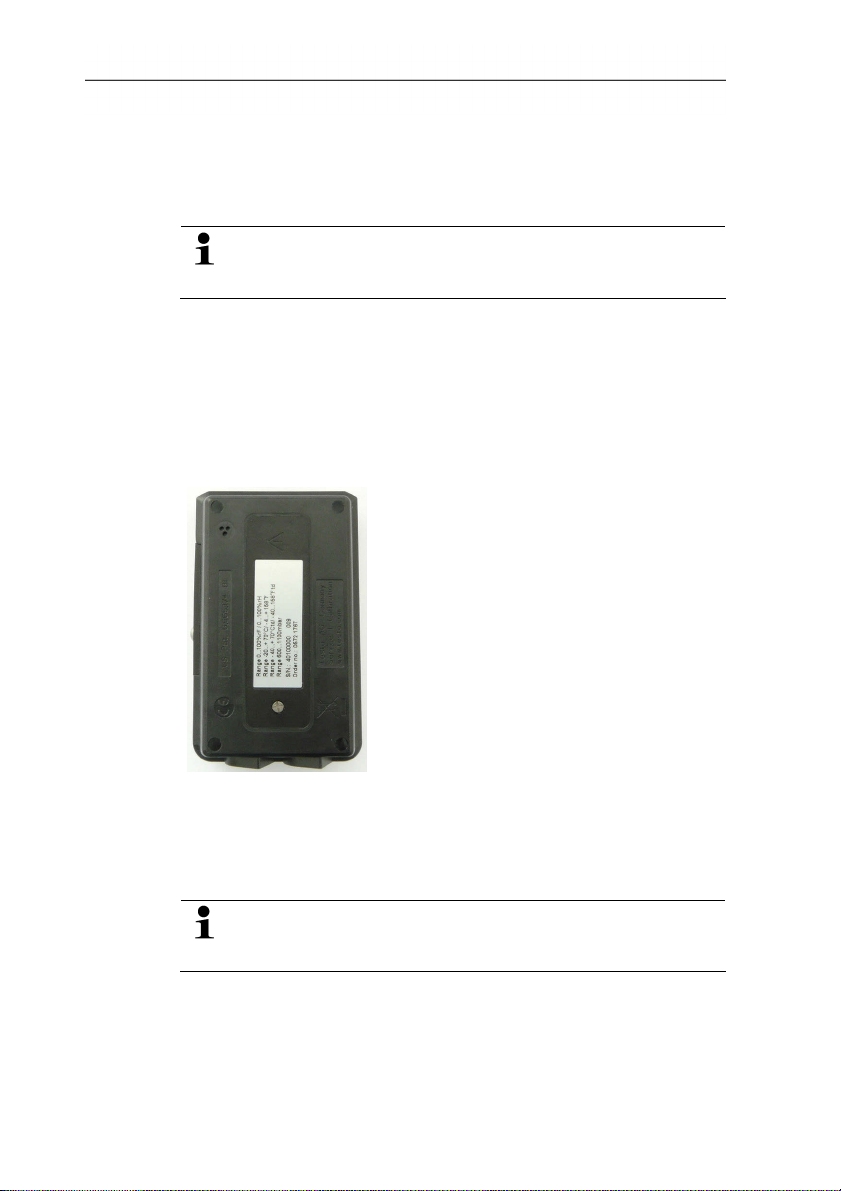

3. Loosen the screws on the back of the data logger.

4. Remove the battery compartment cover.

5. Take the empty battery out of the battery compartment.

6. Insert the new battery (type TL-5903). Observe the polarity!

Only

use new branded batteries. If a partially exhausted
battery is inserted, the calculation of the battery capacity
will not be performed correctly.

7. Place the battery compartment cover on the battery
compartment.

8. Tighten the screws.

- The display shows rST.

55

7 Maintaining the product

The data logg
the software testo Comfort Software must be installed on
the computer and a connection to the data logger must
have been set up.

9. Connect the data logger to the PC with a USB cable.

10.Start testo Comfort Software and set up a connection to the

data logger.

11.Reconfigure the data logger or load the old, saved

configuration, see separate operating instructions testo Comfort
Software.

- The data logger is once again ready for use.

er needs to be reconfigured. For this purpose

7.2. Cleaning the instrument

CAUTION

Damage to the sensor!

> Ensure that no liquid enters the inside of the housing.

> If the housing of the instrument is dirty, clean it with a damp

cloth.

Do not use any aggressive cleaning agents or solvents! Weak
household cleaning agents or soap suds can be used.

56

8 Tips and assistance

8.1. Questions and answers

Question Possible causes / solution

FULL appears in the

display, the red LED
flashes twice, out appears
in the display.

Err appears in the display,

the red LED flashes twice,

out appears in the display.

nO dAtA appears in the

display, the red LED
flashes twice.

rST appears in the display. The battery has been inserted. No

H Cap appears in the

display.

- - - -

appears in the display.

Insufficient memory capacity on SD
card to save the data.

> Remove the SD card, free up more

memory space and copy data.

An error occurred while saving data to
the SD card.

> Remove the SD card, free up more

memory space and copy data.

The logger has not yet recorded any
data and is in Wait mode.

> Remove the SD card and wait until

the logger is in Rec mode.

data are recorded.
> Reprogram the data logger via the

software.

The battery has been inserted after
the battery and the auxiliary battery
had been fully discharged. The
auxiliary battery must be charged.

1. Connect the data logger to the PC
with a USB cable.

2. Charge the auxiliary battery
approx. 5-10 minutes via the USB­cable.

- The display shows rST.

Sensor of data logger defective or an
incompatible sensor has been plugged
in.

> Contact your dealer or the Testo

Customer Service.

8 Tips and assistance

If you have any questions please contact your local dealer or the
Testo Customer Service. You find contact data on the back of this
document or in the Internet under www.testo.com/service-contact.

57

8 Tips and assistance

8.2. Accessories and spare parts

Description Article no.

Wall bracket (black) with lock 0554 1703
Mini USB cable to connect the data logger

testo 176 to the PC
SD card to read out the data ligger 176 0554 8803
Battery TL-5903 AA-battery 0515 1760
CD testo Comfort Software Basic 5 (if free-of-

charge download from the website with
obligation of registering is not wanted)

CD testo Comfort Software Professional 0554 1704
CD testo Comfort Software CFR 0554 1705
ISO temperature calibration certificate,

calibration points −18 °C, 0 °C, +40 °C; per
channel/instrument

ISO moisture calibration certificate,
calibration points 11,3 %rF; 50,0 %rF; 75,3
%rF at +25 °C/+77 °F; per channel/instrument

ISO calibration certificate absolute pressure,
5 calibration points over the measurement
range

0449 0047

0572 0580

0520 0153

0520 0076

0520 0025

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

58

TestEquipmentDepot.com
