testoSaveris 2
User Manual
testo Saveris 2Introduction
testo Saveris 2 system is upgrading product basing on testo Saveris system. In
original system, wireless probes transfer measurement data to Saveris base
through local area network, testo professional software manages data and supply
service on data record and monitor. In Saveris 2 system, data transfer from
Internet basing on Qualcomm new Wi-Fitechnology, probes can communicate with
the cloud through wireless router. Customer can visit testo cloud anywhere and
anytime. Check real time measurement data inside his account. And can also
use APP to achieve same functions.
Testo Saveris 2 system include testo cloud and five Wi-Fi probes.
testo Saveris 2 Application
Medicine production, quality inspection and storage monitor
Building surrounding measurement and monitor
Development, laboratory, hospital surrounding measur em ent and monitor
Food cold chain meas ur em ent and monitor
Plant production, transfer and storage measurement and monitor
testoSaveris 2 Probes
Testo Saveris has five Wi-Fi probes: T1, T2, T3, H1 and H2.
Saveris T1 has inside temperature sensor, can continuously measure and record
surrounding temperature and transfer to cloud website. Saveris T1 passed
EN12830 approval can use in food industrial surrounding measurement and
monitor.
w
www
Saveris T2 can support two channel external temperature probe, can continuously measure
and record surrounding temperature and transfer to cloud website. Saveris T2 passed
EN12830 approval, can use in food industrial surrounding measurement and monitor.
Saveris T3 support two channel TC probes, can continuously measure and record
surrounding temperature and transfer to cloud website.
Saveris H1 has inside temperature sensor and humidity sensor, can continuously measure
and record surrounding temperature and transfer to cloud website
Saveris H2support external testo humidity probe, can continuously measure and record
surrounding temperature and transfer to cloud website.
testo Saveris 2 Probe technical Data：
type Saveris T1 Saveris T2 Saveris T3 Saveris H1 Saveris H2
measurem
ent
One inside
NTC
Two
external
NTC
Two external
TC
One inside
humidity
One
external
humidity
Measurem
ent range
-30…+50°C
-50…+150
°C
K type TC:
-195…+1350°
C
humidity“ 0…
100%RH
humidity：
0…100%RH
J type TC:
-100…+750°C
NTC:
-30…+50°C
NTC:
-30…+70°C
T type TC:
-200…+400°C
accuracy
±0,5 °C ±0,5 °C
± (0,5 +
0.5%mv) °C
±2% RH, ±2% RH,
±0,5 °C ±0,5 °C
resolution 0.1°C 0.1°C
0.1°C(-200~99
9.9),
others 1°C
0.1°C, 0.1%,
0.1Ctd °C
0.1°C,
0.1%,
0.1Ctd °C
T90
response
time
40 minutes
Up to
external
probe
Up to external
probe
10minutes
Up to
external
probe
testo Saveris 2 Probes Specification：
type Saveris T1 Saveris T2 Saveris T3 Saveris H1 Saveris H2
Order
number
0572 2001 0572 2002 0572 2003 0572 2004 0572 2005
Operate
temperate
range
-30 …
+50 °C
-30 … +50 °C -30 … +50 °C -30 … +50 °C -30 … +50 °C
Storage
temperatur
e range
-40 …
+70 °C
-40 … +70 °C -40 … +70 °C -40 … +70 °C -40 … +70 °C
Measurem
ent cycle
5s ~ 24hour
(default
setting 15
min)
5s ~ 24hour
(default
setting 15
min)
5s ~ 24hour
(default
setting 15
min)
5s ~ 24hour
(default
setting 15
min)
5s ~ 24hour
(default
setting 15
min)
Communic
ation cycle
5s ~ 24hour
(default
setting 15
5s ~ 24hour
(default
setting 15
5s ~ 24hour
(default
setting 15
5s ~ 24hour
(default
setting 15
5s ~ 24hour
(default
setting 15
min) min) min) min) min)
Data
memory
10000 data
per channel
10000 data
per channel
10000 data
per channel
10000 data
per channel
10000 data
per channel
LCD
display
yes yes yes yes yes
Battery life
4pcs L91
battery
2 years
4pcs L91
battery
2 years
4pcs L91
battery
2 years
4pcs L91
battery
2 years
4pcs L91
battery
2 years
Norm EN12830 EN12830 ------ ------ ------
accessory
GP AA
battery
Wall holder
lock
USB cable
GP AA
battery
Wall holder
lock
USB cable
GP AA
battery
Wall holder
lock
USB cable
GP AA
battery
Wall holder
lock
USB cable
GP AA
battery
Wall holder
lock
USB cable
Website
configurati
onactive
yes yes yes yes yes
testo Saveris 2 Probes Instruction Manual
Product description:
①
device
②LED
③QR code（probe serial number, cloud website adderess）
④key
⑤wall holder
⑥USB communication cable
⑦lock
First step
Inserting batteries:
To open the battery compartment, remove two screws on battery cover by
screwdriver.
Insert batteries (4x 1.5 V type AA). Observe the polarity!
To close the battery compartment, tighten screws by screwdriver.
Probe Configuration
Visit website：https://intl.saveris2.net/GoToProbe
Enter log in page and input personal account and password
Click and enter to Wi-Fi connecting page, click “Connect Wifi-logger”，input
wireless router SSID and password to connect into internet。 In connect
successfully， icon will displayed on Saveris probe LCD.

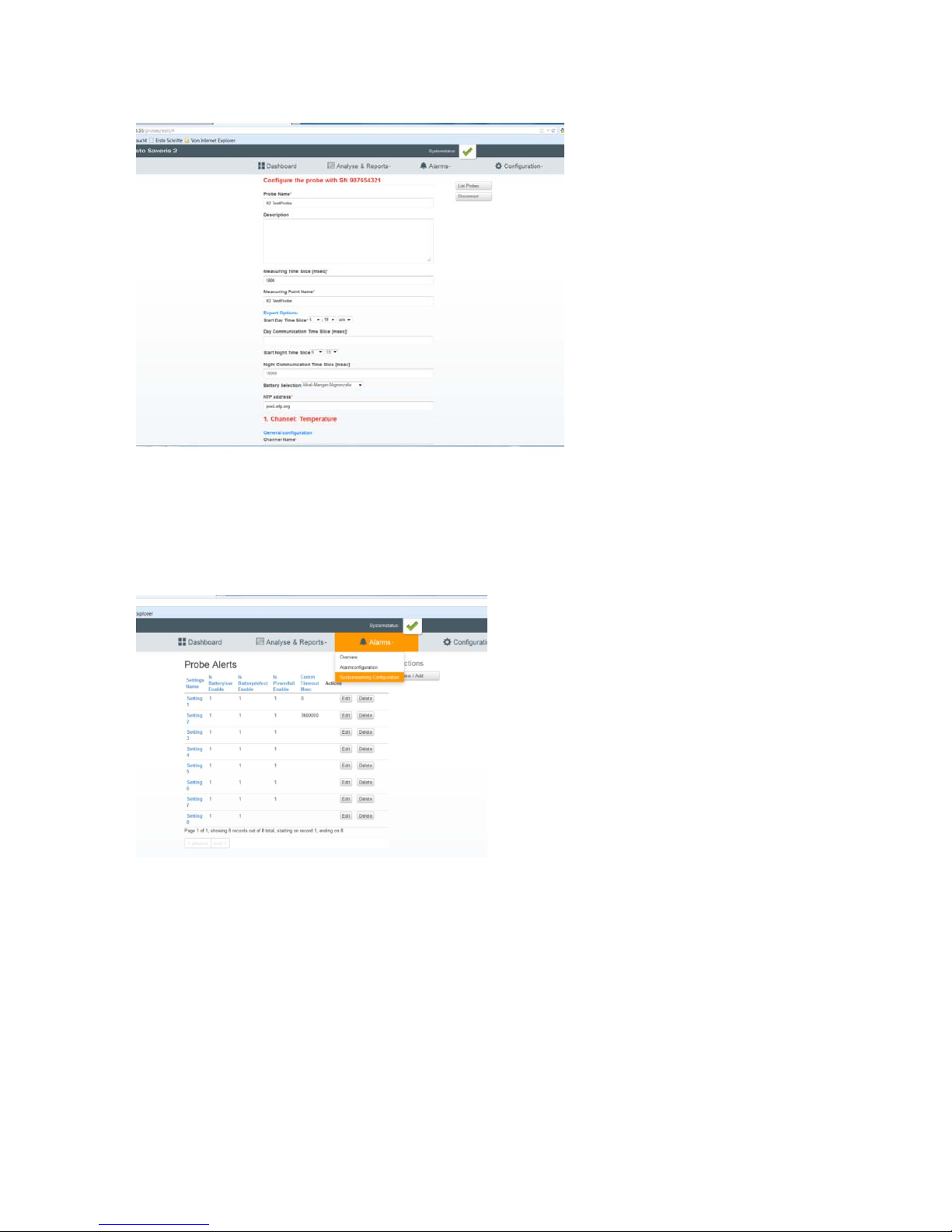

Click “Probe” o enter configuration page. Set probe basic configuration, input
probe number, name, locati o n, meas ur ement cycle, communication cycle, start
time and etc.…
Alarm Setting
Click “Alarm” and enter alarm setting page, click“Alarm configuration”，set up
alarm upper and lower limit value one by one。
Probe Management
After probe configuration, probe list can be found in Saveris system, and also
on-time measurement data, Wifi signal status, battery power status。
Click name of probe and enter probe detailed information page which show
detailed measurement stat us o f each cha nn el . Click “configuration”, can enter
configuration page to modi fy config ur ation of probe.
Measurement Data transfer
After configuration finish, probe can start measurement and transfer data to cloud
side. During data transferring，icon will be displayed on LCD.
Customer can also scan QR code on front housing of Saveris probe to visit cloud.
Question and Answers:
* battery power<5%：repalce batteries
oooo * external probes not connected
* real value out of measurement range
Power is so low that no RF exposure calculation is needed.
FCC statements:
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications or changes to this equipment. Such modifications or changes
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
‐ Reorient or relocate the receiving antenna.
‐ Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject
to the following two conditions: (1) this device may not cause interference, and (2)
this device
must accept any interference, including interference that may cause undesired
operation of the
device.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any
interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible
d'en compromettre le fonctionnemen
