Testo 610 Data sheet

Committing to the future
Pocket-Sized Professional Measurement Technology
NEW!
Measuring instruments for heating, air conditioning and ventilation
- Precise measurement of wood moisture thanks to stored cha­racteristics curves for e.g. beech, spruce, larch, oak, pine, maple
- Air temperature and humidity for monitoring drying processes
- Characteristics curves for cement screed, concrete, plaster, anhydrite screed, cement mortar, lime mortar, brick
- Hold function
- Auto-test function
SSuurrffaaccee tteemmppeerraattuurree
Measuring range: -30 to 300 °C Resolution: 0.1 °C Accuracy: ±2.0 °C (-30 to +100 °C)
±2% of m.v. (remaining
range) Optics: 6:1 AAiirr tteemmppeerraattuurree
Measuring range: -10 to 50 °C Resolution: 0.1 °C Accuracy : ±0.5 °C Units: °C/°F Oper. temp.: -10 to 50 °C Battery type: Alkaline (2 x AAA) Battery life: 50 h. (average, without
display illumination) Dimensions
(incl. protective cap): 119 x 46 x 25 mm
Air temperature and infrared surface temperature in one instrument
Order no. 0560 0810
- IR measurement with 1-point laser measurement spot marking and 6:1 optics
- Air temperature measurement
- Display of differential temperature e.g. between window and air
- Hold function and max./min. values
testo 810
- Long-term drift-free Testo humidity sen­sor
- 2.5 %RH accuracy with calibration pro­tocol
- Incl. dewpoint calcu­lation and wet bulb
- Hold function and max./min. values
testo 610 testo 606-1/2
TTeemmppeerraattuurree
Measuring range: -10 to 50 °C Resolution: 0.1 °C Accuracy: ±0.5 °C Units: °C/°F HHuummiiddiittyy
Measuring range: 0 to100 %RH Resolution: 0.1 %RH Accuracy: ± 2.5 %RH
(5 to 95 %RH)
Units: %RH, wet bulb,
dewpoint Oper. temp.: 10 to 50 °C Battery type: Alkaline (2 x AAA) Battery life: 200 h. (average, without
display illumination) Dimensions
(incl. protective cap)
: 119 x 46 x 25 mm
Air humidity and temperature
Order no. 0560 0610
MMaatteerriiaall mmooiissttuurree
Measuring range: 0 to 90% Resolution: 0.1 Accuracy: ± 1% (conductivity) AAiirr hhuummiiddiittyy
(606-2 only) Measuring range: 0 to 100%RH Resolution: 01%RH Accuracy: ±2.5%RH (5 to 95%RH) Units: %RH, wet bulb, dewpoint AAiirr tteemmppeerraattuurree
(606-2 only) Measuring range: -10 to 50°C Resolution: 0.1°C Accuracy: ±0.5 °C Units: °C/°F Oper. temp.: -10 to 50 °C Battery type: Alkaline (2 x AAA) Battery life: 606-1: 200 h.
606-2: 130 h. (average, without display illumination)
Dimensions
(incl. protective cap): 119 x 46 x 25 mm
Material moisture, air humidity and tempera­ture
606-1: Order no. 0560 6060
606-2: Order no. 0560 6062
IInncclluuddeedd iinn ddeelliivveerryy:: Calibration protocol · Wrist strap Belt holder · Protective cap · Batteries
IInncclluuddeedd iinn ddeelliivveerryy:: Calibration protocol · Wrist strap Belt holder · Protective cap · Batteries
IInncclluuddeedd iinn ddeelliivveerryy:: Calibration protocol · Wrist strap Belt holder · Protective cap · Batteries
IInncclluuddeedd iinn ddeelliivveerryy:: Calibration protocol · Wrist strap Belt holder · Protective cap · Batteries
- Integrated measure­ment with 40 mm vane
- Timed mean value calculation
- Hold function and min./max. values
- Windchill calculation for outdoor areas
testo 410-1/-2
FFllooww vveelloocciittyy
Measuring range: 0.4 to 20 m/s Resolution: 0.1 m/s Accuracy: ±(0.2 m/s + 2% of m.v.) Units: m/s, km/h, fpm, mph,
knots, perceived temperature °C/°F
(windchill), Beaufort TTeemmppeerraattuurree
Measuring range: -10 to 50 °C Resolution: 0.1 °C Accuracy: ±0.5 °C Units: °C/°F HHuummiiddiittyy
(testo 410-2 only) Measuring range: 0 to100 %RH Resolution: 0.1 %RH Accuracy: ±2.5 %RH (5 to 95 %RH) Units: %RH, wet bulb, dewpoint Oper. temp.: -10 to 50 °C Battery type: Alkaline (2 x AAA) Battery life: testo 410-1: 100 h.
testo 410-2: 60 h.
(average, without display illumination)
Dimensions
(incl. protective cap): 133 x 46 x 25 mm
Air flow velocity, temperature and humidity
410-1: Order no. 0560 4101
410-2: Order no. 0560 4102
Testo, the leading manufacturer of portable measurement technology, provides pocket-sized measuring instruments for fast and tough everyday use:
· Surface and penetration temperature
· Air temperature and infrared surface temperature
· Air humidity and temperature
· Duct humidity and temperature
· Material moisture, air humidity and temperature
· Differential pressure
· Absolute pressure
· rpm
· Light intensity
· Air flow velocity, temperature, humidity at outlets
Sensors which fulfil the highest demands, such as Testo’s own patented humidity sensor, guarantee reliable and stable measurement results.
All instruments are very handy, small and easy to use. The backlit display and the Auto-Off function complete the instrument.
Great technology can be this small!
- Absolute pressure ±3 hPa
- Calculation of baro­metric air pressure
- Barometric altitude measurement
testo 511
- Optical rpm measu­rement with LED measurement spot marking
- Max./min. values
testo 460 testo 540
- Possibility of display in Pascal over entire measuring range
- Temperature com­pensation
- Magnets on the rear allow free-hand work
- Flow velocity measu­rement with Pitot tube
- Air density compen­sation
testo 510
PPrreessssuurree
Measuring range: 0 to 100 hPa Resolution: 0.1hPa Accuracy: ± 0.03 hPa
(0 to 0.30 hPa) ±0.05 hPa (0.31 to 1.00 hPa) ± (0.1 hPa +1.5% of m.v.) (1.01 hPa to 100 hPa)
Units: hPa, mbar, Pa,
mmH
2
O, mmHg,
inH
2
O, inHg, psi,
m/s, fpm Oper. temp.: 0 to 50 °C Battery type: Alkaline (2 x AAA) Battery life: 500 h. (average, without
display illumination) Dimensions
(incl. protective cap)
: 119 x 46 x 25 mm
Differential pressure 0 to 100 hPa
Order no. 0560 0510
PPrreessssuurree
Measuring range: 300 to 1,200 hPa Resolution: 0.1 hPa Accuracy: ±3.0 hPa Units: hPa, mbar, Pa, mmH
2
O,
mmHg, inH
2
O, inHg, psi,
m, ft Oper. temp.: 0 to 50 °C Battery type: Alkaline (2 x AAA) Battery life: 500 h. (average, without
display illumination) Dimensions
(incl. protective cap): 119 x 46 x 25 mm
Absolute pressure, barometric pressure, altitude
Order no. 0560 0511
rrppmm
Measuring range: 100 to 29,999 rpm Resolution: 0.1 rpm
(100 to 999.9 rpm) 1 rpm
(1,000 to 29,999 rpm) Accuracy: ±(0.02 % of m.v.) + 1 digit Units: rpm, rps Oper. temp.: 0 to 50 °C Battery type: Alkaline (2 x AAA) Battery life: 20 h (average, without
display illumination) Dimensions
(incl. protective cap): 119 x 46 x 25 mm
rpm, optical
Order no. 0560 0460
IInncclluuddeedd iinn ddeelliivveerryy:: Calibration protocol · Wrist strap Belt holder · Protective cap · Batteries
IInncclluuddeedd iinn ddeelliivveerryy:: Calibration protocol · Wrist strap Belt holder · Protective cap · Batteries
IInncclluuddeedd iinn ddeelliivveerryy:: Calibration protocol · Wrist strap Belt holder · Protective cap · Batteries
IInncclluuddeedd iinn ddeelliivveerryy:: Calibration protocol · Wrist strap Belt holder · Protective cap · Batteries
LLiigghhtt iinntteennssiittyy
Measuring range: 0 to 99,999 Lux
1 Lux (0 to19,999 Lux) 10 Lux (20,000 to 99,999 Lux)
Accuracy: ± 3% (compared to
reference) Units: Lux, Footcandle Oper. temp.: 0 to 50 °C Battery type: Alkaline (2 x AAA) Battery life: 20 h (average, without
display illumination) Dimensions
(incl. protective cap)
: 133 x 46 x 25 mm
Order no. 0560 0540
- Sensor is adjusted to the spectral sensitivi­ty of the eye
- Hold function for easy measurement value readout
- Max./min. values
Light intensity
- Sprung thermocou­ple measurement head with guaran­teed fast reaction time
-
High accuracy thanks to adaptation of measurement head even to rough surfaces
- Temperature measurement short-term up to 500 °C
- Easy readout of measure­ment values thanks to flexible joint
testo 905-T2
- Air humidity and temperature, dewpoint
- Long-term stable Testo humidity
sensor
- Ideal for measure­ments in ducts
- Easy readout of measure­ment values thanks to flexible joint
testo 605-H1 testo 405
- Professional
industrial sensor (thermocouple Type K)
- Fast reaction time
- Temperature measurement short-term up to 500 °C
- Easy readout of measurement values thanks to flexible joint
testo 905-T1
TTeemmppeerraattuurree
Meas. range: -50 to +350 °C
short-term to +500 °C
Resolution: 0.1 °C Accuracy: ±1 °C (-50 to +99.9 °C)
±1 digit ±1% of m.v. (remaining
meas. range)
Oper. temp.: 0 to +40 °C Storage temp.: -20 to +70 °C Battery life: approx. 1000 h Dimensions probe shaft:
ø 3 mm, length 200 mm
Immersion/penetration temperature
Order no. 0560 9055
TTeemmppeerraattuurree
Meas. range: -50 to +350 °C
short-term to +500 °C
Resolution: 0,1 °C
Accuracy: ±(1 °C +1% of m.v.) ±1 digit Oper. temp.: 0 to +40 °C
Storage temp.: -20 to +70 °C Battery life: approx 1000 h Dimensions probe shaft:
ø 12 mm, length 150 mm
Surface temperature
Order no. 0560 9056
AAiirr hhuummiiddiittyy aanndd tteemmppeerraattuurree
Meas. range: +5 to +95 %RH
0 to +50 °C
-20 to +50 °C td Resolution: 0.1 %RH / 0.1 °C Accuracy: ±3 %RH / ±0.5 °C
±1 digit Oper. temp.: 0 to +50 °C Storage temp.: -20 to +70 °C Battery life: approx 1000 h Dimensions probe shaft:
ø 12 mm, length 125 mm
Air humidity and temperature
Order no. 0560 6053
IInncclluuddeedd iinn ddeelliivveerryy:: Attachment clip · Batteries
IInncclluuddeedd iinn ddeelliivveerryy:: Attachment clip · Batteries
IInncclluuddeedd iinn ddeelliivveerryy:: Duct holder · Attachment clip · Batteries
IInncclluuddeedd iinn ddeelliivveerryy:: Duct holder · Attachment clip · Batteries
AAiirr ffllooww vveelloocciittyy aanndd tteemmppeerraattuurree
Probe type thermal:
Meas. range: 0 to 10 m/s
0 to +99990 m³/h
Resolution: 0.01 m/s Accuracy: ±(0.1 m/s + 5% of m.v.) ±1 digit (0 to +2 m/s)
±(0.3 m/s + 5% of m.v.) (remaining meas. range)
Probe type NTC:
Meas. range: -20 to +50 °C Resolution: 0.1 °C
Accuracy: ±0.5 °C ±1 digit Oper. temp.: 0 to +50 °C Storage temp.: -20 to +70 °C Battery life: approx 20 h Dimensions probe shaft:
ø 16 mm, length 300 mm
Order no. 0560 4053
- Thermal anemome­ter for the measure­ment of air flow velo­city, volume flow and temperature
- Ideal for measure­ments in ducts
- Extendable telescope up to 30 cm
- Easy readout of measure­ment values thanks to flexible joint
Air flow velocity and tempe­rature
· 50 YEARS OF TESTO
INNOVATION 2007
· More innovative than ever
· 50 innovations in the anniversary year

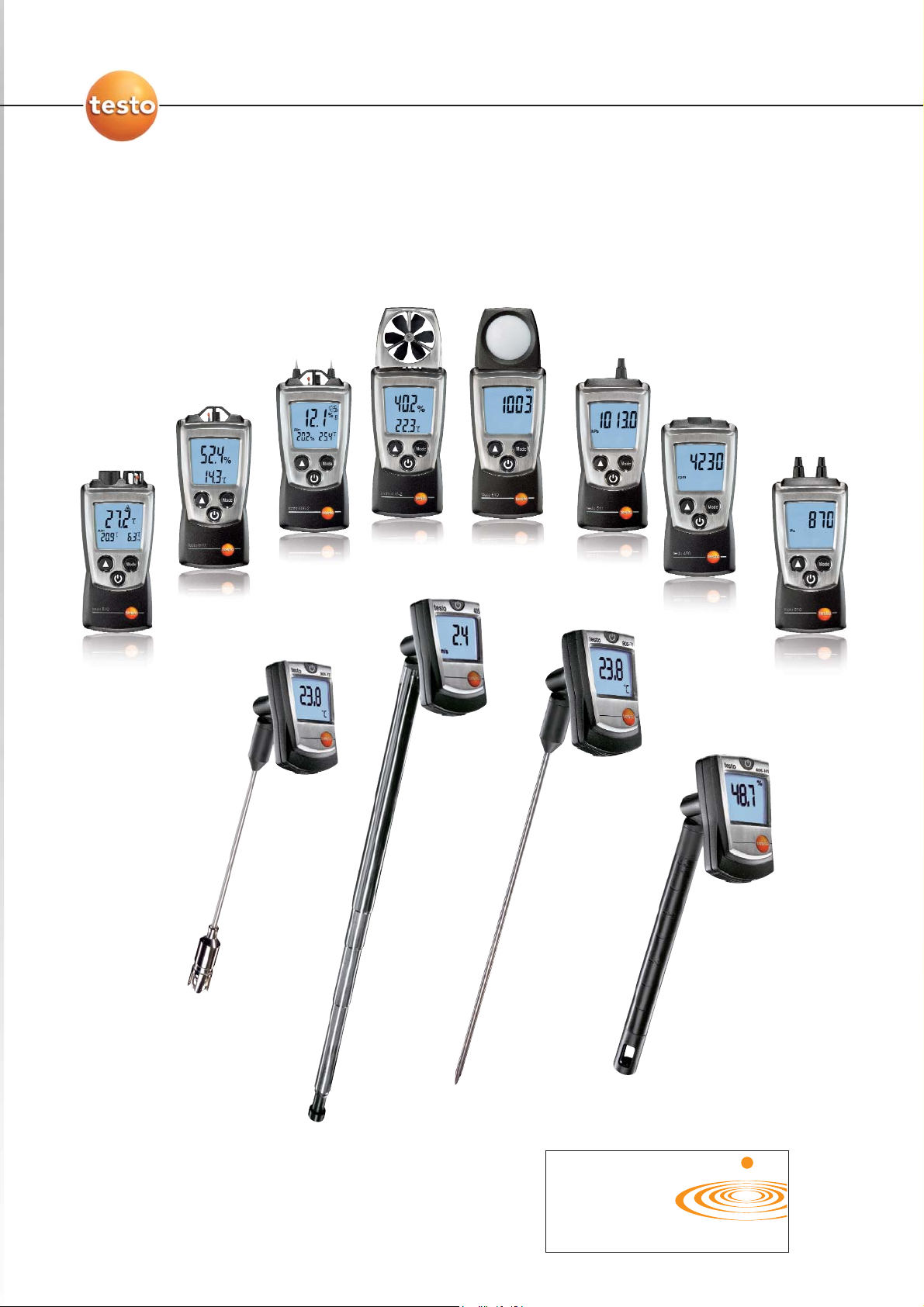

Pocket-sized professional measurement technology

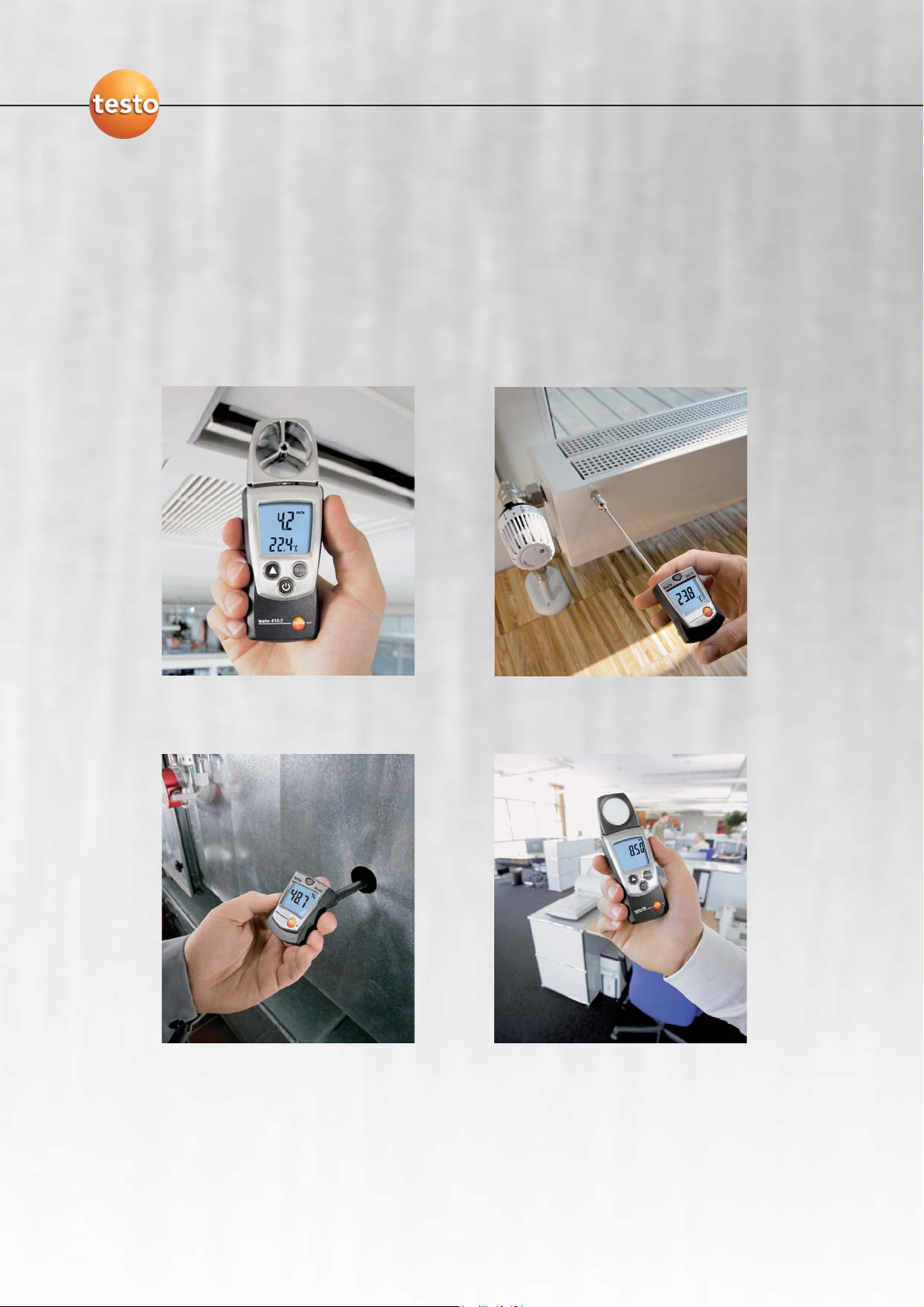

Flow velocity measurement at a duct outlet with 40mm vane
Surface temperature measurement on a radiator
Monitoring air humidity in an air conditioning duct
Light intensity measurement at the workplace
0981 1564/msp/R/Q/09.2007 Subject to change without notice
Pocket-sized professional measurement technology
· 50 YEARS OF TESTO
INNOVATION 2007
· More innovative than ever
· 50 innovations in the anniversary year
