TESTO 510i, 549i, 410i, 905i, 805i Instruction Manual

...
Download
Page 1
testo · Smart Probes
Instruction manual
www.GlobalTestSupply.com
Page 2

1 Contents

1 Contents
1 Contents ................................................................................................... 3
2 Safety and the environment .................................................................... 5
2.1. About this document ........................................................................ 5
2.2. Ensure safety ................................................................................... 6
2.2.1. Safety and the testo 510i ................................................................................. 6
2.2.2. Safety and the testo 549i ................................................................................. 6
2.2.3. Safety and the testo 805i ................................................................................. 6
2.3. Protecting the environment .............................................................. 7
3 Specifications .......................................................................................... 7
4 Product description ................................................................................. 8
4.1. Overview of Smart Probes ............................................................... 8
4.2. LED status ....................................................................................... 8
5 First steps ................................................................................................ 9
5.1. Switching on/off ............................................................................... 9
5.1.1. Switching on .................................................................................................... 9
5.1.2. Switching off .................................................................................................... 9
5.2. Establishing Bluetooth® connection ................................................. 9
5.3. Transmitting readings .................................................................... 10
6 Using the App ........................................................................................ 11
6.1. Overview of operating controls ...................................................... 11
6.2. App options .................................................................................... 11
6.2.1. Set “Language” .............................................................................................. 11
6.2.2. Display Tutorial .............................................................................................. 12
6.2.3. Show help ...................................................................................................... 12
6.2.4. Display testo website ..................................................................................... 12
6.2.5. Display App Info ............................................................................................. 12
6.3. Application menus ......................................................................... 12
6.3.1. Selecting the application menu ...................................................................... 12
6.3.2. Setting favourites ........................................................................................... 13
6.3.3. Displaying information about an application ................................................... 13
6.4. Displaying Smart Probe details ...................................................... 13
6.5. List, graphic diagram and table view ............................................. 13
6.6. Settings view ................................................................................. 14
6.7. Retaining readings ......................................................................... 14
6.8. Exporting readings ......................................................................... 14
6.8.1. Excel (CSV) Export ........................................................................................ 14
6.8.2. PDF Export .................................................................................................... 14
6.8.3. Exporting a graph .......................................................................................... 15
3
www.GlobalTestSupply.com
Page 3
1 Contents
7
Maintaining the product ....................................................................... 15
7.1. Maintaining Smart Probes ............................................................. 15
7.2. Smart Probes App ......................................................................... 15
8 Tips and assistance .............................................................................. 16
8.1. Questions and answers ................................................................ 16
8.2. Accessories and spare parts ......................................................... 16
9 Technical data ....................................................................................... 17
9.1. Bluetooth module .......................................................................... 17
9.2. General technical data .................................................................. 17
9.2.1. testo 905i ....................................................................................................... 17
9.2.2. testo 410i ....................................................................................................... 18
9.2.3. testo 405i ....................................................................................................... 18
9.2.4. testo 549i ....................................................................................................... 19
9.2.5. testo 805i ....................................................................................................... 20
9.2.6. testo 605i ....................................................................................................... 20
9.2.7. testo 510i ....................................................................................................... 21
9.2.8. testo 115i ....................................................................................................... 22
10 Certifications ......................................................................................... 23
4
www.GlobalTestSupply.com
Page 4

2 Safety and the environment

Representation
Explanation
2 Safety and the environment

2.1. About this document

Use
> Please read this documentation through carefully and
familiarize yourself with the product before putting it to use. Pay particular attention to the safety instructions and warning advice in order to prevent injuries and damage to the products.
> Keep this document to hand so that you can refer to it when
necessary.
> Hand this documentation on to any subsequent users of the
product.

Symbols and writing standards

Warning advice, risk level according to the signal word:
Warning! Serious physical injury may occur. Caution! Slight physical injury or damage to
the equipment may occur. > Implement the specified precautionary
measures.
Note: Basic or further information.
1. ...
2. ...
Action: more steps, the sequence must be followed.
> ... Action: a step or an optional step.
- ... Result of an action.
Menu Elements of the instrument, the instrument
display or the program interface.
[OK] Control keys of the instrument or buttons of
the program interface.
... | ... Functions/paths within a menu.
“...” Example entries
5
www.GlobalTestSupply.com
Page 5
2 Safety and the environment

2.2. Ensure safety

> Do not operate the instrument if there are signs of damage at
the housing, mains unit or feed lines.
> Do not perform contact measurements on non-insulated, live
parts.
> Do not store the product together with solvents. Do not use any
desiccants.
> Carry out only the maintenance and repair work on this
instrument that is described in the documentation. Follow the prescribed steps exactly. Use only original spare parts from Testo.
> Dangers may also arise from the systems being measured or
the measuring environment: Note the safety regulations valid in your area when performing the measurements.

2.2.1. Safety and the testo 510i/605i

• Magnetic field
• May be harmful to those with pacemakers. > Keep a minimum distance of 10 cm between pacemaker and
instrument.

2.2.2. Safety and the testo 549i

• Risk of injury due to pressurized, hot, cold or toxic refrigerants/media!
> Only to be used by qualified staff. > Wear protective goggles and safety gloves. > Before applying pressure to the measuring instrument: always
fix the instrument tightly onto the pressure connection
> Comply with the permissible measuring range (0 to 60 bar). Pay
particular attention to this in systems with R744 refrigerant, since these are frequently operated at higher pressures!

2.2.3. Safety and the testo 805i

• Laser radiation! Class 2 laser
> Do not look into the laser beam!
6
www.GlobalTestSupply.com
Page 6

2.3. Protecting the environment

> Dispose of faulty rechargeable batteries/spent batteries in
accordance with the valid legal specifications.
> At the end of its useful life, send the product to the separate
collection for electric and electronic devices (observe local
3 Specifications
regulations) or return the product to Testo for disposal.
Testo Smart Probes are different hand-held measuring instruments for various applications that communicate with your mobile terminal devices by means of an app. The respective Smart Probe performs the measurement and is operated by your mobile terminal device. The various Smart Probes allow you to measure the temperature, humidity, flow, and volume flow at the outlet, or perform pressure, differential pressure, and non-contact temperature measurements in the duct.

3 Specifications

7
www.GlobalTestSupply.com
Page 7

4 Product description

4 Product description

4.1. Overview of Smart Probes

1 Measuring unit 2 LED 3 Key 4 Battery compartment (at the back) 5 Direction of flow testo 405i / testo 410i (not shown)
(An arrow on the top of the housing displays the direction of flow in which the measuring instrument has been calibrated and which achieves the best measurement results. Please note the direction of flow during usage.)

4.2. LED status

LED status Meaning
Flashing red Low battery status
Flashing yellow
Flashing green
8
• Smart Probe is switched on.
• Smart Probe is searching for a BT connection, but is not connected.
• Smart Probe is switched on.
• Bluetooth is connected.
www.GlobalTestSupply.com
Page 8
5 First steps

5.1. Switching on/off

5 First steps

testo 549i

5.1.1. Switching on

1. Pull the film out of the battery compartment.
2. Press the button on your Smart Probe.
- The Smart Probe switches on.

5.1.2. Switching off

1. Press and hold the button on your Smart Probe.
- The Smart Probe switches off.

5.2. Establishing Bluetooth® connection

You need a tablet or smartphone with the testo Smart Probes App already installed on it to be able to establish a Bluetooth connection.
You can get the App for iOS instruments in the App Store or for Android instruments in the Play Store.
Compatibility:
• requires iOS 8.3 or later/Android 4.3 or later
• requires Bluetooth 4.0
✓ The testo App Smart Probe is installed on your terminal device
and ready for use.
1. Press the button on the Smart Probe.
- The Smart Probe switches on.
9
www.GlobalTestSupply.com
Page 9
5 First steps
- The LED flashes yellow while connecting via Bluetooth and then flashes green once the connection is established.
- The connection between the Smart Probe and your mobile terminal device is established.

5.3. Transmitting readings

✓ The Smart Probe is switched on and connected to your mobile
terminal device via Bluetooth.
- The current readings are automatically displayed in the App.
10
www.GlobalTestSupply.com
Page 10
6 Using the App

6.1. Overview of operating controls

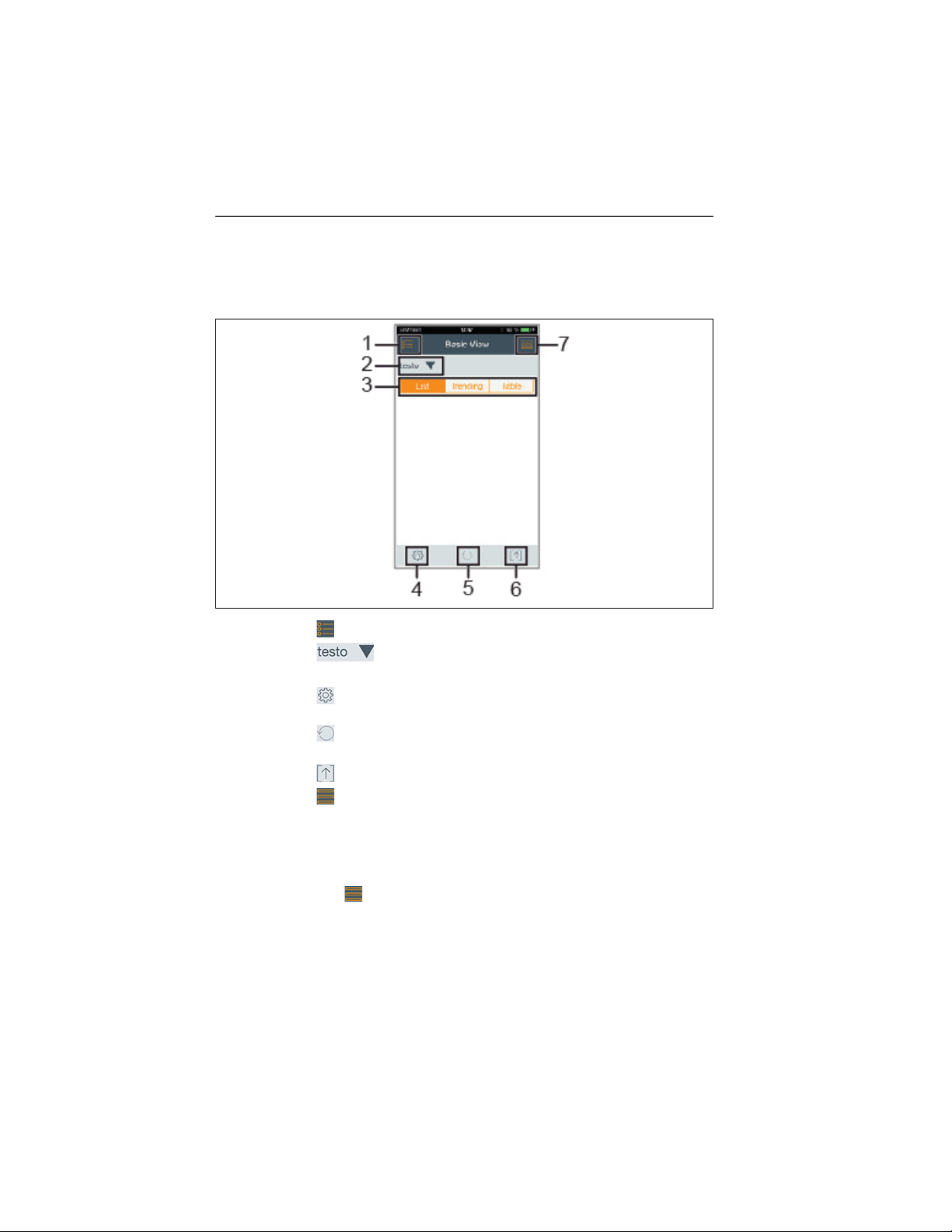

1 Choice of applications.
2 Display of connected Smart Probes. 3 Switch between the views (list, graphic diagram, table)
4 Measurement settings. (The menu changes depending on
the Smart Probe connected and the application selected)
5 Restarts the measuring value recording in graph and table
format.
6 Export the readings.
7 Options menu

6 Using the App

6.2. App options

6.2.1. Set “Language”

1. Tap -> Settings -> Language.
- A selection list is displayed.
2. Tap the required language.
- The selected language receives a green check mark.
3. Tap ◄ several times until the measurement view is displayed.
- The language has been changed.
11
www.GlobalTestSupply.com
Page 11
6 Using the App

6.2.2. Display Tutorial

The Tutorial guides you through the first steps when operating the testo Smart Probes App.
1. Tap -> Tutorial
- The Tutorial is displayed. In Tutorial, swipe to display the next page.
2. Tap X to close the Tutorial.

6.2.3. Show help

An internet connection is required to display the testo website.
1. Tap -> Help
- The page Fehler! Linkreferenz ungültig. is displayed.

6.2.4. Display testo website

An internet connection is required to display the testo website.
1. Tap -> About/Link -> Testo
- The page Fehler! Linkreferenz ungültig. is displayed.

6.2.5. Display App Info

In App Info you can find the version number of the installed App.
1. Tap -> About/Link -> Info
- The App’s version number is displayed, as well as the ID.
2. Tap ◄ several times until the measurement view is displayed.

6.3. Application menus

6.3.1. Selecting the application menu

1. Press .
- A selection of menus for various applications is displayed.
2. Select the required application.
- The selection disappears and your selected application is displayed.
12
www.GlobalTestSupply.com
Page 12

6.3.2. Setting favourites

1. Press .
- A selection of applications is displayed.
2. Press next to the application that you would like to designate as a favourite.
- The asterisk is displayed in orange , and the selected application is listed under Show Favorites.

6.3.3. Displaying information about an application

1. Press .
- A selection of applications is displayed.
2. Press .
- The information about an application is displayed.

6.4. Displaying Smart Probe details

✓ One or more Smart Probes are connected to your mobile
terminal device via Bluetooth.
1. Press .
- All connected Smart Probes are displayed in this list.
2. Select the Smart Probe to display the details you would like to see.
- A list appears with the details for the Smart Probe.
3. Press Close to exit the detailed view.
6 Using the App

6.5. List, graphic diagram and table view

The available readings can be displayed in different ways in the various views.
• List view Displays the readings transmitted by the Smart Probe in the form of a list. Readings from all connected Smart Probes are displayed here.
• Graphic diagram view The graphical progression of up to four different readings can be displayed. Tap on a reading above the diagram to select the readings to be displayed.
• Table view In the Table view, all readings are displayed in sequence according to date and time. The different readings from the individual Smart Probes can be selected by pressing ◄ ►.
13
www.GlobalTestSupply.com
Page 13
6 Using the App

6.6. Settings view

1. Press and select Edit View.
- An overview of all Smart Probes and their measurement
parameters is displayed.
2. Move the required reading up or down to the position it should
be.
3. Press to hide a Smart Probe reading.
4. Press ▼ to select the unit for a reading.
5. Press OK to confirm your settings

6.7. Retaining readings

Readings are retained in the “List” view; in the “Trend” and “Table” view, the current readings are still displayed.
✓ The Smart Probe is switched on, connected to your mobile
terminal device via Bluetooth, and readings are transmitted.
1. Press the button on your Smart Probe.
- The current reading is retained.
2. Press the key again.
- The instrument again displays the current readings.

6.8. Exporting readings

6.8.1. Excel (CSV) Export

1. Press .
- A selection of export options appears.
2. Press Export Excel (CSV).
- A list of readings is displayed.
3. Press .
- A selection of sending/export options appears.
4. Select your required sending/export options.

6.8.2. PDF Export

1. Press .
- A selection of export options appears.
2. Press Export PDF.
- A PDF is created and saved on your mobile terminal device
(Android only) or sent via e-mail (iOS and Android).
3. Press Done to exit the detailed view.
14
www.GlobalTestSupply.com
Page 14

6.8.3. Exporting a graph

1. Press .
- A selection of export options appears.
2. Press Export Graph.
- An image file of the trend display is created.
3. Press .
- A selection of sending/export options is displayed.
7 Maintaining the product
4. Tap on the sending/export option you need.

7.1. Maintaining Smart Probes

Cleaning the instrument

> Do not use any aggressive cleaning agents or solvents! > Mild household cleaning agents or soap suds may be used. > If the housing of the instrument is dirty, clean it with a damp
cloth.

Keeping connections clean

> Keep connections clean and free of grease and other deposits,
clean with a damp cloth as required.

7 Maintaining the product

Ensuring measuring accuracy

> Testo Customer Service would be glad to further assist you if
you so wish.
> Keep within the permissible measuring range! > Calibrate instrument regularly (recommendation: once a year).

7.2. Smart Probes App

The testo Smart Probes App is kept updated via the Play Store for Android devices and the App Store for iOS devices. Please update the App as soon as a new update is available. We therefore recommend that you do not disable automatic notifications when
15
new updates are available.
www.GlobalTestSupply.com
Page 15

8 Tips and assistance

8 Tips and assistance

8.1. Questions and answers

Question Answer
LED flashes red • Batteries are almost spent.
• Change batteries.
The instrument switches itself off
--- lights up instead of the measurement parameter display
Remaining battery capacity insufficient > Change the batteries.
• Outside the permissible measuring range. > Keep within the permissible measuring range. or
• Sensor is defective > Contact your testo Service department.
The App cannot be found in the store
• No correct search terms were entered. > Enter an unambiguous search term, e.g.: “testo
Smart Probes” or use the link on the testo website.
or
• Your mobile terminal device does not meet the technical requirements (iOS 8.3 or later, Android
4.3 or later / Bluetooth 4.0 (Low Energy))
> Please check the technical data for your mobile
terminal device

8.2. Accessories and spare parts

Designation Item number
testo Smart Case (Refrigeration) for storing and transporting
0516 0240 2 × testo 115i and 2 × testo 549i, dimensions 250 × 180 × 70 mm
testo Smart Case (Heating) for storing and transporting
0516 0270 testo 115i, testo 410i, testo 510i, testo 549i and testo 805i, dimensions 250 × 180 × 70 mm
testo Smart Case (VAC) for storing and transporting
0516 0250 testo 405i, testo 410i, testo 510i, testo 605i testo 805i and testo 905i, dimensions 270 × 190 × 60 mm
16
www.GlobalTestSupply.com
Page 16
All accuracy specifications apply at a nominal temperature
9 Technical data

9.1. Bluetooth module

The use of the wireless module is subject to the regulations and stipulations of the respective country of use, and the module may only be used in each case in countries for which a country certification has been granted.
The user and every owner undertake to adhere to these regulations and prerequisites for use, and acknowledge that the re-sale, export, import, etc. in particular in, to or from countries without wireless permits, is their responsibility.

9.2. General technical data

of 22 °C.

9.2.1. testo 905i

Feature Values
Measuring range -50 to 150 °C / -58 to 302 °F
Accuracy ± 1 digit ± 1 °C / ± 1.8 °F
Resolution 0.1 °C / 0.1 °F
Measurement rate 1/sec
Available units of measurement
Storage temperature -20 °C to 60 °C / -4 to 140 °F
Operating temperature -20 °C to +50 °C / -4 to 122 °F
Battery type 3 micro batteries AAA
Battery life 150 h
Dimensions 222 mm × 30 mm × 24 mm
Directives, standards and tests
°C, °F
Probe shaft length 100 mm Probe shaft diameter 4 mm
EU guideline: 2014/30/EU

9 Technical data

17
www.GlobalTestSupply.com
Page 17
9 Technical data
0.1 m/s / 1 fpm

9.2.2. testo 410i

Feature Values
Measuring range 0.4 to 30 m/s / 80 to 5,900 fpm
-20 to 60 °C / -4 to 140 °F
Accuracy ± 1 digit ± (0.2 m/s + 2% of m.v.) (0.4 to 20 m/s)
± (40 fpm + 2% of m.v.) (80 to 4,000 fpm) ± 0.5 °C / ±0.9 °F
Resolution 0.1 °C / 0.1 °F
Measurement rate 1/sec
Available units of measurement
Storage temperature -20 °C to 60 °C / -4 to 140 °F
Operating temperature -20 °C to +50 °C / -4 to 122 °F
Battery type 3 micro batteries AAA
Battery life 130 h
Dimensions 154 mm × 43 mm × 21 mm
Directives, standards and tests
°C, °F, m/s, fpm, m³/h, cfm, l/s
40 mm vane diameter
EU guideline: 2014/30/EU

9.2.3. testo 405i

Feature Values
Measuring range 1 0 to 30 m/s / 0 to 5,900 fpm
-20 to 60 °C / -4 to 140 °F
Accuracy ± 1 digit ± (0.1 m/s + 5% of m.v.) (0 to +2 m/s)
± (0.3 m/s + 5% of m.v.) (2 to +15 m/s) ± (20 fpm + 5% of m.v.) (0 to +394 fpm) ± (59 fpm + 5% of m.v.) (394 to +3.000 fpm) ± 0.5 °C / ±0.9 °F
Resolution 0.01 m/s / 1 fpm
0.1 °C / 0.1 °F
1
Please switch on the Smart Probe in the following ambient conditions: > 10 °C,
air velocity 0 m/s = protective cap closed to enable the sensor to heat up.
18
www.GlobalTestSupply.com
Page 18
Feature Values
Measurement rate 1/sec
Available units of measurement
Storage temperature -20 °C to 60 °C / -4 to 140 °F
Operating temperature -20 °C to +50 °C / -4 to 122 °F
Battery type 3 micro batteries AAA
Battery life 15 hrs
Dimensions 200 mm × 30 mm × 41 mm
Directives, standards and tests
°C, °F, m/s, fpm, m³/h, cfm, l/s
Extendible telescope 400 mm Probe shaft diameter 12 mm Probe tip diameter 9 mm
EU guideline: 2014/30/EU

9.2.4. testo 549i

Feature Values
Measuring range 0 to 60 bar (rel) / 0 to 870 psi (rel)
Overpressure 65 bar
Accuracy ± 1 digit 0.5% of full scale value
Resolution 0.01 bar / 0.1 psi
Measurement rate 2/sec
Available units of measurement
Connection 1× 7/16" UNF / 1/4" SAE connection
Overload rel. 65 bar
Storage temperature -20 °C to 60 °C / -4 to 140 °F
Operating temperature -20 °C to +50 °C / -4 to 122 °F
Battery type 3 micro batteries AAA
Battery life 130 hrs
Measurable media CFC, HFC, HCFC, N, H20, CO2
Dimensions 152 mm x 35 mm x 35 mm
Directives, standards and tests
bar, psi, MPa, kPa
EU guideline: 2014/30/EU
9 Technical data
19
www.GlobalTestSupply.com
Page 19
9 Technical data

9.2.5. testo 805i

Feature Values
Measuring range -30 °C to 250 °C / -22 to 482 °F
Accuracy ± 1 digit ± 1.5 °C or ± 1.5% of m.v. (0 to 250 °C)
± 2.0 °C (-20.0 to -0.1 °C) ± 2.5 °C (-30.0 to -20.1 °C)
± 2.7 °F or ± 1.5% of m.v. (32 to 482 °F) ± 3.6 °F (-4 to 32 °F) ± 4.5 °F (-22 to -4 °F)
Resolution 0.1 °C / 0.1 °F
Measurement rate 2/sec
Available units of measurement
Connection 7/16“ – UNF
Storage temperature -20 °C to 60 °C / -4 to 140 °F
Operating temperature -10 °C to +50 °C / 14 to 122 °F
Battery type 3 micro batteries AAA
Battery life 30 hrs
Optics 10:1
Laser marking Diffraction lens as laser marking (laser circle)
Dimensions 140 mm × 36 mm × 25 mm
Emission level Adjustable from 0.1 to 1.0
Directives, standards and tests
°C, °F
EU guideline: 2014/30/EU

9.2.6. testo 605i

Feature Values
Measuring range -20 to 60 °C, -4 to 140 °F, 0 to 100% RH
20
www.GlobalTestSupply.com
Page 20
9 Technical data
Long term stability/year :± 1.0 %RH/year
0.1% RH
Feature Values
Accuracy ± 1 digit ±0.8 °C (-20 … 0 °C) / ±1.44 °F (-4 … 32 °F)
±0.5 °C (0 … +60 °C) / ±0.9 °F (32 … 140 °F)
± 3.0 %RH (10%RH…35%RH)
± 2.0 %RH (35%RH…65%RH)
± 3.0 %RH (65%RH…90%RH)
± 5.0 %RH (<10%RH or >90%RH)
@ 25°C ±1°C
Hysteresis: ± 1.0 %RH
Resolution 0.1 °F / 0.1 °C
Measurement rate 1/sec
Available units of measurement
Storage temperature -20 °C to 60 °C / -4 to 140 °F
Operating temperature -20 °C to +50 °C / -4 to 122 °F
Battery type 3 micro batteries AAA
Battery life 150 h
Dimensions 218 mm × 30 mm × 27 mm
Directives, standards and tests
°C, °F, %RH, °Ctd, °Ftd, wetbulb °C, wetbulb °F
Probe shaft length 90 mm
EU guideline: 2014/30/EU

9.2.7. testo 510i

Feature Values
Measuring range -150 … 150 hPa / 60 in wc
Accuracy ± 1 digit ± 0.05 hPa (0 to 1.00 hPa) /
± 0.02 in wc (0 to 0.4 in wc)
± 0.2 hPa + 1.5% of m.v. (1.01 to 150 hPa) ± 0.08 in wc + 1.5% of m.v. (0.41 to 60 in wc)
Overpressure 500 mbar
Resolution 0.01 hPa / 0.01 inch wc
Measurement rate 2/sec
21
www.GlobalTestSupply.com
Page 21
9 Technical data
max. 35 mm pipe diameter
Feature Values
Available units of measurement
Storage temperature -20 °C to 60 °C / -4 to 140 °F
Operating temperature -20 °C to +50 °C / -4 to 122 °F
Battery type 3 micro batteries AAA
Battery life 150 hrs
Dimensions 148 × 36 × 23 mm
Directives, standards and tests
mbar, hPa, Pa, mmHg, inHg, in WC, psi, mmWC In conjunction with Pitot tube (optional): m/s, fpm,
m³/h, cfm, l/s
EU guideline: 2014/30/EU

9.2.8. testo 115i

Feature Values
Measuring range -40 to 150 °C / -58 to 302 °F
Accuracy ± 1 digit ± 1.3 °C (-20 to 85 °C)
± 2.34 °F (-4 to 185 °F)
Resolution 0.1 °C / 0.1 °F
Measurement rate 1/sec
Available units of measurement
Storage temperature -20 °C to 60 °C / -4 to 140 °F
Operating temperature -20 °C to +50 °C / -4 to 122 °F
Battery type 3 micro batteries AAA
Battery life 150 h
Dimensions 183 mm × 90 mm × 30 mm
°C, °F
Directives, standards and tests
22
www.GlobalTestSupply.com
EU guideline: 2014/30/EU
Page 22
testo 905i
Country
Comments
interferência a sistemas operando em caráter primário. ”
see IC Warnings
10 Certifications
Module Lierda L Series BLE Module
Product
Mat.-No.
Australia
Brazil
testo 115i, testo 405i, testo 410i, testo 510i, testo 549i, testo 605i, testo 805i,
0560 1115, 0560 1405, 0560 1410, 0560 1510, 0560 1549, 0560 1605, 0560 1805, 0560 1905

10 Certifications

E 1561
“Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar
Canada Product IC ID:
testo 115i IC ID: 12231A-1115
testo 405i IC ID: 12231A-1405
testo 410i IC ID: 12231A-1410
testo 510i IC ID: 12231A-1510
testo 549i IC ID: 12231A-1549
testo 605i IC ID: 12231A-1605
testo 805i IC ID: 12231A-1805
testo 905i IC ID: 12231A-1905
23
www.GlobalTestSupply.com
Page 23
10 Certifications
EU countries:
EFTA countries:
China CMII ID:
testo 115i CMIIT ID: 2015DP6557
testo 405i CMIIT ID: 2015DP6558
testo 410i CMIIT ID: 2015DP6612
testo 510i CMIIT ID: 2015DP6559
testo 549i CMIIT ID: 2015DP6560
testo 605i CMIIT ID: 2015DP6561
testo 805i CMIIT ID: 2015DP6562
testo 905i CMIIT ID: 2015DP6563
Europa + EFTA
Hongkong
Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary (HU), United Kingdom (GB), Republic of Cyprus (CY).
Iceland, Liechtenstein, Norway, Switzerland
Authorized
24
www.GlobalTestSupply.com
Page 24
Japan testo 115i
see Japan Information
see KCC Warning
10 Certifications
testo 405i
testo 410i
testo 510i
testo 549i
testo 605i
testo 905i
Korea
testo 115i Certification No. MSIP-CRM-Toi-115i
testo 405i Certification No. MSIP-CRM-Toi-405i
testo 410i Certification No. MSIP-CRM-Toi-410i
testo 510i Certification No. MSIP-CRM-Toi-510i
testo 549i Certification No. MSIP-CRM-Toi-549i
testo 605i Certification No. MSIP-CRM-Toi-605i
testo 805i Certification No. MSIP-CRM-Toi-805i
testo 905i Certification No. MSIP-CRM-Toi-905i
25
www.GlobalTestSupply.com
Page 25
10 Certifications
testo 905i NCC: CCAB16LP177GT2
Turkey
Authorized
see FCC Warnings
Russia
Authorized
Philippines
Authorized
testo 905i TA-2016/1205
(varies with the used mobile device)
Taiwan testo 115i NCC: CCAB16LP177FT0
testo 405i NCC: CCAB16LP177AT3
testo 410i NCC: CCAB16LP1770T1
testo 510i NCC: CCAB16LP177DT9
testo 549i NCC: CCAB16LP177ET1
testo 605i NCC: CCAB16LP177BT5
testo 805i NCC: CCAB16LP177CT7
USA Product FCC ID:
testo 115i FCC ID: 2ACVD-1115
testo 405i FCC ID: 2ACVD-1405
testo 410i FCC ID: 2ACVD-1410
testo 510i FCC ID: 2ACVD-1510
testo 549i FCC ID: 2ACVD-1549
testo 605i FCC ID: 2ACVD-1605
testo 805i FCC ID: 2ACVD-1805
testo 905i FCC ID: 2ACVD-1905
South Africa
Bluetooth SIG List
26
testo 115i TA-2016/1207
testo 405i TA-2016/1201
testo 410i TA-2016/1200
testo 510i TA-2016/1199
testo 549i TA-2016/1198
testo 605i TA-2016/1204
testo 805i TA-2016/1206
Bluetooth® Range 15 m (free field)
Bluetooth® type LSD Science & Technology Co., Ltd
L Series BLE Module (08 Mai 2013) based on TI
CC254X chip
Qualified Design ID B016552
www.GlobalTestSupply.com
Page 26
Bluetooth® radio class
Class 3
Bluetooth® company ID
10274
IC Warnings
FCC Warnings
For your own safety
FCC warning statement
Caution
10 Certifications
This instrument complies with Part 15C of the FCC Rules and
Industry Canada RSS-210 (revision 8). Commissioning is subject to
the following two conditions:
(1) This instrument must not cause any harmful interference and
(2) this instrument must be able to cope with interference, even if
this has undesirable effects on operation.
Cet appareil satisfait à la partie 15C des directives FCC et au standard Industrie Canada RSS-210 (révision 8). Sa mise en service est soumise aux deux conditions suivantes :
(1) cet appareil ne doit causer aucune interférence dangereuse et
(2) cet appareil doit supporter toute interférence, y compris des interférences qui provoquerait des opérations indésirables.
Information from the FCC (Federal Communications Commission)
Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.
This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.
27
www.GlobalTestSupply.com
Page 27
10 Certifications
Warning
KCC Warning
Japan Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
해당 무선 설비는 운용 중 전파혼신 가능성이 있음
当該機器には電波法に基づく、技術基準適合証明等を受けた特定無線設備を装着している。
Module Lierda LSD4BT-S37
Product testo 115i, testo 549i, testo 605i
Mat.-No. 0560 2115, 0560 2549, 0560 2605
Country Comments
Australia
Canada Product IC ID:
testo 115i: IC: 6127B-05602115
testo 549i: IC: 6127B-05602549
testo 605i: IC: 6127B-05602605
see IC Warnings
E 1561
Europa + EFTA
EU countries:
Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Sweden (SE), Slovakia (SK), Slovenia (SI), Spain (ES), Czech Republic (CZ), Hungary (HU), United Kingdom (GB), Republic of Cyprus (CY).
EFTA countries:
Iceland, Liechtenstein, Norway, Switzerland
28
www.GlobalTestSupply.com
Page 28
Turkey Authorized
Feature
Values
Bluetooth® range
Open air: typical 100 m
radio type
Bluetooth® Low Energy (BLE) 4.2
Bluetooth® radio class
1
Bluetooth® company
LSD Science & Technology Co., Ltd
RF Band
BT LE: 2402 – 2480MHz
power output [E.I.R.P]
BT LE: 16.94dBm
Declaration ID
D043363
member company
Testo SE & Co. KGaA
USA testo 115i: WAF-05602115
testo 549i: WAF-05602549
testo 605i: WAF-05602605
see FCC Warnings
Bluetooth®
Information
10 Certifications
Bluetooth® SIG List
Feature Values
IC Warnings
RSS-Gen & RSS-247 statement:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Caution: Radio Frequency Radiation Exposure
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets the IC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person´s body in normal use position to ensure compliance with RF exposure requirement.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Attention : exposition au rayonnement de radiofréquences
Cet équipement est conforme aux limites d'exposition aux radiofréquences IC fixées pour un environnement non contrôlé et aux Lignes directrices relatives à l'exposition aux radiofréquences (RF). Cet équipement doit être installé et utilisé en gardant le radiateur à une distance d'au moins 20 cm du corps humain en position normale d’utlisation pour garantir la conformité a d'exposition aux RF.
29
www.GlobalTestSupply.com
Page 29
10 Certifications
Co-location
Ce transmetteur ne peut pas être installé en colocation ou être utilisé avec une autre antenne ou transmetteur, quel qu'en soit le type.
FCC Warnings
Information from the FCC (Federal Communications Commission)
For your own safety
Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.
FCC warning statement
This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.
Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person´s body in normal use position to ensure compliance with RF exposure requirement.
Co-Location:
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
30
www.GlobalTestSupply.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
