Page 1

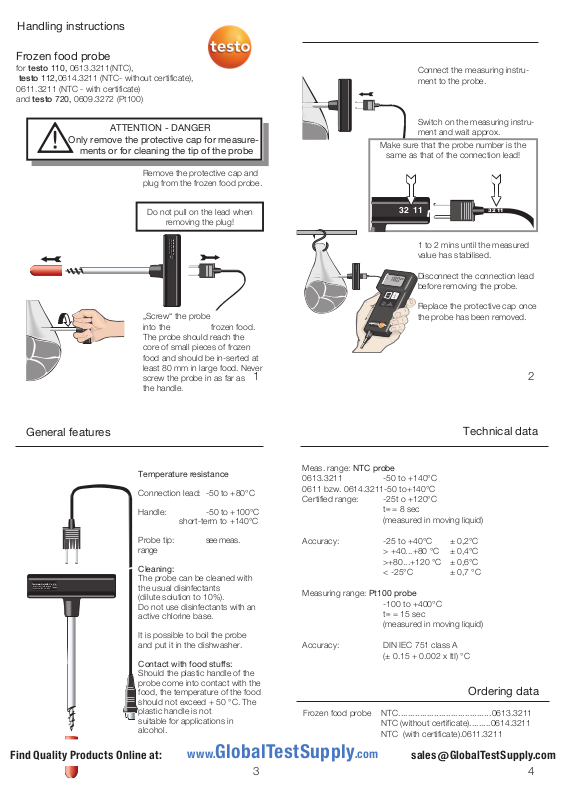

Handling instructions
14.41
92.04
Testoterm GmbH & Co
Postfach 1140 7825 Lenzkirch
Temp.-Fühler NTC -50...140¡C
14.41
92.04
Testoterm GmbH & Co
Postfach 1140 7825 Lenzkirch
Temp.-Fühler NTC -50...140¡C
32 11
32 11
Frozen food probe
for testo 110, 0613.3211(NTC),
testo 112,0614.3211 (NTC- without certificate),
0611.3211 (NTC - with certificate)
and testo 720, 0609.3272 (Pt100)
Connect the measuring instrument to the probe.
ATTENTION - DANGER
Only remove the protective cap for measure-
ments or for cleaning the tip of the probe
Remove the protective cap and
plug from the frozen food probe.
Do not pull on the lead when
removing the plug!
„Screw“ the probe
into the frozen food.
The probe should reach the
core of small pieces of frozen
food and should be in-serted at
least 80 mm in large food. Never
screw the probe in as far as
the handle.
Switch on the measuring instrument and wait approx.
Make sure that the probe number is the
same as that of the connection lead!
1 to 2 mins until the measured
value has stabilised.
Disconnect the connection lead
before removing the probe.
Replace the protective cap once
the probe has been removed.
1 2
General features
Temperature resistance
Connection lead: -50 to +80°C
Handle: -50 to +100°C
short-term to +140°C
Probe tip: see meas.
range
Cleaning:
The probe can be cleaned with
the usual disinfectants
(dilute solution to 10%).
Do not use disinfectants with an
active chlorine base.
Meas. range: NTC probe
0613.3211 -50 to +140°C
0611 bzw. 0614.3211-50 to+140°C
Certified range: -25t o +120°C
t
99
= 8 sec
(measured in moving liquid)
Accuracy: -25 to +40°C ± 0,2°C
> +40...+80 °C ± 0,4°C
>+80...+120 °C ± 0,6°C
< -25°C ± 0,7 °C
Measuring range: Pt100 probe
-100 to +400°C
t
99
= 15 sec
(measured in moving liquid)
Technical data
It is possible to boil the probe
and put it in the dishwasher.
Accuracy: DIN IEC 751 class A
(± 0.15 + 0.002 x ItI) °C
Contact with food stuffs:
Should the plastic handle of the
probe come into contact with the
food, the temperature of the food
Ordering data
should not exceed + 50 °C. The
plastic handle is not
suitable for applications in
alcohol.
Find Quality Products Online at: [email protected]
The measuring tip is made of
stainless steel.
www.GlobalTestSupply.com
3 4
Frozen food probe NTC .......................................0613.3211
NTC (without certificate).........0614.3211
NTC (with certificate).0611.3211
PT100 ...................................0609.3272
