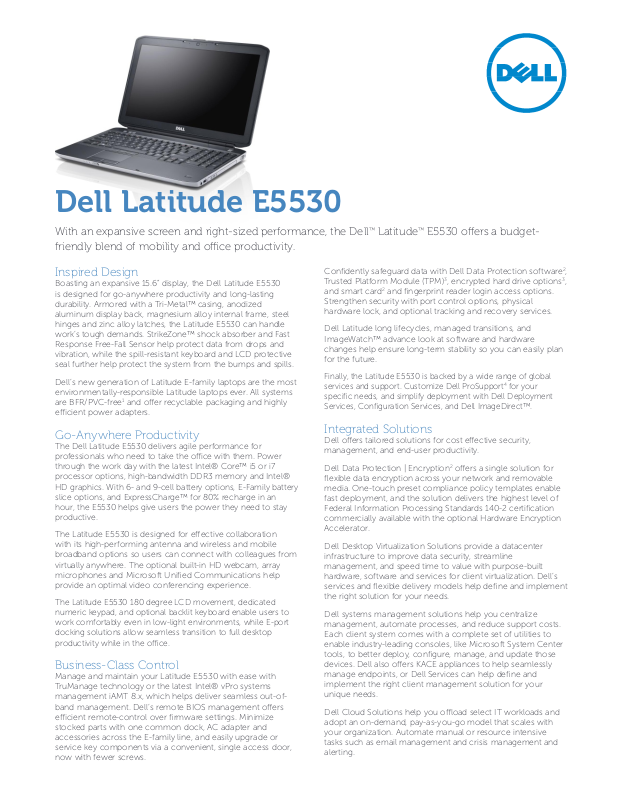

Dell Latitude E5530

With an expansive screen and right-sized performance, the Dell™ Latitude™ E5530 oers a budget­friendly blend of mobility and oce productivity.

Inspired Design

Boasting an expansive 15.6” display, the Dell Latitude E5530
is designed for go-anywhere productivity and long-lasting
durability. Armored with a Tri-Metal™ casing, anodized
aluminum display back, magnesium alloy internal frame, steel
hinges and zinc alloy latches, the Latitude E5530 can handle
work’s tough demands. StrikeZone™ shock absorber and Fast
Response Free-Fall Sensor help protect data from drops and
vibration, while the spill-resistant keyboard and LCD protective
seal further help protect the system from the bumps and spills.

Dell’s new generation of Latitude E-family laptops are the most
environmentally-responsible Latitude laptops ever. All systems
are BFR/PVC-free1 and oer recyclable packaging and highly
ecient power adapters.

Go-Anywhere Productivity

The Dell Latitude E5530 delivers agile performance for
professionals who need to take the oce with them. Power
through the work day with the latest Intel® Core™ i5 or i7
processor options, high-bandwidth DDR3 memory and Intel®
HD graphics. With 6- and 9-cell battery options, E-Family battery
slice options, and ExpressCharge™ for 80% recharge in an
hour, the E5530 helps give users the power they need to stay
productive.

The Latitude E5530 is designed for eective collaboration
with its high-performing antenna and wireless and mobile
broadband options so users can connect with colleagues from
virtually anywhere. The optional built-in HD webcam, array
microphones and Microsoft Unified Communications help
provide an optimal video conferencing experience.

The Latitude E5530 180 degree LCD movement, dedicated
numeric keypad, and optional backlit keyboard enable users to
work comfortably even in low-light environments, while E-port
docking solutions allow seamless transition to full desktop
productivity while in the oce.

Business-Class Control

Manage and maintain your Latitude E5530 with ease with
TruManage technology or the latest Intel® vPro systems
management iAMT 8.x, which helps deliver seamless out-of­band management. Dell‘s remote BIOS management oers
ecient remote-control over firmware settings. Minimize
stocked parts with one common dock, AC adapter and
accessories across the E-family line, and easily upgrade or
service key components via a convenient, single access door,
now with fewer screws.

Confidently safeguard data with Dell Data Protection software2,
Trusted Platform Module (TPM)3, encrypted hard drive options3,
and smart card2 and fingerprint reader login access options.
Strengthen security with port control options, physical
hardware lock, and optional tracking and recovery services.

Dell Latitude long lifecycles, managed transitions, and
ImageWatch™ advance look at software and hardware
changes help ensure long-term stability so you can easily plan
for the future.

Finally, the Latitude E5530 is backed by a wide range of global
services and support. Customize Dell ProSupport4 for your
specific needs, and simplify deployment with Dell Deployment
Services, Configuration Services, and Dell ImageDirect™.

Integrated Solutions

Dell oers tailored solutions for cost eective security,
management, and end-user productivity.

Dell Data Protection | Encryption2 oers a single solution for
flexible data encryption across your network and removable
media. One-touch preset compliance policy templates enable
fast deployment, and the solution delivers the highest level of
Federal Information Processing Standards 140-2 certification
commercially available with the optional Hardware Encryption
Accelerator.

Dell Desktop Virtualization Solutions provide a datacenter
infrastructure to improve data security, streamline
management, and speed time to value with purpose-built
hardware, software and services for client virtualization. Dell’s
services and flexible delivery models help define and implement
the right solution for your needs.

Dell systems management solutions help you centralize
management, automate processes, and reduce support costs.
Each client system comes with a complete set of utilities to
enable industry-leading consoles, like Microsoft System Center
tools, to better deploy, configure, manage, and update those
devices. Dell also oers KACE appliances to help seamlessly
manage endpoints, or Dell Services can help define and
implement the right client management solution for your
unique needs.

Dell Cloud Solutions help you ooad select IT workloads and
adopt an on-demand, pay-as-you-go model that scales with
your organization. Automate manual or resource intensive
tasks such as email management and crisis management and
alerting.

Feature Technical Specification

Processor Options Intel® CoreTMi3, i5 and i7 up to i7-35xxM; Intel® Celeron® Bxxx processors

Operating System Options Genuine Windows® 7 Home Basic

2,5

, Genuine Windows® 7 Home Premium
Genuine Windows® 7 Professional, Genuine Windows® 7 Ultimate
Linux Ubuntu 11.10

6

Memory

Options DDR3 SDRAM 1600MHz 2 slots supporting 2G, 4GB, 8GB13 DIMMs

Chipset Mobile Intel® HM77 Express Chipset with Broadcom LOM and TruManage™

Mobile Intel® QM77 Express Chipset with Intel LOM and vPro™

Graphics

7

Options Intel® HD Graphics 3000 for Intel Core i3/i5/i7 2xxxM and Celeron® processors

Intel® HD Graphics 4000 for Intel Core i3/i5/i7 3xxxM processors

Display 15.6” HD (1366x768) Anti-Glare LED

15.6” FHD (1920x1080) Anti-Glare LED

Storage8 Options

7200 rpm SATA up to 500GB
Encrypted 7200 rpm 320GB

3

Mobility Solid State up to 128GB
Dell Fast Response Free Fall Sensor (standard on the motherboard)

Optical Drive Options DVD-ROM, DVD+/-RW

Multimedia Options High quality speakers, Stereo headphone/Microphone combo jack, Integrated

noise reducing array microphones, Optional integrated HD video webcam and
Dell Webcam Central software

Battery Options 4-cell (40Whr) Lithium Ion battery with ExpressCharge™

6-cell (60Whr) Lithium Ion battery with ExpressCharge™
9-cell (97Wh) Lithium Ion battery with ExpressCharge™
9-cell (87Whr) 3 Year Limited Hardware Warranty9 Lithium Ion battery
9-cell (97Wh) Extended battery slice

Power Options 65 Watt or 90W AC Adapter, 65W BFR/PVC Free AC Adapter2, 90W Auto/Air DC

adapter (optional)

Connectivity 10/100/1000 Gigabit Ethernet

Wireless LAN Options:

Intel® Centrino® Advanced-N 6205, Intel® Centrino® Ultimate-N 6300, Dell
Wireless™ 1504 (802.11g/n 1x1), Dell Wireless 1540 (802.11n 2x2)
Mobile Broadband10 & GPS Options:

Dell Wireless 5630 Multi-mode HSPA-EVDO Mini Card (Gobi™ 3000) with A-GPS2,
Dell Wireless 5560 Single-mode HSPA Mini Card with A-GPS

2

Bluetooth Option:

Dell Wireless 380 Bluetooth® 4.0

Ports, Slots & Chassis Network connector (RJ-45), USB 2.0 (1), USB3.0 (2) – 1 USB/eSATA combo,

Stereo headphone/Microphone combo jack, Memory card reader, 54 mm
ExpressCard, Docking Connector, VGA, HDMI, 1 Full and 2 Half Mini Card Slots,
Optional SmartCard Reader

11

Input Device Options Single pointing or backlit dual pointing keyboard (Note: Fingerprint Reader tied to

backlit keyboard only)
Multi-touch Touchpad

Dimensions & Weight

12

Width: 15.28”/388mm
Height: (front/back) 1.19”/30.2mm to 1.31”/33.2mm
Depth: 9.88”/251mm
Starting weight: 5.25lbs/2.38kg (with 4-cell battery and airbay)

Regulatory and Environmental Compliance Regulatory Model: P28G Regulatory Type: P28G001

ENERGY STAR 5.2 (Windows OS), EPEAT registered

Systems Management DASH, Intel® vPro™ Technology’s advanced management features (optional,

requires Intel WiFi® Link WLAN), TPM 1.2

3

11

Warranty & Support Services Limited Hardware Warranty9 Standard 3-year Next Business Day On Site Service

after Remote Diagnosis4. Optional 3 year Dell ProSupport oers premium support
from expert technicians and 24x7 global availability4.

Configuration Services

4

Factory Image load. BIOS Customization. Hardware Customization, Asset Tag­ging and Reporting.

Discover leading-edge laptops at Dell.com/Latitude

1. Dell Latitude laptops are brominated flame retardant free (BFR-free) and polyvinyl chloride free (PVC-free); meeting the definition of BFR-/PVC-free as set forth in the iNEMI Position
Statement on the ‘Definition of Low-Halogen Electronics (BFR-/CFR-/PVC-free)’. Plastic parts contain less than 1,000 ppm (0.1%) of bromine (if the Br source is from BFRs) and less
than 1,000 ppm (0.1%) of chlorine (if the Cl source is from CFRs or PVC or PVC copolymers). All printed circuit board (PCB) and substrate laminates contain bromine/chlorine total
less than 1,500 ppm (0.15%) with a maximum chlorine of 900 ppm (0.09%) and maximum bromine being 900 ppm (0.09%).

2. Oering available in select countries.

3. Not available in China or Russia.

4. Availability and terms of Dell Services vary by region. For more information, visit www.dell.com/servicedescriptions.

5. Only available in emerging markets.

6. A 64-bit operating system is required to support 4GB or more of system memory.

7. Significant system memory may be used to support graphics, depending on system memory size and other factors

8. GB means 1 billion bytes and TB equals 1 trillion bytes; actual capacity varies with preloaded material and operating environment and will be less.

9. Limited Hardware Warranty: For copy of Ltd Hardware Warranty, write Dell USA LP, Attn: Warranties, One Dell Way, Round Rock, TX 78682 or see www.dell.com/warranty.

10. Mobile Broadband: Subject to wireless provider’s broadband subscription and coverage area; additional charges apply.

11. Please refer to www.epeat.net for specific country registration rating and participation.

12. Based on preliminary Dell lab testing. Weights vary depending on configuration and manufacturing variability.

13. 1x8GB or 2x8GB memory options only avaialble via CFI service
