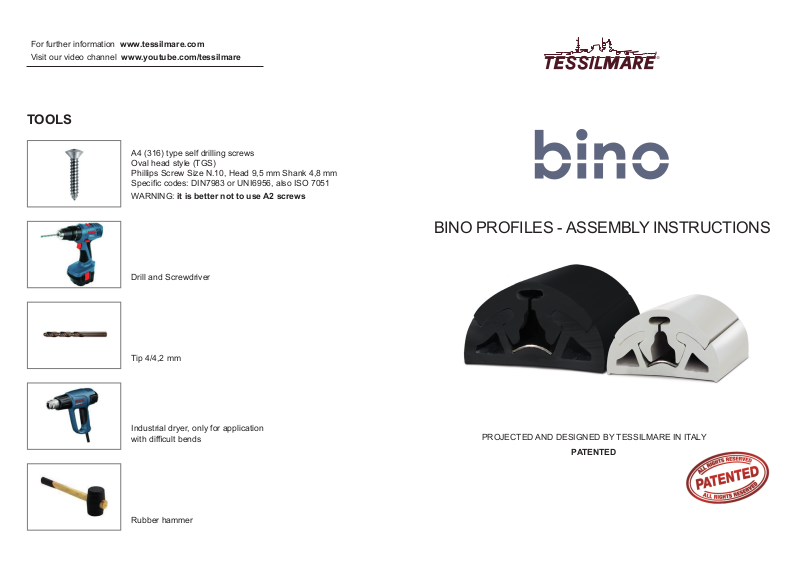

TOOLS
A4 (316) type self drilling screws
Oval head style (TGS)
Phillips Screw Size N.10, Head 9,5 mm Shank 4,8 mm
Specic codes: DIN7983 or UNI6956, also ISO 7051
WARNING: it is better not to use A2 screws
Drill and Screwdriver
BINO PROFILES - ASSEMBLY INSTRUCTIONS
Tip 4/4,2 mm
Industrial dryer, only for application
with difcult bends
Rubber hammer
PROJECTED AND DESIGNED BY TESSILMARE IN ITALY
PATENTED
Page 2

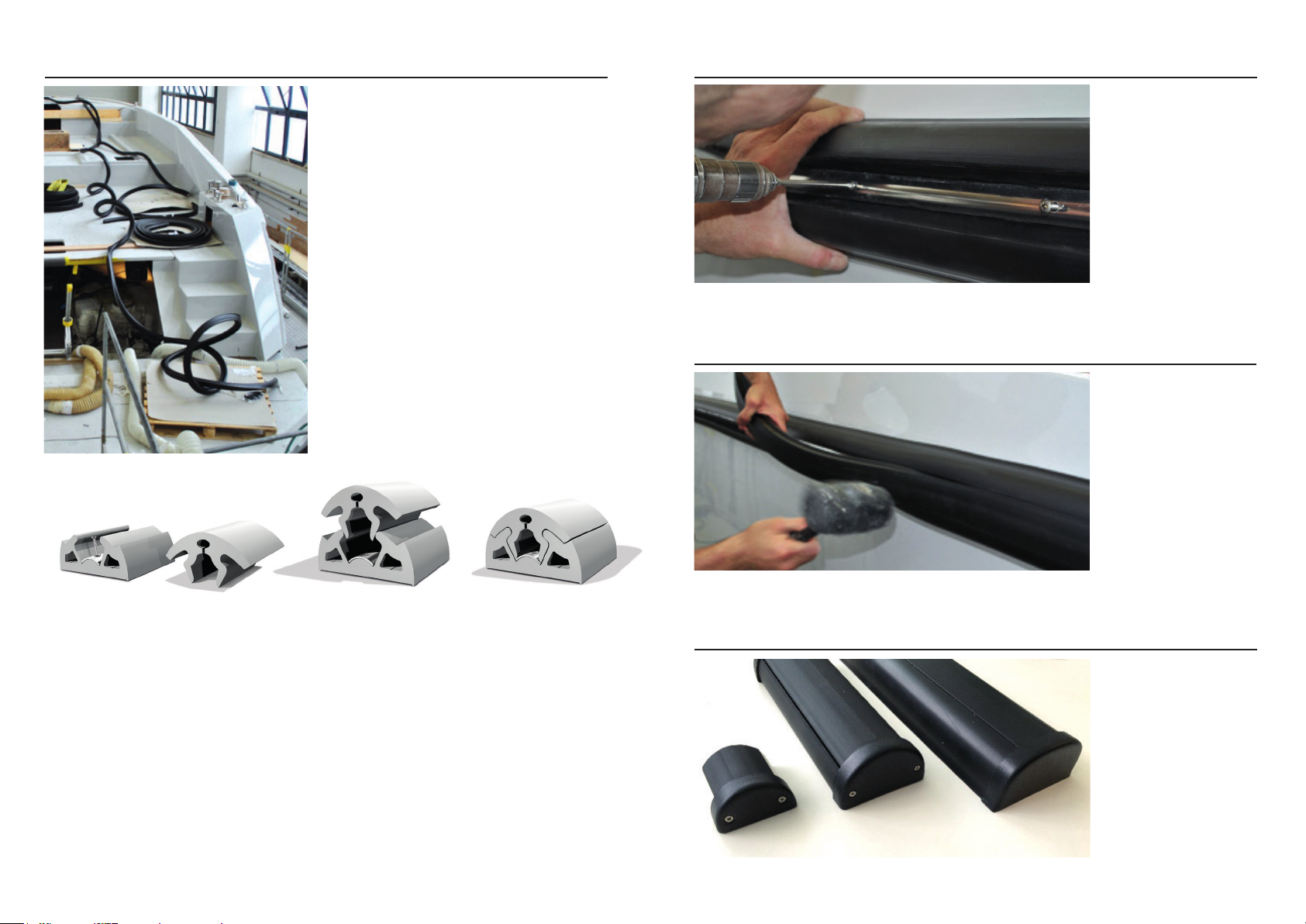

1. PREPARATION OF THE PROFILE
2. FIXING THE TRACK THROUGH THE STEEL BAR
Drill holes in the boat
using the same holes
of the bars as a guide.
3. APPLICATION OF THE TOP PROFILE
Apply the closing prole
by pressing with a
rubber hammer.
The fender proles Bino consist of 2 modules and a xing pre-drilled bar in stainless steel.
The most difcult part is the unwinding of the rolls, this operation can be done without heating,
but a pre-heating makes really easier the mounting phase.
Lay the prole on the ground around the boat or on the boat itself, more the prole will be lied
down correctly, the easier it is its installation.
1
The pre-heating allows an ideal mounting, you can use a tank of water and an industrial stove leaving
the prole to soak for 30/60 minutes at 40-60°, or an industrial oven at low temperatures, or if the
weather allows it some hours in sunlight.
1
4. FINISH WITH THE ENDING CAPS
