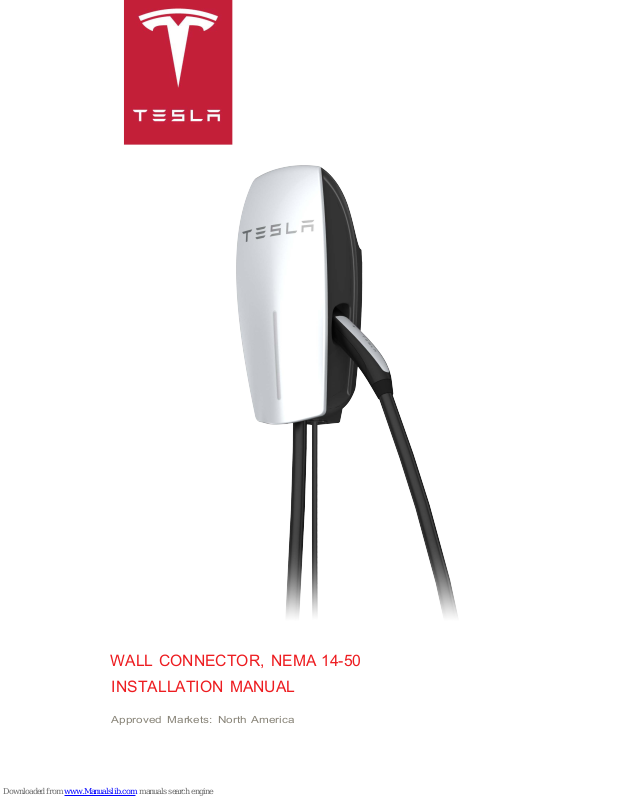

Page 1
WALL CONNECTOR, NEMA 14-50
INSTALLATION M ANUAL
Approved Markets: North America
Page 2
Page 3
About this Manual...................... 2
Communications Regulations.................................2
Errors or Inaccuracies................................................2
Copyrights and Trademarks....................................2
Safety Information.....................3
Important Safety Instructions................................ 3
Warnings.........................................................................3
Cautions..........................................................................3
Notes................................................................................4
Specifications............................. 5
Contents
Warranty Enforcement Laws and
Dispute Resolution.................................................... 17
Features.......................................6
Circuit Ratings..............................................................6
Self-Monitoring and Recovery................................6
Power Outages.............................................................6
Planning Your Installation.........7
Minimum Requirements............................................7
Choose the Best Location for the Wall
Connector and Outlet................................................7
Check the Box Contents........... 8
Step-by-Step Installation
Instructions................................. 9
Tools and Materials Required................................. 9
Overview of Installation Steps............................... 9
Installation....................................................................10
Troubleshooting........................ 11
Reset...............................................................................14
Questions?....................................................................15
Charging Equipment
Limited Warranty......................16
General Terms............................................................. 16
Limits of Liability........................................................17
Page 4
About this Manual
Communications Regulations
This device complies with Part 15 of the FCC
rules and Industry Canada license-exempt RSS
standard(s). Operation is subject to the
following two conditions: (1) This device may
not cause harmful interference and (2) this
device must accept any interference received,
including interference that may cause
undesired operation.
Important: Changes or modifications to
this product not authorized by Tesla
could void the FCC compliance.
Errors or Inaccuracies
To communicate any inaccuracies or
omissions, or to provide general feedback or
suggestions regarding the quality of this
manual, send an email to:
ownersmanualfeedback@tesla.com
Copyrights and Trademarks
All other trademarks contained in this
document are the property of their respective
owners and their use herein does not imply
sponsorship or endorsement of their products
or services. The unauthorized use of any
trademark displayed in this document or on
the vehicle is strictly prohibited.
All information in this document is subject to
copyright and other intellectual property
rights of Tesla, Inc. and its licensors. This
material may not be
copied, in whole or in part, without the prior
written permission of Tesla, Inc. and its
licensors. Additional information is available
upon request. The following are trademarks or
registered trademarks of Tesla, Inc. in the
United States and other countries:
modified, reproduced or
2
Page 5
Safety Information
Important Safety Instructions
This document contains important instructions
and warnings that must be followed when
installing and maintaining the Wall Connector.
Warnings
Warning: Read all the instructions before
using this product.
Warning: This device should be
supervised when used around children.
Warning: The Wall Connector must be
grounded via the provided plug.
Warning: Do not install or use the Wall
Connector near flammable, explosive,
harsh, or combustible materials,
chemicals, or vapors.
Warning: Unplug the power cord before
cleaning the Wall Connector.
Warning: Use the Wall Connector only
within the specified operating
parameters.
Warning: Never spray any liquid onto the
charge handle or wall plug. Never
submerge the charge handle or wall plug
in liquid. Store the charge handle in the
dock to prevent unnecessary exposure to
contamination or moisture.
Warning: Stop using and do not use the
Wall Connector if it is defective, appears
cracked, frayed, broken, or otherwise
damaged, or fails to operate.
Warning: Do not attempt to disassemble,
repair, tamper with, or modify the Wall
Connector. The Wall Connector is not user
serviceable. Contact Tesla for any repairs
or modification.
Warning: When transporting the Wall
Connector, handle with care. Do not
subject it to strong force or impact or
pull, twist, tangle, drag, or step on the
Wall Connector, to prevent damage to it
or any components.
Warning: Do not touch the Wall
Connector’s end terminals with fingers or
sharp metallic objects, such as wire, tools,
or needles.
Warning: Do not forcefully fold or apply
pressure to any part of the Wall
Connector or damage it with sharp
objects.
Warning: Do not insert foreign objects
into any part of the Wall Connector.
Warning: Use of the Wall Connector may
aect or impair the operation of any
medical or implantable electronic devices,
such as an implantable cardiac
pacemaker or an implantable cardioverter
defibrillator. Check with your electronic
device manufacturer concerning the
eects that charging may have on such
electronic devices before using the Wall
Connector.
Cautions
Caution: Do not use private power
generators as a power source for
charging.
Caution: Incorrect installation and testing
of the Wall Connector could potentially
damage either the vehicle’s Battery
and/or the Wall Connector itself. Any
resulting damage is excluded from the
New Vehicle Limited Warranty and the
Charging Equipment Limited Warranty.
Caution: Do not operate the Wall
Connector in temperatures outside its
operating range of -22°F to 122°F (-30°C
to +50°C).
Caution: Do not use an extension cord to
power the Wall Connector.
Safety Information 3
Page 6
Safety Information
Notes
Note: Ensure that the Wall Connector’s
charging cable is positioned so it will not be
stepped on, driven over, tripped on, or
subjected to damage or stress.
Note: Do not use cleaning solvents to clean
any of the Wall Connector’s components. The
outside of the Wall Connector, the charging
cable, and the connector end of the charging
cable should be periodically wiped with a
clean, dry cloth to remove accumulation of
dirt and dust.
Note: Be careful not to damage the circuit
boards or components during installation.
4
Page 7
Specifications
The maximum power rating for the Wall Connector is 10 kW or 40A at 250V AC single phase
power.
Description Specifications
Voltage and Wiring 208V or 240V AC single-phase: L1, L2, and earth
Current Maximum output: 40A
Frequency 50 to 60 Hz
Cable Length 8.5' (2.6 m) and 24' (7.4 m)
Wall Connector Dimensions Height: 15.0" (380 mm)
Width: 6.3" (160 mm)
Depth: 5.5" (140 mm)
Top Entry Bracket Dimensions Height: 10.8" (275 mm)
Width: 5.1 " (130 mm)
Depth: 2.0" (50 mm)
Weight (including bracket) 20 lb (9 kg)
Operating Temperature -22°F to 122°F (-30°C to 50°C)
Storage Temperature -40°F to 185°F (-40°C to 85°C)
Enclosure Rating Type 3R
Agency Approvals cULus listed for United States and Canada under file
number E354307, FCC Part 15.
Ventilation Not Required
Power Cord Length 35.5" (90 cm)
Power Plug NEMA Type 14-50
Specifications 5
Page 8
Features
Circuit Ratings
Use a single-phase circuit rated for 50A
single-phase to obtain the fastest charging.
Note: Tesla vehicles must be configured with
optional onboard charging equipment to
accept higher amperages. Contact Tesla if you
have questions about the onboard charging
capabilities of your vehicle.
Self-Monitoring and Recovery
The Wall Connector has a ground monitoring
circuit that continuously checks for the
presence of a safe ground connection and
automatically recovers from faults. Manual
testing and resetting is not required.
Temporary problems such as ground faults or
utility power surges are overcome
automatically. If a residual current fault occurs
that interrupts charging, the Wall Connector
automatically tries to clear the fault and reattempt charging.
If the problem is immediately sensed a second
time, the Wall Connector waits 15 minutes
before trying to charge. This process repeats 4
times and if all attempts are unsuccessful,
power is removed and no further attempts are
made. In this case, you will see a red error light
on the front panel (refer to Troubleshooting
on page 11). It is recommended that when
you see a red error light, you power
Wall Connector by switching
circuit breaker, and then power it back on
again.
The Wall Connector can alternatively be reset
when a red error light is encountered using
the RESET button (refer to Reset on page
14).
o the upstream
o the
Power Outages
If a power outage occurs, the Wall Connector
automatically resumes charging when power
is restored. If the charging cable is plugged
into the vehicle when power is restored, the
lights blink and the unit does not energize the
charging cable for approximately 15 seconds
to three minutes. This prevents the utility grid
from experiencing a large surge when power is
restored and allows vehicles to begin drawing
current at random times, rather than all at
once.
6
Page 9
Minimum Requirements
Installation of the Wall Connector requires that
you:
• Install an outlet per local electrical and
construction codes.
• Provide the outlet with adequate electrical
service.
• Control the outlet with an adequately
sized breaker or fuse.
• Calculate the distance to ensure minimal
voltage drop.
• Use only copper conductors.
Note: Consult with an electrician to ensure
that the installation meets local regulations.
Choose the Best Location for the
Wall Connector and Outlet
Planning Your Installation
Determine the parking location of the vehicle
to ensure that the charge cable reaches the
charge port. The Wall Connector should be
located:
• In an enclosed garage, typically on the
vehicle's charge port side.
• In a well-ventilated area. Avoid installation
in an enclosed box, or adjacent to hot
appliances.
• 4 ft (1.2 m) above the
• 8 in (190 mm) from any obstructions to
allow for cable looping.
Note: The Wall Connector is approved for
outdoor use, but it is not designed for
complete immersion in liquid. Protection from
rain is recommended but not required.
Note: Outdoor outlets and receptacles should
be mounted in rain proof NEMA 3R
enclosures.
floor.
Planning Your Installation 7
Page 10
1 2 3
4
5 6 7
Check the Box Contents
The shipping box contains parts for all installation methods, as well as this manual. If any parts are
damaged or missing, contact Tesla (refer to Questions? on page 15).
Note: Not shown is the supplied cardboard template.
Item Description (Quantity)
1 Wall Connector
2 Low profile bracket **
3 Low profile bracket screws (2) **
4 Top bracket-to-housing screw covers (2)
5 Bottom bracket-to-housing screw covers (2)
6 Bottom bracket-to-housing screws (2)
7 Top bracket-to-housing screws (2)
* Items used in only top entry installations.
** Items used in only bottom or rear entry installations.
8
Page 11
Step-by-Step Installation Instructions
Tools and Materials Required
Before installing the Wall Connector, gather the following tools and materials:
• Pencil or marker
• Hole punch (optional, to push through cardboard template)
• Phillips screwdriver
• T20 security pin Torx driver
• Level
• Machine drill
Overview of Installation Steps
Warning: After an outlet is properly installed, TURN OFF AND VERIFY POWER IS OFF
BEFORE CONTINUING.
Then follow these steps to install the Wall Connector:
• Install the Low Profile Bracket.
• Connect the wall connector to the bracket
• Plug in and power up
Step-by-Step Installation Instructions 9
Page 12
Step-by-Step Installation Instructions
Installation
1. Use the low profile bracket as a guide to
mark the location on the wall for the
mounting screws.
• Use a level to ensure that the marks
are perfectly vertical.
• Space the holes 4.5" (114 mm) apart.
3. Plug in the Wall Connector to the wall
power outlet.
• For U.S.A. installations, position the
bracket so that the Wall Connector is
located at a maximum of 60" (150 cm)
from
floor level. The minimum height
is 18" (45 cm) if mounting indoors,
and 48" (122 cm) if mounting
outdoors.
Note: Ensure that the minimum and
maximum height of the bracket is carefully
selected. It should be installed out of the
way of any reasonably foreseeable
impacts.
2. Attach the bracket using fasteners that
are appropriate for the type of wall
material, drilling pilot holes if necessary.
Use the supplied screws only if mounting
the bracket directly to a wooden stud. If
mounting the bracket directly to a
wooden stud. If mounting to another type
of wall (hollow, masonry, etc.), use
fasteners that are long enough to securely
anchor the Wall Connector and can hold
at least 80 lb (36 kg).
10
Page 13
Troubleshooting
Green
Lights
Top lightonO O Not
Streaming
lights
Streaming
lights
Yellow
Light
O O Not
1 flash O Not
Red Light Auto-Retry What it Means What to Do
applicable
applicable
applicable
Power on. The Wall
Connector is
powered and in
standby but not
charging the
vehicle.
The Wall Connector
is charging the
vehicle.
Charging current is
reduced due to high
temperature
detected in the
Vehicle Connector.
Not applicable.
Not applicable.
Make sure the
connector is fully
inserted into the
charge inlet in the
vehicle's charging
port, is not covered by
anything, and there is
no heat source is
nearby. If the problem
persists in normal
ambient temperatures
(under 100°F or
38°C), contact Tesla.
Streaming
lights
Streaming
lights
2 flashes O Not
applicable
3 flashes O Not
applicable
Charging current is
reduced due to high
temperature
detected in the wall
plug or on the input
terminals to the
Wall Connector.
Charging current is
reduced due to high
temperature
detected inside the
Wall Connector.
If the Wall Connector
is hard-wired, make
sure it is not covered
by anything, and there
is no heat source
nearby. If the problem
persists in normal
ambient temperatures
(under 100°F or
38°C), contact Tesla.
Make sure the Wall
Connector is not
covered by anything
and there is no heat
source nearby. If the
problem persists in
normal ambient
temperatures (under
100°F or 38°C),
contact Tesla.
Troubleshooting 11
Page 14
Troubleshooting
Green
Lights
O O 1 flash After 15
O O 2 flashes After 1
Yellow
Light
Red Light Auto-Retry What it Means What to Do
minutes and
up to 4
times
minute and
up to 4
times
Ground
fault. Current is
leaking through an
unsafe path.
Possible Line to
ground or Neutral
to ground fault.
No ground
connection
detected in the Wall
Connector.
Try again by
disconnecting the
Wall Connector from
the vehicle and
reconnecting. If the
problem persists, turn
OFF the circuit
breaker servicing the
Wall Connector, wait
10 seconds, turn the
circuit breaker ON
again, then try
reconnecting the Wall
Connector to the
vehicle. If the problem
persists, contact Tesla.
Make sure the Wall
Connector is properly
grounded. If uncertain,
consult your
electrician to ensure
proper grounding at
your circuit breaker or
power distribution
box and that
appropriate
connections are made
to the Wall Connector.
O O 3 flashes No Input miswired:
possibly Line and
Neutral are
swapped.
O O 4 flashes After 1
minute and
up to 4
times
Over or under
voltage protection.
The power outlet has
been incorrectly
installed. Consult your
electrician.
Consult your
electrician to ensure
appropriate voltage
on the circuit breaker
that services the Wall
Connector.
12
Page 15
Troubleshooting
Green
Lights
O O 5 flashes After 1
O O 6 flashes After 1
Yellow
Light
Red Light Auto-Retry What it Means What to Do
minute retry
(no limit on
retries)
minute retry
(no limit on
retries)
Over current
protection.
A communication
error occurred
between the Wall
Connector and the
vehicle.
Reduce the vehicle's
charge current
setting. If the problem
persists and the
attached vehicle is
manufactured by
Tesla, contact Tesla. If
the problem persists
and If the attached
vehicle is not
manufactured by
Tesla, contact the
original manufacturer.
If possible, plug the
vehicle into another
Wall Connector or a
Mobile Connector to
determine if the
vehicle is able to
communicate with
other charging
equipment. Then
contact Tesla Service.
Top lightonO 1 flash No Over temperature
protection (latch-
o)
Make sure the Wall
Connector, vehicle
connectors, and wall
plug (if used) are not
covered by anything
and there is no heat
source nearby. If the
problem persists in
normal ambient
temperatures (under
100°F or 38°C),
contact Tesla.
Troubleshooting 13
Page 16
Troubleshooting
Green
Lights
O O Solid red No Wall Connector
Yellow
Light
Red Light Auto-Retry What it Means What to Do
Contact Tesla.
hardware failure.
Possible failures
include the
following:
• Contactor failed
• Self test failed
in CCID
circuitry
• Other possible
hardware
failures might
be MCU,
3V3output, or
the thermal
sensor.
Reset
If a fault causes a RED error light to illuminate or flash and the fault condition is corrected, you use
RESET the Wall Connector to resume normal operation. There are two ways to REST the Wall
Connector:
• Press the RESET button for two to three seconds until the top lights changes from RED to
GREEN. This clears the fault message but does not reboot the Wall Connector.
• In a rare situation, you might need to force the Wall Connector to reboot without recycling the
input power. Hold the RESET button for
to GREEN, release the RESET button. The top light should continue to illuminate GREEN. If the
light returns to
flashing RED, the fault state has not been corrected.
five seconds. When the top light changes from RED
14
Page 17
Questions?
• United States and Canada:
• charginginstallation@tesla.com
• +1-650-681-6133
• Mexico:
• charging_mx@tesla.com
• +1-877-798-3752
Troubleshooting
Troubleshooting 15
Page 18
Charging Equipment Limited Warranty
General Terms
Subject to the exclusions and limitations
described below, the Charging Equipment
Limited Warranty covers the refund, repair or
replacement necessary to remedy any
manufacturing defects in Tesla manufactured
and supplied Wall Connector that occur under
normal use for a period of 48 months, and
Mobile Connector or charging adapter that
occur under normal use for a period of 12
months from the date of invoice to the
customer. Any Tesla connector or adapter
included in the initial purchase and delivery of
a Tesla vehicle by Tesla is covered under the
Basic Vehicle Limited Warranty section of the
New Vehicle Limited Warranty for 4 years or ,
whichever comes
and conditions of the New Vehicle Limited
Warranty.
This Charging Equipment Limited Warranty
does not cover any damage or malfunction
directly or indirectly caused by, due to, or
resulting from, normal wear or deterioration,
abuse, misuse, negligence, accident, lack of or
improper use, maintenance, storage or
transport, including, but not limited to, any of
the following:
first, subject to the terms
• Failure to follow the instructions,
maintenance and warnings published in
the documentation supplied with your
Tesla connector or adapter;
• External factors, including but not limited
to, objects striking the Tesla connector or
adapter, faulty or damaged electrical
wiring, junction boxes, circuit breakers,
receptacles or power outlets, the
environment or an act of God, including,
but not limited to,
lightning and other environmental
conditions;
• General appearance or damage to paint,
including chips, scratches, dents and
cracks;
• Failure to contact Tesla upon discovery of
a defect covered by this Charging
Equipment Limited Warranty;
• Any repair, alteration or
the Tesla connector or adapter or any
part, or the installation or use of any parts
or accessories, made by a person or
facility not authorized or
so;
• Lack of or improper repair or
maintenance, including use of nongenuine Tesla accessories or parts; and
• Use for commercial purposes.
Although Tesla does not require you to
perform all maintenance, service or repairs at
a Tesla Service Center or Tesla authorized
repair facility, this Charging Equipment
Limited Warranty may be voided, or coverage
may be excluded, due to lack of or improper
maintenance, service or repairs. Tesla Service
Centers and Tesla authorized repair facilities
have special training, expertise, tools and
supplies with respect to Tesla connectors and
adapters and, in certain cases, may employ
the only persons, or be the only facilities
authorized or
connectors and adapters. Tesla strongly
recommends that you have all maintenance,
service and repairs done at a Tesla Service
Center or Tesla authorized repair facility in
order to avoid voiding, or having coverage
excluded under, this Charging Equipment
Limited Warranty.
certified to work on Tesla
fire, earthquake, water,
modification to
certified to do
16
Page 19
Charging Equipment Limited Warranty
Limits of Liability
This Charging Equipment Limited Warranty is
the only express warranty made in connection
with your Tesla connector or adapter. Implied
and express warranties and conditions arising
under applicable local laws, federal statute or
otherwise, in law or in equity, if any, including,
but not limited to, implied warranties and
conditions of merchantability or merchantable
quality,
durability, or those arising by a course of
dealing or usage of trade, are disclaimed to
the fullest extent allowable by your local law,
or limited in duration to the term of this
Charging Equipment Limited Warranty. To the
fullest extent allowable by your local law, the
performance of necessary repairs and/or
replacement of new, reconditioned, or
remanufactured parts by Tesla for the covered
defects is the exclusive remedy under this
Charging Equipment Limited Warranty or any
implied warranties. To the maximum extent
permissible under your local law, liability is
limited to the reasonable price for repair or
replacement of the applicable Tesla connector
or adapter, not to exceed the manufacturer’s
suggested retail price. Replacement may be
made with parts of like kind and quality,
including non-original manufacturer’s parts, or
reconditioned or remanufactured parts, as
necessary.
Tesla shall not be liable for any defects under
this Charging Equipment Limited Warranty
that exceed the fair market value of the
applicable Tesla connector or adapter at the
time immediately preceding the discovery of
the defect. In addition, the sum of all
payable under this Charging Equipment
Limited Warranty shall not exceed the price
you paid for the applicable Tesla connector or
adapter.
Tesla does not authorize any person or entity
to create for it any other obligations or liability
in connection with this Charging Equipment
Limited Warranty. The decision of whether to
repair or replace a part or to use a new,
reconditioned or remanufactured part will be
made by Tesla, in its sole discretion.
fitness for a particular purpose,
benefits
To the maximum extent permissible under
local law, Tesla hereby disclaims any and all
indirect, incidental, special and consequential
damages arising out of, or relating to, the
Tesla connector or adapter, including, but not
limited to, transportation to and from a Tesla
Authorized Service Center, loss of the Tesla
connector or adapter, loss of vehicle value,
loss of time, loss of income, loss of use, loss of
personal or commercial property,
inconvenience or aggravation, emotional
distress or harm, commercial loss (including
but not limited to lost
towing charges, bus fares, vehicle rental,
service call charges, gasoline expenses,
lodging expenses, damage to tow vehicle, and
incidental charges such as telephone calls,
facsimile transmissions, and mailing expenses.
The above limitations and exclusions shall
apply whether your claim is in contract, tort
(including negligence and gross negligence),
breach of warranty or condition,
misrepresentation (whether negligent or
otherwise) or otherwise at law or in equity,
even if Tesla is advised of the possibility of
such damages or such damages are
reasonably foreseeable.
Nothing in this Charging Equipment Limited
Warranty shall exclude, or in any way limit,
Tesla’s liability, for death or personal injury
solely and directly caused by Tesla’s
negligence or that of its employees, agents or
sub-contractors (as applicable), fraud or
fraudulent misrepresentation, or any other
liability to the extent the same is proven in a
court of competent jurisdiction in a
nonappealable judgment and may not be
excluded or limited as a matter of local law.
profits or earnings),
final
Warranty Enforcement Laws and
Dispute Resolution
To the fullest extent allowed by local law, Tesla
requires that you
notification of any manufacturing defect
within a reasonable time, and within the
applicable coverage period
Charging Equipment Limited Warranty, and
allow Tesla an opportunity to make any
needed repairs before submitting a dispute to
our dispute settlement program (described
below). Please send written
dispute resolution to the following address:
first provide written
specified in this
notification on
Charging Equipment Limited Warranty 17
Page 20
Charging Equipment Limited Warranty
United States:
Tesla Motors, Inc.
3500 Deer Creek Road
Palo Alto, California 94304
Telephone: 1-877-798-3752
Canada:
Tesla Motors Canada ULC
1325 Lawrence Avenue East
Toronto, ON M3A 1C6
Telephone: 1-877-798-3752
Mexico:
Tesla Motors Mexico
Av. Paseo De La Reforma 404 Piso 13
Col. Juarez, Cuauhtemoc Distrito Federal
06600
Telephone: 01-800-228-8145
Please include the following information:
• Tesla connector or adapter invoice date;
• Your name and contact information;
• Name and location of the Tesla Store
and/or Tesla Service Center nearest you;
• Description of the defect; and
• History of the attempts you have made
with Tesla to resolve the concern, or of
any repairs or services that were not
performed by Tesla.
In the event any disputes,
controversies arise between you and Tesla
related to this Charging Equipment Limited
Warranty, Tesla will explore all possibilities for
an amicable settlement. In case an amicable
settlement is not reached, Tesla
dispute settlement program through:
NATIONAL CENTER FOR DISPUTE
SETTLEMENT (“NCDS”)
P.O. Box 526
Mt. Clemens, MI 48046
1-866-629-3204
Tesla requires that you submit your dispute to
our dispute settlement program and wait for a
decision to be issued prior to pursuing any
remedy under federal or state laws (including
15 U.S.C. Section 2310 or California Civil Code
Section 1793.22(b)), although you may be
entitled to pursue a remedy without
submitting under certain state laws or if you
pursue any rights or remedies not created by
these laws. This dispute settlement program
administered by NCDS is free of charge to you
and is conducted by local NCDS professionals
who are trained and experienced in mediation
and arbitration.
dierences or
oers a
NCDS resolves disputes involving this
Charging Equipment Limited Warranty which
arise during the applicable warranty period
specified in this Charging Equipment Limited
Warranty. You must file a request for
arbitration with NCDS within 60 days (or 6
months in certain jurisdictions) of the
expiration of the applicable warranty period,
provided you sent written notice to Tesla of
the alleged defect was brought to the
attention of Tesla during the applicable
warranty period.
To initiate arbitration, you must contact NCDS
at 1-866-629-3204 or P.O. Box 526, Mt.
Clemens, MI 48046, and complete an NCDS
customer claim form and mail it to NCDS.
Please also provide a copy of your written
notification sent to Tesla and/or all
information required in such notification
specified
all receipts if requesting reimbursement. Upon
receipt of your request, NCDS will contact you
regarding the status of your case and provide
you with additional details about the program.
When NCDS receives your request, it will be
forwarded to Tesla for response. After
analyzing all information pertaining to your
case, NCDS will schedule a technical
evaluation if applicable. If you request it, an
oral hearing will be held prior to a decision
being rendered. At this hearing, all evidence is
admissible. After considering all testimony and
documents, the arbitrator will review the
applicable legal standards and render a
decision. A settlement satisfactory to all
parties may be negotiated at any time,
including prior to or after the arbitrator’s
decision.
NCDS’s decision is binding on Tesla but not on
you. If you accept NCDS’s decision, Tesla will
comply with the decision in a reasonable time
not to exceed 30 days after Tesla receives
notice of your acceptance. Remedies include
but are not limited to repairs; reimbursement
for repairs and incidental expenses, such as
transporting costs; and repurchase or
replacement of the applicable Tesla connector
or adapter. NCDS decisions do not include
attorney fees or punitive, multiple, or
consequential damages, except incidental
damages as required by applicable law. NCDS
findings and decisions are admissible as
evidence in any legal proceedings concerning
the applicable Tesla connector or adapter.
above, your desired resolution, and
18
Page 21
Charging Equipment Limited Warranty
The description provided above is only a brief
summary of the dispute settlement program
administered by NCDS. The dispute settlement
program may be changed at any time without
prior notice. Contact NCDS at the above listed
address or phone number for the most current
information concerning the dispute settlement
program.
Charging Equipment Limited Warranty 19
Page 22
Index
B
bottom or rear entry
installing the low profile bracket for 10
C
cardboard template, using the 10
cautions 3
check the box contents 8
circuit ratings, optional 6
communications regulations 2
copyrights 2
D
dimensions 5
documentation errors, sending feedback 2
F
features
circuit ratings, optional 6
recovery from power outages 6
self-monitoring and recovery 6
N
notes 4
P
planning your installation
location of the wall connectors 7
minimum requirements 7
power outages, recovery from 6
power ratings 5
R
reset button 6, 14
S
safety instructions 3, 4
self-monitoring and recovery 6
specifications
dimensions 5
power ratings 5
temperature limits 5
I
installation
for rear or bottom entry wiring 10
information, about 2
planning your 7
tools and materials required 9
installation overview 9
L
lights, diagnostic 6
lights, LED 11
low
profile bracket
installing the 10
M
minimum requirements 7
T
temperature limits 5
Tesla, contacting 15
trademarks 2
troubleshooting 11, 14, 15
W
wall connectors
checking the box contents 8
location of 7
reset 14
warnings 3
20
Page 23
Page 24
P/N: 1107723-00-A
MANUAL, WALLCONNECTOR,14-50
(P) PN:1107723-00-A
(T) TLN:TT1450
Loading...
