Tesla GEN 2 MOBILE CONNECTOR User guide
GEN 2 MOBILE CONNECTOR
OWNER'S MANUAL
EUROPE
Safety Information..........................2
Save These Important Safety Instructions........ 2
Warnings.........................................................................2
Cautions..........................................................................3
General Information.......................4
Mobile Connector Component Overview..........4
Specifications............................................................... 4
Specifications Reference..........................................5
Charging Time..............................................................5
Charging Rate Reference......................................... 5
Adapters.............................................7
Removing the Adapter..............................................7
Attaching the Adapter..............................................8
How to Charge.................................9
Plugging In.....................................................................9
Unplugging.................................................................. 10
For More Information...............................................10
Contents
Troubleshooting..............................11
Status Lights.................................................................11
Questions?....................................................................13
Safety Information
Save These Important Safety Instructions
This document contains important instructions and warnings that must be followed when using
your Mobile Connector.
Warnings
Warning: Read this entire document before using the Mobile Connector. Failure to do so or to
follow any of the instructions or warnings in this document can result in fire, electrical shock,
serious injury or death.
Warning: Use the Mobile Connector only within the specified operating parameters.
Warning: The Mobile Connector is designed only for charging a Tesla vehicle (excluding Tesla
Roadster). Do not use it for any other purpose or with any other vehicle or object. The Mobile
Connector is intended only for vehicles that do not require ventilation during charging.
Warning: Do not use the Mobile Connector’s adapters in any outlet for which they are not
designed.
Warning: Do not use (or discontinue using) the Mobile Connector if it is defective, appears
cracked, frayed, broken or otherwise damaged, or fails to operate.
Warning: Do not attempt to open, disassemble, repair, tamper with, or modify the Mobile
Connector. The Mobile Connector is not user-serviceable. Contact Tesla for any repairs.
Warning: Do not use an extension cord, a multi-outlet adapter, a multi-plug, a conversion
plug, or a power strip to plug in the Mobile Connector.
Warning: Do not disconnect the Mobile Connector from the wall outlet when the vehicle is
charging.

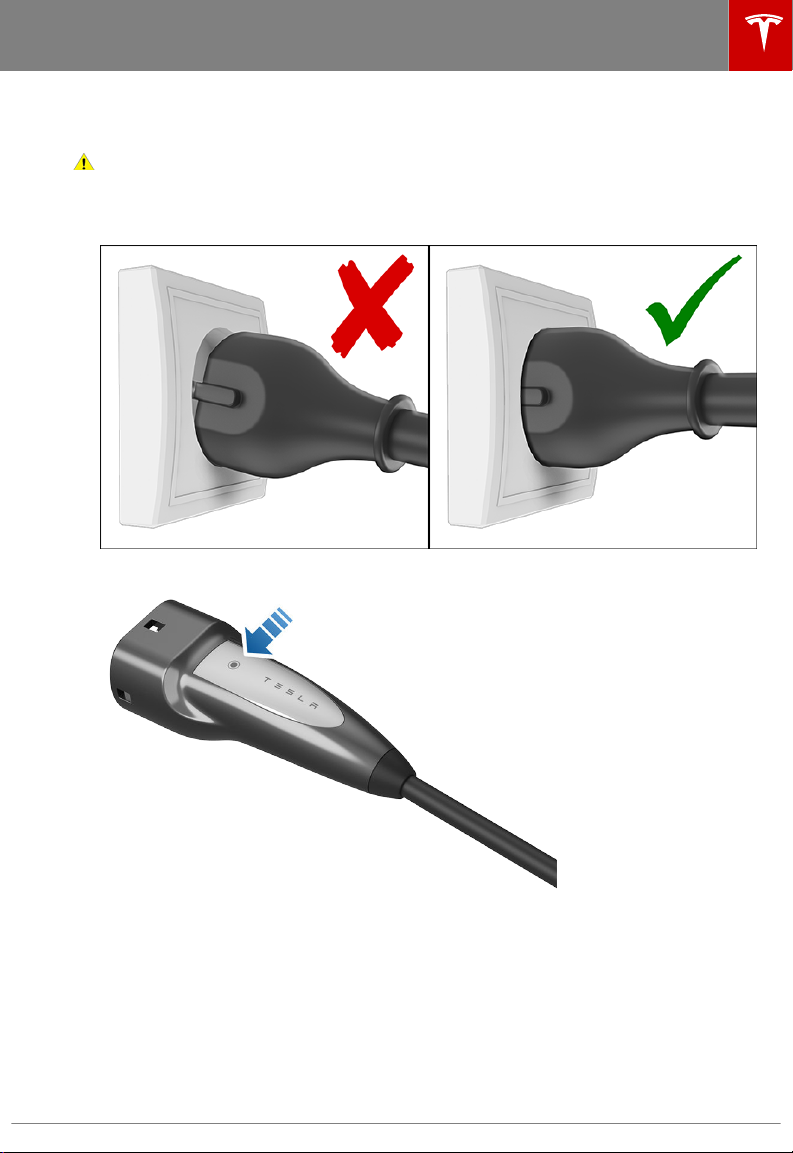

Warning: Do not plug the Mobile Connector into a damaged, loose or worn power outlet.
Ensure that the prongs on the Mobile Connector fit snugly into the wall outlet.
Warning: Do not connect the Mobile Connector into a power outlet that is not properly
grounded.
Warning: Do not expose the Mobile Connector to flammable or harsh chemicals or vapors. Do
not use or store the Mobile Connector in a recessed area or below floor level. When using the
Mobile Connector in an inside location such as a garage, position the Mobile Connector’s
main controller at least 46 cm above the floor.
Warning: Do not use the Mobile Connector when either you, the vehicle or the Mobile
Connector is exposed to severe rain, snow, electrical storm or other inclement weather.
Warning: When transporting the Mobile Connector, handle with care to prevent damage to
any of its components. Do not subject the Mobile Connector to strong force or impact. Do
not pull, twist, tangle, drag or step on the Mobile Connector or any of its components.
Warning: Protect the Mobile Connector from moisture, water and foreign objects at all times.
If any exist or appear to have corroded or damaged the Mobile Connector, do not use the
Mobile Connector.
Warning: If rain falls during charging, do not allow rain water to run along the length of
charge cable, causing the electrical outlet or charging port to become wet.
Warning: Do not plug the Mobile Connector into an electrical outlet that is submerged in
water or covered in snow. If, in this situation, the Mobile Connector is already plugged in and
needs to be unplugged, turn o the breaker before unplugging the Mobile Connector.
2
Safety Information
Warning: Do not touch the Mobile Connector’s end terminals with sharp metallic objects, such
as wire, tools or needles. Do not forcefully fold any part of the Mobile Connector or damage it
with sharp objects. Do not insert foreign objects into any part of the Mobile Connector.
Warning: Do not charge a vehicle that is covered with a non-Tesla approved car cover.
Warning: Ensure that the Mobile Connector’s charging cable does not obstruct pedestrians or
other vehicles or objects.
Warning: Use of the Mobile Connector may aect or impair the operation of medical or
implantable electronic devices, such as an implantable cardiac pacemaker or an implantable
cardioverter defibrillator. Before using the Mobile Connector, check with the electronic device
manufacturer concerning the eects that charging may have on any such electronic device.
Warning: Do not use cleaning solvents to clean the Mobile Connector.
Cautions
Caution: Do not use private power generators as a power source for charging.
Caution: Do not operate the Mobile Connector in temperatures outside its operating range of
-30°C to +50°C.
Caution: Store the Mobile Connector in a clean dry place in temperatures between -40°C and
+85°C.
Safety Information 3
