Household Use Only
T E110
Eye Care
Front Back

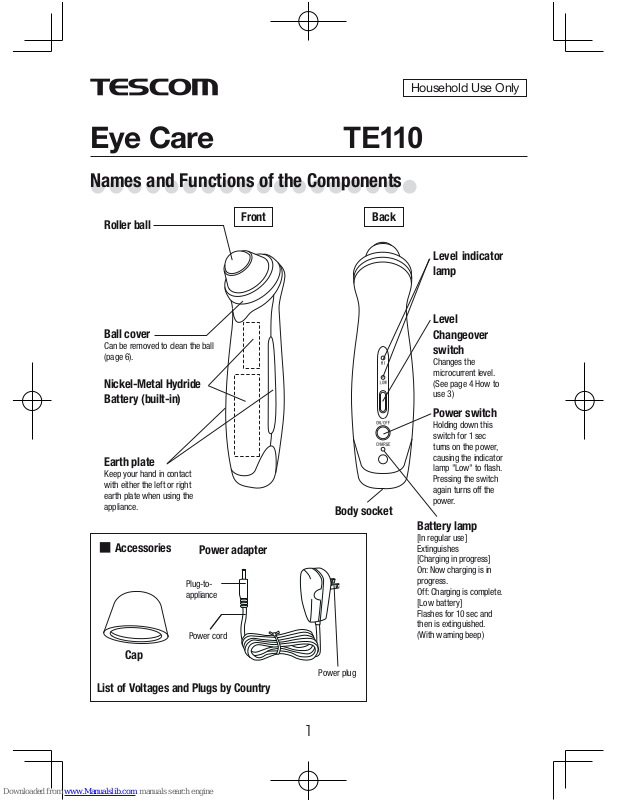

Names and Functions of the Components
Roller ball
Ball cover
Can be removed to clean the ball
(page 6).
Earth plate
Keep your hand in contact
with either the left or right
earth plate when using the
appliance.
Nickel-Metal Hydride
Battery (built-in)
Level indicator
lamp
Level
Changeover
switch
Changes the
microcurrent level.
(See page 4 How to
use 3)
Power switch
Holding down this
switch for 1 sec
turns on the power,
causing the indicator
lamp "Low" to flash.
Pressing the switch
again turns off the
p ow er.
Body socket
Battery lamp
[In regular use]
Extinguishes
[Charging in progress]
On: Now charging is in
progress.
Off: Charging is complete.
[Low battery]
Flashes for 10 sec and
then is extinguished.
(With warning beep)
Cap
■ Accessories
List of Voltages and Plugs by Country
Power adapter
Power cord
Plug-toappliance
Power plug
①
②
①
②
Charging the Battery
1
Make sure that the Power switch is off. Then, connect the
power adapter to the body and receptacle.
●
The battery lamp lights up.
●
Do not push the power adapter’s plug-to-appliance into the body’s
socket with excessive force, or tilt it in a forced manner. If you do
so, the socket may break.
2
After the battery lamp is extinguished, unplug the power
adapter from the receptacle and body.
●
The standard time for charging is approx. 5 hours.
●
The body and power adapter may become slightly hot; this does not
indicate a failure.
●
A battery fully charged once (approx. 5 hours) enables the appliance
to operate about four times (approx. 7 min for each session). (The
number of times may decrease, depending on the conditions for use
of the appliance.)
Specifications
Part name Eye Care Rated time 7 min (automatic turn-off)
Part number TE 110 Charging time Approx. 5 h
Power adapter AC100-240 V 50/60 Hz
Weight 120 g (body)
Body Nickel-Metal Hydride Battery (DC3.6V, 800mAh) 1set
Power consumption 10 W when AC is used
Accessories
Cap, Power adapter, List of
Voltages and Plugs by Country
Dimensions Height 135 × Width 34 × Depth 33 mm (body)
Power supply
3
Precautions for Use
WARNING
Avoid using this appliance together with the medical electrical equipment below.
Failure to follow these instructions may cause the appliance to malfunction.
●
Implanted medical electrical equipment (e.g. cardiac pacemaker)
●
Wearable medical electrical equipment (e.g. electrocardiograph)
CAUTION
If you apply to one of the following categories, be
sure to consult with a doctor.
Failure to follow these instructions may result in accident or injury.
● A person with cardiac damage
● A person with an acute (painful) illness
● A person with a febrile disease
● A person with abnormal blood pressure
● A person with a communicable disease
● A person with a tuberculous disease
● A person with a malignancy
● A person with facial pain
● A person who is pregnant
● During menstruation
● A person with atopic dermatitis
● A person with allergies
● A person with particularly sensitive skin
● A hemophiliac
● Undergoing dental treatment
● A person with a telangiectatic disease that is due to long-
term use of a steroid hormonal agent or due to liver
function disorder
● A person who has consumed alcohol, taken a drug or is
very tired
This appliance must not be used on any of the
following regions.
Failure to follow these instructions may result in accident or
injury.
● A region that has beeen subjected to cosmetic surgery
● Eye balls and upper eyelids
● W o u n d s
● Melanoderma of face
● Mucosal regions (e.g. inside of mouth)
● Inflamed regions due to comedo or pimples
● Regions that have impairment of pain sensation or
disturbance of perception
● Skin regions under which there is a metallic, plastic,
silicone, or other implant
● Regions that have inflamed pigmented spots due to itch,
flush, physical stimulus, or other
● Inflamed regions due to cosmetics or similar products
If you experience any problems with your skin or body, stop use of the appliance immediately and consult
with a medical specialist.
Failure to follow these instructions may result in accident or adverse effects.
* Skin care with this appliance should be undertaken for no more than twice a day, and the time of use
should be within 7 min for one session.
Do not use the appliance continuously for longer than 7 min to protect your skin from damage.
●
Cleanse your face to wash off any makeup.
●
Wash the makeup off your face using a cleansing agent.
This appliance should be used on bare skin from which makeup has been removed.
If your skin is dry, apply a beauty lotion to your skin before using the appliance.
After applying the beauty lotion to your skin, use the appliance while your skin is not damp.
* Do not use any milky or gel-like lotion for this purpose.
1
Remove the cap.
2
Press and hold down the Power switch.
A short beep [pit] sounds, and the indicator lamp "LOW" flashes.
The roller ball warms up to a temperature suitable for use in about 2 min after pressing the Power switch.
The level indicator lamp turns from flashing to the continuously on mode.
●
See "Using the Appliance with alternating current system" (page 6).
3
Set the microcurrent level using the Level
Changeover switch.
Preset to "LOW" as the mode that immediately
follows the startup.
Only the indicator lamp associated with the selected level flashes or
lights up.
●
At the beginning of use, you are recommended to set the level to
"LOW" to use the appliance for a short period of time.
●
Stop using the appliance if you start to experience any discomfort.
4
Grasp the body so that your hand touches the
earth plate.
Be sure to keep your hand in contact with the left or right earth plate
when grasping the body. You cannot obtain the desired effect if your
hand is not kept in contact with either earth plate of the body.
The appliance should be used within 3 min for each session, and up to twice a day.
When 7 min have passed after pressing the Power switch, the power is turned off automatically.
Level Changeover
switch
Earth plate
The appliance must not be used for any region other than the area
under each eye (from the inner corner to outer corner of the eye).
(Failure to follow these instructions may result in accident or injury.)
Remove your contact lenses before using the appliance.
(Failure to follow these instructions may result in eye problems.)
WARNING
How to Use
5
How to Use
5
Once the level indicator lamp lights up, you can
start using the appliance. Move the roller ball
slowly from the inner corner to the outer corner of
your eye.
●
The roller ball temperature may be too high. Before placing the ball
cover on your skin, be sure to check its temperature.
●
This appliance should be used on bare skin without makeup.
●
Continue to move the roller ball slowly instead of stopping it at a
single point.
●
Do not use the head on any regions other than those specified.
●
If you feel that the ball cover temperature is too hot, stop use.
●
The appliance should be used up to twice a day (7 min for each
session) without continuous use. Failure to follow these instructions
may result in, skin overload, thereby causing skin problems.
●
Use the appliance at an ambient temperature of 10 to 40°C.
(Recommended ambient temperature: 15 to 35°C)
6
After using the appliance, press the Power switch
to turn off the power.
The level indicator lamp is extinguished.
●
The power is turned off automatically after a lapse of 7 min. At
this time, consecutive short beeps [pit pit pit …] are generated to
indicate the shutdown.
7
After cleaning the appliance, reinstall the cap on the roller ball. Then, store the
product in a low-humidity, low-dust location.
Be sure to check the
temperature with your
fingertip.
(Approx. 40°C)
[Timing of charge]
●
The low battery status is indicated by the battery lamp that flashes
(when the power is on) while consecutive short beeps [pit pit pit …] are
generated for 10 sec, and the power is turned off automatically.
-> Immediately charge the battery.
For continuous use, use it with the alternatiing current system.
●
This product can be used with AC 100 to 240V power supply.
“Pit pit ……”
Do not use the appliance in a location where it may be subjected to
splashing with water (e.g. bathroom) or in a humid location.
(Failure to follow these instructions may result in shock or short circuit.)
WARNING
①
②
①
②
[Cleaning]
●
Make sure that the power is off and the power adapter has been removed. Then start the cleaning.
54
3
21
●
Periphery of roller ball
Remove the ball cover by turning it counterclockwise.
The ball cover with roller ball is removed.
Place the ball cover (with roller ball) on a towel
laid on the desk. Then, push the ball from above
to remove it from the ball cover.
Soak a soft cloth in water, and wring well. Then, use it to wipe dirt and grime off the ball cover.
While suppor ting the ball cover with one
hand, push the ball from the back of the
ball cover to remove and reinstall it.
* Pay attention to the force applied to
prevent excessive pressure on the ball.
Turn the ball cover clockwise to
reinstall it to the body.
Roller ball Ball cover On the body
The ball cover with
roller ball is removed.
●
B o d y
Soak a soft cloth in water, and wring well. Then, use it to wipe
dirt and grime off the appliance.
[Using the Appliance with Alternating Current System]
How to Use
1
connect the power adapter to the body and
receptacle.
●
This product can be used with AC 100 to 240V power supply.
2
Press and hold down the Power switch to turn on
the power.
●
Follow the instructions on "How to Use" (pages 4 and 5) to use the
appliance.
3
Be sure to unplug the power adapter from the body
and receptacle after completion of use
