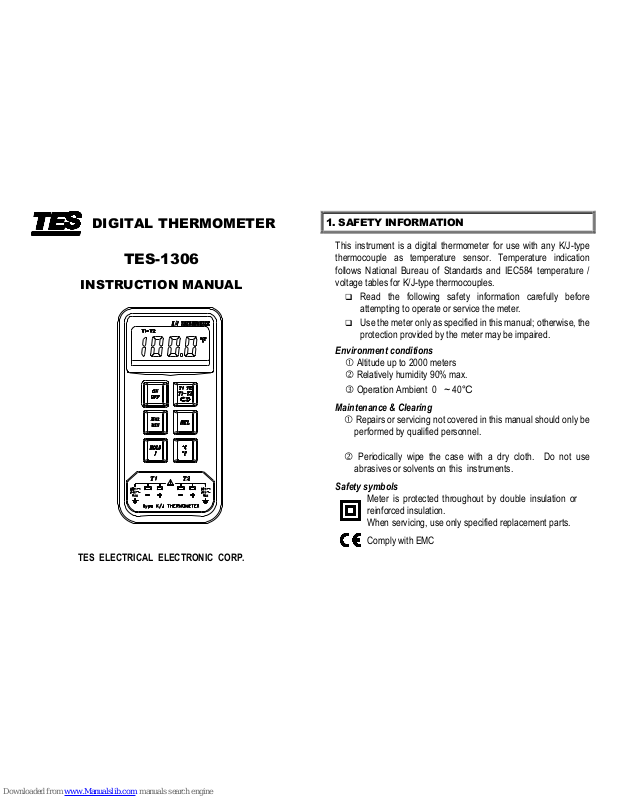

TES TES-1306 Instruction Manual

DIGITAL THERMOMETER

TES-1306

INSTRUCTION MANUAL

TES ELECTRICAL ELECTRONIC CORP.

1. SAFETY INFORMATION

This instrument is a digital thermometer for use with any K/J-type
thermocouple as temperature sensor. Temperature indication
follows National Bureau of Standards and IEC584 temperature /
voltage tables for K/J-type thermocouples.

 Read the following safety information carefully before

attempting to operate or service the meter.

 Use the meter only as specified in this manual; otherwise, the

protection provided by the meter may be impaired.

Environment conditions

 Altitude up to 2000 meters
 Relatively humidity 90% max.

 Operation Ambient 0 ～40℃

Maintenance & Clearing

 Repairs or servicing not covered in this manual should only be

performed by qualified personnel.

 Periodically wipe the case with a dry cloth. Do not use

abrasives or solvents on this instruments.

Safety symbols

Meter is protected throughout by double insulation or
reinforced insulation.
When servicing, use only specified replacement parts.

Comply with EMC

1

2. SPECIFICATIONS

2-1 Electrical Specifications

Measurement Range :

Type J :

-200℃ to 760℃

-328℉ to 1400℉

Type K :

-200℃ to 1370℃

-328℉ to 2498℉

Resolution : 0.1℃ , 1℃ , 0.2℉ , 2℉

Maximum Voltage at Thermocouple Input :

60V dc ,or 24Vrms ac

RF Field Derating :

Strong RF fields and low-frequency adversely affect accurate
measurement .

Operating Temperature and Humidity:

0℃ to 40℃ (32℉ to 104℉ ), 0 - 80％RH

Storage Temperature and Humidity:

-10℃ to 60℃ (14℉ to 140℉ ), 0 - 70％RH

2

Basic Accuracy: ( @23± 5℃ Calibration ) Accuracy are± ( ...％ of

reading + degree ) at 18℃ to 28℃ with relative humidity up to 80％

For single thermocouple measurements

Function

Resolution

Range

Accuracy

Type K

Type J

℃

0.1℃

-200℃~-50℃

-200℃~-50℃

(0.5%rdg+1.0℃)

-50℃~0℃

-50℃~0℃

(0.2%rdg+1.0℃)

0℃~200℃

0℃~150℃

(0.1%rdg+ 0.8℃)

1℃

200℃~1370℃

150℃~760℃

(0.2%rdg+ 2℃)

℉

0.2℉

-328℉~-58℉

-328℉~-58℉

(0.5%rdg+ 2.0℉)

-58℉~32℉

-58℉~32℉

(0.2%rdg+ 2.0℉)

32℉~392℉

32℉~302℉

(0.1%rdg+1.6℉)

2℉

392℉~2498℉

302℉~1400℉

(0.2%rdg+3℉)

For T1-T2 Measurements accuracy is Basic accuracy add 0.2%rdg.

NOTE
The basic accuracy specification does not include the error of the
probe. Please refer to the probe accuracy specification for
additional details.

Temperature Coefficient:

For ambient temperatures from 0℃ to 18℃ and 28℃ to 40℃

( 32℉ to 64℉ and 82℉ to 104℉ )

For each ℃ ( ℉ ) ambient below 18℃ ( 64℉ ) or above 28℃

( 82℉ ), add to the accuracy specifications:

0.01％ of reading + 0.03℃

( 0.01％ of reading + 0.06℉ )

3

2-2 General Specifications

Unit and Sign Display :



Decimal point.

℉ Fahrenheit temperature scale

℃ Celsius temperature scale

Low Battery

Negative polarity

H

Data hold

MAX MAX hold

MIN MIN hold

REL △ Relative mode

Over Range Indication: " OL " appears on the display.

Break or no input indication: “ _ _ _ _ “ appears on the display.

Low Battery Indication:

The " " is displayed when the battery voltage drops below

the operating voltage.

Power Requirement:

9-Volt battery , NEDA 1604 or JIS 006P or IEC6F22

Battery Life (typical): 100hours ( Alkaline Battery )

Dimensions: 135 (L)x 72(W)x 31(H)mm,

5.3 (L)x 2.8(W)x 1.2(H)inches

Weight: Approx. 235g with battery

Accessories: Battery, Instruction Manual. Holster ( option ).

4

3. NAME OF PARTS AND POSITIONS

1). LCD Display:

4 digits with a maximum reading of 2500, and indications or minus
sign " " , data hold " H " , maximum hold "MAX". minimum hold
