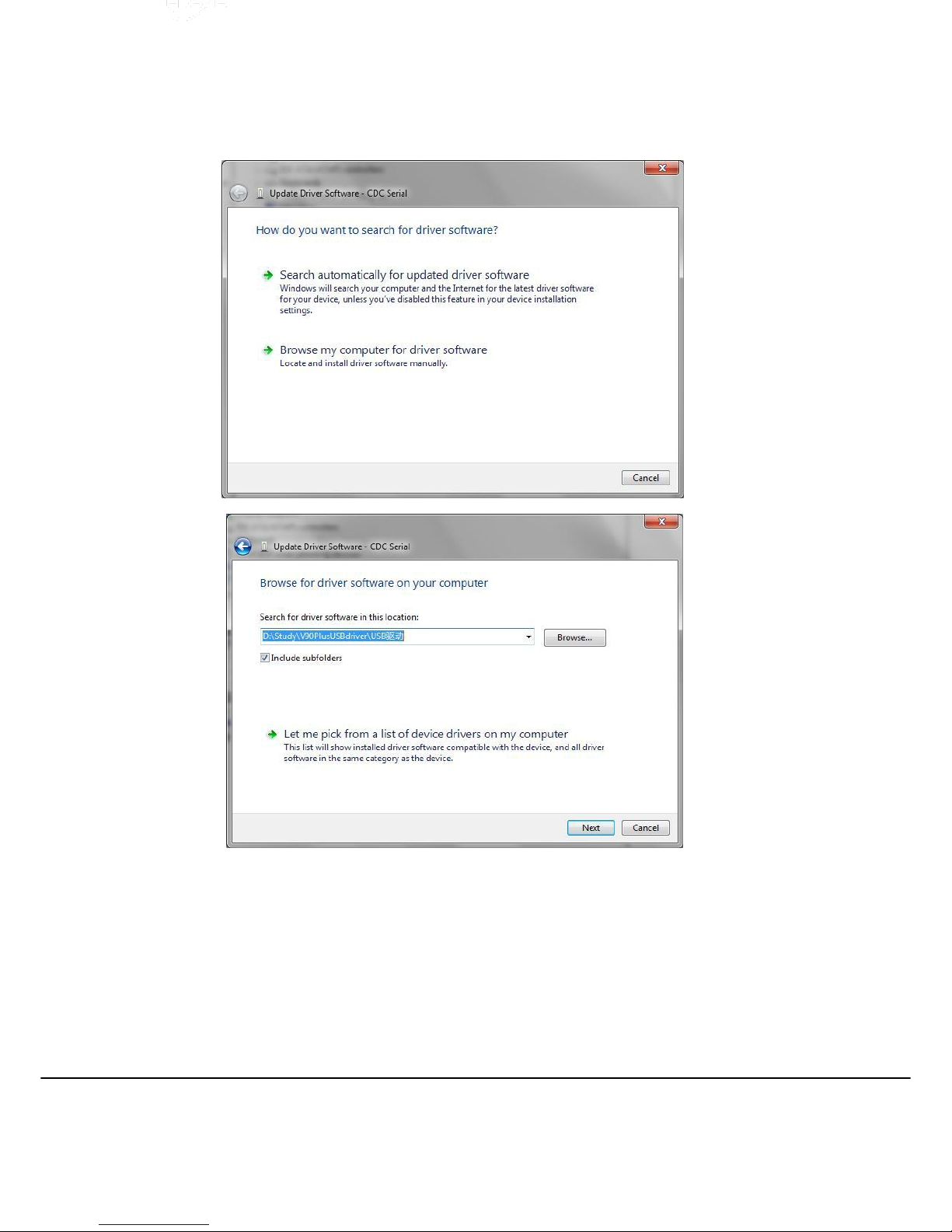

4.2 USB virtual serial port driver installation....................................................................... 29

4.3 Firmware update ............................................................................................................. 32

5. Technical Parameters ....................................................................................................... 33

5.1 GNSS Receiver Part ....................................................................................................... 34

5.2 Communication Part ....................................................................................................... 36

5.3 Controller iHand20 ......................................................................................................... 37

5.4 Controller T17M ............................................................................................................. 39

6. Accessory ......................................................................................................................... 40

6.1 Different Antennas ......................................................................................................... 40

6.2 DDTHPB External Radio ............................................................................................... 42

7. Terminology..................................................................................................................... 45

II

List of Figures

Figure 1 NeoRTK hardware diagram ................................................................................................ 5

Figure 2 Upper Cover ....................................................................................................................... 6

Figure 3 Bottom view ....................................................................................................................... 6

Figure 4 Inside of the battery closet .................................................................................................. 7

Figure 5 3G/GPRS antenna（short） UHF built-in radio antenna（long） ................................... 8

Figure 6 Battery BL-5000 ................................................................................................................. 9

Figure 7 Recharger CL-8410 ............................................................................................................ 9

Figure 8 Top side of controller iHand20 ......................................................................................... 10

Figure 9 Back side of controller ...................................................................................................... 11

Figure 10 Left side of controller ..................................................................................................... 12

Figure 11 220VAC USB adapter ..................................................................................................... 12

Figure 12 Lithium battery: 3.7V /6300mAh ................................................................................... 13

Figure 13 USB cable ....................................................................................................................... 13

Figure 14 Keyboard of controller .................................................................................................... 14

Figure 15 Road App ........................................................................................................................ 14

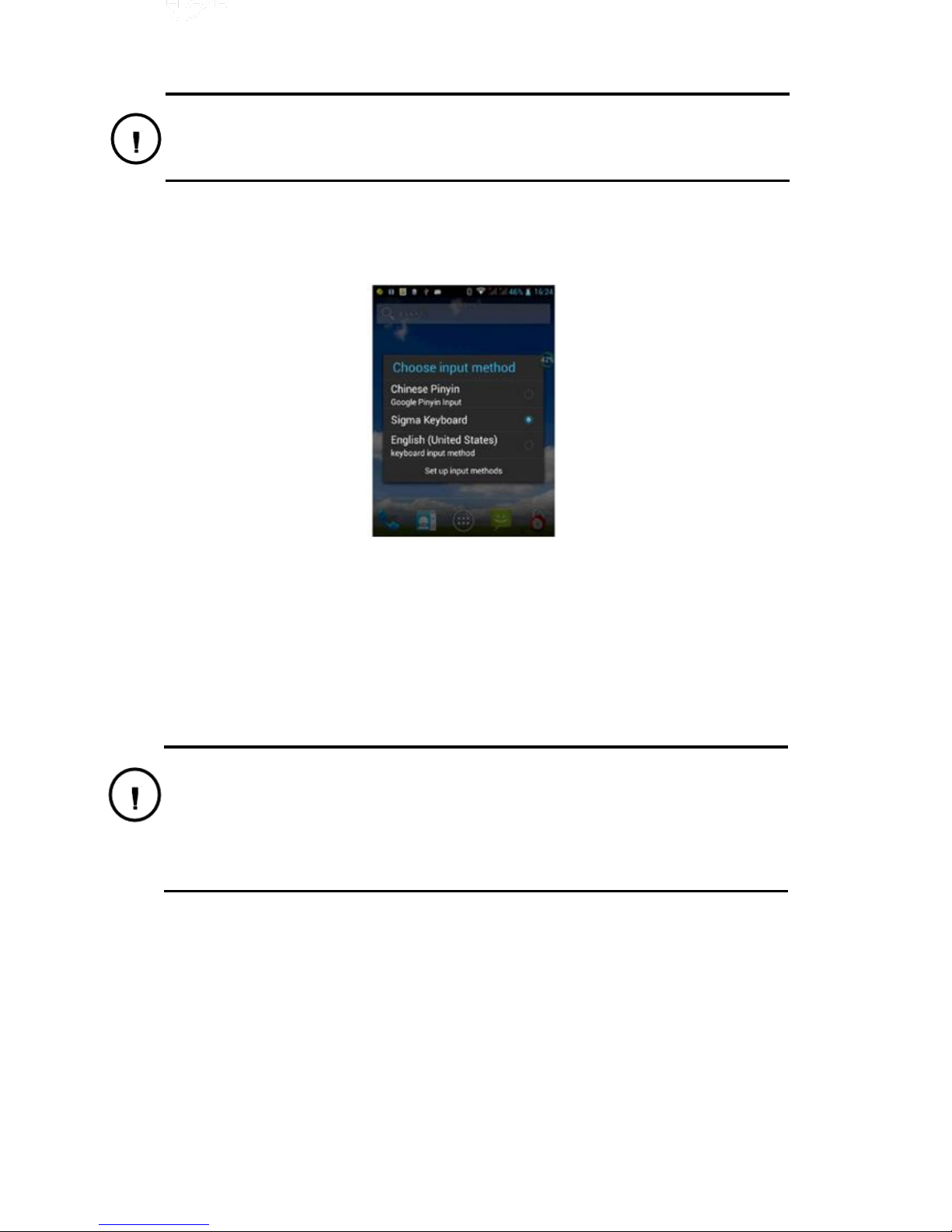

Figure 16 Input method page .......................................................................................................... 15

Figure 17 Controller T17M ............................................................................................................. 18

Figure 18 Button panel .................................................................................................................... 21

Figure 19 Wi-Fi password ............................................................................................................... 23

Figure 20 Static data collecting ....................................................................................................... 23

III

List of Tables

Table 1 Button functions ................................................................................................................. 21

Table 2 LED indicator lamp ............................................................................................................ 22

Table 3 Defaulted frequency table of 16 channels in radio ............................................................. 44

1

Manual Revision

Revision

Date

Revision Level

Description

2017-09-22

Release

NeoRTK GNSS Receiver

User Manual1.0

E-mail: [e-mail]
Web: www.Tersus-gnss.com

2

Preface

It’s highly recommended that you read this user manual carefully before you use NeoRTK GNSS

receiver. If you are unfamiliar with Tersus products, please refer to www.tersus-gnss.com or mail to
[e-mail]

The following conventions are used in this manual:

Note: the contents here are generally special operations, need to pay special attention to. Please read

the contents carefully.

Warning: the contents here are very important, so please read it carefully in case of failing to

operate based on warning contents which may damage the instrument, lose the data, break down

the system or even bring risk to user’s health.

Exclusions

Before use the products, please read the operating instruction carefully, which will help you better
use the product. Tersus will not assume the responsibilities if you fail to operate the product
according to the requirements in operating instruction, or operate the product wrongly because of

failing to understand the operating instruction.

Tersus is committed to constantly perfect product functions and performance, improve service

quality and reserve the rights to change the contents in operating instruction without separate notice.

We have checked the consistency between contents in instruction and software & hardware.

Pictures in operating instruction are only used for reference.

3

1. Products Introductions

1.1 Preface

NeoRTK is a new type of GNSS receiver for measurement provided by Tersus. With a hi-tech, fully

integrated design, the compact NeoRTK is one of the most flexible choices for any measuring

projects. NeoRTK receiver builds-in Linux3.2.0 operating system, pre-loaded multiple smart

applications such as tilt surveying, electronic bubble calibration, NFC and voice DIY. LEDs on

panel enable you to monitor satellite tracking, radio reception, data logging status, Wi-Fi status and
power. Bluetooth technology provides cable-free communications between the receiver and the
controller. NeoRTK receiver provides surveyor industry-leading GNSS solutions.

Warning: the instruction has no standard delivery items. The delivery items within the package can

be different according to different user requirements. The suggestions before using the instrument:

 Check and ensure the product package is not damaged;
 Open the package carefully and ensure the items are consistent with outgoing list;
 In case of the product and/or its accessories are lost and/or damaged, contact local office or

dealers immediately;

 Read the user manual carefully before carrying, transporting and using the product.

4

1.2 Product Features

Small and lightweight

 1.2kg including battery.
 Diameter 153mm x Height 83mm.

Multi-constellations Tracking

 Supports GPS, GLONASS, GALILEO, BDS, SBAS
 NGS approved full-band GNSS antenna

Smart Application

 Offers tilt survey with a maximum tilt angle of 30 degrees.
 Supports electronic bubble calibration.
 The internal NFC module makes Bluetooth communication quick and easy.

 Intelligent voice assistance reports field operations; voice can be DIY.
 Standard Rinex data and Tersus raw data recorded simultaneously.

Optional Transceiver UHF Radio

 The transceiver UHF radio enables switchable working modes between base and

rover.

 The internal 2W UHF radio provides different frequencies based on users requirements.

Multi-network Connection

 Supports TD-SCDMA, WCDMA, EDGE, GPRS and GSM.
 Supports WI-FI

Powerful Battery

 Powered by high-capacity (5000mAh) Li-ion battery to ensure full day operation

Rugged Design

 IP67 dustproof and waterproof.
 Be able to survive a 2-meter pole fall onto concrete.

5

1.3 Introductions to NeoRTK GNSS Receiver

NeoRTK hardware structure

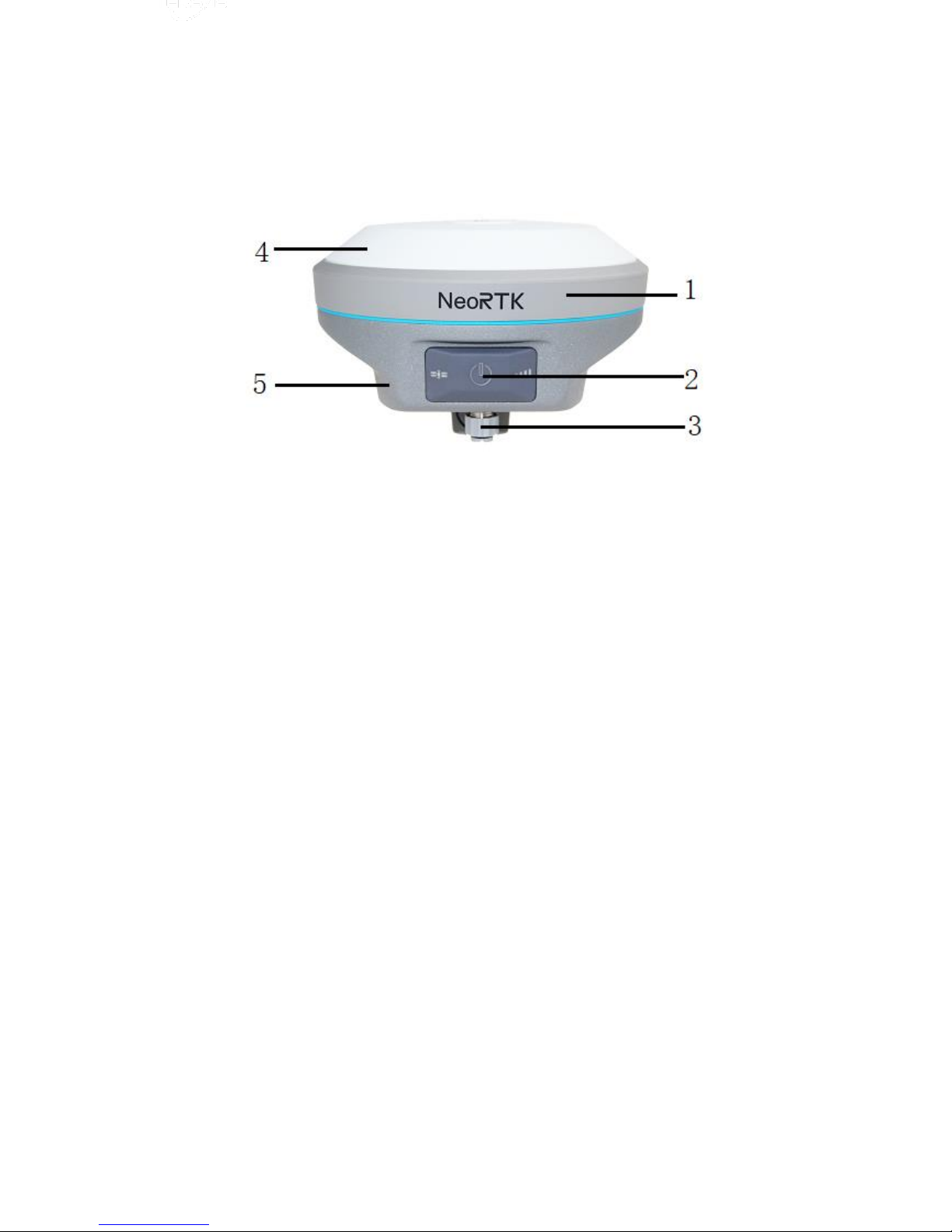

Figure 1 NeoRTK hardware diagram

1. Guard Circle

2. Control Panel

3. Antenna interface for radio/3G

4. Bottom Cover

5. Upper Cover

NeoRTK mainly consists of three parts, the upper cover, bottom cover and the control panel.

In the middle of the enclosure is the control panel, which contains a power button and three indicator
LEDs. The power button can do all function settings, and from the left to the right, the three

indicator lamps are:

 Satellite lamp (single green lamp)
 Power lamp (bi-color lamp of red and green)
 Status lamp (bi-color lamp of red and green).

6

Upper Cover

r

U-type anti-wear buffer can effective avoid the instrument from scratch.
Double-color makes the structure clear and beautiful.

Bottom Cover

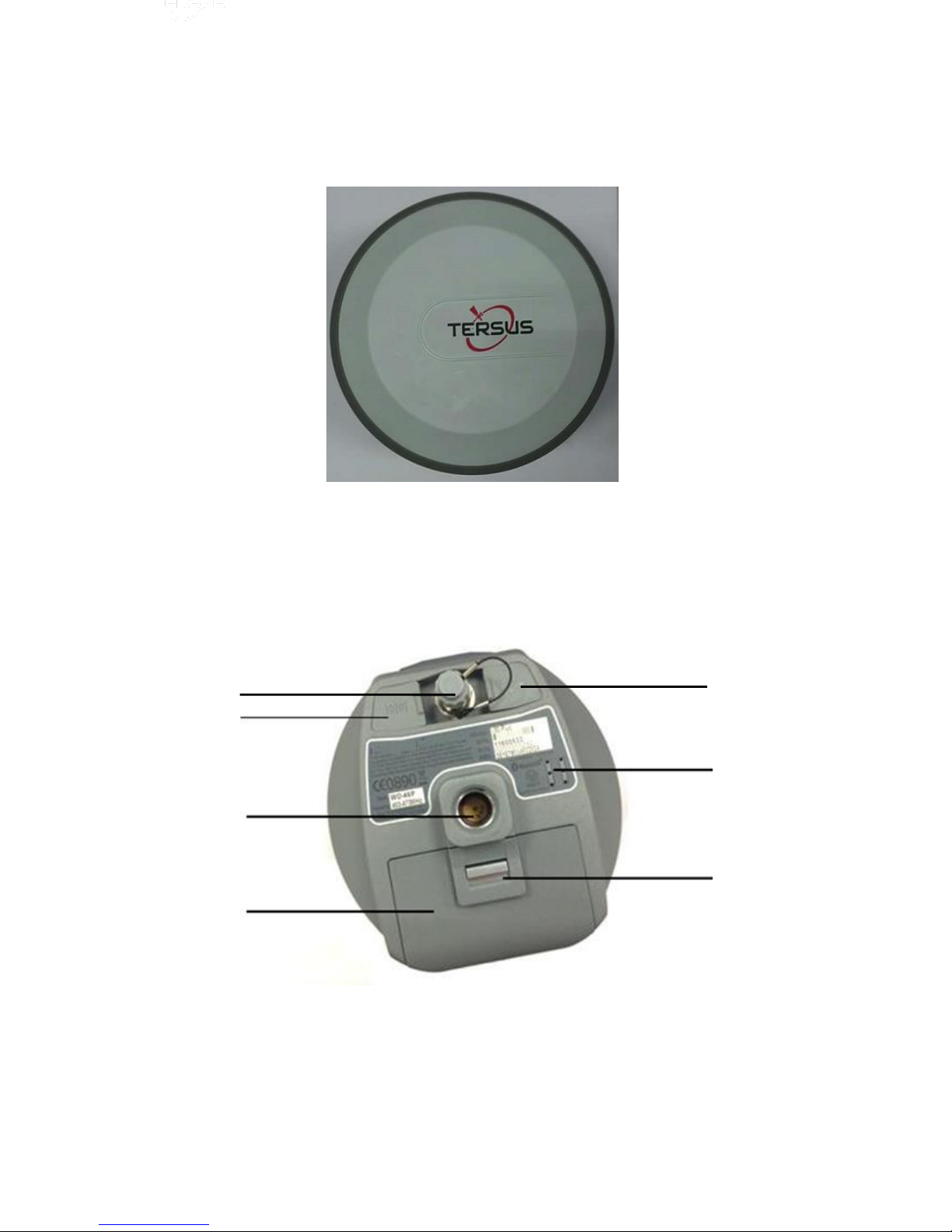

2 3 1 6 5 4 7

Figure 2 Upper Cover

Figure 3 Bottom view

7

1. USB interface and protective plug, used to export data and upgrade firmware.

2. Speaker, report the status of the receiver with voice.

3. Metal buckle

4. Battery closet

5. Installation screw hole, used to fasten the instrument to base or centering rod.

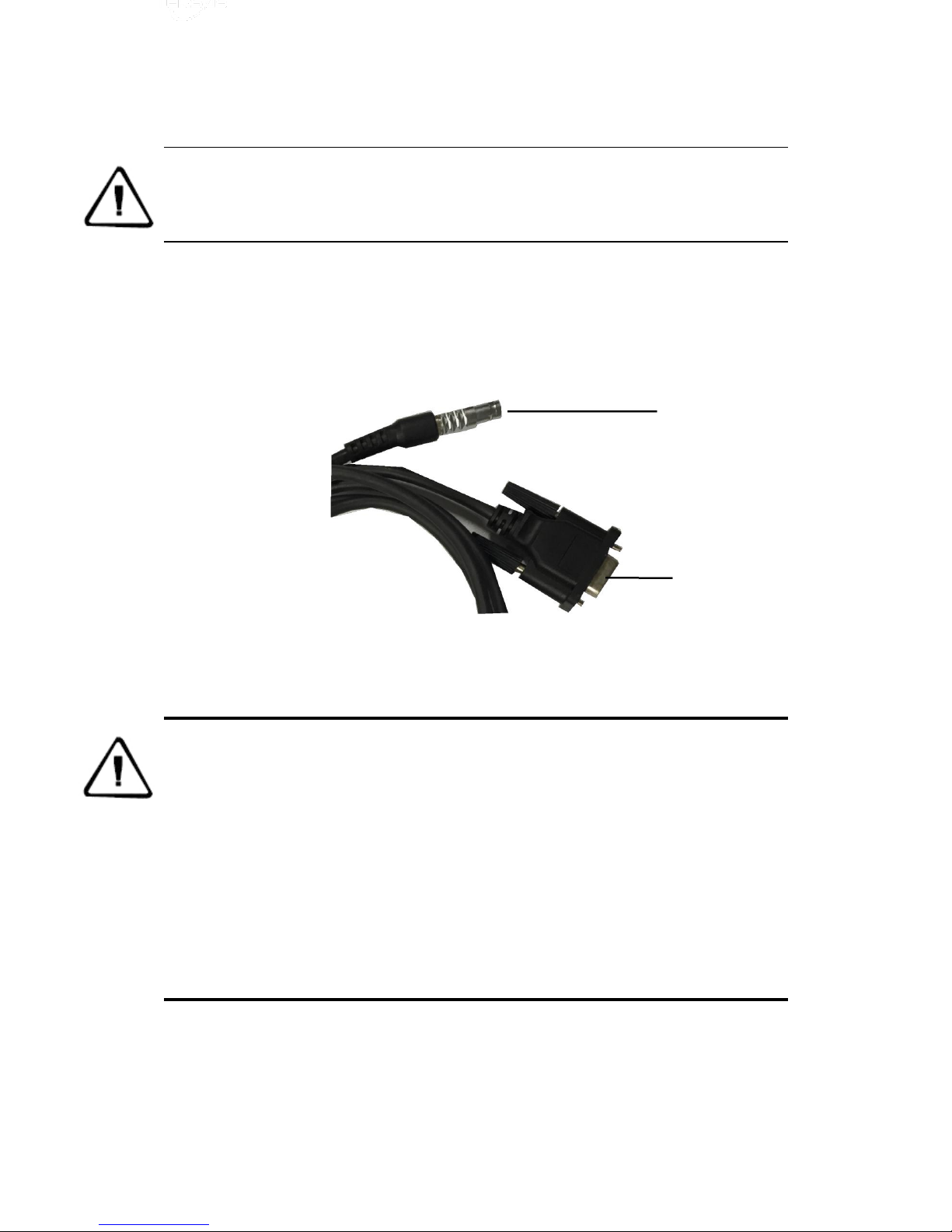

6. 5-pin socket and protective plug, used to output NMEA-0183 and link external radio and
external power.

7. Antenna interface for radio/3G and protective plug.

8. SD card slot.

9. SIM card slot

10. Battery connector

11. Battery cover

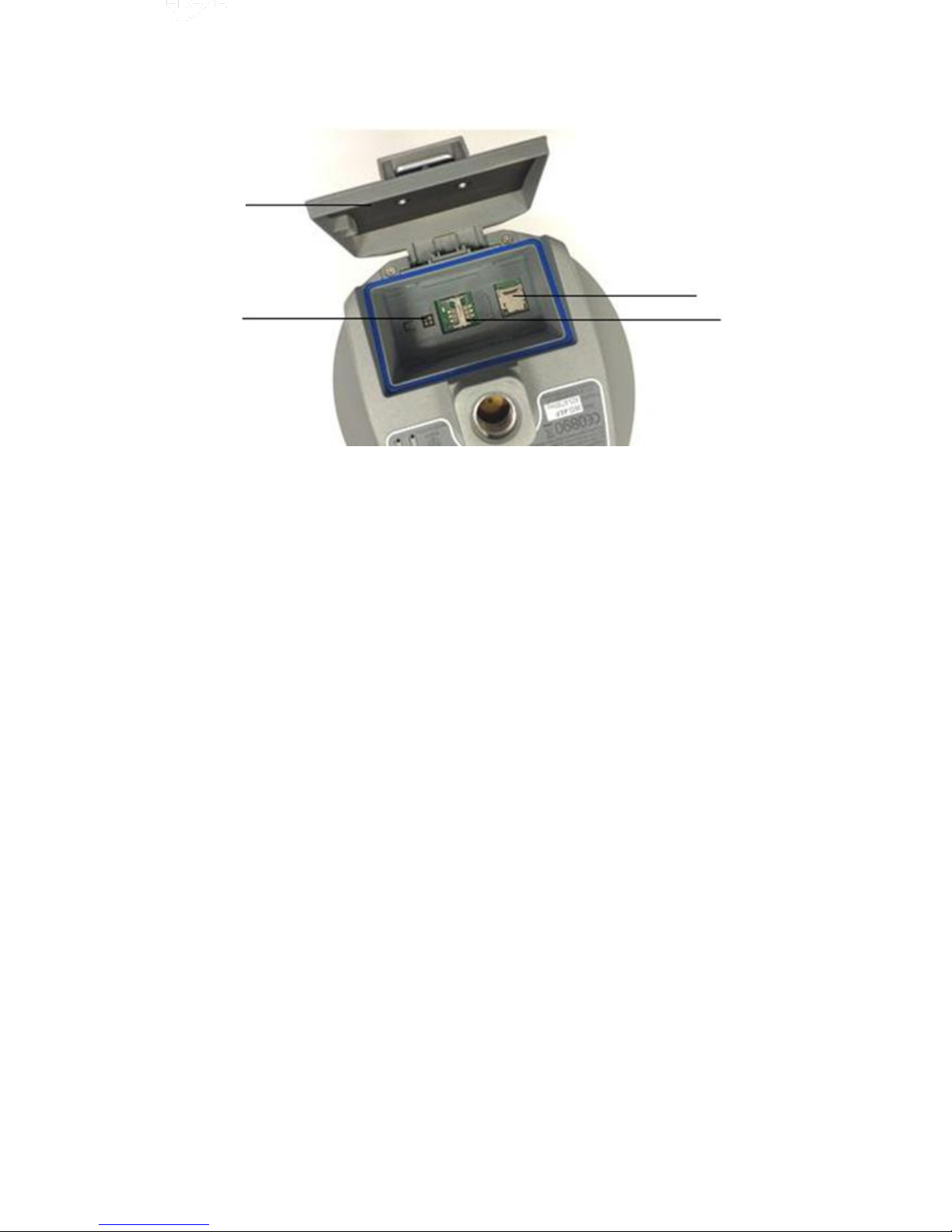

Figure 4 Inside of the battery closet

1

11

8

9

8

Cautions:

1. When the 5-pin socket is not used, please cover them with the plug.

2. When water enters into the speaker, it is likely that the speaker is silent or hoarse. The voice can

recover after the speaker is dry.

Antenna

Receiver equipped with UHF built-in radio antenna and 3G/GPRS antenna. Select the right antenna

according to different working mode. When using the "UHF base station" and "UHF rover station"

mode, please use the UHF built-in radio antenna; when using the "GSM base station" and "GSM
rover station", please use the 3G/GPRS antenna.

Batteries

The receiver has one rechargeable Lithium-ion battery, which can be removed for charging.
You can also connect the receiver to an external power source through the 5-pin socket

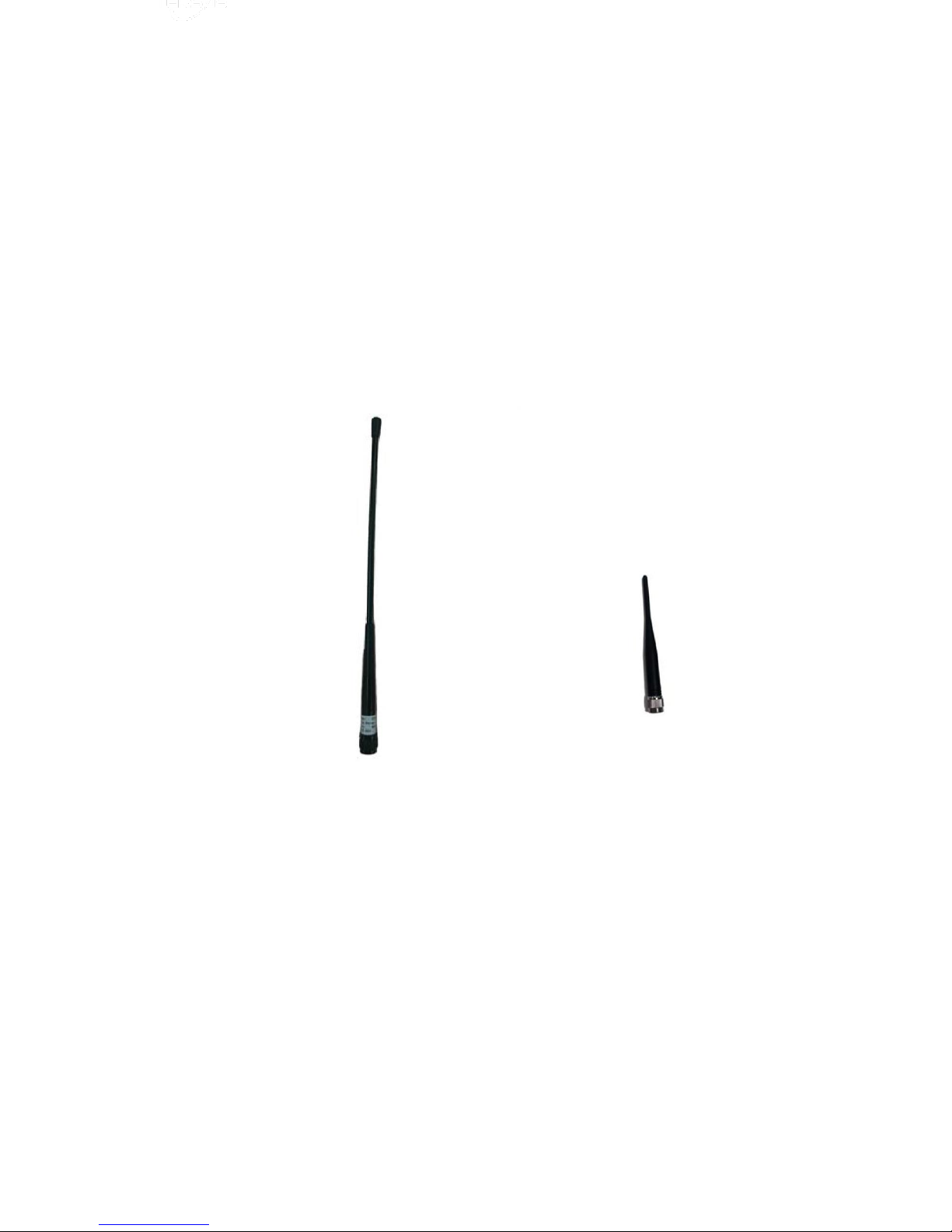

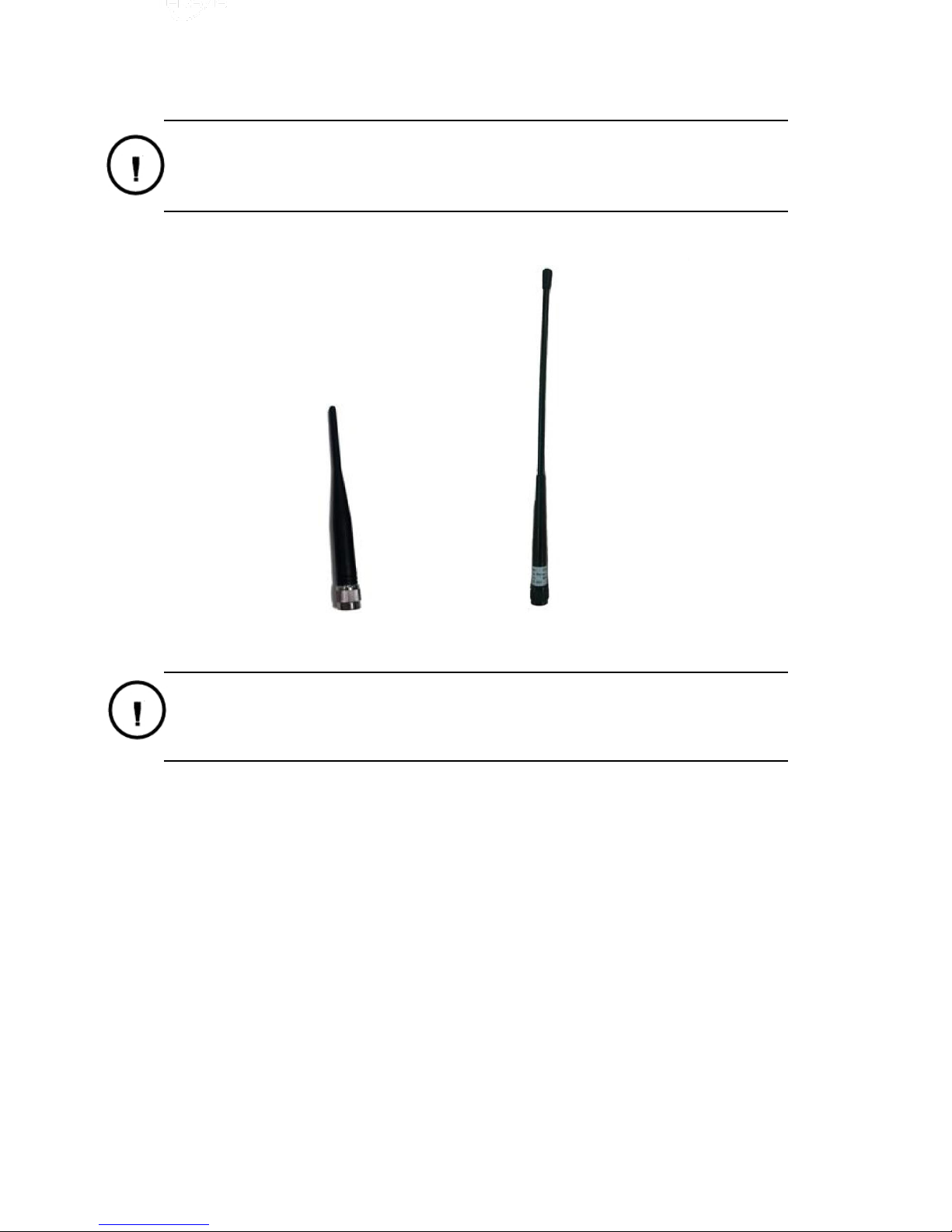

Figure 5 3G/GPRS antenna（short） UHF built-in radio antenna（long）

9

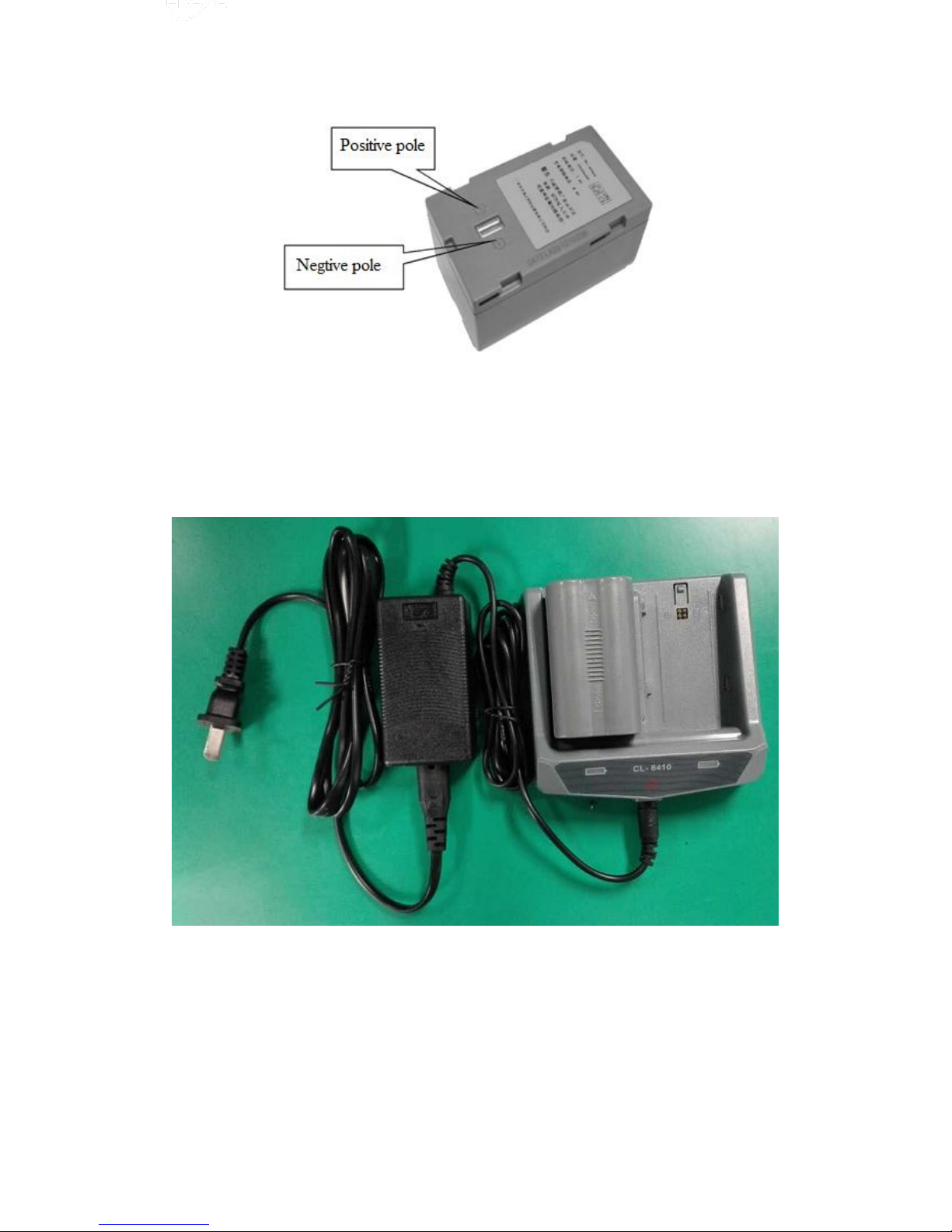

Figure 6 Battery BL-5000

Recharger

BL-5000 lithium battery shall use Tersus CL-8410 lithium battery charger to charge. About 7 hours
of charging time CL-8410 charger is designed with charge lamp. The lamp is red during charging
and turns green when charging is finished.

Figure 7 Recharger CL-8410

10

1.4 Introductions to Handheld controller iHand20

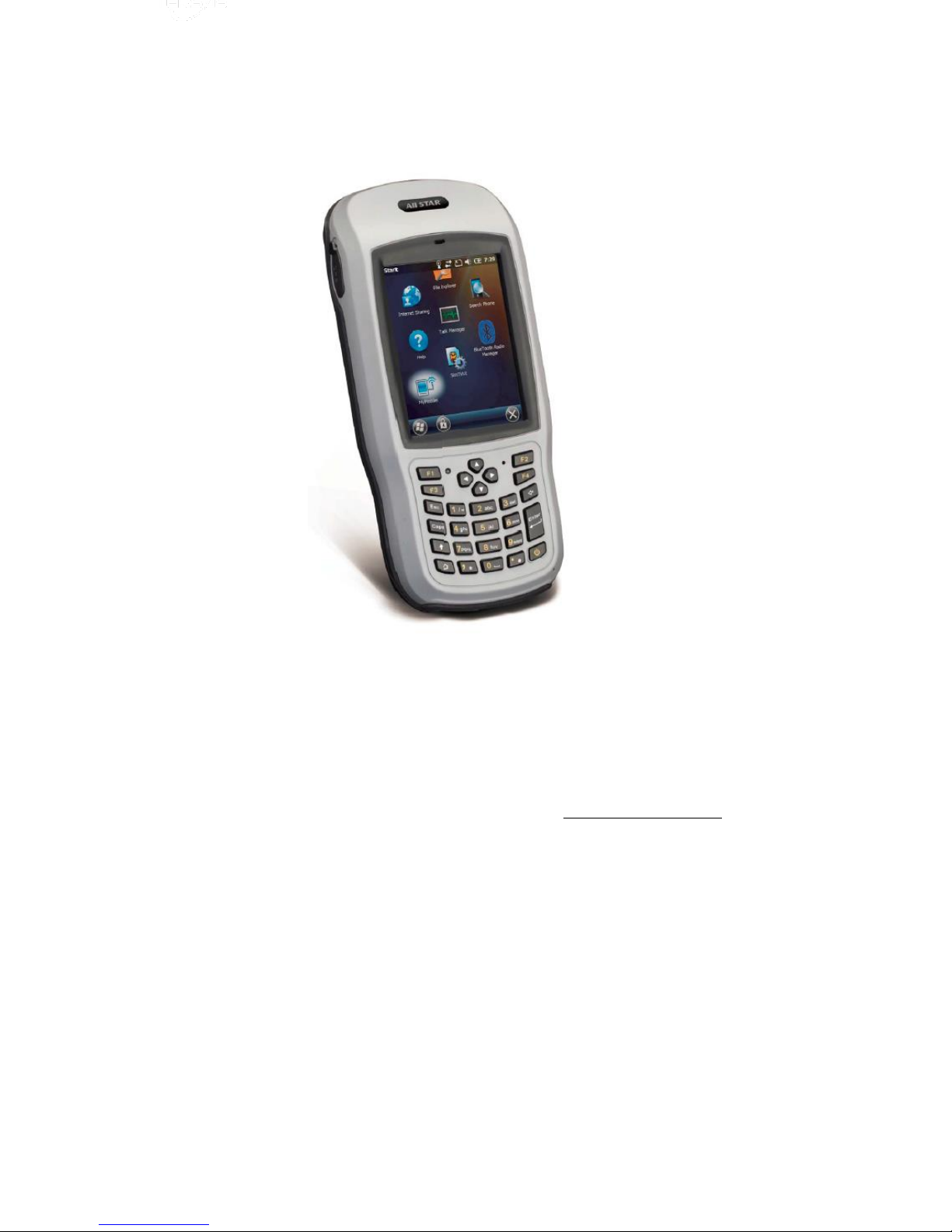

The top side of the controller

The top side of the handheld controller includes touch screen, keyboard and microphone.

 Touch screen: Multipoint capacitive touch screen with touch pen, which supports

Chinese and English language input.

 Keyboard: Photograph, direction control, switch between Chinese and English language, data

collection, volume control, power on/off and other functions.

 Microphone: Internal microphone can be used for field collection of voice message.

Touch

Screen

Keyboard

MIC

Figure 8 Top side of controller iHand20

11

The back side of the controller

A camera, a battery cover, NFC module, etc. are on the back side of the controller.

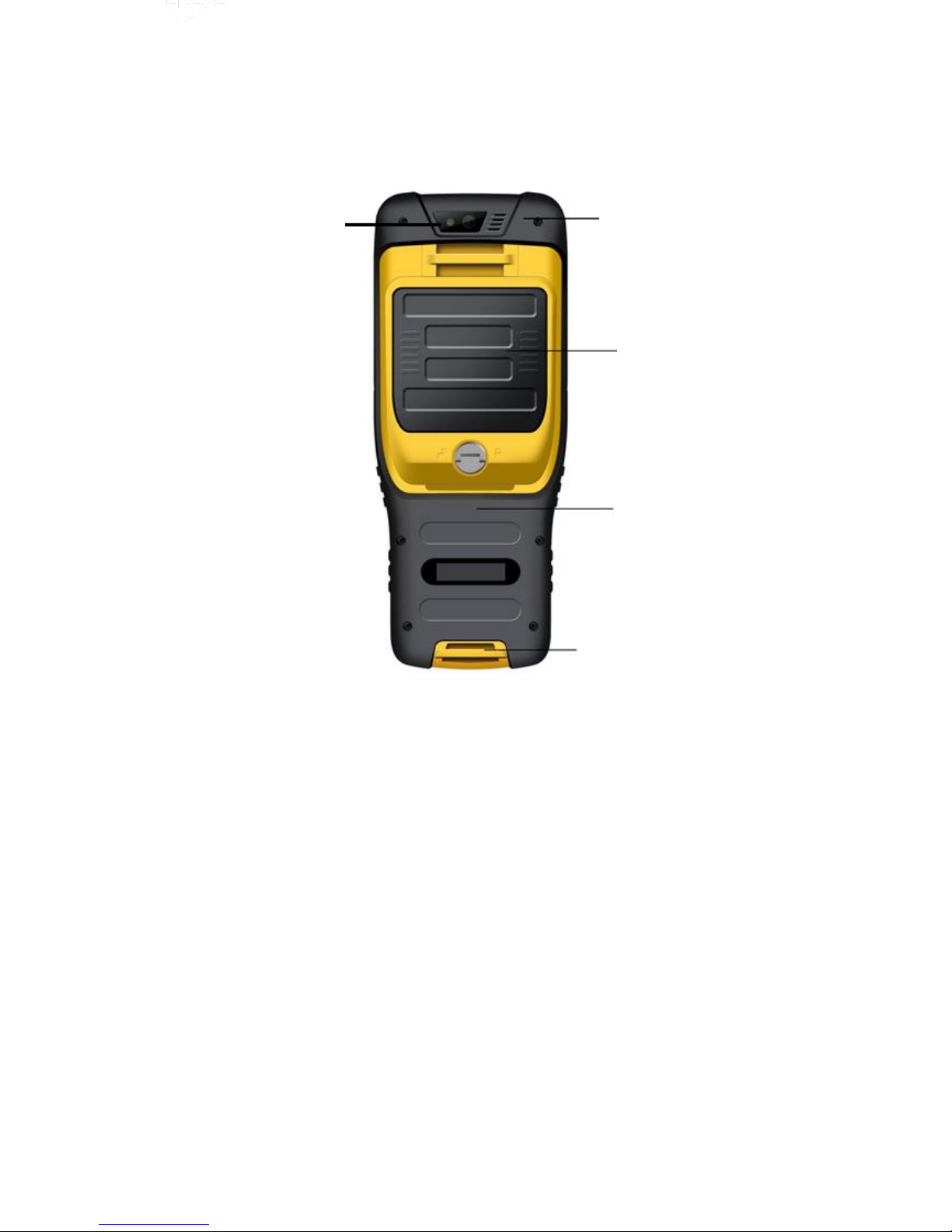

Figure 9 Back side of controller

 Camera: Used for field collection of image information.
 Battery cover: Internal removable lithium battery.
 Belt: Connect the belt to prevent sliding down.
 Speaker: Report the instrument operation and status.

Battery cover

NFC module

Belt

Speaker

Camera

12

The left side of handheld controller

Waterproof & dustproof rubber plug

Audio interface

Mini USB

 Mini USB: Used for connecting USB data line and iHand20 handheld controller.
 Audio interface: Used for connecting headphone cable and iHand20 handheld

controller.

Warnings: Close the rubber plug for waterproof and dustproof when the audio interface and the

Mini USB are not used.

Handheld controller accessories Charger

The input of this is 22VAC, output is 5V/1A.

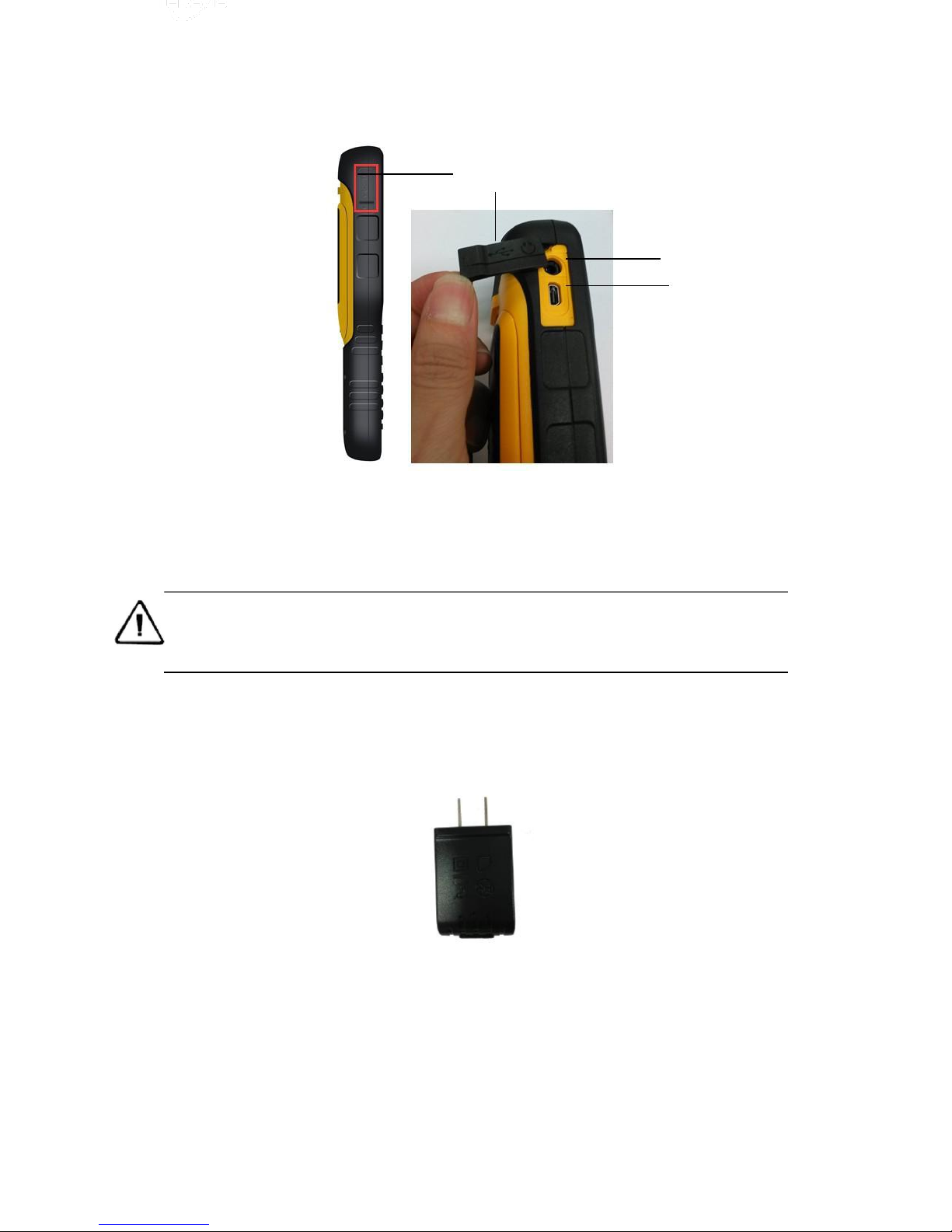

Figure 10 Left side of controller

Figure 11 220VAC USB adapter

13

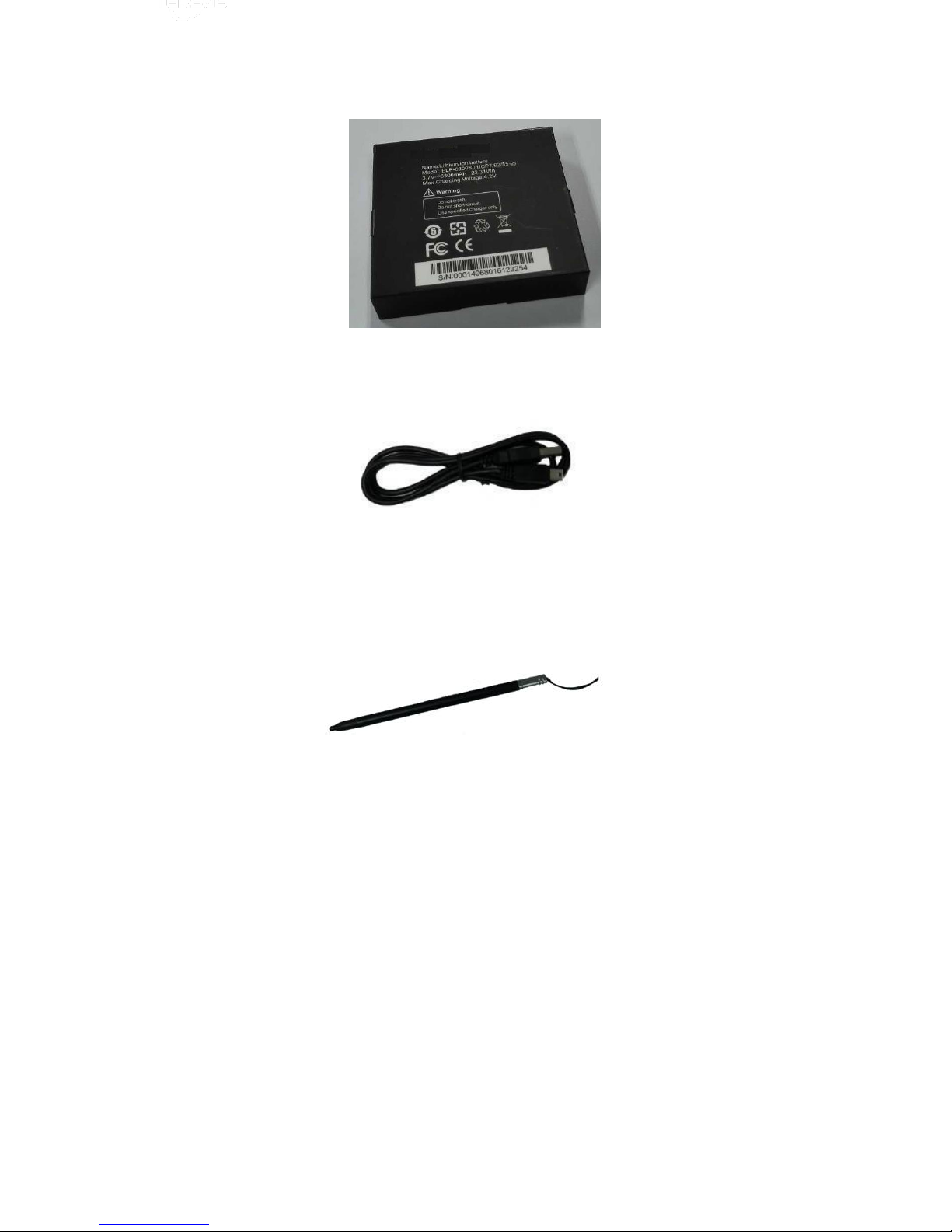

Battery

Data cable

Connect to the USB port of a computer, and used for downloading data. This cable is also

used for charging the controller

Touch pen

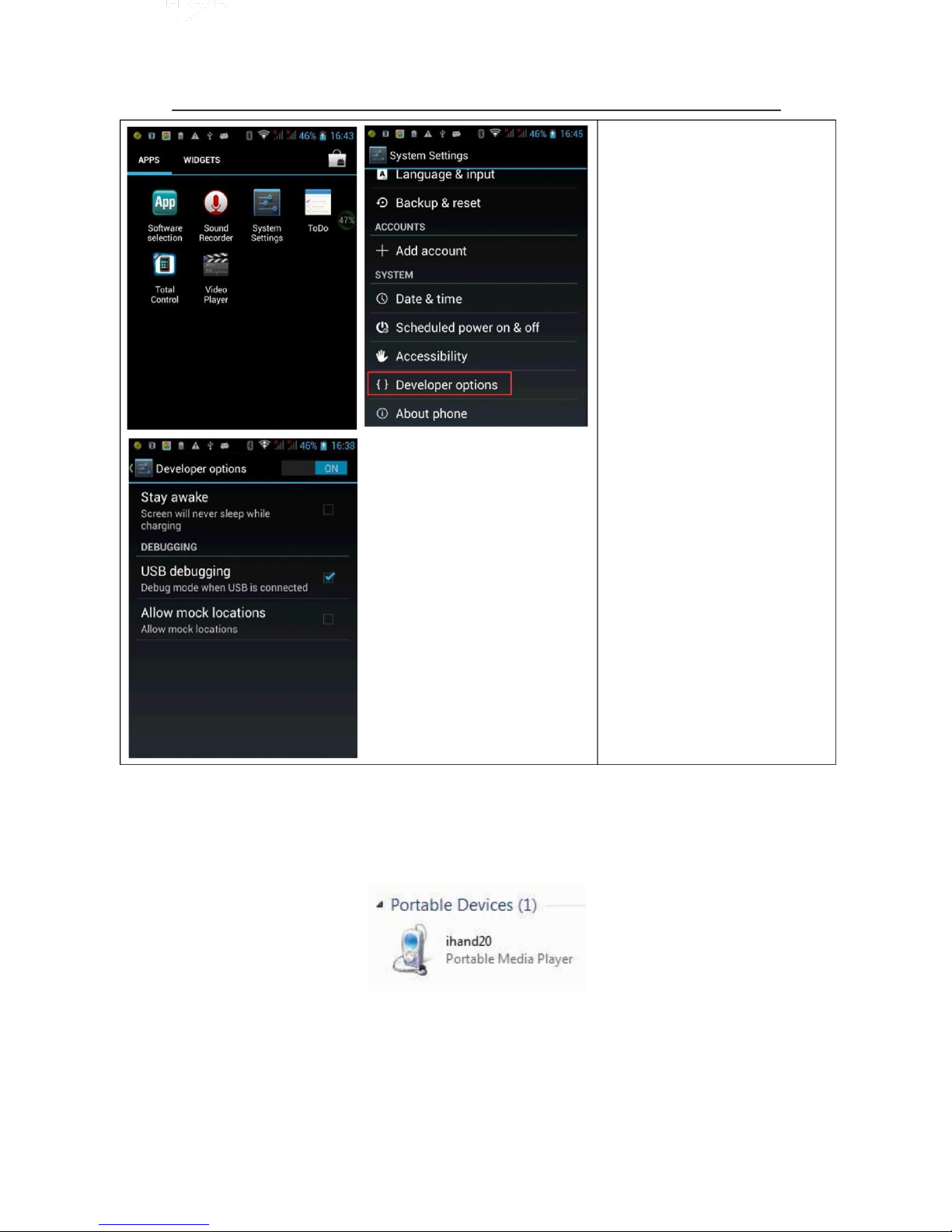

When the touch pen is used to operate the handheld controller, you must start from the function

"handwriting pen". Open the handheld controller’s [system setting] -> [auxiliary function] ->

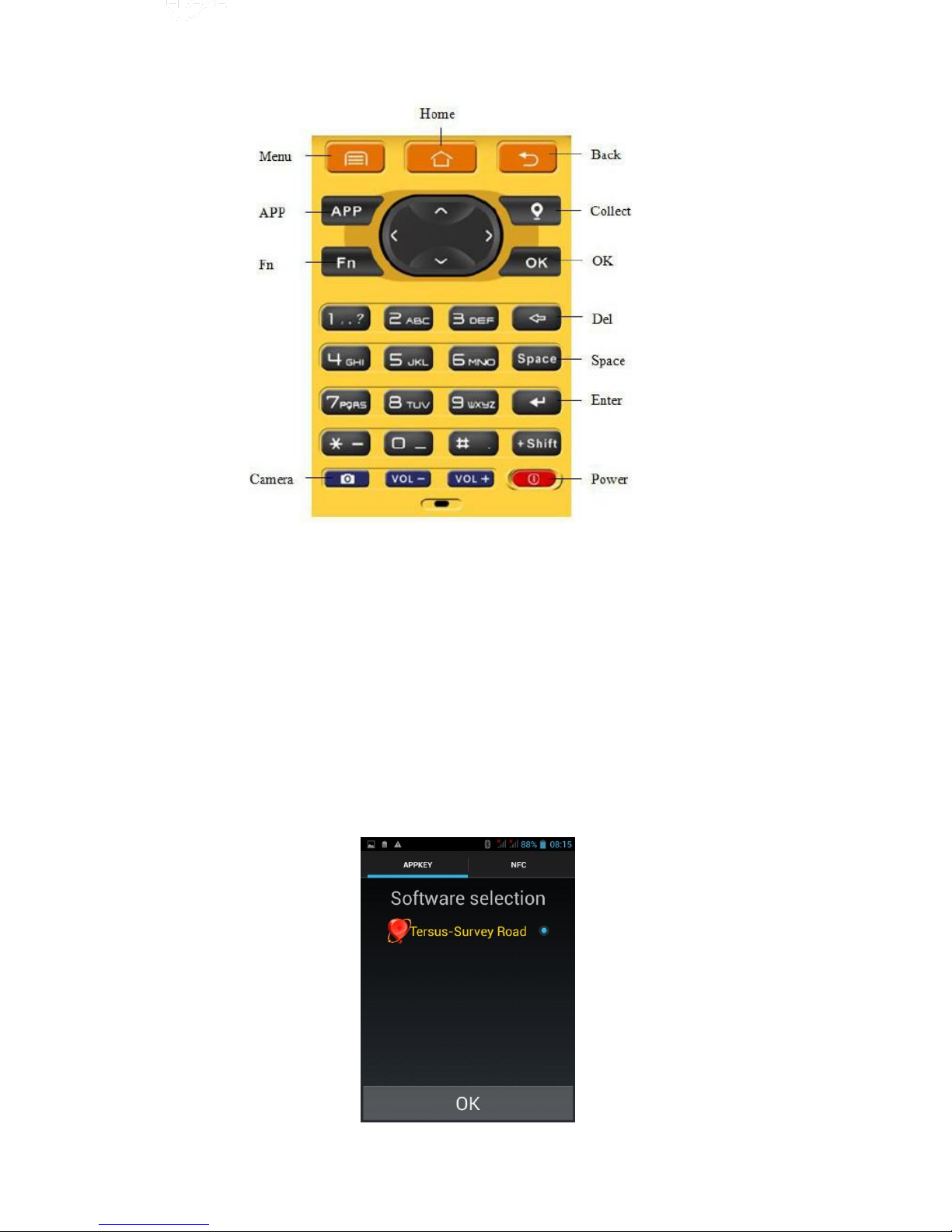

[handwriting pen]

Operation of handheld controller

Keyboard

Most settings and operations of Tersus iHand20 handheld controller can be done with the touch

pen, and commonly-used operations can be done with the keyboard. The keyboard is introduced
briefly as follows.

Figure 13 USB cable

Figure 12 Lithium battery: 3.7V

14

Figure 14 Keyboard of controller

Keyboard includes: Back, OK, Power, APP, Fn, Collect, Camera, etc.

Back: Delete or exit the operation of current window.

OK: Confirmation

Power: Press and hold it >3s to power on/off the controller. Press this button for 1s to turn off/on

the screen back light. Press it and hold for 10s to force it reboot, which is used when

the controller system is crashed.

APP: Quick start of Tersus software, press button APP for a long time until the Road popups, then

select "Tersus-Survey Road" and click [Ok]. And the software selected this time can be started
quickly by only pressing key APP next time.

Figure 15 Road App

15

Cautions: When installing Tersus-Survey Road for the first time, it is necessary to press key APP for

3s for software quick start selection settings. Otherwise, corresponding software cannot be started

quickly by only pressing button APP.

Fn button: Press Fn button and hold for 3s to show input method page. When [physical button

input method] is selected, press Fn button to switch among input methods of Chinese Pinyin, strokes,

digitals and letters under input status.

Collect button: Collect data manually.

Camera button: Press it for a short time to enter photograph interface; press it for 3s to enter start_

up/shut down flashlight function.

Screenshot function: Press "VOL-" and power button simultaneously for 3s, screenshot will be
saved in the file "Mobile phone storage -> Pictures -> Screenshots".

Cautions:

1. When the controller is not used, please turn off the backlight.

2. Only the image collection window supports the screenshot, the text window does not support it.
(1)Average collection screenshot is Key "7";

(2) Indirect measurement screenshot is Key "8".

Figure 16 Input method page

16

Model of iHand20 handheld controller battery and charger

Name

Model

Lithium battery

BL-6300A

Charger

CL-6300A

Data download

Connect handheld controller to computer

1. Connect the controller to a computer with the USB cable, and pull down the notice column and

click USB computer connection [open USB storage].

2. If it is required to synchronously operate controller or install & use third-party software to debug

data on the computer, "USB debugging" function shall be ticked. Turn on the controller, click

[System Settings] -> [Developer options] -> [USB debugging] on the desktop menu.

17

Click [System Settings] ->
[Developer options] ->
[USB debugging]

3. In the popup debugging window, click [OK] to complete the connection between the
controller and the computer.

4. In the computer, file operations between the controller and computer can be conducted by
[Portable Devices].

18

1.5 Introductions to controller T17M

Tersus also provides a controller T17M.

The main difference between T17M and iHand20 are:

 iHand 20 is installed with Android system, while T17M with Windows Mobile system.
 Tersus-survey is installed on iHand20, while T17M with MicroSurvey FieldGenius, Calson

SurveCE.

The detailed specification of T17M is in section 1.5.4, contact [e-mail] for more
about it.

1.6 Cautions for use

Environmental Requirements

The receiver shall be worked in dry working environment regardless of waterproof materials. The

receiver shall be prevented from extreme environment, such as:

 Moisture
 Temperatures above 65 degrees centigrade
 Below - 40 degrees centigrade
 Corrosive liquids or gases

Figure 17 Controller T17M

19

Electronic Jamming

The receiver shall not be installed at a place near to an electrical device with big output power or

any potential jammers, such as:

 Oil duct (spark plugs)
 Generator
 Battery-operated motor cycle
 DC-AC power supply equipment
 Signal transmitting station (tower)
 Power supply

20

Battery safety

Warnings:

1. Battery and charger must be qualified by manufacturer, and do not throw them into the fire or
use the metallic short-circuit electrode.

2. For the first usage, there is a certain electric quantity in the battery generally. Therefore, the

battery shall not be charged until the battery is used up. And it shall be charged for 12 hours for the

first three times and later it can be charged normally. Each charging time shall not be more than 24

hours.

3. Do not use or charge the battery if it appears to be damaged. Signs of damage include, but not
limited to, discoloration, warping and leaking battery fluid.

4. If the service life of the battery is shortened obviously, please stop using the battery. It indicates
that the battery has been aged, please replace it with a new one.

21

2. Basic Operation

2.1 Button operation

NeoRTK adopts optimized and simplified design; button operation with control panel is very

convenient.

1. Control panel

Most settings and operations of NeoRTK can be done with power button, below is the control

panel.

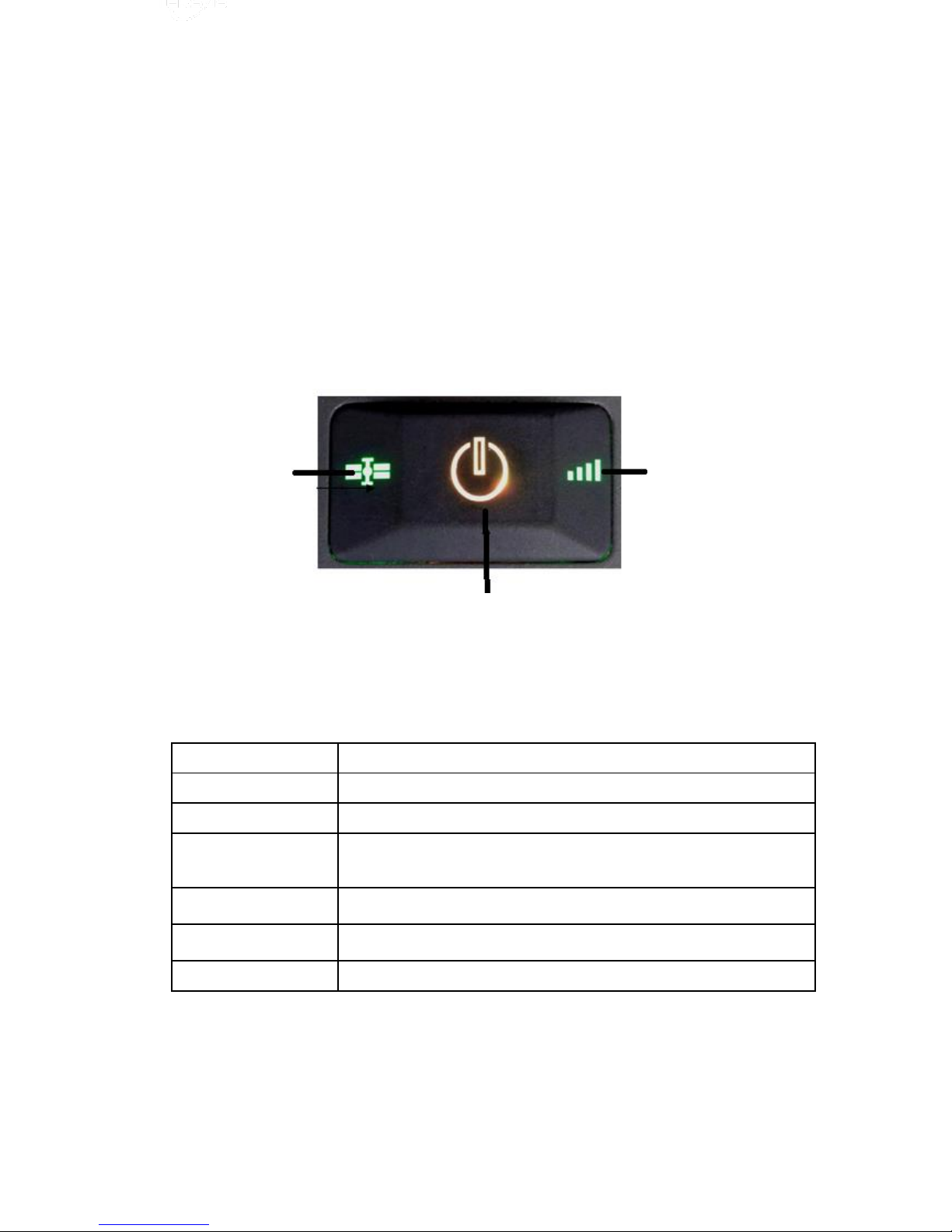

Figure 18 Button panel

Table 1 Button functions

Functions

Detailed description

Power on

Press power button for 1s to power on.

Power off

Press power button 3~6s until voice prompts "dingdong" and release button.

Auto-set base

In power off status, press power button for 6s until voice prompts "set base
automatically", then release it; the receiver will automatically set to base

mode.

Work mode switch

Double press power button to enter work mode switch, every double press

will switch to another work mode.

Reset main board

In power on status, press power button >6s when voice prompts the second

"dingdong", then release it.

Mandatory power off

In power on status, press power button >8s.

Differential
Signal lamp

Power button& lamp

Satellite

lamp

22

3. Power on/off

Press power button for 1s to power on. Press power button 3s~6s until voice prompts "dingdong"

and release the button to power off.

4. Reset main board

In power on status, press power button >6s until voice prompts the second "dingdong", then release

it.

5. Auto-set base station

In power off status, Press power button for 6s when voice prompts "set base automatically", then

release it, the receiver will automatically set to base mode.

2.2 LED Indication Lamp

Table 2 LED indicator lamp

Lamp

Status

Description

Power lamp (yellow)

Always on

In normal voltage
Battery >7.6V

External power supply>12.6V

Power lamp (red)
Always on

In normal voltage

7.2V< battery <7.6V or
11V < external power < 12.6V

Slow flash

Low voltage:
Battery ≤ 7.2V or
external power ≤ 11V

Fast flash

Power status hints: once or four times of one

min

Differential signal lamp

(green)

Off

No GSM/Wi-Fi connection

Always on

GSM/Wi-Fi module connect to server
successfully

Slow flash

GSM/Wi-Fi module connect to internet
successfully

Fast flash

GSM/Wi-Fi module is connecting to internet
server

Differential signal lamp

(red)

Slow flash

1.Receiving or transmitting data

2. collecting static data in static mode

off

Communication failure, no data output

Satellite lamp (green)

Always on

More than 4 satellites tracked successfully

Slow flash

Lose satellites and try re-track

Off

1. mother board error resulting in no data

output while resetting receiver

2. mother board error resulting in no data

output while in static mode

Anomaly flash
of 3 lamps

Reset main board or static collecting error

(Insufficient storage space)

23

2.3 Wi-Fi Password Setting

NeoRTK receiver can be used as Wi-Fi access point, supports user-defined password (Factory default
password: 12345678)

Cautions:
If you forget your password, you can reset your password by "GNSS Receiver Manager V1.0.3"??

2.4 Static data collecting

NeoRTK GNSS Receiver can collect static data. The steps are given below:

1. Set up receiver on a control point, centering and leveling strictly.

2. Measure the height of the receiver for three times, on condition that the difference of each

measuring is less than 3mm and the final height of the receiver should be the average height. Below

is the schematic.

Figure 19 Wi-Fi password

Figure 20 Static data collecting

24

Notice:

1. Instrument height should be measured from control point to the upper of measurement bench
marker.

2. The height of phase center is 0.1018 meter.

3. The measurement bench marker radius is 0.130 meter.

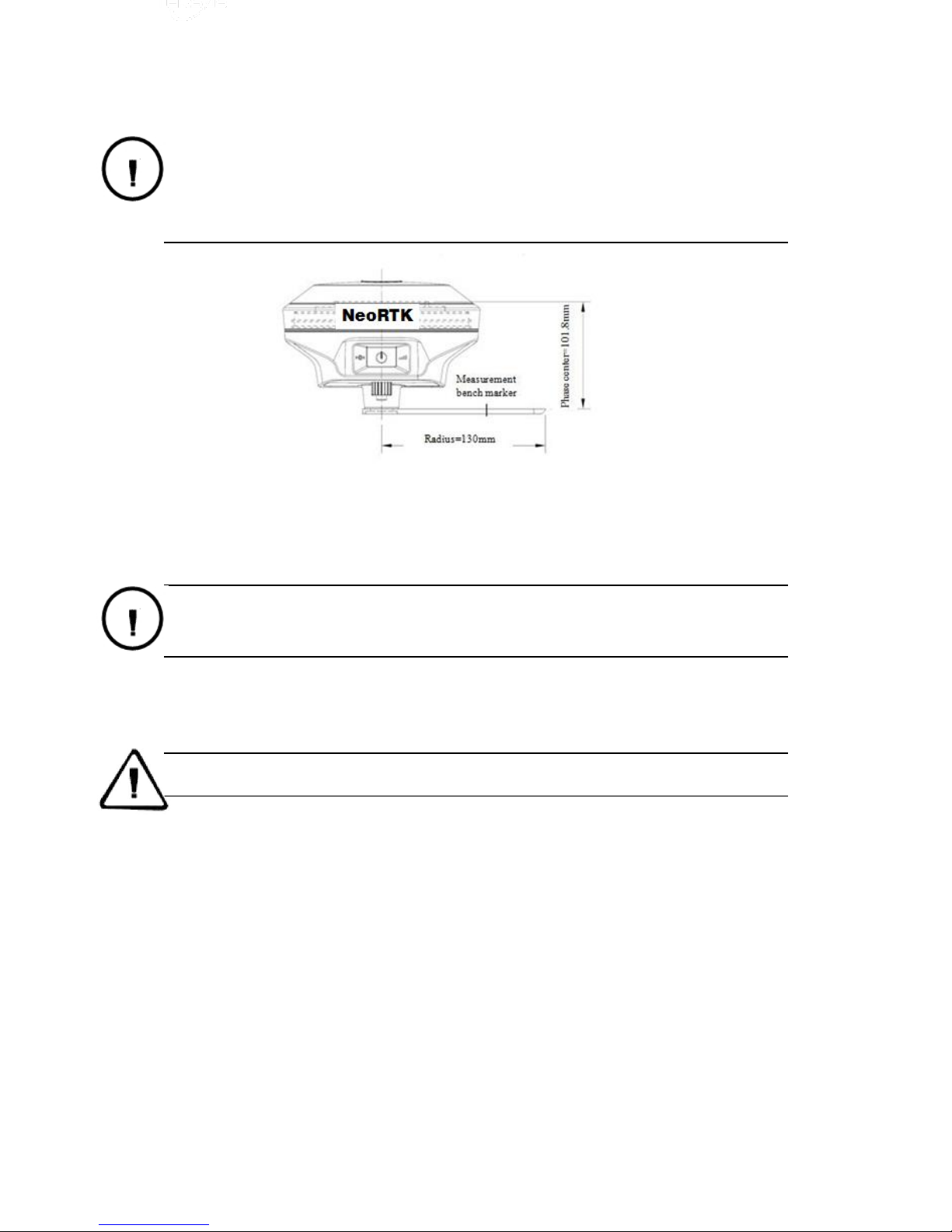

Below is the schematic:

4. Record point name, receiver S/N, receiver height, beginning time.

5. Press power button to power on and double click power button to set static collecting mode; then

single click power button to confirm it.

Notice: The satellite lamp flashing means the receiver is searching the satellites. The satellites

are fixed once the satellite lamp stays lit on. Status lamp flashes due to your collection interval

set, which means an epoch will be collected every flashes.

6. Turn off the receiver after static data collected is finished and save the turn off time.

7. Download and post-process static data.

Caution：Don’t move the tripod or change the collecting set when the receiver is collecting data.

25

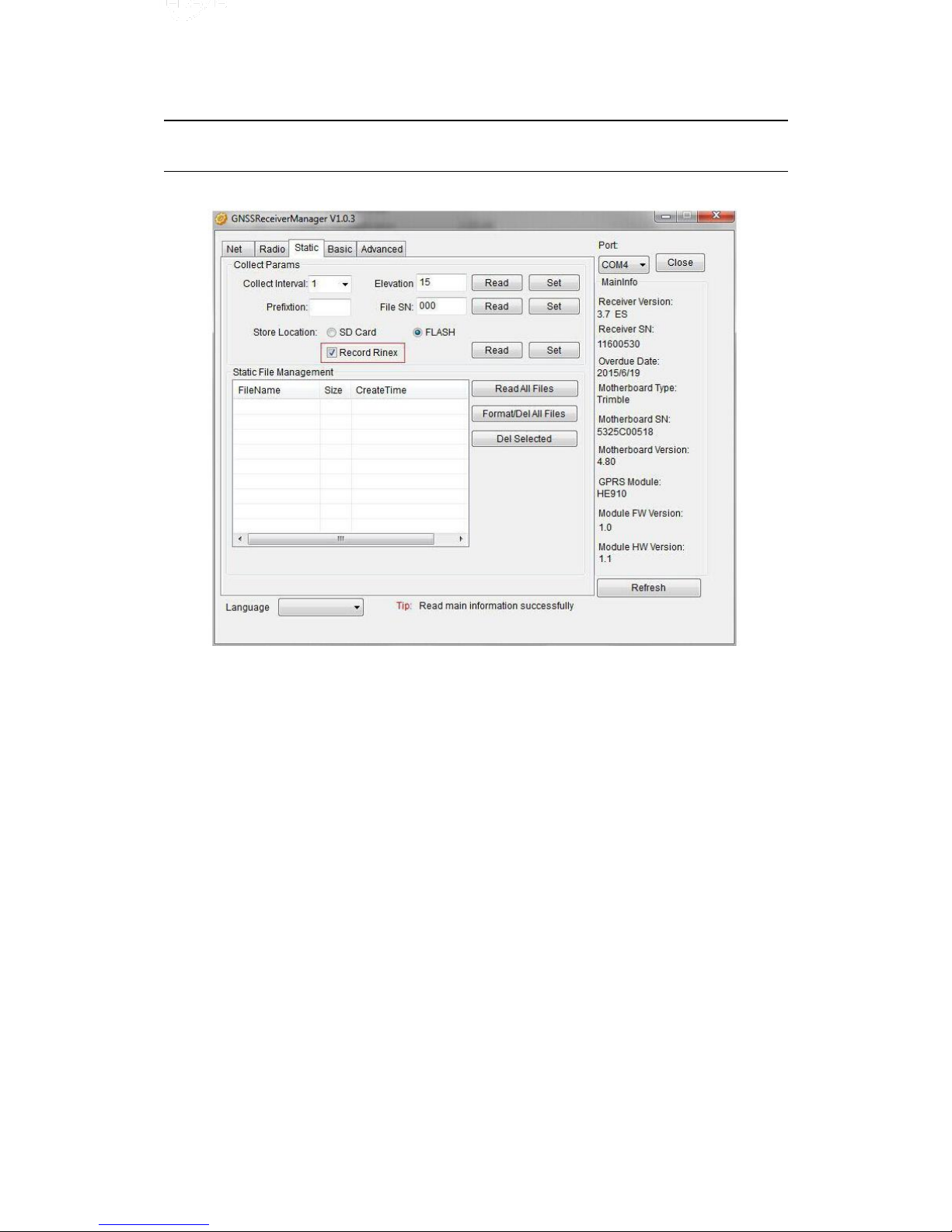

NeoRTK default settings will not record Rinex format data. Users can change settings by GNSS

Receiver Manager Software. Below is the GNSS Receiver Manager Software page.

26

3. Tersus-Survery software

Tersus-survey is the first measure software with high accuracy on Android system in 2017.

Tersus-survey software should run on Android 2.3.3 or above, can run on Tersus professional measurement
controller, general phone, pad and some other Android devices. Just copy the Tersus-survey APK to the
Android device and install it or do it by third party assistance software

Software Feature

1. Easy to use

 More logical, more convenient, less window levels;
 Text and graphic measuring interface in detail survey can be chose by user;
 Simple design to give a big mapping screen;
 Station option can be one key set by configuration file;
 Defined coordinate system and selected by region, convenient to set coordinate parameters;
 Supports many kinds of angle units, meets the operating habits of the field engineers, good for

globalization.

2. Supports operating big data

 Support big raster, vector data (.ed2, .edt, .dxf );
Raw data and coordinate data saved independently, and the antenna type and height of raw data

can be changed, to make sure the data can be recovered;

 More complete antenna parameters management.

3. Fashionable

 The software and receiver firmware check the update online automatically;
 Tersus and profession news are real-time pushed；
 Beautiful and fashionable interface;

Wonderful and rich visual and touch experience

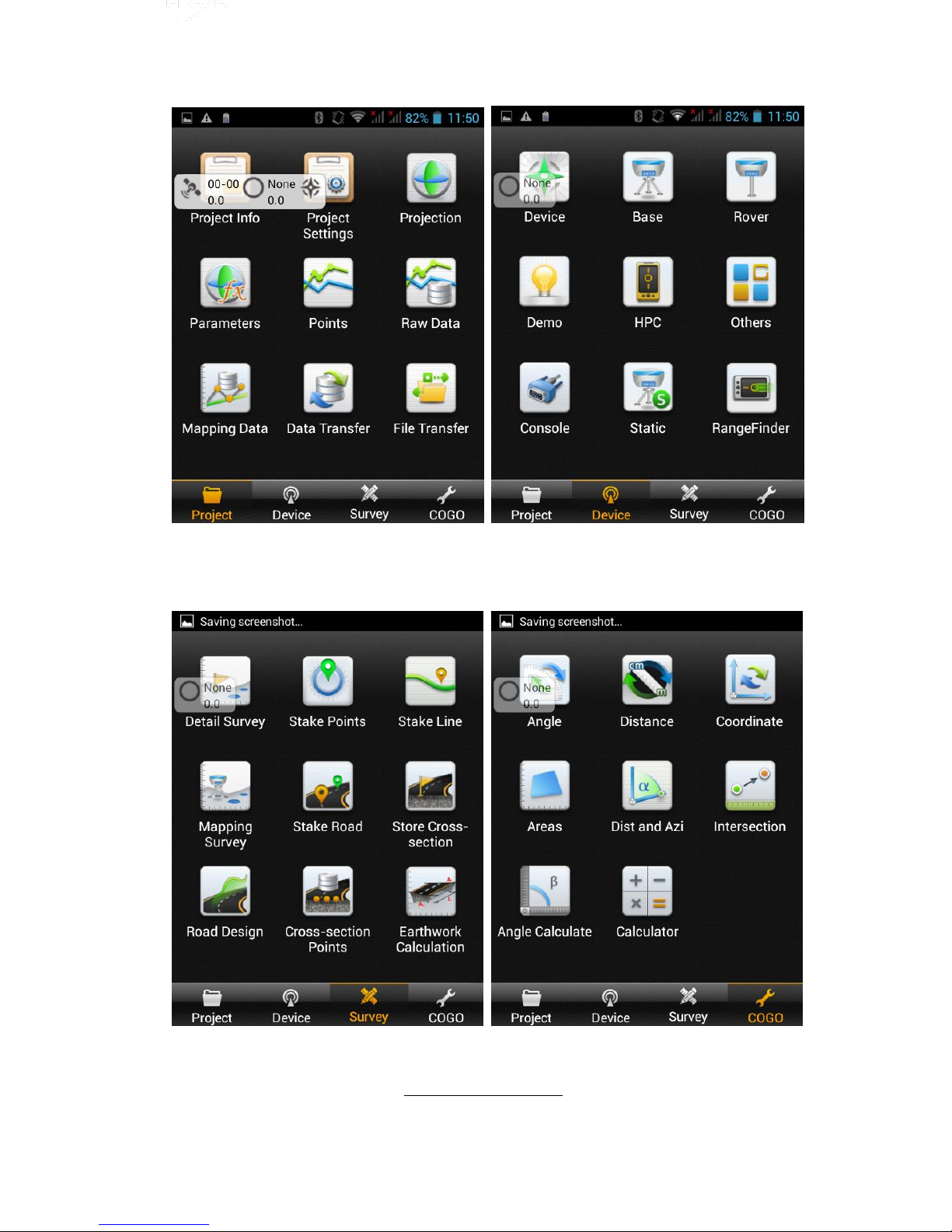

Tersus-Survey software is divided into four groups, that is, Project, Device, Survey and COGO.

27

The above are the draft windows of the four items, for more detail about Tersus-survey, refer to the
Tersus-survey user manual or mail to [e-mail].

28

4. Troubleshooting

This chapter gives several actions a customers may need to do when the NeoRTK can’t work

normally.

4.1 Reset operation

When the Bluetooth is not connected, or satellite searching fails or network connection fails, reset

operation will restart the instrument.

Reset receiver: In power on status, press power button between 3-6s until voice prompts

"dingdong", release power button to power off, wait for a while and press the power button for 1s

to power on.

Reset mainboard：In power on mode, press power button >6s until voice prompts the second
"dingdong" then release the power button. (Purpose: Restore the mainboard to the initial mode.)

29

4.2 USB virtual serial port driver installation

Installation steps are as follows:

1. Confirm to open the virtual serial port driver function, users can view and check these settings
by iHand20.

2. Connect receiver with PC by micro USB cable and install the driver. The driver file support
Windows 7 32-bit, Windows XP 32-bit, other system need to be tested.

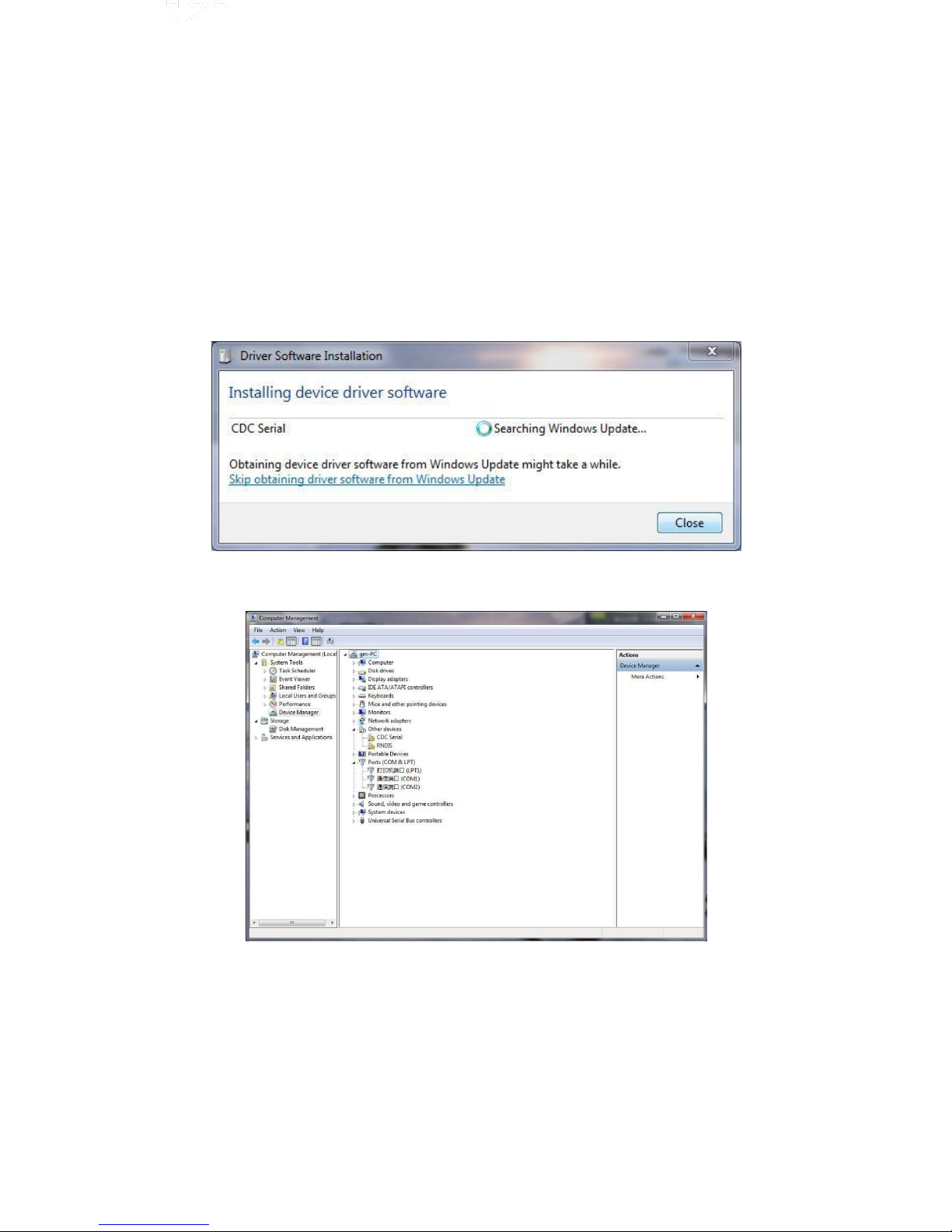

3. After connected, It will prompt "Installing device driver software".

4. Choose "Skip obtaining driver software from Windows update" and open "Computer

management"; In "Other devices" choose the "CDC Serial"

30

5. Right click "CDC Serial" and choose "Upgrade Driver Software" and select

"linux_cdc_seial.inf" then click next.

6. If searched the effective software, the pop-up window will appear, and choose "Install this driver
software anyway".

86

31

7. Successfully updated information will show as below.

32

4.3 Firmware update

Receiver’s firmware updating steps are showed as below.

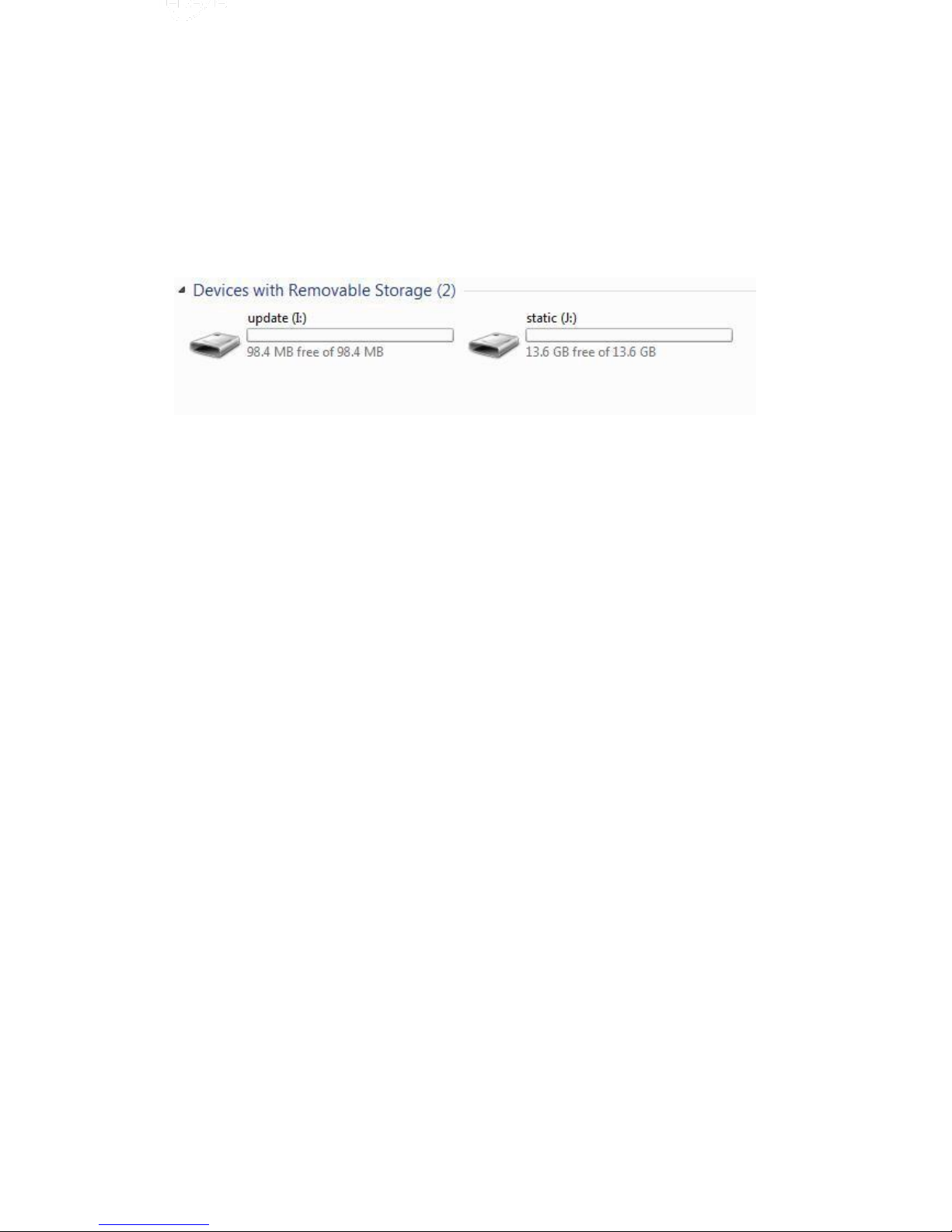

1. Power on NeoRTK GNSS receiver, connect receiver with PC with the manufacturer provided
USB cable. Then open "My Computer", "update" disk will display.

2. Copy the firmware to "update" disk, remove it and disconnect USB cable, restart GNSS
receiver.

3. Restart the process of upgrading will have corresponding voice prompts, if update failed please
contact the technician for help.

33

5. Technical Parameters

34

5.1 GNSS Receiver Part

Satellite Signals Tracked Simultaneously

Receiver Precision

Static and Fast Static GNSS Surveying

Horizontal

2.5mm+0.5ppm RMS

Vertical

5.0mm+0.5ppm RMS

Initialization time

Typically ＜10s

Initialization reliability

Typically > 99.9%

Post Processing Kinematic(PPK / Stop & Go) GNSS Surveying

Horizontal

1cm+1ppm RMS

Vertical

2.5cm+1ppm RMS

Initialization time

Typically 10 minutes for base while 5

minutes for rover

Initialization reliability

Typically > 99.9%

Real Time Kinematic (RTK) Surveying

Single Baseline

Horizontal

8mm+1ppm RMS

Vertical

8mm+1ppm RMS

Network RTK

Horizontal

8mm+0.5ppm RMS

Vertical

15mm+0.5ppm RMS

Initialization time

Typically < 8seconds

Initialization reliability

Typically > 99.9%

Code Differential GNSS Positioning

Horizontal

25cm+1ppm RMS

Vertical

50cm+1ppm RMS

SBAS

0.50m Horizontal, 0.85m Vertical

GPS

Simultaneous L1C/A, L2C, L2E, L5, （L2C, L2P
optional）

GLONASS

Simultaneous L1C/A, L1P, L2C/A,
L2P,L3&L5(optional)

SBAS

Simultaneous L1 C/A, L5

Galileo

Simultaneous L1 BOC, E5A, E5B,
E5AltBOC, E6 (optional)

BDS

B1, B2,B3(optional)

QZSS

L1 C/A, L1 SAIF, L2C, L5

35

Hardware

Physical

Dimensions (W x H)

153mm x 83mm (6.02inch x 3.27inch)

Weight

≤1.0kg without internal battery

Operating temperature

-40℃to +65℃ (-40℉ to +149℉)

Storage temperature

-40℃ to +75℃(-40℉ to +167℉)

Humidity

100%, considering

Water/dustproof

IP67 dustproof, protected from temporary
immersion to depth of 1m (3.28ft).

Shock and vibration

Designed to survive 2m pole drop onto concrete.

Electrical

Power

6V to 28V DC external power input

Power consumption

≤3.5W

Automatic switching between internal power and external power
Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery in internal battery compartment

Internal Battery Life

Static

12hours

RTK base

8 hours

RTK rover

(UHF/GPRS/3G) 8-10 hours

I/O Interface

1 x Bluetooth, WIFI,NFC interface
1 x Radio Module
1 x WCDMA communication module
1 x standard mini USB2.0 port
1 x TNC antenna connector

1 x RS232 serial port
1 x DC power input (5-pin)
1x SIM Card slot
1x SD Card slot
1x built-in lithium battery interface

Tilt Survey System

Electronic Bubble

System Configuration

CPU

AM3352CotexA8 Platform

Storage

16GB Internal storage (Support up to

32GB external SD card)

Record GNS and RINEX format simultaneously

Data Formats

Difference transmits format

sCMRx、CMR、CMR+、RTCM 2.1、2.2、2.3、

3.0、3.1、3.2

Navigation outputs format(Binary)

GSOF

Navigation outputs format(ASCII)

NMEA-0183 GSV, AVR, RMC, HDT,

VGK, VHD, ROT, GGK, GGA, GSA,
ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS,

GBS

Output frequency

1Hz positioning output, up to 20Hz

36

5.2 Communication Part

Network Communication

Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM
WIFI frequency is 2.4G, supports 802.11b/g/n protocol
Network RTK (via CORS) range20-50km

Pacific Crest XDL Micro Internal UHF Radio

Frequency

457~467MHz

Transmitting power

2W

Transmitting speed

Up to 19.2Kbps

Support most of radio communication protocol

Working range

3~5km typical, 8~10km optimal

External UHF Radio (Standard)

Frequency

450 ~ 470MHz with 116 channels

Transmitting power

5W, 10W, 20W, 30W adjustable

Transmitting speed

Up to 19.2Kbps

Working range

8~10km typical, 15~20km optimal

37

5.3 Controller iHand20

iHand20 specification

ID description

Handheld type

Android professional data collecter

Dimension

212mm*86mm*33mm

Weight

520g (battery included)

Keypad backlight

white

Basic parameter

Handheld bands

Card1: support 7 frequencies, include:
W850/1900/2100, GSM 850/900/1800/1900
Card2: support 4 frequencies, include:
GSM 850/900/1800/1900

Waterproof&dustproof prevent

IP68 (6 level dusproof, 8 level waterproof)

Dropping

1.2 meters concrete floor free falling

Keypad

With keypad

Dual Sim dual standby

support

Touch Lens

Multipoint capacitive touch screen, with a stylus, can

be used with all kinds of gloves in winter.

LCD parameter

COM37 H3M7mULC high-light LCD (3.7 inch, can
be read under the sun, 640*480)

Camera

8 million automatic focus

Flash light

High light flash LED

Processor

MT6589, 1.2G, 4 core

Memory

4GB ROM + 1GB RAM

Storage card

Support T-Flash storage card; support 32GB
Micro-SD external storage

Working time

>10 hours [LCD brightest + Bluetooth or WiFi

opening, running Tersus-Survey software]

Standby time

Maximum 900 hours (GSM page9, or WCDMA DRX

= 256)

Battery capacity

More than 6000mA, easy to disassembly, easy to

charge

Wi-Fi (WLAN)

IEEE 802.11 b/g/n, Wapi, AP (from more than 30

meters under the conditions of without occlusion)

Bluetooth

Support V4.1 (LE) (from more than 15 meters under

the conditions of without occlusion)

GPS navigation

Support GPS and AGPS

G-Sensor Gravity sensor

support

Compass

support

FM

support

Barometer

support

Proximity-sensor

support

Light sensor

support

Gyro

support

RFID

support

38

Network

GSM

EDGE

Support

Speech

FR, HR, EFR, AMR (Narrow Band), AMR WB

GPRS functionality

GRPS Class12

WCDMA

HSPA

Support (HSPA)

USIM

support

Maximum downlink data

rate

42 Mbps
Maximum uplink data rate

11.5Mbps

IMEI

Need to be marked

Main Camera

Pixel

8M pixel

Camera technology

CMOS

Auto Focus

support

Picture Size

Max 3296 * 2460

Zoom

Digital zomm 4X

Video

Support video capture, simultaneity audio record

Flash light

High light Flash light

Main feature

System connector

5 pin Mini USB

Audio Jack

3.5 Audio Jack for Audio

USIM

support

T-Flash card

support

Software OS

Software OS

Android 4.2

Miracast

support

Videon phone

support

Language options available

Default language pack

Chinese/English

Environment

Operating temperature

-30C ~ 55C

Storage temperature

-30C ~ 65C

39

5.4 Controller T17M

General

CPU frequency

806MHz

ROM

4GB

RAM

512MB

OS

Windows Mobile 6.X

Multi-language

support

Keypad

27-key alphanumeric pad

Microphone

support

speaker

support

Screen

3.7 inch high light LCD

Resolution

480 * 640

Camera

5Mega pixel

Size

200mm x 96mm x 32mm

Weight

515g (battery included)

GNSS

GPS L1

support

BDS B1

GPS + BD or
GPS + GLONASS

GLONASS L1

Raw data

-

NMEA-0183

support

External antenna

support

Single positioning

2.5m

Accuracy
SBAS

2m

DGPS

1.5m

Hot start

1s

TTFF
Warm start

27s

Cold start

27s

Reacquisition

1s

Standard Bluetooth

support

Communicati

on

Long-distance Bluetooth

optional

NFC

optional

GSM/3G (WCDMA)

3G (WCDMA)

Wi-Fi

support

USB

Type B

Serial port

DB-9 connector

Voice

Not support

External flash

TF card, up to 32G

External Input

DC 5V, 1A

Power
Battery

6,500mAh, 3.7V

Operating temperature

-20C ~ 60C

Environment

Storage temperature

-30C ~ 70C

Dust & water prevent

IP54

Dropping

1.2 free falling

Standard

Power adaptor
USB cable
battery
Serial cable
Touch pen
Strip
Screen protect film
User manual

accessory
Optional

Controller bracket

Optional
External antenna

RF cable

40

6. Accessory

The chapter will introduce the appearance and application of main interface of receiver and

accessories. The following equipment does not represent all users purchased NeoRTK. According to

different configurations, the specific configuration shall be subject to the delivery order upon

purchasing.

6.1 Different Antennas

UHF base mode and UHF rover mode shall use difference antenna. The difference antenna of UHF

base mode is used to transmit UHF difference signal. The difference antenna of UHF rover mode is

used to receive UHF difference signal. 3G mode shall use 3G short antenna as right.

Difference antenna installation:

Grasp the fixed nut in bottom of different antenna with hand to install clockwise. On the contrary,

dismantle difference antenna anticlockwise.

41

Warning: when installing difference antenna, it shall rotate the fixed nut in bottom of difference

antenna with hand rather that grasping the upper side of difference antenna, or it will break off the

difference antenna.

Data Cable

Five-pin plug

Series interface

Five-pin plug: connect Five-pin socket of receiver

Serial interface: it is used to connect with computer serial port, update receiver firmware, set the

receiver, manage static data and set the radio.

Warning: 1. when connecting various plugs of receiver, it shall align the red point in line joint at

the red point in receiver socket, or it will damage the receiver socket and plugs of various lines.

2. When plug out the plug, directly grasp the sliding collar and pull out the plug with effort. It shall
not rotate the plug.

3. After using the cable, it shall place the cable in the place difficult for extrusion, in order to

prevent damaging the plug. When installing the difference antenna, it shall rotate the fixed nut

in bottom of difference antenna with hand, rather than grasping the upper side to rotate, or the

difference antenna will be in bad contact and influence the operating range.

4. This cable is not standard, it’s optional, please contact saels if you need it.

42

6.2 DDTHPB External Radio

DDTHPB external radio is a type of radio improving the performance of relay radio UH-3000.

DDTHPB radio has all functions of URS relay radio. Compared to other radios, it is also

functional in power transposition protection. Even though the external power is connected

wrongly, DDTHPB radio will not be burn out.

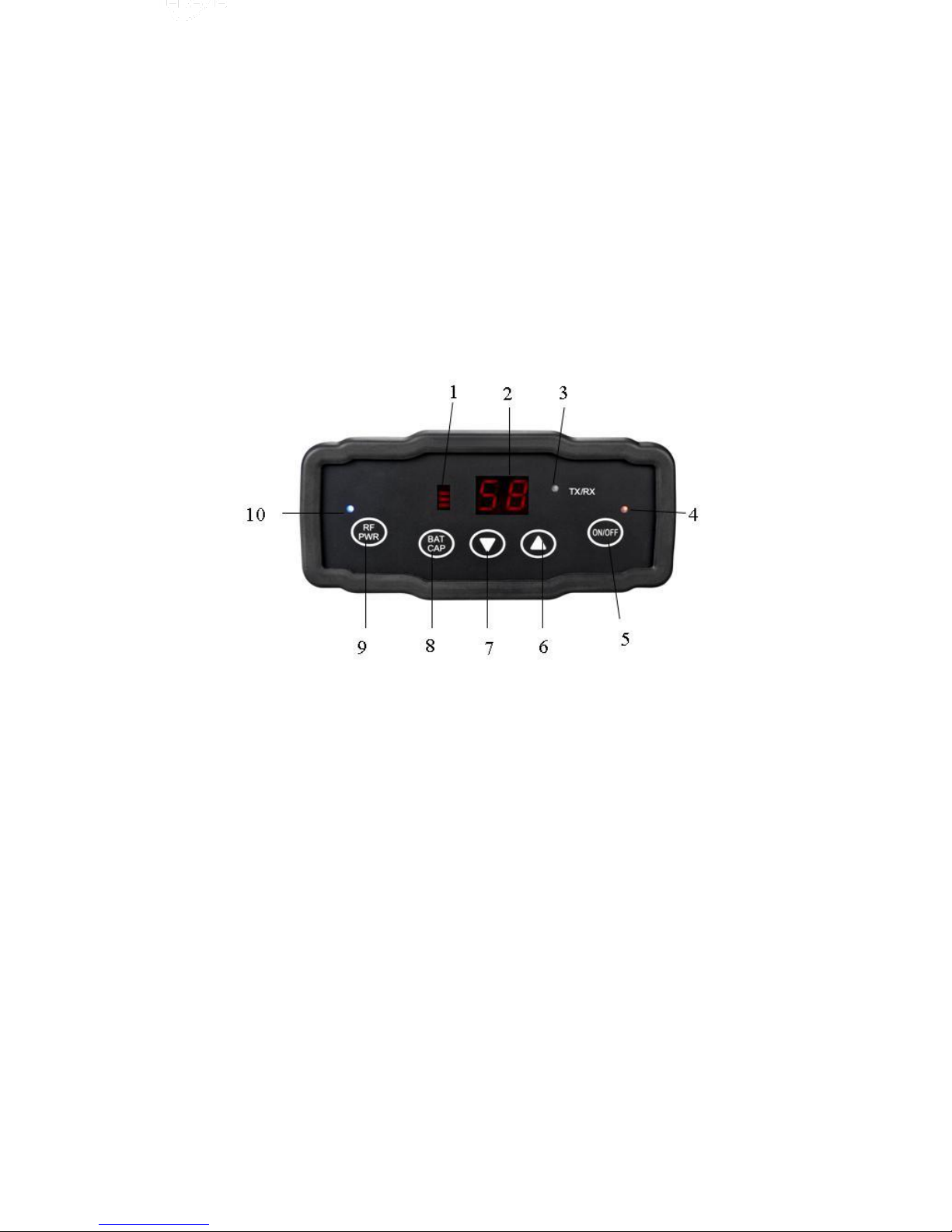

1. Field intensity/power voltage indicator D1

2. Dibit nixie tube indicator D2

3. Send-receive indicator light D3

4. Power/warning indicator D4

5. Key K4 (power on-off key)

6. Key K4 (channel increasing key)

7. Key K3 (channel decreasing key)

8. Key K2 (electric quantity checking key)

9. Key K1 (power toggle key)

10. Power indicator light D5

43

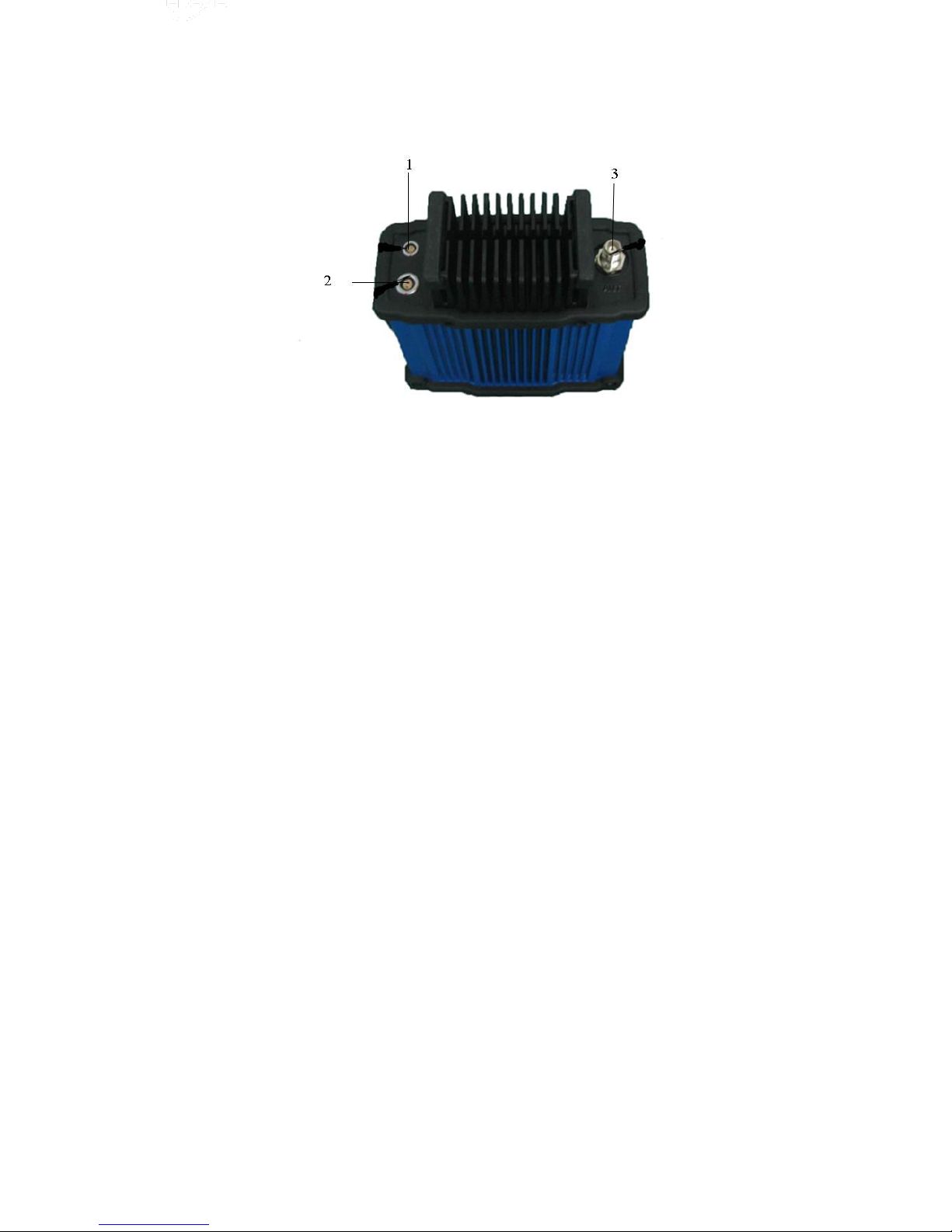

DDTHPB radio interface:

1. Base host to radio cable interface

2. External power interface

3. Transmitting antenna interface

As for the specific operations of DDTHPB external radio, please refer to its manual.

44

Defaulted Frequency Table upon Delivery is given in Table 3, the user may change

defaulted frequency of 16 channels of the radio.

Table 3 Defaulted frequency table of 16 channels in radio

Frequency

Frequency

Channel

Channel

（

MHZ

）

（

MHZ

）

0 466.825

8

466.625

1 463.125

9

463.325

2 464.125

A

464.325

3 465.125

B

465.325

4 466.125

C

466.325

5 463.625

D

463.825

6 464.625

E

464.825

7 465.625

F

465.825

45

7. Terminology

ASCII

American Standard Code for Information Interchange

CMR

Compact Measurement Record

DC

Direct Current

ESD

Electro Static Discharge

ECEF

Earth Center Earth Fixed

GLONASS

GLObal NAvigation Satellite System

GNSS

Global Navigation Satellite System

GPS

Global Positioning System

IF

Intermediate Frequency

IMU

Inertial Measurement Unit

IO

Input/Output

LED

Light Emitting Diode

LNA

Low Noise Amplifier

MPU

Micro Processing Unit

NMEA

National Marine Electronics Association

PC

Personal Computer

PPS

Pulse Per Second

RF

Radio Frequency

RINEX

Receiver Independent Exchange format

RMS

Root Mean Squares

RTK

Real-Time Kinematic

RTCM

Radio Technical Commission for Maritime Services

SMA

Sub-Miniature-A interface

TTFF

Time to First Fix

TTL

Transistor-Transistor Logic level

UART

Universal Asynchronous Receiver/Transmitter

USB

Universal Serial BUS

WGS84

Word Geodetic System 1984
