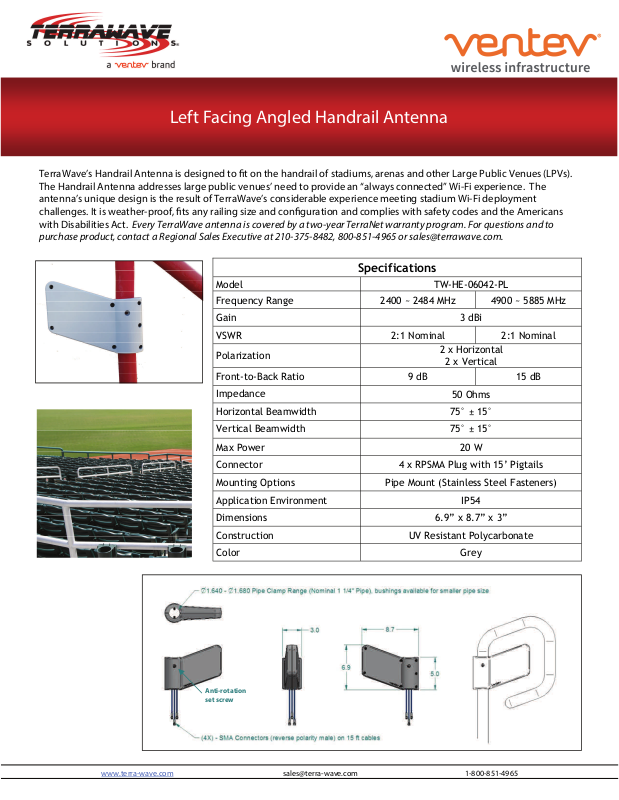

TerraWave TW-HE-06042-PL User Manual

Left Facing Angled Handrail Antenna

TerraWave’s Handrail Antenna is designed to t on the handrail of stadiums, arenas and other Large Public Venues (LPVs).
The Handrail Antenna addresses large public venues’ need to provide an “always connected” Wi-Fi experience. The
antenna’s unique design is the result of TerraWave’s considerable experience meeting stadium Wi-Fi deployment
challenges. It is weather-proof, ts any railing size and conguration and complies with safety codes and the Americans
with Disabilities Act. Every TerraWave antenna is covered by a two-year TerraNet warranty program. For questions and to
purchase product, contact a Regional Sales Executive at 210-375-8482, 800-851-4965 or [e-mail].

Specifications

Model TW-HE-06042-PL

Frequency Range 2400 ~ 2484 MHz 4900 ~ 5885 MHz

Gain 3 dBi

VSWR 2:1 Nominal 2:1 Nominal

Polarization

Front-to-Back Ratio

Impedance

Horizontal Beamwidth 75° ± 15°

9 dB 15 dB

2 x Horizontal

2 x Vertical

50 Ohms

Vertical Beamwidth

Max Power 20 W

Connector 4 x RPSMA Plug with 15’ Pigtails

Mounting Options Pipe Mount (Stainless Steel Fasteners)

Application Environment IP54

Dimensions 6.9” x 8.7” x 3”

Construction UV Resistant Polycarbonate

Color Grey

Anti-rotation
set screw

75° ± 15°
