TerraWave T24050O13602M-I User Manual

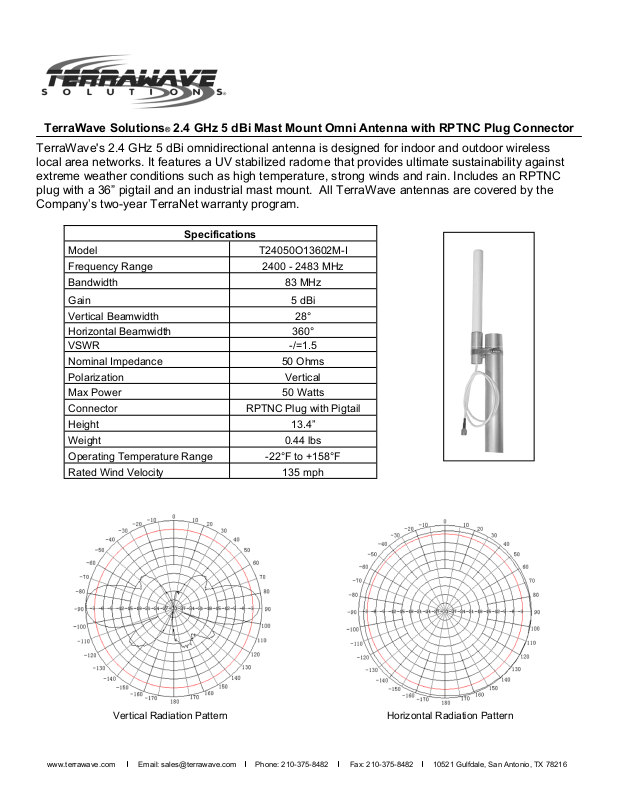

TerraWave Solutions® 2.4 GHz 5 dBi Mast Mount Omni Antenna with RPTNC Plug Connector

TerraWave's 2.4 GHz 5 dBi omnidirectional antenna is designed for indoor and outdoor wireless
local area networks. It features a UV stabilized radome that provides ultimate sustainability against
extreme weather conditions such as high temperature, strong winds and rain. Includes an RPTNC
plug with a 36” pigtail and an industrial mast mount. All TerraWave antennas are covered by the
Company’s two-year TerraNet warranty program.

Specifications

Model T24050O13602M-I

Frequency Range 2400 - 2483 MHz

Bandwidth 83 MHz

Gain 5 dBi

Vertical Beamwidth 28°
Horizontal Beamwidth 360°
VSWR -/=1.5
Nominal Impedance 50 Ohms

Polarization Vertical

Max Power 50 Watts

Connector RPTNC Plug with Pigtail

Height 13.4”

Weight 0.44 lbs

Operating Temperature Range -22°F to +158°F
Rated Wind Velocity 135 mph

www.terrawave.com Email: [e-mail] Phone: [phone] Fax: [phone] 10521 Gulfdale, San Antonio, TX 78216

Vertical Radiation Pattern Horizontal Radiation Pattern

TerraWave Solutions® Industrial Mast Mount for 2.4 GHz and 5 GHz Mast Mount Omnis

TerraWave's industrial mast mount for the 2.4 and 5 GHz mast mount omnis is designed for
maximum durability and offers the flexibility of mounting the antenna in multiple installation options.

Installation Options

Included Components
