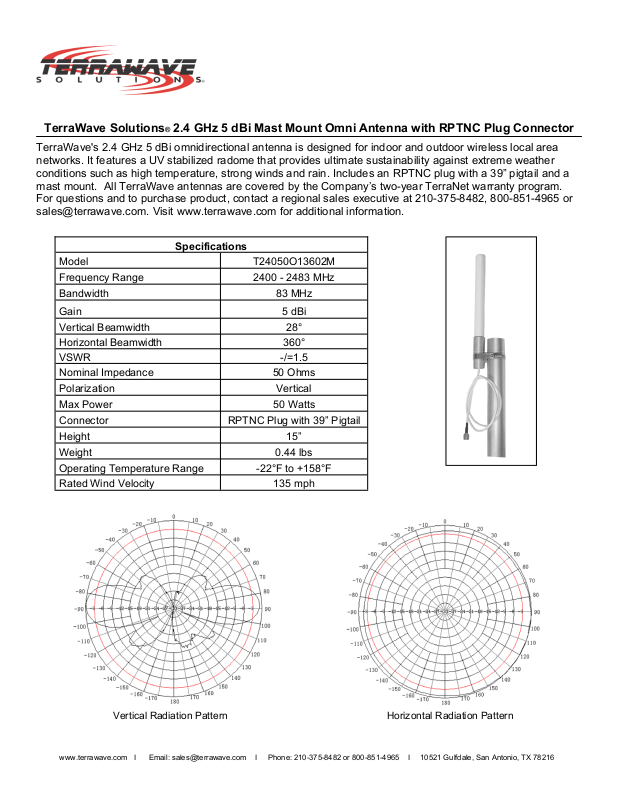

TerraWave Solutions® 2.4 GHz 5 dBi Mast Mount Omni Antenna with RPTNC Plug Connector
TerraWave's 2.4 GHz 5 dBi omnidirectional antenna is designed for indoor and outdoor wireless local area
networks. It features a UV stabilized radome that provides ultimate sustainability against extreme weather
conditions such as high temperature, strong winds and rain. Includes an RPTNC plug with a 39” pigtail and a
mast mount. All TerraWave antennas are covered by the Company’s two-year TerraNet warranty program.
For questions and to purchase product, contact a regional sales executive at 210-375-8482, 800-851-4965 or
sales@terrawave.com. Visit www.terrawave.com for additional information.
Specifications
Model T24050O13602M
Frequency Range 2400 - 2483 MHz
Bandwidth 83 MHz
Gain 5 dBi
Vertical Beamwidth 28°
Horizontal Beamwidth 360°
VSWR -/=1.5
Nominal Impedance 50 Ohms
Polarization Vertical
Max Power 50 Watts
Connector RPTNC Plug with 39” Pigtail
Height 15”
Weight 0.44 lbs
Operating Temperature Range -22°F to +158°F
Rated Wind Velocity 135 mph
Vertical Radiation Pattern Horizontal Radiation Pattern
www.terrawave.com I Email: sales@terrawave.com I Phone: 210-375-8482 or 800-851-4965 I 10521 Gulfdale, San Antonio, TX 78216
Page 2
TerraWave Solutions® 2.4 GHz 5 dBi Outdoor Omnidirectional Antenna
Mounting Bracket Information for T24050O13602M
1. Loosen the hose gasket.
2. Place the gasket between the antenna and mast.
3. Fasten the hose bracket to attach antenna firmly to the mast.
4. Seal the connector parts with waterproof tape.
