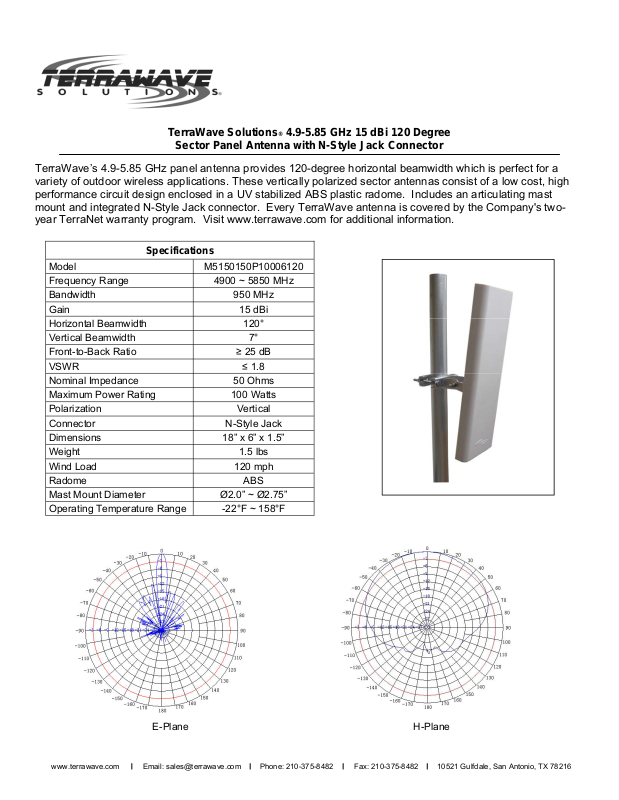

TerraWave Solutions® 4.9-5.85 GHz 15 dBi 120 Degree

Sector Panel Antenna with N-Style Jack Connector

TerraWave’s 4.9-5.85 GHz panel antenna provides 120-degree horizontal beamwidth which is perfect for a
variety of outdoor wireless applications. These vertically polarized sector antennas consist of a low cost, high
performance circuit design enclosed in a UV stabilized ABS plastic radome. Includes an articulating mast
mount and integrated N-Style Jack connector. Every TerraWave antenna is covered by the Company's two­year TerraNet warranty program. Visit www.terrawave.com for additional information.

Specifications

Model M5150150P10006120
Frequency Range 4900 ~ 5850 MHz
Bandwidth 950 MHz
Gain 15 dBi
Horizontal Beamwidth 120°
Vertical Beamwidth 7°
Front-to-Back Ratio ≥ 25 dB
VSWR ≤ 1.8
Nominal Impedance 50 Ohms
Maximum Power Rating 100 Watts
Polarization Vertical
Connector N-Style Jack
Dimensions 18” x 6” x 1.5”
Weight 1.5 lbs
Wind Load 120 mph
Radome ABS
Mast Mount Diameter Ø2.0” ~ Ø2.75”
Operating Temperature Range -22°F ~ 158°F

E-Plane H-Plane

www.terrawave.com Email: [e-mail] Phone: [phone] Fax: [phone] 10521 Gulfdale, San Antonio, TX 78216

TerraWave Solutions® 4.9-5.85 GHz 15 dBi 120 Degree

Sector Panel Antenna with N-Style Jack Connector

Mounting Bracket Information for M5150150P10006120
