Terratek TTRTK User Manual

Rotary Mini Grinder

TTRTK

User Manual — Please read and retain for future reference.

IMPORTANT: Read all instructions before use.

Contents

Parts List

Parts List

Safety Instructions

Technical Information

Using your tool
Maintenance
Warranty

1

No. Description

1 Plug
2 Cord sleeve
3 Screw
4 PCB board
5 Switch
6 Screw
7 Left body
8 Stator

9 Carbon brush
10 Right body
11 Rotor
12 Spindle lock button
13 Nose cap
14 Collet
15 Collet but
16 Bearing

2

Exploded Assembly Diagram

NOTICE: Actual product may vary from pictures shown.

3

1

2

3

4

5

Fig.1

Fig.2

1. ON/OFF switch

2. Speed controller

3. Collet chuck nut

4. Locking knob for collet chuck

5. cover

4

Accessories list

Specification

No. Quantity Description

1 4 1/4” x 1/2” Grinding belt
2 4 1/2” x 1/2” Grinding belt
3 6 Collet (1.6, 2.4, 3.2 mm x 2)
4 1 Cutter (Ball shaped)
5 1 Cutter
6 3 HSS Drill bits ( 1.6, 2.3, 3.2mm)
7 7 Diamond-tipped cutter
8 1 Arbor for felt wheels
9 1 Arbor for grinding wheels

10 2

Grinding head for grinding belt

( 1/4”, 1/2”)
11 1 Cutting wheel with arbor
12 10 Grinding pin
13 5 Wire Brush
14 1 Polishing paste
15 2 Felt polishing Wheels (1” x 1/4”)
16 1 Fabric polishing wheel ( 1” x 1/8”)

17 1

Felt pointed polishing Wheel Pointed

( 3/8" x 3/4")
18 4 Felt polishing Wheels ( 1/2" x 1/4")
19 12 Grinding Wheel
20 2 Emery wheel
21 90 Sanding paper (180, 200 and 240 grit)
22 30 Cut Off Wheels Heavy Duty ( 0.8mm)
23 36 Cut Off Wheels Regular (0.4mm)

24 5

Cut Off Wheels Fiberglass

(1 1/4" x 3/64")
25 1 Whetstone

5

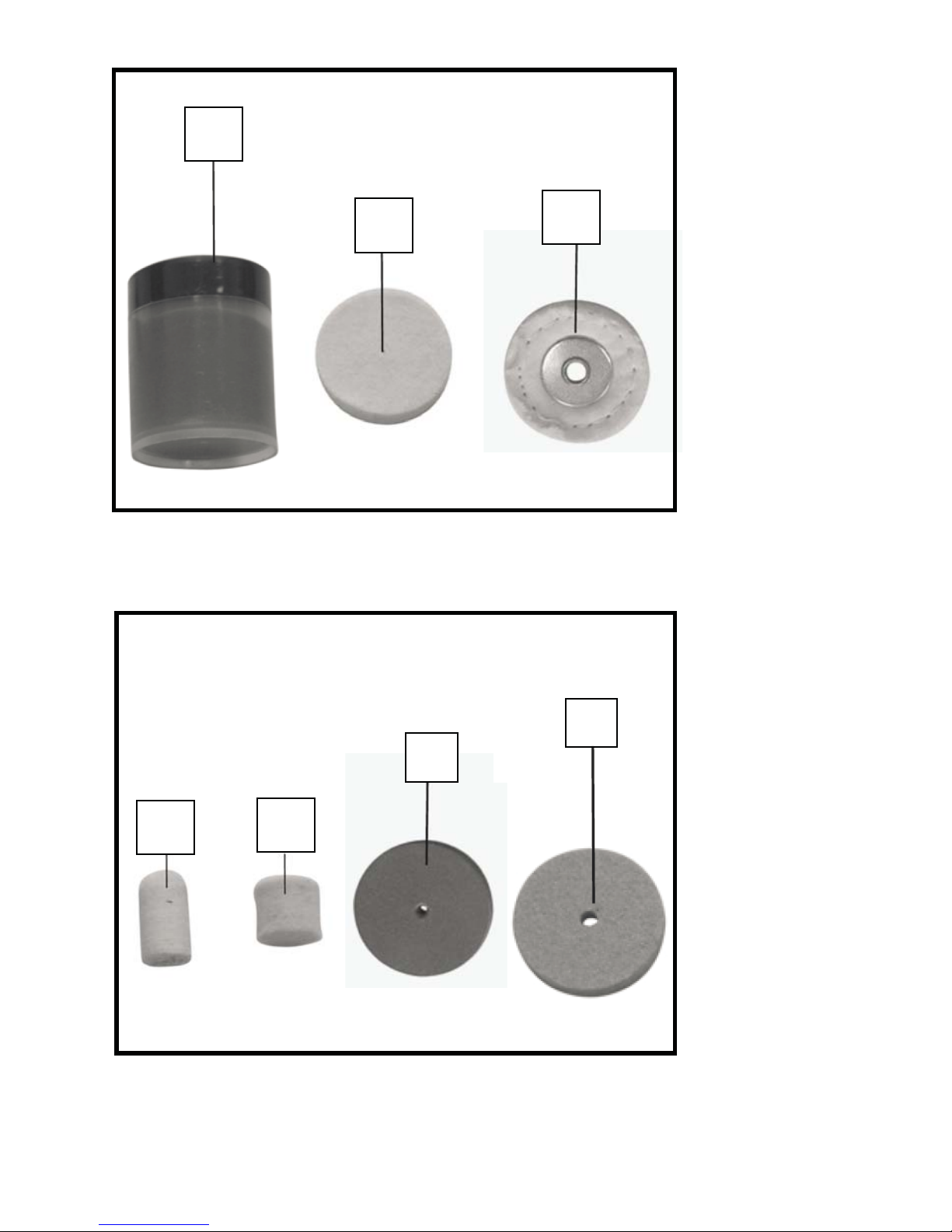

Picture No. 1

3 2

1

Picture No. 2

4

6

5

6

Picture No. 4

Picture No. 3

7

9 8

11

10

7

Picture No. 6

Picture No. 5

12

13
