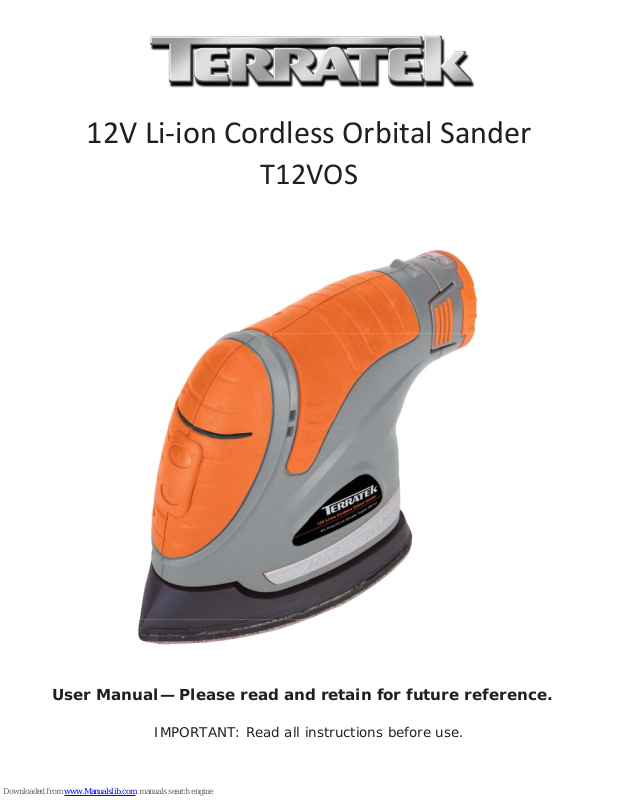

Terratek T12VOS User Manual

12V Li-ion Cordless Orbital Sander

T12VOS

User Manual — Please read and retain for future reference.

IMPORTANT: Read all instructions before use.

Contents

Parts List

Parts List

Safety Instructions

Technical Information

Using your sander

Maintenance

Warranty

1

No. Description No. Description

1 Sander paper 18 Gear
2 Screws ST3.5X8 19 Small gear
3 Screws ST2.2X10 20 Needle bearing
4 Flat plate 21 screws M3X6
5 Fixed plate 22 Spring Washer
6 Screws ST3X14 23 Locator card
7 Plate 24 Motor
8 Right sleeve 25 Right housing

9 Rubber ring 26 Switch button
10 Bearing 628-2Z 27 Power generate lug holder
11 Swinging mounting 28 Switch
12 Bearing spring circlip diameter 12 29 Wire
13 Counter balance 30 Spring straight pin
14 Washer 31 Battery pack
15 Swinging mounting 32 Left housing
16 Eccentric shaft 33 Left sleeve
17 Bearing 6000-2Z 34 Fast charger

2

Exploded Assembly Diagram

NOTICE: Actual product may vary from pictures shown.

3

2

3

1

5

4

fig.1

fig.2

1. Sanding Pad

2. On/Off switch

3. Soft grip handle

4. Battery pack

5. Charger

Tabs

Charge indicator

Battery capacity indicator LED

4

Technical Information

Model: T12VOS
Rated Voltage: 12V DC
No-load Speed: 10000 /min
Orbital diameter: 1.6 mm
Battery Type: 1300 mAh Li-ion

Charger
Charging time: 1 hour
Input: 100-240V AC, 50 – 60 Hz, 27W
Output: 12.6V DC, 1500mA Max

Read this entire manual before using this product.
Failure to do so can result in serious injury. Save this manual
for future reference.

Copyright© 2013 by ACL Group (Intl) Ltd. All rights reserved. This manual or any artwork
contained herein must not be reproduced in any shape or form without the express written
consent of ACL Group (Intl) Ltd. Diagrams within this manual may not be drawn
proportionally. Due to continuing improvements, actual product may differ slightly from the
product described herein.

5

Read and Keep This Manual

Please read carefully all instructions within this manual. Failure to follow all safety warnings
can result in serious personal injury. The term “Power Tool” in all of the following warnings
refers to your mains operated (corded) or battery operated (cordless) power tool.

This symbol is to warn you of potential personal injury
hazards. Please read carefully the notes along side this warning
to avoid possible injury or death.

Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.

Important SAFETY Information

General Safety Rules

Work area safety

WARNING! Read all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious injury.
The term “power tool” in all of the warnings listed refers to corded or
cordless power tools.
