TerraTec Audio User Manual
English manual
Version 11.11.04
CE Declaration
We:
TerraTec Electronic GmbH, Herrenpfad 38, D-41334 Nettetal, Germany
hereby declare that the product:
ReceiverSystem NOXON Audio
to which this declaration refers is in compliance with the following standards or standardizing documents:
1. EN 55022 Class B
2. EN 55024
The following are the stipulated operating and environmental conditions for said compliance:
residential, business and commercial environments and small-company environments.
This declaration is based on:
Test report(s) of the EMC testing laboratory
The information in this document is subject to change without notice and shall not be deemed as a warranty by the
seller. No warranties, express or implied, are made with regard to the quality, suitability or accuracy of this document. The manufacturer reserves the right to change the contents of this document and/or the associated products
at any time without the provision of prior notice to specific persons or organizations. The manufacturer shall not be
held liable for damages of any kind arising from the use, or the inability to use this product or its documentation,
even if the possibility of such damage is known. The information in this document is subject to copyright. All rights
are reserved. No part of this manual may be reproduced or transmitted in any form or for any purpose without the
express written permission of the copyright holders. Product and brand names contained in this document are used
for identification purposes only. All registered trademarks, product designations or brand names used in this
document are the registered property of their respective owners.
©TerraTec
®
Electronic GmbH, 1994 - 2004. All rights reserved (11.11.04).
This product is protected by certain intellectual property rights of NEMS. Use or distribution of such technology
outside of this product is prohibited without a license from NEMS or an authorized NEMS subsidiary.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such
technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft sub-
sidiary.
MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.
2 ReceiverSystem NOXON Audio (English)
Contents
Welcome..................................................................................................................................4
Setup, safety and care information. ........................................................................................ 6
From opening the package to installation ................................................................................7
Connections. .......................................................................................................................... 8
Network integration—one way or the other. ............................................................................ 9
Setting up a direct (ad hoc) connection to your PC. ................................................................10
Preparing to use the device with a wireless router. ................................................................ 13
Hello, here we are: SSID broadcast. .......................................................................................13
To identify or not to identify: the MAC address....................................................................... 14
Sometimes required: a fixed IP. .............................................................................................14
But now, switch on the NOXON. .............................................................................................15
The universal network configuration wizard. ..........................................................................15
Playback options. ..................................................................................................................18
Playing MP3/WMA files from the local network. .....................................................................19
Receiving Internet radio. ........................................................................................................ 21
The remote control................................................................................................................ 22
Buttons and their functions. ................................................................................................. 22
Entering text with the remote control. ....................................................................................23
The configuration menu .........................................................................................................24
Your own music server. ..........................................................................................................25
Installing Musicmatch............................................................................................................25
Firing up the UPnP server. ......................................................................................................27
UPnP media server alternatives. ........................................................................................... 28

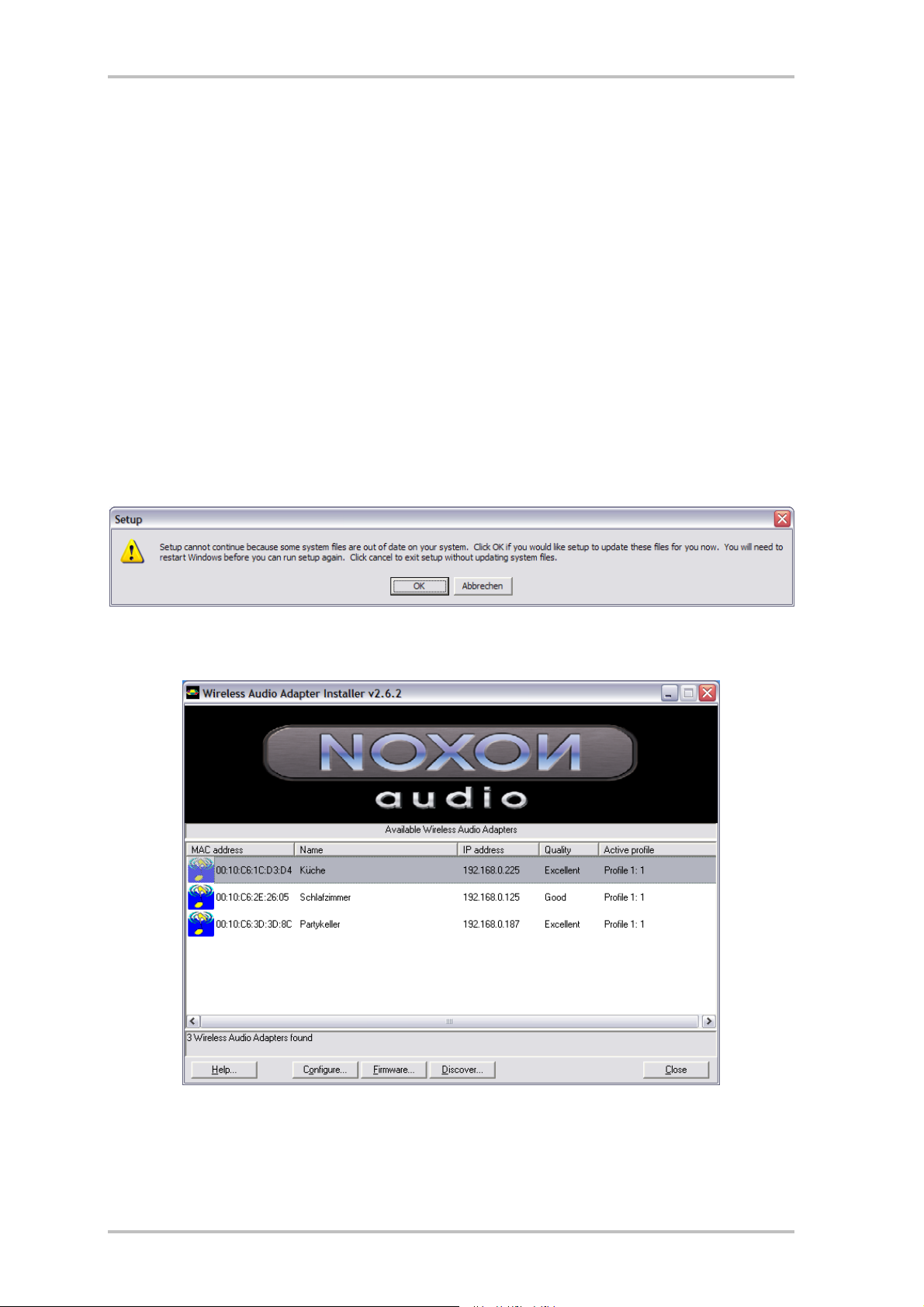

The application—the NOXON Manager.................................................................................. 29
Configuring devices via the NOXON Manager. ........................................................................30

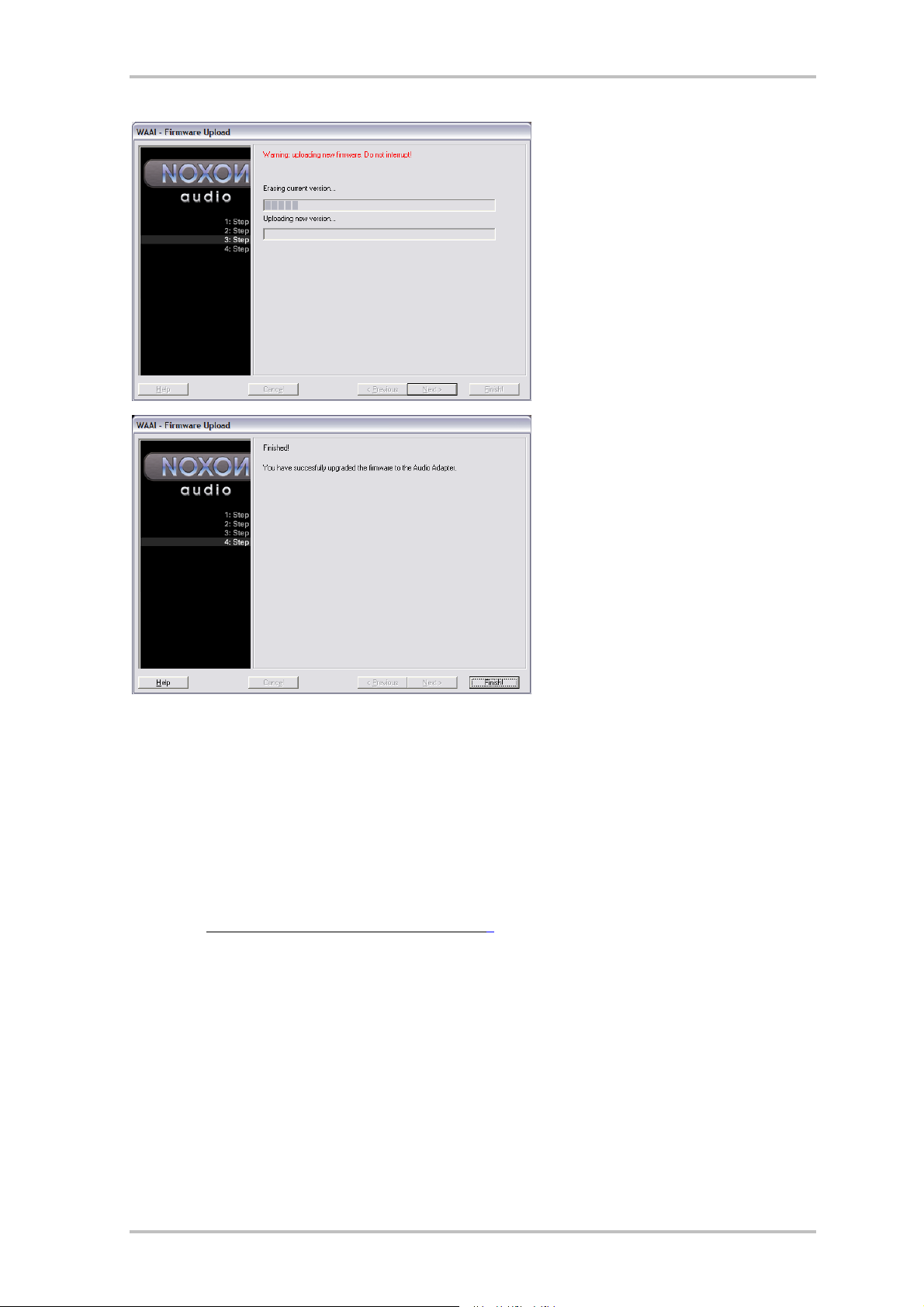

Updating the firmware. ..........................................................................................................31
Appendix. ..............................................................................................................................33
Geeks only—building your own Favorites from links...............................................................33
FAQ—frequently-asked questions and their answers. ............................................................35
Technical glossary .................................................................................................................39
Service at TerraTec.................................................................................................................41
ReceiverSystem NOXON Audio (English) 3
Welcome.
We're pleased that you've chosen a TerraTec product and would like to congratulate you on
your decision. This attractive playback module provides convenient access to audio libraries
within your home network, and to a vast number of online radio stations on the Internet.
The NOXON audio
Media library. This device integrates easily in your existing wireless network (wireless LAN,
WLAN or WiFi) and supports both 802.11b and 802.11g standards. Simply add a media server
to your network and your complete collection of MP3 and WMA audio files will be available
anywhere in your home. Needless to say, the more powerful the transmitter performance of
your router, the greater the range will be.
Always online. The NOXON is an ideal complement to your DSL or other broadband Internet
connection. With a flat-rate connection, you can use the NOXON to enjoy the wide selection of
MP3 radio stations on the Internet, regardless of whether you access the Internet via your
desktop, laptop or router. And to make sure you never lose your overview, choose the hottest
stations from the convenient list updated daily by the VTuner Premium Service.
Hand and glove. The NOXON not only has a fixed MAC address, but it also supports WEP encryption and proxy servers to ensure a long and happy integration in your network. Don't worry
if these terms don't mean anything to you right now—we'll walk you through the setup on the
following pages so that you'll be up and running in no time, even as a network newbie.
4 ReceiverSystem NOXON Audio (English)
Last but not least. As you've probably noticed, we can't help but praise our little baby extravagantly at every opportunity. We hope you enjoy your NOXON audio as much as we do,
and would like to suggest that you browse this manual in detail when you get the chance. In
addition to the important information about the use of its technology, we have outlined a
number of typical applications wherever appropriate. We're convinced that even experienced
users will profit from this guide.
Thank you very much.
...your TerraTec Team
ReceiverSystem NOXON Audio (English) 5
You need to be aware of some basic information before you start ...
Setup, safety and care information.
· Please place the device on an even, dry surface to prevent fire and electrical shock
hazards as well as possible damage to the player itself.
· Keep it away from radiators and ensure that the player is at a safe distance from other
HiFi devices to prevent overheating.
· Do not stack (HiFi) devices without feet on top of the player and be especially careful
not to place objects filled with liquids such as vases or bottles on your sound module.
· Be sure that the voltage is correct before connecting the power supply. (Details are
printed on the power supply itself.)
· If you are not going to use the device for an extended period, disconnect it from the
power supply. To avoid short circuits, never pull on the cable itself.
· In addition, be sure to unplug the device from the AC outlet in the event of a thunderstorm.
· If the device has been exposed to extreme differences in temperature, allow it to adjust to the room temperature for one hour before plugging it in. Condensation may
have formed inside the device which could impair its functionality.
· Use a dry or slightly moistened, lint-free cloth to clean the NOXON. Do not use cleaning products as they may damage the finish of the unit.
To put it simply, just use the device sensibly. The warranty does not cover deliberate damage
to the device. Thank you.
6 ReceiverSystem NOXON Audio (English)
From opening the package to installation
Start by making sure that the contents of the package are complete. The NOXON package
should contain at least the following items:
The NOXON receiver module, together with two
fashionable plastic feet,
an audio cable (3.5 mm minijack to RCA), an infrared remote control including
as well as:
· a software CD,
· this manual,
· a service request form,
· and a TerraTec registration card with the serial number.
So, before you put your powerful new worldwide receiver into operation, please check the
configuration of your system and network to ensure that they correspond to the minimum
requirements listed on the package. We cannot guarantee its correct operation if your environment does not meet these requirements.
a device-specific power supply,
batteries,
Unfortunately, it's impossible to cover the topic of networking without juggling the occasional
bit of cryptic terminology. That's why we've included a glossary on page 39, as well as a FAQ
with the answers to the most common questions.
But first, let's ensure that the NOXON is correctly connected to your stereo and the power
supply.
ReceiverSystem NOXON Audio (English) 7
Connections.
Once you have removed the packaging material, connect the NOXON to an AC outlet using the
included power supply. The plug of the power supply can only be inserted in one of the two
sockets on the device.
Please use only the included power supply with the NOXON. While some universal power
supplies have the same plug and voltage, their amperage isn't high enough. Should you need
a replacement, please contact our service.
But now let's connect it to your sound system. The audio output operates at line level. It's
suitable for connecting to a line input of your stereo (labeled CD, AUX or VIDEO, for example)
or an active speaker system such as those connected to many PCs and especially those of the
thoughtfully-designed TerraTec product range. The included audio cable is designed for this
connection.
The audio output is not suitable for connecting headphones. Please use the headphone
socket of your amplifier or speaker system instead.
Before making the connection to your amplifier, please make sure the volume is at a suitable
level to prevent damage to your hardware or your ears. Now that the cabling is in place, here's
some basic information related to the network.
8 ReceiverSystem NOXON Audio (English)
Network integration—one way or the other.
Before we actually start setting up the NOXON, we have to make a distinction between two
different ways of integrating the audio adapter.
Ad hoc con-
nection
A - direct communication. On one hand, you may wish to set up the NOXON to communicate
directly with your desktop or laptop PC, from device to device without an access point (AP). A
wireless device-to-device connection is known as an ad hoc network, from Latin: “for this purpose only”.
AP - access
point
B - via the router. The other type of connection can already be deduced clearly from the first—
not direct, but via special access points (APs). In general, these points are routers, which may
also be wireless. While exact figures are not available, one can nevertheless safely assume
that this is currently the most common way to gain broadband Internet access and share it
among several users. The NOXON is also the most fun to use this way, as you can receive radio from the Internet or music from other servers in your home network without necessarily
having your own computer running at the time. On the following pages, we will be giving you
the information you need to integrate your NOXON in either of these ways.
NOXON au-
dio
NOXON au-
dio
ReceiverSystem NOXON Audio (English) 9
Setting up a direct (ad hoc) connection to your PC.
To establish a direct connection to a computer—in most cases a notebook with
an integrated wireless network adapter—let's first have a look at how to set up
a Windows PC for an ad hoc network so that the NOXON can access it.
A wireless network adapter can only be set up for direct device-to-device (ad
hoc) communication, OR for communication with a network access point (infrastructure). Selecting one mode will automatically disable the other.
Please disconnect or disable all network connections other than the wireless one during the
setup to eliminate possible sources of errors. This will ensure that Windows will not attempt
to communicate with the NOXON by any other way.
Network connections. To do so, click “Start”, open the “Control Panel” and “Network Connections”. This will display an overview of all available network resources. Disable all of the entries other than your wireless adapter by right-clicking them to open their context menus and
selecting “Disable”. Everything but wireless.
Some systems will also display a “Network Bridge” here. Do not disable or bypass this until
all other attempts fail.
Unfortunately, experience has shown that Windows occasionally develops a completely inscrutable life of its own that cannot be dealt with effectively using esoteric methods. If the
idea doesn't bother you too much, simply use the crude but effective approach and pull the
plug of the network cable to support our efforts.
Open the overview of network connections as described above and follow the instructions
below…
10 ReceiverSystem NOXON Audio (English)
Double-click the network connection you
will be using, followed by “Properties” to
open its settings. Go to the “Wireless Networks” tab for an overview similar to the
one shown here.
Some wireless adapters provide these
functions via their own software, in which
case you should find comparable instructions in its documentation. Alternatively,
you can put a check next to “Use Windows
to configure my wireless network settings”—if you know what you're doing.
Switch to the “Advanced” tab (not the
“Advanced” button, we'll come to it later)
and ensure that your settings are as they
are shown here.
Switch back to the “Wireless Networks”
tab and click the “Advanced” button. The
dialog box shown here will open. Choose
“Computer-to-computer (ad hoc) networks
only” and click “Close” to exit the dialog
box.
ReceiverSystem NOXON Audio (English) 11
In the already-familiar window, click
“Add...” to assign a variety of parameters
to your ad hoc network.
First enter the name of the network, also
known as the SSID (Service Set Identifier).
The other options shown would work with
the NOXON and can be selected. You can
also use a WEP (Wired Equivalent Privacy)
key by specifying it later during the further
configuration of the device.
After a few moments, the dialog box
should look similar to this one. The icon in
front of the network indicates that it is
active. A red X there indicates a problem.
The computer may be still trying to locate
its own network, however, so please be
patient.
The network connection is now set up on the computer side. To enjoy your music, you now
need an audio server. We'll show you how easy that is to realize using Musicmatch Jukebox in
our example. For more information, please see page 25. You will also need to adapt the
NOXON to your network environment. For instructions, please turn to page 15.
12 ReceiverSystem NOXON Audio (English)
Preparing to use the device with a wireless router.
Using the NOXON with a wireless router generally does not require any configuration work on the router itself. This, however, depends on the extent to which
the network has been set up with an eye toward security. As the media have
frequently reported, it's not very advisable to use a router exclusively with its
default settings, as that leaves the network wide open for intrusion or misuse of the Internet
connection. The advantage of using the router with its default settings is naturally the simplicity with which devices accessing the router can be configured. For this reason, we will now go
over a number of properties that may be of importance.
For this purpose, you must be sufficiently familiar with the router—or its administrator—to
change its configuration and understand its overall handling. Normally, these devices use
Web interfaces for their administration. In other words, you only need to enter a specific address (e.g. 192.168.0.1) in your Web browser for it to display a convenient user interface giving
you access to all of the router's options.
A somewhat dated administration interface of a D-Link router.
Hello, here we are: SSID broadcast.
As explained in the technical glossary, the abbreviation SSID stands for the network name
sent out to all wireless network devices within range, informing them of the presence of a
network. Some routers, however, have an option to suppress the broadcast of the network
name. The option is a toggle that is usually called SSID Broadcast. If the broadcast is disabled, you must know the name in order to enter it manually.
ReceiverSystem NOXON Audio (English) 13
Loading...
